Drivers for Broadcom Dell Network cards

Featured Replies

Posted

Hello people!



My question is why unraid doesn't include the drivers for the newest Dell integrated network cards. I just bought a brand new Dell T640 and tried to install unraid. Unfortunately i'm not in for any luck on the network side. Probably it's an driver issue because "lspci" does show the two cards inside my system. But they don't show as network interfaces on the unraid webinterface. I tried windows with the driver and it just works perfectly. I tried adding the linux drivers from dell but that didn't work for me. Maybe there is somebody that can help met with this problem.



Maybe it's the wrong topic for this sub but i'm pointing it out anyways.



Anyhow, Please please add driver support for the new Broadcom BCM57416 NetXtreme-E 10Gb RDMA Ethernet Controller network card from Dell.



Cheers!














  • Author
https://cateee.net/lkddb/web-lkddb/BNXT.html

It says since 4.4 it's in kernel.

I would wait to try next unraid 6.6 with latest 4.17 kernel.
The weird thing is that I don't see the adapters in the web interface of unraid. Any ideas why?

Lspci shows the device though..

Verstuurd vanaf mijn SM-G965F met Tapatalk

  • Author
10 hours ago, johnnie.black said:

Please post your diagnostics: Tools -> Diagnostics

I want to do that but I can't connect to the pc in the local network because the networking isn't working....

I can only "download" the zip on the local machine, not on a remote machine.

  • Author

As shown in the picture below you can see the cards detected.

interface cards unraid.PNG

5 minutes ago, Bryans50 said:

I want to do that but I can't connect to the pc in the local network because the networking isn't working....

I can only "download" the zip on the local machine, not on a remote machine.

On the console type diagnostics and the zip will be saved to your flash drive, then just plug it in a desktop.

  • Author
18 minutes ago, johnnie.black said:

On the console type diagnostics and the zip will be saved to your flash drive, then just plug it in a desktop.

I send you the diagnostics in private.

Next time please use the forum instead of pm, but yeah the NICs are detected and no driver is loaded, if there's an available driver in the kernel LT are usually quick to add it and it should be on the next release.

  • Author
1 minute ago, johnnie.black said:

Next time please use the forum instead of pm, but yeah the NICs are detected and no driver is loaded, if there's an available driver in the kernel LT are usually quick to add it and it should be on the next release.

Ah alright! thanks I'll wait for the next release. Is there any way I can add the drivers myself?

Just now, Bryans50 said:

Is there any way I can add the drivers myself?

Possibly, but that's beyond my knowledge

  • Author
Just now, johnnie.black said:

Possibly, but that's beyond my knowledge

Ah thanks for the help though :)

  • 2 months later...

I'm planning on using a Dell T640 server. Has there been any progress on a driver for the internal network adapter? Currently as of, 09/17/2018 the OS version of unRaid is 6.5.3. Would a workaround be to install a separate network adapter card that has a kernel driver? I chose this server because it can house (18) 3.5 HDD's.

Those drivers have been included for a while now.  You can try latest 6.6.0-rc.  If no luck, we cannot do anything without diagnostics.zip because we need to see PCI ID's to see if they are actually in the source.  This site referenced by @Dazog says they should be, and looking at kernel 'menuconfig' we have all Broadcom device support turned on (and have for quite a while now), and specifically NetXtreme II 10Gb is included.

Thank you!

  • 9 months later...

Hi all,



Resurrecting this post from almost a year ago 😊.

I just purchased a Dell Broadcom 57810 10GB duel nic and in the same situation as above.

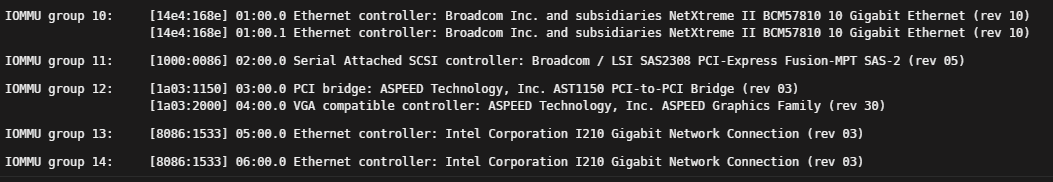

Below you can see my NetXtreme II BCM57810 in IOMMU Group 10 and my onboard duel 1GB nic's in group 13 & 14.

So UNraid can see the new card.






Problem is they just keep showing up as interface down

Eth0 & 1 is set to the new 10GB card

Eth 2 & 3 is set to the onboard 1GB card

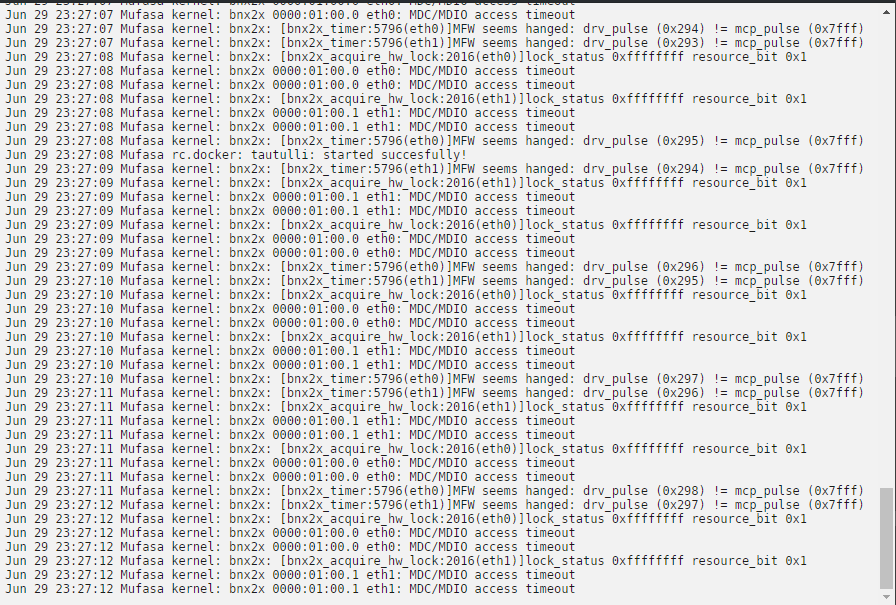

My log is currently being flooded with this. BNX2x is my 1 10GB port




Attached is my diagnostics please help 😜

mufasa-diagnostics-20190629-2306.zip

  • 6 months later...


Hi Guys


i cant seem to find a definitive answer will the Dell 165T0 Broadcom 57800S Quad Port Network Card work with UnRAID?

OR would the Mellanox MNPA19-XTR be a better choice?

Ideally id like an on board card


TIA

L33





  • 3 months later...

Is there any update on the Dell Broadcom 57810 10GB duel nic Unraid support?

I am thinking to buy Dell PowerEdge T640 with Unraid.

@aris, No one ever replied to me on it so just sold it and got another brand. Good luck.

Thanks @JPDom1. Which card did you bought and use? Is it Mellanox MNPA19-XTR?

  • 3 years later...

Broadcom 57416 Dual-Port 10GB (Dell 540-BBVJ)



Not tested with a router, just ran a cable to a server that has 10GB.

Guess this one is supported?

$ethtool eth2
Settings for eth2:
        Supported ports: [ TP ]
        Supported link modes:   1000baseT/Full
                                10000baseT/Full
        Supported pause frame use: Symmetric Receive-only
        Supports auto-negotiation: Yes
        Supported FEC modes: RS  BASER
        Advertised link modes:  1000baseT/Full
                                10000baseT/Full
        Advertised pause frame use: Symmetric
        Advertised auto-negotiation: Yes
        Advertised FEC modes: Not reported
        Speed: Unknown!
        Duplex: Unknown! (255)
        Auto-negotiation: on
        Port: Twisted Pair
        PHYAD: 12
        Transceiver: internal
        MDI-X: Unknown
        Supports Wake-on: d
        Wake-on: d
        Current message level: 0x00002081 (8321)
                               drv tx_err hw
