November 20, 20196 yr Switched to my open core setup which ive been running for the last week but was swapping to clover incase that seemed to work at all. Im feeling it might be something on my Unraid side but here is what I have if you're able to see where im wrong I had it working for one reboot but of course I can't remember what it actually was that had the TSC frequency correct. Power Metrics same as yours Package 0 C-state residency: 0.00% (C2: 0.00% C3: 0.00% C6: 0.00% C7: 0.00% C8: 0.00% C9: 0.00% C10: 0.00% ) Core 0 C-state residency: 0.00% (C3: 0.00% C6: 0.00% C7: 0.00% ) Core 1 C-state residency: 0.00% (C3: 0.00% C6: 0.00% C7: 0.00% ) Core 2 C-state residency: 0.00% (C3: 0.00% C6: 0.00% C7: 0.00% ) Core 3 C-state residency: 0.00% (C3: 0.00% C6: 0.00% C7: 0.00% ) Core 4 C-state residency: 0.00% (C3: 0.00% C6: 0.00% C7: 0.00% ) Core 5 C-state residency: 0.00% (C3: 0.00% C6: 0.00% C7: 0.00% ) Core 6 C-state residency: 0.00% (C3: 0.00% C6: 0.00% C7: 0.00% ) Core 7 C-state residency: 0.00% (C3: 0.00% C6: 0.00% C7: 0.00% ) Core 8 C-state residency: 0.00% (C3: 0.00% C6: 0.00% C7: 0.00% ) My XML <?xml version='1.0' encoding='UTF-8'?> <domain type='kvm' id='18' xmlns:qemu='http://libvirt.org/schemas/domain/qemu/1.0'> <name>Catalina</name> <uuid>0ddd6343-5321-0d66-54e0-8d9323087b00</uuid> <description>MacOS Catalina</description> <metadata> <vmtemplate xmlns="unraid" name="Linux" icon="macOS-catalina.png" os="linux"/> </metadata> <memory unit='KiB'>16777216</memory> <currentMemory unit='KiB'>16777216</currentMemory> <memoryBacking> <nosharepages/> </memoryBacking> <vcpu placement='static'>12</vcpu> <cputune> <vcpupin vcpu='0' cpuset='0'/> <vcpupin vcpu='1' cpuset='6'/> <vcpupin vcpu='2' cpuset='1'/> <vcpupin vcpu='3' cpuset='7'/> <vcpupin vcpu='4' cpuset='2'/> <vcpupin vcpu='5' cpuset='8'/> <vcpupin vcpu='6' cpuset='3'/> <vcpupin vcpu='7' cpuset='9'/> <vcpupin vcpu='8' cpuset='4'/> <vcpupin vcpu='9' cpuset='10'/> <vcpupin vcpu='10' cpuset='5'/> <vcpupin vcpu='11' cpuset='11'/> </cputune> <resource> <partition>/machine</partition> </resource> <os> <type arch='x86_64' machine='pc-q35-3.1'>hvm</type> <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd</loader> <nvram>/etc/libvirt/qemu/nvram/0ddd6343-5321-0d66-54e0-8d9323087b00_VARS-pure-efi.fd</nvram> </os> <features> <acpi/> <apic/> </features> <cpu mode='host-passthrough' check='none'/> <clock offset='utc'> <timer name='rtc' tickpolicy='catchup'/> <timer name='pit' tickpolicy='delay'/> <timer name='hpet' present='yes'/> </clock> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>restart</on_crash> <devices> <emulator>/usr/local/sbin/qemu</emulator> <disk type='file' device='disk'> <driver name='qemu' type='qcow2'/> <source file='/mnt/user/Virtual/opencore.release.qcow2'/> <backingStore/> <target dev='sda' bus='sata'/> <boot order='2'/> <alias name='sata0-0-0'/> <address type='drive' controller='0' bus='0' target='0' unit='0'/> </disk> <controller type='usb' index='0' model='ich9-ehci1'> <alias name='usb'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/> </controller> <controller type='usb' index='0' model='ich9-uhci1'> <alias name='usb'/> <master startport='0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/> </controller> <controller type='usb' index='0' model='ich9-uhci2'> <alias name='usb'/> <master startport='2'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/> </controller> <controller type='usb' index='0' model='ich9-uhci3'> <alias name='usb'/> <master startport='4'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/> </controller> <controller type='sata' index='0'> <alias name='ide'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/> </controller> <controller type='pci' index='0' model='pcie-root'> <alias name='pcie.0'/> </controller> <controller type='pci' index='1' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='1' port='0x8'/> <alias name='pci.1'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0' multifunction='on'/> </controller> <controller type='pci' index='2' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='2' port='0x9'/> <alias name='pci.2'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/> </controller> <controller type='pci' index='3' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='3' port='0xa'/> <alias name='pci.3'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x2'/> </controller> <controller type='pci' index='4' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='4' port='0xb'/> <alias name='pci.4'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x3'/> </controller> <controller type='pci' index='5' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='5' port='0xc'/> <alias name='pci.5'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x4'/> </controller> <controller type='pci' index='6' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='6' port='0xd'/> <alias name='pci.6'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x5'/> </controller> <controller type='pci' index='7' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='7' port='0xe'/> <alias name='pci.7'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x6'/> </controller> <controller type='pci' index='8' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='8' port='0xf'/> <alias name='pci.8'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x7'/> </controller> <controller type='pci' index='9' model='pcie-to-pci-bridge'> <model name='pcie-pci-bridge'/> <alias name='pci.9'/> <address type='pci' domain='0x0000' bus='0x01' slot='0x00' function='0x0'/> </controller> <controller type='virtio-serial' index='0'> <alias name='virtio-serial0'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x00' function='0x0'/> </controller> <interface type='network'> <source network='default' bridge='virbr0'/> <target dev='vnet0'/> <model type='e1000-82545em'/> <alias name='net0'/> <address type='pci' domain='0x0000' bus='0x09' slot='0x01' function='0x0'/> </interface> <serial type='pty'> <source path='/dev/pts/0'/> <target type='isa-serial' port='0'> <model name='isa-serial'/> </target> <alias name='serial0'/> </serial> <console type='pty' tty='/dev/pts/0'> <source path='/dev/pts/0'/> <target type='serial' port='0'/> <alias name='serial0'/> </console> <channel type='unix'> <source mode='bind' path='/var/lib/libvirt/qemu/channel/target/domain-18-Catalina/org.qemu.guest_agent.0'/> <target type='virtio' name='org.qemu.guest_agent.0' state='connected'/> <alias name='channel0'/> <address type='virtio-serial' controller='0' bus='0' port='1'/> </channel> <input type='mouse' bus='ps2'> <alias name='input0'/> </input> <input type='keyboard' bus='ps2'> <alias name='input1'/> </input> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x01' slot='0x00' function='0x0'/> </source> <alias name='hostdev0'/> <address type='pci' domain='0x0000' bus='0x04' slot='0x00' function='0x0' multifunction='on'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x01' slot='0x00' function='0x1'/> </source> <alias name='hostdev1'/> <address type='pci' domain='0x0000' bus='0x04' slot='0x00' function='0x1'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x03' slot='0x00' function='0x0'/> </source> <alias name='hostdev2'/> <address type='pci' domain='0x0000' bus='0x06' slot='0x00' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x02' slot='0x00' function='0x0'/> </source> <boot order='1'/> <alias name='hostdev3'/> <address type='pci' domain='0x0000' bus='0x07' slot='0x00' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x04' slot='0x00' function='0x0'/> </source> <alias name='hostdev4'/> <address type='pci' domain='0x0000' bus='0x08' slot='0x00' function='0x0'/> </hostdev> <memballoon model='none'/> </devices> <seclabel type='dynamic' model='dac' relabel='yes'> <label>+0:+100</label> <imagelabel>+0:+100</imagelabel> </seclabel> <qemu:commandline> <qemu:arg value='-device'/> <qemu:arg value='isa-applesmc <qemu:arg value='-smbios'/> <qemu:arg value='type=2'/> <qemu:arg value='-cpu'/> <qemu:arg value='host,kvm=on,+invtsc,+hypervisor,+avx,+avx2,+fma,+popcnt,+xsave,check'/> </qemu:commandline> </domain> And my Opencore config <?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd"> <plist version="1.0"> <dict> <key>ACPI</key> <dict> <key>Add</key> <array> <dict> <key>Comment</key> <string>Graphics</string> <key>Enabled</key> <true/> <key>Path</key> <string>SSDT-1.aml</string> </dict> <dict> <key>Comment</key> <string>CPUS</string> <key>Enabled</key> <true/> <key>Path</key> <string>SSDT-cpu.aml</string> </dict> <dict> <key>Comment</key> <string>QEMU</string> <key>Enabled</key> <false/> <key>Path</key> <string>q35-acpi-dsdt.aml</string> </dict> </array> <key>Quirks</key> <dict> <key>FadtEnableReset</key> <false/> <key>NormalizeHeaders</key> <false/> <key>RebaseRegions</key> <false/> <key>ResetHwSig</key> <false/> <key>ResetLogoStatus</key> <false/> </dict> </dict> <key>Booter</key> <dict> <key>Quirks</key> <dict> <key>AvoidRuntimeDefrag</key> <true/> <key>DevirtualiseMmio</key> <true/> <key>DisableSingleUser</key> <false/> <key>DisableVariableWrite</key> <false/> <key>DiscardHibernateMap</key> <false/> <key>EnableSafeModeSlide</key> <true/> <key>EnableWriteUnprotector</key> <true/> <key>ForceExitBootServices</key> <false/> <key>ProtectCsmRegion</key> <false/> <key>ProvideCustomSlide</key> <false/> <key>SetupVirtualMap</key> <true/> <key>ShrinkMemoryMap</key> <false/> </dict> </dict> <key>DeviceProperties</key> <dict> <key>Add</key> <dict> <key>PciRoot(0x1)/Pci(0x0,0x0)</key> <dict> <key>AAPL,slot-name</key> <string>Internal@1,0,0</string> <key>device_type</key> <string>Host bridge</string> <key>model</key> <string>82G33/G31/P35/P31 Express DRAM Controller</string> </dict> <key>PciRoot(0x1)/Pci(0x1,0x0)/Pci(0x0,0x0)</key> <dict> <key>AAPL,slot-name</key> <string>Internal@1,1,0/0,0</string> <key>device_type</key> <string>Audio device</string> <key>hda-gfx</key> <string>onboard-1</string> <key>model</key> <string>Ellesmere HDMI Audio [Radeon RX 470/480 / 570/580/590]</string> </dict> <key>PciRoot(0x1)/Pci(0x1,0x1)/Pci(0x0,0x0)</key> <dict> <key>AAPL,slot-name</key> <string>Internal@1,1,1/0,0</string> <key>built-in</key> <string>0x01</string> <key>device_type</key> <string>Network controller</string> <key>model</key> <string>BCM43602 802.11ac Wireless LAN SoC</string> </dict> <key>PciRoot(0x1)/Pci(0x2,0x0)/Pci(0x0,0x0)/Pci(0x1,0x0)</key> <dict> <key>AAPL,slot-name</key> <string>Internal@1,2,0/0,0/1,0</string> <key>device_type</key> <string>Ethernet controller</string> <key>model</key> <string>82545EM Gigabit Ethernet Controller (Copper)</string> </dict> <key>PciRoot(0x1)/Pci(0x2,0x3)/Pci(0x0,0x0)</key> <dict> <key>AAPL,slot-name</key> <string>Internal@1,2,3/0,0</string> <key>device_type</key> <string>Non-Volatile memory controller</string> <key>model</key> <string>NVMe SSD Controller SM961/PM961</string> </dict> <key>PciRoot(0x1)/Pci(0x2,0x4)/Pci(0x0,0x0)</key> <dict> <key>AAPL,slot-name</key> <string>Internal@1,2,4/0,0</string> <key>device_type</key> <string>USB controller</string> <key>model</key> <string>FL1100 USB 3.0 Host Controller</string> </dict> <key>PciRoot(0x1)/Pci(0x2,0x5)/Pci(0x0,0x0)</key> <dict> <key>AAPL,slot-name</key> <string>Internal@1,2,5/0,0</string> <key>device_type</key> <string>VGA compatible controller</string> <key>model</key> <string>Ellesmere [Radeon RX 470/480/570/570X/580/580X/590]</string> </dict> </dict> </dict> <key>Kernel</key> <dict> <key>Block</key> <array> <dict> <key>Enabled</key> <true/> <key>Identifier</key> <string>com.apple.driver.AppleTyMCEDriver</string> <key>MatchKernel</key> <string></string> </dict> </array> <key>Patch</key> <array> <dict> <key>Comment</key> <string>Black Screen Patch Vega 56/64, RX580 etc. (c)Pike R. Alpha</string> <key>Count</key> <integer>1</integer> <key>Enabled</key> <true/> <key>Find</key> <data> Ym9hcmQtaWQ= </data> <key>Identifier</key> <string>com.apple.driver.AppleGraphicsDevicePolicy</string> <key>Limit</key> <integer>0</integer> <key>Mask</key> <data> </data> <key>MatchKernel</key> <string></string> <key>Replace</key> <data> Ym9hcmQtaXg= </data> <key>ReplaceMask</key> <data> </data> <key>Skip</key> <integer>0</integer> </dict> </array> <key>Quirks</key> <dict> <key>AppleCpuPmCfgLock</key> <false/> <key>AppleXcpmCfgLock</key> <false/> <key>AppleXcpmExtraMsrs</key> <false/> <key>CustomSMBIOSGuid</key> <false/> <key>DisableIoMapper</key> <false/> <key>ExternalDiskIcons</key> <true/> <key>LapicKernelPanic</key> <true/> <key>PanicNoKextDump</key> <false/> <key>PowerTimeoutKernelPanic</key> <true/> <key>ThirdPartyTrim</key> <false/> <key>XhciPortLimit</key> <true/> </dict> </dict> <key>Misc</key> <dict> <key>Boot</key> <dict> <key>ConsoleBehaviourOs</key> <string>Graphics</string> <key>ConsoleBehaviourUi</key> <string>Graphics</string> <key>ConsoleMode</key> <string>Max</string> <key>HibernateMode</key> <string>Auto</string> <key>HideSelf</key> <true/> <key>PollAppleHotKeys</key> <false/> <key>Resolution</key> <string>1680x1050</string> <key>ShowPicker</key> <true/> <key>Timeout</key> <integer>5</integer> <key>UsePicker</key> <true/> </dict> <key>Debug</key> <dict> <key>DisableWatchDog</key> <false/> <key>DisplayDelay</key> <integer>0</integer> <key>DisplayLevel</key> <integer>0</integer> <key>Target</key> <integer>64</integer> </dict> <key>Security</key> <dict> <key>AllowNvramReset</key> <false/> <key>ExposeSensitiveData</key> <integer>2</integer> <key>HaltLevel</key> <integer>2147483648</integer> <key>RequireSignature</key> <false/> <key>RequireVault</key> <false/> <key>ScanPolicy</key> <integer>983299</integer> </dict> <key>Tools</key> <array> <dict> <key>Comment</key> <string>Not signed for security reasons</string> <key>Enabled</key> <false/> <key>Name</key> <string>UEFI Shell</string> <key>Path</key> <string>Shell.efi</string> </dict> <dict> <key>Comment</key> <string>Memory testing utility</string> <key>Enabled</key> <false/> <key>Name</key> <string>memcheck</string> <key>Path</key> <string>memcheck/memcheck.efi</string> </dict> </array> </dict> <key>NVRAM</key> <dict> <key>Add</key> <dict> <key>4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14</key> <dict> <key>UIScale</key> <data> AA== </data> </dict> <key>7C436110-AB2A-4BBB-A880-FE41995C9F82</key> <dict> <key>boot-args</key> <string>kext-dev-mode=1 -v</string> <key>csr-active-config</key> <data> ZwAAAA== </data> <key>nvda_drv</key> <data> MQ== </data> <key>prev-lang:kbd</key> <data> cnUtUlU6MjUy </data> </dict> </dict> <key>Block</key> <dict> <key>4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14</key> <array> <string>UIScale</string> </array> <key>7C436110-AB2A-4BBB-A880-FE41995C9F82</key> <array> <string>boot-args</string> </array> </dict> <key>LegacyEnable</key> <false/> <key>LegacySchema</key> <dict> <key>7C436110-AB2A-4BBB-A880-FE41995C9F82</key> <array> <string>EFIBluetoothDelay</string> <string>EFILoginHiDPI</string> <string>LocationServicesEnabled</string> <string>SystemAudioVolume</string> <string>SystemAudioVolumeDB</string> <string>bluetoothActiveControllerInfo</string> <string>bluetoothInternalControllerInfo</string> <string>flagstate</string> <string>fmm-computer-name</string> <string>nvda_drv</string> <string>prev-lang:kbd</string> </array> <key>8BE4DF61-93CA-11D2-AA0D-00E098032B8C</key> <array> <string>Boot0080</string> <string>Boot0081</string> <string>Boot0082</string> <string>BootNext</string> <string>BootOrder</string> </array> </dict> </dict> <key>PlatformInfo</key> <dict> </dict> <key>UpdateDataHub</key> <true/> <key>UpdateNVRAM</key> <true/> <key>UpdateSMBIOS</key> <true/> <key>UpdateSMBIOSMode</key> <string>Create</string> </dict> <key>UEFI</key> <dict> <key>ConnectDrivers</key> <true/> <key>Drivers</key> <array> <string>apfs.efi</string> <string>VBoxHfs.efi</string> <string>ApfsDriverLoader.efi</string> <string>AppleGenericInput.efi</string> <string>AptioInputFix.efi</string> <string>FwRuntimeServices.efi</string> <string>UsbKbDxe.efi</string> </array> <key>Input</key> <dict> <key>KeyForgetThreshold</key> <integer>5</integer> <key>KeyMergeThreshold</key> <integer>2</integer> <key>KeySupport</key> <false/> <key>KeySupportMode</key> <string></string> <key>KeySwap</key> <false/> <key>PointerSupport</key> <false/> <key>PointerSupportMode</key> <string></string> <key>TimerResolution</key> <integer>0</integer> </dict> <key>Protocols</key> <dict> <key>AppleBootPolicy</key> <false/> <key>AppleEvent</key> <false/> <key>AppleImageConversion</key> <false/> <key>AppleKeyMap</key> <false/> <key>AppleUserInterfaceTheme</key> <false/> <key>ConsoleControl</key> <true/> <key>DataHub</key> <false/> <key>DeviceProperties</key> <false/> <key>FirmwareVolume</key> <false/> <key>HashServices</key> <false/> <key>UnicodeCollation</key> <false/> </dict> <key>Quirks</key> <dict> <key>AvoidHighAlloc</key> <false/> <key>ClearScreenOnModeSwitch</key> <false/> <key>ExitBootServicesDelay</key> <integer>0</integer> <key>IgnoreInvalidFlexRatio</key> <true/> <key>IgnoreTextInGraphics</key> <true/> <key>ProvideConsoleGop</key> <true/> <key>ReconnectOnResChange</key> <false/> <key>ReleaseUsbOwnership</key> <false/> <key>ReplaceTabWithSpace</key> <false/> <key>RequestBootVarFallback</key> <false/> <key>RequestBootVarRouting</key> <false/> <key>SanitiseClearScreen</key> <true/> <key>UnblockFsConnect</key> <false/> </dict> </dict> </dict> </plist> Ive tested with topology and it just results in black screen after "UEFI splash screen" if I lower the cores to 8 I get kernel panic but haven't diagnosed this further but would prefer to stick to 12
November 20, 20196 yr 9 minutes ago, tpruszin said: it just results in black screen after "UEFI splash screen" Add this patch in opencore if kernel panic is related to x86_validate_topology: <?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd"> <plist version="1.0"> <dict> <key>Kernel</key> <dict> <key>Patch</key> <array> <dict> <key>Comment</key> <string>Disable x86_validate_topology</string> <key>Count</key> <integer>0</integer> <key>Enabled</key> <true/> <key>Find</key> <data> 6PT1//+c </data> <key>Identifier</key> <string>kernel</string> <key>Limit</key> <integer>0</integer> <key>Replace</key> <data> Dx9EAACc </data> <key>Skip</key> <integer>0</integer> </dict> </array> </dict> </dict> </plist>
November 20, 20196 yr 26 minutes ago, ghost82 said: Add this patch in opencore if kernel panic is related to x86_validate_topology: xml version="1.0" encoding="UTF-8"?> version="1.0">Kernel Patch Comment Disable x86_validate_topology Count 0 Enabled Find 6PT1//+c Identifier kernel Limit 0 Replace Dx9EAACc Skip 0 Hopefully it’s clear enough to read 6 cores and that patch result in black screen 4 cores (both 2 threads) results in the kernel panic as shown Both Still only displaying 3.199GHz Interesting aswell Unraid shows 100% on core 0 only when it is sitting on the black screen. Sent from my iPhone using Tapatalk Edited November 20, 20196 yr by tpruszin
November 20, 20196 yr 27 minutes ago, tpruszin said: Both Still only displaying 3.199GHz Interesting aswell Unraid shows 100% on core 0 only when it is sitting on the black screen. Update INVTSC is not showing up detected by the OS even tho its in my XML.... this is perhaps the problem or one of them

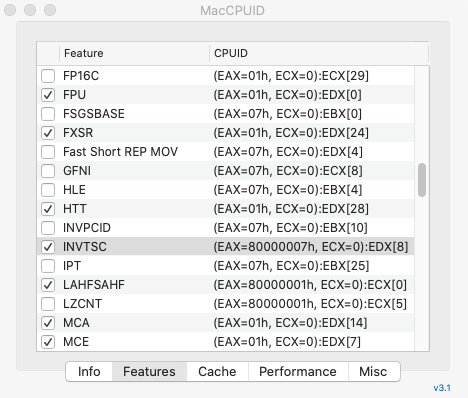

November 20, 20196 yr 3 hours ago, tpruszin said: INVTSC is not showing up detected by the OS even tho its in my XML Same here. EDIT: To enable it, add to qemu arg migratable=no <qemu:arg value='host,migratable=no,+invtsc, From qemu wiki: New "invtsc" (Invariant TSC) CPU feature. When enabled, this will block migration and savevm, so it is not enabled by default on any CPU model. To enable invtsc, the migratable=no flag (supported only by -cpu host, by now) is required. So, invtsc is available only if using: -cpu host,migratable=no,+invtsc. Edited November 20, 20196 yr by ghost82
November 20, 20196 yr On 11/19/2019 at 5:16 PM, Leoyzen said: Edited: wrong assumption Edited November 20, 20196 yr by ghost82
November 20, 20196 yr Thank a lot for your thread ! My Catalina work very very well (now with sound, thank again !) Now, I only need a better network card support for iCloud and nice down/upload to unraid (I try vmxnet3, iCloud work but 300Mb down for 120up ...) I waiting my AirPort and M,2 connector too for a real Mac alternative
November 20, 20196 yr 8 hours ago, ghost82 said: Same here. EDIT: To enable it, add to qemu arg migratable=no <qemu:arg value='host,migratable=no,+invtsc, From qemu wiki: New "invtsc" (Invariant TSC) CPU feature. When enabled, this will block migration and savevm, so it is not enabled by default on any CPU model. To enable invtsc, the migratable=no flag (supported only by -cpu host, by now) is required. So, invtsc is available only if using: -cpu host,migratable=no,+invtsc. Thanks for figuring that one out! Still only showing 3,199,999Hz Does yours show the correct Frequency for your CPU? My QEMU arg now is -cpu host,migratable=no,+invtsc,kvm=on,+hypervisor with host-passthrough as the only cpu value up the top of my XML
November 21, 20196 yr 7 hours ago, tpruszin said: Does yours show the correct Frequency for your CPU? Yes, mine is showing correctly. My xml config is similar to yours, with host-passthrough, exept that I'm also passing explicitly features: <qemu:arg value='host,+hypervisor,migratable=no,-erms,+invtsc,kvm=on,+topoext,+invtsc,+avx,+aes,+xsave,+xsaveopt,+ssse3,+sse4_2,+popcnt,+arat,+pclmuldq,+pdpe1gb,+rdtscp,+vme,+umip,check'/> You can try the following: - if you're using clover, input the cpu data: as an example, I'm reporting the data related to E5-2687W (see also cpu-z screenshot example): Frequency MHz: 3100 Bus Speed kHz: 105990 (mine was 100333) QPI: 3391 (mine was 4014) TDP: 150 These data reflect that appearing in cpu-z screenshot: in my case, when I was using clover, they were sligtly different, so it should be better to run cpu-z on your hardware and input these values. -if you're using opencore you can try to add custom-arg busratio, in my case for E5-2687W it's busratio=31. Also, you can add data into PlatformInfo->DataHub->ARTFrequency, FSBFrequency Edited November 21, 20196 yr by ghost82

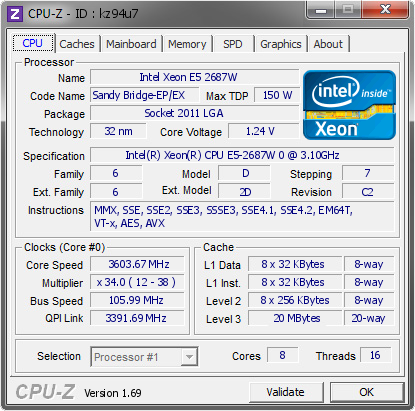

November 21, 20196 yr 5 hours ago, ghost82 said: Yes, mine is showing correctly. My xml config is similar to yours, with host-passthrough, exept that I'm also passing explicitly features: <qemu:arg value='host,+hypervisor,migratable=no,-erms,+invtsc,kvm=on,+topoext,+invtsc,+avx,+aes,+xsave,+xsaveopt,+ssse3,+sse4_2,+popcnt,+arat,+pclmuldq,+pdpe1gb,+rdtscp,+vme,+umip,check'/> You can try the following: - if you're using clover, input the cpu data: as an example, I'm reporting the data related to E5-2687W (see also cpu-z screenshot example): Frequency MHz: 3100 Bus Speed kHz: 105990 (mine was 100333) QPI: 3391 (mine was 4014) TDP: 150 These data reflect that appearing in cpu-z screenshot: in my case, when I was using clover, they were sligtly different, so it should be better to run cpu-z on your hardware and input these values. -if you're using opencore you can try to add custom-arg busratio, in my case for E5-2687W it's busratio=31. Also, you can add data into PlatformInfo->DataHub->ARTFrequency, FSBFrequency Still no luck With the extra flags sadly it showed 3,200,600 Hz for one boot rebooted without changing anything and back to 3,199,999 clover on Hackinabox doesn’t boot past clover flash so i will try and get a working clover config to test out tomorrow I suppose the real question as well is what is your audio like when playing videos music seems fine but videos I always seem to skip no matter the bus they are outputting Edited November 21, 20196 yr by tpruszin
November 21, 20196 yr 3 hours ago, tpruszin said: I suppose the real question as well is what is your audio like when playing videos music seems fine but videos I always seem to skip no matter the bus they are outputting My audio is perfectly fine; I'm currently using lilu+appleALC but was working the same with voodooHDA. I'm passing through both nvidia and onboard audio: here is the relevant part of the xml: Nvidia gpu+audio (same bus, same slot, different function): <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x83' slot='0x00' function='0x0'/> </source> <alias name='hostdev0'/> <rom file='/mnt/user/GTXTitanBlack.dump'/> <address type='pci' domain='0x0000' bus='0x03' slot='0x00' function='0x0' multifunction='on'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x83' slot='0x00' function='0x1'/> </source> <alias name='hostdev1'/> <address type='pci' domain='0x0000' bus='0x03' slot='0x00' function='0x1'/> </hostdev> Onboard audio (bus 0): <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x00' slot='0x1b' function='0x0'/> </source> <alias name='hostdev2'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0' multifunction='on'/> </hostdev>
November 21, 20196 yr Here another issue, maybe related to the lack of c and p states: On real machintosh the output shows values for CPU_Scheduler_Limit, CPU_Available_CPUs and CPU_Speed_Limit. Lack of this may be linked to Turbo, and it can explain lower results in geekbench tests. Tried with different smbios: imacpro1,1 and also imac12,2 (because I have Sandy bridge). I tried: 1- Pike's script to generate SSDT: ./ssdtPRGen.sh -b Mac-7BA5B2D9E42DDD94 -p 'E5-2687W' By inserting the SSDT into opencore I see no relevant changes in ioreg. 2- CPUFriend + CPUFriendDataProvider ./ResourceConverter.sh --kext /System/Library/Extensions/IOPlatformPluginFamily.kext/Contents/PlugIns/X86PlatformPlugin.kext/Contents/Resources/Mac-942B59F58194171B.plist CPUFriendDataProvider is generated, injected through opencore with lilu+CPUFriend, I can see in ioreg a new entry in AppleACPICPU named "cf-frequency-data", but no pstates nor cstates under X86PlatformPlugin. 3- Pike's script + CPUFriend + CPUFriendDataProvider Using Pike's script to generate SSDT (SSDT-pr.aml), then using it with ResourceConverter: ./ResourceConverter.sh --kext /Users/daniele/Desktop/SSDT-pr.aml CPUFriendDataProvider is generated (different from that of point 2), injected through opencore with lilu+CPUFriend, I can see in ioreg a new entry in AppleACPICPU named "cf-frequency-data", but no pstates nor cstates under X86PlatformPlugin. Also opencore during boot shows messages like "ACST and _CST evaluations failed", "APSS and _PSS evaluations failed", "Failed to get CPU P States", "Deepsleep is not supported". Ideas are ended Edited November 21, 20196 yr by ghost82
November 21, 20196 yr 17 minutes ago, ghost82 said: My audio is perfectly fine; I'm currently using lilu+appleALC but was working the same with voodooHDA. I'm passing through both nvidia and onboard audio: here is the relevant part of the xml: Nvidia gpu+audio (same bus, same slot, different function): <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x83' slot='0x00' function='0x0'/> </source> <alias name='hostdev0'/> <rom file='/mnt/user/GTXTitanBlack.dump'/> <address type='pci' domain='0x0000' bus='0x03' slot='0x00' function='0x0' multifunction='on'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x83' slot='0x00' function='0x1'/> </source> <alias name='hostdev1'/> <address type='pci' domain='0x0000' bus='0x03' slot='0x00' function='0x1'/> </hostdev> Onboard audio (bus 0): <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x00' slot='0x1b' function='0x0'/> </source> <alias name='hostdev2'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0' multifunction='on'/> </hostdev> When putting my audio on the same bus as the gpu i get no volume controls from my display port and no sound, it is displayed in the sound options. Do i need AppleALC kext to get that to work, working sound from the GPU? Im using a rx 570 and i use a usb audio device for sound and it works without any issues but this would free up a usb port.
November 21, 20196 yr 3 minutes ago, david279 said: Do i need AppleALC kext to get that to work, working sound from the GPU? Do you have HDAU in ioreg beside the GPU? AppleALC correctly handles the audio (including that integrated in the gpu), so I think you need it. How do you currently manage the audio?
November 21, 20196 yr Just now, ghost82 said: Do you have HDAU in ioreg beside the GPU? AppleALC correctly handles the audio (including that integrated in the gpu), so I think you need it. How do you currently manage the audio? I use a usb audio device right now that works out the box without any kext needed. Just looking to free up a usb port. The device has worked in every Mac version i have used without issue. Audio controls work and everything.

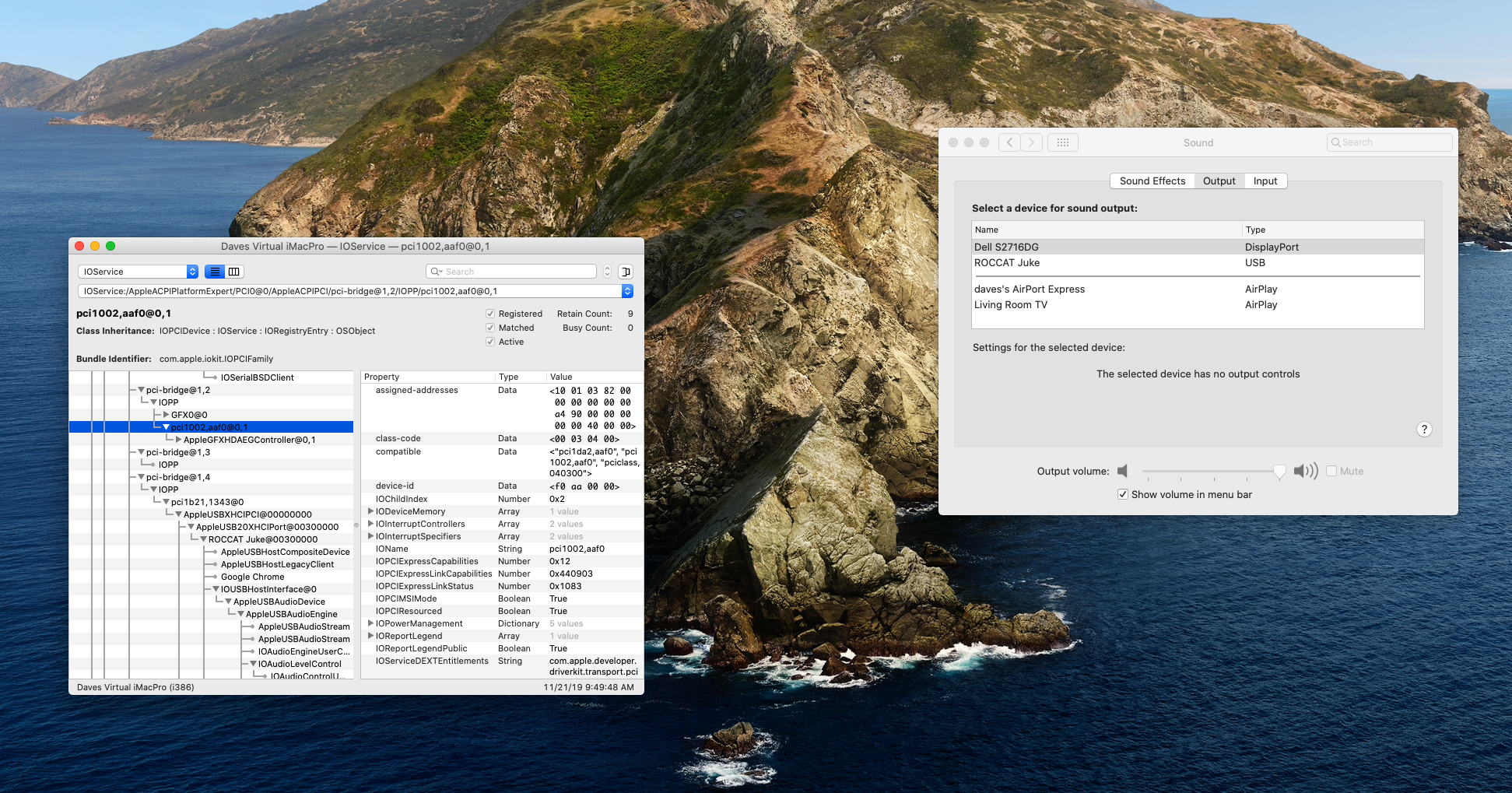

November 21, 20196 yr This is what the sound out for my GPU looks like. My monitor has no speaker but has a audio out port i will try.
November 21, 20196 yr 23 minutes ago, ghost82 said: Do you have HDAU in ioreg beside the GPU? AppleALC correctly handles the audio (including that integrated in the gpu), so I think you need it. How do you currently manage the audio? AppleALC kext fixed up the device but i get no actual sound controls so i cant change the Volume so a win and a lost.

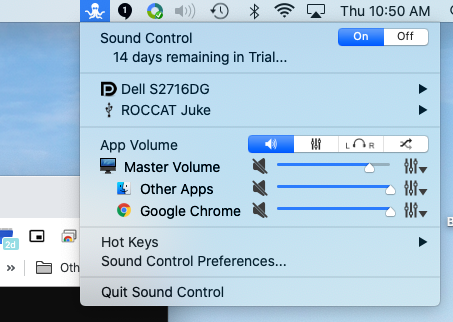

November 21, 20196 yr Ok downloaded a app called sound control to control the master volume of my GPU
November 21, 20196 yr 24 minutes ago, david279 said: Ok downloaded a app called sound control to control the master volume of my GPU Are you sure you can control volume for hdmi from osx?I never used it as I'm using the built in audio, but from what I can see here: it is not possible directly...am I right? Can I ask you if you disconnect the hdmi cable from the gpu, if you see the hdmi audio in sound preference panel? Edited November 21, 20196 yr by ghost82

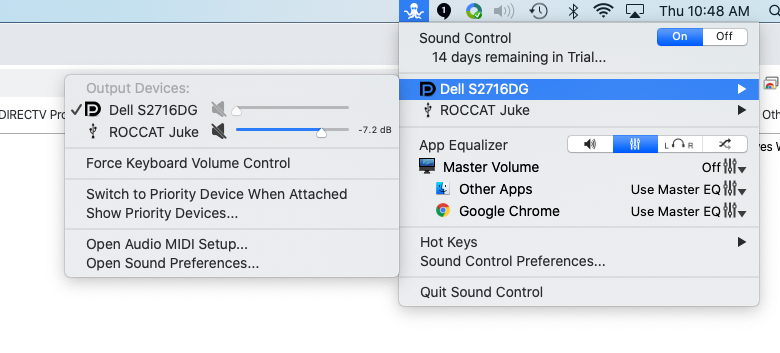

November 21, 20196 yr If i unplug the cable i lose the DP audio in the sound prefs. The app im using sound control allows me to control the volume from the DP port or the USB device. Its actually a decent app. I can still use the volume wheel on my keyboard and it looks just like the volume display like a built in device. Edited November 21, 20196 yr by david279

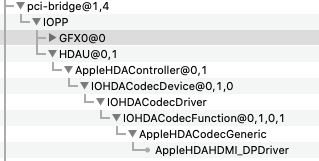

November 21, 20196 yr Thanks I cannot test the hdmi audio, I have not cables, and I couldn't see any hdmi audio port in the sound preference panel, so I asked. But in ioreg everything seems ok: HDAU is in place, and the driver is attached, so I think it's working. I suggest to take in place the AppleALC+WEG+Lilu kexts.
November 21, 20196 yr Hi, iMacPro1,1 work for you ? I get kernel panic if I switch Edit : Second question, customize Ram Slot can improve performance ? I passthrough a RX480, Lilu 1,39 is needed ? Edited November 21, 20196 yr by Balooforever
November 21, 20196 yr 10 hours ago, Balooforever said: Hi, iMacPro1,1 work for you ? I get kernel panic if I switch Edit : Second question, customize Ram Slot can improve performance ? I passthrough a RX480, Lilu 1,39 is needed ? For the kernel panic you probably need AppleMCEReporterDisabler.kext to be injected by your bootloader. Ram mapping doesn't improve performance. Lilu+weg are adviced for correct gpu management. Edited November 22, 20196 yr by ghost82
November 21, 20196 yr 13 minutes ago, ghost82 said: For the kernel panic you probably need AppleMCEReporterDisabler.kext to be injected by your bootloader. Ram mapping doesn't improve performance. Lilu is adviced for correct gpu management. Thank a lot for AppleMCERrporterDisabler.kext -> its work For Lilu, my RX480 work with metal, I don t understand why I need 1.39 (I use 1.38)
November 21, 20196 yr Lilu 1.3.8 doesn't work with qemu: Leoyzen pointed out this issue at github and now v.1.3.9 can be used with qemu. I don't know why your gpu works, but not for lilu 1.3.8 for sure
