9 hours ago, MrLondon said:

Have you looked at this Tutorial which is actually really good https://technicalramblings.com/blog/how-to-setup-grafana-influxdb-and-telegraf-to-monitor-your-unraid-system/

thats what i tryed to follow but i got stuck at the telegraf settings as i mentioned

3 minutes ago, stFfn said:

thats what i tryed to follow but i got stuck at the telegraf settings as i mentioned

I can post my Telegraf Config later today. What SPECIFICALLY are you stuck on? If you read my instructions on page 1, you just need to enable certain features by removing the comment “#” in front.



8 minutes ago, stFfn said:

thats what i tryed to follow but i got stuck at the telegraf settings as i mentioned

Are you installing each of the docker containers separately (Telegraf, InfluxDB, Grafana) and trying to configure each one as per that guide?  I assume so or why follow the guide!



I found it much easier to install the Grafana unRAID Stack (GUS) docker container which installs and configures all three containers.  After that, all I had to do was make sure the telegraf.conf was configured for the sources I wanted (basically uncommenting a few lines and adding one source that was "missing").  I then imported UUD as the dashboard used in GUS.  It was all very easy compared to trying to work with the containers individually.

i got stuck at this part.

Quote

Uncomment the following plugins and lines:

HDD temps/stats:  [[inputs.smart]]

CPU temps:  [[inputs.sensors]] and  attributes = true(This is default set to false)

Network:  [[inputs.net]] and  interfaces = ["eth0"] ect

Netstat: [[inputs.netstat]]

Docker: [[inputs.docker]] and endpoint = "unix:///var/run/docker.sock"



i will try to use the GUS now

3 minutes ago, stFfn said:

i will try to use the GUS now

One of the other advantages of GUS is that it includes Loki and Promtail all pre-configured and ready to go.  These greatly improve Grafana logging capabilities.

4 minutes ago, Hoopster said:

One of the other advantages of GUS is that it includes Loki and Promtail all pre-configured and ready to go.  These greatly improve Grafana logging capabilities.

would you mind chatting with me a little bit on discord?

24 minutes ago, Hoopster said:

I found it much easier to install the Grafana unRAID Stack (GUS) docker container which installs and configures all three containers.  After that, all I had to do was make sure the telegraf.conf was configured for the sources I wanted (basically uncommenting a few lines and adding one source that was "missing").  I then imported UUD as the dashboard used in GUS.  It was all very easy compared to trying to work with the containers individually.



GUS includes UUD 1.3 with my permission. I am not sure if @testdasi has included my latest release UUD 1.4. However, as Hoopster said, you can manually import version 1.4, and soon 1.5, right into Grafana once GUS is installed.



Edited November 17, 20205 yr by falconexe

Just now, falconexe said:



GUS includes UUD 1.3 with my permission. I am not sure if @testdasi has included my latest release UUD 1.4. However, as Hoopster said, you can manually import version 1.4, and soon 1.5, right into Grafana once GUS is installed.





Once more thing. Since UUD version 1.5 will be using Varken to source Plex stats (via Tautulli), GUS will no longer provide all functionality out of the box (unless @testdasi adds Varken support).



You will still need to install and configure Plex/Tautuilli/Varken if you want to see Plex stats. If Plex is of no interest to you, then you can just remove those panels and just get the 1.5 code updates everywhere else.

6 minutes ago, falconexe said:



GUS includes UUD 1.3 with my permission. I am not sure if @testdasi has included my latest release UUD 1.4. However, as Hoopster said, you can manually import version 1.4, and soon 1.5, right into Grafana once GUS is installed.

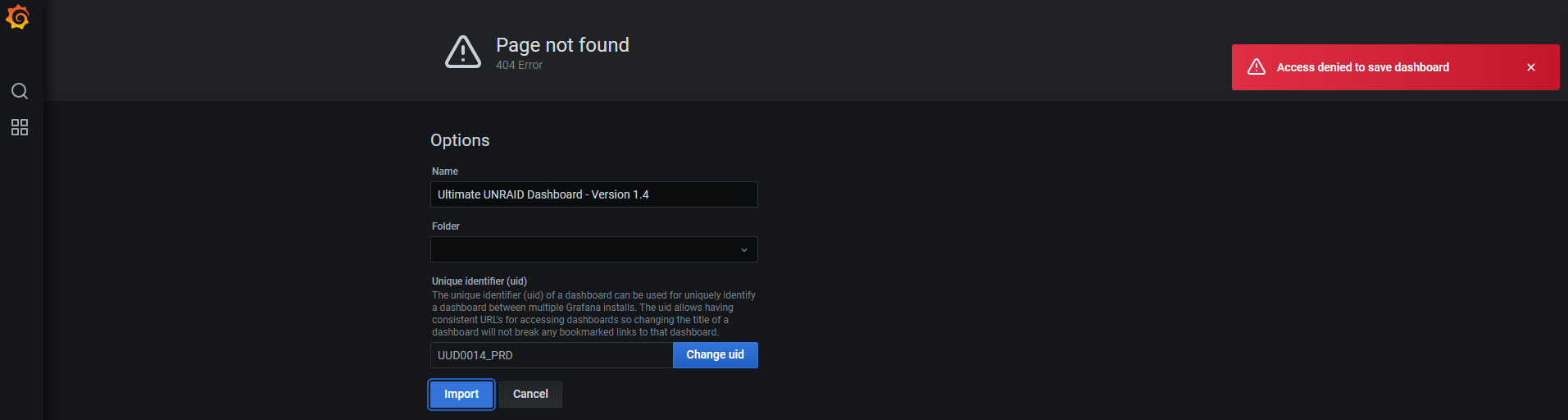

1.4 is not included. how can i import 1.4? i dont see a upload button like there usually is in grafana.

if i try to copy it in the right folder over network i cant because i dont have permission 😕

Hi in Grafana, there is the + button on the the left side, if you hover over this you can see Import, here you can select the json file you downloaded from the first page.

3 minutes ago, MrLondon said:

Hi in Grafana, there is the + button on the the left side, if you hover over this you can see Import, here you can select the json file you downloaded from the first page.

thats the point.. there is no +....

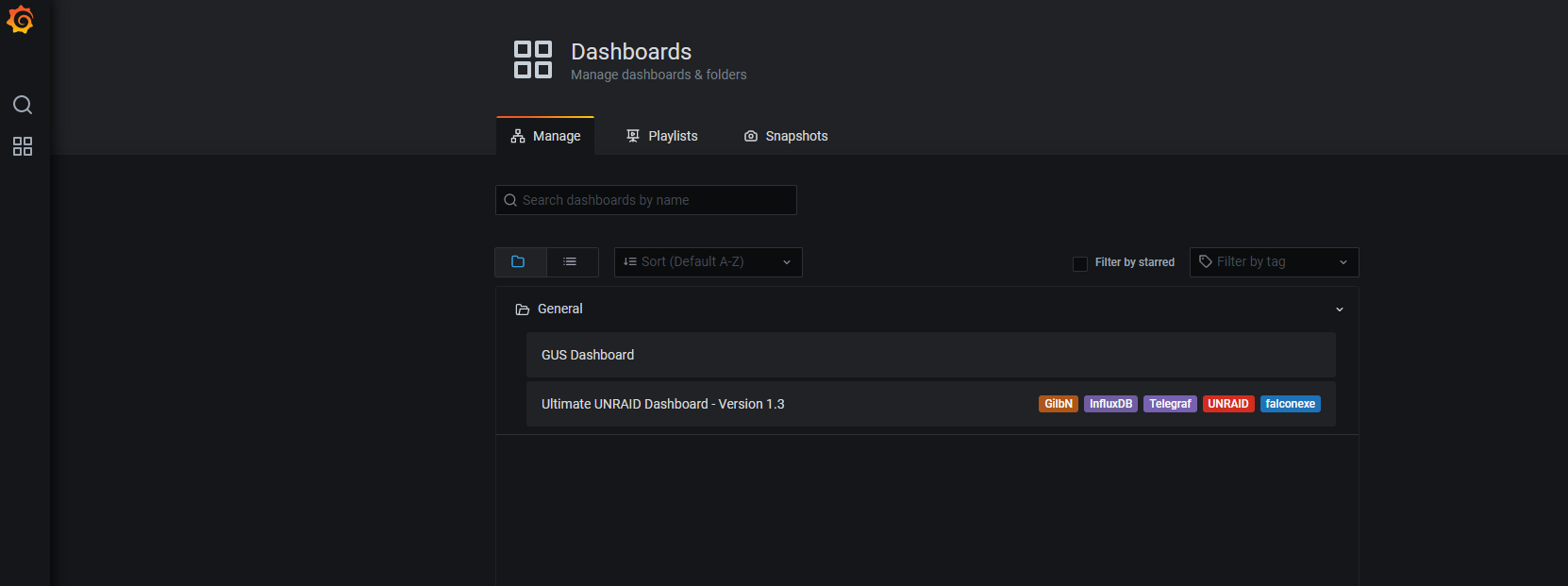

so if you select the UUD 1.3, do you then see the + on the left?

no

59 minutes ago, stFfn said:

1.4 is not included. how can i import 1.4? i dont see a upload button like there usually is in grafana.

For some things to appear you have to be logged in to Grafana.  This is what you should see if logged in:



1 minute ago, Hoopster said:

For some things to appear you have to be logged in to Grafana.  This is what you should see if logged in:



im not logged in. and i dont see the option to creat an accout.  do i have to do this somewhere else?

Please try this link "ipaddress of unraid":3000/dashboard/import see if you get the import screen

1 minute ago, MrLondon said:

Please try this link "ipaddress of unraid":3000/dashboard/import see if you get the import screen

thx but i dont have permissionts



5 minutes ago, stFfn said:

im not logged in. and i dont see the option to creat an accout.  do i have to do this somewhere else?

Down at the bottom on the left side of Grafana is where you can log in and manage accounts and preferences.



Logged out it will look a little different, but there should be a log in option.



you need an admin account at least as admin user type

Just now, Hoopster said:

Down at the bottom on the left side of Grafana is where you can log in and manage accounts and preferences.



Logged out it will look a little different, but there should be a log in option.



Yes i tryed that. but i can only log in. but without an accout thats kinda difficult

thats why im asking where i can creat an account





2 minutes ago, stFfn said:

Yes i tryed that. but i can only log in. but without an accout thats kinda difficult

thats why im asking where i can creat an account

When I installed the GUS docker there was an admin account already setup in Grafana I believe.  I have changed the password so I do not remember the default password.  Perhaps it is documented in the dockerhub or github pages for GUS (looking now to see what it says about adding or changing account info).

1 minute ago, Hoopster said:

When I installed the GUS docker there was an admin account already setup in Grafana I believe.  I have changed the password so I do not remember the default password.  Perhaps it is documented in the dockerhub or github pages for GUS (looking now to see what it says about adding or changing account info).

admin

admin



thx

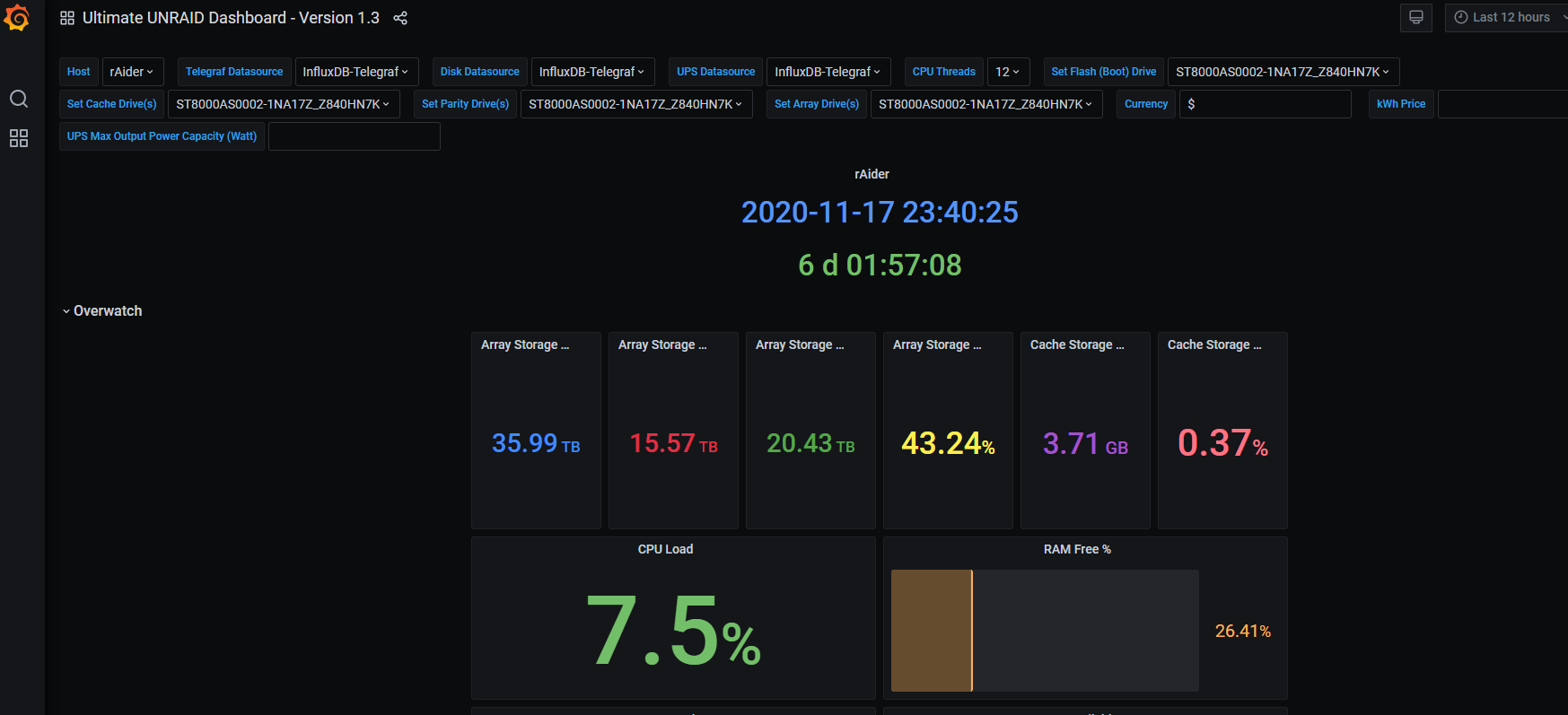

hmmm a lot of no data...

i´m going to bed now. maybe someone can help me modify it tomorrow?

1 minute ago, stFfn said:

admin

admin



thx

Yeah, that's it.  Just checked DockerHub.

1 minute ago, stFfn said:

hmmm a lot of no data...

This is where tweaking telegraf.conf and providing certain variables and manipulating the UUD configuration to your needs comes into play.
