September 21, 20232 yr Author 5 minutes ago, irishjd said: So I have one more issue. Frigate is working exactly as expected. It is capturing footage of the birds and recognizing them as a "bird". However, WhosAtMyFeeder is not logging anything. What is the best way to troubleshoot this issue? Did you followed the steps to make the required changes on the frigate config in all the cameras that are you going to use alongside whosatmyfeeder? https://github.com/mmcc-xx/WhosAtMyFeeder/
September 21, 20232 yr I did, I used the sample as a template. Here is what my frigate config.yml looks like: mqtt: host: mqtt port: 1883 topic_prefix: frigate # user: mqtt_username_here # password: mqtt_password_here stats_interval: 60 detectors: coral: type: edgetpu device: usb ffmpeg: global_args: -hide_banner -loglevel warning # hwaccel_args: -hwaccel_output_format qsv -c:v h264_qsv input_args: preset-rtsp-generic output_args: # Optional: output args for detect streams (default: shown below) detect: -threads 2 -f rawvideo -pix_fmt yuv420p # Optional: output args for record streams (default: shown below) record: preset-record-generic detect: width: 1920 height: 1080 objects: track: - bird snapshots: enabled: true cameras: birdcam: record: enabled: True events: pre_capture: 5 post_capture: 5 objects: - bird ffmpeg: # hwaccel_args: -hwaccel_output_format qsv -c:v h264_qsv inputs: - path: rtsps://192.168.100.1:7441/uN84YwyHVF8TCCd8?enableSrtp roles: - detect - record mqtt: enabled: True bounding_box: False #this will get rid of the box around the bird. We already know it is a bird. Sheesh. timestamp: False #this will get rid of the time stamp in the image. quality: 95 #default quality is 70, which will get you lots of compression artifacts I had to comment out the hardware acceleration settings as I still don't have a discrete GPU (on order).
September 21, 20232 yr So it finally updated and posted one. It looks like there is a long delay between Frigate recording it and it showing up in WhosAtMyFeeder? There is about a two hour difference on the timestamps. Edited September 21, 20232 yr by irishjd

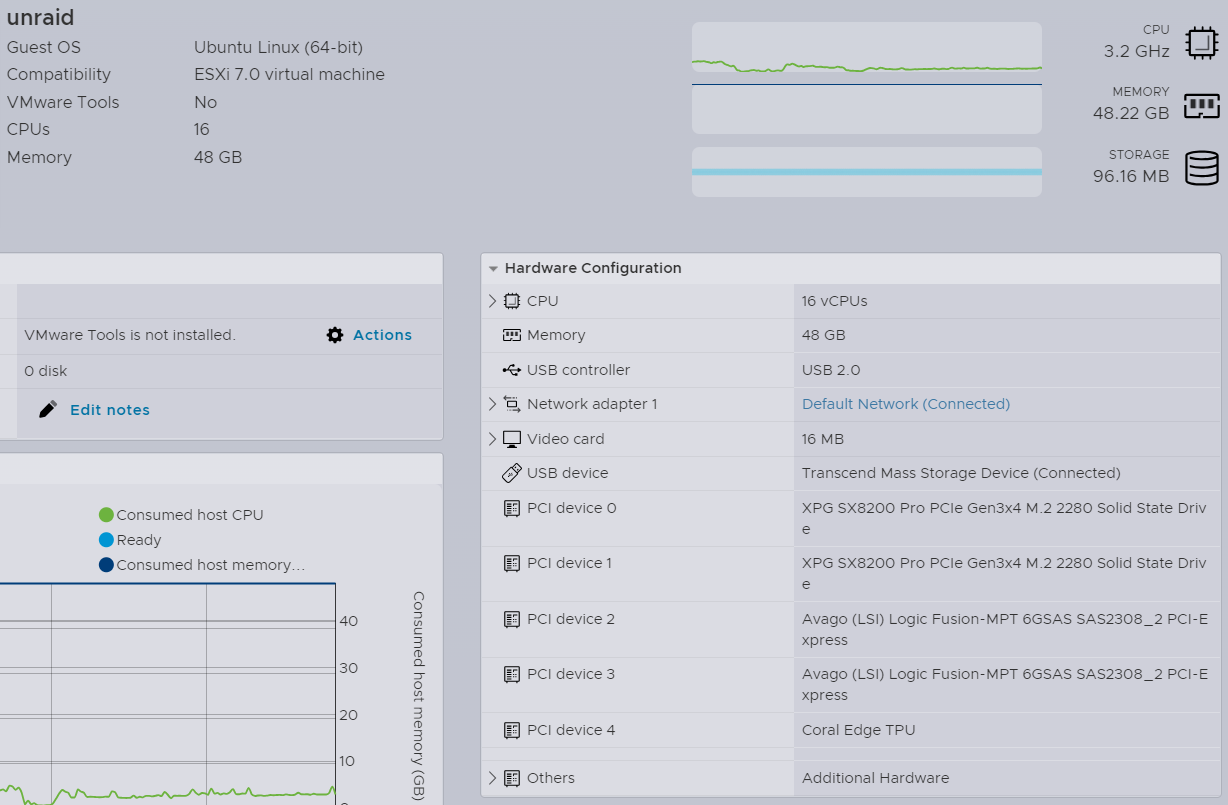

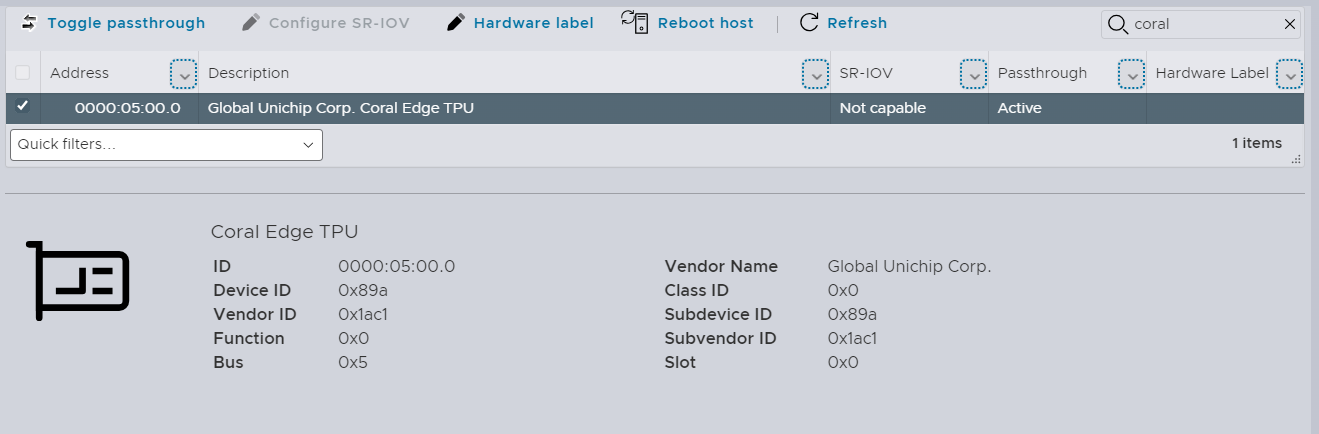

September 22, 20232 yr Would love some advice on getting mini pcie coral up and running. underlying hardware might be causing issues - unraid is running virtualized on esxi 7 on a dell r730. coral is passed through to unraid shows up in system devices - driver is installed but *doesn't* show on coral driver status screen, subsequently doesn't show in frigate container. driver version installed is 2023.07.31 [1ac1:089a]03:00.0 System peripheral: Global Unichip Corp. Coral Edge TPU any suggestions would be much appreciated.
September 23, 20232 yr Author 16 hours ago, tiresome-stag5095 said: Would love some advice on getting mini pcie coral up and running. underlying hardware might be causing issues - unraid is running virtualized on esxi 7 on a dell r730. coral is passed through to unraid shows up in system devices - driver is installed but *doesn't* show on coral driver status screen, subsequently doesn't show in frigate container. driver version installed is 2023.07.31 [1ac1:089a]03:00.0 System peripheral: Global Unichip Corp. Coral Edge TPU any suggestions would be much appreciated. @ich777 do you have any advice for virtualized unraids?
September 23, 20232 yr 12 minutes ago, yayitazale said: @ich777 do you have any advice for virtualized unraids? Sadly enough no, there are too many variables involved in virtualized environments. 16 hours ago, jeremiahchurch said: [1ac1:089a]03:00.0 System peripheral: Global Unichip Corp. Coral Edge TPU Please post your Diagnostics. I‘m not sure but most of the times it has to do with the Host system. I‘ve seen such issues a few times with Nvidia GPUs too.
September 23, 20232 yr 7 hours ago, ich777 said: Please post your Diagnostics. I‘m not sure but most of the times it has to do with the Host system. I‘ve seen such issues a few times with Nvidia GPUs too. absolutely, please let me know if you need anything else. Really appreciate you taking the time! jcserv-diagnostics-20230923-1815.zip Edited September 23, 20232 yr by jeremiahchurch
September 26, 20232 yr Author On 9/14/2023 at 4:42 PM, yayitazale said: Now that the beta1 is official I have added the beta1 and beta1-tensor tags to the deploy selector. Anyone interested can test the beta1 just installing a second instance with the beta tag. I strongly suggest you to use a different paths than the stable frigate for config and media folders. Steps to securely test betas: Create a new folder on appdata called frigate-beta. Create a new media folder again with a different name. Just stop the running stable frigate app, don't delete. Copy and paste the config file in the new folder and edit it modifying it with the new requirements. Optionally, copy and paste the database file in the new folder. Launch the new frigate beta as a second instance with a different name, like "frigate-beta" and change the path of the config file and media path to the new ones. In this way you can have both old and new frigate (only one running but both containers): You can make trials to make beta to work, but if you don't make it in just one try, you can just stop the frigate beta and start the stable one as many times as you need. Don't forget to delete the unused orphan images clicking in the advanced view in the docker container page: Pushed a change to the template to replace beta 1 with beta 2, anyone who wants to try has to reinstall it again following the same steps as for beta 1. Will be available in the CA store shortly. Edited September 26, 20232 yr by yayitazale
September 26, 20232 yr For 0.12 what are folks doing to get the intel gpu stats? Currently I'm running as privileged but would rather not. Configuring Intel GPU Stats in Docker Additional configuration is needed for the Docker container to be able to access the intel_gpu_top command for GPU stats. Three possible changes can be made: Run the container as privileged. Adding the CAP_PERFMON capability. Setting the perf_event_paranoid low enough to allow access to the performance event system. Run as privileged This method works, but it gives more permissions to the container than are actually needed. Docker Compose - Privileged services: frigate: ... image: ghcr.io/blakeblackshear/frigate:stable privileged: true Docker Run CLI - Privileged docker run -d \ --name frigate \ ... --privileged \ ghcr.io/blakeblackshear/frigate:stable CAP_PERFMON Only recent versions of Docker support the CAP_PERFMON capability. You can test to see if yours supports it by running: docker run --cap-add=CAP_PERFMON hello-world Docker Compose - CAP_PERFMON services: frigate: ... image: ghcr.io/blakeblackshear/frigate:stable cap_add: - CAP_PERFMON Docker Run CLI - CAP_PERFMON docker run -d \ --name frigate \ ... --cap-add=CAP_PERFMON \ ghcr.io/blakeblackshear/frigate:stable perf_event_paranoid Note: This setting must be changed for the entire system. For more information on the various values across different distributions, see https://askubuntu.com/questions/1400874/what-does-perf-paranoia-level-four-do. Depending on your OS and kernel configuration, you may need to change the /proc/sys/kernel/perf_event_paranoid kernel tunable. You can test the change by running sudo sh -c 'echo 2 >/proc/sys/kernel/perf_event_paranoid' which will persist until a reboot. Make it permanent by running sudo sh -c 'echo kernel.perf_event_paranoid=1 >> /etc/sysctl.d/local.conf' Edited September 26, 20232 yr by dopeytree
September 27, 20232 yr I'm trying to get my Coral USB working but I'm running into issues. I have /dev/bus/usb in the docker setting and use the below for the config settings: coral: type: edgetpu device: usb But I get this error and the container keeps restarting. If I comment the coral out and just use my nvidia gpu it works fine. Any ideas what I need to fix this? [2023-09-27 20:59:54] frigate.detectors.plugins.edgetpu_tfl INFO : TPU found [2023-09-27 20:59:54] frigate.detectors.plugins.edgetpu_tfl ERROR : No EdgeTPU was detected. If you do not have a Coral device yet, you must configure CPU detectors. The docker is running in privilaged mode
September 27, 20232 yr Author 9 minutes ago, BurningSky said: I'm trying to get my Coral USB working but I'm running into issues. I have /dev/bus/usb in the docker setting and use the below for the config settings: coral: type: edgetpu device: usb But I get this error and the container keeps restarting. If I comment the coral out and just use my nvidia gpu it works fine. Any ideas what I need to fix this? [2023-09-27 20:59:54] frigate.detectors.plugins.edgetpu_tfl INFO : TPU found [2023-09-27 20:59:54] frigate.detectors.plugins.edgetpu_tfl ERROR : No EdgeTPU was detected. If you do not have a Coral device yet, you must configure CPU detectors. The docker is running in privilaged mode Can you test it with another computer with any of the examples of https://coral.ai/examples/#code-examples? Can you see it listed on the devices on unraid? Edited September 27, 20232 yr by yayitazale
September 29, 20232 yr I am having a similar issue when it comes to installing the tensorrt models. However, mine show me that permission is denied when the docker app tries accessing the model. Do you know how I can fix this issue? I have tried changing the permissions on the file to read/write for all but it doesn't seem to change anything. I realize that this may be an issue pertaining to permissions but i really want to make sure i am setting everything up correctly as well. Here is my docker config. I have placed this file under the trt-models directory. https://raw.githubusercontent.com/blakeblackshear/frigate/master/docker/tensorrt_models.sh Below is what I get in the Logs after running the docker app. /opt/nvidia/nvidia_entrypoint.sh: line 49: /tensorrt_models.sh: Permission denied /opt/nvidia/nvidia_entrypoint.sh: line 49: exec: /tensorrt_models.sh: cannot execute: Permission denied ===================== == NVIDIA TensorRT == ===================== NVIDIA Release 22.07 (build 40077977) NVIDIA TensorRT Version 8.4.1 Copyright (c) 2016-2022, NVIDIA CORPORATION & AFFILIATES. All rights reserved. Container image Copyright (c) 2022, NVIDIA CORPORATION & AFFILIATES. All rights reserved. https://developer.nvidia.com/tensorrt Various files include modifications (c) NVIDIA CORPORATION & AFFILIATES. All rights reserved. This container image and its contents are governed by the NVIDIA Deep Learning Container License. By pulling and using the container, you accept the terms and conditions of this license: https://developer.nvidia.com/ngc/nvidia-deep-learning-container-license To install Python sample dependencies, run /opt/tensorrt/python/python_setup.sh To install the open-source samples corresponding to this TensorRT release version run /opt/tensorrt/install_opensource.sh. To build the open source parsers, plugins, and samples for current top-of-tree on master or a different branch, run /opt/tensorrt/install_opensource.sh -b <branch> See https://github.com/NVIDIA/TensorRT for more information.
September 29, 20232 yr On 9/27/2023 at 9:31 PM, yayitazale said: Can you test it with another computer with any of the examples of https://coral.ai/examples/#code-examples? Can you see it listed on the devices on unraid? I'll test it on another pc tonight Yeah, I could see it listed as Google Inc on port 6 slot 2 and the /dev/bus/usb had a folder structure mirroring the ports on unraid
September 29, 20232 yr I upgraded my cameras to 3k cameras (annke c500) and ran into a memory issues for recordings so advice increasing the default '/tmp/cache' size from 1GB depending on how much RAM you have. I have 128GB so have given it 5GB. It's under advanced then extra arguments https://docs.frigate.video/frigate/installation/#storage
September 30, 20232 yr On 9/27/2023 at 9:31 PM, yayitazale said: Can you test it with another computer with any of the examples of https://coral.ai/examples/#code-examples? Can you see it listed on the devices on unraid? Looks like the module works so I assume it's the usb passthrough? Is there another method to passthrough I should try? python3 examples/classify_image.py \ --model test_data/mobilenet_v2_1.0_224_inat_bird_quant_edgetpu.tflite \ --labels test_data/inat_bird_labels.txt \ --input test_data/parrot.jpg /Users/burningsky/Downloads/edgetpu_runtime/coral/pycoral/examples/classify_image.py:79: DeprecationWarning: ANTIALIAS is deprecated and will be removed in Pillow 10 (2023-07-01). Use LANCZOS or Resampling.LANCZOS instead. image = Image.open(args.input).convert('RGB').resize(size, Image.ANTIALIAS) ----INFERENCE TIME---- Note: The first inference on Edge TPU is slow because it includes loading the model into Edge TPU memory. 13.2ms 2.9ms 2.9ms 2.8ms 2.9ms -------RESULTS-------- Ara macao (Scarlet Macaw): 0.75781
September 30, 20232 yr Author 1 hour ago, BurningSky said: Looks like the module works so I assume it's the usb passthrough? Is there another method to passthrough I should try? python3 examples/classify_image.py \ --model test_data/mobilenet_v2_1.0_224_inat_bird_quant_edgetpu.tflite \ --labels test_data/inat_bird_labels.txt \ --input test_data/parrot.jpg /Users/burningsky/Downloads/edgetpu_runtime/coral/pycoral/examples/classify_image.py:79: DeprecationWarning: ANTIALIAS is deprecated and will be removed in Pillow 10 (2023-07-01). Use LANCZOS or Resampling.LANCZOS instead. image = Image.open(args.input).convert('RGB').resize(size, Image.ANTIALIAS) ----INFERENCE TIME---- Note: The first inference on Edge TPU is slow because it includes loading the model into Edge TPU memory. 13.2ms 2.9ms 2.9ms 2.8ms 2.9ms -------RESULTS-------- Ara macao (Scarlet Macaw): 0.75781 Try with privileged mode I think. Edited September 30, 20232 yr by yayitazale
September 30, 20232 yr 25 minutes ago, yayitazale said: Try with privileged mode I think. I already am
September 30, 20232 yr Author 40 minutes ago, BurningSky said: I already am Are you using the original cable and a 3.0 USB port?
September 30, 20232 yr 13 minutes ago, yayitazale said: Are you using the original cable and a 3.0 USB port? Yes to both, 3.2 gen 2 USB port. Is there a way to check in the docker if it's actually seeing the device? Can I trigger anything in the docker to see if it connects to the TPU outside of Frigate?
October 1, 20232 yr 13 hours ago, yayitazale said: Are you using the original cable and a 3.0 USB port? Just had a look at lsusb on the host and in the container and noticed it's started misbehaving... Unraid: root@Ragon:~# lsusb Bus 006 Device 002: ID 1a6e:089a Global Unichip Corp. Bus 006 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub Bus 005 Device 002: ID 0781:5567 SanDisk Corp. Cruzer Blade Bus 005 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub Bus 004 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub Bus 003 Device 002: ID 051d:0002 American Power Conversion Uninterruptible Power Supply Bus 003 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub Bus 001 Device 002: ID 1cf1:0030 Dresden Elektronik ZigBee gateway [ConBee II] Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub Frigate: # lsusb Bus 006 Device 002: ID 1a6e:089a Bus 006 Device 001: ID 1d6b:0003 Linux 6.1.49-Unraid xhci-hcd xHCI Host Controller Bus 005 Device 002: ID 0781:5567 SanDisk Cruzer Blade Bus 005 Device 001: ID 1d6b:0002 Linux 6.1.49-Unraid xhci-hcd xHCI Host Controller Bus 004 Device 001: ID 1d6b:0003 Linux 6.1.49-Unraid xhci-hcd xHCI Host Controller Bus 003 Device 002: ID 051d:0002 American Power Conversion Back-UPS RS 900G FW:879.L4 .I USB FW:L4 Bus 003 Device 001: ID 1d6b:0002 Linux 6.1.49-Unraid xhci-hcd xHCI Host Controller Bus 002 Device 001: ID 1d6b:0003 Linux 6.1.49-Unraid xhci-hcd xHCI Host Controller Bus 001 Device 002: ID 1cf1:0030 dresden elektronik ingenieurtechnik GmbH ConBee II Bus 001 Device 001: ID 1d6b:0002 Linux 6.1.49-Unraid xhci-hcd xHCI Host Controller
October 2, 20232 yr Author On 10/1/2023 at 10:54 AM, BurningSky said: Just had a look at lsusb on the host and in the container and noticed it's started misbehaving... Unraid: root@Ragon:~# lsusb Bus 006 Device 002: ID 1a6e:089a Global Unichip Corp. Bus 006 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub Bus 005 Device 002: ID 0781:5567 SanDisk Corp. Cruzer Blade Bus 005 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub Bus 004 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub Bus 003 Device 002: ID 051d:0002 American Power Conversion Uninterruptible Power Supply Bus 003 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub Bus 001 Device 002: ID 1cf1:0030 Dresden Elektronik ZigBee gateway [ConBee II] Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub Frigate: # lsusb Bus 006 Device 002: ID 1a6e:089a Bus 006 Device 001: ID 1d6b:0003 Linux 6.1.49-Unraid xhci-hcd xHCI Host Controller Bus 005 Device 002: ID 0781:5567 SanDisk Cruzer Blade Bus 005 Device 001: ID 1d6b:0002 Linux 6.1.49-Unraid xhci-hcd xHCI Host Controller Bus 004 Device 001: ID 1d6b:0003 Linux 6.1.49-Unraid xhci-hcd xHCI Host Controller Bus 003 Device 002: ID 051d:0002 American Power Conversion Back-UPS RS 900G FW:879.L4 .I USB FW:L4 Bus 003 Device 001: ID 1d6b:0002 Linux 6.1.49-Unraid xhci-hcd xHCI Host Controller Bus 002 Device 001: ID 1d6b:0003 Linux 6.1.49-Unraid xhci-hcd xHCI Host Controller Bus 001 Device 002: ID 1cf1:0030 dresden elektronik ingenieurtechnik GmbH ConBee II Bus 001 Device 001: ID 1d6b:0002 Linux 6.1.49-Unraid xhci-hcd xHCI Host Controller Do you install the coral driver on the host? If yes, uninstall it.
October 2, 20232 yr Author On 9/29/2023 at 5:30 PM, UninspiredENVY said: I am having a similar issue when it comes to installing the tensorrt models. However, mine show me that permission is denied when the docker app tries accessing the model. Do you know how I can fix this issue? I have tried changing the permissions on the file to read/write for all but it doesn't seem to change anything. I realize that this may be an issue pertaining to permissions but i really want to make sure i am setting everything up correctly as well. Here is my docker config. I have placed this file under the trt-models directory. https://raw.githubusercontent.com/blakeblackshear/frigate/master/docker/tensorrt_models.sh Below is what I get in the Logs after running the docker app. /opt/nvidia/nvidia_entrypoint.sh: line 49: /tensorrt_models.sh: Permission denied /opt/nvidia/nvidia_entrypoint.sh: line 49: exec: /tensorrt_models.sh: cannot execute: Permission denied ===================== == NVIDIA TensorRT == ===================== NVIDIA Release 22.07 (build 40077977) NVIDIA TensorRT Version 8.4.1 Copyright (c) 2016-2022, NVIDIA CORPORATION & AFFILIATES. All rights reserved. Container image Copyright (c) 2022, NVIDIA CORPORATION & AFFILIATES. All rights reserved. https://developer.nvidia.com/tensorrt Various files include modifications (c) NVIDIA CORPORATION & AFFILIATES. All rights reserved. This container image and its contents are governed by the NVIDIA Deep Learning Container License. By pulling and using the container, you accept the terms and conditions of this license: https://developer.nvidia.com/ngc/nvidia-deep-learning-container-license To install Python sample dependencies, run /opt/tensorrt/python/python_setup.sh To install the open-source samples corresponding to this TensorRT release version run /opt/tensorrt/install_opensource.sh. To build the open source parsers, plugins, and samples for current top-of-tree on master or a different branch, run /opt/tensorrt/install_opensource.sh -b <branch> See https://github.com/NVIDIA/TensorRT for more information. Did you follow the steps of the requirements? - Create a new folder to save the models (for example on /appdata/trt-models) - Download the script and save it in the previously created path (https://raw.githubusercontent.com/blakeblackshear/frigate/dev/docker/tensorrt_models.sh) - Open the unraid console and launch the following command without quotes(pointing to your script path): chmod +x /mnt/user/appdata/trt-models/tensorrt_models.sh - Then launch the container that will run the script and stop then container at the end.
October 2, 20232 yr Is there any documentation available for setting up a NVIDIA GPU for use with Frigate on unRAID? I installed a NVIDIA Quattro in my unRAID server and then installed the unRAID NVIDIA Driver package. Per the instructions, I then disabled Docker and then re-enabled Docker. According to the Frigate documentation, "Additional configuration is needed for the Docker container to be able to access the NVIDIA GPU", but their instructions appear to be for a linux host running Docker. I don't see anything specific for enabling it in unRAID. Anyway, if I turn on hardware acceleration via "hwaccel_args: preset-nvidia-h264". I get a bunch of errors, so I am pretty certain that the Docker Container can not talk to the NVIDIA GPU.
October 2, 20232 yr Author 5 minutes ago, irishjd said: Is there any documentation available for setting up a NVIDIA GPU for use with Frigate on unRAID? I installed a NVIDIA Quattro in my unRAID server and then installed the unRAID NVIDIA Driver package. Per the instructions, I then disabled Docker and then re-enabled Docker. According to the Frigate documentation, "Additional configuration is needed for the Docker container to be able to access the NVIDIA GPU", but their instructions appear to be for a linux host running Docker. I don't see anything specific for enabling it in unRAID. Anyway, if I turn on hardware acceleration via "hwaccel_args: preset-nvidia-h264". I get a bunch of errors, so I am pretty certain that the Docker Container can not talk to the NVIDIA GPU. You should select the nvidia brunch when installing frigate from CA APPs, then read the instructions of the template and fill the required entries with the required information. You should also edit the config file following the instructions of the frigate docs and then check if everything works. If you have specific doubts I would try to help you. PS: if you only plan to use nvidia card for hard. accel, you don't need to install the nvidia branch, but the rest of the steps are the same. Edited October 2, 20232 yr by yayitazale
October 2, 20232 yr I will need to reinstall it then as I didn't have the video card when I first set this up. Thanks for pointing me in the right direction!
