Schaka Posted June 12, 2023 Share Posted June 12, 2023 (edited) Hey guys, so I'm in a bit of a pickle. So far, I've been using a Star Tech USB enclosure with 2 drives and an ITX board inside a fairly small case. I decided to switch to the CS381 (12 hot swappable drives), but I'll need 1 nvme slot and 2 additional SATA ports for 2 internal HDDs that I use as a backup for my really important data (like the Unraid Apps, VMs, etc). The 12 drives will contain movies, games (NAS for steam), etc. I haven't bought a motherboard bought, but I'm limited to DDR5 (already got a kit for free) and mATX. I was looking at Intel for the 13100 - I already have an Arc A380 that will occupy the x16 top slot. I have not bought a board yet, as I'm trying to max out the drives and not spend hundreds for no reason. After reading through most of this thread, I think I have figured out what my options are. Please correct me, if I'm wrong. a board with x16 slot and x16 slot running at x4 3.0, then get a 16 lane PCIE 3 SAS card in IT mode (16 ports will have bandwidth limits) get a board with x16 slot and 2x (reachable!) PCIe 3.0 x1 slots, fill both of those with ASM1166 cards (12 ports total, no bandwidth limit?) get a board with 3 m.2 slots and occupy 2, using m.2 to 5 SATA ASMedia adapters (14 ports total, no bandwidth limit) The internal ports would be used for my backup drives. Those drives would be mounted internally and not be part of my 12 hot swap drives. Am I understanding this correctly? Will the x16 SAS card even work in an x16 slot, if it's only operating at x4 speed? I don't know if all lanes need to be connected electrically. The only controller I can find is the 9300-16i (not 9305-16i), so I'm not sure it would even work. They already come flashed in IT mode and cost around 200€. Not exactly looking forward to it, but I think it might be a better choice than mixing different ASM1166 cards. Edited June 12, 2023 by Schaka Quote Link to comment
JorgeB Posted June 12, 2023 Author Share Posted June 12, 2023 1 hour ago, Schaka said: Will the x16 SAS card even work in an x16 slot, if it's only operating at x4 speed? It *should* work. Quote Link to comment
pras1011 Posted June 18, 2023 Share Posted June 18, 2023 Is the JMB582 similar to the JMB585? Quote Link to comment
Lolight Posted June 19, 2023 Share Posted June 19, 2023 11 hours ago, pras1011 said: Is the JMB582 similar to the JMB585? https://www.jmicron.com/products/list/15 Quote Link to comment
JorgeB Posted June 19, 2023 Author Share Posted June 19, 2023 14 hours ago, pras1011 said: Is the JMB582 similar to the JMB585? 582 is the two port version, 585 has 5 ports. Quote Link to comment
pras1011 Posted June 19, 2023 Share Posted June 19, 2023 Which is better? A pcie or a M2 sata expander? Quote Link to comment
JorgeB Posted June 19, 2023 Author Share Posted June 19, 2023 42 minutes ago, pras1011 said: A pcie or a M2 sata expander? If you mean an M.2 to PCI SATA controller they will be the same, just use a different type of slot. Quote Link to comment
pras1011 Posted June 19, 2023 Share Posted June 19, 2023 Will this work: https://www.ebay.co.uk/itm/M-2-KEY-M-NVME-PCI-E-To-2-Port-Sata3-0-Expansion-Card-Adapter-Card-Drive-Fr-U5O8-/175623135880?mkcid=16&mkevt=1&epid=175623135880&_trksid=p4429486.m2548.l6249&mkrid=710-127635-2958-0 Quote Link to comment
JorgeB Posted June 19, 2023 Author Share Posted June 19, 2023 It should but don't see the controller model mentioned. Quote Link to comment
dopeytree Posted June 20, 2023 Share Posted June 20, 2023 Looking ahead with ZFS... Is there anyway to split up sata ports? It's such a waste having 6Gbps (750MB/s) on each of the 6x motherboard ports. I think my fastest drive is up to 260MB/s. If only you could recoup the bandwidth you'd have 490MB/s left over x6 so 2940MB/s which would easily have run the LSI card decently for 8x cards. Annoyingly because of the way my motherboard divies up the PCIe lanes the LSI card is running on gen3 x1 so around 984MB/s. I could swap it into the graphics card slot.. or would a sas expander work in the graphics card slot? gen4 x16. I'm not completely sure how the sas expanders work? Other option for future could be a decent USB3.2 x2 DAS. Quote Link to comment

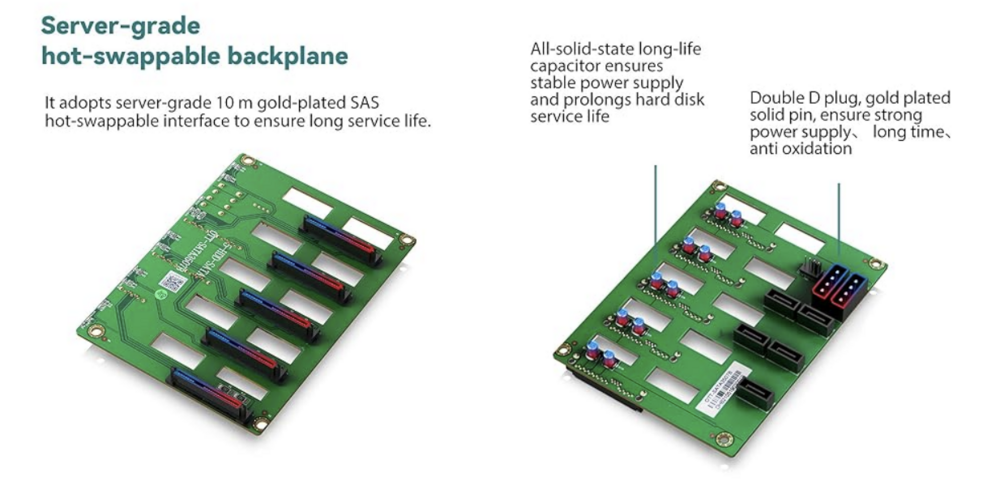

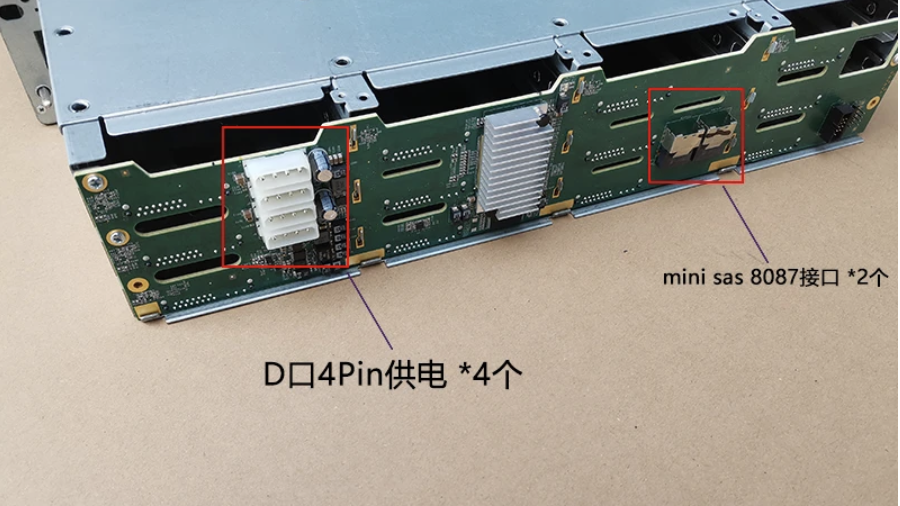

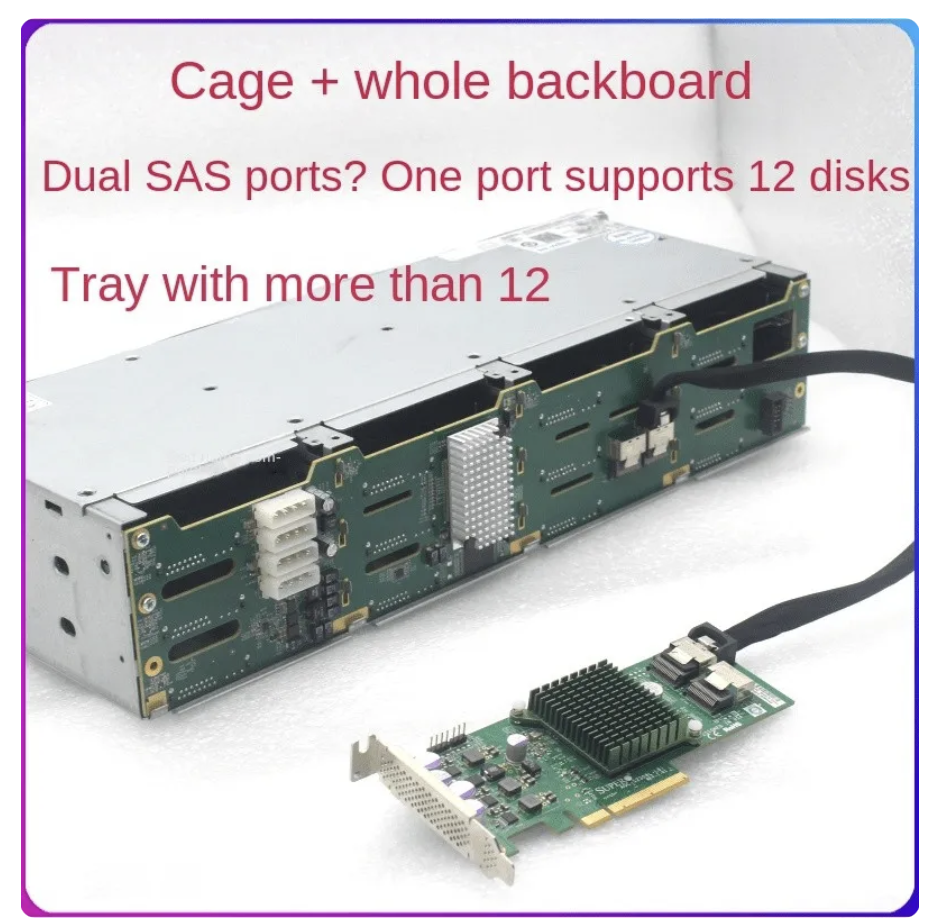

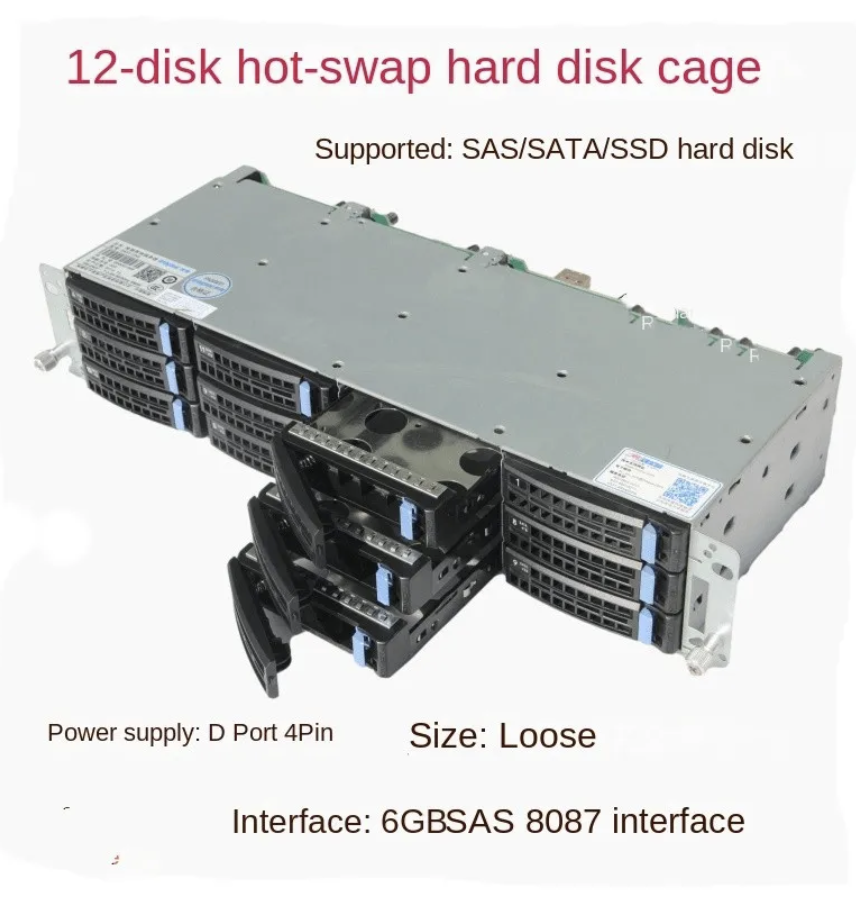

dopeytree Posted June 21, 2023 Share Posted June 21, 2023 (edited) Anyone using one of these 12bay sas expanders chasis? It's £39 on ali express for the whole cage + backplane... Wondering if this still needs an intel sas expander (card of ebay for £35) https://www.aliexpress.com/item/1005005500841960.html?spm=a2g0o.detail.0.0.384d213ddJk8XO&gps-id=pcDetailFavMayLike&scm=1007.33682.303981.0&scm_id=1007.33682.303981.0&scm-url=1007.33682.303981.0&pvid=8417d9d3-fc23-4d3b-b489-abc7f9172c41&_t=gps-id:pcDetailFavMayLike,scm-url:1007.33682.303981.0,pvid:8417d9d3-fc23-4d3b-b489-abc7f9172c41,tpp_buckets:668%232846%238115%232000&pdp_npi=3%40dis!GBP!56.31!39.41!!!!!%40211b801a16873560695845392e4fca!12000033327242030!rec!UK!3840598 Edited June 21, 2023 by dopeytree Quote Link to comment
dopeytree Posted June 21, 2023 Share Posted June 21, 2023 @JorgeB Lastly do you know what happens if you hookup a forward breakout sas cable - motherboard sata ports to sas expander or LSI HBA card. Thanks Quote Link to comment
Shonk Posted June 27, 2023 Share Posted June 27, 2023 Does anyone have any experience with multiple ASM1166's in the same machine Do they work fine together? I presume so but you never know and didnt really check before ordering more cards I picked one up a couple of months ago (PCE6SAT-A01 4x Physical 2x Electrical) to compliment my LSI 9207 4i4e It has been solid I am rebuilding the server atm with a Meshify 2 in the server layout with 19 Drives I have never been happy with the heat output of the LSI card so took the case upgrade as an opertunity to move the drives in the sas enclosure into the case and ditch the LSI Controller I ordered two more ASM1166's from aliexpress PCE6SAT-A01 (4x Physical 2x Electrical) PCE6SAT-A02 (1x) They will be setup as follows Z390 Aorus Master + 9900K M2M Intel Optane 1600X 118GB (4x) M2A Intel Optane 800P 118GB (2x) M2P Intel Optane 800P 118GB (2x) PCH 1x Slot 1 ASM1166 PCE6SAT-A02 (1x) CPU 16x Slot Micron 3400 512GB OS Drive (4x) PCH 1x Slot 2 Realtek 8125B (1x) CPU 8x Slot ASM1166 PCE6SAT-A01 (2x) PCH 1x Slot 3 Realtek 8125B (1x) PCH 4x Slot ASM1166 PCE6SAT-A01 (2x) So the end result will be 18 Ports from ASM 1166's 4 Ports on the motherboard (2 of the 6 are lost due to PCH limitations using NVME Drives) so 22 Sata Ports + 4 Nvme Drives for 11 3.5" Drives + 8 2.5" drives Quote Link to comment
JorgeB Posted June 27, 2023 Author Share Posted June 27, 2023 1 hour ago, Shonk said: Does anyone have any experience with multiple ASM1166's in the same machine Do they work fine together? I have two in the same server, no issues. Quote Link to comment
Shonk Posted June 27, 2023 Share Posted June 27, 2023 20 minutes ago, JorgeB said: I have two in the same server, no issues. Thanks I presumed they would be good but sometimes things are quirky Quote Link to comment
Shonk Posted July 1, 2023 Share Posted July 1, 2023 On 2/25/2023 at 12:08 AM, Sectoid said: Hello folks, I've been lurking in this thread for a couple months and now I finally bought an ASM1166. The first thing I did after plugging it in was to check for the firmware update. However, the existing firmware version was "220419-0000-00". This seemed above the version from the update, so I kept it as is, but I'm not sure. Does anyone know how to determine if this is indeed a newer version or not? Another thing that happened was that, while I searched google to try and find something about these versions, I left the firmware update application open there, though not updating or anything. At some point, my PC just froze. It doesn't do that, it runs rock solid. So I'm somewhat confident that the adapter caused it because I also couldn't find anything relevant in windows events. Anyway I didn't test it with the unraid setup yet, so any help with the decision about doing the firmware update or not is welcome! Yes the firmware is newer 19th April 2022 does anyone know how to dump a copy for other's I have two cards coming from aliexpress hopefully atleast one of them will have a newer firmware than the current one 1 Quote Link to comment

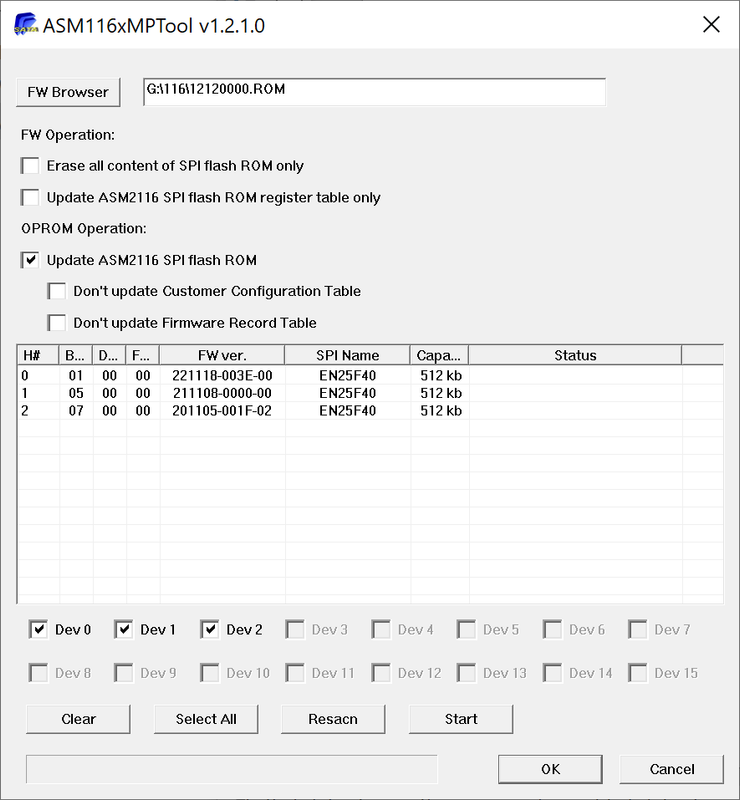

Shonk Posted July 3, 2023 Share Posted July 3, 2023 My cards came just now ASM1166 PCE6SAT-A02 (1x) Firmware 201105-001f-02 ASM1166 PCE6SAT-A01 (4x) Firmware 221118-003E-00 ASM1166 PCE6SAT-A01 (4x) Orig card was 200529-00D-02 flashed with Silverstone ECS06 Firmware We need to dump the November 2022 firmware oh btw 221118-003E-00 doesnt have the removable flag on the ports the other two firmwares do Quote Link to comment
Shonk Posted July 4, 2023 Share Posted July 4, 2023 (edited) I have ordered a CH341A i will dump the firmware and post a copy once i have flashed my other two cards I will dump the card with the known firmware first then find the exact bytes i have to trim the bin down to to match the crc32 then do the same with the latest firmware Edited July 4, 2023 by Shonk Quote Link to comment
Quantumed Posted July 11, 2023 Share Posted July 11, 2023 I'm looking to buy my first PCIE to SATA card. Port count, power and price are important factors, which makes the 6 Port ASM1166 card my best bet. I've noticed there's two variants: 'PCE6SAT-A01' and 'PCE6SAT-A02' - what's the difference between them? They appear identical, my guess is simply the firmware? Quote Link to comment
Shonk Posted July 11, 2023 Share Posted July 11, 2023 Same firmware 02 = 1x bus 01 = 2x bus on a 4x card Quote Link to comment
Quantumed Posted July 17, 2023 Share Posted July 17, 2023 (edited) On 7/11/2023 at 9:08 PM, Shonk said: Same firmware 02 = 1x bus 01 = 2x bus on a 4x card Oh yeah, I missed that. Will the 01 variant perform better than the 02 while all 6 slots are occupied with traditional modern HDDs? Edited July 17, 2023 by Quantumed Quote Link to comment
JorgeB Posted July 17, 2023 Author Share Posted July 17, 2023 2 hours ago, Quantumed said: Will the 01 variant perform better than the 02 while all 6 slots are occupied with traditional modern HDDs? Yes if all disks are being access together, it will be limited to around 150MB/s, x2 model doubles that. Quote Link to comment

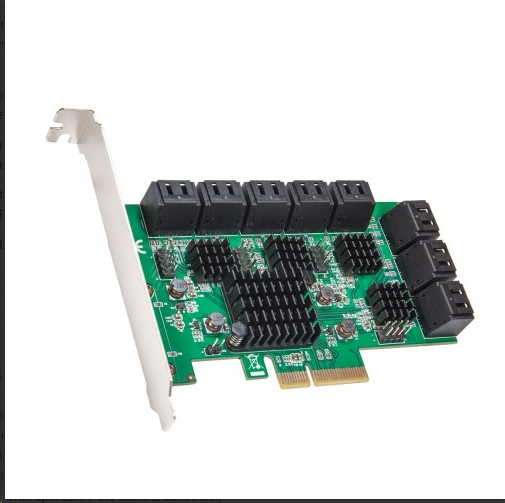

Paul_G Posted August 19, 2023 Share Posted August 19, 2023 Hi, would this work? My board has only PCIe 2.0 slots. would this cause issues? Quote Link to comment
JorgeB Posted August 20, 2023 Author Share Posted August 20, 2023 11 hours ago, Paul_G said: Hi, would this work? Post multiplier, so not recommended. 1 Quote Link to comment
