Frank1940 Posted March 3, 2023 Share Posted March 3, 2023 1 hour ago, Revan335 said: Create the Test Share, and 🎉 tada, the Access with SMB its working with test User Private Settings and Credentials. Very interesting. Post the output of testparm Post the output of these two commands: ls -al /mnt ls -al /mnt/user (I have never used a second Pool. I have only ever used the original cache single drive type in the pool setting. So I don't know the details of exactly how multiple pools work. It sounds like you have two 'Test' shares. @dlandon, is that even allowed? Or does the Pool share get combined with the Array share? If so, how?) @Revan335, are you creating these shares (Test, Test1, Test2, etc.) strictly for testing purposes and deleting them as soon as you complete your testing? Quote Link to comment
Revan335 Posted March 3, 2023 Author Share Posted March 3, 2023 (edited) Sorry! @Frank1940 I used a New Test Disk in this case the second empty (from a old Backup Pool) NVMe for a New Array. This new Array/Array Configuration have only this one NVMe/Device and no Cache, Pool .... Edited March 3, 2023 by Revan335 Quote Link to comment
Revan335 Posted March 3, 2023 Author Share Posted March 3, 2023 3 minutes ago, Frank1940 said: are you creating these shares (Test, Test1, Test2, etc.) strictly for testing purposes and deleting them as soon as you complete your testing? Yes, this only Test Shares for Tests. And deleted after working SMB...... Quote Link to comment
dlandon Posted March 3, 2023 Share Posted March 3, 2023 22 minutes ago, Frank1940 said: It sounds like you have two 'Test' shares. @dlandon, is that even allowed? Or does the Pool share get combined with the Array share? If so, how?) A Pool device share will be the name of the Pool device. A multi device pool will have one Pool (and therefore share) name. You can't have a Pool named 'Test' and a share named 'Test' on another Pool device or on the array. That would be duplicates. If that is the case here, there is a problem. Unraid should not allow that. Quote Link to comment

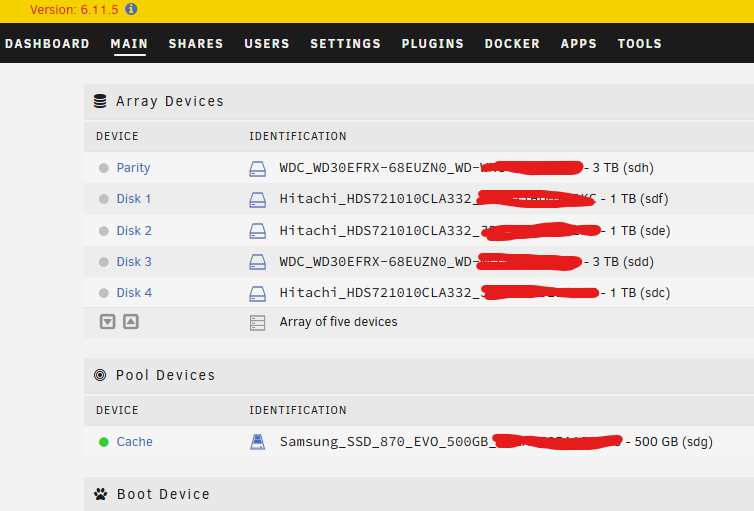

Frank1940 Posted March 3, 2023 Share Posted March 3, 2023 (edited) Give us a screen capture of the Main tab with the serial numbers 'blacked out'. Example below: Please set things up and use that configuration--- both hardware and configuration ---until the problem is solved. (The folks who are trying to help have to use a virtual picture of what your Unraid server looks like-- Both the hardware and the configuration. When you make changes to the setup, we end up hopelessly confused.) IF you made a setup of hardware and configuration, it doesn't work and you remove it. When we tell you to do/change something to it, when you rebuild it to try the suggestion, you might not get something the exactly the same. And the suggestion fails because of that 'something'... EDIT: You have not put this server into a Active Directory setup? (You seem so worried about privacy that I am thinking this is a business server and you are protecting some propriety material.) Edited March 3, 2023 by Frank1940 Quote Link to comment

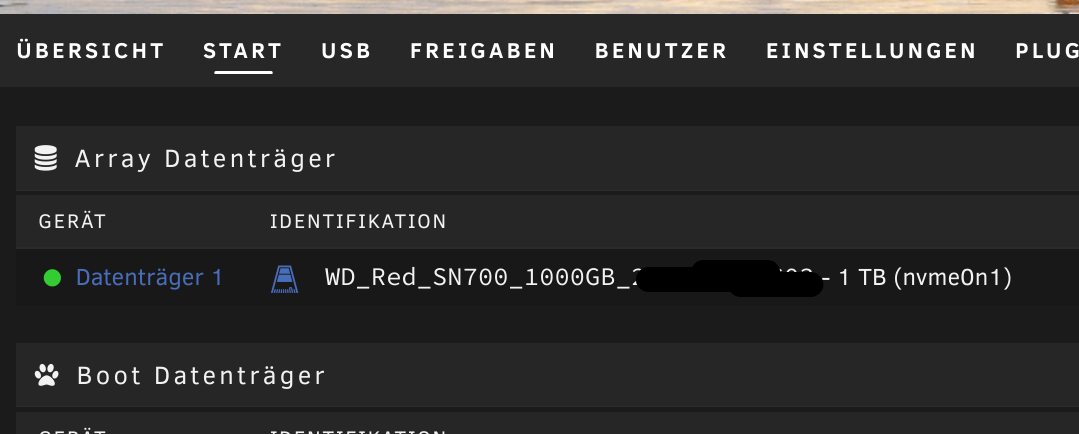

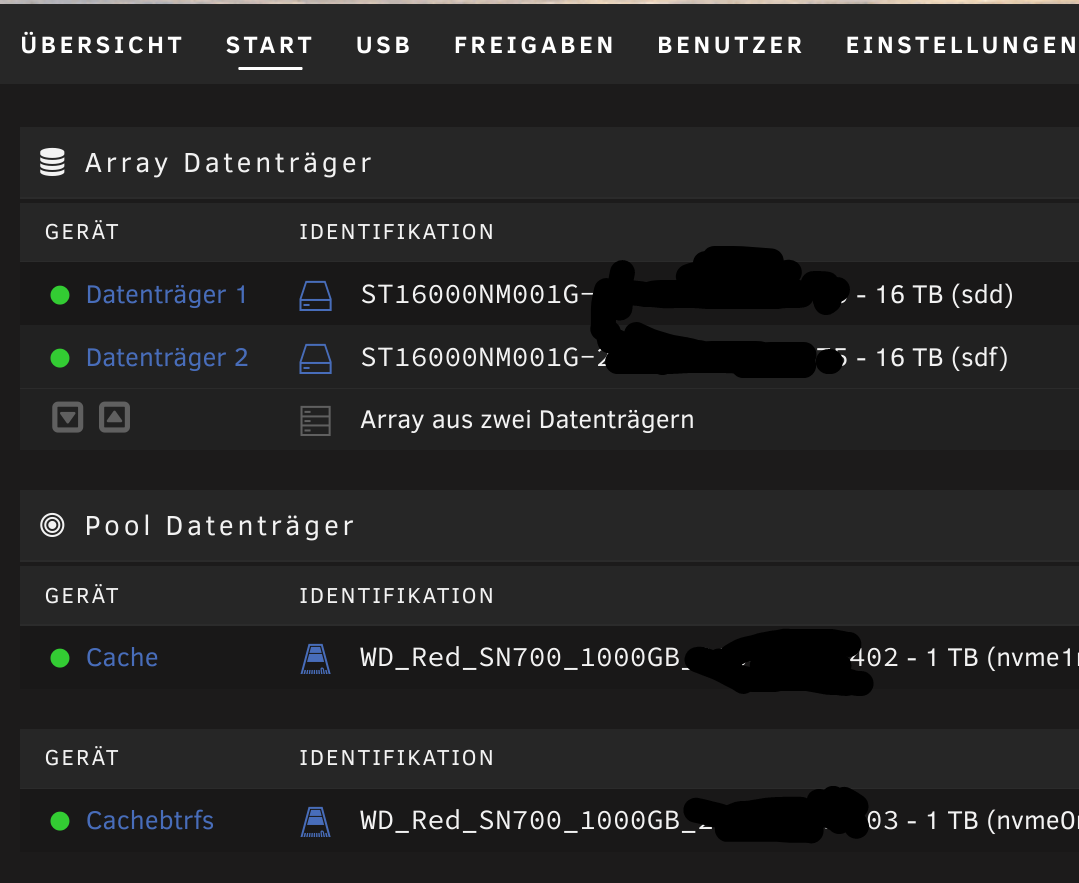

Revan335 Posted March 3, 2023 Author Share Posted March 3, 2023 Not Working: Working: Quote Link to comment
Revan335 Posted March 3, 2023 Author Share Posted March 3, 2023 21 minutes ago, Frank1940 said: You have not put this server into a Active Directory setup? No, Default Workgroup Mode. Quote Link to comment
Frank1940 Posted March 3, 2023 Share Posted March 3, 2023 Looking at the screen captures, it appears that there are two servers. SMB works on second server and SMB does not work on the first server. Is this correct? Or you you just changing the configuration of the installed hardware on a single box and using the same Unraid boot drive? Quote Link to comment
Revan335 Posted March 3, 2023 Author Share Posted March 3, 2023 36 minutes ago, Frank1940 said: Looking at the screen captures, it appears that there are two servers. SMB works on second server and SMB does not work on the first server. Is this correct? Or you you just changing the configuration of the installed hardware on a single box and using the same Unraid boot drive? Yes, its the same Server with the same Boot Drive. I used the New Configuration Tool under Tools for the Change. Yes, SMB.... Works on My Backup Server. But there is not on the Screenshots.... Quote Link to comment
Revan335 Posted March 3, 2023 Author Share Posted March 3, 2023 4 hours ago, Frank1940 said: testparm The don't working Array ...: ~# testparm Load smb config files from /etc/samba/smb.conf lpcfg_do_global_parameter: WARNING: The "null passwords" option is deprecated Loaded services file OK. Weak crypto is allowed by GnuTLS (e.g. NTLM as a compatibility fallback) Server role: ROLE_STANDALONE Press enter to see a dump of your service definitions # Global parameters [global] disable netbios = Yes disable spoolss = Yes load printers = No logging = syslog@0 map to guest = Bad User max open files = 40960 multicast dns register = No ntlm auth = ntlmv1-permitted null passwords = Yes passdb backend = smbpasswd printcap name = /dev/null security = USER server min protocol = SMB2 server string = MCP show add printer wizard = No smb1 unix extensions = No workgroup = WORKGROUP with Ü in his Name fruit:nfs_aces = No idmap config * : range = 3000-7999 idmap config * : backend = tdb access based share enum = Yes acl allow execute always = Yes aio read size = 0 aio write size = 0 create mask = 0777 directory mask = 0777 hide unreadable = Yes include = /etc/samba/smb-shares.conf invalid users = root map archive = No map readonly = yes use sendfile = Yes wide links = Yes [Test] path = /mnt/user/Test valid users = test testb dumkopf write list = test testb dumkopf [Test1] path = /mnt/user/Test1 valid users = test testb dumkopf write list = test testb dumkopf [Test2] guest ok = Yes path = /mnt/user/Test2 read only = No The working Array ...: ~# testparm Load smb config files from /etc/samba/smb.conf lpcfg_do_global_parameter: WARNING: The "null passwords" option is deprecated Loaded services file OK. Weak crypto is allowed by GnuTLS (e.g. NTLM as a compatibility fallback) Server role: ROLE_STANDALONE Press enter to see a dump of your service definitions # Global parameters [global] disable netbios = Yes disable spoolss = Yes load printers = No logging = syslog@0 map to guest = Bad User max open files = 40960 multicast dns register = No ntlm auth = ntlmv1-permitted null passwords = Yes passdb backend = smbpasswd printcap name = /dev/null security = USER server min protocol = SMB2 server string = MCP show add printer wizard = No smb1 unix extensions = No workgroup = WORKGROUP with Ü in his Name fruit:nfs_aces = No idmap config * : range = 3000-7999 idmap config * : backend = tdb access based share enum = Yes acl allow execute always = Yes aio read size = 0 aio write size = 0 create mask = 0777 directory mask = 0777 hide unreadable = Yes include = /etc/samba/smb-shares.conf invalid users = root map archive = No map readonly = yes use sendfile = Yes wide links = Yes [Test] path = /mnt/user/Test valid users = test testb dumkopf write list = test testb dumkopf root@Raster:~# 4 hours ago, Frank1940 said: ls -al /mnt ls -al /mnt/user The don't working Array ...: ~# ls -al /mnt total 28 drwxr-xr-x 11 root root 220 Mar 3 15:49 ./ drwxr-xr-x 20 root root 420 Mar 2 00:30 ../ drwxrwxrwx 5 nobody users 50 Mar 3 17:47 cache/ drwxrwxrwx 1 nobody users 16 Mar 3 17:47 cachebtrfs/ drwx------ 19 nobody users 4096 Mar 3 17:47 disk1/ drwxrwxrwx 12 nobody users 223 Mar 3 17:47 disk2/ drwxrwxrwt 3 nobody users 60 Mar 2 23:41 disks/ drwxrwxrwt 4 nobody users 80 Mar 2 23:41 remotes/ drwxrwxrwt 2 nobody users 40 Mar 1 01:43 rootshare/ drwx------ 1 nobody users 4096 Mar 3 17:47 user/ drwx------ 1 nobody users 4096 Mar 3 17:47 user0/ root@Raster:~# ls -al /mnt/user total 12 drwx------ 1 nobody users 4096 Mar 3 17:47 ./ drwxr-xr-x 11 root root 220 Mar 3 15:49 ../ drwxrwxrwx 1 nobody users 70 Dec 25 00:01 Altes\ NAS/ drwxrwxrwx 1 nobody users 57 Feb 10 01:04 Backup_E*/ drwxrwxrwx 1 nobody users 80 Oct 2 18:05 Backup_Mobil/ drwxrwxrwx 1 nobody users 41 Dec 24 17:00 Backup_PC-42/ drwxrwxrwx 1 nobody users 47 Feb 10 01:15 Backup_PC-84/ drwxrwxrwx 1 nobody users 31 Jan 18 21:21 Backup_Vu+/ drwxrwxrwx 1 nobody users 20 Jan 2 13:59 Borg/ drwxrwxrwx 1 nobody users 29 Jan 1 13:22 Cache/ drwxrwxrwx 1 nobody users 63 Jan 22 21:03 D*/ drwxrwxrwx 1 nobody users 6 Feb 7 21:51 Downloads/ drwxrwxrwx 1 nobody users 262 Mar 3 12:14 Logs/ drwxrwxrwx 1 nobody users 163 Nov 13 00:59 Multimedia/ drwxr-xr-x 1 nobody users 6 Jul 8 2022 Pictures/ drwxrwxrwx 1 nobody users 4096 Nov 13 22:06 Public/ drwxrwxrwx 1 nobody users 6 Mar 28 2022 SHARE/ drwxrwxrwx 1 nobody users 58 Jan 22 21:03 Share_E*/ drwxrwxrwx 1 nobody users 113 Mar 3 12:33 Test/ drwxrwxrwx 1 nobody users 34 Feb 26 21:18 Test1/ drwxrwxrwx 1 nobody users 56 Mar 1 00:11 Test2/ drwxr-xr-x 1 nobody users 51 Feb 7 21:46 Transcode/ drwxrwxrwx 1 nobody users 4096 Mar 3 00:16 appdata/ drwxrwxrwx 1 nobody users 32 Feb 27 13:22 domains/ drwxrwxrwx 1 nobody users 235 Feb 6 21:27 isos/ drwxrwxrwx 1 nobody users 35 Feb 15 07:10 system/ The working Array ...: ~# ls -al /mnt total 48 drwxr-xr-x 8 root root 160 Mar 3 18:50 ./ drwxr-xr-x 20 root root 420 Mar 2 00:30 ../ drwxrwxrwx 1 nobody users 16 Mar 3 18:47 disk1/ drwxrwxrwt 3 nobody users 60 Mar 2 23:41 disks/ drwxrwxrwt 4 nobody users 80 Mar 2 23:41 remotes/ drwxrwxrwt 2 nobody users 40 Mar 1 01:43 rootshare/ drwxrwxrwx 1 nobody users 16 Mar 3 18:47 user/ drwxrwxrwx 1 nobody users 16 Mar 3 18:47 user0/ root@Raster:~# ls -al /mnt/user total 16 drwxrwxrwx 1 nobody users 16 Mar 3 18:47 ./ drwxr-xr-x 8 root root 160 Mar 3 18:50 ../ drwxrwxrwx 1 nobody users 50 Mar 3 12:14 Logs/ drwxrwxrwx 1 nobody users 8 Mar 3 12:33 Test/ Many Thanks to all! Greetings! Quote Link to comment
Solution Frank1940 Posted March 3, 2023 Solution Share Posted March 3, 2023 Those three ticks are your problem. The permissions should be as shown below: You have to have rwx permissions for both group and other for SMB to work properly. I would suggest that you install the Docker Safe New Perms plugin and run it. Then check to see that the permissions have been fixed. (I have no clue as to what might have changed these permissions...) 1 Quote Link to comment
JonathanM Posted March 3, 2023 Share Posted March 3, 2023 Might have to do those directory permissions manually, new perms may not change those, probably won't. Quote Link to comment
Revan335 Posted March 3, 2023 Author Share Posted March 3, 2023 1 hour ago, Frank1940 said: would suggest that you install the Docker Safe New Perms plugin and run it. Then check to see that the permissions have been fixed. (I have no clue as to what might have changed these permissions...) Sorry, the Permissions are the same of this three Directorys. 8 minutes ago, JonathanM said: Might have to do those directory permissions manually, new perms may not change those, probably won't. We can do this? With the Dynamix FileManager? I must exclude some Directorys for example appdata and? How can I do this? Quote Link to comment
JonathanM Posted March 3, 2023 Share Posted March 3, 2023 (edited) 4 minutes ago, Revan335 said: We can do this? With the Dynamix FileManager? Yes, open up any file manager window and click on the house icon at the top left. No, unfortunately it appears the permissions part of the dynamix file manager operates recursively, so you don't want to do that. Must use the command line. Edited March 3, 2023 by JonathanM Correction Quote Link to comment
Revan335 Posted March 3, 2023 Author Share Posted March 3, 2023 23 minutes ago, JonathanM said: Must use the command line OK, with what Command? chmod /mnt/user/Share Name 777 For every Share? By the Shares with -r? Quote Link to comment
itimpi Posted March 3, 2023 Share Posted March 3, 2023 It is not clear how those permissions could go wrong in the first place as they should be set to the correct values any time Unraid is booted. That suggests something is actively changing them to the wrong values after booting. Quote Link to comment
Revan335 Posted March 3, 2023 Author Share Posted March 3, 2023 10 minutes ago, itimpi said: It is not clear how those permissions could go wrong in the first place as they should be set to the correct values any time Unraid is booted. That suggests something is actively changing them to the wrong values after booting. Have you any Idea for this? Quote Link to comment
itimpi Posted March 3, 2023 Share Posted March 3, 2023 5 minutes ago, Revan335 said: Have you any Idea for this? Not really. I would suggest you boot in Safe Mode. If it does not go wrong then that suggests a plugin is the issue. If it still goes wrong I would be looking at docker vontainers. Quote Link to comment
Frank1940 Posted March 3, 2023 Share Posted March 3, 2023 You should be able to use Midnight Commander to fix those permissions. Type the following command in the GUI teminal window: mc IF you need instructions, google Midnight Commander and you will find a lot of resources. When it starts, you will be in the /root directory (home directory for the user root) and will need to up a level to get back to the root directory. But I agree with @itimpi, there is probably something else going in the background. You might want to try booting to the Safe Mode which is a bootup option when Unraid starts. (Oops, I see I have been beat on this one...) Quote Link to comment
Revan335 Posted March 3, 2023 Author Share Posted March 3, 2023 22 minutes ago, itimpi said: Not really. I would suggest you boot in Safe Mode. If it does not go wrong then that suggests a plugin is the issue. If it still goes wrong I would be looking at docker vontainers. Sorry no changes for this three Directorys in Safe Mode. @Frank1940 Quote Link to comment
Revan335 Posted March 3, 2023 Author Share Posted March 3, 2023 22 minutes ago, Frank1940 said: You should be able to use Midnight Commander to fix those permissions. Do you mean only this three Directorys without Recursive? Quote Link to comment
Frank1940 Posted March 3, 2023 Share Posted March 3, 2023 3 minutes ago, Revan335 said: Do you mean only this three Directorys without Recursive? Yes. (I don't believe mc does recursive.) Select the item to be changed, click on 'File', look for the 'Chmod' option. I would also suggest that you go to Settings >>>> Docker and set 'Enable Docker:' to "No". Then reboot again to the Safe Mode. Quote Link to comment

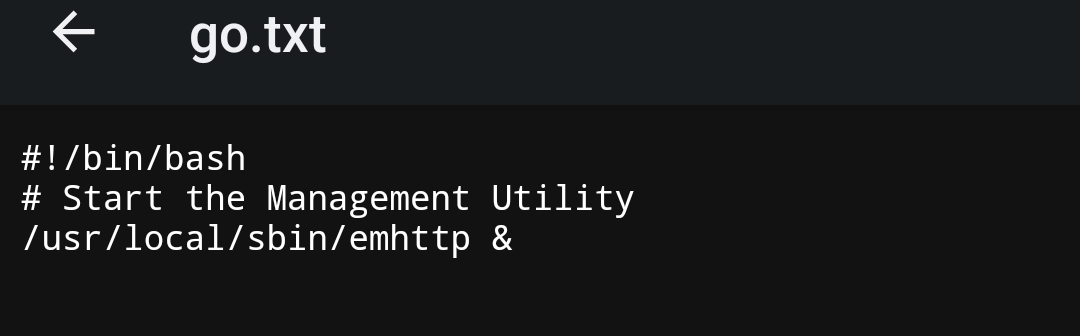

Frank1940 Posted March 3, 2023 Share Posted March 3, 2023 Are you running any scripts in the go file? (Found in the /config directory of the flash Drive.) Quote Link to comment
Revan335 Posted March 3, 2023 Author Share Posted March 3, 2023 27 minutes ago, Frank1940 said: I would also suggest that you go to Settings >>>> Docker and set 'Enable Docker:' to "No". Then reboot again to the Safe Mode. Yes, Docker and VM are deactivated before Boot in Safe Mode. 28 minutes ago, Frank1940 said: Are you running any scripts in the go file? (Found in the /config directory of the flash Drive.) No, I don't entry there. Quote Link to comment
Revan335 Posted March 3, 2023 Author Share Posted March 3, 2023 1 hour ago, Frank1940 said: Yes. (I don't believe mc does recursive.) Select the item to be changed, click on 'File', look for the 'Chmod' option. I changed. Reboot in Safe Mode no new Changes of the Permission. Its drwx for user, group, others. Reboot in Normal GUI Mode. No Permission Change. Start VM Service, no Permission Change. Start Docker Service, no Permission Change. SMB Works! Awesome!🤘🎉😘💗🥳🚀🎸🎇🎆🥰😍🤩 I'm testing it tomorrow on the different Devices and Users. And forwarding the New Configuration to the State of the old Boot Drive. Maybe I can find the whatever that change the Permission. Quote Link to comment
