On 3/14/2022 at 9:18 PM, Hoopster said:

As mentioned in this post you have to install unRAID to it with the manual method.

Sorry but the methode is this post redirect to 404 --> https://lime-technology.com/getting-started#usb-prep-sshots

15 minutes ago, JamesAdams said:

Sorry but the methode is this post redirect to 404 --> https://lime-technology.com/getting-started#usb-prep-sshots

Try here https://wiki.unraid.net/Articles/Getting_Started#Manual_Install_Method

I can confirm that the USB-reader provided with the Samsung Pro Plus series works with unraid 6.9.2.

Like this one.



I used it with an Sandisk Max Endurance micro-sd 32gb.



I manually installed it with the windows USB tool on the Unraid website.

The USB-reader got accepted when i asked for a trial version within 6.9.2.

I test the FCR-HS4, and impossible to boot.

Sent from my Pixel 2 XL using Tapatalk

I'm currently using a SanDisk SDDR-B531-GN6NN micro SD reader. The micro SD card I'm using with it is a SanDisk 32GB "Max Endurance". Had no issue installing unraid on the SD card or registering my licence key to the card reader's GUID.



I like this SD card reader because of its a small form factor, barely stick past the case's recess for the MB i/o shield. It's small enough that it's even suitable for being installed internally using an internal USB port if you're using a server mobo or a USB header to USB A adapter like this or this (I haven't bought or used either of the adaptors linked, they're just examples not recommendations).

Edited April 28, 20224 yr by Tits_Mcgruff

On 4/28/2022 at 5:43 PM, Tits_Mcgruff said:

I'm currently using a SanDisk SDDR-B531-GN6NN micro SD reader. The micro SD card I'm using with it is a SanDisk 32GB "Max Endurance". Had no issue installing unraid on the SD card or registering my licence key to the card reader's GUID.



I like this SD card reader because of its a small form factor, barely stick past the case's recess for the MB i/o shield. It's small enough that it's even suitable for being installed internally using an internal USB port if you're using a server mobo or a USB header to USB A adapter like this or this (I haven't bought or used either of the adaptors linked, they're just examples not recommendations).

We’re you able to install Unraid using the Unraid usb tool or did you need to manually install Unraid ?

On 7/3/2022 at 1:02 PM, 100MilWill said:

We’re you able to install Unraid using the Unraid usb tool or did you need to manually install Unraid ?

I used the usb tool. I have couple more of that SD card reader and used them to double check. The USB tool detected each one as having a different GUID and let me install unRAID to each of them.

Edited August 1, 20223 yr by Tits_Mcgruff

I also used SanDisk SDDR-B531-GN6NN micro SD reader with a SanDisk 32GB High Endurance microSD card. Downloaded the flash backup zip from the Unraid UI and used the Unraid installation/creation tool from the website to install the zip. Transferred my license from old USB Flash drive and everything is up and running.

On 11/23/2014 at 9:32 PM, WeeboTech said:

UNKNOWN



Anker® USB 3.0 Card Reader 8-in-1 for SDXC, SDHC, SD, MMC, RS-MMC, Micro SDXC, Micro SD, Micro SDHC Card, Support UHS-I Cards,

http://www.amazon.com/Anker%C2%AE-Reader-RS-MMC-Support-Warranty/dp/B006T9B6R2/ref=pd_cp_pc_3



I tested mine, and the GUID is not unique

On 4/14/2022 at 6:47 PM, Jameslb said:

I can confirm that the USB-reader provided with the Samsung Pro Plus series works with unraid 6.9.2.

Like this one.



I used it with an Sandisk Max Endurance micro-sd 32gb.



I manually installed it with the windows USB tool on the Unraid website.

The USB-reader got accepted when i asked for a trial version within 6.9.2.



I've also used the microSD reader that comes with the Samsung Pro Ultimate, and it works seamlessly. In fact, I believe the readers included with both the Pro Plus and Pro Ultimate series are identical.



https://www.samsung.com/us/computing/memory-storage/memory-cards/pro-ultimate-reader-microsdxc-128gb-mb-my128sb-am/

On 10/9/2012 at 9:32 AM, NAS said:

Update:



Summary listed here http://lime-technology.com/wiki/index.php/USB_Card_Readers

404



On 4/14/2022 at 11:47 AM, Jameslb said:

I can confirm that the USB-reader provided with the Samsung Pro Plus series works with unraid 6.9.2.

Like this one.



I used it with an Sandisk Max Endurance micro-sd 32gb.



I manually installed it with the windows USB tool on the Unraid website.

The USB-reader got accepted when i asked for a trial version within 6.9.2.



On 2/27/2024 at 11:34 PM, Yoitan said:



I've also used the microSD reader that comes with the Samsung Pro Ultimate, and it works seamlessly. In fact, I believe the readers included with both the Pro Plus and Pro Ultimate series are identical.



https://www.samsung.com/us/computing/memory-storage/memory-cards/pro-ultimate-reader-microsdxc-128gb-mb-my128sb-am/



Any notes on the lifetime / your experience? still using the samsung to sdcard adapter after years? Thanks for letting me know.

On 4/15/2024 at 1:27 AM, gloeckle said:

404







Any notes on the lifetime / your experience? still using the samsung to sdcard adapter after years? Thanks for letting me know.



So far, I haven't encountered any issues with it, and I perform regular backups, so I'm not particularly concerned about the device failing.

Just got this reader and card and it is working perfectly.  I already tried switching between two cards by running the usb creator and then copying all the files from a previous card and it works.  Very easy.



https://www.amazon.com/gp/product/B07G5JV2B5?ref=ppx_pt2_dt_b_prod_image

https://www.amazon.com/gp/product/B07CV344WJ/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8&psc=1

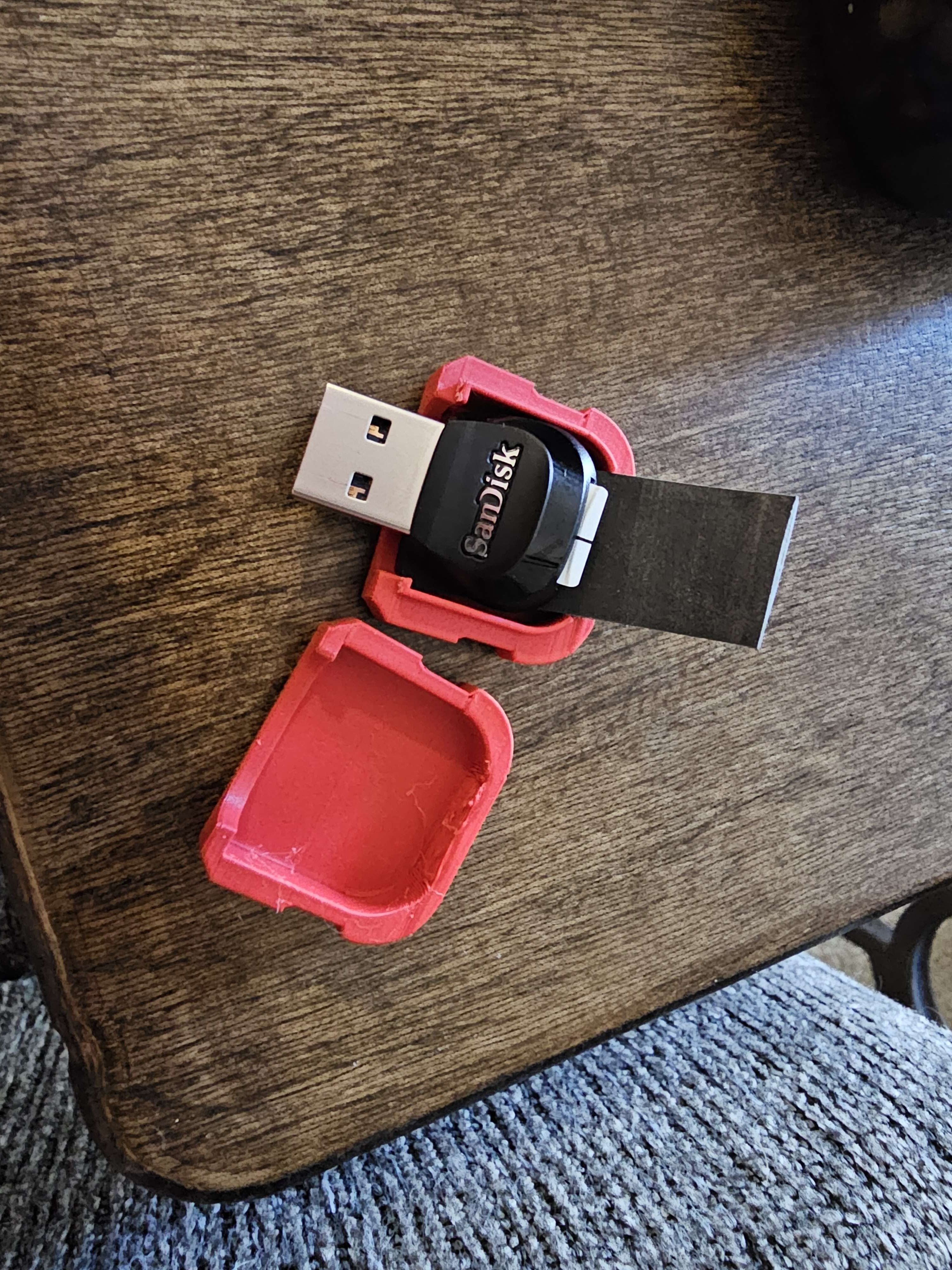

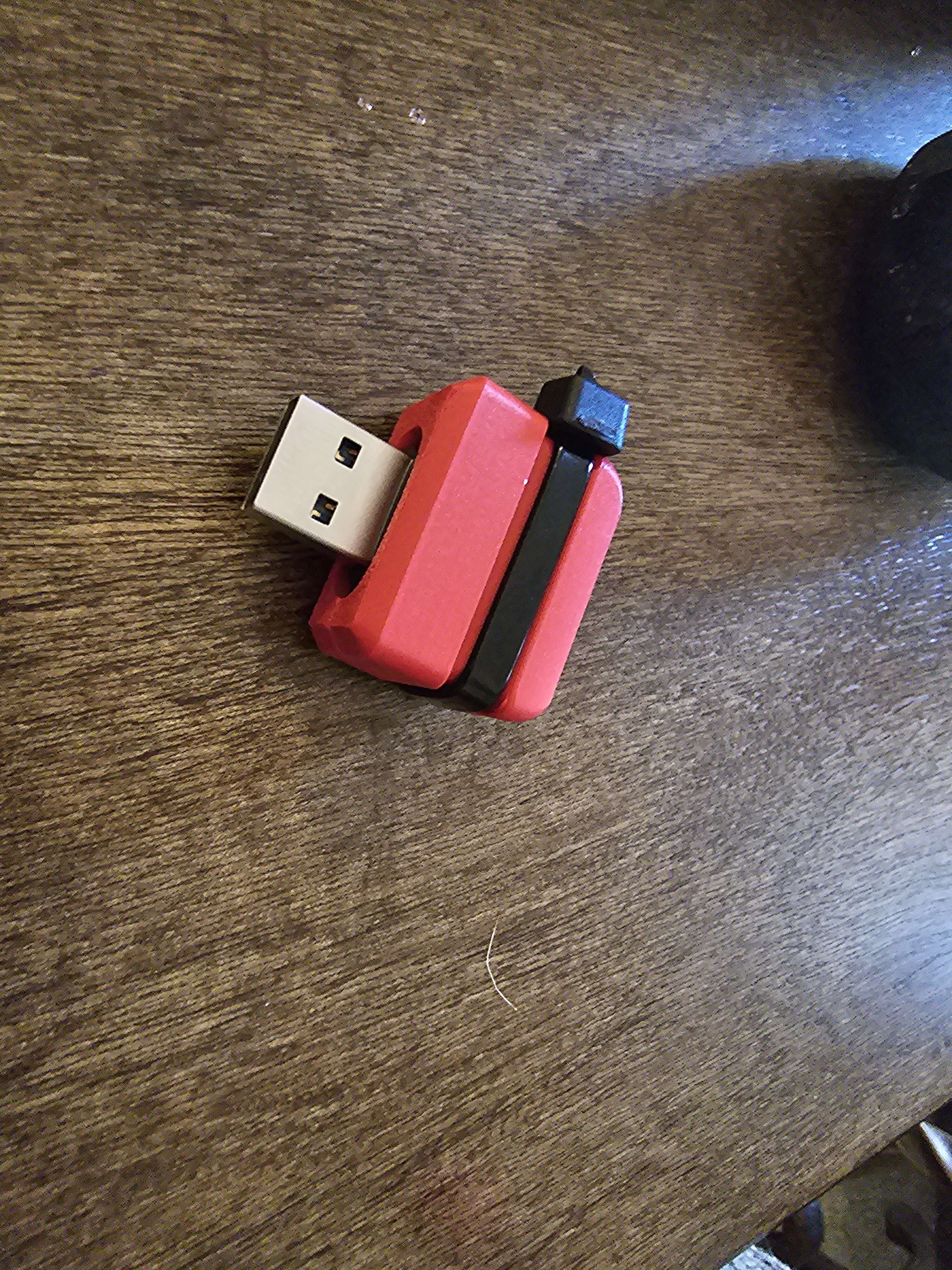

I was a little worried about the card just being open to the back, so I cam eup with a 3d printed enclosure for the reader with the card.  Basically turns it into a full usb drive that I can but the zip tie and swap the card out easily enough.  I'm just using some rubber sstrips right now to secure it inside the enclosure but at some point I will use something like Sugru to perfectly mold the inside of the enclosure to the reader with card.







16 minutes ago, Rhuarc said:

I cam eup with a 3d printed enclosure for the reader with the card.

Can you figure out a way to take the temperature inside the enclosure? I'd be afraid of cooking it.

1 minute ago, JonathanM said:

Can you figure out a way to take the temperature inside the enclosure? I'd be afraid of cooking it.

Hmm,  Hadn't thought too much about it.  I can do a test using a temp probe.  I'll put a small hole just big enough for the probe and see what temps I end up getting.  The Sandisk industrial card is rated up to 85C and 190TB lifetime.  I think it should be fine.  Worst case I will design the enclosure with holes in the top and bottom so it has more of a bumper appearance but lets the actual top and bottom of the reader breathe.  I'll report back once I get this data!

3 minutes ago, Rhuarc said:

The Sandisk industrial card is rated up to 85C

What about the reader? Same?

42 minutes ago, JonathanM said:

What about the reader? Same?

I found one place that says it is rated to 60C, but I have no idea if that is reliable since it isn't listed on any spec sheet.  I have a second reader and card coming this weekend.  I will do a test using my enclosure do a sustained write sequence to the card to reay heat it up and stress test it and report back the temps it hits inside the enclosure right against the reader.

I did a few tests writing to an sd card constantly for 30 minutes and inside the enclosure never hit above 50C.  Obviously not a fully scientific test, but encouraging at least.  I would be surprised if modern hardware like a card reader can't be good to at least 60C for extended periods.

42 minutes ago, Rhuarc said:

writing to an sd card constantly for 30 minutes

And this should only happen with the Unraid flash USB if the syslog is set to mirror to the flash drive.  Otherwise, the only writes should be an occassional configuration update.  Mostly, the Unraid flash gets read on boot and is not accessed a lot after that.

Been running it now for a week and everything seems to be going great!  I can get a couple extra of the sd cards to keep on hand in case one dies and no worries about needing to change keys!

I just got the SanDisk MobileMate and it came like this; with bent pins:



So the microSD cards sometimes works and sometimes doesn't, depending on weather the contact want's to work or not.



Judging by the comments on the Amazon product page, it seems that it is not an uncommon issue, so I'm definitely not getting this usb adapter again. Any recommendations of a good card reader with unique GUID?

I really do not understand why SanDisk would make such a weak contact mechanism.

PS: I've been reading this thread and I can't believe people are still buying and recommending this shitty adapter. Read the bad comments on Amazon, for god sake. This card reader could damage your cards and even your PC if you are very unlucky. Terrible recommendation guys.

Edited October 16, 20241 yr by s1l3nce

Does the SanDisk QuickFlow have a unique ID? It's a bit more modern than the shitty MobileMate. Here is a comparisson:

https://shop.sandisk.com/tools/product-compare?ids=SDDR-B531-AN6NN:mobilemate-uhs-i-usb-3-0-microsd-reader-writer,SDDR-B731-GN6NN:sandisk-quickflow-microsd-usb-a-memory-card-reader



I might give it a try. I hope they've improved the contact mechanism.



This is just unbelievable. I just got the SanDisk QuickFlow and it came like this:



And, as you might suspect, it does not work with any of my microSD cards. I'm either the unluckiest person on the planet or these devices are shit.

What should I look for to find out if these card readers have a unique GUID?

https://www.kingston.com/en/memory-card-readers/mobilelite-plus-microsd-reader

https://www.kingston.com/en/memory-card-readers/mobilelite-duo-3c

Edited October 26, 20241 yr by s1l3nce

On 10/16/2024 at 8:28 AM, s1l3nce said:

I just got the SanDisk MobileMate and it came like this; with bent pins:



So the microSD cards sometimes works and sometimes doesn't, depending on weather the contact want's to work or not.



Judging by the comments on the Amazon product page, it seems that it is not an uncommon issue, so I'm definitely not getting this usb adapter again. Any recommendations of a good card reader with unique GUID?

I really do not understand why SanDisk would make such a weak contact mechanism.

PS: I've been reading this thread and I can't believe people are still buying and recommending this shitty adapter. Read the bad comments on Amazon, for god sake. This card reader could damage your cards and even your PC if you are very unlucky. Terrible recommendation guys.



On 10/18/2024 at 10:41 PM, s1l3nce said:

This is just unbelievable. I just got the SanDisk QuickFlow and it came like this:



And, as you might suspect, it does not work with any of my microSD cards. I'm either the unluckiest person on the planet or these devices are shit.



I'm still using the same mobile mate from 2021 that I referred to in my post up thread. I also have a couple others I bought around the same time that I use for work. They haven't ever had any issues and none have bent contacts.



The vast majority of the reviews on the Amazon page for the mobile mate are positive. Pretty much all high volume products on amazon will have some amount of negative reviews about manufacturing defects that slipped through QA. Based on the fact you had this defect in two different SKUs, sandisk has either had an uptick in QA issues or you're just super unlucky.

The main purpose of this thread is to identify what card reader models have unique GUIDs for licensing purposes not determine the chance you'll receive a faulty unit. We as individuals can only report on our own experiences. If you actually go back to what we have written in this thread you'll see all we said was that it worked for us, just like you have reported the issues you've had. It's up to all the lurkers reading this thead to take these individual reports and determine what to buy for their own unRAID setup.

Edited October 27, 20241 yr by Tits_Mcgruff
