CHBMB Posted May 17, 2017 Share Posted May 17, 2017 24 minutes ago, archedraft said: This has got "danger stranger" written all over it! Thought you were my friend lol Link to comment
archedraft Posted May 17, 2017 Share Posted May 17, 2017 Thought you were my friend lolLol, sorry I could not help myself. Link to comment
al_uk Posted May 17, 2017 Share Posted May 17, 2017 Right - to avoid derailing this thread any more I'll create a separate one with pics when I've got the Arduino working! :-) Meanwhile - any comments on using something on the LAN to authenticate the unraid server and decrypt the drives? Link to comment
autumnwalker Posted May 17, 2017 Share Posted May 17, 2017 Not to derail ... but why are you worried about cold? Computers love cold only concern is rapid temperature changes and introduction of moisture (condensation). Link to comment
al_uk Posted May 17, 2017 Share Posted May 17, 2017 Garage temp in winter is probably between 0 and 10 deg C most of the time, with excursions down to -5. the HDDs are 8TB Seagate archive drives which I think have a minimum operating temp of 5deg C. The drives will be spun down quite a lot of the time. Link to comment
JonathanM Posted May 17, 2017 Share Posted May 17, 2017 41 minutes ago, al_uk said: The drives will be spun down quite a lot of the time. This is the concern. If you had everything spun up all the time, the cold would be no issue at all. It's the relatively sudden temperature swing from 0c-30c as the drive comes online and starts working that is the issue. Since this whole exercise is based on keeping temperature steady, and you have a ready supply of heat that needs to be removed, I'd look into possibly using the greenhouse wax motors that open and close vents allowing convection cooling, no fans required. Link to comment
limetech Posted May 17, 2017 Author Share Posted May 17, 2017 2 hours ago, jonathanm said: It's the relatively sudden temperature swing from 0c-30c as the drive comes online and starts working that is the issue. Exactly right. This happened to me when we lived in Colorado. Had a server in an unheated building with drives spun down. Temps got below freezing and I spun up all the drives for a parity check - lost about 5 drives out of 12 all at once. First and only time I ever had more than one drive failure. Thankfully didn't lose all the data, just the ones on those drives. After that I started putting a cardboard box over the server. That kept everything warm enough with drives spun down. Of course, removed the box in the spring Link to comment
SpaceInvaderOne Posted May 31, 2017 Share Posted May 31, 2017 On 2017-5-17 at 10:03 PM, limetech said: Exactly right. This happened to me when we lived in Colorado. Had a server in an unheated building with drives spun down. Temps got below freezing and I spun up all the drives for a parity check - lost about 5 drives out of 12 all at once. First and only time I ever had more than one drive failure. Thankfully didn't lose all the data, just the ones on those drives. After that I started putting a cardboard box over the server. That kept everything warm enough with drives spun down. Of course, removed the box in the spring So you did a "server unboxing" each spring ! Link to comment
KingB Posted June 14, 2017 Share Posted June 14, 2017 Hello :-) Addind an option to encrypt makes Unraid the perfect operating system for me. Is there any schedule for the feature ? Not Asking for a specific date, maybe for a roadmap or something ;-). Link to comment
eebrains Posted June 20, 2017 Share Posted June 20, 2017 I thought I'd post here instead of a new topic - Just wondering why cryptsetup is included with unRaid but doesn't work? I would like to set up encryption on some drives outside of the array, but the kernel doesn't support the encryption. I'm led to believe this is a simple thing to roll into the kernel, as others here have done said... why can't we get that by default when nearly every free distro supports it? Thanks. J Link to comment

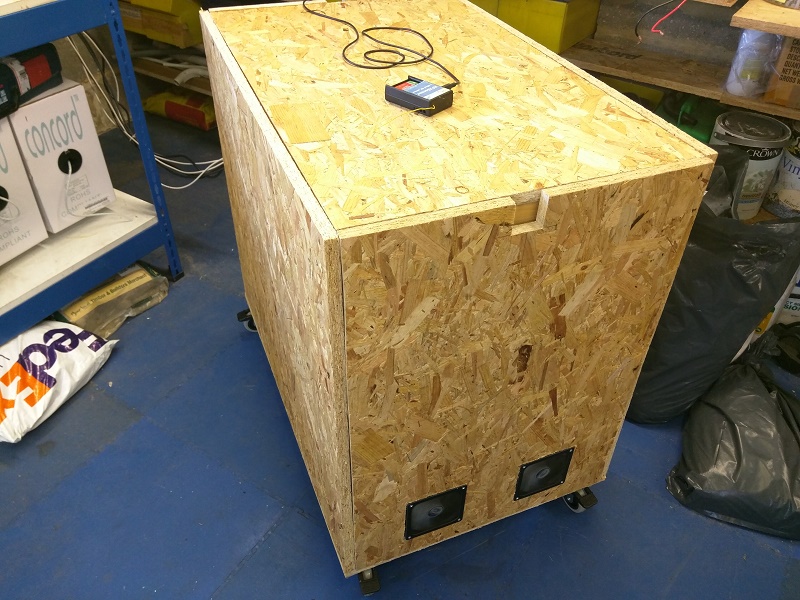

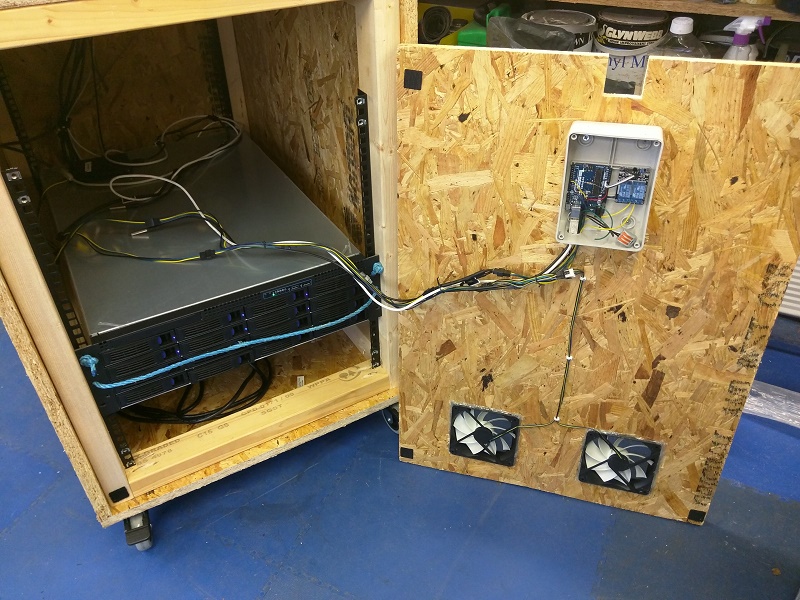

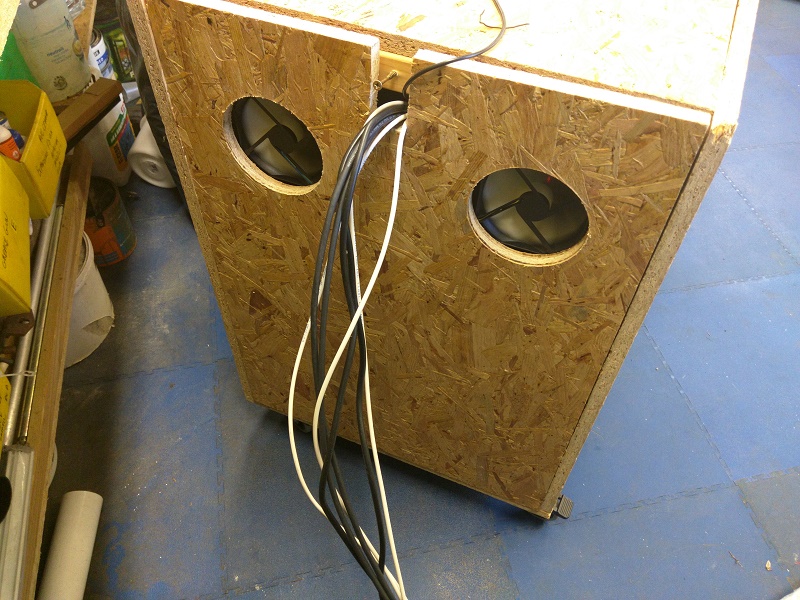

al_uk Posted October 20, 2017 Share Posted October 20, 2017 *Offtopic* Seeing as some of you asked here is my GarageRack! Air flow is in at the lower front through the mesh filters on the fan and out at the top rear. Arduino controls the PWM for the rack fans, but takes the power from a fan connector on the motherboard. Arduino also cuts the power to the rack fans below 17 deg C. The CPU and drive fans inside the server case are all triggered from the Drive temperature using the IPMI plugin. Ambient temp in the garage is about 12 deg C. Temp inside the cab is 18 deg C. Drive temps are set to centre around 30 deg C. We'll see how it goes as the outside temp drops. There is a UPS underneath the server. I'll tidy the cabling and edges up once I'm happy this all works properly. Test server will also go in this rack. FRONT BACK INSIDE Link to comment
Alphahelix Posted December 29, 2017 Share Posted December 29, 2017 +1 for encryption on share level. also... +1 for cache/array encryption. Link to comment
