Thanks all, that was quick!



Shouldn't FIP automatically update the export file?



I believe it should if you have "Save new hashing results to flash" enabled. I don't.



I do have "Save new hashing results to flash" enabled, however, it does not update the existing export file.



I have changed the behaviour of the daily script "exportrotate' to reporting only, this means that it will signal that "build' or "export" are not up-to-date anymore, but it requires a user action to sync.



Link to comment

So FIP did not run this morning.  I even tried the "update_cron" command after I changed the schedule yesterday just for good measure... Is everyone else not experiencing this?



Can you show the content of the following files:



# cat [b]/etc/cron.d/root[/b]
# Generated file integrity check schedule:
50 11 * * 1 /boot/config/plugins/dynamix.file.integrity/integrity-check.sh &> /dev/null

cat [b][b]/boot/config/plugins/dynamix.file.integrity/integrity-check.sh[/b][/b]
#!/bin/bash
# This is an auto-generated file, do not change manually!
#
bunker=/usr/local/emhttp/plugins/dynamix.file.integrity/scripts/bunker
[[ $((10#$(date +%W)%5)) -eq 0 ]] && $bunker -Vqj -b2 -n -L /mnt/disk1 >/dev/null &
[[ $((10#$(date +%W)%5)) -eq 0 ]] && $bunker -Vqj -b2 -n -L /mnt/disk2 >/dev/null &
[[ $((10#$(date +%W)%5)) -eq 1 ]] && $bunker -Vqj -b2 -n -L /mnt/disk3 >/dev/null &
[[ $((10#$(date +%W)%5)) -eq 1 ]] && $bunker -Vqj -b2 -n -L /mnt/disk4 >/dev/null &
[[ $((10#$(date +%W)%5)) -eq 2 ]] && $bunker -Vqj -b2 -n -L /mnt/disk5 >/dev/null &
[[ $((10#$(date +%W)%5)) -eq 2 ]] && $bunker -Vqj -b2 -n -L /mnt/disk6 >/dev/null &
[[ $((10#$(date +%W)%5)) -eq 3 ]] && $bunker -Vqj -b2 -n -L /mnt/disk7 >/dev/null &
[[ $((10#$(date +%W)%5)) -eq 3 ]] && $bunker -Vqj -b2 -n -L /mnt/disk8 >/dev/null &
[[ $((10#$(date +%W)%5)) -eq 4 ]] && $bunker -Vqj -b2 -n -L /mnt/disk9 >/dev/null &
[[ $((10#$(date +%W)%5)) -eq 4 ]] && $bunker -Vqj -b2 -n -L /mnt/disk10 >/dev/null &
exit 0



With notifications ON (see settings) you would see messages as indicated below:



17-03-2016 19:41	Dynamix file integrity [disk3]	Notice [VESTA] - Verify task for disk3 finished	Duration: 5 hr, 10 min, 1 sec.
17-03-2016 19:22	Dynamix file integrity [disk5]	Notice [VESTA] - Verify task for disk5 finished	Duration: 4 hr, 50 min, 41 sec.
17-03-2016 14:31	Dynamix file integrity [disk3]	Notice [VESTA] - Verify task for disk3 started	 Total files size: 2.22 TB
17-03-2016 14:31	Dynamix file integrity [disk5]	Notice [VESTA] - Verify task for disk5 started	 Total files size: 2.13 TB

Link to comment

I'm still getting error messages (highlighted in red) in my syslog like this



Mar 19 16:05:06 Lapulapu bunker: error: no export of file: /mnt/disk1/L_Public/Shared Music/.DS_Store



despite (or, possibly because of) having Apple metadata excluded in File Integrity settings.


Link to comment

I'm still getting error messages (highlighted in red) in my syslog like this



Mar 19 16:05:06 Lapulapu bunker: error: no export of file: /mnt/disk1/L_Public/Shared Music/.DS_Store



despite (or, possibly because of) having Apple metadata excluded in File Integrity settings.



Can you show the output of:



# [b]ps -ef | grep inotify[/b]
root     23783     1  0 16:49 ?        00:00:00 inotifywait -mrqe close_write --exclude ^/mnt/disk[0-9]+/(.*\.Recycle\.Bin/|.*\.tmp$) --format %w%f /mnt/disk1 /mnt/disk10 /mnt/disk2 /mnt/disk3 /mnt/disk4 /mnt/disk5 /mnt/disk6 /mnt/disk7 /mnt/disk8 /mnt/disk9

Link to comment

You need to redo the disk verification tasks on the settings page.

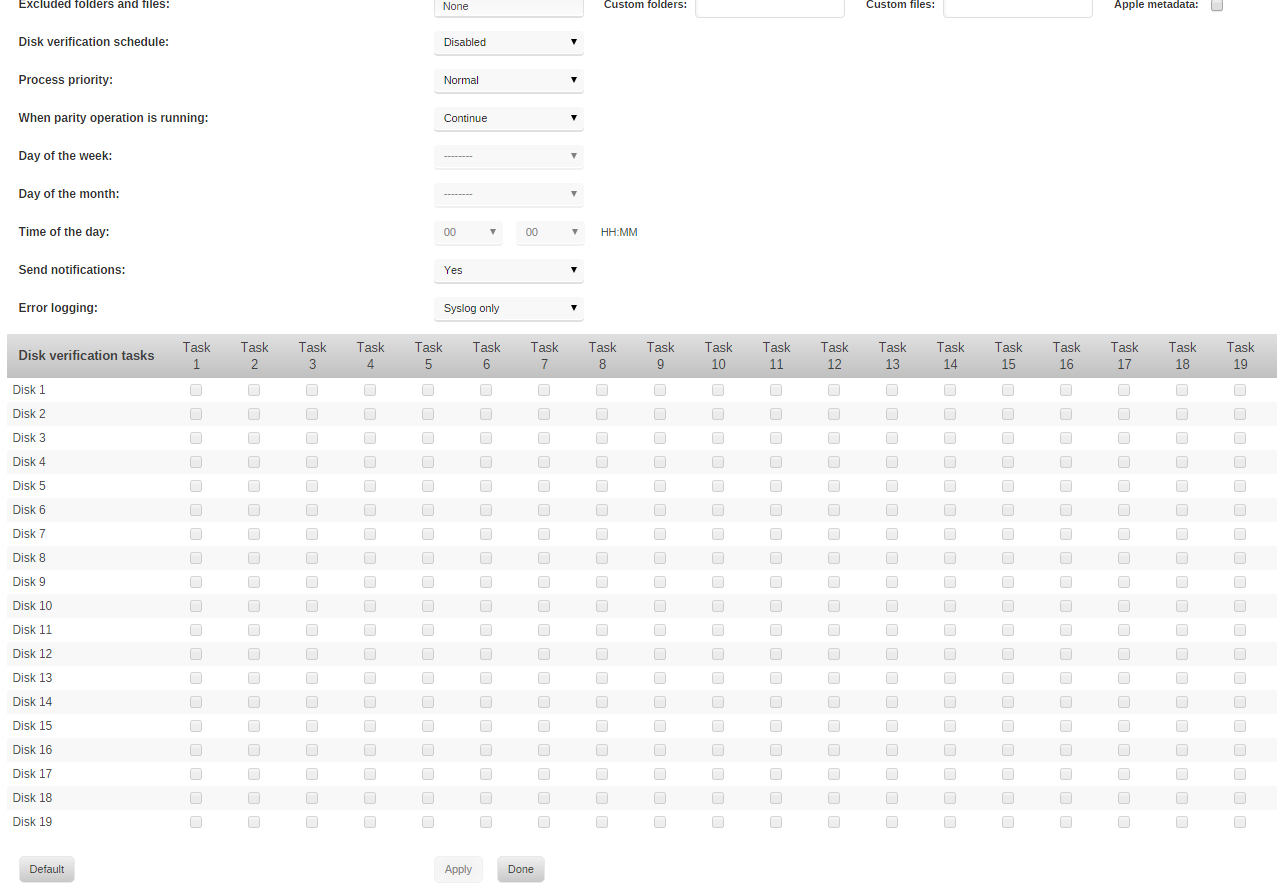

And how do I do that? This is the settings page from my test server, at the moment it only has 4 data disks.



Pressing default doesn't remove unused disks.



Hmm, in version 6.2 the number of disks presented in the array depends on the setting of "slots". Stop the array and change the slots number to 6 (if you are running dual parity).



This is different behaviour, I am going to make an additional check in the plugin to explicitely exclude empty slots. Alternatively it might be considered a 'bug' in unRAID 6.2. ::)



Link to comment

So FIP did not run this morning.  I even tried the "update_cron" command after I changed the schedule yesterday just for good measure... Is everyone else not experiencing this?



Can you show the content of the following files:



# cat [b]/etc/cron.d/root[/b]
# Generated file integrity check schedule:
50 11 * * 1 /boot/config/plugins/dynamix.file.integrity/integrity-check.sh &> /dev/null

cat [b][b]/boot/config/plugins/dynamix.file.integrity/integrity-check.sh[/b][/b]
#!/bin/bash
# This is an auto-generated file, do not change manually!
#
bunker=/usr/local/emhttp/plugins/dynamix.file.integrity/scripts/bunker
[[ $((10#$(date +%W)%5)) -eq 0 ]] && $bunker -Vqj -b2 -n -L /mnt/disk1 >/dev/null &
[[ $((10#$(date +%W)%5)) -eq 0 ]] && $bunker -Vqj -b2 -n -L /mnt/disk2 >/dev/null &
[[ $((10#$(date +%W)%5)) -eq 1 ]] && $bunker -Vqj -b2 -n -L /mnt/disk3 >/dev/null &
[[ $((10#$(date +%W)%5)) -eq 1 ]] && $bunker -Vqj -b2 -n -L /mnt/disk4 >/dev/null &
[[ $((10#$(date +%W)%5)) -eq 2 ]] && $bunker -Vqj -b2 -n -L /mnt/disk5 >/dev/null &
[[ $((10#$(date +%W)%5)) -eq 2 ]] && $bunker -Vqj -b2 -n -L /mnt/disk6 >/dev/null &
[[ $((10#$(date +%W)%5)) -eq 3 ]] && $bunker -Vqj -b2 -n -L /mnt/disk7 >/dev/null &
[[ $((10#$(date +%W)%5)) -eq 3 ]] && $bunker -Vqj -b2 -n -L /mnt/disk8 >/dev/null &
[[ $((10#$(date +%W)%5)) -eq 4 ]] && $bunker -Vqj -b2 -n -L /mnt/disk9 >/dev/null &
[[ $((10#$(date +%W)%5)) -eq 4 ]] && $bunker -Vqj -b2 -n -L /mnt/disk10 >/dev/null &
exit 0



With notifications ON (see settings) you would see messages as indicated below:



17-03-2016 19:41	Dynamix file integrity [disk3]	Notice [VESTA] - Verify task for disk3 finished	Duration: 5 hr, 10 min, 1 sec.
17-03-2016 19:22	Dynamix file integrity [disk5]	Notice [VESTA] - Verify task for disk5 finished	Duration: 4 hr, 50 min, 41 sec.
17-03-2016 14:31	Dynamix file integrity [disk3]	Notice [VESTA] - Verify task for disk3 started	 Total files size: 2.22 TB
17-03-2016 14:31	Dynamix file integrity [disk5]	Notice [VESTA] - Verify task for disk5 started	 Total files size: 2.13 TB



cat /etc/cron.d/root
# Generated file integrity check schedule:
5 0 19 * * /boot/config/plugins/dynamix.file.integrity/integrity-check.sh &> /de                                                                                                                                                             v/null

# Generated docker monitoring schedule:
10 0 * * * /usr/local/emhttp/plugins/dynamix.docker.manager/scripts/dockerupdate                                                                                                                                                             .php check &> /dev/null

# Generated system monitoring schedule:
*/1 * * * * /usr/local/emhttp/plugins/dynamix/scripts/monitor &> /dev/null

# Generated mover schedule:
0 1 * * * /usr/local/sbin/mover |& logger

# Generated parity check schedule:
0 0 1 * * /usr/local/sbin/mdcmd check  &> /dev/null

# Generated plugins version check schedule:
10 0 * * * /usr/local/emhttp/plugins/dynamix.plugin.manager/scripts/plugincheck                                                                                                                                                              &> /dev/null

# Generated array status check schedule:
20 0 * * * /usr/local/emhttp/plugins/dynamix/scripts/statuscheck &> /dev/null



cat /boot/config/plugins/dynamix.file.integrity/integrity-check.sh
#!/bin/bash
# This is an auto-generated file, do not change manually!
#
bunker=nice -n19 ionice -c2 -n7 /usr/local/emhttp/plugins/dynamix.file.integrity/scripts/bunker
[[ $(grep -Po '^mdResync=\K\S+' /proc/mdcmd) -ne 0 ]] && exit 0
[[ $((10#$(date +%m)%1)) -eq 0 ]] && $bunker -Vqj -b2 -n -L -f /boot/config/plugins/dynamix.file.integrity/logs/disk1.export.$(date +%Y%m%d).bad.log /mnt/disk1 >/dev/null &
[[ $((10#$(date +%m)%1)) -eq 0 ]] && $bunker -Vqj -b2 -n -L -f /boot/config/plugins/dynamix.file.integrity/logs/disk2.export.$(date +%Y%m%d).bad.log /mnt/disk2 >/dev/null &
[[ $((10#$(date +%m)%1)) -eq 0 ]] && $bunker -Vqj -b2 -n -L -f /boot/config/plugins/dynamix.file.integrity/logs/disk3.export.$(date +%Y%m%d).bad.log /mnt/disk3 >/dev/null &
exit 0

Link to comment

This line in the file integrity-check.sh:



[[ $(grep -Po '^mdResync=\K\S+' /proc/mdcmd) -ne 0 ]] && exit 0



Will abort the verification process if a parity check is running at the same time. Did you have a parity check running?



(you may want to change the setting of When parity operation is running to Continue).



Link to comment

This line in the file integrity-check.sh:



[[ $(grep -Po '^mdResync=\K\S+' /proc/mdcmd) -ne 0 ]] && exit 0



Will abort the verification process if a parity check is running at the same time. Did you have a parity check running?



(you may want to change the setting of When parity operation is running to Continue).



No, parity check only happens on the first of the month. I can change it to "continue" if that is the issue?

Link to comment

I'm still getting error messages (highlighted in red) in my syslog like this



Mar 19 16:05:06 Lapulapu bunker: error: no export of file: /mnt/disk1/L_Public/Shared Music/.DS_Store



despite (or, possibly because of) having Apple metadata excluded in File Integrity settings.



Can you show the output of:



# [b]ps -ef | grep inotify[/b]
root     23783     1  0 16:49 ?        00:00:00 inotifywait -mrqe close_write --exclude ^/mnt/disk[0-9]+/(.*\.Recycle\.Bin/|.*\.tmp$) --format %w%f /mnt/disk1 /mnt/disk10 /mnt/disk2 /mnt/disk3 /mnt/disk4 /mnt/disk5 /mnt/disk6 /mnt/disk7 /mnt/disk8 /mnt/disk9



Here you go:



root@Lapulapu:~# ps -ef | grep inotify
root     13646     1  0 16:03 ?        00:00:00 inotifywait -mrqe close_write --exclude ^/mnt/disk[0-9]+/(.*\.icns$|.*\.AppleDB/|.*\.DS_Store$) --format %w%f /mnt/disk1 /mnt/disk2 /mnt/disk7
root     28563 24193  0 18:38 pts/0    00:00:00 grep inotify
root@Lapulapu:~#



I'm excluding *.icns and Apple metadata. And I'm only including three disks at the moment.



Link to comment

That looks alright and should work as expected.



Perhaps there is some left-over from earlier days. Have you tried to delete the file '/mnt/disk1/L_Public/Shared Music/.DS_Store' ?



Yes, I suspect they are left-overs since before exclusions were possible. I found a neat little command for deleting them all from each of my shares. Don't worry, OS X will re-create them soon enough and they will then be properly excluded! Many thanks.



find /mnt/user/L_Public -name .DS_Store -exec rm '{}' \;
find /mnt/user/L_Private -name .DS_Store -exec rm '{}' \;





Link to comment

Wow alright I figured it out after 60 mins of changes settings. If priority is set to "low" it doesn't start but if it is set to "normal" then it runs!



Interesting, what happens when you manually execute the command?



nice -n19 ionice -c2 -n7 /usr/local/emhttp/plugins/dynamix.file.integrity/scripts/bunker



Link to comment

Wow alright I figured it out after 60 mins of changes settings. If priority is set to "low" it doesn't start but if it is set to "normal" then it runs!



Interesting, what happens when you manually execute the command?



nice -n19 ionice -c2 -n7 /usr/local/emhttp/plugins/dynamix.file.integrity/scripts/bunker



I will test and find out. Before I do, is there a command to stop bunker from verifying each disk? I would hate to have multiple instances running.

Link to comment

Wow alright I figured it out after 60 mins of changes settings. If priority is set to "low" it doesn't start but if it is set to "normal" then it runs!



Interesting, what happens when you manually execute the command?



nice -n19 ionice -c2 -n7 /usr/local/emhttp/plugins/dynamix.file.integrity/scripts/bunker



I will test and find out. Before I do, is there a command to stop bunker from verifying each disk? I would hate to have multiple instances running.



1. Running bunker without arguments will let it show help only and quit immediately.



2. Select the disks you want to verify in the "Disk verification tasks" table. If 'none' are selected it will actually verify all !



Link to comment

Hmm, in version 6.2 the number of disks presented in the array depends on the setting of "slots". Stop the array and change the slots number to 6 (if you are running dual parity).



This is different behaviour, I am going to make an additional check in the plugin to explicitely exclude empty slots. Alternatively it might be considered a 'bug' in unRAID 6.2. ::)



Changing the number of slots did it, and that’s a good enough fix for me, I was thinking the plugin was getting info from the previous array config.

Link to comment

Wow alright I figured it out after 60 mins of changes settings. If priority is set to "low" it doesn't start but if it is set to "normal" then it runs!



Interesting, what happens when you manually execute the command?



nice -n19 ionice -c2 -n7 /usr/local/emhttp/plugins/dynamix.file.integrity/scripts/bunker



This is what happens:

nice -n19 ionice -c2 -n7 /usr/local/emhttp/plugins/dynamix.file.integrity/scripts/bunker
bunker v2.5 - Copyright (c) 2015-2016 Bergware International

Usage: bunker -a|A|v|V|u|e|t|i|c|C|r|R [-fdDsSlLnq] [-md5|-b2] path [!] [mask]
  -a          add hash key attribute for files, specified in path and optional m                                                                                                                                                             ask
  -A          same as -a option with implicit export function (may use -f)
  -v          verify hash key attribute and report mismatches (may use -f)
  -V          same as -v option with updating of mismatched keys (may use -f)
  -u          update mismatched or corrupted hash keys with new hash key attribu                                                                                                                                                             te (may use -f)
  -e          export hash key attributes to the export file (may use -f)
  -t          touch file, i.e. copy file modified time to extended attribute
  -i          import hash key attributes from file and restore them (must use -f                                                                                                                                                             )
  -c          check hash key attributes from input file (must use -f)
  -C          same as -c option and correct mismatched hash key in extended attr                                                                                                                                                             ibute (must use -f)
  -r          remove hash key extended attribute from specified selection (may u                                                                                                                                                             se -f)
  -R          same as -r option and remove all other values too (may use -f)

  -f <file>   optional set file reference to <file>. Defaults to /tmp/bunker.sto                                                                                                                                                             re.log
  -d <days>   optional only verify/update/remove files which were scanned <days>                                                                                                                                                              or longer ago
  -D <time>   optional only add/verify/update/export/remove files newer than <ti                                                                                                                                                             me>, time = NNs,m,h,d,w
  -s <size>   optional only include files smaller than <size>
  -S <size>   optional only include files greater than <size>
  -l          optional create log entry in the syslog file
  -L          optional, same as -l but only create log entry when changes are pr                                                                                                                                                             esent
  -n          optional send notifications when file corruption is detected
  -q          optional quiet mode, suppress all output. Use for background proce                                                                                                                                                             ssing
  -md5        optional use md5 hashing algorithm instead of sha256
  -b2         optional use blake2 hashing algorithm instead of sha256

  path        path to starting directory, mandatory with some exceptions (see ex                                                                                                                                                             amples)
  mask        optional filter for file selection. Default is all files
              when path or mask names have spaces, then place names between quot                                                                                                                                                             es
              precede mask with ! to change its operation from include to exclud                                                                                                                                                             e

Examples:
bunker -a /mnt/user/tv                                 add SHA key for files in                                                                                                                                                              share tv
bunker -a -S 10M /mnt/user/tv                          add SHA key for files gre                                                                                                                                                             ater than 10 MB in share tv
bunker -a /mnt/user/tv *.mov                           add SHA key for .mov file                                                                                                                                                             s only in share tv
bunker -a /mnt/user/tv ! *.mov                         add SHA key for all files                                                                                                                                                              in share tv except .mov files
bunker -A -f /tmp/keys.hash /mnt/user/tv               add SHA key for files in                                                                                                                                                              share tv and export to file keys.hash
bunker -v -n /mnt/user/files                           verify SHA key for previo                                                                                                                                                             usly scanned files and send notifications
bunker -V /mnt/user/files                              verify SHA key for scanne                                                                                                                                                             d files and update any mismatches
bunker -v -d 90 /mnt/user/movies                       verify SHA key for files                                                                                                                                                              scanned 90 days or longer ago
bunker -v -f /tmp/errors.hash /mnt/user/movies         verify SHA key and save m                                                                                                                                                             ismatches in file errors.hash
bunker -u  /mnt/disk1                                  update SHA key for mismat                                                                                                                                                             ching files
bunker -u -D 12h /mnt/disk1                            update SHA key for mismat                                                                                                                                                             ching files created in the last 12 hours
bunker -e -f /tmp/disk1_keys.hash /mnt/disk1           export SHA key to file di                                                                                                                                                             sk1_keys.hash
bunker -i -f /tmp/disk1_keys.hash                      import and restore SHA ke                                                                                                                                                             y from user defined file - no path
bunker -c -f /tmp/disk1_keys.hash                      check SHA key from user d                                                                                                                                                             efined input file - no path
bunker -C -f /tmp/disk1_keys.hash                      check SHA key and correct                                                                                                                                                              mismatched attribute (omit corruptions) - no path
bunker -r  /mnt/user/tv                                remove SHA key for files                                                                                                                                                              in share tv
bunker -r -f /tmp/errors.hash                          remove SHA key for files                                                                                                                                                              listed in file errors.hash - no path

Link to comment

Wow alright I figured it out after 60 mins of changes settings. If priority is set to "low" it doesn't start but if it is set to "normal" then it runs!



Ok, found the issue and made a correction.



New version 2016.03.20 is available. This version also addresses compatibility with unRAID v6.2. Users are encouraged to update to this version.



Please re-apply settings after upgrading to make them effective.



Link to comment

Wow alright I figured it out after 60 mins of changes settings. If priority is set to "low" it doesn't start but if it is set to "normal" then it runs!



Ok, found the issue and made a correction.



New version 2016.03.20 is available. This version also addresses compatibility with unRAID v6.2. Users are encouraged to update to this version.



Please re-apply settings after upgrading to make them effective.



Just tested with low and it works. Thank you. Another question for you from your quote below. Does this mean that new files do not get a checksum or exported automatically? Meaning any new files we add must be manually added to FIP?



I have changed the behaviour of the daily script "exportrotate' to reporting only, this means that it will signal that "build' or "export" are not up-to-date anymore, but it requires a user action to sync.

Link to comment

I've just noticed that if I use rsync to copy files from a non-array location (it may not matter where the files are coming from, but this is the case for me) to a disk on the array that is being monitored by the file integrity plugin no checksums are being added to the written files.  The rsync command I am using is:



rsync -avHAX --progress /mnt/SomeDrive/ /mnt/disk1/Destination/



Also, would it be possible to add additional locations outside the array to have checksums added/checked?  It would be great if I could monitor all of the files on my system.

Link to comment

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.
Note: Your post will require moderator approval before it will be visible.

Guest
Reply to this topic...

×   Pasted as rich text.   Restore formatting

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.
