Hi all, apparently I need video4linux to use my USB webcam in OctoPrint (3D printer server), and I was told that this plugin will do that  A few questions for the experts here:



1. Is this plugin the right way to go to get what I need?

2. Is the LibreELEC version of Unraid DVB just the stock Unraid kernel plus some additional drivers?

3. How far is this plugin usually behind the official stable Unraid kernel? A couple of weeks? A month? Two months?



Thanks in advance!

Edited June 4, 20206 yr by Phoenix Down

On 6/4/2020 at 10:45 PM, Phoenix Down said:

Hi all, apparently I need video4linux to use my USB webcam in OctoPrint (3D printer server), and I was told that this plugin will do that  A few questions for the experts here:



1. Is this plugin the right way to go to get what I need?

2. Is the LibreELEC version of Unraid DVB just the stock Unraid kernel plus some additional drivers?

3. How far is this plugin usually behind the official stable Unraid kernel? A couple of weeks? A month? Two months?



Thanks in advance!

I think so, but this plugin is there to download a custom bzroot/bzmodules or revert back to stock.



Yes.



Why should it be behind, it's the same version.

1 hour ago, ich777 said:

I think so, but this plugin is there to download a custom bzroot/bzmodules or revert back to stock.



Yes.



Why should it be behind, it's the same version.

I found out about this plugin from a different thread about OctoPrint. It seems to indicate that there is some amount of lag time between the official latest stable Unraid version vs Unraid DVB's latest version:





Edited June 6, 20206 yr by Phoenix Down

On 5/6/2019 at 3:10 AM, CHBMB said:

MTU has been something responsible in the past, other than that, got no idea, never been able to reproduce it.

This fixed my issue with Unraid-Nvidia stuck at "updating available builds".

I had a fresh build with Ver. 6.8.3 and one of the first settings I set before installing the Unraid-Nvidia Plugin was my MTU setting in Unraid.

I had my MTU set to 9000 due to having a 10G NIC.

Changed the MTU to 1500 applied and tried Unraid-Nvidia again. (no reboot)

BAM... All good !!!



I troubleshooted all my equipment and BIOS for a day-n a half and it was MTU stopping the plugin !!!!!


Thanks @CHBMB and Unraid Community

On 6/4/2020 at 9:45 PM, Phoenix Down said:

3. How far is this plugin usually behind the official stable Unraid kernel?

Depends what I have going on in my life at the time.  Last 6-9 months have been pretty full on, last 3 months have been particularly hectic.  New job, new baby and seeing as I work in front line healthcare as a clinician in one of the initially hardest hit areas of my country in terms of Covid, any dev work has kind of taken very much a back seat.

Edited June 6, 20206 yr by CHBMB

8 hours ago, CHBMB said:

Depends what I have going on in my life at the time.  Last 6-9 months have been pretty full on, last 3 months have been particularly hectic.  New job, new baby and seeing as I work in front line healthcare as a clinician in one of the initially hardest hit areas of my country in terms of Covid, any dev work has kind of taken very much a back seat.

Understood, and props to you! There are definitely more important things in the world right now than hobby project.

any chance for update to 6.9 ?

I can't seem to get this to work right.

When I install Plex with the NVIDIA passthrough, Plex works.  When I go to install this to work with my Hauppauge HVR-2250, the settings show my card, but then the Plex docker is gone.  Then I see that Unraid is no longer on 6.9.0b25.  There doesn't seem to be a compatible DVB driver for that version.  So am I just SOL?  I'm really new to all this.

You'll need to get a custom built unraid with DVB and Nvidia. It has it's own massive thread on the forums, just search for it.





14 minutes ago, hansolo77 said:

I can't seem to get this to work right.

When I install Plex with the NVIDIA passthrough, Plex works.  When I go to install this to work with my Hauppauge HVR-2250, the settings show my card, but then the Plex docker is gone.  Then I see that Unraid is no longer on 6.9.0b25.  There doesn't seem to be a compatible DVB driver for that version.  So am I just SOL?  I'm really new to all this.

You can download prebuilt images on the bottom of the first post that @BRiT linked (I think it's with the latest nVidia driver v450.57 & the LibreELEC DVB drivers v1.4.0) both prebuilt for 6.8.3 (I think I've only built that with the older nVidia driver) and 6.9.0beta25 for your preference.

After I download a prebuilt how do I install it?

41 minutes ago, hansolo77 said:

After I download a prebuilt how do I install it?

Please read the discription, simply place it on the root of you usb stick (if you are on windows you can connect through WinSCP and place it in the boot directory - equals to the root of your usb stick - to your server and replace the files and reboot or you simply shutdown your server and put the files on the drive - please always backup the existing files on your local computer in case something goes wrong).



EDIT: And of course extract it in the first place...



Hi,

yesterday i updated my Unraid from 6.5 to the 6.8.3 because i need a driver for my zigbee stick....but with this update i broke my tvheadend installation.
I notices the same problem @natiz  reported:

[   19.600943] SMI PCIe driver 0000:04:00.0: DVB: registering adapter 0 frontend 0 (Montage Technology M88RS6000)...

[   19.609163] SMI PCIe driver 0000:04:00.0: DVBSky S952 V3 port 0 MAC: 00:18:42:54:55:52

[   19.609440] dvbdev: DVB: registering new adapter (SMI_DVB)

[   19.861771] SMI PCIe driver 0000:04:00.0: DVB: registering adapter 1 frontend 0 (Montage Technology M88RS6000)...

[   19.869952] SMI PCIe driver 0000:04:00.0: DVBSky S952 V3 port 1 MAC: 00:18:32:54:55:53

[   19.870219] Registered IR keymap rc-dvbsky

[   19.870493] rc rc0: IR (DVBSky S952 V3) as /devices/pci0000:00/0000:00:1c.0/0000:04:00.0/rc/rc0

[   19.871525] input: IR (DVBSky S952 V3) as /devices/pci0000:00/0000:00:1c.0/0000:04:00.0/rc/rc0/input5

[ 1540.556607] m88ds3103 2-0069: Direct firmware load for dvb-demod-m88rs6000.fw failed with error -2

[ 1540.556609] m88ds3103 2-0069: firmware file 'dvb-demod-m88rs6000.fw' not found

[ 1540.664806] SMI PCIe driver 0000:04:00.0: DVB: adapter 1 frontend 0 frequency 0 out of range (950000..2150000)

[ 1540.702361] m88ds3103 2-0069: Direct firmware load for dvb-demod-m88rs6000.fw failed with error -2

[ 1540.702363] m88ds3103 2-0069: firmware file 'dvb-demod-m88rs6000.fw' not found



The only hint for a solution i found was this:

On 5/15/2020 at 8:10 PM, natiz said:

Thanks for the info, @BRiT.



I found a workaround, updated to the TBS OS build, and used mksquashfs to append the missing fw file (dvb-demod-m88rs6000.fw) to bzfirmware and it worked!



...unfortunately i don't understand what exactly i need to do, can someone please it explain it in more details?



Thanks

I solved the Problem by using the  Unraid_Custom_DVB_builtin_v6.8.3.zip that included the missing firmware.
Thanks to @ich777 for that

Edited September 11, 20205 yr by f451

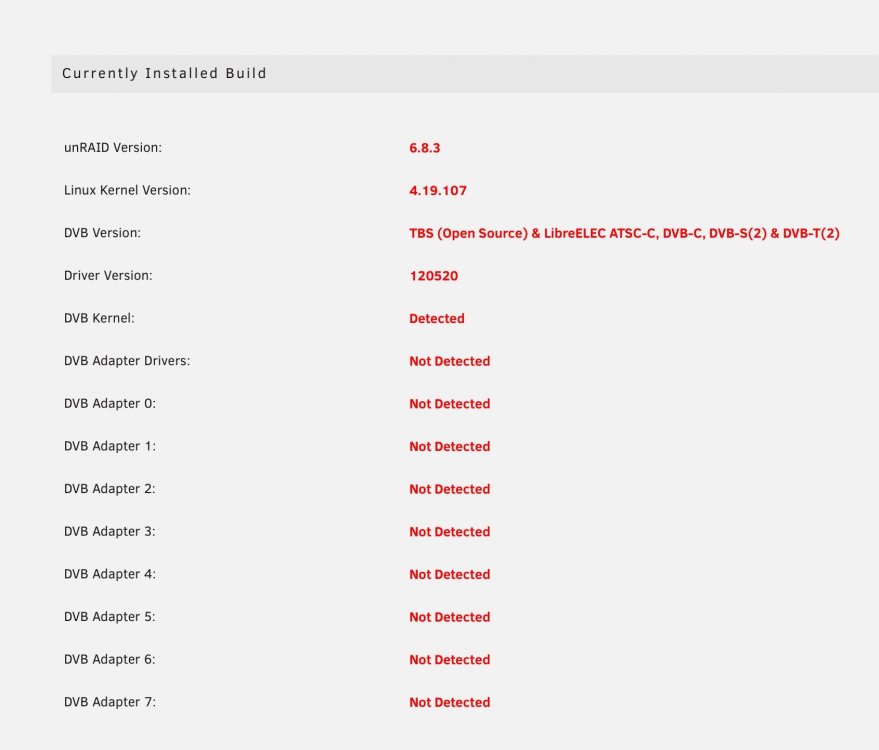

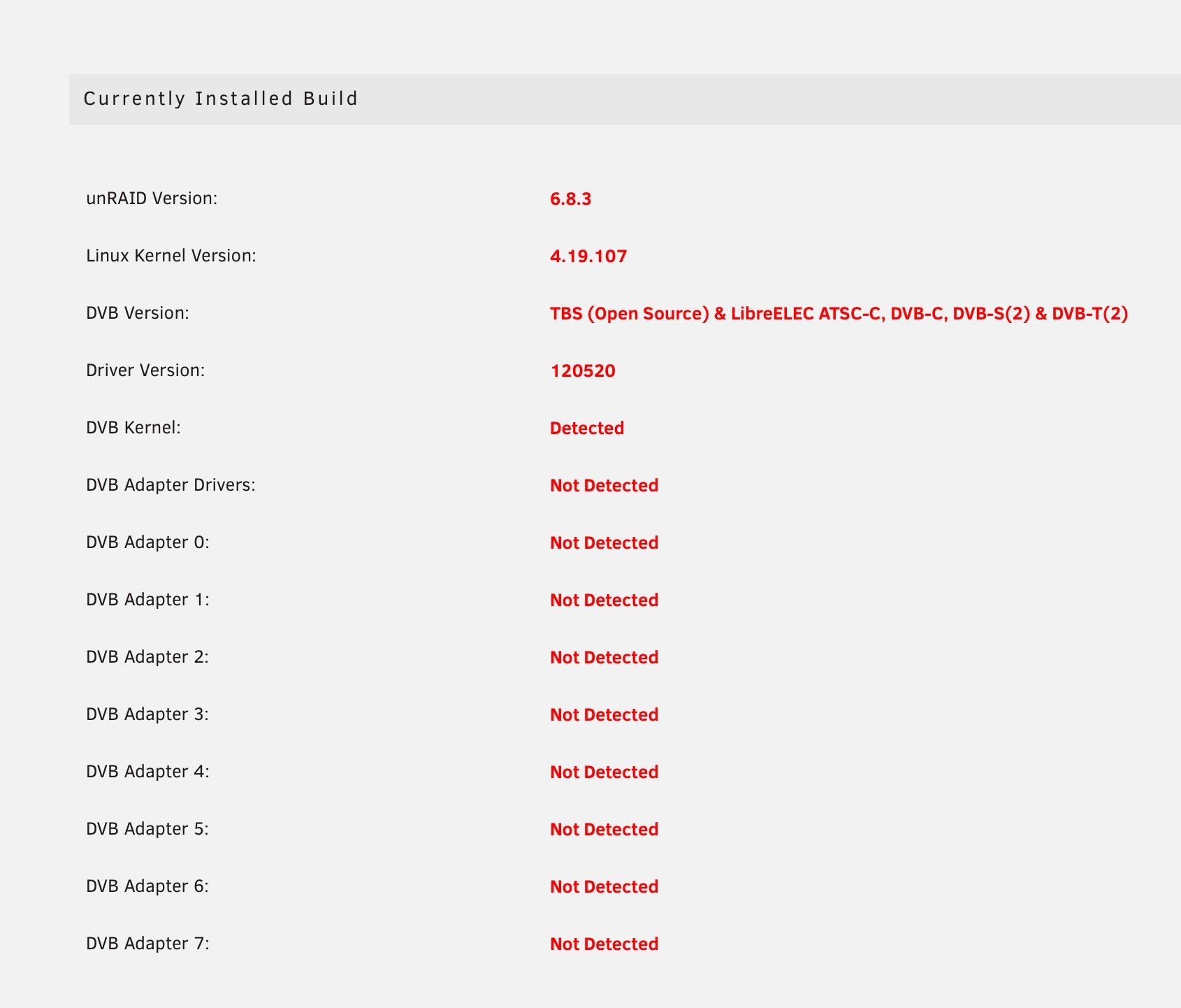

I had a power outage like a month ago and since then (even tho server is connected to UPS and should have shut down gracefully) my Unraid always shows status as in the attachment :|



I've tried reverting to older versions, swapping between LibreElec builds and TBS (also the CrazyCat images) - no result. Card is listed when I use lspci command, but absolutely no joy seeing it in Unraid. Any ideas? Maybe some kind of 'cleanup' is needed?

@trurl Please lock this thread.  Due to an unexpected announcement from @limetech about Nvidia, I have since made the decision to do no further development work on Unraid. I'm quitting Unraid work.  Anyone who wants to use DVB on Unraid, you have two options.



1.  Ask LimeTech to include it as they should have years ago

2.  Compile it yourselves using the available docker container.



LS.io will no longer be hosting any custom Unraid builds.

Edited November 13, 20205 yr by CHBMB
