[Support] binhex - MinecraftBedrockServer

Featured Replies

On 11/18/2022 at 11:22 PM, Beardiful42 said:

Well some reason my server broke.  When I try to go to the WebUi it says "There is no screen attached matching Minecraft". It is not available locally either.  I forced update and checked my settings.  I am on the latest build of Unraid.  Any ideas?



did you work out how to resolve this? I am having the same issue. Thanks.

  • Replies 636
  • Views 185.5k
  • Created
  • Last Reply

Top Posters In This Topic

Most Popular Posts

  • new feature coming soon, minecraft console accessible via web ui, thought this might please a few people, no nasty docker exec

  • Issue is now resolved and a new release has been published, please pull down at your convenience.

  • yes, create a /config/permissions.json file, edit it and add your xuid and grant yourself whatever permissions you need, e.g.:-   [ { "permission": "operator","xuid": "12345678123

Posted Images

Any Hope of getting 1.19.63?  My only device to play my servers on is an xbox one and of course microsoft forces updates. Wont even launch the game until you let it or can I somehow make it think its got the correct version?

  • Author
Any Hope of getting 1.19.63?  My only device to play my servers on is an xbox one and of course microsoft forces updates. Wont even launch the game until you let it or can I somehow make it think its got the correct version?
It was auto built last night, update your docker image

Sent from my 22021211RG using Tapatalk

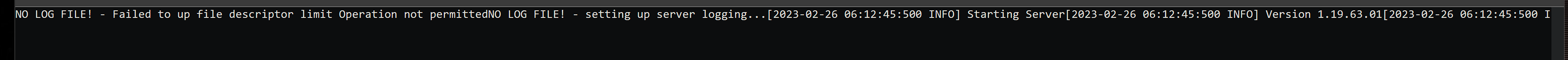

I have asked this before, but never got an answer.  When I try to go into the console, it is a SINGLE LINE of text that runs off the side of the screen, and I cannot see the end of it.  Please help ne figure this  out.

Bedrock Server Console.png

  • 1 month later...

Hi guys
i just managed to transfer the local world where me and my son usually play, to the docker server.
Everything seems to work, but we start naked as we were just killed before logging in.

I think we can store our equip in chests an trasfer the world again, but i wonder why that happens.





I can add that my son's account is fine, he spawns with his character  level and items
mine is a new char, every time i reupload the local world.



  • 2 weeks later...

Hi!
I've read everything related to Nintendo Switch in this topic and didn't get is it possible to connect to the server on Switch in local network and without 3rd party DNS. Could someone help me please?

Hi binhex,



at first thank you for your good work on that docker image! My whole family is playing Minecraft on this server, we have some fun! All works fine and smooth. My only question is:



Can I connect to the WebGUI session with an terminal program? My problem is, that I can't enter text in mobile web browsers. On my WIndows 10 machine with Edge browser works great but on my iPhone with Safari and on Android with Chrome, I can login and see the log output but can't enter some commands / text. Is there a possibility to do that on a mobile phone? I don't want to use my pc everytime I want to use the console for the server.



Furthermore I want to send commands to the webgui from my Homeassistant instance for automation processes, so that my wife can use it easily (she's not so confirm with command line interfaces. I want to create there some buttons, dropdowns and prededined commands.



I see that you use hterm.js and gotty.js libraries and I searched for possibilities to use some SSH apps which support websockets but without any success. Which protocol do you use within the WebUI?



Thanks.

Regards

trekki

  • 2 weeks later...

HI I've trying to deploy the bedrock Minecraft server. Its running but when I go into multiuser mode on Jave Minecraft in Win10 it cant see the server.



I really don't know where to look. the log looks fine



[2023-04-27 11:45:36:425 INFO] Starting Server
[2023-04-27 11:45:36:425 INFO] Version 1.19.80.02
[2023-04-27 11:45:36:425 INFO] Session ID f4d3cb27-a5c5-4e73-a450-4a33f0f1b163
[2023-04-27 11:45:36:425 INFO] Build ID 1.19.80
[2023-04-27 11:45:36:425 INFO] Branch r/19_u8
[2023-04-27 11:45:36:425 INFO] Commit ID cd49263d68d1bd013fdab005343a90f59e5610d4
[2023-04-27 11:45:36:425 INFO] Configuration Publish
[2023-04-27 11:45:36:425 INFO] Level Name: Bedrock level
[2023-04-27 11:45:36:427 INFO] Game mode: 0 Survival
[2023-04-27 11:45:36:427 INFO] Difficulty: 1 EASY
[2023-04-27 11:45:39:848 INFO] opening worlds/Bedrock level/db
[2023-04-27 11:45:42:520 INFO] IPv4 supported, port: 19132: Used for gameplay and LAN discovery
[2023-04-27 11:45:42:520 INFO] IPv6 not supported
[2023-04-27 11:45:43:870 INFO] Server started.
[2023-04-27 11:45:43:870 INFO] ================ TELEMETRY MESSAGE ===================
[2023-04-27 11:45:43:870 INFO] Server Telemetry is currently not enabled.
[2023-04-27 11:45:43:870 INFO] Enabling this telemetry helps us improve the game.
[2023-04-27 11:45:43:870 INFO]
[2023-04-27 11:45:43:870 INFO] To enable this feature, add the line 'emit-server-telemetry=true'
[2023-04-27 11:45:43:870 INFO] to the server.properties file in the handheld/src-server directory
[2023-04-27 11:45:43:870 INFO] ======================================================



your help would be appreciated.

  • Author
HI I've trying to deploy the bedrock Minecraft server. Its running but when I go into multiuser mode on Jave Minecraft in Win10 it cant see the server.

I really don't know where to look. the log looks fine

[2023-04-27 11:45:36:425 INFO] Starting Server
[2023-04-27 11:45:36:425 INFO] Version 1.19.80.02
[2023-04-27 11:45:36:425 INFO] Session ID f4d3cb27-a5c5-4e73-a450-4a33f0f1b163
[2023-04-27 11:45:36:425 INFO] Build ID 1.19.80
[2023-04-27 11:45:36:425 INFO] Branch r/19_u8
[2023-04-27 11:45:36:425 INFO] Commit ID cd49263d68d1bd013fdab005343a90f59e5610d4
[2023-04-27 11:45:36:425 INFO] Configuration Publish
[2023-04-27 11:45:36:425 INFO] Level Name: Bedrock level
[2023-04-27 11:45:36:427 INFO] Game mode: 0 Survival
[2023-04-27 11:45:36:427 INFO] Difficulty: 1 EASY
[2023-04-27 11:45:39:848 INFO] opening worlds/Bedrock level/db
[2023-04-27 11:45:42:520 INFO] IPv4 supported, port: 19132: Used for gameplay and LAN discovery
[2023-04-27 11:45:42:520 INFO] IPv6 not supported
[2023-04-27 11:45:43:870 INFO] Server started.
[2023-04-27 11:45:43:870 INFO] ================ TELEMETRY MESSAGE ===================
[2023-04-27 11:45:43:870 INFO] Server Telemetry is currently not enabled.
[2023-04-27 11:45:43:870 INFO] Enabling this telemetry helps us improve the game.
[2023-04-27 11:45:43:870 INFO]
[2023-04-27 11:45:43:870 INFO] To enable this feature, add the line 'emit-server-telemetry=true'
[2023-04-27 11:45:43:870 INFO] to the server.properties file in the handheld/src-server directory
[2023-04-27 11:45:43:870 INFO] ======================================================

your help would be appreciated.
This is bedrock not Java, you need binhex-minecraftserver

Sent from my 22021211RG using Tapatalk

Hello,



I've had this up and running for some time. I am trying to spin up a second, but can't seem to connect. I've changed the default ports, but can't seem to connect. On iPad OS it shows a red for ping. Screenshot attached of port allocations - "Bedrock" is the original instance, "Bedrock2" is the new one. Any help appreciated. Thanks.

Greenshot 2023-04-28 20.01.54.png

On 4/12/2023 at 5:18 PM, kek_tigra said:

Hi!
I've read everything related to Nintendo Switch in this topic and didn't get is it possible to connect to the server on Switch in local network and without 3rd party DNS. Could someone help me please?



I too would love to hear if this is possible?

Hi all,

Have just checked out SpaceInvaderOne's video on setting up a Java Server, and wondering how different the process is for setting up Bedrock instead? I would be hosting this for a youth mental health facility so it's important that the young people can access the server on different devices.



I noticed the Bedrock version has two Ports compared to Java's one. Do I need to forward both of these ports, and create two SRV records in Cloudflare the same way SpaceInvader does for one with Java?



Are there any additional steps to also be aware of?



Thanks in advance for any help

11 hours ago, nametaken_thisonetoo said:

Hi all,

Have just checked out SpaceInvaderOne's video on setting up a Java Server, and wondering how different the process is for setting up Bedrock instead? I would be hosting this for a youth mental health facility so it's important that the young people can access the server on different devices.



I noticed the Bedrock version has two Ports compared to Java's one. Do I need to forward both of these ports, and create two SRV records in Cloudflare the same way SpaceInvader does for one with Java?



Are there any additional steps to also be aware of?



Thanks in advance for any help

Just a quick note for anyone who comes here looking for similar. It appears both Bedrock ports need to forwarded on your router. I have also setup just the one SRV record on Cloudflare for the port minecraft uses at the Add Server step. It's possible this might not be necessary, but haven't checked that. Enjoy.

Edited by nametaken_thisonetoo
Clarity

  • Author
19 hours ago, nametaken_thisonetoo said:

I would be hosting this for a youth mental health facility

i applaud you sir!, im no expert when it comes to bedrock but i know enough to be dangerous, any problems/questions let me know.

4 hours ago, binhex said:

i applaud you sir!, im no expert when it comes to bedrock but i know enough to be dangerous, any problems/questions let me know.

Thanks! One question has come up - it seems the syntax in the container webui isn't the same as the Java version. For example typing "help" in Java will display a list of possible commands. With bedrock I get




I'm sure I'm missing something obvious but am a complete minecraft noob.



  • Author
21 hours ago, nametaken_thisonetoo said:

Thanks! One question has come up - it seems the syntax in the container webui isn't the same as the Java version. For example typing "help" in Java will display a list of possible commands. With bedrock I get




I'm sure I'm missing something obvious but am a complete minecraft noob.



yep you need to supply a forward slash at the beginning of the command so try '/help', for a full list of commands with descriptions check out https://minecraftbedrock-archive.fandom.com/wiki/Commands/List_of_Commands

  • Author
51 minutes ago, nametaken_thisonetoo said:

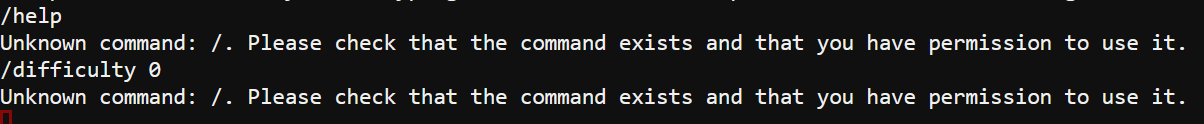

Yeah I did give this a go too. This is the response I get in the WebUI

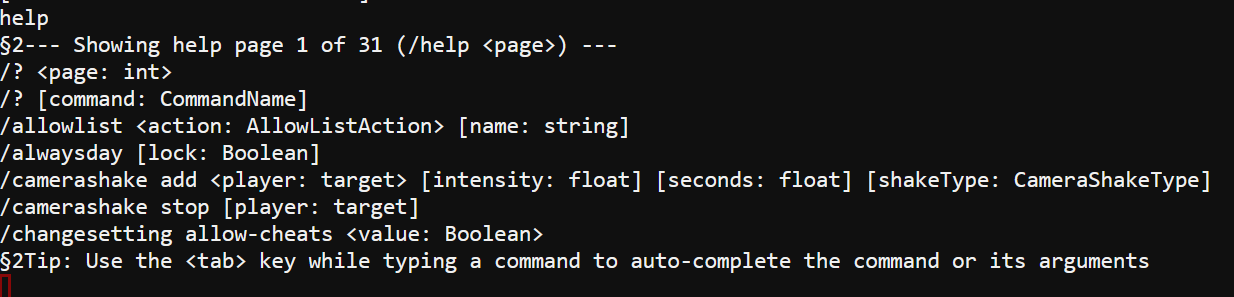

my bad, the slashes are only required when entering the commands in-game, if you are using the server console then omit the slash, so for help page 10 you would enter 'help 10'.

On 4/25/2020 at 1:42 PM, binhex said:

a second server is def doable with caveats, more on that in a min, this is the procedure for setting up a second server:-



1. go to unraid web ui/docker and 'add container'

2. from the 'template' dropdown select under the heading '[user templates]' your existing minecraftbedrock server container

3. change the 'name' of the container from 'binhex-minecraftbedrockserver' to something else.

4. change the host ports to a different number, so change all references to 19132 to say 18132 and all ref to 19133 to 18133

5. then click on 'show more settings' and change the host path for /config to something else, for e.g. just put a '2' on the end of the path

click on apply.

6. this will now start a new container running minecraft on a different port with a different path to store configuration



now comes the caveat:-

so because you cant use the same port as the first server you can only use this with minecraft bedrock clients that allow you to specify the port number, e.g. Minecraft PE clients i think allow this, for things like xbox one i am not sure this is possible.



I'm trying to set up a second server so my son (and us!) can also have a survival server to play on as the original server I started is creative. I have followed the intructions above, but it fails when creating the container. Can anyone help/advise?



docker run
  -d
  --name='binhex-minecraftbedrockserver-survival'
  --net='bridge'
  -e TZ="Europe/London"
  -e HOST_OS="Unraid"
  -e HOST_HOSTNAME="UnraidServer"
  -e HOST_CONTAINERNAME="binhex-minecraftbedrockserver-survival"
  -e 'CREATE_BACKUP_HOURS'='12'
  -e 'PURGE_BACKUP_DAYS'='14'
  -e 'ENABLE_WEBUI_CONSOLE'='yes'
  -e 'ENABLE_WEBUI_AUTH'='no'
  -e 'WEBUI_USER'='admin'
  -e 'WEBUI_PASS'=''
  -e 'WEBUI_CONSOLE_TITLE'='Minecraft Bedrock'
  -e 'STARTUP_CMD'=''
  -e 'UMASK'='000'
  -e 'PUID'='99'
  -e 'PGID'='100'
  -l net.unraid.docker.managed=dockerman
  -l net.unraid.docker.webui='http://[IP]:[PORT:8222]/'
  -l net.unraid.docker.icon='https://raw.githubusercontent.com/binhex/docker-templates/master/binhex/images/minecraftbedrockserver-icon.png'
  -p '17132:19132/tcp'
  -p '17132:19132/udp'
  -p '17133:19133/tcp'
  -p '17133:19133/udp'
  -p '8222:8222/tcp'
  -v '/mnt/user/appdata/binhex-minecraftbedrockserver2':'/config':'rw' 'binhex/arch-minecraftbedrockserver'

42e2706e1d25dc9b8e0d2842b04b101e03bcbeaf8dca9d2d7520b6a270b5ce65
docker: Error response from daemon: driver failed programming external connectivity on endpoint binhex-minecraftbedrockserver-survival (65f761857d966161069eaed0eb8640010958d8498d7b814be55c898b3a1e4b57): Bind for 0.0.0.0:8222 failed: port is already allocated.

The command failed.

Edited by takkischitt

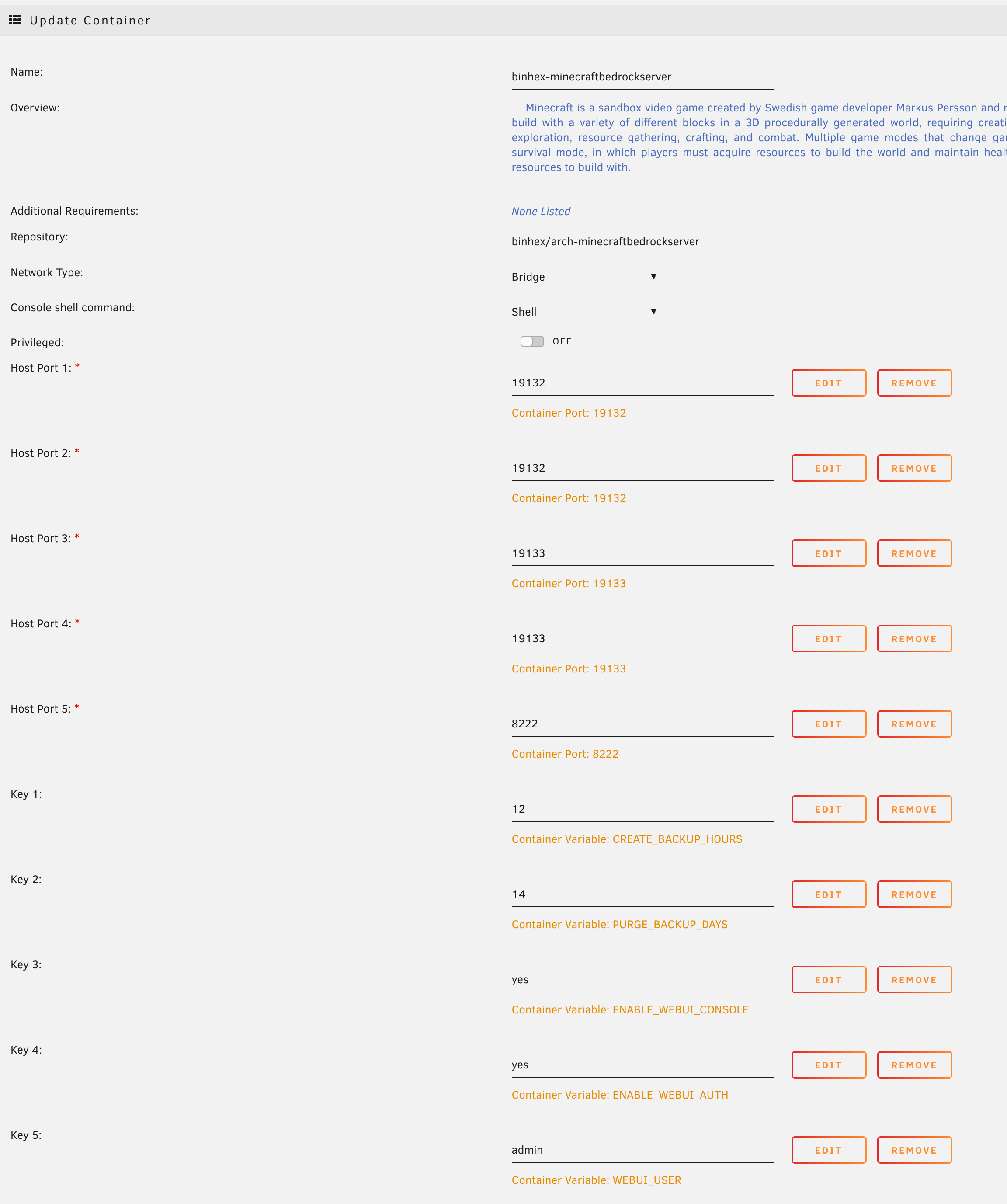

Does anyone have any tips or advice on why I wouldn’t be able to connect to my server on the local network? The server doesn’t show up in Friends and always gives me "Unable to connect to world" when trying to connect to the server manually.



  1. Regarding Network Type, should I be using "Host" here or "Bridge" - I've tried both with no luck?
    1. I'm using 192.168.1.216 on port 19132 in minecraft
  2. All iPads are on the same network as the server so I'm assuming I don't need to forward any ports on my Unifi router if I'm only connecting locally?

Not seeing any errors in the logs so I'm not sure what else to try?










  • 4 weeks later...
  • Author
5 minutes ago, PeteAsking said:

There is a new Minecraft update today

it hasnt dropped yet, latest version on here is 1.19.83.01


6 minutes ago, PeteAsking said:

how long it takes for this repository to detect a change?

its automatic and should happen approx 1 hour from the update appearing on the official website (linked above)

Its there now :)

Hi there, new to Minecraft and struggling with console commands. I'm sure I am getting the syntax wrong or something equally stoopid, but as you can see in the screenshot below I am typing commands in the WebGUI interface and getting errors sometimes and not other times. If somone could point me in the right direct I would be very greatful
