redlaws

here they are stower03-64-diagnostics-20230503-2314.zip

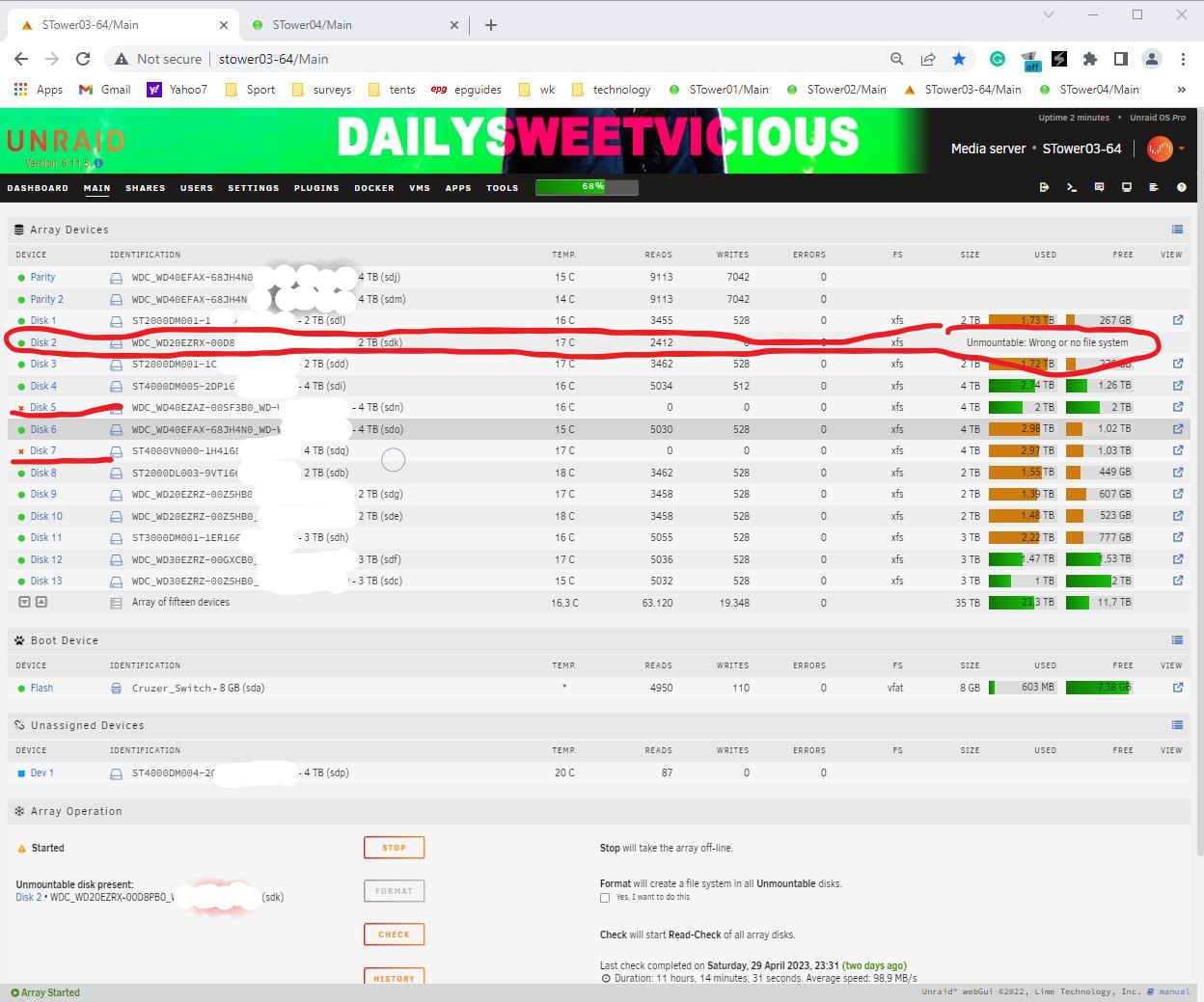

I have only just updated this array to 6.11.5 from 6.9.2. I had disks 5-7 extra 4tb play up so I built a new config & parity & then rebuilt all 3 with new disks. I then put the original disk 5-7 back into tower 3 and was able run a parity check this year. I had started to delete and clean up some data and wanted to update parity disks, for disk 5 & 7 to to give me a Red X. I have played around with the connections for disk 2, 5 & 7. I can afford to lose disk 5, 6 & 7 from this array. Should I remove 5 & 7, but can I rebuild disk 2 or the parity disks not complete. I might take disk 2 & add it to my new array & rebuild onto a new disk.

thank you for that, I am hoping that I can find the easiest & quickest way to hopefully put the 1.63gb of data on the 4tb hdd from the old 2tb.

I have been pondering this comment for a while now as I am hopeful that I still have data on my old 2tb disk 5. one option was to copy the setup of the usb to another usb & add a 4tb parity & just try to a new config with those 2 drives & then once parity is correct for that replace my 4tb disk 5 in as a rebuild, so that then I can re-add it back to my server & rebuild parity again. is this a quicker way to fix my missing data on disk 5 (4tb).

thanks trurl for that suggestion I will try that, I am not sure if I have many/any spare sata ports but it may be time to clean it up a bit & put in another card. Also clean up the usb drive too.

when I starting up the Server & could not get the windows page up but the monitor connected showed something like this. similar error.pdf

I believe the controller card errors may date back when I purchase 3x 8 way controller cards from ebay, because when I was testing them I place 1 card into this server at a time with the sas leads attached to see if they worked in unraid bought 3 different card that appear to have a jbod that matched best matched the Super micro cards I already had. I will look at them & put together what I found.

I have finally found some time to look at this server again, I have put the old 2tb Disk 5 (removed the replaced 4tb) back to see if I can recover what is on it. The only way I can see to do that is a new config (assuming that everthing is readable), apart a something that can read xfs & copy the data off it (1.63tb). I think putting the 4tb back & see if I can check the xfs system & then able to read what is on the 2tb with Ubuntu virtual machine so that I may be able to copy off any data on it. So with 2 parity drives ok & 2 failed that are both Emulated what is the best or prefered way to fix them reattached both & rebuild them or shutdown & replace both drives one at a time or both together.

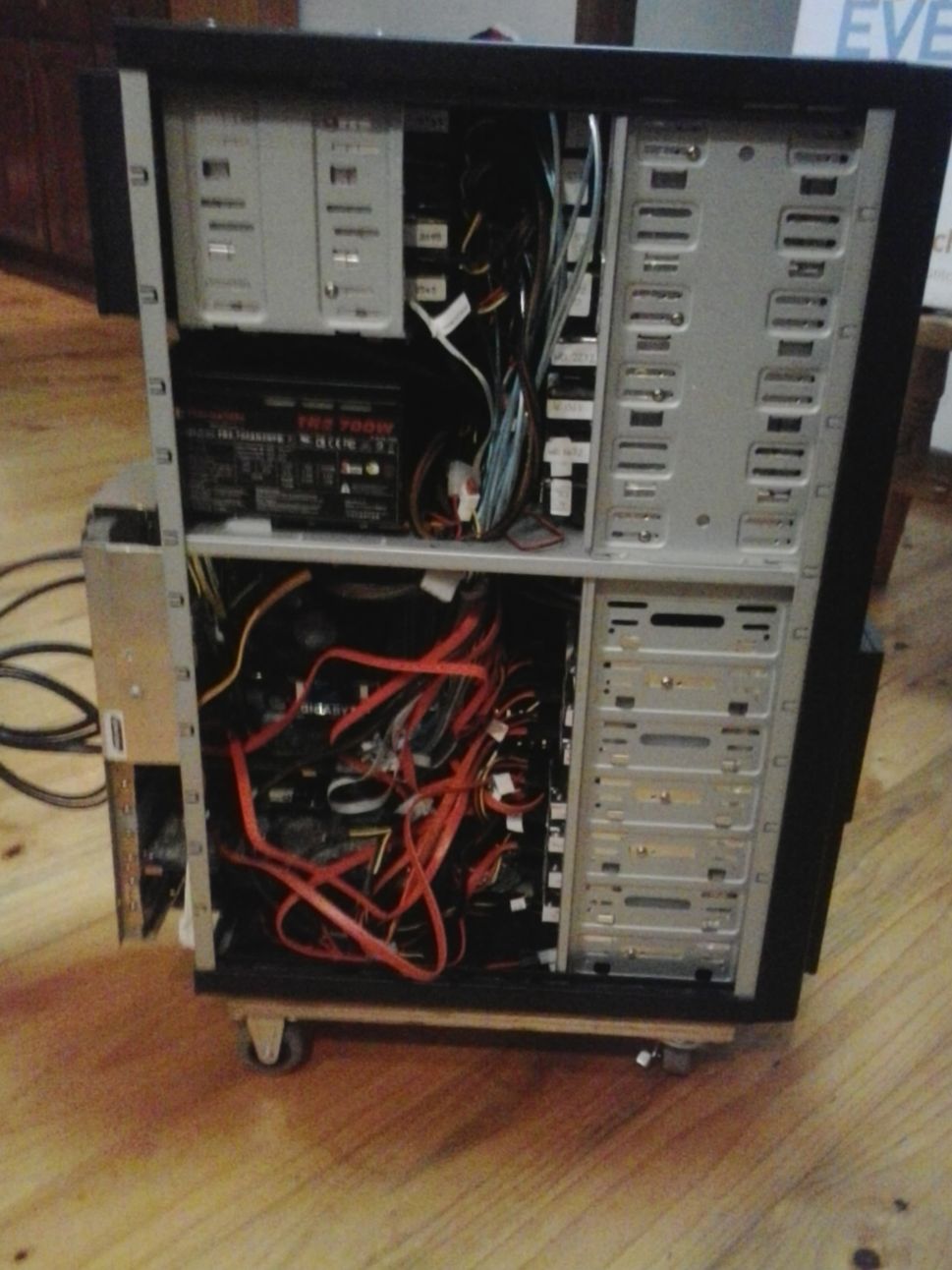

I probably should let the original disk 5 go through with what it was rebuilding (but I could only see on the server monitor and didn't know how long that would take or if it would fix itself) but with disk 2 out I was concerned. Here is what I collected at the time but what I would like to know is "can it rebuild 2 data drives at the same time". Also the 4tb (dom 2020) that I put in as a replacement for disk 5 probably had a similar error when that failed (Parity a month or so ago) & it needed to be reset with the connections on the drive but I felt replacing both drives & rebuilt parity then the other drive afterwards was a safer bet. This is my biggest server out of the 3 I have, it might be time to strip it down & clean it up & I have a spare 8way card I can put into it but it did have about 10x 2tb I wanted to replace at some point to 3tb or 4tb drives cylon-diagnostics-20210816-2028.zip stower03-64-smart-20210822-1157.zip

After starting my Unraid 3 Tower which has 2 4tb Parity Disks which had passed a parity check about a month ago and I see it is showing 2 disks Emulated with Disk 2 not showing at all & Disk 5 with CRC errors and doing its own self check/rebuild. Both are 2tb and realatively full at highwater 250gb free on both. I stopped Disk 5 & because it was easier to get to I replaced with a 4tb & reattched disk 2 (which I believe was a mistake) only because Disk 2 was the the only one to be rebuilt (I still have the faulty Disk 5). Therefore it is best to rebuild only 1 disk at a time even though Disk 5 was getting written to it. I am considering putting the faulty disk 5 back in then see if I can get it to rebuild CRC itself again so that later on I can recover that data in a New Config. Is this the best way to go? The last time something similar happen like this, it was a Parity disk 4tb & a 3tb data disk but I was able to recover both onto 2 4tb drives I had spare, I am sure it fixed the Parity 4tb 1st & then I did the data disk later. But this time I panicked a little.

I tried hide me for free 2gb per month, then after a while I signed up for 6 mth on 75gb the went unlimited with 5 connections for $140 us per year very easy to setup & switch between locations.

get yourself a usb & licence then try any old pc you have lying around if it can boot that up in unraid. then you can add 4-5 drives 3t/4t/6t or 8t & you are there.

If you want to support unraid & really use it, then I suggest go for the pro licence. but somewhere down the track you may want a second usb & another licence.

physically yes, everytime use greenshot to catch an picture of the main page so you know which drive is parity 1 - ? I put stickers on my drive with part of the serial number on the back & side eg sea 2tb 5640

just make a folder on your computer hdd with a complete copy of the usb/ver/date in different hdd on your pc or even another usb. but keep it up to date if you change shares.
