OK, Resolved, Not sure why I lost the docker containers and appdata but it is what it is, if it happens again I will download diags and investigate. Unraid got hung up on one of the NVME drives that used to be a pool called cachetwo, I had removed the pool cachetwo made a new config and used that drive as cache instead as a single cache drive just to get up and running. I then created another pool called cachetwo using one of the drives that used to be in the cache pool. Even though I was writing to the path /mnt/cache Unraid was writing to the drive in the cachetwo pool! I removed cache pool & cachetwo pool, re-added cache using 2 drives and cachetwo using 1 drive and now all running as normal.

Hi, I am running on a single cache currently as I needed to get up and running, I rebooted 3 times and tried to mount/format with the same result before posting here so maybe it is something else? If I try again later do you think I could risk causing a problem with the data on the single cache drive? Many thanks!

Also, how do I recover all my docker templates from the flash drive please? I have the docker img still

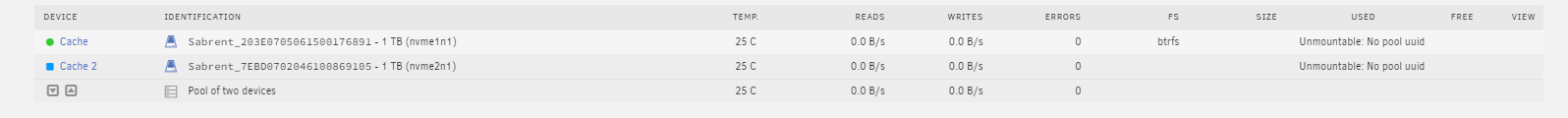

Woke this morning to find all my appadata & dockers gone. Rebooted still the same. I have backups so I decided to build a new cache pool with 2 new nvme drives, I can mount 1 and format ok but when I try to add a 2nd the pool is unmountable and will not format. Any ideas how I can resolve this please? Diags attached unraid1-diagnostics-20230207-1053.zip

@Frank1940 You are on a roll!!! Thank you so much mate, enabled power saving in tips and tweaks and now down to 110W!!! Thank you buddy!

Hi, as described in my response just now in more detail, basically EVERYTHING is the same except the motherboard/cpu and the removal of 1XGPU & 1X4PORT NIC

Hi @Decto All the cards/drives were installed with the Threadripper motherboard/cpu, I have removed 2 pci cards (GPU & 4 Port NIC) as well so the new motherboard and 13600k are in place in the same system, same smart socket (that monitors the power) as before. I have checked the HBA and extender at 14W, you are correct about the cpu temp and this is because the CPU is just barely ticking over as it is running incredibly light tasks. I do not unfortunately have a UPS but will be looking at an alternative method for measuring power draw although whatever it is, it is still srawing more power than the old threadripper setup as I am using the same mornitor smart socket. Currently, as I type I am drawing 198W with..... 3 active Hard Drives (Mechanical) Asrock Z790 Pro RS/D4 Intel i5 13600K CPU 4 X Corsair 8GB RAM DDR4 Noctua CpU air cooler 1 X NVME Samsung 980 Pro 1 TB 2 X NVME Rocket 1TB 1 X HBA Card with Expander 1 X Mellanox 10gbe Card 24 X Mechanical Hard Drives (21 inactive) EVGA Gold 650W PSU It is in a 4U rackmount with 3 large fans that cool the 24 hard drives but they are spinning slowly and again, were there before I removed the threadripper I was pretty sure this would come in less that 100W so maybe you are right regarding the kernel? nothing is hot within the case

Hi, Sorry to be a dunce but can I clarify before going ahead as this machine runs the router (Sophos) and will have no internet access if it doesn't work! I am currently running Version: 6.10.0-rc3 on my Gen8 with this line in the Unraid OS section of Syslinux append initrd=/bzroot pcie_acs_override=downstream intel_iommu=relax_rmrr If I update to the latest version of OS 6.11.5, change the line to append intel_iommu=relax_rmrr initrd=/bzroot then reboot, should I be good to go? Thanks in advance!

No, but I do have a lot more Tasmota's I will try another, but the fact will still remain that it is using more than the Threadripper as it is the same plug. I will let you know! thank you!

That is me! 🙂

The Effiency jumps around form 73% to 100 every refresh, not sure what it relates to?

Thank you, I have set the power limit to 125W I don't think power limits will help as it is not getting anywhere near stressed (see pics on my previous post) I cannot understand how it is consuming more power than my threadripper? as you can see it is sitting around 3%-5% load and even now with only 3 hard drives powered on it is drawing 215W? I am using the same hba card, 10gbe nic and removed a graphics card and still using more power than before, Anyone got any ideas?

Wow! I forgot about those!! never used one myself but have seen them 😄 I remember when my company (Siemens) got their first laptop I was a service engineer and if I needed it I had to book it and get it taxi'd over to me, things we take for granted eh?? My server is Local Master and on 24/7 it is just the swap of motherboard/cpu that caused the wobble! I thought I was saving money swapping to intel from AMD... I was wrong! Thanks so much for your help, really appreciate it!

I have rebooted 5-6 times throughout the day and everything is now working as expected! no changes other than docker changes/installs and a VM install, so nothing that can affect this issue, Thank you so much for taking the time to look at this but now working again without explanation. I will report back if anything changes and again, thank you!

@Frank1940 So sorry, that all makes perfect sense, I think I must have been having a brain fart as was rushing to out to pick up my daughter, I was also around with the BBS and never forget how excited I was unboxing my US Robotics Sportster!! I have attached the diagnosics, and thank you again. unraid1-diagnostics-20230204-1459.zip

Done, thank you 🙂 But why new post?

Hi I have just replaced my AMD 2950X for an i5 13600k and everything seemed to go swimmingly except I have just discovered I cannot access my shares from any device. There is only 1 NIC (Mellanox 10gbe) that I transferred to the new board and the onboard NICS are disabled. WEBUI is working fine as is access to all dockers but I cannot access any shares. Any starting points?

I did look in the BIOS but did not see anything like that apart from undervolting, I will check again tomorrow

Sorry, I did not know that, it is an i5

Hi, I just changed out my hardware from an AMD 2950X Threadripper on a Gigabyte Designaire X399 Mobo for an Intel 13600K on an Asrock Z790 Pro RS/D4 to find it is consuming more energy than before? Am I missing something? everything I read said the Intel would be more effecient to run than the AMD 13600K 39W Idle 2950X 90W Idle Installed in the system... 1 X HBA Card with Expander 1 X Mellanox 10gbe Card 24 X Mechanical Hard Drives 3 X NVME 1 X NVidea GPU (Now Removed For 13600K) 1 X 4 Port NIC (Now Removed For 13600K) With the 2950X I was using approx 150W idle with 3-4 hard drives spun up and 190-225 when being put to task. With the 13600K I am using approc 250W idle with 3-4 hard drives spun up and 420-450 when being put to task Quite the difference!! even though I have removed 2 cards as well I am consuming more power, have I missed something? I wanted to do the change for 2 reasons, Power Consumption & Quicksync but using more power makes no sense Can anyone else with a 13600K share their experience? I am using a Tasmota Smart Socket to measure the power consumption. Many thanks!

Thank you for your reply! If I read that correctly I will be fine as I am not passing through the iGPU to a VM so it should be available for the unraid GUI, Plex & Tdarr Docker 🙂

I know my 13600K has an IGPU which is what I want for Plex and Tdarr but will I need an additional card? I want to use HW Transcoding in Plex but if I do this will I be able to use the iGPU in Tdarr (Docker) as well? Will I also need another card to run unraid? Sorry for the questions!

Hi! Thanks for your reply 🙂 I mentioned four processors in my post, which one do you mean that you have?
