Sabot

Good day, Thank you for your time! I would like to use a monitor with my VM. I have been trying to figure out how to pass through my old GPU 2080TI. The test VM is called workstation. I am able to remote in to the VM but windows acts very strange. I can repeat the issue when I right click on the desktop and click display nothing happens. The popup box stays on top until I restart the VM. On occassion I can't open anything. I restart the VM and server. I uninstall the VM and reinstall. The VM runs fine when I don't try to pass through the GPU. One I select the GPU, the VM goes crazy. After many installs, I am at least able to try to install the graphic driver but it fails. "driver is not compatible". I am getting close. On my blueiris VM, I changed the graphic setting to my GPU. It will start but I can't remote into it. I know that windows is not running for I have the blueiris setup to run as a service and it is not sending notificaitons. When I return the graphic setting back to VNC, I still can't remote into it. I included my VM edit to show my CPU pinning and settings. The system log is also attached. Any suggestions? unraid-diagnostics-20230611-1015.zip

That fixed it! Many thanks.

unraid-diagnostics-20230608-1108.zipGreetings all! Thank you for taking your time to read my post. I noticed a few days ago that my Windows 11 VM lost connection with a shared drive that I have on my UnRaid server. I have not touched the server or the VM for the last three months. Here is what I did so far: - Restarted the Windows VM - On another computer, checked to see if the shared disk is visable. (It was not) - Check the Drive SMART report (No issues) - Applied updates to the UnRaid server - Restarted the UnRaid server - Unmounted and Mounted the disk in question - Restarted the Windows VM - I can access the drive from the Unraid Main tab (/disk/(the shared disk in question) Here is the disk log from the drive in question. I don't know if it can be of any help: Disk Log Info Jun 7 17:04:23 Unraid kernel: ata13: SATA max UDMA/133 abar m8192@0x48082000 port 0x48082280 irq 189 Jun 7 17:04:23 Unraid kernel: ata13: SATA link up 6.0 Gbps (SStatus 133 SControl 300) Jun 7 17:04:23 Unraid kernel: ata13.00: ATA-10: WDC WD40PURX-64N96Y0, 80.00A80, max UDMA/133 Jun 7 17:04:23 Unraid kernel: ata13.00: 7814037168 sectors, multi 16: LBA48 NCQ (depth 32), AA Jun 7 17:04:23 Unraid kernel: ata13.00: configured for UDMA/133 Jun 7 17:04:23 Unraid kernel: sd 13:0:0:0: [sdf] 7814037168 512-byte logical blocks: (4.00 TB/3.64 TiB) Jun 7 17:04:23 Unraid kernel: sd 13:0:0:0: [sdf] 4096-byte physical blocks Jun 7 17:04:23 Unraid kernel: sd 13:0:0:0: [sdf] Write Protect is off Jun 7 17:04:23 Unraid kernel: sd 13:0:0:0: [sdf] Mode Sense: 00 3a 00 00 Jun 7 17:04:23 Unraid kernel: sd 13:0:0:0: [sdf] Write cache: enabled, read cache: enabled, doesn't support DPO or FUA Jun 7 17:04:23 Unraid kernel: sd 13:0:0:0: [sdf] Preferred minimum I/O size 4096 bytes Jun 7 17:04:23 Unraid kernel: sdf: sdf1 Jun 7 17:04:23 Unraid kernel: sd 13:0:0:0: [sdf] Attached SCSI disk Jun 7 17:04:52 Unraid emhttpd: WDC_WD40PURX-64N96Y0_WD-WCC7K5XY1J58 (sdf) 512 7814037168 Jun 7 17:04:53 Unraid emhttpd: read SMART /dev/sdf Jun 7 17:05:06 Unraid unassigned.devices: Mounting partition 'sdf1' at mountpoint '/mnt/disks/cctv_4tb_storage'... Jun 7 17:05:06 Unraid unassigned.devices: Mount cmd: /sbin/mount -t 'xfs' -o rw,noatime,nodiratime '/dev/sdf1' '/mnt/disks/cctv_4tb_storage' Jun 7 17:05:06 Unraid kernel: XFS (sdf1): Mounting V5 Filesystem Jun 7 17:05:06 Unraid kernel: XFS (sdf1): Ending clean mount Jun 7 17:05:06 Unraid unassigned.devices: Successfully mounted 'sdf1' on '/mnt/disks/cctv_4tb_storage'. ** Press ANY KEY to close this window ** Suggestions? Thank you for your time! Mike unraid-diagnostics-20230608-1108.zip

Greetings all! Thank you for taking your time to read my post. I noticed a few days ago that my Windows 11 VM lost connection with a shared drive that I have on my UnRaid server. I have not touched the server or the VM for the last three months. Here is what I did so far: - Restarted the Windows VM - On another computer, checked to see if the shared disk is visable. (It was not) - Check the Drive SMART report (No issues) - Applied updates to the UnRaid server - Restarted the UnRaid server - Unmounted and Mounted the disk in question - Restarted the Windows VM - I can access the drive from the Unraid Main tab (/disk/(the shared disk in question) Suggestions? Thank you for your time! Mike

Figures... right after posting I find this thread... Posting it here just in case someone stumbles across this thread:

I am looking to replace my old UPS and would like one that would communicate with my Unraid server. I am looking at APC for just this reason. Question, is there a docker or app that will allow me to run the APC software from Unraid?

Solved the InfluxDB. Status Code: 401 by changing the repository: influxdb:1.8.4-alpine What a journey this has been... Key is not to give up. Keep searching this thread, and Reddit for clues. A big thank you for the gents who created this and the gents who did the guides.

Greetings all, I installed the Prometheus docker today. I can't get it to start. Any suggestions? Did I setup the container correctly? How does the .yml file look? I put the .yml file in the /etc/config folder. Is there anything else that I may have missed? I created a prometheus.yml file by using a valid example file can be found here:https://github.com/prometheus/prometheus/blob/release-2.38/config/testdata/conf.good.yml Log file: goroutine 1 [running]: github.com/prometheus/prometheus/promql.NewActiveQueryTracker({0x7ffcd6c41ead, 0xb}, 0x14, {0x3958c60, 0xc000e86370}) /app/promql/query_logger.go:121 +0x3d5 main.main() /app/cmd/prometheus/main.go:597 +0x64df ts=2022-09-26T00:31:35.390Z caller=main.go:491 level=info msg="No time or size retention was set so using the default time retention" duration=15d ts=2022-09-26T00:31:35.390Z caller=main.go:535 level=info msg="Starting Prometheus Server" mode=server version="(version=2.37.1, branch=HEAD, revision=1ce2197e7f9e95089bfb95cb61762b5a89a8c0da)" ts=2022-09-26T00:31:35.390Z caller=main.go:540 level=info build_context="(go=go1.18.6, user=root@3caaaea7ba87, date=20220912-12:42:39)" ts=2022-09-26T00:31:35.390Z caller=main.go:541 level=info host_details="(Linux 5.19.9-Unraid #1 SMP PREEMPT_DYNAMIC Fri Sep 23 07:24:37 PDT 2022 x86_64 36bee1b7b985 (none))" ts=2022-09-26T00:31:35.390Z caller=main.go:542 level=info fd_limits="(soft=40960, hard=40960)" ts=2022-09-26T00:31:35.390Z caller=main.go:543 level=info vm_limits="(soft=unlimited, hard=unlimited)" ts=2022-09-26T00:31:35.390Z caller=query_logger.go:91 level=error component=activeQueryTracker msg="Error opening query log file" file=/prometheus/queries.active err="open /prometheus/queries.active: permission denied" panic: Unable to create mmap-ed active query log goroutine 1 [running]: github.com/prometheus/prometheus/promql.NewActiveQueryTracker({0x7ffdc5ae4ead, 0xb}, 0x14, {0x3958c60, 0xc000c83950}) /app/promql/query_logger.go:121 +0x3d5 main.main() /app/cmd/prometheus/main.go:597 +0x64df prometheus.yml

I found another example of the config file skaterpunk which allows the Telegraf to stay up and running. https://github.com/skaterpunk/UUD A new issue when trying to setup Grafana's Influxdb: error reading InfluxDB. Status Code: 401 Quick search states this is a permission issue.

Well..well.. found it quickly... By changed the Repository: telegraf:1.20.2 The guides are a little off...

Greetings all, I'm a newbie here. Is this the correct place to ask for community support for this docker? I have been trying to get the UUD up and running all day today and now I am crossed eyed! My current issue is getting grafana to start. Searching the forum and trying various things. I have uninstalled and reinstalled Grafana mulitple times with no success. I am not getting error message. I do see in the logs /bin/sh: apt: not found. I'm trying to figure this out at this time. I followed the following guides: https://technicalramblings.com/blog/how-to-setup-grafana-influxdb-and-telegraf-to-monitor-your-unraid-system/ https://github.com/HStep20/Ultimate-Unraid-Dashboard-Guide

Greetings, I am new and I spent this morning trying to get this running. InfluxDB is running. When I try to start telefgraf, it won't start. I revisited the config file many times and even deleted it and uploaded a fresh one. It appears that it is not reading the config file. Im stuck. I must be missing the obvious. I followed these: https://technicalramblings.com/blog/how-to-setup-grafana-influxdb-and-telegraf-to-monitor-your-unraid-system/#installing-telegraf and telegraf.conf

Good day Simon and thank you for this plugin and all of your hardwork. Do you happen to have a manual for it? Thank you for your time! Have a wonderful day.

Thank you kind sir! Deleting the hostdev allowed me to start up the VM.

Good day all, I just installed a new motherboard and CPU which resulted on my VM Execution error "Internal error: Did not find USB device 2109:8817" Any suggestions? Thank you! Mike unraid-diagnostics-20220921-1727.zip

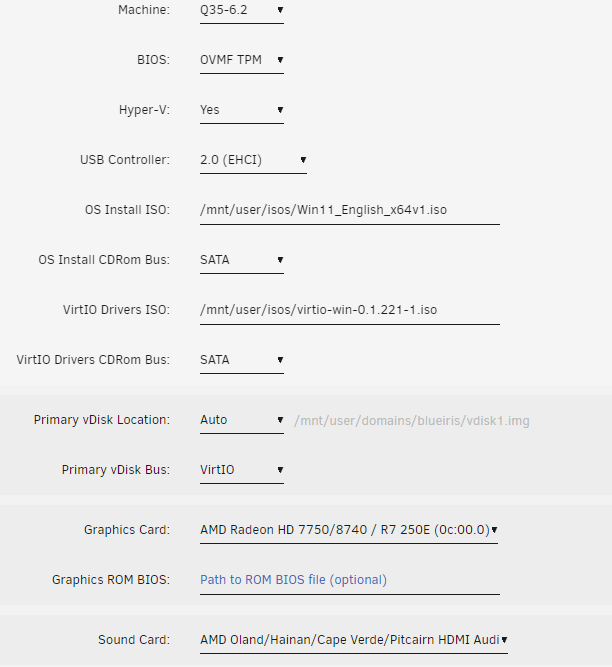

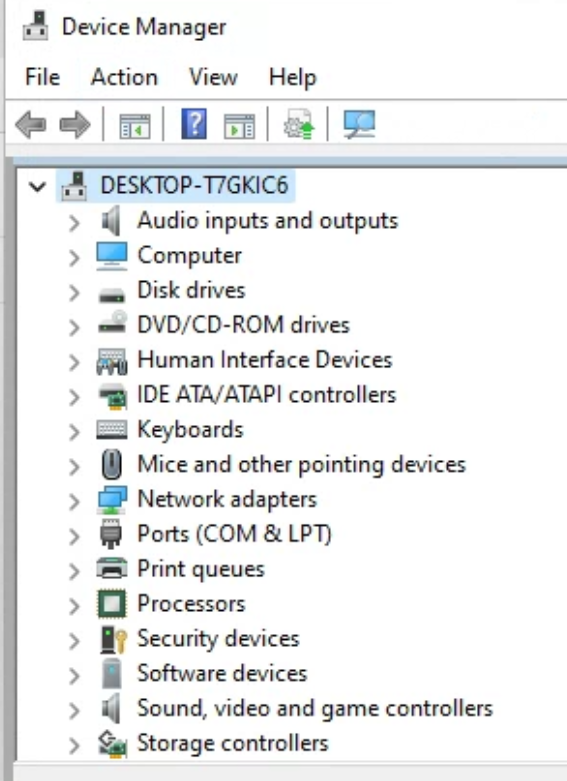

Greetings, I am having serious issues trying to pass through this older card after installing a new motherboard. The VM was working fine, pass through as normal the GPU & Sound. Started the VM and all was working fine. Restarted Unraid and went into the VM and the graphics was set to 800x600. Went to device manager and found the the video was missing. Rebooted the VM a few times and once it loaded a driver and for that session was operating "normal". Restarted to see if it would hold, it didn't. I tried to install AMD drivers and each time it failed for it says the hardware is missing. unraid-diagnostics-20220913-1815.zip

Howdy, I came home to see that one of my drives had an error and has been stopped by unraid. Attached are the diagnostics. Never a dull minute! Any suggestions? I was wondering what the course of action would be if I had a drive failure. I didnt think it would happen within one month of setting up this server. unraid-diagnostics-20220909-1732.zip

Excellent! Thank you!

I enabled and I get a new red X (Clear Disk). When I click on it, it gives me a pop up window. See attached.

Thank you for your quick response, how do I go about formatting the disk? 2022-09-04_11-35-24.snagx

Good day all, I am having a brain freeze and reading the forum is only adding to the fog! I have a small 4TB that I pre-cleared and it finished with no errors. I want to be able to mount it in the Unassigned Devices. The mount button is greyed out and my only option is to pre-clear again. What am I missing? 2022-09-04_11-10-54.snagx unraid-diagnostics-20220904-1133.zip

I was just able to get it going again once i was able to get it into maintenance mode. Took many reboots. There was one other item I worked on this morning. I have a VM what will not work after I switch the graphics from the video card back to VNC. I found a possible fix by editing the config/go file. Below is the edited version when I since removed and put it back to stock. So far, the server is working normally. Sorry for being gloomy, it seems I take a step forward and then two backwards. I am defiantly learning #!/bin/bash # Start the Management Utility /usr/local/sbin/zenstates --c6-disable /usr/local/sbin/emhttp & #fix video for VM echo 0 > /sys/class/vtconsole/vtcon0/bind echo 0 > /sys/class/vtconsole/vtcon1/bind echo efi-framebuffer.0 > /sys/bus/platform/drivers/efi-framebuffer/unbind unraid-diagnostics-20220903-1010.zip

I was just finishing up Spaceinvader One's "How to Easily Dump the vBios from any GPU for Passthrough" and my Unraid freaked out. It started to start and stop and display an alert that the autostart is disabled. I rebooted in safe mode, no effect. I started the array in maintenance mode, no effect. I sure have a knack at breaking things! Starting to get frustrated to be honest how volatile all this is to include the VM's. I know it's my own mistakes but I'm getting too old for this!

Well, I should have known to try it but I wanted to see if it would work. After much trial and tears, I was able to have a stable VM. I was missing the sound so I tried SpaceInvadersOne add. Well it gave me sound at the expense of dropping the video drivers. When I switched to graphic card to VNC, I could no longer get back into my VM. I removed the audio script but still no luck. What information would be helpful? Here is the VM log: text error warn system array login -device virtio-net,netdev=hostnet0,id=net0,mac=52:54:00:f3:e4:c0,bus=pci.3,addr=0x0 \ -chardev pty,id=charserial0 \ -device isa-serial,chardev=charserial0,id=serial0,index=0 \ -chardev socket,id=charchannel0,fd=35,server=on,wait=off \ -device virtserialport,bus=virtio-serial0.0,nr=1,chardev=charchannel0,id=channel0,name=org.qemu.guest_agent.0 \ -chardev 'socket,id=chrtpm,path=/run/libvirt/qemu/swtpm/11-Dad Win11 VM-swtpm.sock' \ -tpmdev emulator,id=tpm-tpm0,chardev=chrtpm \ -device tpm-tis,tpmdev=tpm-tpm0,id=tpm0 \ -device usb-tablet,id=input0,bus=usb.0,port=1 \ -audiodev '{"id":"audio1","driver":"none"}' \ -device vfio-pci,host=0000:0b:00.0,id=hostdev0,bus=pci.5,addr=0x0 \ -device usb-host,hostdevice=/dev/bus/usb/003/004,id=hostdev1,bus=usb.0,port=2 \ -device usb-host,hostdevice=/dev/bus/usb/003/005,id=hostdev2,bus=usb.0,port=3 \ -device usb-host,hostdevice=/dev/bus/usb/003/006,id=hostdev3,bus=usb.0,port=4 \ -sandbox on,obsolete=deny,elevateprivileges=deny,spawn=deny,resourcecontrol=deny \ -msg timestamp=on char device redirected to /dev/pts/4 (label charserial0) 2022-09-01 20:35:08.410+0000: shutting down, reason=crashed 2022-09-01 20:36:49.047+0000: Starting external device: TPM Emulator /usr/bin/swtpm socket --ctrl 'type=unixio,path=/run/libvirt/qemu/swtpm/15-Dad Win11 VM-swtpm.sock,mode=0600' --tpmstate dir=/var/lib/libvirt/swtpm/0f41e93a-4bcd-6f0a-8fa6-73c093625861/tpm2,mode=0600 --log 'file=/var/log/swtpm/libvirt/qemu/Dad Win11 VM-swtpm.log' --terminate --tpm2 2022-09-01 20:36:49.073+0000: starting up libvirt version: 8.2.0, qemu version: 6.2.0, kernel: 5.15.46-Unraid, hostname: Unraid LC_ALL=C \ PATH=/bin:/sbin:/usr/bin:/usr/sbin \ HOME='/var/lib/libvirt/qemu/domain-15-Dad Win11 VM' \ XDG_DATA_HOME='/var/lib/libvirt/qemu/domain-15-Dad Win11 VM/.local/share' \ XDG_CACHE_HOME='/var/lib/libvirt/qemu/domain-15-Dad Win11 VM/.cache' \ XDG_CONFIG_HOME='/var/lib/libvirt/qemu/domain-15-Dad Win11 VM/.config' \ /usr/local/sbin/qemu \ -name 'guest=Dad Win11 VM,debug-threads=on' \ -S \ -object '{"qom-type":"secret","id":"masterKey0","format":"raw","file":"/var/lib/libvirt/qemu/domain-15-Dad Win11 VM/master-key.aes"}' \ -blockdev '{"driver":"file","filename":"/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi-tpm.fd","node-name":"libvirt-pflash0-storage","auto-read-only":true,"discard":"unmap"}' \ -blockdev '{"node-name":"libvirt-pflash0-format","read-only":true,"driver":"raw","file":"libvirt-pflash0-storage"}' \ -blockdev '{"driver":"file","filename":"/etc/libvirt/qemu/nvram/0f41e93a-4bcd-6f0a-8fa6-73c093625861_VARS-pure-efi-tpm.fd","node-name":"libvirt-pflash1-storage","auto-read-only":true,"discard":"unmap"}' \ -blockdev '{"node-name":"libvirt-pflash1-format","read-only":false,"driver":"raw","file":"libvirt-pflash1-storage"}' \ -machine pc-q35-6.2,usb=off,dump-guest-core=off,mem-merge=off,pflash0=libvirt-pflash0-format,pflash1=libvirt-pflash1-format,memory-backend=pc.ram \ -accel kvm \ -cpu host,migratable=on,topoext=on,hv-time=on,hv-relaxed=on,hv-vapic=on,hv-spinlocks=0x1fff,hv-vendor-id=none,host-cache-info=on,l3-cache=off \ -m 16896 \ -object '{"qom-type":"memory-backend-ram","id":"pc.ram","size":17716740096}' \ -overcommit mem-lock=off \ -smp 16,sockets=1,dies=1,cores=8,threads=2 \ -uuid 0f41e93a-4bcd-6f0a-8fa6-73c093625861 \ -display none \ -no-user-config \ -nodefaults \ -chardev socket,id=charmonitor,fd=36,server=on,wait=off \ -mon chardev=charmonitor,id=monitor,mode=control \ -rtc base=localtime \ -no-hpet \ -no-shutdown \ -boot strict=on \ -device pcie-root-port,port=8,chassis=1,id=pci.1,bus=pcie.0,multifunction=on,addr=0x1 \ -device pcie-root-port,port=9,chassis=2,id=pci.2,bus=pcie.0,addr=0x1.0x1 \ -device pcie-root-port,port=10,chassis=3,id=pci.3,bus=pcie.0,addr=0x1.0x2 \ -device pcie-root-port,port=19,chassis=4,id=pci.4,bus=pcie.0,addr=0x2.0x3 \ -device pcie-root-port,port=20,chassis=5,id=pci.5,bus=pcie.0,addr=0x2.0x4 \ -device pcie-root-port,port=11,chassis=6,id=pci.6,bus=pcie.0,addr=0x1.0x3 \ -device pcie-pci-bridge,id=pci.7,bus=pci.1,addr=0x0 \ -device ich9-usb-ehci1,id=usb,bus=pcie.0,addr=0x7.0x7 \ -device ich9-usb-uhci1,masterbus=usb.0,firstport=0,bus=pcie.0,multifunction=on,addr=0x7 \ -device ich9-usb-uhci2,masterbus=usb.0,firstport=2,bus=pcie.0,addr=0x7.0x1 \ -device ich9-usb-uhci3,masterbus=usb.0,firstport=4,bus=pcie.0,addr=0x7.0x2 \ -device virtio-serial-pci,id=virtio-serial0,bus=pci.2,addr=0x0 \ -blockdev '{"driver":"file","filename":"/mnt/user/domains/Windows 11/vdisk1.img","node-name":"libvirt-2-storage","cache":{"direct":false,"no-flush":false},"auto-read-only":true,"discard":"unmap"}' \ -blockdev '{"node-name":"libvirt-2-format","read-only":false,"cache":{"direct":false,"no-flush":false},"driver":"qcow2","file":"libvirt-2-storage","backing":null}' \ -device virtio-blk-pci,bus=pci.4,addr=0x0,drive=libvirt-2-format,id=virtio-disk2,bootindex=1,write-cache=on \ -blockdev '{"driver":"file","filename":"/mnt/user/isos/virtio-win-0.1.221-1.iso","node-name":"libvirt-1-storage","auto-read-only":true,"discard":"unmap"}' \ -blockdev '{"node-name":"libvirt-1-format","read-only":true,"driver":"raw","file":"libvirt-1-storage"}' \ -device ide-cd,bus=ide.1,drive=libvirt-1-format,id=sata0-0-1 \ -netdev tap,fd=37,id=hostnet0 \ -device virtio-net,netdev=hostnet0,id=net0,mac=52:54:00:f3:e4:c0,bus=pci.3,addr=0x0 \ -chardev pty,id=charserial0 \ -device isa-serial,chardev=charserial0,id=serial0,index=0 \ -chardev socket,id=charchannel0,fd=35,server=on,wait=off \ -device virtserialport,bus=virtio-serial0.0,nr=1,chardev=charchannel0,id=channel0,name=org.qemu.guest_agent.0 \ -chardev 'socket,id=chrtpm,path=/run/libvirt/qemu/swtpm/15-Dad Win11 VM-swtpm.sock' \ -tpmdev emulator,id=tpm-tpm0,chardev=chrtpm \ -device tpm-tis,tpmdev=tpm-tpm0,id=tpm0 \ -device usb-tablet,id=input0,bus=usb.0,port=1 \ -audiodev '{"id":"audio1","driver":"none"}' \ -device vfio-pci,host=0000:0b:00.0,id=hostdev0,bus=pci.5,addr=0x0 \ -device usb-host,hostdevice=/dev/bus/usb/003/004,id=hostdev1,bus=usb.0,port=2 \ -device usb-host,hostdevice=/dev/bus/usb/003/005,id=hostdev2,bus=usb.0,port=3 \ -device usb-host,hostdevice=/dev/bus/usb/003/006,id=hostdev3,bus=usb.0,port=4 \ -sandbox on,obsolete=deny,elevateprivileges=deny,spawn=deny,resourcecontrol=deny \ -msg timestamp=on char device redirected to /dev/pts/4 (label charserial0) 2022-09-01T20:38:56.949901Z qemu-system-x86_64: terminating on signal 15 from pid 8780 (/usr/sbin/libvirtd) 2022-09-01 20:38:59.751+0000: shutting down, reason=destroyed

Not to my knowledge. I restarted it multiple times. I noticed that it had an update, since it wasn't working anyways, i updated it and the database. Turned out to be a ip issue. changed unraid's ip to static to match it's reserved ip. I recently changed motherboard so that was the issue.
