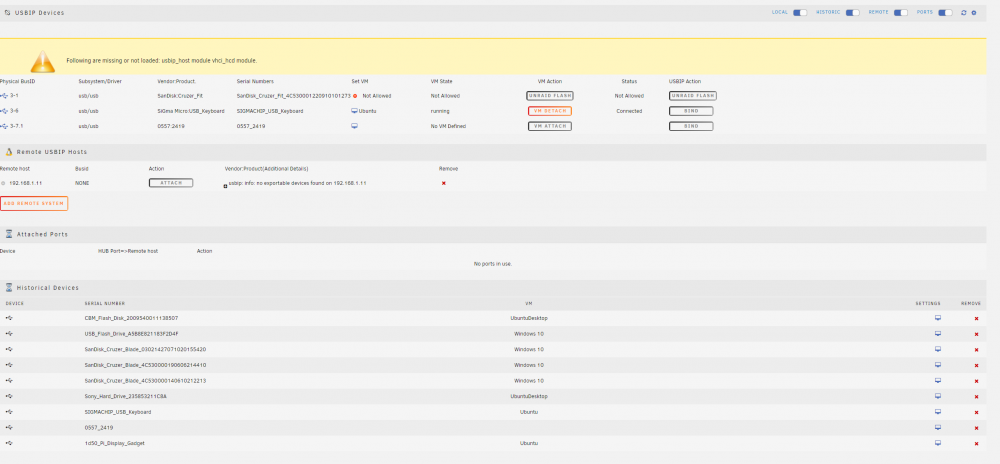

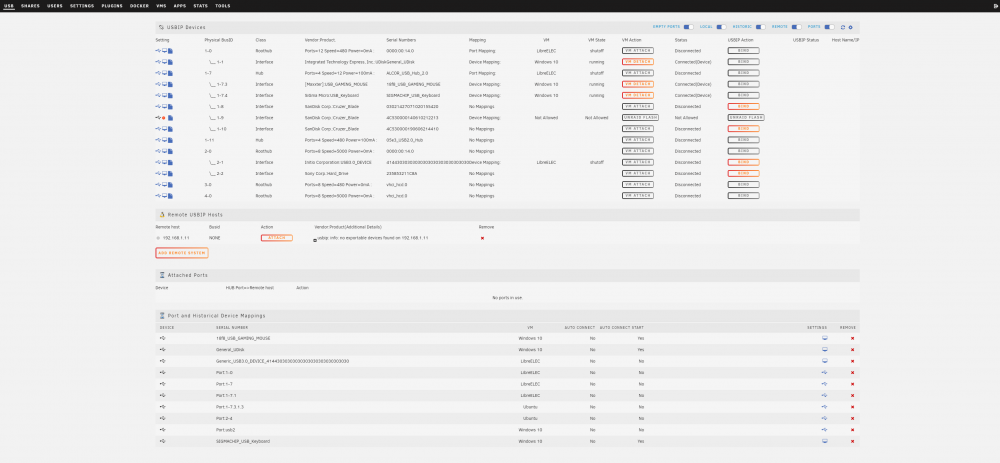

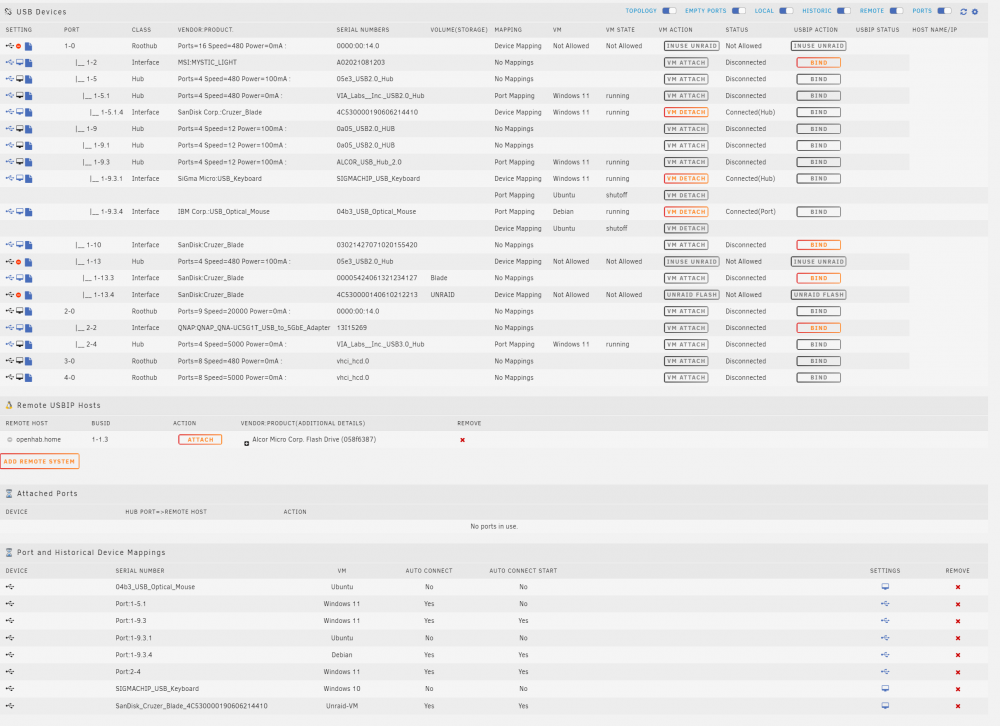

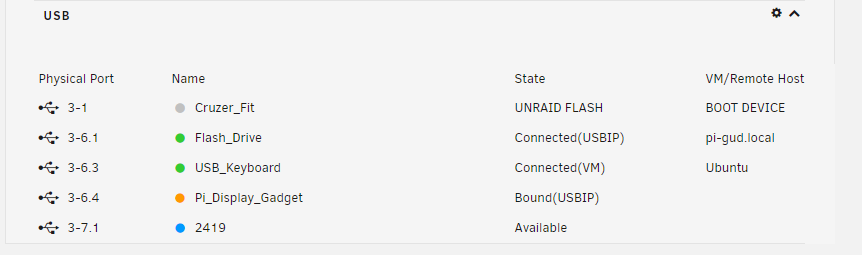

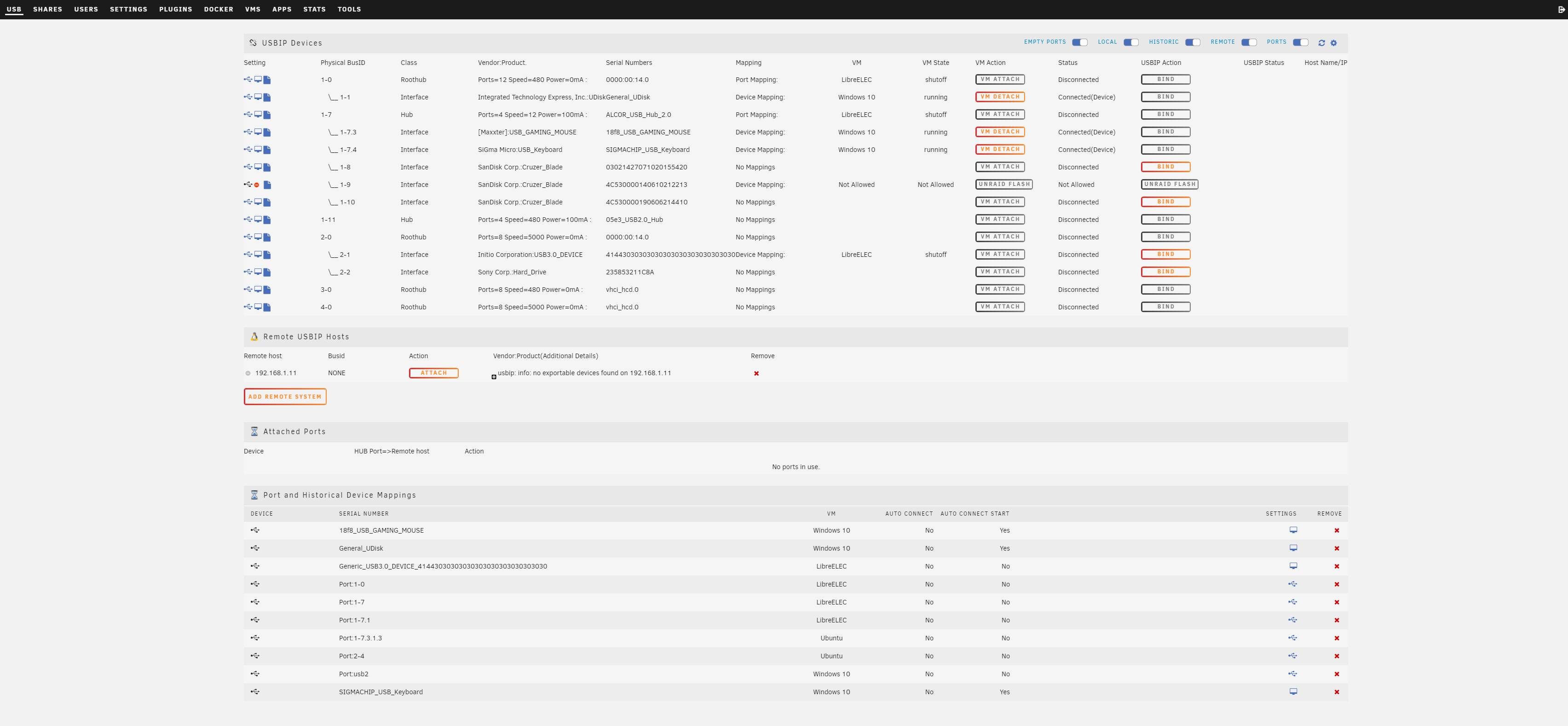

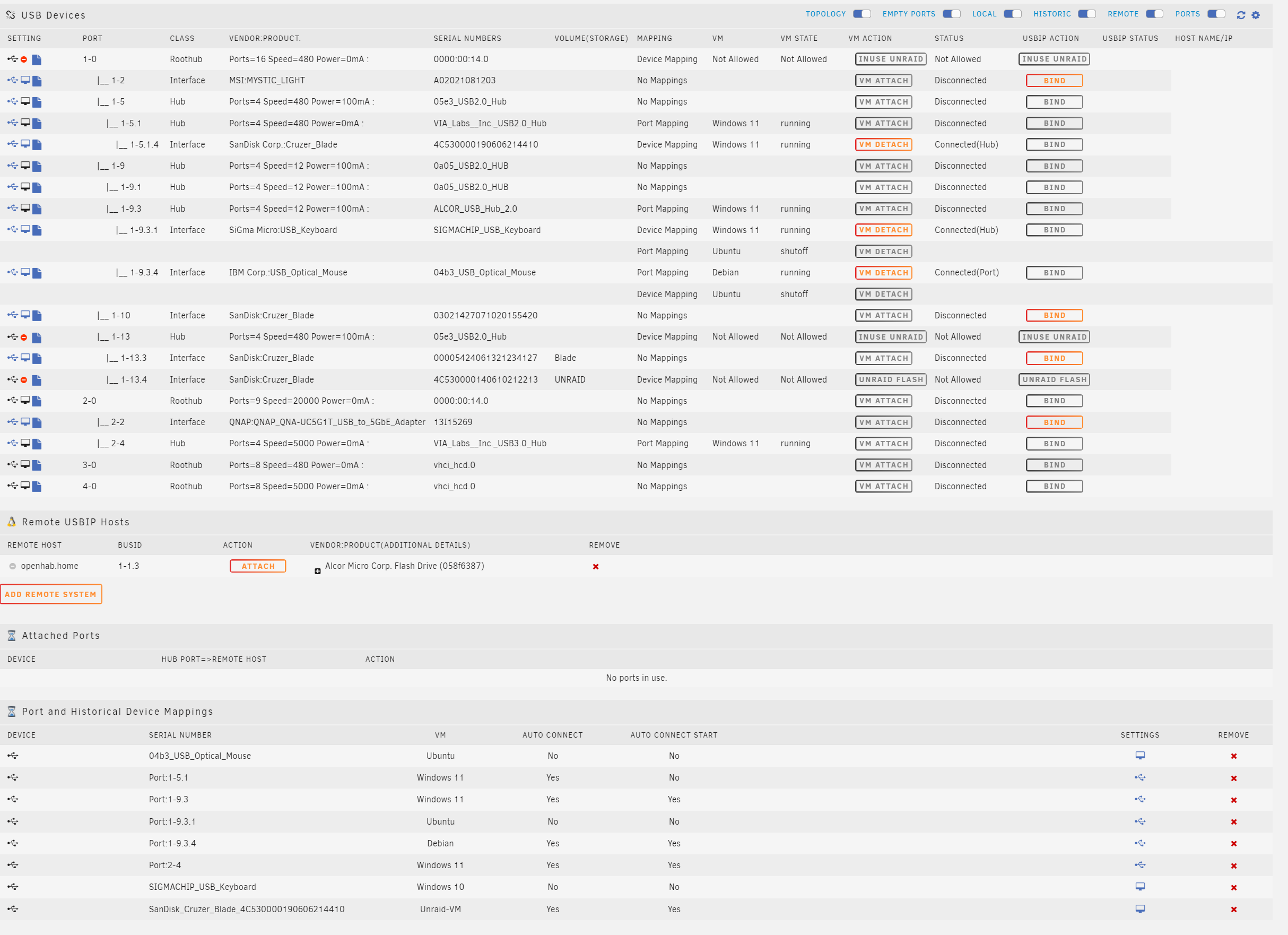

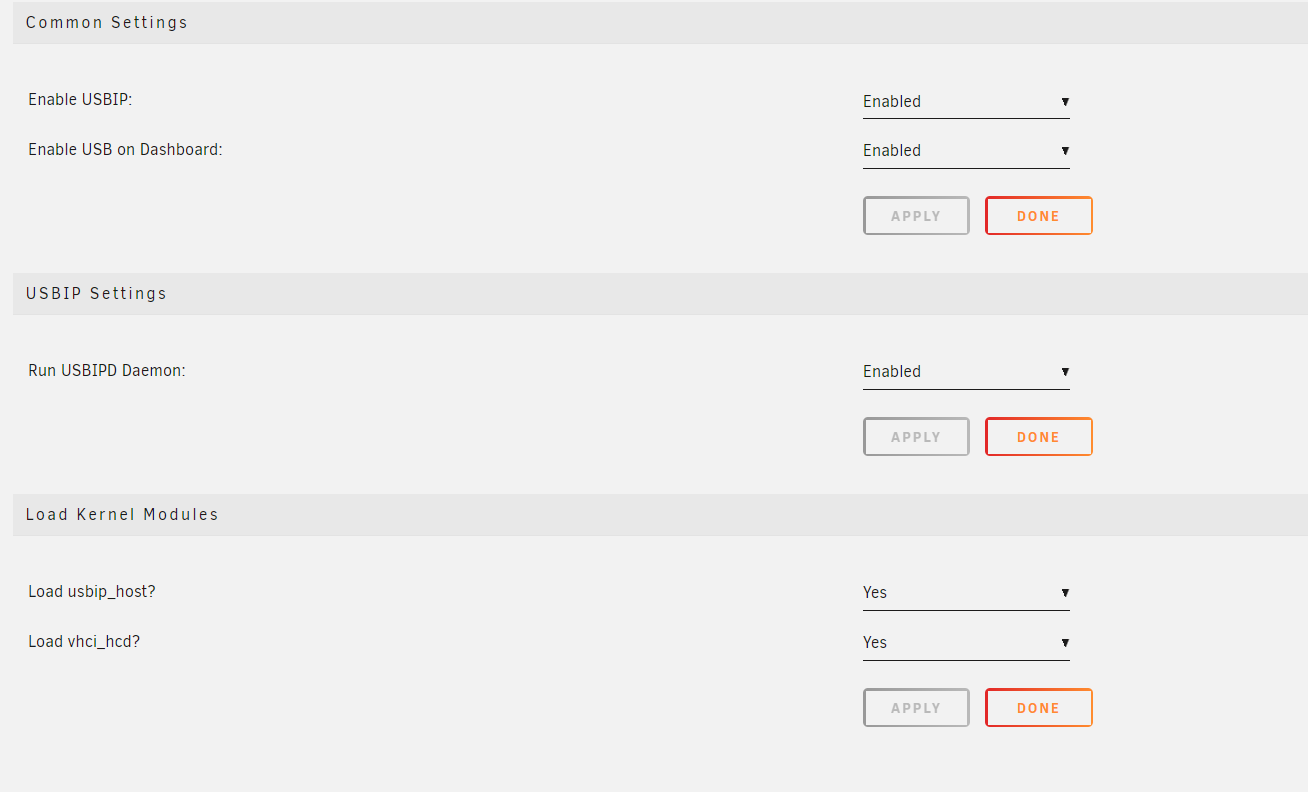

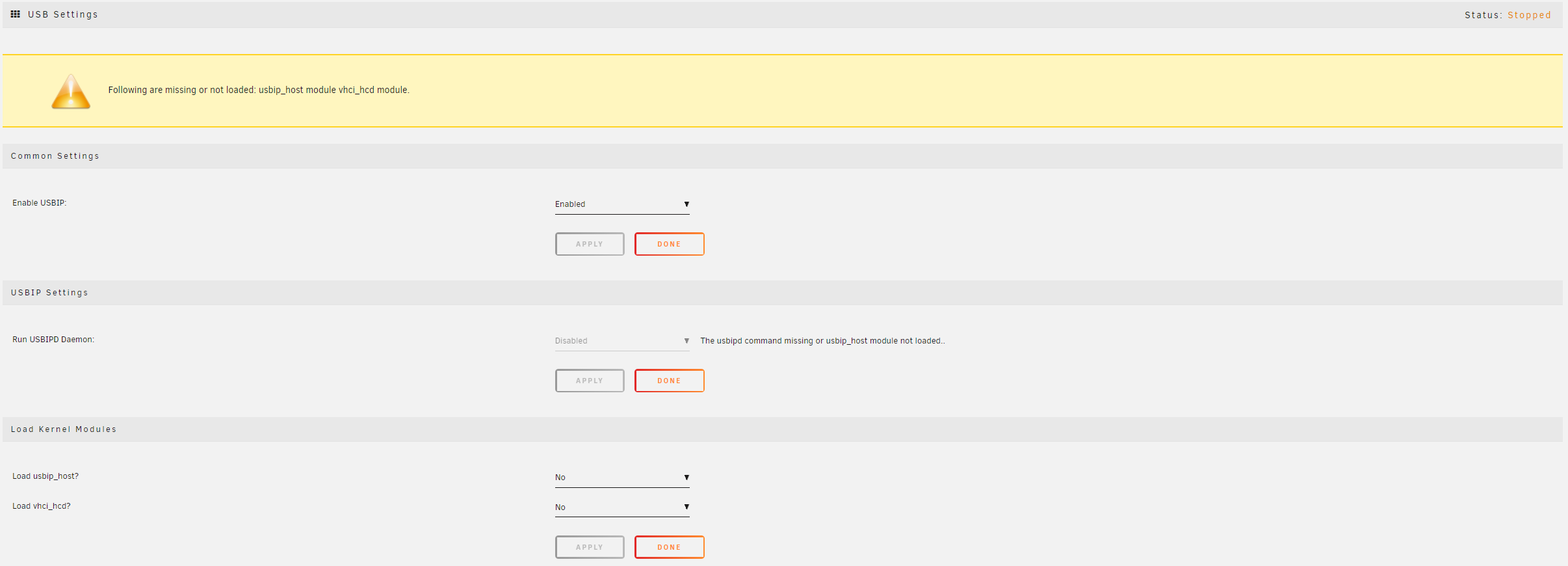

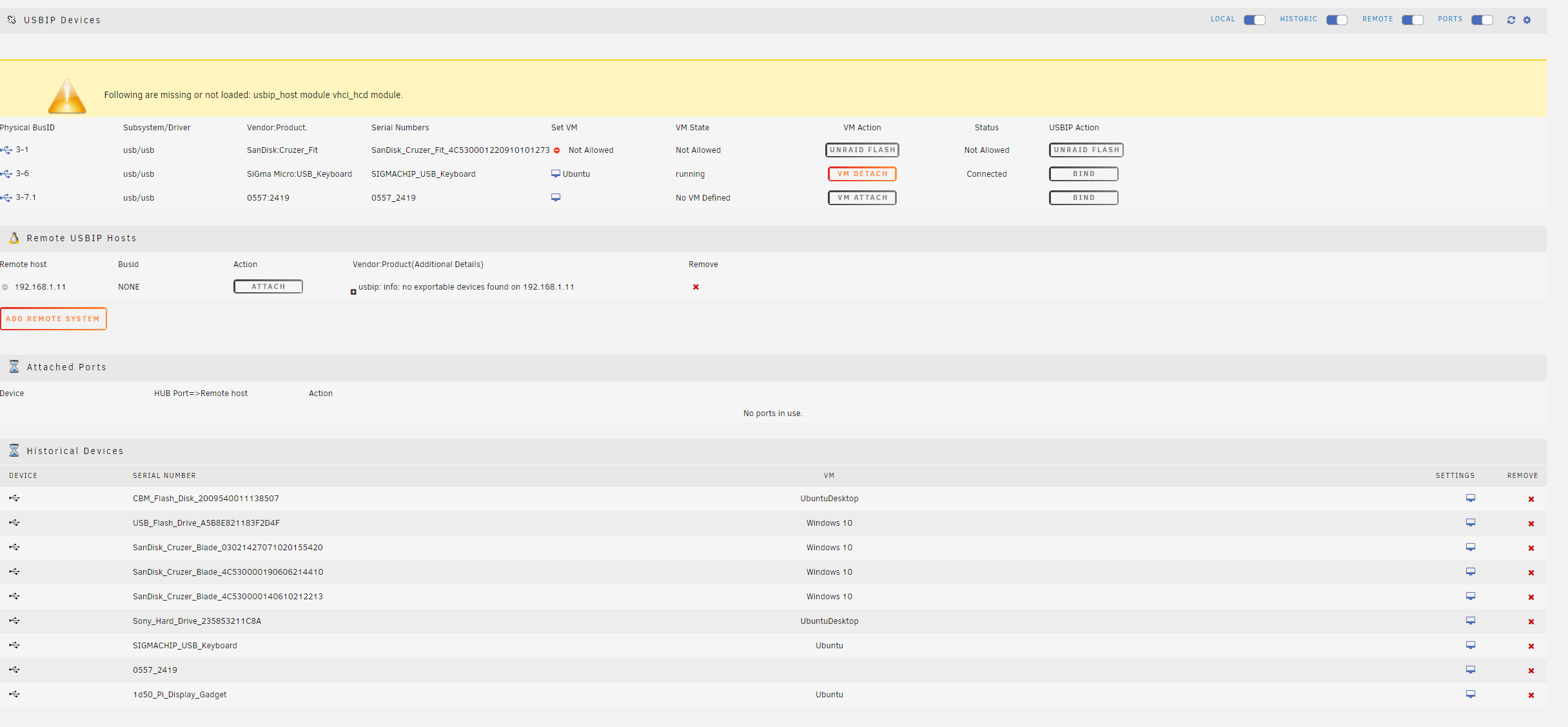

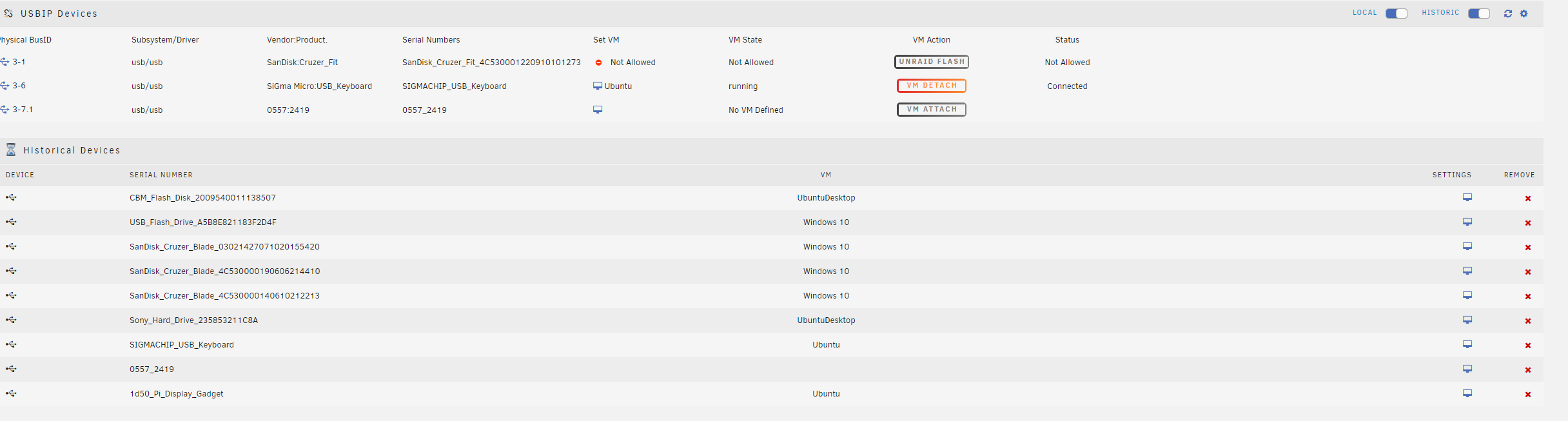

SimonF Posted December 24, 2020 Share Posted December 24, 2020 (edited) USB_Manager is in CA as of 6th June 2021, Please continue to use USBIP-GUI but will be replaced by USB_Manager. The plugin supports attaching multiple USB devices of the same Vendor/Model to a VM. Also it will auto hotplug devices are plugged in if defined and the VM is started. Dashboard View add in 16.02.2021. To see USBIP Functions you need to enable in Settings. This function is only valid from 6.9.0-rc2 onwards. Once enabled additional panels are available. (USBIP status and connection host/ip from vers >14.02.21 USB_Manager Change Log 2021.12.12a Revert 2012.12.12 2021.12.12 - Add Hub processing.You can define a port mapping for a hub. If connected or vm starts all devices on that hub will be connected to the VM. Will not process next level down hubs. - Chg Disable device mapping for Root Hubs and Hubs. Disable port mapping for Root Hub. - Chg Detach button show next to connected port or device on the main line. - Fix Buttons if Hotplug mapping used. - Note reboot or disconnect/reconned of Hub may be required. 2021.09.18 - Code review and update. 2021.09.01 - Fix start of usbipd and load of modules on array start. 2021.08.01 - Code clean up - Change to udev rules for 6.10+ support. - Enable zebra strips on tables. 2021.07.27 - Fix Change Unraid Flash to Unraid inuse on the hub lines on dashboard page. - Chg Use Port as standard rather than Physical BUSI/Port. 2021.07.23 - Fix Disable roothub and hubs used for Unraid Flash device. 2021.07.10 - Add volume to device list in USBHotplug page. 2021.07.09a - Add display of Hotplug Devices on main USB page and allow detach. 2021.07.09 - Fix Virsh error if both port and device mapping exist for a device a connection time. - Add USB Manager Hotplug page on VM page, to enable change options in settings. Base code from DLandons Hot plug plugin. Addition support to show on USB page if mapping doesn't exist in next release. 2021.06.02a - Fix table formating if both port and device mappings for new volume column - Add Log virsh calls. 2021.06.26 - Enhancement Show Volume for USB Storage Devices. 2021.06.20 - Enhancement enable port processing for mappinng ports to VM at start. - Update text on edit settings page to describe entry being changed. 2021.06.19 - Install QEMU hooks file code, thanks to ljm42 for code. 2021.06.08 - Fix USBIP command check. 2021.06.06 - Initial beta release. If you are using USBIP-GUI continue to do so at this time. This plugin will suppercede USBIP-GUI in the future and will migrate configurations. USBIP-GUI and USB_Manager cannot co-exist. If you want to replace USBIP-GUI then uninstall first, Config files we remane on the flash drive you can copy them to usb_manager directory. USBIP and USBIP-HOST module are not loaded by default. If you want to use them enable USBIP in the Settings and click the install button to install the additional plug. Add the following lines, see support page for complete code as cannot be insert here to /etc/libvirt/hooks/qemu after the PHP line, These will be automatically added in the a future release. if ($argv[2] == 'prepare' || $argv[2] == 'stopped'){ shell_exec("/usr/local/emhttp/plugins/usb_manager/scripts/rc.usb_manager vm_action '{$argv[1]}' {$argv[2]} {$argv[3]} {$argv[4]} ................ Includes all changes from USBIP-GUI + Topology Slider addition. USBIP-GUI Change Log 2021.05.15 - Chg Fix Remove USB device from VM for devices not in a shutdown state, was previously only for running. 30.04.2021 - Add Remove USB Device from VM when disconnected. 2021.04.22 - Add Roothub and Hubs to view. - Add Switch to show empty ports. - No process added at this time for additional devices. 10.03.2021 - Add VM disconnect option to be used in pre sleep commands to remove USB mappings from VM before sleep. 09.03.2021 - Chg Fix issue introduce as part of port mapping for checking status. 24.02.2021 - Add Support for port-based mappings Auto connecting to a VM when device is connected to a USB port. Only devices being plugged in are supported for Ports at this time. Support for port level will be added in the furture for VM Starts. Precedence is for device level mappings over port. If a device is set to autoconnect no then the auto connect at the port level will be evaluated. 17.02.2021 - Add Dashboard update and refresh. 16.02.2021 - Add USB Dashboard entry. Enable within settings. 14.02.2021 - Add Display host name or IP address for remote USBIP Clients. 13.02.2021 - Add Show remote connection status. Host/IP to follow WIP. 12.02.2021 - Chg Fix for Bind/Unbind Button. 10a.02.2021 - Add Disconnect update function implemented. - Add Auto Connect on VM Start. - Chg Auto Connect on device added checks VM Status - Add Update Status when VM Stops. Note you need to manually add code to /etc/libvirt/hooks/qemu for VM start/stop process to function. See support page. Development yet to be completed. Update of qemu hook file. Add checks before historical info can be removed. Rename Plugin to USB Manager Change to include USBIP package install in the settings page. 08.02.2021 - Add: Autoconnect function. If VM defined and Autoconnect is set to Yes then when usb device is connected device will be connected to VM. If VM is not started Error is show. - Chg: Main USB list is no longer depetant on USBIP. Version change to support 6.8. Error will be seen during install as it trys to install USBIP package which doesnt exist pre kernel 5.10.1, but is ignored. Development yet to be completed. Autoconnect function, check VM status before connecting. Autodisconnect function. Will provide log entry but no action taken at present. Add checks before historical info can be removed. Rename Plugin to USB Manager VM Start/Stop process. Change to include USBIP package install in the settings page. 07.02.2021 - Add: VM Mapping functions - Add: Display USBIP function messages if not used. Enable/Disable for USBIP added to settings. Defaults to disable, change to enable if you are upgrading. - Add: Historical Devices added, list includes current devices also which can be removed whilst inuse. - Add: Failure Message for virsh errors. Note, Existing Libvirt plugin cannot be used to connect devices. Development yet to be completed. Autoconnect function. udev Rules exist and process works, but there are timing issues to be resolved. Add checks before historical info can be removed. Rename Plugin to USB Manager VM Start/Stop process. Changes to USB device list not to be depentant on usbip. Once change version pre-6.9.0-rc2 will be available. 31.01.2021 - Add: Revised Load process and addition of loading usbip package from ich777. USBIP package includes all commands and modules required for USBIP 28.01.2021 - Initial beta release. Edited December 12, 2021 by SimonF Updated Content 2 1 1 Quote Link to comment
JonathanM Posted December 24, 2020 Share Posted December 24, 2020 Can this eventually be used to attach server connected USB peripherals to VM's with no USB passthrough? For example, instead of passing through multiple sets of keyboards and mice, or trying to get several usb chipsets passed through cleanly to multiple vm's, could you manage all the mice and keyboards on unraid and connect them using the client inside the vm? You say the host module is not included, is this something you plan to add, or is it up to limetech? Quote Link to comment

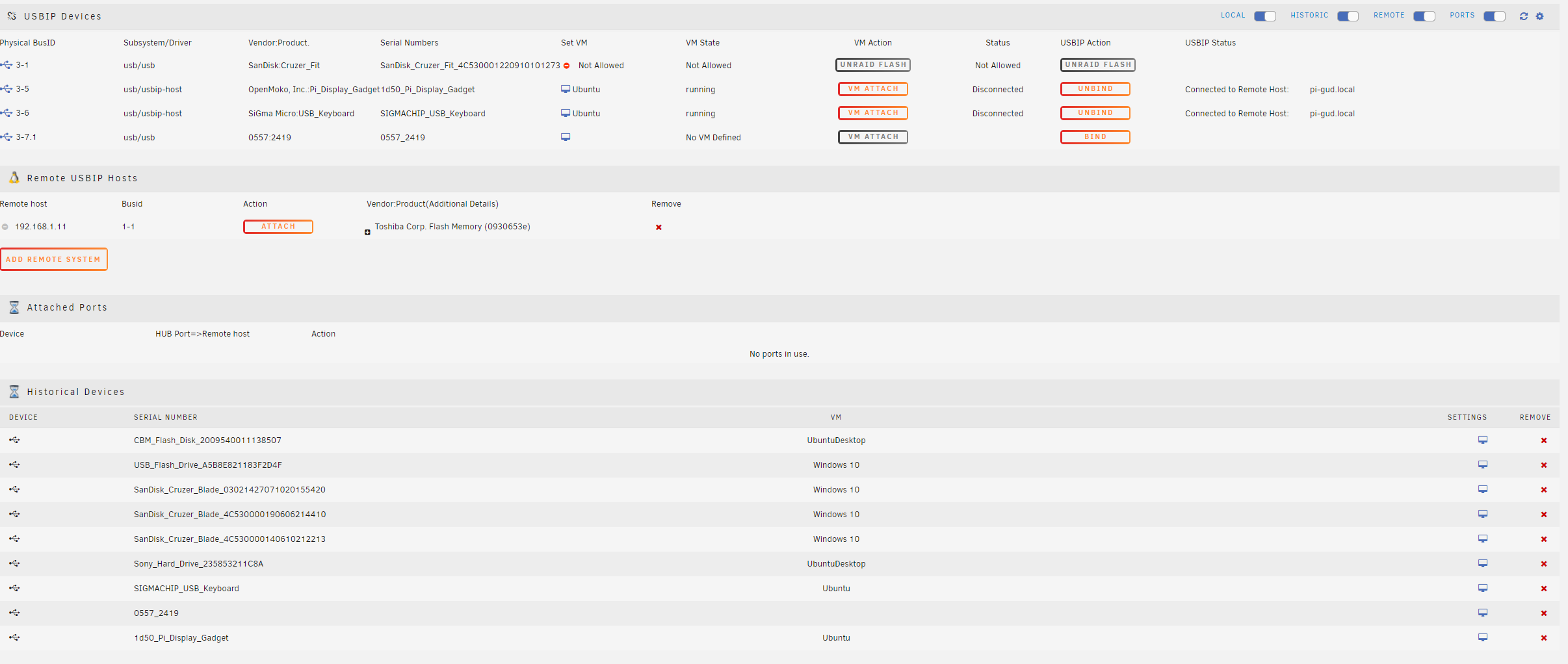

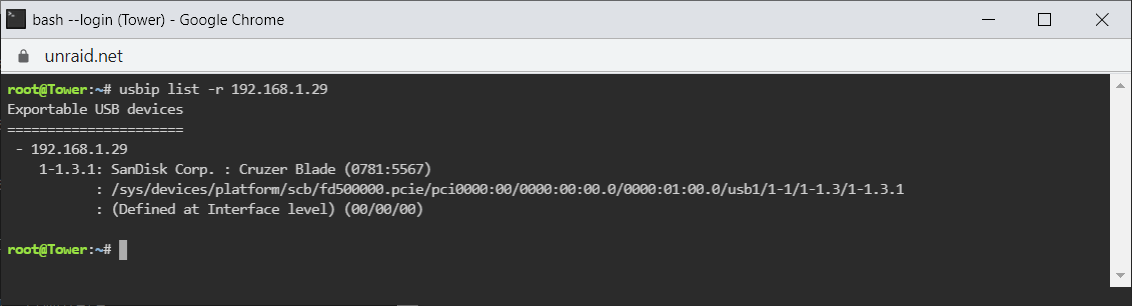

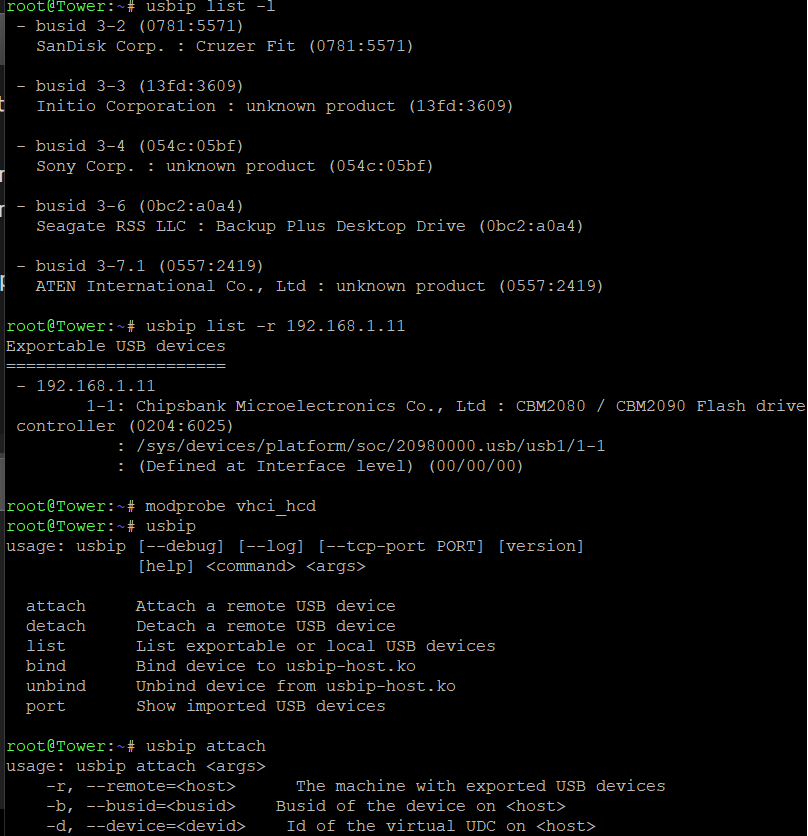

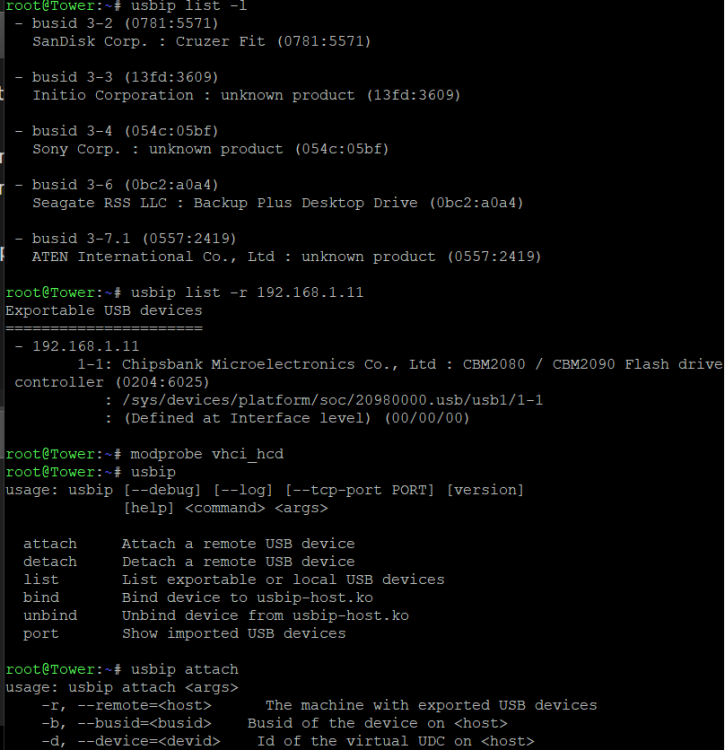

SimonF Posted December 24, 2020 Author Share Posted December 24, 2020 (edited) Here is an example of connecting to a Raspberry Pi Zero W. USB Drive is on PI is a flash drive. Unraid Side. Raspberry PI Side. Edited December 24, 2020 by SimonF Quote Link to comment
SimonF Posted December 24, 2020 Author Share Posted December 24, 2020 6 minutes ago, jonathanm said: Can this eventually be used to attach server connected USB peripherals to VM's with no USB passthrough? For example, instead of passing through multiple sets of keyboards and mice, or trying to get several usb chipsets passed through cleanly to multiple vm's, could you manage all the mice and keyboards on unraid and connect them using the client inside the vm? You say the host module is not included, is this something you plan to add, or is it up to limetech? The module is the kernel module usbip_host, I think initially limetech only included vhci_hcd and usbip_core. I guess it could be sideloaded with the new process but ideally it should be baked into standard modules if the other two are there already. You could connect devices this way but I am not sure how slick it would be, also the they would not be available until you attach them on the client. The host part also needs to run the daemon usbipd. I think for VMs it would still be better to passthru the usb. Quote Link to comment
GuilhermeFluis Posted February 9, 2021 Share Posted February 9, 2021 [DESIRE TO KNOW MORE INTENSIFIES] ok, I understand that KB and mouse are dealt by RDP, no need to USB over IP them. Could I RDP into a computer using a Rpi, plug something on the usb, like a Hardlock/hardkey/keylock/HASPKey and it would look like it is connected to the virtual machine? and what about Yubico/FIDO keys? and printers? and thumbdrives? Most really heavy simulations can run better on a hefty server and not on the client machine. but licensing / management of the licenses can be a pain due the hardware keys. Quote Link to comment
SimonF Posted February 10, 2021 Author Share Posted February 10, 2021 HI @GuilhermeFluis USBIP can be used to share USB Devices between systems. On the client side they appear as if they are connected directly. Note that USBIP is not a secure setup so should only be used in local networks. Uses are for connecting usb dongles/keys to servers etc. i.e. if you have home automation then connecting a ZWave USB controller to Openhab or Home Assistant running in a docker or VM. USBIP doesn't reconnect automatically if there are failures etc. You could have a keyboard, mouse, usb flash drive and connected to a pi and shared with remote host if the remote host has client support. There is a windows client, but I have not tested it as yet. But use a test signed driver. https://github.com/barbalion/usbip-win-client On the client side you need to install the usbip tools. eg on Raspberry pi 4 sudo apt-get install usbip Depending on if you device is the client or the server different kernel modules are required. Server: usbip-host Client: vhci_hcd If they are not installed modprobe the one you need. vhci_hcd loads two(USB2 and USB3) virtual USB hubs for devices to be connected to of the remote system pi@pi-gud:~ $ sudo apt-get install usbip Reading package lists... Done Building dependency tree Reading state information... Done The following NEW packages will be installed: usbip 0 upgraded, 1 newly installed, 0 to remove and 0 not upgraded. Need to get 683 kB of archives. After this operation, 778 kB of additional disk space will be used. Get:1 http://www.mirrorservice.org/sites/archive.raspbian.org/raspbian buster/main armhf usbip armhf 2.0+4.18.20-2+rpi1 [683 kB] Fetched 683 kB in 1s (1,069 kB/s) Selecting previously unselected package usbip. (Reading database ... 39839 files and directories currently installed.) Preparing to unpack .../usbip_2.0+4.18.20-2+rpi1_armhf.deb ... Unpacking usbip (2.0+4.18.20-2+rpi1) ... Setting up usbip (2.0+4.18.20-2+rpi1) ... Processing triggers for man-db (2.8.5-2) ... pi@pi-gud:~ $ sudo modprobe vhci_hcd pi@pi-gud:~ $ lsmod | grep vhci_hcd vhci_hcd 32768 0 usbip_core 20480 1 vhci_hcd You query the remote server using usbip list -r <ip> command. On the server side you need to also have usbip-host module loaded and the usbipd running to service requests from the clients, which can be started with usbipd -D You have to bind devices to the module for them to be visible on the client. and on the client. To attach the device to the client you need to run the usbip attach -r <remote ip> -b <remote busid> i.e. 1-1.3.1 Hope this helps provide a bit more of an overview? 1 Quote Link to comment
dstark4 Posted February 11, 2021 Share Posted February 11, 2021 Awesome, Thank you for working on this. Do you plan on supporting more than vm's attached to unraid? I have use-case's for usb hardware keys, where this would be a great feature for moving between multiple machines on local networks. (Windows is the biggest hurdle at the moment.) I was able to use this in conjunction with unraid cli to share to other machines on the network. Quote Link to comment
SimonF Posted February 12, 2021 Author Share Posted February 12, 2021 7 hours ago, dstark4 said: Awesome, Thank you for working on this. Do you plan on supporting more than vm's attached to unraid? I have use-case's for usb hardware keys, where this would be a great feature for moving between multiple machines on local networks. (Windows is the biggest hurdle at the moment.) I was able to use this in conjunction with unraid cli to share to other machines on the network. If you DM me on what you did with CLI i can see if I can add it. Quote Link to comment
CS01-HS Posted February 24, 2021 Share Posted February 24, 2021 I haven't tested enough to confirm it's related but some time after installing the GUI plugin my syslog server started logging to syslog-127.0.0.1.log rather than syslog-<my unraid server's IP>. After uninstalling it it's back to normal. Strange. Quote Link to comment
SimonF Posted February 24, 2021 Author Share Posted February 24, 2021 Ok thanks, it may be down to the syslog rules I have created Will check it out. 1 Quote Link to comment
SimonF Posted February 24, 2021 Author Share Posted February 24, 2021 (edited) 1 hour ago, CS01-HS said: I haven't tested enough to confirm it's related but some time after installing the GUI plugin my syslog server started logging to syslog-127.0.0.1.log rather than syslog-<my unraid server's IP>. After uninstalling it it's back to normal. Strange. you can remove 99_usbip_syslog.conf from /etc/rsyslog.d/ and restart /etc/rc.d/rc.rsyslogd restart If you want to use the plugin. Rules are only required for USBIP Update to plugin script not to install rsyslog rules Edited February 24, 2021 by SimonF 1 Quote Link to comment
garydapogi Posted March 8, 2021 Share Posted March 8, 2021 @SimonF Hi, I've installed the plugin successfully, however when I visit the setting page it's empty, just a white screen. How to fix? Quote Link to comment

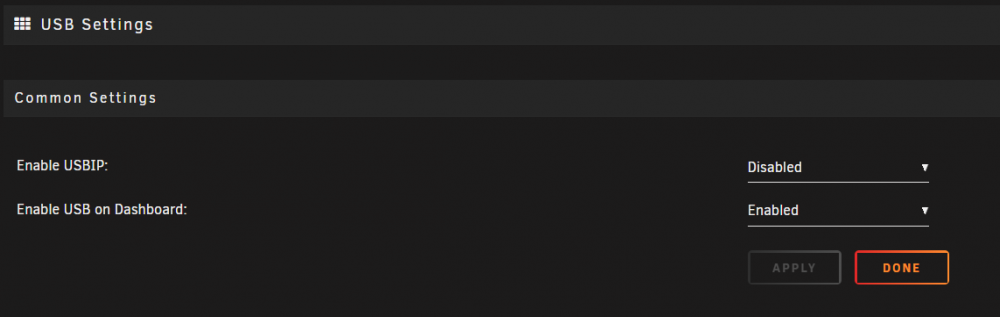

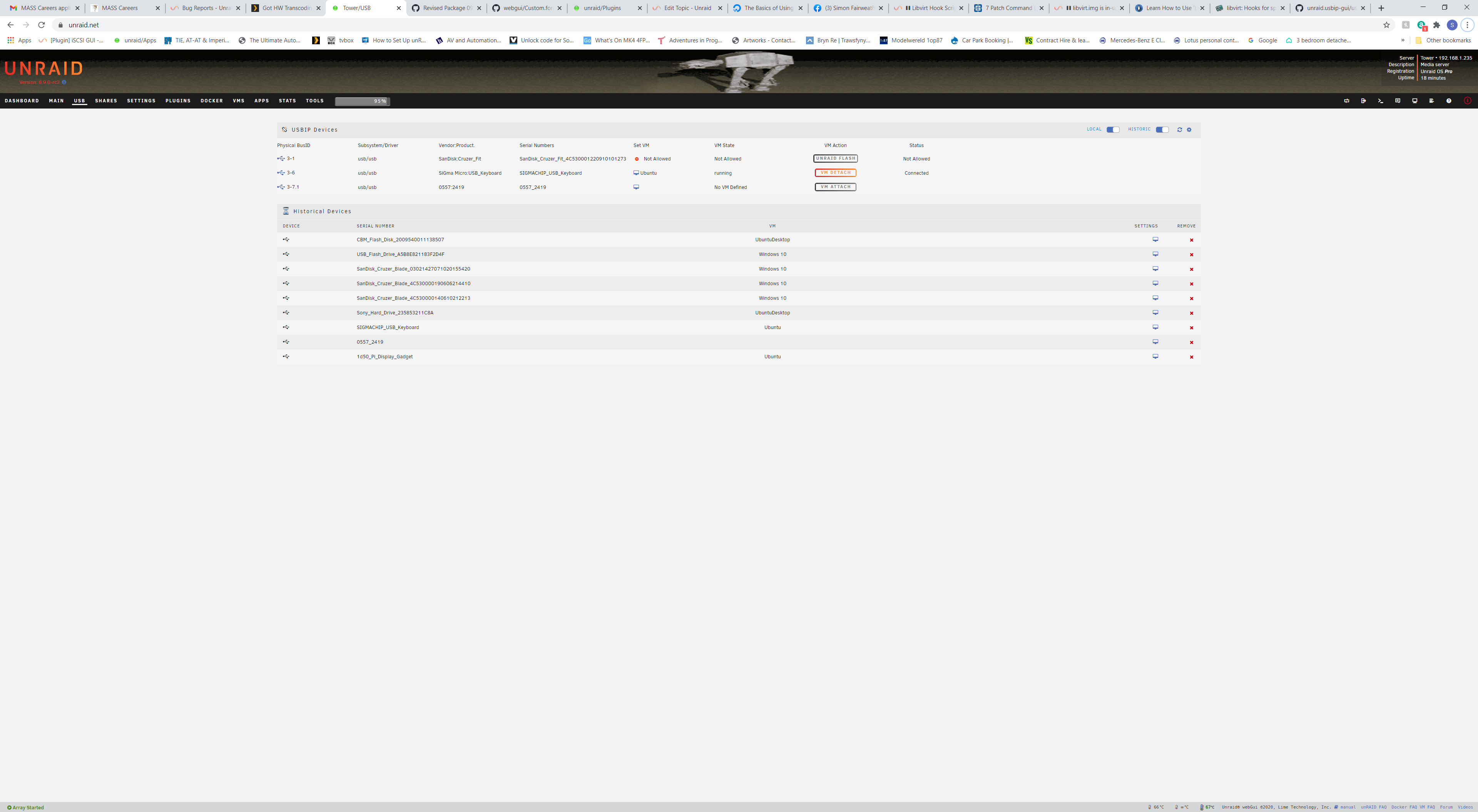

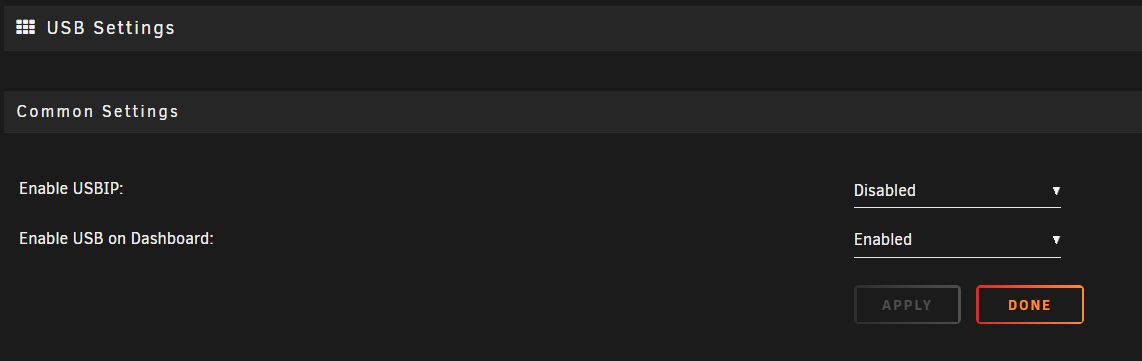

SimonF Posted March 8, 2021 Author Share Posted March 8, 2021 (edited) 37 minutes ago, garydapogi said: @SimonF Hi, I've installed the plugin successfully, however when I visit the setting page it's empty, just a white screen. How to fix? Do you have the or is it the page blank when you go via this in the settings page? What vers of OS are you on, You will only see these two options on the settings page. Main USB page is via the Menu at the top. Edited March 8, 2021 by SimonF Quote Link to comment
garydapogi Posted March 8, 2021 Share Posted March 8, 2021 (edited) Oh yah! I see the Tab. I did not noticed that before. thanks @SimonF I was looking at the wrong place - the usual gear icon of an app. Will this plugin solve my case, where (no. 5): 1. I suspend a Linux VM 2. Suspend unRaid server via S3 Plugin 3. Wakes up unRaid 4. Wakes up the Linux VM 5. USB Mouse won't re-attach unRAID 6.9.0 Edited March 8, 2021 by garydapogi added OS version Quote Link to comment
SimonF Posted March 8, 2021 Author Share Posted March 8, 2021 3 minutes ago, garydapogi said: Oh yah! I see the Tab. I did not noticed that before. thanks @SimonF I was looking at the wrong place - the usual gear icon of an app. Will this plugin solve my case, where (no. 5): 1. I suspend a Linux VM 2. Suspend unRaid server via S3 Plugin 3. Wakes up unRaid 4. Wakes up the Linux VM 5. USB Mouse won't re-attach OK I may need to look at suspend. Just to check to did the change to the hook file in the first post. Just to confirm you suspend VM just via the VM menu(Hibernate) options or by some other process? Do you see any messages similar to these in the syslog if you have added lines into hook file? Mar 8 09:41:45 Tower unraid.usbip-gui: Info: rc.unraid.usbip-gui vm_action UbuntuDesktop stopped end - Mar 8 09:41:45 Tower unraid.usbip-gui: Info: rc.unraid.usbip-gui VM Shutdown USB_Flash_Drive_A5B8E821183F2D4F vm: UbuntuDesktop Mar 8 09:41:45 Tower unraid.usbip-gui: Info: rc.unraid.usbip-gui VM Shutdown Generic_Mass_Storage_037388E2 vm: UbuntuDesktop Mar 8 09:41:45 Tower unraid.usbip-gui: Info: rc.unraid.usbip-gui Autoconnect Start 18f8_USB_GAMING_MOUSE vm: UbuntuDesktop Device in Use action ignored. Mar 8 09:41:45 Tower unraid.usbip-gui: Info: rc.unraid.usbip-gui vm_action UbuntuDesktop release end - Mar 8 09:41:45 Tower unraid.usbip-gui: Info: rc.unraid.usbip-gui Autoconnect Start 18f8_USB_GAMING_MOUSE vm: UbuntuDesktop Device in Use action ignored. Mar 8 09:41:58 Tower kernel: br0: port 2(vnet0) entered blocking state Mar 8 09:41:58 Tower kernel: br0: port 2(vnet0) entered disabled state Mar 8 09:41:58 Tower kernel: device vnet0 entered promiscuous mode Mar 8 09:41:58 Tower kernel: br0: port 2(vnet0) entered blocking state Mar 8 09:41:58 Tower kernel: br0: port 2(vnet0) entered forwarding state Mar 8 09:41:58 Tower unraid.usbip-gui: Info: rc.unraid.usbip-gui vm_action UbuntuDesktop prepare begin - Mar 8 09:41:58 Tower unraid.usbip-gui: Info: rc.unraid.usbip-gui Autoconnect Start 18f8_USB_GAMING_MOUSE vm: UbuntuDesktop Device in Use action ignored. Mar 8 09:41:58 Tower unraid.usbip-gui: Info: rc.unraid.usbip-gui vm_action UbuntuDesktop start begin - Mar 8 09:41:58 Tower unraid.usbip-gui: Info: rc.unraid.usbip-gui Autoconnect Start 18f8_USB_GAMING_MOUSE vm: UbuntuDesktop Device in Use action ignored. Mar 8 09:41:58 Tower unraid.usbip-gui: Info: rc.unraid.usbip-gui vm_action UbuntuDesktop started begin - Mar 8 09:41:58 Tower unraid.usbip-gui: Info: rc.unraid.usbip-gui Autoconnect Start 18f8_USB_GAMING_MOUSE vm: UbuntuDesktop Device in Use action ignored. Quote Link to comment
garydapogi Posted March 8, 2021 Share Posted March 8, 2021 4 minutes ago, SimonF said: Just to confirm you suspend VM just via the VM menu(Hibernate) options or by some other process? Im using Linuxmint Mint, I click on the Suspend button in the VM itself. Quote Do you see any messages similar to these in the syslog if you have added lines into hook file? I can't do this now, however I have a copy of the exact error code in the Linux VM, it says: libusb_release_interface: -4 [NO_DEVICE] The moment I see that line, mouse is not working, so I have to manually attach it via the Libvirt USB Hotplug. I will get back with the syslog you're asking. Machine is dismantled for the time being. Quote Link to comment
SimonF Posted March 8, 2021 Author Share Posted March 8, 2021 (edited) 7 hours ago, garydapogi said: I will get back with the syslog you're asking. Machine is dismantled for the time being. No worries, I am creating a Mint VM with an RTX2060 +kb and mouse to test suspend. An will see if I need to change anything. Edited March 8, 2021 by SimonF Quote Link to comment
SimonF Posted March 8, 2021 Author Share Posted March 8, 2021 (edited) OK, Suspending a Mint VM does not provide any notification from hooks. So unless we get some disconnect, reconnect of the USB then there doesn't seem to be a way to trigger an event. I will try sleep functions on my test server to see if I can see anyway to detect as I don't normally use them. Do you use the S3 sleep plugin as it has before and after scripts so may be able to script the removing before sleep and reconnecting after. Are you able to provide me a screen print of the usb page pm me if you dont want to post it here Edited March 8, 2021 by SimonF Quote Link to comment
garydapogi Posted March 9, 2021 Share Posted March 9, 2021 5 hours ago, SimonF said: Do you use the S3 sleep plugin as it has before and after scripts Yes I do use it, however Im I know nothing about the before/after scripts. But yah, I get the idea, we could use that feature to do as you you said. Here's my screenshot btw: - In my VM setting, the mouse is passed through: https://i.snipboard.io/IGghF4.jpg - In USB Page, mouse is set to auto connect on VM start, not sure how to use the settings on there tho. Also, I see the virsh error there after waking up the VM - https://i.snipboard.io/fMhSYx.jpg So the workflow I tried: 1. I suspend the Linux VM via the Linuxmint Suspend button. 2. Suspend the unRaid server using the Sleep Button provided by the S3 plugin 3. Wake the unRaid server up > Manually unpaused the Linuxmint VM via GUI, result: mouse not working, virsh error pop up on the USB page. Syslog, sending via PM Quote Link to comment
b0n3v Posted March 13, 2021 Share Posted March 13, 2021 (edited) Hello, I need some help I intall the plugin and try to passtrue my 2 joysticks with same vendor id, after some test dosn't give good result and i remove the plugin, after that my server going crazy. First if i try to start my VM with passtru video card 750TI, he give kernel: vfio-pci 0000:27:00.0: BAR 1: can't reserve and VM stuck at Boot logo. And after a while in the logs i see : Mar 13 12:53:57 xxxxx kernel: NVRM: GPU 0000:27:00.0: RmInitAdapter failed! (0x26:0x65:1290) Mar 13 12:53:57 xxxxx kernel: NVRM: GPU 0000:27:00.0: rm_init_adapter failed, device minor number 0 The server reboot itself, how can i repair or roolback all change maded by this plugin. Thanks! Just a coincidence, it has nothing to do with the plugin. Edited March 13, 2021 by b0n3v Quote Link to comment
SimonF Posted March 13, 2021 Author Share Posted March 13, 2021 (edited) The plugin doesnt make any changes to the GPU settings, if you have removed the plugin and reboot there should be nothing left of the plugin. Did you change anything apart from install the plugin? Edited March 13, 2021 by SimonF Quote Link to comment
RiDDiX Posted April 9, 2021 Share Posted April 9, 2021 Since Unraid Version: 6.9.2. I just get the messege: Following are missing or not loaded: usbip_host module. Did there got something remove for usbip? With Version 6.9.1 everything worked -.- Quote Link to comment

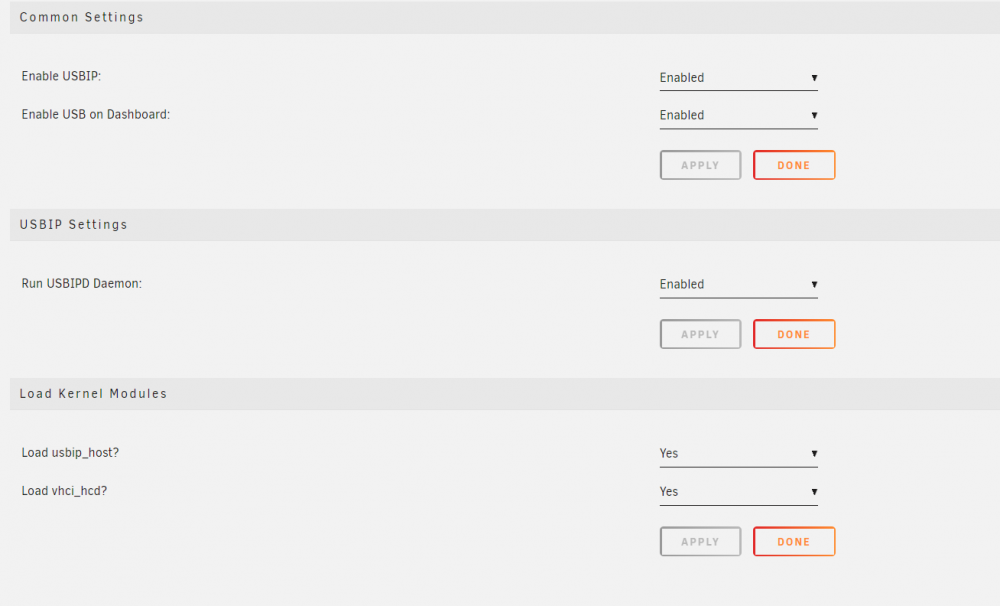

SimonF Posted April 9, 2021 Author Share Posted April 9, 2021 (edited) 26 minutes ago, RiDDiX said: Since Unraid Version: 6.9.2. I just get the messege: Following are missing or not loaded: usbip_host module. Did there got something remove for usbip? With Version 6.9.1 everything worked -.- Its working for me on 6.9.2. Did you upgrade before the usbip package was built? Have you tired uninstalling and re-installing? What does your settings look like? Edited April 9, 2021 by SimonF 1 Quote Link to comment

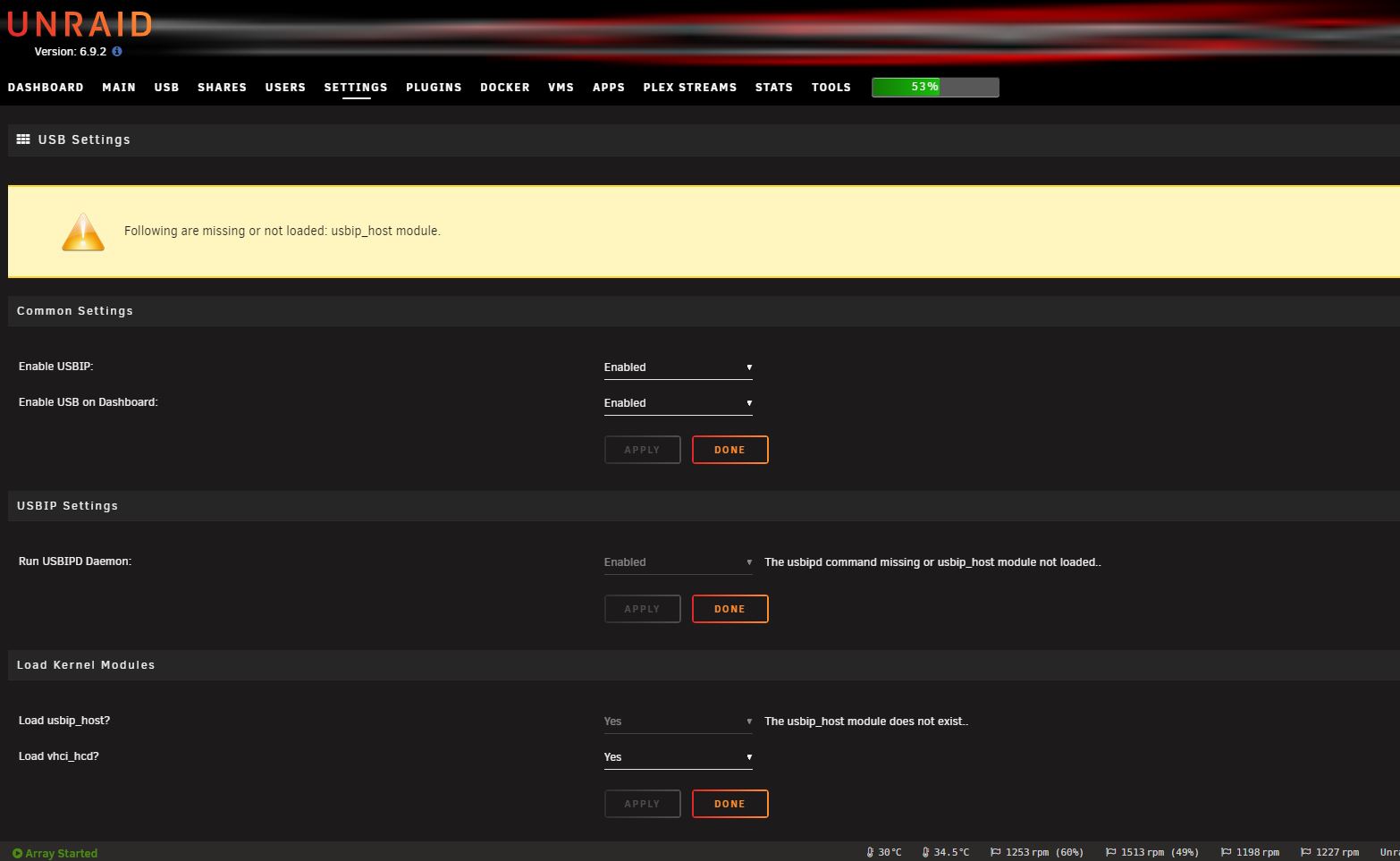

RiDDiX Posted April 9, 2021 Share Posted April 9, 2021 5 minutes ago, SimonF said: Its working for me on 6.9.2. Did you upgrade before the usbip package was built? Have you tired uninstalling and re-installing? What does your settings look like? I attached my settings there are like yours but with the error as mentioned. I already uninstalled both plugins and reinstalled them. But I still see this "error/warning". Quote Link to comment
SimonF Posted April 9, 2021 Author Share Posted April 9, 2021 4 minutes ago, RiDDiX said: I attached my settings there are like yours but with the error as mentioned. I already uninstalled both plugins and reinstalled them. But I still see this "error/warning". Looks like the additional USBIP package hasn't been installed. The vhcd are included in stock unraid. You should be able to remove plugin and reinstall to fix. 1 Quote Link to comment
