[Plugin] USB_Manager

[RiDDiX]

13 minutes ago, SimonF said:

Looks like the additional USBIP package hasn't been installed. The vhcd are included in stock unraid.



You should be able to remove plugin and reinstall to fix.

As mentioned I tried uninstalling reinstalling. Now I let my unraid server rebooting (3 Times). Now everything seems to work again. I really dont know why or how this happend.

I am sorry for posting my problems here, which are just away cuz of a few reboots



Thank you for your help!

[SimonF]

19 minutes ago, RiDDiX said:

As mentioned I tried uninstalling reinstalling. Now I let my unraid server rebooting (3 Times). Now everything seems to work again. I really dont know why or how this happend.

I am sorry for posting my problems here, which are just away cuz of a few reboots



Thank you for your help!

No worries.



the USBIP package is kernel dependent and wasn't build at the time of the Unraid upgrade being released(but was about 6hrs after). Unraid are looking to build these as part of the release process for 6.10 so they should be ready when they release.



Just uninstalling and reloading should force the usbip-1 package to be downloaded for new kernel from ich777's repo. I assume you didnt have any internet issues will would stop the download.

Edited April 9, 2021 by SimonF

[RiDDiX]

21 minutes ago, SimonF said:

No worries.



the USBIP package is kernel dependent and wasn't build at the time of the Unraid upgrade being released(but was about 6hrs after). Unraid are looking to build these as part of the release process for 6.10 so they should be ready when they release.



Just uninstalling and reloading should force the usbip-1 package to be downloaded for new kernel from ich777's repo. I assume you didnt have any internet issues will would stop the download.

Maybe but as I wrote here I am at the office (work) and connected via VPN to my Home-Network. Connection seems to be stable.

Anyway maybe there hang something up I really dont know. But I am happy that it work again.

Thank you for your effort 🙂

[garydapogi]

Hi @SimonF



Im getting virsh error on my 6.9.2 machine. AFAIK, I'm not getting this error before.

Attached are 2 kb + 3 mouse.



1 of the kb and mouse is getting this error everytime :



Error: Failed to attach device from /tmp/libvirthotplugusbbybusLinuxMint 20.1.xml error: internal error: No free USB ports





Under Device Log Information:



Apr 10 00:33:03 AORUSPROAC kernel: usb 1-6.1: USB disconnect, device number 5
Apr 10 00:33:03 AORUSPROAC kernel: usb 1-6.1: new low-speed USB device number 17 using xhci_hcd



No other error in unraid log.

[SimonF]

@garydapogiEach VM has a limit on the number of Virtual USB ports, I think the default is 5. I think you can increase, not sure why it would have changed in 6.9.2.



You can sometimes clear by powering down VM and restarting. Not reboot has that doesnt release the virtual ports.



Also disconnects can sometimes leave devices connected and not freeing up ports..



This was the post for increasing ports.







You need to change USB type in template to





This will support 15 ports.

Edited April 9, 2021 by SimonF

[garydapogi]

Thanks a lot @SimonF. Had made the changes now and will observe the outcome, then will report back.

[SimonF]

@Fireblast3r



Could you attach the output of the following file for me.



cat /usr/local/emhttp/state/usb.ini

[Fireblast3r]

5 hours ago, SimonF said:

@Fireblast3r



Could you attach the output of the following file for me.



cat /usr/local/emhttp/state/usb.ini



Here is the output.  I had tried both port mapping and device mapping and same result.  also tried qemu 3.0 usb controller.  currently have all mapping rules removed.  I have seen some post about creating a dev rule to lump all these devices into one "group" or device but that was for running htc vive natively on Arch linux.   seems interesting since the htc vive usb hub brings in 8 devices but it should be all considered one logic device.



here is the usb insert event log from Unraid as well as usb.ini.



remove event



root@Tower:~# cat /usr/local/emhttp/state/usb.ini

[HTC_CB_USB2]
ishub = 1
connected = ""
bus = 001
dev = 073
ID_VENDOR_FROM_DATABASE = "HTC (High Tech Computer Corp.)"
ID_VENDOR_ID = "0bb4"
ID_MODEL = "CB_USB2"
ID_MODEL_ID = 2210

[SMSC_USB2137B]
ishub = 1
connected = ""
bus = 001
dev = 074
ID_VENDOR_FROM_DATABASE = "HTC (High Tech Computer Corp.)"
ID_VENDOR_ID = "0bb4"
ID_MODEL = "USB2137B"
ID_MODEL_ID = 2134

[Broadcom_Corp_BCM2045A0_404E3618003F]
ishub = ""
connected = ""
bus = 001
dev = 075
ID_VENDOR_FROM_DATABASE = "HTC (High Tech Computer Corp.)"
ID_VENDOR_ID = "0bb4"
ID_MODEL = "BCM2045A0"
ID_MODEL_ID = 0306

[HTC_HTC_Vive_2075397F5250]
ishub = ""
connected = ""
bus = 001
dev = 076
ID_VENDOR_FROM_DATABASE = "HTC (High Tech Computer Corp.)"
ID_VENDOR_ID = "0bb4"
ID_MODEL = "HTC_Vive"
ID_MODEL_ID = "2c87"

[Valve_Software_Watchman_Dongle_D6373D9514]
ishub = ""
connected = ""
bus = 001
dev = 077
ID_VENDOR_FROM_DATABASE = ""
ID_VENDOR_ID = "28de"
ID_MODEL = "Watchman_Dongle"
ID_MODEL_ID = 2101

[Valve_Software_Lighthouse_FPGA_RX_LHR-27B63959]
ishub = ""
connected = ""
bus = 001
dev = 079
ID_VENDOR_FROM_DATABASE = ""
ID_VENDOR_ID = "28de"
ID_MODEL = "Lighthouse_FPGA_RX"
ID_MODEL_ID = 2000

[Alpha_Imaging_Tech_HTC_Vive]
ishub = ""
connected = ""
bus = 001
dev = 080
ID_VENDOR_FROM_DATABASE = "HTC (High Tech Computer Corp.)"
ID_VENDOR_ID = "0bb4"
ID_MODEL = "HTC_Vive"
ID_MODEL_ID = "2c87"root@Tower:~#

Edited April 17, 2021 by Fireblast3r
missing event

[SimonF]

7 minutes ago, Fireblast3r said:

[HTC_CB_USB2]
ishub = 1
connected = ""
bus = 001
dev = 073
ID_VENDOR_FROM_DATABASE = "HTC (High Tech Computer Corp.)"
ID_VENDOR_ID = "0bb4"
ID_MODEL = "CB_USB2"
ID_MODEL_ID = 2210

[SMSC_USB2137B]
ishub = 1
connected = ""
bus = 001
dev = 074
ID_VENDOR_FROM_DATABASE = "HTC (High Tech Computer Corp.)"
ID_VENDOR_ID = "0bb4"
ID_MODEL = "USB2137B"
ID_MODEL_ID = 2134

These two devices are classed as HUBs, and will not show in my plugin as you cannot connect hubs in this way. Please share a link to the doc and I will take a look.



I use these UDEV Rules for adding USB devices.



ACTION=="bind",SUBSYSTEM=="usb",ENV{DEVTYPE}=="usb_device",RUN+="/usr/local/emhttp/plugins/unraid.usbip-gui/scripts/rc.unraid.usbip-gui usb_add >/dev/null 2>&1 & disown"
ACTION=="remove",SUBSYSTEM=="usb",ENV{DEVTYPE}=="usb_device",RUN+="/usr/local/emhttp/plugins/unraid.usbip-gui/scripts/rc.unraid.usbip-gui usb_remove >/dev/null 2>&1 & disown"





[Fireblast3r]

I should have bookmarked... I can only find this now.  is this relevant?



https://ybalrid.info/2018/03/install-and-run-steamvr-on-archlinux-for-using-an-htc-vive-and-do-opengl-openvr-developement/

[Fireblast3r]

Nevermind.  thanks for your help.  I think I've reach the end of the road here.  my mobo cannot create an isolated IOMMU group for the 2nd usb controller card.  and it seems like this is a requirement for HTC Vive to vm passthrough.  your plugin seems to be closer than anything I've seen to getting around this requirements but the folks at lime tech have say so in this post...





[SimonF]

You will need the usb3 as there any not enough ports onthe 2.0 one.



Looks like one of the devices is a bluetooth adapter which I am guessing is required.



Can you provide me a lsusb -t with the vive connected.

Edited April 17, 2021 by SimonF

[SimonF]

13 hours ago, Fireblast3r said:

 I think I've reach the end of the road here.

If you want to try a simple hack to get all the hub devices to show in the GUI, I am not sure if you will be to attach the Bluetooth device.



edit the following file



nano /usr/local/emhttp/plugins/unraid.usbip-gui/include/lib_usbip.php



Goto line 434 and put a # in front of the continue on line 436. So should look like below.



#busid=3-1#usbid=0781:5571#
#busid=3-2#usbid=1c4f:0016#
#busid=3-5.1#usbid=cd12:ef18#
#busid=3-5.4#usbid=0204:6025#
#busid=3-6#usbid=054c:05bf#
#busid=3-7.1#usbid=0557:2419#

#1D6Bp0002
#8087p8008
#1D6Bp0002
#8087p8000
#1D6Bp0002
#05E3p0606
#0557p7000
#1D6Bp0003
#1D6Bp0002
#1D6Bp0003

	// Get a list of all usb hubs so we can blacklist them
	exec("cat /sys/bus/usb/drivers/hub/*/modalias | grep -Po 'usb:v\K\w{9}' | tr 'p' ':'", $arrAllUSBHubs);

	exec("lsusb 2>/dev/null", $arrAllUSBDevices);

	foreach ($arrAllUSBDevices as $strUSBDevice) {
		#if (preg_match('/^.+: ID (?P<id>\S+)(?P<name>.*)$/', $strUSBDevice, $arrMatch)) {
			if (preg_match('/^Bus (?P<bus>\S+) Device (?P<dev>\S+): ID (?P<id>\S+)(?P<name>.*)$/', $strUSBDevice, $arrMatch)) {
			#if (stripos($GLOBALS['var']['flashGUID'], str_replace(':', '-', $arrMatch['id'])) === 0) {
			#	// Device id matches the unraid boot device, skip device
			#	continue;

			#}

			if (in_array(strtoupper($arrMatch['id']), $arrAllUSBHubs)) {
				// Device class is a Hub, skip device
				#continue;
			}



[CS01-HS]

Anyone using this for iPhone sync to a Mac VM?

(Apple imposes a bunch of extra requirements.)



My current setup is precarious so I'm reluctant to tweak it.

[Fireblast3r]

wow! passing in the usb hub actually works.   steamvr can see headset. setup and calibration pass.  it works but there is a weird blur or jittery view when looking around in the headset.  like some kind of video lag.  i think the video lag might be parsec since... this is a headless unraid server.  I will have to experiment with direct attached monitor.



[SimonF]

1 hour ago, Fireblast3r said:

I will have to experiment with direct attached monitor.

can you run this command so I can see the Virsh errors.



cat /usr/local/emhttp/state/usb.ini  | grep virsh

[SimonF]

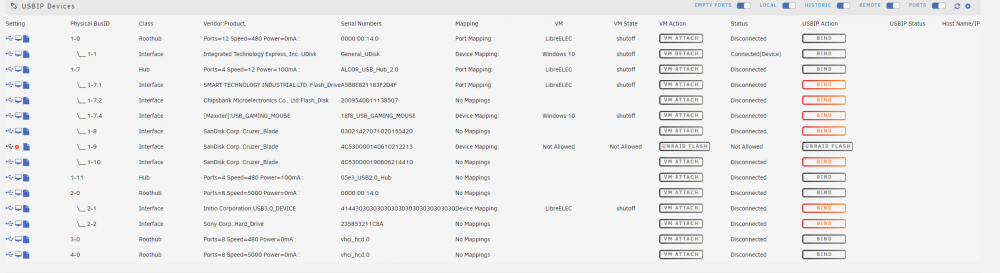

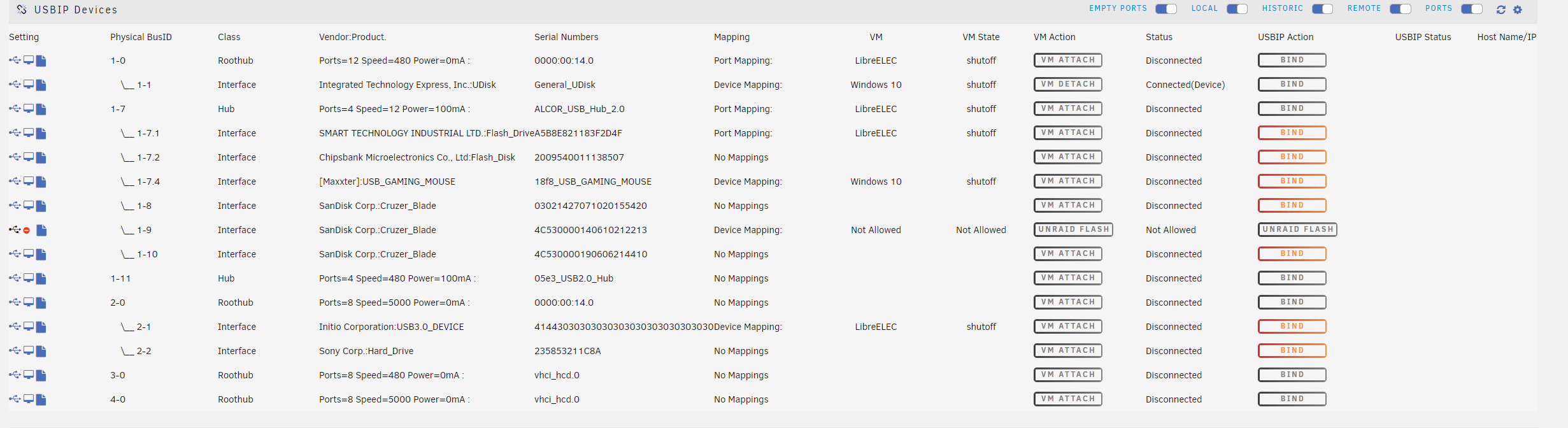

Update 22.04.21.



Added Roothubs and Hubs into the view. Also an additional selector at the top to un-hide empty ports( This can make the list very long).



Additional function to process hubs will be added in a future release. This means tagging of a hub and all connected devices will be attach to the host. It will not connect a hub to the VM as this is not supported in QEMU.



Additional Leveling/indentation will be added for the hierarchy if future releases.



[SavageAUS]

On 12/25/2020 at 2:10 AM, SimonF said:

if ($argv[2] == 'prepare' || $argv[2] == 'stopped'){ shell_exec("/usr/local/emhttp/plugins/unraid.usbip-gui/scripts/rc.unraid.usbip-gui vm_action '{$argv[1]}' {$argv[2]} {$argv[3]} {$argv[4]} >/dev/null 2>&1 & disown") ; } before if (!isset($argv[2]) || $argv[2] != 'start') {

I have the plug-in installed but in the USB menu VM attach is greyed out.
where do I add the code above?

I put it right at the beginning of the qemu file in the place mentioned in this thread.

[SimonF]

1 hour ago, SavageAUS said:

I have the plug-in installed but in the USB menu VM attach is greyed out.
where do I add the code above?

I put it right at the beginning of the qemu file in the place mentioned in this thread.

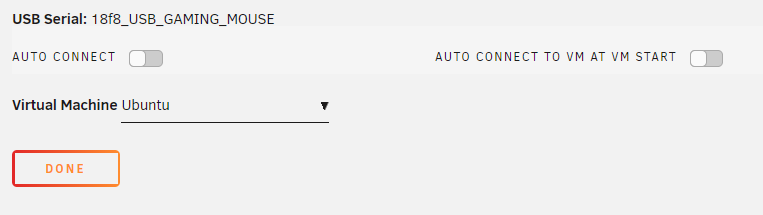

VM attach button will only show if you have a mapping and the VM is started.



The two icons on the left create the mappings either for the USB port or the USB Device.



The code you added is used if you set the Mapping option to Auto Connect at VM Start.



[SavageAUS]

Yeah I figured out that I had to click on the icon next to the port to actually “assign” it to the VM and device. Once I did that it’s working great. My monitor has built in KVM so switching between my physical machine and an unraid vm now works like a treat.

[JhonScript]

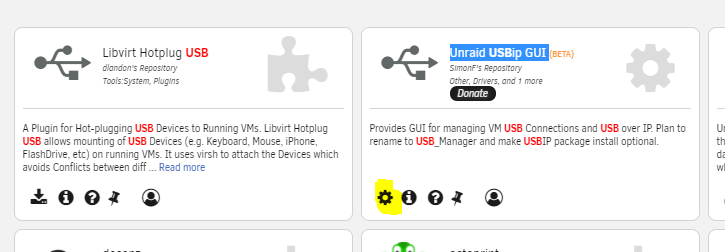

Hi, I am installing the Unraid USBip GUI and it generates the following output for me.



Removing previous versons now upgrade has completed.

+==============================================================================
| WARNING - WARNING - WARNING - WARNING - WARNING - WARNING - WARNING - WARNING
|
| Don't close this window with the red 'X' in the top right corner until the 'DONE' button is displayed!
|
| WARNING - WARNING - WARNING - WARNING - WARNING - WARNING - WARNING - WARNING
+==============================================================================
---------------------Downloading usbip, please wait...!------------------------
-----------This could take some time, please don't close this window!----------
-----ERROR - ERROR - ERROR - ERROR - ERROR - ERROR - ERROR - ERROR - ERROR------
----------------------------Can't download usbip--------------------------------
-----------------------Installing usbip, please wait...!-----------------------
Verifying package usbip-1.txz.
Unable to install /boot/config/plugins/unraid.usbip-gui/packages/4.19.107/usbip-1.txz: tar archive is corrupt (tar returned error code 2)
Starting rsyslogd daemon:
/usr/sbin/rsyslogd -i /var/run/rsyslogd.pid

-----------------------------------------------------------
unraid.usbip-gui has been installed.

Copyright 2016-2020, SimonFair
Version: 2021.04.22

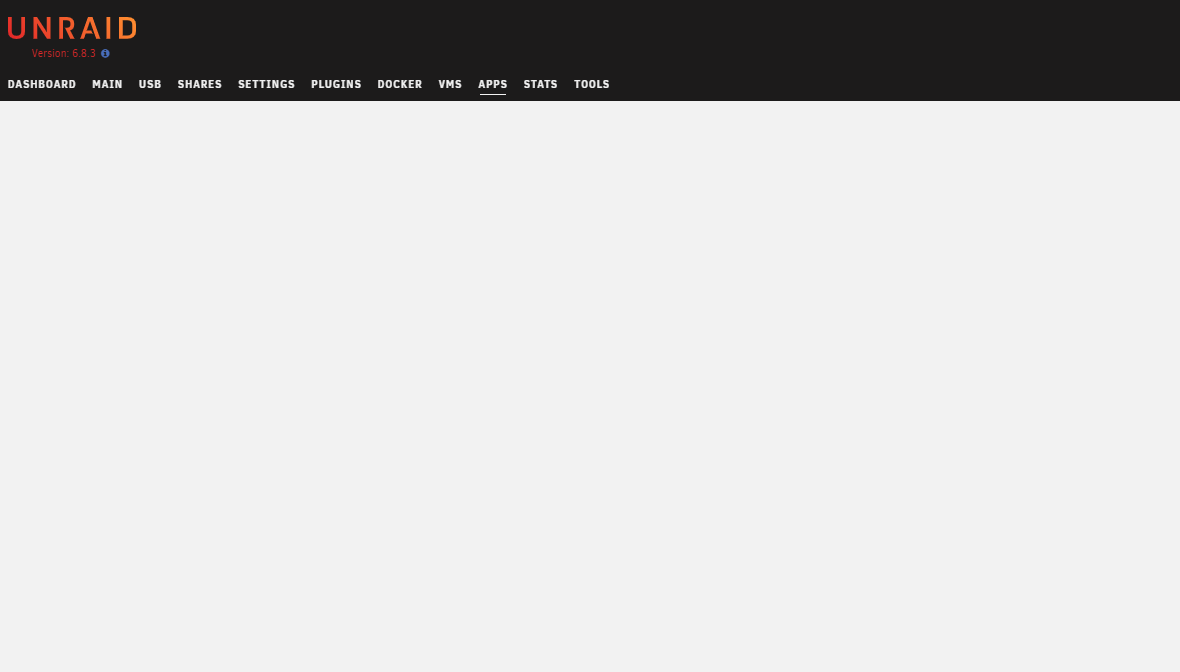

additional when I go to configure it, the screen goes blank



[SimonF]

5 minutes ago, JhonScript said:

Hi, I am installing the Unraid USBip GUI and it generates the following output for me.



Removing previous versons now upgrade has completed.

+==============================================================================
| WARNING - WARNING - WARNING - WARNING - WARNING - WARNING - WARNING - WARNING
|
| Don't close this window with the red 'X' in the top right corner until the 'DONE' button is displayed!
|
| WARNING - WARNING - WARNING - WARNING - WARNING - WARNING - WARNING - WARNING
+==============================================================================
---------------------Downloading usbip, please wait...!------------------------
-----------This could take some time, please don't close this window!----------
-----ERROR - ERROR - ERROR - ERROR - ERROR - ERROR - ERROR - ERROR - ERROR------
----------------------------Can't download usbip--------------------------------
-----------------------Installing usbip, please wait...!-----------------------
Verifying package usbip-1.txz.
Unable to install /boot/config/plugins/unraid.usbip-gui/packages/4.19.107/usbip-1.txz: tar archive is corrupt (tar returned error code 2)
Starting rsyslogd daemon:
/usr/sbin/rsyslogd -i /var/run/rsyslogd.pid

-----------------------------------------------------------
unraid.usbip-gui has been installed.

Copyright 2016-2020, SimonFair
Version: 2021.04.22





additional when I go to configure it, the screen goes blank



Looks like you are on pre 6.9 so usbip part wont be loaded. Click on usb next to main.

[JhonScript]

28 minutes ago, SimonF said:

Looks like you are on pre 6.9 so usbip part wont be loaded. Click on usb next to main.

Yes, since USB together with MAIN works fine in UnRaid 6.8.3, it just seemed weird for that to happen.

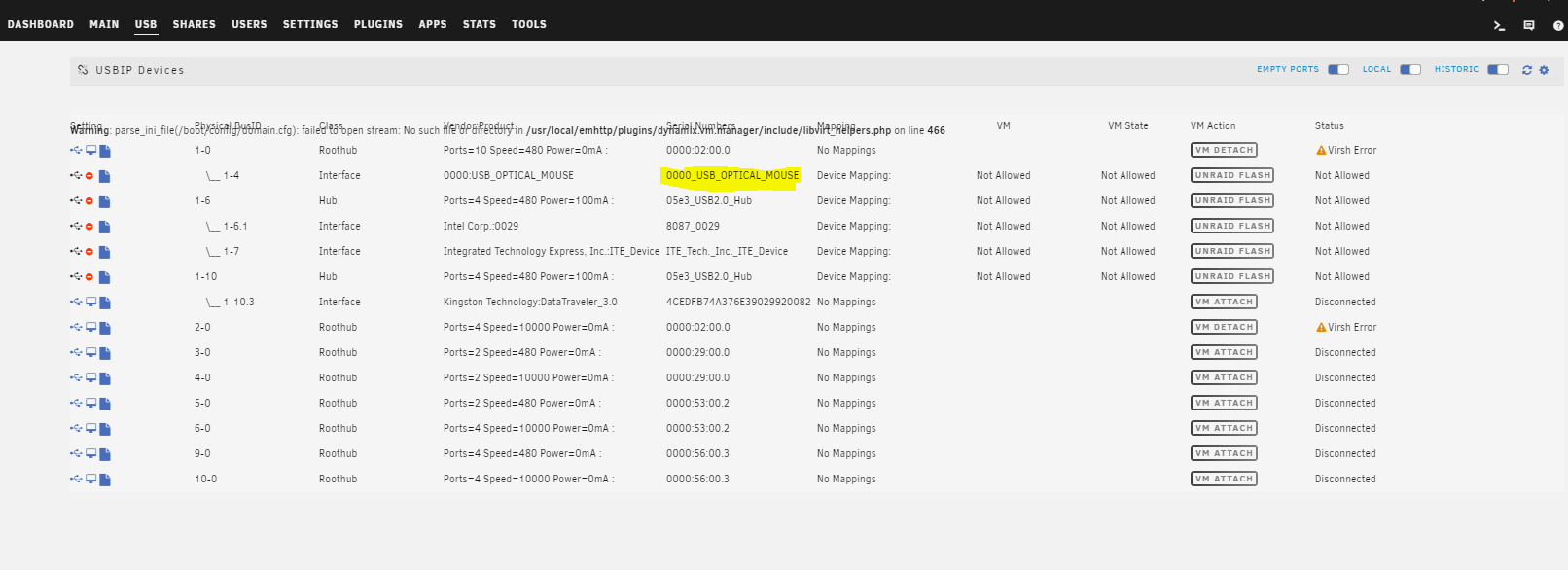

Okay, now doing a pretty strange test I found this. I have a device (Mouse) that the provider actually put 0000 as VID, this device is not possible to connect it by any means and when trying with USBip GUI, the following was generated.





Warning: parse_ini_file(/boot/config/domain.cfg): failed to open stream: No such file or directory in /usr/local/emhttp/plugins/dynamix.vm.manager/include/libvirt_helpers.php on line 466



detect multiple devices like UNRAID FLASH



Apr 25 11:53:13 Gaming kernel: usb 1-4: new low-speed USB device number 7 using xhci_hcd
Apr 25 11:53:13 Gaming kernel: input: Dell Dell USB Keyboard as /devices/pci0000:00/0000:00:01.2/0000:02:00.0/usb1/1-4/1-4:1.0/0003:413C:2003.0002/input/input3
Apr 25 11:53:13 Gaming unraid.usbip-gui: Info: rc.unraid.usbip-gui Autoconnect No Mapping found Dell_Dell_USB_Keyboard /dev/bus/usb/001/007 001 007 port 1-4
Apr 25 12:00:47 Gaming kernel: usb 1-4: reset low-speed USB device number 7 using xhci_hcd
Apr 25 12:00:48 Gaming kernel: input: Dell Dell USB Keyboard as /devices/pci0000:00/0000:00:01.2/0000:02:00.0/usb1/1-4/1-4:1.0/0003:413C:2003.0003/input/input4
Apr 25 12:01:46 Gaming kernel: usb 1-4: reset low-speed USB device number 7 using xhci_hcd
Apr 25 12:01:47 Gaming kernel: input: Dell Dell USB Keyboard as /devices/pci0000:00/0000:00:01.2/0000:02:00.0/usb1/1-4/1-4:1.0/0003:413C:2003.0004/input/input5
Apr 25 12:02:31 Gaming unraid.usbip-gui: Removing configuration 'Port:1-4'.
Apr 25 12:05:28 Gaming kernel: usb 1-4: USB disconnect, device number 7
Apr 25 12:05:49 Gaming kernel: usb 1-4: new full-speed USB device number 9 using xhci_hcd
Apr 25 12:05:50 Gaming unraid.usbip-gui: Info: rc.unraid.usbip-gui Autoconnect No Mapping found ZhiXu_Controller_1187A89 /dev/bus/usb/001/009 001 009 port 1-4
Apr 25 12:11:11 Gaming kernel: usb 1-4: USB disconnect, device number 9
Apr 25 12:12:37 Gaming kernel: usb 1-4: new full-speed USB device number 11 using xhci_hcd
Apr 25 12:12:39 Gaming unraid.usbip-gui: Info: rc.unraid.usbip-gui Autoconnect No Mapping found ZhiXu_Controller_1187A89 /dev/bus/usb/001/011 001 011 port 1-4
Apr 25 12:13:01 Gaming kernel: usb 1-4: USB disconnect, device number 11
Apr 25 12:15:01 Gaming kernel: usb 1-4: new low-speed USB device number 17 using xhci_hcd
Apr 25 12:15:01 Gaming kernel: input: USB OPTICAL MOUSE as /devices/pci0000:00/0000:00:01.2/0000:02:00.0/usb1/1-4/1-4:1.0/0003:0000:3825.0007/input/input7
Apr 25 12:15:01 Gaming unraid.usbip-gui: Info: rc.unraid.usbip-gui Autoconnect No Mapping found 0000_USB_OPTICAL_MOUSE /dev/bus/usb/001/017 001 017 port 1-4



nevertheless, very good work. Thank you so much



I forgot to mention that before testing with the VID 0000 Mouse, I had two xbox 360 controls connected and then I forcibly disconnected them. do not disassociate them

Edited April 25, 2021 by JhonScript

[SimonF]

30 minutes ago, JhonScript said:

Warning: parse_ini_file(/boot/config/domain.cfg): failed to open stream: No such file or directory in /usr/local/emhttp/plugins/dynamix.vm.manager/include/libvirt_helpers.php on line 466

This is a function from VM Manager, I haven't tested on 6.8.3 with VMs disabled so not seen this message before.



It may be causing the issue of multiple Unraid devices as should only be one.



Will look into this issue.  Do you get the same issue without the VID Mouse Connected?

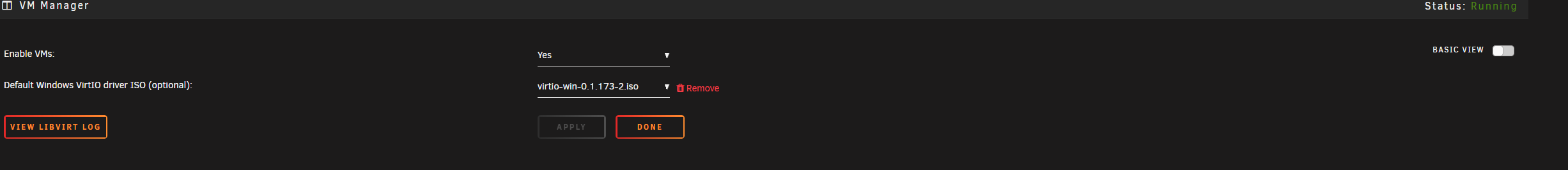

Are VMs enabled on your system?





Edited April 25, 2021 by SimonF

[JhonScript]

59 minutes ago, SimonF said:

Do you get the same issue without the VID Mouse Connected?

No
