Pinesea Posted February 4, 2021 Share Posted February 4, 2021 (edited) My computer: CPU: J1900 Ethernet Card: Intel i211 USB Disk: Sandisk 32G USB 3.0 Unraid version: 6.8.2 Internet access: Mecury D196G and Fiber Optics modem I tried many ways, only stucked with 169 ip address. It is no problem with Win10 environment. Edited February 6, 2021 by Pinesea Quote Link to comment
Squid Posted February 4, 2021 Share Posted February 4, 2021 You should update to 6.8.3. Barring that working, you need to post your diagnostics (tools - diagnostics) (or diagnostics from the command line) Quote Link to comment

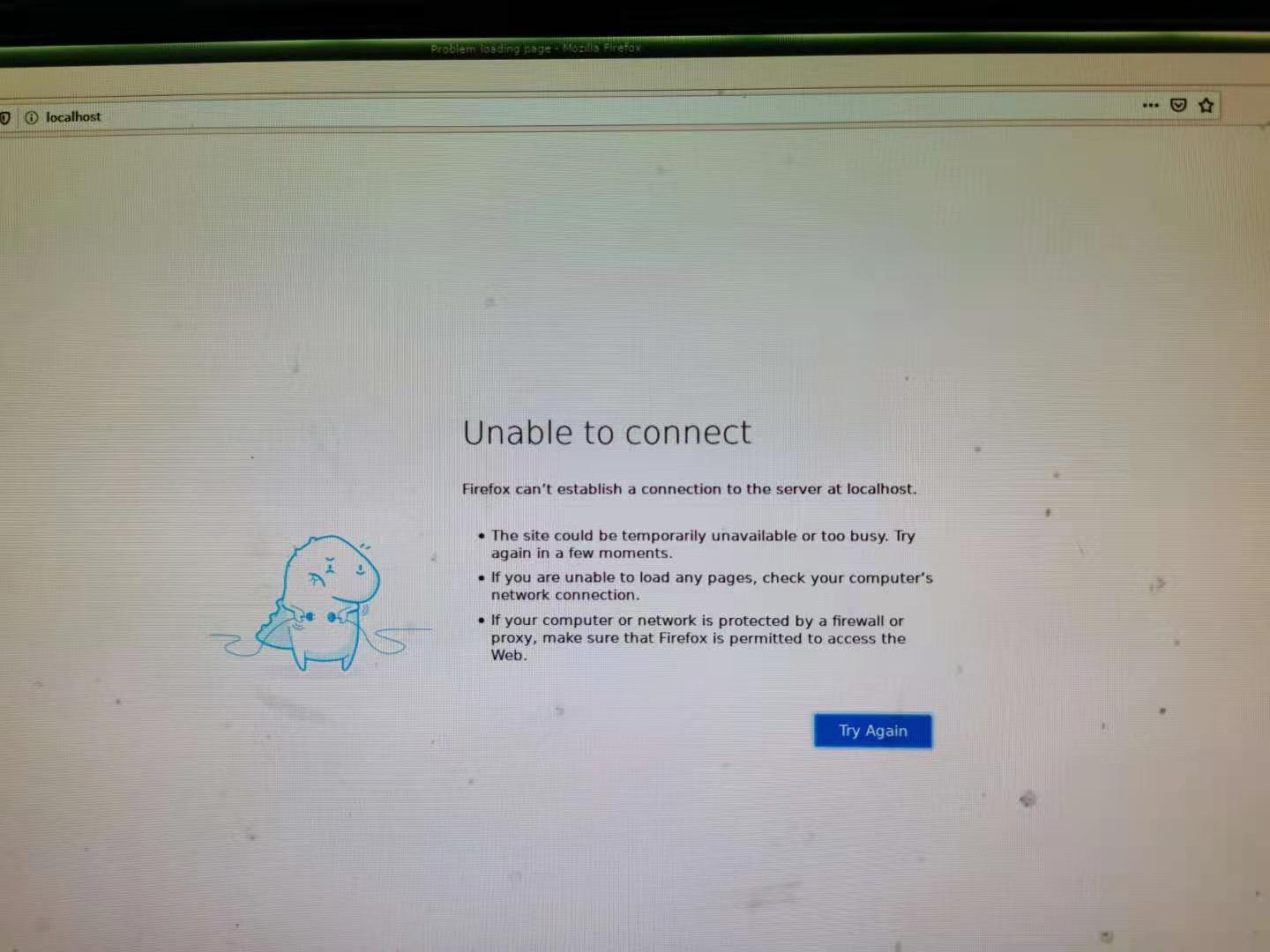

Pinesea Posted February 5, 2021 Author Share Posted February 5, 2021 I've tried 6.8.2, 6.8.3 and 6.9, all the same. Can't connnect to localhost, it's no way to open the tools and download diagnostics. When I try unraid with another coomputer, It's OK. I got an IP Address of 192.*.*.* Quote Link to comment
JonathanM Posted February 5, 2021 Share Posted February 5, 2021 Try changing BIOS settings for USB, like EHCI or XHCI, also if you are using legacy, try UEFI, or vice versa. Quote Link to comment
Frank1940 Posted February 5, 2021 Share Posted February 5, 2021 2 hours ago, Pinesea said: Can't connnect to localhost, it's no way to open the tools and download diagnostics. Connect a monitor and keyboard to the server. Log in as 'root' using root's password. (If you haven't set a password, it will be blank and you can just hit the enter key at the password prompt.) Type the following at the Command Line prompt: diagnostics This will write the Diagnostics file to the logs directory/folder on the flash drive. Shut the server down with the command--- poweroff --- before you pull the flash drive: upload the Diagnostics file in your next post. Quote Link to comment
tjb_altf4 Posted February 5, 2021 Share Posted February 5, 2021 2 hours ago, Pinesea said: I've tried 6.8.2, 6.8.3 and 6.9, all the same. Can't connnect to localhost, it's no way to open the tools and download diagnostics. When I try unraid with another coomputer, It's OK. I got an IP Address of 192.*.*.* Sounds like the igb driver issue that was present on those post 6.8.0 releases, although I thought it was resolved in 6.8.3 & 6.9 Quote Link to comment
Pinesea Posted February 5, 2021 Author Share Posted February 5, 2021 Hi guys, thanks for your reply. I have tried the command of diagnostics, and got a zip file. Hower, I don't know how to copy it to windows system. There is no such zip file in my flash disk or HDD. Quote Link to comment
Frank1940 Posted February 5, 2021 Share Posted February 5, 2021 12 hours ago, Frank1940 said: This will write the Diagnostics file to the logs directory/folder on the flash drive. Shut the server down with the command--- poweroff --- before you pull the flash drive: upload the Diagnostics file in your next post. Then plug the flash drive into a PC (the Diagnostics file will be in the logs folder/directory of the flash drive) and copy/upload the file to the forum as an attachment to your next post. Quote Link to comment
JonathanM Posted February 5, 2021 Share Posted February 5, 2021 Pretty sure the issue is that the USB isn't mounting properly, so no way to save diags to it. Quote Link to comment

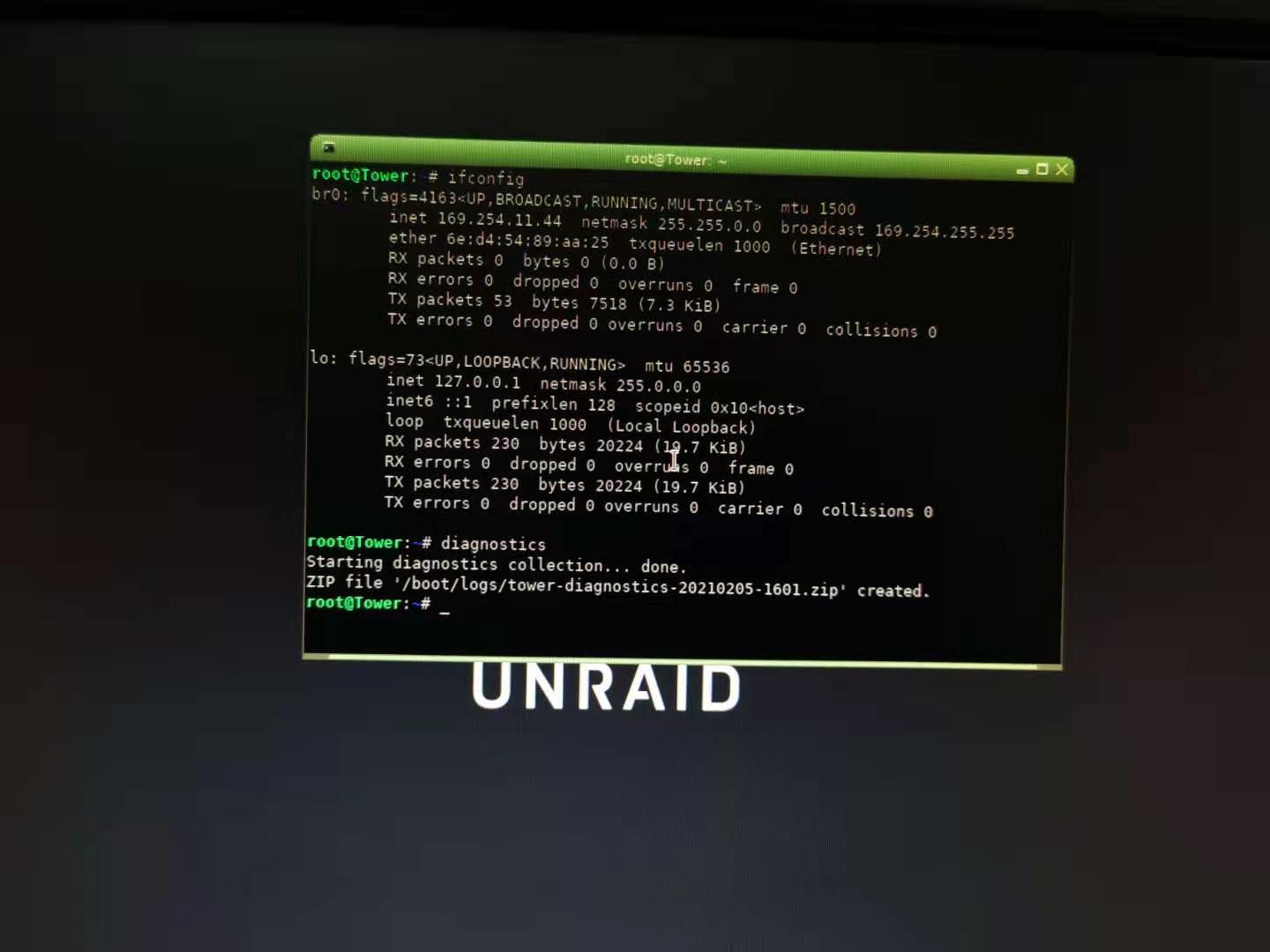

Frank1940 Posted February 5, 2021 Share Posted February 5, 2021 5 minutes ago, jonathanm said: Pretty sure the issue is that the USB isn't mounting properly, so no way to save diags to it. The screen capture indicated that the file was created... Quote Link to comment
itimpi Posted February 5, 2021 Share Posted February 5, 2021 46 minutes ago, Frank1940 said: The screen capture indicated that the file was created... Yes - but if the USB is not mounted then /boot is only in RAM. Quote Link to comment
Pinesea Posted February 6, 2021 Author Share Posted February 6, 2021 8 hours ago, Frank1940 said: Then plug the flash drive into a PC (the Diagnostics file will be in the logs folder/directory of the flash drive) and copy/upload the file to the forum as an attachment to your next post. There is no "logs" folder/directory in my flash drive. No any new file in it. Quote Link to comment

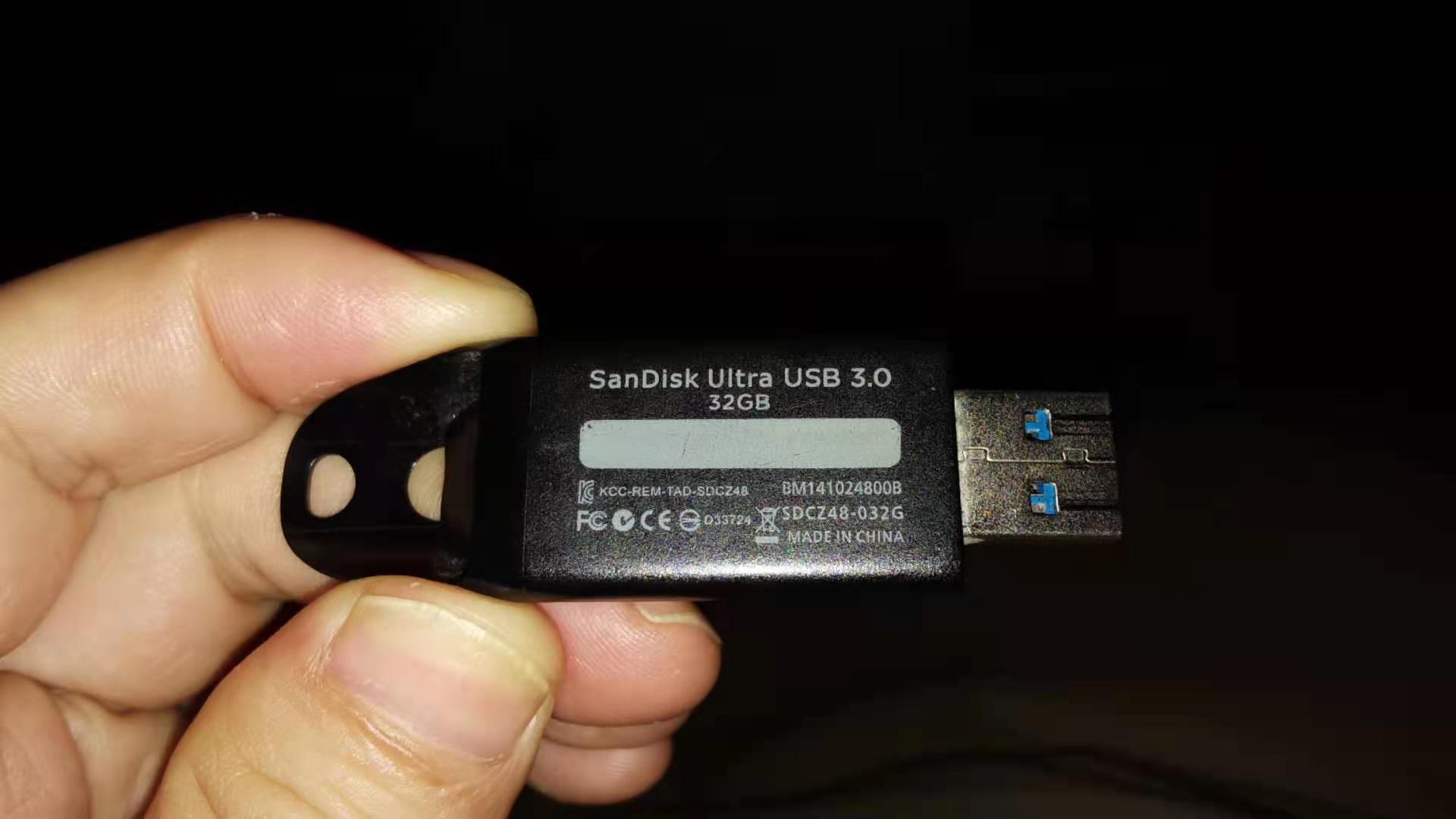

Pinesea Posted February 6, 2021 Author Share Posted February 6, 2021 (edited) 8 hours ago, jonathanm said: Pretty sure the issue is that the USB isn't mounting properly, so no way to save diags to it. I can boot with that flash drive. Doesn't that mean the flash disk is mounting properly? Here is my flash disk: Edited February 6, 2021 by Pinesea edit Quote Link to comment

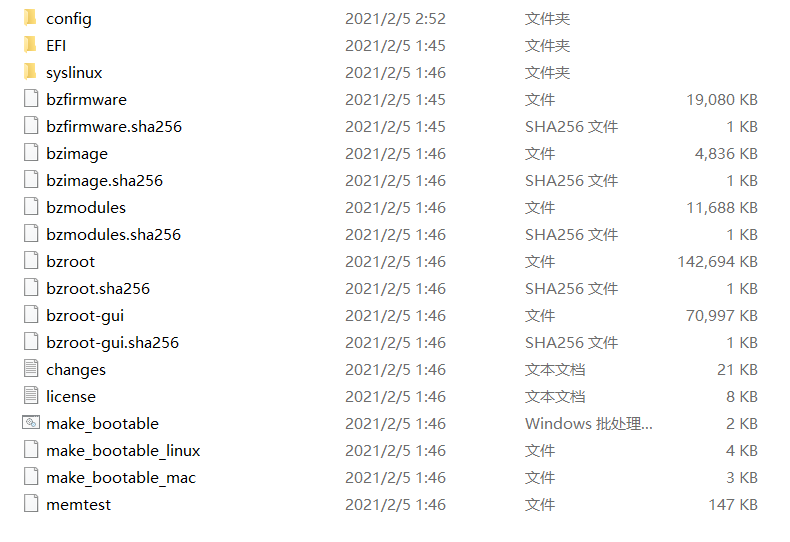

Pinesea Posted February 6, 2021 Author Share Posted February 6, 2021 Here is the contents in my flash disk after booting with it and created the diagnostics file. Quote Link to comment
JonathanM Posted February 6, 2021 Share Posted February 6, 2021 4 minutes ago, Pinesea said: I can boot with that flash drive. Doesn't that mean the flash disk is mounting properly? No. Booting is the first phase, which copies the base part of Unraid into RAM at /, then the program tries to mount the drive to /boot and read the rest of the configuration. The code that finds and mounts the drive sometimes has a hard time with USB 3.0 on some boards, which is why I suggested playing around with the BIOS options for USB configuration. Quote Link to comment
JonathanM Posted February 6, 2021 Share Posted February 6, 2021 That screenshot you showed is what should show up in /boot when Unraid is loaded. I suspect when you navigate to /boot, you won't see any of those files, meaning the flash drive hasn't successfully been attached to that folder. Quote Link to comment
JonathanM Posted February 6, 2021 Share Posted February 6, 2021 Which motherboard? Quote Link to comment

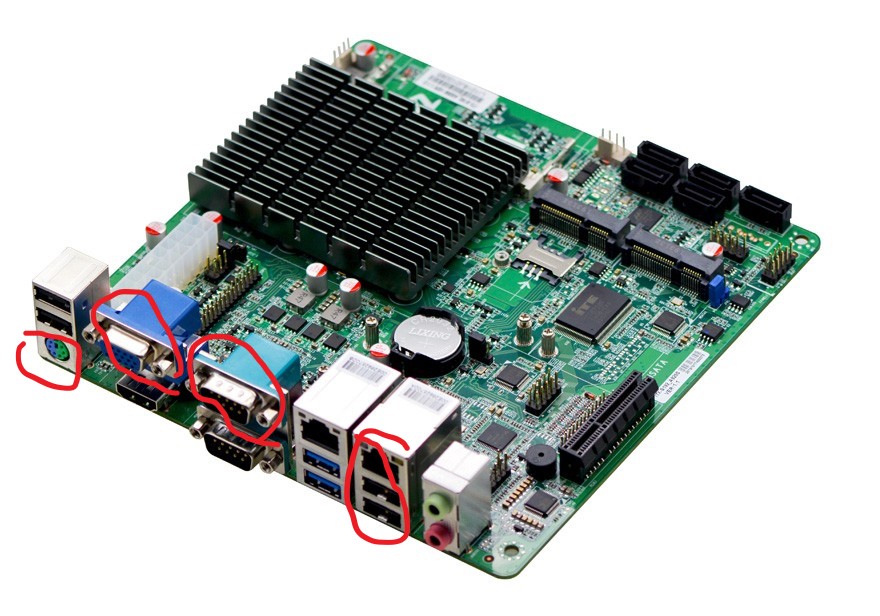

Pinesea Posted February 6, 2021 Author Share Posted February 6, 2021 1 hour ago, jonathanm said: Which motherboard? Yanyu ITX-K916 motherboard. It looks like the following one: Hower, my motherboard has fewer interfaces than this one. The specification is: ♦ Intel® Celeron J1900/2.00GHz ♦ 1 DDR3LSODIMM RAM Slot ♦ 1 VGA,1*HDMI Interface ♦ 1 Intel I211AT Gigabit Ethernet Card ♦ 1 MINIPCIE ♦ 3 USB2.0, 1 USB3.0 Quote Link to comment
JonathanM Posted February 6, 2021 Share Posted February 6, 2021 Make sure your boot USB is in a 2.0 port with a black insert. Quote Link to comment
Pinesea Posted February 6, 2021 Author Share Posted February 6, 2021 4 hours ago, jonathanm said: Make sure your boot USB is in a 2.0 port with a black insert. It's OK now. I changed a flash disk. Although it's still Sandisk, but is USB 2.0. Now the IP address is correct. Thank you! Quote Link to comment
