[Plugin] Intel-GVT-g

[ich777]

2 minutes ago, 十一一 said:

can you help me ? thank you!!!

tower-diagnostics-20221208-0923.zip 87.44 kB · 0 downloads

GVT-g is only available on Intel Core or Xeon CPUs like in the first post mentioned.

[alecruise]

Guys.. take a look at these findings: https://williamlam.com/2022/11/updated-findings-for-passthrough-of-intel-nuc-integrated-graphics-igpu.html



It seems that with recently released Intel drivers it is now possibile to pass Intel 11th gen iGPUs too!

[ich777]

10 minutes ago, alecruise said:

Guys.. take a look at these findings: https://williamlam.com/2022/11/updated-findings-for-passthrough-of-intel-nuc-integrated-graphics-igpu.html



It seems that with recently released Intel drivers it is now possibile to pass Intel 11th gen iGPUs too!

But this has nothing to do with GVT-g nor with this plugin…



Intel 11th Gen+ is only capable of SRIOV, also mentioned a few pages back a few times and also in the recommended post on top of this thread.

[mrfly]

i cant use it, i am at 6th gen but is says not support it. can u have a look?

diagnostics-20221217-2003.zip

[ich777]

1 hour ago, mrfly said:

i cant use it, i am at 6th gen but is says not support it. can u have a look?

Your iGPU isn't active, that's probably caused because you also have a Nvidia GPU in your system.



Please make sure that you've set it to the primary display adapter, if that also doesn't help, please connect a HDMI dummy plug to the iGPU <- I also have to do the same thing when I have a dGPU installed in my system, otherwise the iGPU won't be initialized even if I have set it to the primary display adapter.

[mrfly]

48 minutes ago, ich777 said:

Your iGPU isn't active, that's probably caused because you also have a Nvidia GPU in your system.



Please make sure that you've set it to the primary display adapter, if that also doesn't help, please connect a HDMI dummy plug to the iGPU <- I also have to do the same thing when I have a dGPU installed in my system, otherwise the iGPU won't be initialized even if I have set it to the primary display adapter.

Thank you, thats the trick somehow the bios settings was not set right but i did change it and its works now like a charm👌

[navvy]

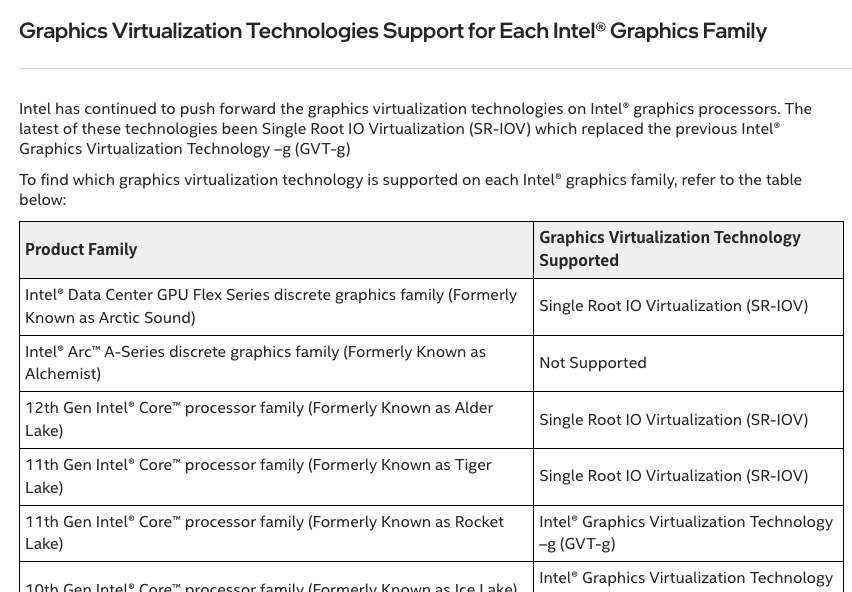

Any chance of getting this to work on the i5 11500? According to Intel it supports GVT-g not SR-IOV.

[alturismo]

4 hours ago, navvy said:

Any chance of getting this to work on the i5 11500? According to Intel it supports GVT-g not SR-IOV.



did you install and try it ?

[ich777]

7 hours ago, navvy said:

Any chance of getting this to work on the i5 11500? According to Intel it supports GVT-g not SR-IOV.

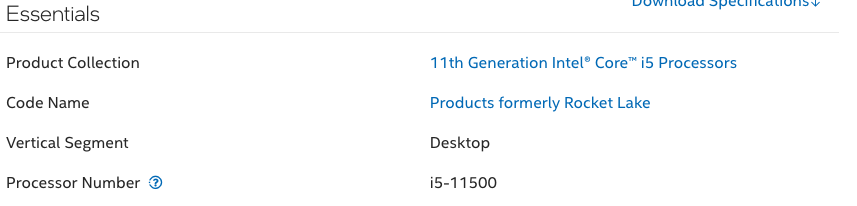

I'm not entirely sure if that information is actually true because ARK Intel says that you have Intel® UHD Graphics 750 and this is usually Intel Xe which only supports SR-IOV



GVT-g usually depends on the iGPU and IIRC only supported up to 9th iGPU gen. (6xx series iGPUs) <- yes iGPUs in the CPUs have different generations, pretty confusing...

[navvy]

Yes I’ve installed it and that was after spending time trying to get sriov operational. I’ve had sriov working on my Intel 10g nic and can’t get this igpu working the same way.  After researching and finding out it was Rocket Lake, figured it might just be the plug-in assumes all 11th gen are the same. Sriov doesn’t show as a supported function in lspci.


Thanks for the help.

[ich777]

55 minutes ago, navvy said:

After researching and finding out it was Rocket Lake, figured it might just be the plug-in assumes all 11th gen are the same. Sriov doesn’t show as a supported function in lspci.

The driver itself actually probes if the iGPU is capable of GVT-g, please remember this thread has nothing to do with SR-IOV...



If it doesn't show up on the plugin page or better speaking tells you that GVT-g is not supported then you are out of luck for GVT-g.

[navvy]

4 minutes ago, ich777 said:

If it doesn't show up on the plugin page or better speaking tells you that GVT-g is not supported then you are out of luck for GVT-g.

Thanks for the help. I thought as much but figured I’d ask. I appreciate it.

[Fullsteel]

This works pretty well, but I am running into a problem where the VM becomes unresponsive and cannot be forcefully destroyed. It also makes it near impossible for the VM and Dashboard to load when trying to navigate unraid since it attempts to get its status. I have to force restart the machine every couple days as a result.



I have other VMs running perfectly fine.

[alturismo]

44 minutes ago, Fullsteel said:

I have other VMs running perfectly fine.

in terms you are using RDP, may look some comments about this behaviour in this Thread.



also related to available vram for the vgpu. so may some more Infos woul dbe helpful, also in terms you can access the syslog ...

[insomnia417]

unraid-diagnostics-20230302-1702.zip

i use i9 9900ES (qqz5) , unraid 6.11.5
An error will be reported in the log every time the raid is restarted, "unraid kernel: CPU: 5 PID: 4677 Comm: modprobe Tainted: G U W 5.19.17-Unraid #2", This error occurred after 6.10.3

Although gvt-g can be used normally, as long as the windows virtual machine runs for a while, it will make another error, the entire vm option will not be turned on, and windows will also crash (I use the method of connecting the physical display with displaylink)

[ich777]

1 hour ago, insomnia417 said:

Although gvt-g can be used normally, as long as the windows virtual machine runs for a while, it will make another error, the entire vm option will not be turned on, and windows will also crash (I use the method of connecting the physical display with displaylink)

Are you sure that nothing is using up the assigned VRAM for GVT-g in the VM?

Usually crashes like you describe it if the assigned VRAM is exceeded.



1 hour ago, insomnia417 said:

An error will be reported in the log every time the raid is restarted, "unraid kernel: CPU: 5 PID: 4677 Comm: modprobe Tainted: G U W 5.19.17-Unraid #2", This error occurred after 6.10.3

Do you have a physical monitor connected to the iGPU, if not connect at least something like a HDMI Dummy Plug to the on board HDMI port to avoid this issue.

[insomnia417]

28 minutes ago, ich777 said:

Are you sure that nothing is using up the assigned VRAM for GVT-g in the VM?

Usually crashes like you describe it if the assigned VRAM is exceeded.



Do you have a physical monitor connected to the iGPU, if not connect at least something like a HDMI Dummy Plug to the on board HDMI port to avoid this issue.

maybe it is used up the VRAM , So is there any other way to keep the VM from crashing after running out of VRAM, or how to add more VRAM (my bios is max 2G VRAM now) or any other way?
OR the method of using displaylink to connect the physical display output itself is defective

[ich777]

40 minutes ago, insomnia417 said:

So is there any other way to keep the VM from crashing after running out of VRAM

Sadly enough no, this is a well known issue...



40 minutes ago, insomnia417 said:

or how to add more VRAM (my bios is max 2G VRAM now) or any other way?

The answer is also no...



40 minutes ago, insomnia417 said:

OR the method of using displaylink to connect the physical display output itself is defective

I don't think so, make at least sure that you use a HDMI Dummy Plug on the physical iGPU to prevent the messages in your syslog and to improve stability.

[Seduron]

Helllo.
im using the Handbrake Docker with my  I7 10900K  and his iGPU.
after the installation of this Plugin, Handbrake is no longer able to use Quicksync.

i mean, the file  is transcoding, but the finished file has only a black Screen.

[ich777]

44 minutes ago, Seduron said:

i mean, the file  is transcoding, but the finished file has only a black Screen.

Please post your Diagnostics, without them I can't know what's going on.

[insomnia417]

Hi, I'm here again. I recently upgraded my hardware to W1290P+W480M.

When using gvt-g, I added i915-GVTG_ V5_ 1. The VM reported an error "device not found: mediated device '1b23771a-fa20-4d8e-bd2e-7eaaf7d5ce3a' not found",

BUT,adding GVTG_ V5_ 2/4/8 can work normally.

This is my log. Please help me take a lookunraid-diagnostics-20230327-1506.zip

ps:The BIOS has already changed the RAM to 2048m

Edited March 27, 2023 by insomnia417

[ich777]

1 hour ago, insomnia417 said:

I added i915-GVTG_ V5_ 1

This mode is notorious to not work even if you change all the settings in the BIOS to the highest setting.



1 hour ago, insomnia417 said:

The VM reported an error "device not found: mediated device '1b23771a-fa20-4d8e-bd2e-7eaaf7d5ce3a' not found",

BUT,adding GVTG_ V5_ 2/4/8 can work normally.

This indicates that the above mentioned mode is not working and you can only use the next mode below.

[Seduron]

hellknight-diagnostics-20230327-1819.zip

On 3/26/2023 at 12:47 PM, ich777 said:

Please post your Diagnostics, without them I can't know what's going on.



[ich777]

15 hours ago, Seduron said:

hellknight-diagnostics-20230327-1819.zip 128.71 kB · 0 downloads



It seems like that the iGPU and the Nvidia GPU changed the order:

lrwxrwxrwx 1 root root 0 Mar 27 18:18 /sys/class/drm/card0/device/driver -> ../../../../bus/pci/drivers/nvidia
lrwxrwxrwx 1 root root 0 Mar 27 18:16 /sys/class/drm/card1/device/driver -> ../../../bus/pci/drivers/i915
lrwxrwxrwx 1 root root 0 Mar 27 18:18 /sys/class/drm/renderD128/device/driver -> ../../../../bus/pci/drivers/nvidia
lrwxrwxrwx 1 root root 0 Mar 27 18:16 /sys/class/drm/renderD129/device/driver -> ../../../bus/pci/drivers/i915



How did you specify the device in the Handbrake Docker container?

[Seduron]

The  "Intel GPU-TOP" Plugin is installed.
i'v added the iGPU  in Handbrake as a "Device"  like this   "/dev/dri"
this added Device works  perfect in Handbrake without the gvt-g Plugin.

I think i  throw the Nvidia GPU out of the Server and try it again  this Week.



Edited March 28, 2023 by Seduron
