smartctl --all /dev/sdf



Please also post the output for /dev/sdb (the RAID0 configuration)



Share this post


Link to post

You've not yet been able to find a fix for this one?:



I experience a problem which I haven't seen reported by anyone else, so I wonder whether I'm the only person affected.



On the 'Layout' tab, there's a pop-up (do you call it a tooltip?), which provides detailed info about the drive in the tray over which the mouse pointer is positioned.



My problem is that this pop-up is only visible for the right-most trays.  As the mouse pointer moves to the trays further left, the pop-up moves further right - this results in it moving out of the current window and becoming invisible (unless you have a very wide display window/screen).



I'm using FF38.0.5 on ArchLinux.  My trays are configured in a 3 row/5 column layout in vertical orientation.



As an aside, I do wonder whether this plugin ought to be accessed from the 'Tools' page, rather than the 'Settings' page.

I still cannot get http_user_agent to work

Share this post


Link to post

All drives connected to my Areca ARC-1231ML do not show up as available for setup. Once you have them, another issue will arise... my parity volume occupies 2 slots :) Its a RAID0 of 2x4TB HGST.



The ARECA returns different fields than regular disks do - I hope it is fixed.



Please try the attached file and report back the results - screenshot of the DATA tab on the serverlayout plugin.

I have no way of testing it myself.



Rename the file extension to ".txt" and place the file in /usr/local/emhttp/plugins/serverlayout/php/



If it works I will update the plugin.

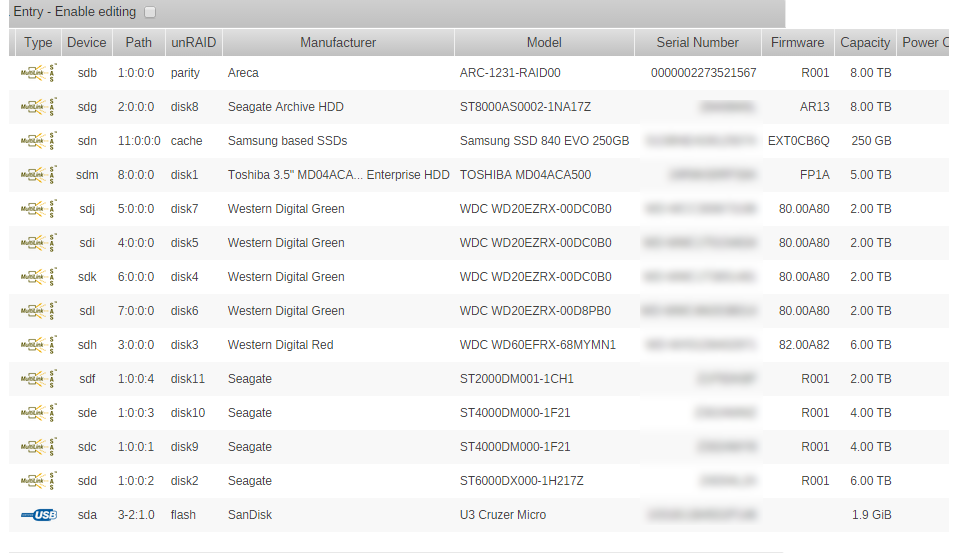

renamed to .php. Looks like it worked?



smartctl --all /dev/sdb




smartctl 6.2 2013-07-26 r3841 [x86_64-linux-4.1.7-unRAID] (local build)
Copyright (C) 2002-13, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Vendor:               Areca
Product:              ARC-1231-RAID00
Revision:             R001
User Capacity:        8,001,573,355,520 bytes [8.00 TB]
Logical block size:   512 bytes
Rotation Rate:        10000 rpm
Logical Unit id:      0x001b4d2306294800
Serial number:        0000002273521567
Device type:          disk
Transport protocol:   Fibre channel (FCP-2)
Local Time is:        Tue Sep 22 10:15:52 2015 PDT
SMART support is:     Available - device has SMART capability.
SMART support is:     Enabled
Temperature Warning:  Disabled or Not Supported

=== START OF READ SMART DATA SECTION ===
SMART Health Status: OK

Current Drive Temperature:     30 C
Drive Trip Temperature:        25 C

Manufactured in week 30 of year 2002
Specified cycle count over device lifetime:  4278190080
Accumulated start-stop cycles:  256
Elements in grown defect list: 0

Error counter log:
           Errors Corrected by           Total   Correction     Gigabytes    Tot                                      al
               ECC          rereads/    errors   algorithm      processed    unc                                      orrected
           fast | delayed   rewrites  corrected  invocations   [10^9 bytes]  err                                      ors
read:          0        0         0         0          0          0.000                                                 0
write:         0        0         0         0          0          0.000                                                 0

Non-medium error count:        0

Device does not support Self Test logging


Share this post


Link to post

Howdy, and thank you for the all of the work you have put into this.



I don't know if you are interested in adding this, especially since it's a changeable variable per session and because it's probably only useful for troubleshooting.  But you can find the ata numbers for some of the drives with the lsscsi -vgl command (they are in the middle of the path displayed).  There are problems, they are only available for standard disk controllers (like onboard ports and controllers that use AHCI), not drives on SAS or other non-standard controllers.  And technically, they are the channel ata numbers, not the full ata device symbols, so there may be multiple drives with the same ata number if it's on an IDE channel, or port multiplier, or other multi drive channel (with SCSI ID's like sd 8:0:0:0 and sd 8:0:1:0).

Share this post


Link to post

The update has fixed the layout issues for me..



Nice work, thanks very much..

Share this post


Link to post

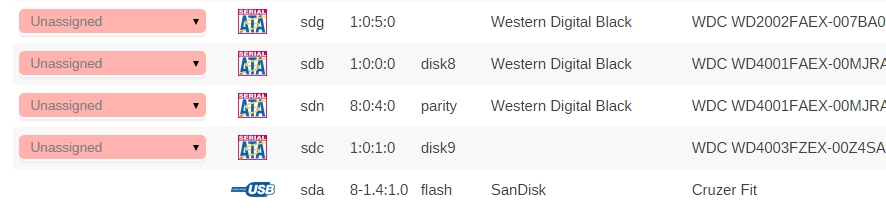

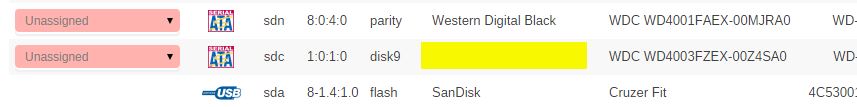

Yeah I don't know why it shows up like that in the server layout, but everywhere else it's fine.



Please post output of "ls -las /dev/disk/by-id".



I think that because you are using a U3 USB stick it is showing up as both a USB device and a CD/DVD ROM device with the same serial number.



total 0
0 drwxr-xr-x 2 root root 580 Sep 21 16:24 ./
0 drwxr-xr-x 7 root root 140 Sep 21 16:24 ../
0 lrwxrwxrwx 1 root root   9 Sep 21 16:24 ata-WDC_WD15EADS-00P8B0_WD-WMAVU0001560 -> ../../sdc
0 lrwxrwxrwx 1 root root  10 Sep 21 16:24 ata-WDC_WD15EADS-00P8B0_WD-WMAVU0001560-part1 -> ../../sdc1
0 lrwxrwxrwx 1 root root   9 Sep 21 16:24 ata-WDC_WD15EADS-00S2B0_WD-WCAVY1422375 -> ../../sdd
0 lrwxrwxrwx 1 root root  10 Sep 21 16:24 ata-WDC_WD15EADS-00S2B0_WD-WCAVY1422375-part1 -> ../../sdd1
0 lrwxrwxrwx 1 root root   9 Sep 21 16:24 ata-WDC_WD20EARS-00MVWB0_WD-WCAZA5935469 -> ../../sde
0 lrwxrwxrwx 1 root root  10 Sep 21 16:24 ata-WDC_WD20EARS-00MVWB0_WD-WCAZA5935469-part1 -> ../../sde1
0 lrwxrwxrwx 1 root root   9 Sep 21 16:24 ata-WDC_WD20EARS-00MVWB0_WD-WMAZA0194825 -> ../../sdb
0 lrwxrwxrwx 1 root root  10 Sep 21 16:24 ata-WDC_WD20EARS-00MVWB0_WD-WMAZA0194825-part1 -> ../../sdb1
0 lrwxrwxrwx 1 root root   9 Sep 21 16:24 ata-WDC_WD20EARS-00MVWB0_WD-WMAZA0803880 -> ../../sda
0 lrwxrwxrwx 1 root root  10 Sep 21 16:24 ata-WDC_WD20EARS-00MVWB0_WD-WMAZA0803880-part1 -> ../../sda1
0 lrwxrwxrwx 1 root root   9 Sep 21 16:24 ata-WDC_WD40EFRX-68WT0N0_WD-WCC4E1EFAEP0 -> ../../sdf
0 lrwxrwxrwx 1 root root  10 Sep 21 16:24 ata-WDC_WD40EFRX-68WT0N0_WD-WCC4E1EFAEP0-part1 -> ../../sdf1
0 lrwxrwxrwx 1 root root   9 Sep 21 16:24 usb-SanDisk_U3_Cruzer_Micro_000018711572C38B-0:0 -> ../../sdg
0 lrwxrwxrwx 1 root root  10 Sep 21 16:24 usb-SanDisk_U3_Cruzer_Micro_000018711572C38B-0:0-part1 -> ../../sdg1
0 lrwxrwxrwx 1 root root   9 Sep 21 16:24 usb-SanDisk_U3_Cruzer_Micro_000018711572C38B-0:1 -> ../../sr0
0 lrwxrwxrwx 1 root root   9 Sep 21 16:24 wwn-0x50014ee0016e5c7d -> ../../sdc
0 lrwxrwxrwx 1 root root  10 Sep 21 16:24 wwn-0x50014ee0016e5c7d-part1 -> ../../sdc1
0 lrwxrwxrwx 1 root root   9 Sep 21 16:24 wwn-0x50014ee203b4f769 -> ../../sdd
0 lrwxrwxrwx 1 root root  10 Sep 21 16:24 wwn-0x50014ee203b4f769-part1 -> ../../sdd1
0 lrwxrwxrwx 1 root root   9 Sep 21 16:24 wwn-0x50014ee205b0e206 -> ../../sde
0 lrwxrwxrwx 1 root root  10 Sep 21 16:24 wwn-0x50014ee205b0e206-part1 -> ../../sde1
0 lrwxrwxrwx 1 root root   9 Sep 21 16:24 wwn-0x50014ee20c3dc367 -> ../../sdf
0 lrwxrwxrwx 1 root root  10 Sep 21 16:24 wwn-0x50014ee20c3dc367-part1 -> ../../sdf1
0 lrwxrwxrwx 1 root root   9 Sep 21 16:24 wwn-0x50014ee6006c3ced -> ../../sda
0 lrwxrwxrwx 1 root root  10 Sep 21 16:24 wwn-0x50014ee6006c3ced-part1 -> ../../sda1
0 lrwxrwxrwx 1 root root   9 Sep 21 16:24 wwn-0x50014ee6aae38270 -> ../../sdb
0 lrwxrwxrwx 1 root root  10 Sep 21 16:24 wwn-0x50014ee6aae38270-part1 -> ../../sdb1

Share this post


Link to post

Hey Guys,

I seem to have a similar problem to those early on that experienced drives not showing up.  In my case I believe the issue relates to my use of SAS drives.  The discovery string "ata-" works fine for my cache SSD, but I believe i need an additional "if else" statement to identify SCSI (i.e. "scsi-")



Any chance adding that is a possibility?



Thanks!

Please test new version and post screenshot of Layout and DATA tab if possible.

First off, Big thanks for the plugin and especially for working to add a fix for this non-typical device type.  It is very much appreciated.



So... I now see one of the SAS devices on the "Data" page. Yaaaay!!!  But, not the other 7 that are currently installed.  Here is what I have done so far:

1 - updated Server Layout plugin (SAS drive sde shows up on data page)

2 - rebooted & clicked "update Smartmontools Database" (sde is still present but no other SAS drives)

2 - updated unRaid to 6.1.3 & reboot & clicked "update Smartmontools Database" (sde is still present but no other SAS drives)



I should also note, and this is not related to this plugin, but I think it may be relevant.  When my array is started and the disks show 'green' on the Main page, I never see drive temps.  Also, when I select a disk from the main page it always says the SAS drives are "Unavailable - disk must be spun up".  When I select spin-up the page refreshes but nothing changes.  I think support of SAS drives in unRaid as a whole is minimal.

- EDIT -

I forgot to mention that even when drives show active all 'smart' option buttons are greyed out with the exception of the afore mentioned 'spin-up' and the 'download'.



Share this post


Link to post



Yeah I don't know why it shows up like that in the server layout, but everywhere else it's fine.



Please post output of "ls -las /dev/disk/by-id".



I think that because you are using a U3 USB stick it is showing up as both a USB device and a CD/DVD ROM device with the same serial number.



total 0
0 drwxr-xr-x 2 root root 580 Sep 21 16:24 ./
0 drwxr-xr-x 7 root root 140 Sep 21 16:24 ../
0 lrwxrwxrwx 1 root root   9 Sep 21 16:24 ata-WDC_WD15EADS-00P8B0_WD-WMAVU0001560 -> ../../sdc
0 lrwxrwxrwx 1 root root  10 Sep 21 16:24 ata-WDC_WD15EADS-00P8B0_WD-WMAVU0001560-part1 -> ../../sdc1
0 lrwxrwxrwx 1 root root   9 Sep 21 16:24 ata-WDC_WD15EADS-00S2B0_WD-WCAVY1422375 -> ../../sdd
0 lrwxrwxrwx 1 root root  10 Sep 21 16:24 ata-WDC_WD15EADS-00S2B0_WD-WCAVY1422375-part1 -> ../../sdd1
0 lrwxrwxrwx 1 root root   9 Sep 21 16:24 ata-WDC_WD20EARS-00MVWB0_WD-WCAZA5935469 -> ../../sde
0 lrwxrwxrwx 1 root root  10 Sep 21 16:24 ata-WDC_WD20EARS-00MVWB0_WD-WCAZA5935469-part1 -> ../../sde1
0 lrwxrwxrwx 1 root root   9 Sep 21 16:24 ata-WDC_WD20EARS-00MVWB0_WD-WMAZA0194825 -> ../../sdb
0 lrwxrwxrwx 1 root root  10 Sep 21 16:24 ata-WDC_WD20EARS-00MVWB0_WD-WMAZA0194825-part1 -> ../../sdb1
0 lrwxrwxrwx 1 root root   9 Sep 21 16:24 ata-WDC_WD20EARS-00MVWB0_WD-WMAZA0803880 -> ../../sda
0 lrwxrwxrwx 1 root root  10 Sep 21 16:24 ata-WDC_WD20EARS-00MVWB0_WD-WMAZA0803880-part1 -> ../../sda1
0 lrwxrwxrwx 1 root root   9 Sep 21 16:24 ata-WDC_WD40EFRX-68WT0N0_WD-WCC4E1EFAEP0 -> ../../sdf
0 lrwxrwxrwx 1 root root  10 Sep 21 16:24 ata-WDC_WD40EFRX-68WT0N0_WD-WCC4E1EFAEP0-part1 -> ../../sdf1
0 lrwxrwxrwx 1 root root   9 Sep 21 16:24 usb-SanDisk_U3_Cruzer_Micro_000018711572C38B-0:0 -> ../../sdg
0 lrwxrwxrwx 1 root root  10 Sep 21 16:24 usb-SanDisk_U3_Cruzer_Micro_000018711572C38B-0:0-part1 -> ../../sdg1
0 lrwxrwxrwx 1 root root   9 Sep 21 16:24 usb-SanDisk_U3_Cruzer_Micro_000018711572C38B-0:1 -> ../../sr0
0 lrwxrwxrwx 1 root root   9 Sep 21 16:24 wwn-0x50014ee0016e5c7d -> ../../sdc
0 lrwxrwxrwx 1 root root  10 Sep 21 16:24 wwn-0x50014ee0016e5c7d-part1 -> ../../sdc1
0 lrwxrwxrwx 1 root root   9 Sep 21 16:24 wwn-0x50014ee203b4f769 -> ../../sdd
0 lrwxrwxrwx 1 root root  10 Sep 21 16:24 wwn-0x50014ee203b4f769-part1 -> ../../sdd1
0 lrwxrwxrwx 1 root root   9 Sep 21 16:24 wwn-0x50014ee205b0e206 -> ../../sde
0 lrwxrwxrwx 1 root root  10 Sep 21 16:24 wwn-0x50014ee205b0e206-part1 -> ../../sde1
0 lrwxrwxrwx 1 root root   9 Sep 21 16:24 wwn-0x50014ee20c3dc367 -> ../../sdf
0 lrwxrwxrwx 1 root root  10 Sep 21 16:24 wwn-0x50014ee20c3dc367-part1 -> ../../sdf1
0 lrwxrwxrwx 1 root root   9 Sep 21 16:24 wwn-0x50014ee6006c3ced -> ../../sda
0 lrwxrwxrwx 1 root root  10 Sep 21 16:24 wwn-0x50014ee6006c3ced-part1 -> ../../sda1
0 lrwxrwxrwx 1 root root   9 Sep 21 16:24 wwn-0x50014ee6aae38270 -> ../../sdb
0 lrwxrwxrwx 1 root root  10 Sep 21 16:24 wwn-0x50014ee6aae38270-part1 -> ../../sdb1



Can you format your usb drive to remove the cdrom drivr partition?

Share this post


Link to post

Hey Guys,

I seem to have a similar problem to those early on that experienced drives not showing up.  In my case I believe the issue relates to my use of SAS drives.  The discovery string "ata-" works fine for my cache SSD, but I believe i need an additional "if else" statement to identify SCSI (i.e. "scsi-")



Any chance adding that is a possibility?



Thanks!

Please test new version and post screenshot of Layout and DATA tab if possible.

First off, Big thanks for the plugin and especially for working to add a fix for this non-typical device type.  It is very much appreciated.



So... I now see one of the SAS devices on the "Data" page. Yaaaay!!!  But, not the other 7 that are currently installed.  Here is what I have done so far:

1 - updated Server Layout plugin (SAS drive sde shows up on data page)

2 - rebooted & clicked "update Smartmontools Database" (sde is still present but no other SAS drives)

2 - updated unRaid to 6.1.3 & reboot & clicked "update Smartmontools Database" (sde is still present but no other SAS drives)



I should also note, and this is not related to this plugin, but I think it may be relevant.  When my array is started and the disks show 'green' on the Main page, I never see drive temps.  Also, when I select a disk from the main page it always says the SAS drives are "Unavailable - disk must be spun up".  When I select spin-up the page refreshes but nothing changes.  I think support of SAS drives in unRaid as a whole is minimal.

- EDIT -

I forgot to mention that even when drives show active all 'smart' option buttons are greyed out with the exception of the afore mentioned 'spin-up' and the 'download'.

Please post output of "ls -las /dev/disk/by-id".

and "lsscsi" and "lsscsi -t" and "smartctl --all /dev/sdx" of one of the drives connected to the SAS.



Are you using an Areca controller?

Share this post


Link to post

What does "Update Smartmontools Database" do?



Also..  very cool plugin!

Thanks!



Jim



Updates the drives database for smartctl

Share this post


Link to post

What does "Update Smartmontools Database" do?



Also..  very cool plugin!

Thanks!



Jim



Updates the drives database for smartctl







ok..  When would one need to press this button?

Share this post


Link to post

When you have a new model hdd that is not in your local database yet. Manuafcturer and model are not recognized.

Share this post


Link to post

When you have a new model hdd that is not in your local database yet. Manuafcturer and model are not recognized.



Thanks!  That explains it!

Share this post


Link to post

Can you format your usb drive to remove the cdrom drivr partition?



That did it.  No php errors anymore and I can save the layout properly. Thanks for the help.

Share this post


Link to post

Just wanted to say thanks, I love this plugin.





One feature request - some way to make the optical drive a separate breakout floating - sort of like the thumb drive?

Share this post


Link to post

Hey Guys,

I seem to have a similar problem to those early on that experienced drives not showing up.  In my case I believe the issue relates to my use of SAS drives.  The discovery string "ata-" works fine for my cache SSD, but I believe i need an additional "if else" statement to identify SCSI (i.e. "scsi-")



Any chance adding that is a possibility?



Thanks!

Please test new version and post screenshot of Layout and DATA tab if possible.

First off, Big thanks for the plugin and especially for working to add a fix for this non-typical device type.  It is very much appreciated.



So... I now see one of the SAS devices on the "Data" page. Yaaaay!!!  But, not the other 7 that are currently installed.  Here is what I have done so far:

1 - updated Server Layout plugin (SAS drive sde shows up on data page)

2 - rebooted & clicked "update Smartmontools Database" (sde is still present but no other SAS drives)

2 - updated unRaid to 6.1.3 & reboot & clicked "update Smartmontools Database" (sde is still present but no other SAS drives)



I should also note, and this is not related to this plugin, but I think it may be relevant.  When my array is started and the disks show 'green' on the Main page, I never see drive temps.  Also, when I select a disk from the main page it always says the SAS drives are "Unavailable - disk must be spun up".  When I select spin-up the page refreshes but nothing changes.  I think support of SAS drives in unRaid as a whole is minimal.

- EDIT -

I forgot to mention that even when drives show active all 'smart' option buttons are greyed out with the exception of the afore mentioned 'spin-up' and the 'download'.

Please post output of "ls -las /dev/disk/by-id".

and "lsscsi" and "lsscsi -t" and "smartctl --all /dev/sdx" of one of the drives connected to the SAS.



Are you using an Areca controller?





Starting with the last question first then I will get to the outputs of the requested commands.  The controller is a SuperMicro AOC-SAS2LP-MV8.  Not sure which firmware rev., but I will check when I have a chance.  I will also try adding a couple more SAS drives but connect them with a reverse cable directly to the MB SATA ports (been meaning to do that any way).



Now for the requested command outputs:

ls -las /dev/disk/by-id

total 0
0 drwxr-xr-x 2 root root 800 Sep 22 14:50 ./
0 drwxr-xr-x 6 root root 120 Sep 22 14:50 ../
0 lrwxrwxrwx 1 root root   9 Sep 22 14:50 ata-OCZ-VERTEX2_OCZ-7139ICMP6O4OG353 -> ../../sdb
0 lrwxrwxrwx 1 root root  10 Sep 22 14:50 ata-OCZ-VERTEX2_OCZ-7139ICMP6O4OG353-part1 -> ../../sdb1
0 lrwxrwxrwx 1 root root   9 Sep 22 14:50 scsi-35000c50010176e8f -> ../../sdg
0 lrwxrwxrwx 1 root root  10 Sep 22 14:50 scsi-35000c50010176e8f-part1 -> ../../sdg1
0 lrwxrwxrwx 1 root root   9 Sep 22 14:50 scsi-35000c5001019aadb -> ../../sdi
0 lrwxrwxrwx 1 root root  10 Sep 22 14:50 scsi-35000c5001019aadb-part1 -> ../../sdi1
0 lrwxrwxrwx 1 root root   9 Sep 22 14:50 scsi-35000c500101d1def -> ../../sdd
0 lrwxrwxrwx 1 root root  10 Sep 22 14:50 scsi-35000c500101d1def-part1 -> ../../sdd1
0 lrwxrwxrwx 1 root root   9 Sep 22 14:50 scsi-35000c50010202287 -> ../../sdc
0 lrwxrwxrwx 1 root root  10 Sep 22 14:50 scsi-35000c50010202287-part1 -> ../../sdc1
0 lrwxrwxrwx 1 root root   9 Sep 22 14:50 scsi-35000c5001020228f -> ../../sdh
0 lrwxrwxrwx 1 root root  10 Sep 22 14:50 scsi-35000c5001020228f-part1 -> ../../sdh1
0 lrwxrwxrwx 1 root root   9 Sep 22 14:50 scsi-35000c500102089a7 -> ../../sdf
0 lrwxrwxrwx 1 root root  10 Sep 22 14:50 scsi-35000c500102089a7-part1 -> ../../sdf1
0 lrwxrwxrwx 1 root root   9 Sep 22 14:50 scsi-35000c5001020c6ff -> ../../sdj
0 lrwxrwxrwx 1 root root  10 Sep 22 14:50 scsi-35000c5001020c6ff-part1 -> ../../sdj1
0 lrwxrwxrwx 1 root root   9 Sep 22 14:50 scsi-35000c50020e5c55b -> ../../sde
0 lrwxrwxrwx 1 root root  10 Sep 22 14:50 scsi-35000c50020e5c55b-part1 -> ../../sde1
0 lrwxrwxrwx 1 root root   9 Sep 22 21:42 usb-SanDisk_Cruzer_Fit_4C532000040713109330-0:0 -> ../../sda
0 lrwxrwxrwx 1 root root  10 Sep 22 14:50 usb-SanDisk_Cruzer_Fit_4C532000040713109330-0:0-part1 -> ../../sda1
0 lrwxrwxrwx 1 root root   9 Sep 22 14:50 wwn-0x5000c50010176e8f -> ../../sdg
0 lrwxrwxrwx 1 root root  10 Sep 22 14:50 wwn-0x5000c50010176e8f-part1 -> ../../sdg1
0 lrwxrwxrwx 1 root root   9 Sep 22 14:50 wwn-0x5000c5001019aadb -> ../../sdi
0 lrwxrwxrwx 1 root root  10 Sep 22 14:50 wwn-0x5000c5001019aadb-part1 -> ../../sdi1
0 lrwxrwxrwx 1 root root   9 Sep 22 14:50 wwn-0x5000c500101d1def -> ../../sdd
0 lrwxrwxrwx 1 root root  10 Sep 22 14:50 wwn-0x5000c500101d1def-part1 -> ../../sdd1
0 lrwxrwxrwx 1 root root   9 Sep 22 14:50 wwn-0x5000c50010202287 -> ../../sdc
0 lrwxrwxrwx 1 root root  10 Sep 22 14:50 wwn-0x5000c50010202287-part1 -> ../../sdc1
0 lrwxrwxrwx 1 root root   9 Sep 22 14:50 wwn-0x5000c5001020228f -> ../../sdh
0 lrwxrwxrwx 1 root root  10 Sep 22 14:50 wwn-0x5000c5001020228f-part1 -> ../../sdh1
0 lrwxrwxrwx 1 root root   9 Sep 22 14:50 wwn-0x5000c500102089a7 -> ../../sdf
0 lrwxrwxrwx 1 root root  10 Sep 22 14:50 wwn-0x5000c500102089a7-part1 -> ../../sdf1
0 lrwxrwxrwx 1 root root   9 Sep 22 14:50 wwn-0x5000c5001020c6ff -> ../../sdj
0 lrwxrwxrwx 1 root root  10 Sep 22 14:50 wwn-0x5000c5001020c6ff-part1 -> ../../sdj1
0 lrwxrwxrwx 1 root root   9 Sep 22 14:50 wwn-0x5000c50020e5c55b -> ../../sde
0 lrwxrwxrwx 1 root root  10 Sep 22 14:50 wwn-0x5000c50020e5c55b-part1 -> ../../sde1
0 lrwxrwxrwx 1 root root   9 Sep 22 14:50 wwn-0x5e83a97f59908210 -> ../../sdb
0 lrwxrwxrwx 1 root root  10 Sep 22 14:50 wwn-0x5e83a97f59908210-part1 -> ../../sdb1



lsscsi

[0:0:0:0]    disk    SanDisk  Cruzer Fit       1.26  /dev/sda
[1:0:0:0]    disk    HP       DB1000BABFF      HPD5  /dev/sdc
[1:0:1:0]    disk    HP       DB1000BABFF      HPD8  /dev/sdd
[1:0:2:0]    disk    HP       MB1000FAMYU      HPD2  /dev/sde
[1:0:3:0]    disk    HP       DB1000BABFF      HPD5  /dev/sdf
[1:0:4:0]    disk    HP       DB1000BABFF      HPD5  /dev/sdg
[1:0:5:0]    disk    HP       DB1000BABFF      HPD5  /dev/sdh
[1:0:6:0]    disk    HP       DB1000BABFF      HPD5  /dev/sdi
[1:0:7:0]    disk    HP       DB1000BABFF      HPD5  /dev/sdj
[2:0:0:0]    disk    ATA      OCZ-VERTEX2      1.37  /dev/sdb



lsscsi -t

[0:0:0:0]    disk    usb: 1-1:1.0                    /dev/sda
[1:0:0:0]    disk    sas:0x5000c50010202285          /dev/sdc
[1:0:1:0]    disk    sas:0x5000c500101d1ded          /dev/sdd
[1:0:2:0]    disk    sas:0x5000c50020e5c559          /dev/sde
[1:0:3:0]    disk    sas:0x5000c500102089a5          /dev/sdf
[1:0:4:0]    disk    sas:0x5000c50010176e8d          /dev/sdg
[1:0:5:0]    disk    sas:0x5000c5001020228d          /dev/sdh
[1:0:6:0]    disk    sas:0x5000c5001019aad9          /dev/sdi
[1:0:7:0]    disk    sas:0x5000c5001020c6fd          /dev/sdj
[2:0:0:0]    disk    ata:                            /dev/sdb



smartctl --all /dev/sdc - for a SAS drive that does not show up in the plugin

smartctl 6.2 2013-07-26 r3841 [x86_64-linux-4.1.7-unRAID] (local build)
Copyright (C) 2002-13, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Vendor:               HP
Product:              DB1000BABFF
Revision:             HPD5
User Capacity:        1,000,204,886,016 bytes [1.00 TB]
Logical block size:   512 bytes
Rotation Rate:        7200 rpm
Logical Unit id:      0x5000c50010202287
Serial number:        9QJ6D0S000009022A1LG
Device type:          disk
Transport protocol:   SAS
Local Time is:        Thu Sep 24 10:58:57 2015 MDT
SMART support is:     Available - device has SMART capability.
SMART support is:     Enabled
Temperature Warning:  Enabled

=== START OF READ SMART DATA SECTION ===
SMART Health Status: OK

Current Drive Temperature:     37 C
Drive Trip Temperature:        68 C

Elements in grown defect list: 0

Vendor (Seagate) cache information
  Blocks sent to initiator = 2540508505
  Blocks received from initiator = 3437671110
  Blocks read from cache and sent to initiator = 606203452
  Number of read and write commands whose size <= segment size = 6325773
  Number of read and write commands whose size > segment size = 0

Vendor (Seagate/Hitachi) factory information
  number of hours powered up = 6514.35
  number of minutes until next internal SMART test = 43

Error counter log:
           Errors Corrected by           Total   Correction     Gigabytes    Total
               ECC          rereads/    errors   algorithm      processed    uncorrected
           fast | delayed   rewrites  corrected  invocations   [10^9 bytes]  errors
read:          0        0         0         0          0          0.000           0
write:         0        0         0         0          0          0.000           0

Non-medium error count:        0

No self-tests have been logged



smartctl --all /dev/sde - for a SAS drive that DOES show up in the plugin

smartctl 6.2 2013-07-26 r3841 [x86_64-linux-4.1.7-unRAID] (local build)
Copyright (C) 2002-13, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Vendor:               HP
Product:              MB1000FAMYU
Revision:             HPD2
User Capacity:        1,000,204,886,016 bytes [1.00 TB]
Logical block size:   512 bytes
Rotation Rate:        7200 rpm
Form Factor:          3.5 inches
Logical Unit id:      0x5000c50020e5c55b
Serial number:        9WK0FR710000C038DKM1
Device type:          disk
Transport protocol:   SAS
Local Time is:        Thu Sep 24 10:59:02 2015 MDT
SMART support is:     Available - device has SMART capability.
SMART support is:     Enabled
Temperature Warning:  Enabled

=== START OF READ SMART DATA SECTION ===
SMART Health Status: OK

Current Drive Temperature:     37 C
Drive Trip Temperature:        65 C

Manufactured in week 19 of year 2010
Specified cycle count over device lifetime:  10000
Accumulated start-stop cycles:  11
Specified load-unload count over device lifetime:  300000
Accumulated load-unload cycles:  11
Elements in grown defect list: 0

Vendor (Seagate) cache information
  Blocks sent to initiator = 263640184
  Blocks received from initiator = 1514716588
  Blocks read from cache and sent to initiator = 32749626
  Number of read and write commands whose size <= segment size = 143666
  Number of read and write commands whose size > segment size = 0

Vendor (Seagate/Hitachi) factory information
  number of hours powered up = 825.18
  number of minutes until next internal SMART test = 42

Error counter log:
           Errors Corrected by           Total   Correction     Gigabytes    Total
               ECC          rereads/    errors   algorithm      processed    uncorrected
           fast | delayed   rewrites  corrected  invocations   [10^9 bytes]  errors
read:          0        0         0   5903552          0        134.984           0
write:         0        0         0         0          0        776.068           0
verify:        0        0         0     30575          0          0.000           0

Non-medium error count:      333

No self-tests have been logged

Share this post


Link to post

Trying out this plugin. Looks cool. Is the drive data supposed to auto populate or do you need to assign the drives manually in the data tab? Also with the Norco 4224 case, TRAY1/PORT1 is upper right and then goes towards the left. TRAY5 is second row all the way to the right, able to make those changes visible right?



Yes you have to manually assign the disks to trays.

As for the numbering it is just as a reference from the table to the preview layout on the data tab and should not be correlated to any physical HW.



Thanks. I did install the new update. Some of my drives are missing the "manufacturer" name. There are a few HGST's my two Samsung SSD's and one Western Digital. I could of sworn I saw those fields filled out when I last checked. Do they auto-populate somehow from the drive report(s)? Since port1/tray1 on the Norco 4224 is physically at the upper right of the chassis is there a way to move the drive layout boxes to reflect?



I did hit the button "updatesmartmontools" and that did populate the drive manufacture's except for one Western Digital drive.




Share this post


Link to post

Starting with the last question first then I will get to the outputs of the requested commands.  The controller is a SuperMicro AOC-SAS2LP-MV8.  Not sure which firmware rev., but I will check when I have a chance.  I will also try adding a couple more SAS drives but connect them with a reverse cable directly to the MB SATA ports (been meaning to do that any way).



Please retry with the latest plugin version.



Share this post


Link to post

Just wanted to say thanks, I love this plugin.





One feature request - some way to make the optical drive a separate breakout floating - sort of like the thumb drive?



I don't think so because they usually take up a slot/tray.



What you can do is define a larger array and hide some trays .



Share this post


Link to post

Starting with the last question first then I will get to the outputs of the requested commands.  The controller is a SuperMicro AOC-SAS2LP-MV8.  Not sure which firmware rev., but I will check when I have a chance.  I will also try adding a couple more SAS drives but connect them with a reverse cable directly to the MB SATA ports (been meaning to do that any way).



Please retry with the latest plugin version.



The latest update fixed my issue!  You truly are THEONE!



All my SAS drives are now visible and can be assigned in the 'Data' tab.  Manufacturer, Model, S/N, Firmware and Capacity fields populate correctly.



Thank you once again for outstanding plugin and all the extra work to accommodate my particular use case.

Share this post


Link to post

I still have a 4TB drive that is part of my array not populate the manufacture field. Is this something with the plugin that is prohibiting that field to populate? I can try to  uninstall the plugin and then reinstall?


Share this post


Link to post

I still have a 4TB drive that is part of my array not populate the manufacture field. Is this something with the plugin that is prohibiting that field to populate? I can try to  uninstall the plugin and then reinstall?

Please post "smartctl --all /dev/sdc"

Share this post


Link to post

smartctl --all /dev/sdc

smartctl 6.2 2013-07-26 r3841 [x86_64-linux-4.1.7-unRAID] (local build)

Copyright © 2002-13, Bruce Allen, Christian Franke, www.smartmontools.org



=== START OF INFORMATION SECTION ===

Device Model:    WDC WD4003FZEX-00Z4SA0

Serial Number:    WD-WCC130966733

LU WWN Device Id: 5 0014ee 25e2bd767

Firmware Version: 01.01A01

User Capacity:    4,000,787,030,016 bytes [4.00 TB]

Sector Sizes:    512 bytes logical, 4096 bytes physical

Rotation Rate:    7200 rpm

Device is:        Not in smartctl database [for details use: -P showall]

ATA Version is:  ACS-2 (minor revision not indicated)

SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)

Local Time is:    Sun Sep 27 15:23:10 2015 EDT

SMART support is: Available - device has SMART capability.

SMART support is: Enabled



=== START OF READ SMART DATA SECTION ===

SMART overall-health self-assessment test result: PASSED



General SMART Values:

Offline data collection status:  (0x82) Offline data collection activity

                                        was completed without error.

                                        Auto Offline Data Collection: Enabled.

Self-test execution status:      (  0) The previous self-test routine completed

                                        without error or no self-test has ever

                                        been run.

Total time to complete Offline

data collection:                (41640) seconds.

Offline data collection

capabilities:                    (0x7b) SMART execute Offline immediate.

                                        Auto Offline data collection on/off support.

                                        Suspend Offline collection upon new

                                        command.

                                        Offline surface scan supported.

                                        Self-test supported.

                                        Conveyance Self-test supported.

                                        Selective Self-test supported.

SMART capabilities:            (0x0003) Saves SMART data before entering

                                        power-saving mode.

                                        Supports SMART auto save timer.

Error logging capability:        (0x01) Error logging supported.

                                        General Purpose Logging supported.

Short self-test routine

recommended polling time:        (  2) minutes.

Extended self-test routine

recommended polling time:        ( 451) minutes.

Conveyance self-test routine

recommended polling time:        (  5) minutes.

SCT capabilities:              (0x7035) SCT Status supported.

                                        SCT Feature Control supported.

                                        SCT Data Table supported.



SMART Attributes Data Structure revision number: 16

Vendor Specific SMART Attributes with Thresholds:

ID# ATTRIBUTE_NAME          FLAG    VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE

  1 Raw_Read_Error_Rate    0x002f  200  200  051    Pre-fail  Always      -      0

  3 Spin_Up_Time            0x0027  138  136  021    Pre-fail  Always      -      12075

  4 Start_Stop_Count        0x0032  100  100  000    Old_age  Always      -      52

  5 Reallocated_Sector_Ct  0x0033  200  200  140    Pre-fail  Always      -      0

  7 Seek_Error_Rate        0x002e  200  200  000    Old_age  Always      -      0

  9 Power_On_Hours          0x0032  080  080  000    Old_age  Always      -      14905

10 Spin_Retry_Count        0x0032  100  253  000    Old_age  Always      -      0

11 Calibration_Retry_Count 0x0032  100  253  000    Old_age  Always      -      0

12 Power_Cycle_Count      0x0032  100  100  000    Old_age  Always      -      51

192 Power-Off_Retract_Count 0x0032  200  200  000    Old_age  Always      -      18

193 Load_Cycle_Count        0x0032  200  200  000    Old_age  Always      -      33

194 Temperature_Celsius    0x0022  121  109  000    Old_age  Always      -      31

196 Reallocated_Event_Count 0x0032  200  200  000    Old_age  Always      -      0

197 Current_Pending_Sector  0x0032  200  200  000    Old_age  Always      -      0

198 Offline_Uncorrectable  0x0030  200  200  000    Old_age  Offline      -      0

199 UDMA_CRC_Error_Count    0x0032  200  200  000    Old_age  Always      -      0

200 Multi_Zone_Error_Rate  0x0008  200  200  000    Old_age  Offline      -      0



SMART Error Log Version: 1

No Errors Logged



SMART Self-test log structure revision number 1

Num  Test_Description    Status                  Remaining  LifeTime(hours)  LBA_of_first_error

# 1  Short offline      Completed without error      00%    12833        -

# 2  Short offline      Completed without error      00%    12332        -

# 3  Short offline      Completed without error      00%    11348        -



SMART Selective self-test log data structure revision number 1

SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS

    1        0        0  Not_testing

    2        0        0  Not_testing

    3        0        0  Not_testing

    4        0        0  Not_testing

    5        0        0  Not_testing

Selective self-test flags (0x0):

  After scanning selected spans, do NOT read-scan remainder of disk.

If Selective self-test is pending on power-up, resume after 0 minute delay.



Share this post


Link to post

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.
Note: Your post will require moderator approval before it will be visible.

Guest
Reply to this topic...

×   Pasted as rich text.   Restore formatting

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.
