2 hours ago, ghost82 said:

It seems you are trying to passthrough your cpu (cpu host)?

Change the xml and check if with Penryn you are able to boot: cpu host passthrough may not work with clover, and I recently submitted an issue for opencore, which got fixed (in 0.5.9 master). --> reading of msr register values is problematic in qemu.

https://github.com/acidanthera/bugtracker/issues/914



BTW they are not errors, it is simply telling you that you are using custom args in your vm settings.

Thanks for your response, I am trying to change my CPU mode to emulated and it just keeps setting it back to my cpu as the mode.

Edited by nturton
spelling mistake
Link to comment
34 minutes ago, nturton said:

Thanks for your response, I am trying to change my CPU mode to emulated and it just keeps setting it back to my cpy as the mode.

Sorry but I don't think I understood, you are not able to edit the xml and made the changes persistent?

Post your xml (deleting the osk part please)

Edited by ghost82
Link to comment
21 minutes ago, ghost82 said:

Sorry but I don't think I understood, you are not able to edit the xml and made the changes persistent?

Post your xml (deleting the osk part please)

Here is my xml, will not let me change it to emulated in normal mode.



Sorry for posting it like this but trying to add it in as code hangs the site for me



<?xml version='1.0' encoding='UTF-8'?>
<domain type='kvm' xmlns:qemu='http://libvirt.org/schemas/domain/qemu/1.0'>
  <name>MacinaboxCatalina</name>
  <uuid>b7aa73bc-e6a9-4fac-98dc-603f0fb9b48a</uuid>
  <description>MacOS Catalina</description>
  <metadata>
    <vmtemplate xmlns="unraid" name="MacOS" icon="/mnt/user/domains/MacinaboxCatalina/icon/catalina.png" os="Catalina"/>
  </metadata>
  <memory unit='KiB'>4194304</memory>
  <currentMemory unit='KiB'>4194304</currentMemory>
  <memoryBacking>
    <nosharepages/>
  </memoryBacking>
  <vcpu placement='static'>2</vcpu>
  <cputune>
    <vcpupin vcpu='0' cpuset='0'/>
    <vcpupin vcpu='1' cpuset='1'/>
  </cputune>
  <os>
    <type arch='x86_64' machine='pc-q35-3.1'>hvm</type>
    <loader readonly='yes' type='pflash'>/mnt/user/domains/MacinaboxCatalina/ovmf/OVMF_CODE.fd</loader>
    <nvram>/mnt/user/domains/MacinaboxCatalina/ovmf/OVMF_VARS.fd</nvram>
  </os>
  <features>
    <acpi/>
    <apic/>
  </features>
  <cpu mode='host-passthrough' check='none'>
    <topology sockets='1' cores='2' threads='1'/>
  </cpu>
  <clock offset='utc'>
    <timer name='rtc' tickpolicy='catchup'/>
    <timer name='pit' tickpolicy='delay'/>
    <timer name='hpet' present='no'/>
  </clock>
  <on_poweroff>destroy</on_poweroff>
  <on_reboot>restart</on_reboot>
  <on_crash>restart</on_crash>
  <devices>
    <emulator>/usr/local/sbin/qemu</emulator>
    <disk type='file' device='disk'>
      <driver name='qemu' type='qcow2' cache='writeback'/>
      <source file='/mnt/user/domains/MacinaboxCatalina/Clover.qcow2'/>
      <target dev='hdc' bus='sata'/>
      <boot order='1'/>
      <address type='drive' controller='0' bus='0' target='0' unit='2'/>
    </disk>
    <disk type='file' device='disk'>
      <driver name='qemu' type='raw' cache='writeback'/>
      <source file='/mnt/user/domains/MacinaboxCatalina/Catalina-install.img'/>
      <target dev='hdd' bus='sata'/>
      <address type='drive' controller='0' bus='0' target='0' unit='3'/>
    </disk>
    <disk type='file' device='disk'>
      <driver name='qemu' type='raw' cache='writeback'/>
      <source file='/mnt/user/domains/MacinaboxCatalina/macos_disk.img'/>
      <target dev='hde' bus='sata'/>
      <address type='drive' controller='0' bus='0' target='0' unit='4'/>
    </disk>
    <controller type='usb' index='0' model='ich9-ehci1'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci1'>
      <master startport='0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci2'>
      <master startport='2'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci3'>
      <master startport='4'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/>
    </controller>
    <controller type='sata' index='0'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/>
    </controller>
    <controller type='pci' index='0' model='pcie-root'/>
    <controller type='pci' index='1' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='1' port='0x10'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0' multifunction='on'/>
    </controller>
    <controller type='pci' index='2' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='2' port='0x11'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x1'/>
    </controller>
    <controller type='pci' index='3' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='3' port='0x12'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x2'/>
    </controller>
    <controller type='pci' index='4' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='4' port='0x13'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x3'/>
    </controller>
    <controller type='virtio-serial' index='0'>
      <address type='pci' domain='0x0000' bus='0x02' slot='0x00' function='0x0'/>
    </controller>
    <interface type='bridge'>
      <mac address='52:54:00:33:e1:5e'/>
      <source bridge='br0'/>
      <model type='vmxnet3'/>
      <address type='pci' domain='0x0000' bus='0x01' slot='0x00' function='0x0'/>
    </interface>
    <serial type='pty'>
      <target type='isa-serial' port='0'>
        <model name='isa-serial'/>
      </target>
    </serial>
    <console type='pty'>
      <target type='serial' port='0'/>
    </console>
    <channel type='unix'>
      <target type='virtio' name='org.qemu.guest_agent.0'/>
      <address type='virtio-serial' controller='0' bus='0' port='1'/>
    </channel>
    <input type='tablet' bus='usb'>
      <address type='usb' bus='0' port='1'/>
    </input>
    <input type='mouse' bus='ps2'/>
    <input type='keyboard' bus='ps2'/>
    <graphics type='vnc' port='-1' autoport='yes' websocket='-1' listen='0.0.0.0' keymap='en-us'>
      <listen type='address' address='0.0.0.0'/>
    </graphics>
    <video>
      <model type='qxl' ram='65536' vram='65536' vgamem='16384' heads='1' primary='yes'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0'/>
    </video>
    <memballoon model='virtio'>
      <address type='pci' domain='0x0000' bus='0x03' slot='0x00' function='0x0'/>
    </memballoon>
  </devices>
  <qemu:commandline>
    <qemu:arg value='-usb'/>
    <qemu:arg value='-device'/>
    <qemu:arg value='usb-kbd,bus=usb-bus.0'/>
    <qemu:arg value='-device'/>
    <qemu:arg value='isa-applesmc,osk=XXXX'/>
    <qemu:arg value='-smbios'/>
    <qemu:arg value='type=2'/>
    <qemu:arg value='-cpu'/>
    <qemu:arg value='Penryn,kvm=on,vendor=GenuineIntel,+invtsc,vmware-cpuid-freq=on,+pcid,+ssse3,+sse4.2,+popcnt,+avx,+aes,+xsave,+xsaveopt,check'/>
  </qemu:commandline>
</domain>


Link to comment
1 minute ago, nturton said:

will not let me change it to emulated in normal mode

Sorry, but what do you mean by normal mode?

Switch to xml mode and completely delete the following lines:

  <cpu mode='host-passthrough' check='none'>
    <topology sockets='1' cores='2' threads='1'/>
  </cpu>

After you delete that lines save in the xml view and try to start the vm

Link to comment
25 minutes ago, ghost82 said:

Sorry, but what do you mean by normal mode?

Switch to xml mode and completely delete the following lines:


  <cpu mode='host-passthrough' check='none'>
    <topology sockets='1' cores='2' threads='1'/>
  </cpu>

After you delete that lines save in the xml view and try to start the vm

Now its like this and still giving cpu error



<?xml version='1.0' encoding='UTF-8'?>
<domain type='kvm' xmlns:qemu='http://libvirt.org/schemas/domain/qemu/1.0'>
  <name>MacinaboxCatalina</name>
  <uuid>b7aa73bc-e6a9-4fac-98dc-603f0fb9b48a</uuid>
  <description>MacOS Catalina</description>
  <metadata>
    <vmtemplate xmlns="unraid" name="MacOS" icon="/mnt/user/domains/MacinaboxCatalina/icon/catalina.png" os="Catalina"/>
  </metadata>
  <memory unit='KiB'>4194304</memory>
  <currentMemory unit='KiB'>4194304</currentMemory>
  <memoryBacking>
    <nosharepages/>
  </memoryBacking>
  <vcpu placement='static'>2</vcpu>
  <cputune>
    <vcpupin vcpu='0' cpuset='0'/>
    <vcpupin vcpu='1' cpuset='1'/>
  </cputune>
  <os>
    <type arch='x86_64' machine='pc-q35-3.1'>hvm</type>
    <loader readonly='yes' type='pflash'>/mnt/user/domains/MacinaboxCatalina/ovmf/OVMF_CODE.fd</loader>
    <nvram>/mnt/user/domains/MacinaboxCatalina/ovmf/OVMF_VARS.fd</nvram>
  </os>
  <features>
    <acpi/>
    <apic/>
  </features>
  <cpu mode='custom' match='exact' check='none'>
    <model fallback='forbid'>qemu64</model>
  </cpu>
  <clock offset='utc'>
    <timer name='rtc' tickpolicy='catchup'/>
    <timer name='pit' tickpolicy='delay'/>
    <timer name='hpet' present='no'/>
  </clock>
  <on_poweroff>destroy</on_poweroff>
  <on_reboot>restart</on_reboot>
  <on_crash>restart</on_crash>
  <devices>
    <emulator>/usr/local/sbin/qemu</emulator>
    <disk type='file' device='disk'>
      <driver name='qemu' type='qcow2' cache='writeback'/>
      <source file='/mnt/user/domains/MacinaboxCatalina/Clover.qcow2'/>
      <target dev='hdc' bus='sata'/>
      <boot order='1'/>
      <address type='drive' controller='0' bus='0' target='0' unit='2'/>
    </disk>
    <disk type='file' device='disk'>
      <driver name='qemu' type='raw' cache='writeback'/>
      <source file='/mnt/user/domains/MacinaboxCatalina/Catalina-install.img'/>
      <target dev='hdd' bus='sata'/>
      <address type='drive' controller='0' bus='0' target='0' unit='3'/>
    </disk>
    <disk type='file' device='disk'>
      <driver name='qemu' type='raw' cache='writeback'/>
      <source file='/mnt/user/domains/MacinaboxCatalina/macos_disk.img'/>
      <target dev='hde' bus='sata'/>
      <address type='drive' controller='0' bus='0' target='0' unit='4'/>
    </disk>
    <controller type='usb' index='0' model='ich9-ehci1'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci1'>
      <master startport='0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci2'>
      <master startport='2'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci3'>
      <master startport='4'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/>
    </controller>
    <controller type='sata' index='0'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/>
    </controller>
    <controller type='pci' index='0' model='pcie-root'/>
    <controller type='pci' index='1' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='1' port='0x10'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0' multifunction='on'/>
    </controller>
    <controller type='pci' index='2' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='2' port='0x11'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x1'/>
    </controller>
    <controller type='pci' index='3' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='3' port='0x12'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x2'/>
    </controller>
    <controller type='pci' index='4' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='4' port='0x13'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x3'/>
    </controller>
    <controller type='virtio-serial' index='0'>
      <address type='pci' domain='0x0000' bus='0x02' slot='0x00' function='0x0'/>
    </controller>
    <interface type='bridge'>
      <mac address='52:54:00:33:e1:5e'/>
      <source bridge='br0'/>
      <model type='vmxnet3'/>
      <address type='pci' domain='0x0000' bus='0x01' slot='0x00' function='0x0'/>
    </interface>
    <serial type='pty'>
      <target type='isa-serial' port='0'>
        <model name='isa-serial'/>
      </target>
    </serial>
    <console type='pty'>
      <target type='serial' port='0'/>
    </console>
    <channel type='unix'>
      <target type='virtio' name='org.qemu.guest_agent.0'/>
      <address type='virtio-serial' controller='0' bus='0' port='1'/>
    </channel>
    <input type='tablet' bus='usb'>
      <address type='usb' bus='0' port='1'/>
    </input>
    <input type='mouse' bus='ps2'/>
    <input type='keyboard' bus='ps2'/>
    <graphics type='vnc' port='-1' autoport='yes' websocket='-1' listen='0.0.0.0' keymap='en-us'>
      <listen type='address' address='0.0.0.0'/>
    </graphics>
    <video>
      <model type='qxl' ram='65536' vram='65536' vgamem='16384' heads='1' primary='yes'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0'/>
    </video>
    <memballoon model='virtio'>
      <address type='pci' domain='0x0000' bus='0x03' slot='0x00' function='0x0'/>
    </memballoon>
  </devices>
  <qemu:commandline>
    <qemu:arg value='-usb'/>
    <qemu:arg value='-device'/>
    <qemu:arg value='usb-kbd,bus=usb-bus.0'/>
    <qemu:arg value='-device'/>
    <qemu:arg value='isa-applesmc,osk=XXXXX'/>
    <qemu:arg value='-smbios'/>
    <qemu:arg value='type=2'/>
    <qemu:arg value='-cpu'/>
    <qemu:arg value='Penryn,kvm=on,vendor=GenuineIntel,+invtsc,vmware-cpuid-freq=on,+pcid,+ssse3,+sse4.2,+popcnt,+avx,+aes,+xsave,+xsaveopt,check'/>
  </qemu:commandline>
</domain>

Link to comment
26 minutes ago, nturton said:

Now its like this and still giving cpu error

which error?

Unraid version?

Cpu and ram in the host?

Does it hang at apple logo?

You should provide clover log, because usually all machines are able to start with that settings.



You could try to give a try with opencore:



Link to comment
6 minutes ago, ghost82 said:

which error?

Unraid version?

Cpu and ram in the host?

Does it hang at apple logo?

You should provide clover log, because usually all machines are able to start with that settings.



You could try to give a try with opencore:



error: 2020-05-15 16:04:39.948+0000: Domain id=6 is tainted: custom-argv

unraid version: 6.8.3

CPU: AMD Phenom II X6 1045T with 24GB RAM

It does hang on the apple logo

I am going to try this clover file and report back.

Link to comment
7 minutes ago, ghost82 said:

Sorry, I saw now that your processor has no avx support, sse4.1, sse4.2 and other things required to boot mac os...no chance to get it working...sorry..

ok I understand that, I am trying to get hold of my AM3+ CPU that I want in it, but with the isolation going on I cannot gain access to it :( will have to try this again once I switch the CPU.  Thank you for your help ghost82

Link to comment

I'm having a strange issue that I have truly tried to search for a fix prior to posting.  I have both a Catalina and a Mojave VM on my system and both are working great but they are exhibiting a strange difference that I cannot explain.  On Catalina, I can change the mouse settings, reverse the scroll direction, etc...  On the Mojave VM, there is "no mouse found" however the mouse works just fine but I don't have an option to change the scroll direction.  I've compared the xml and they seem to be identical.  The only XML changes I've made to these VMs was CPU cores and Ram.  Both start and run perfectly.



Any guidance would be appreciated.



John

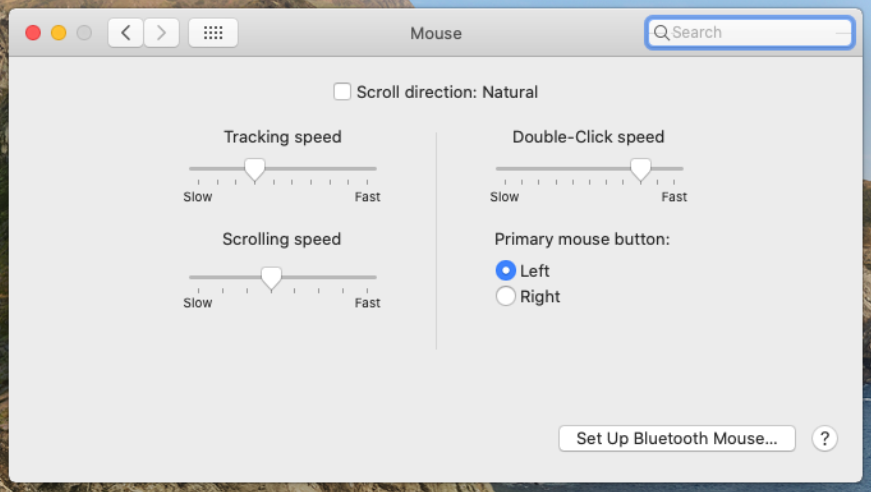

Catalina VM Mouse Settings.png

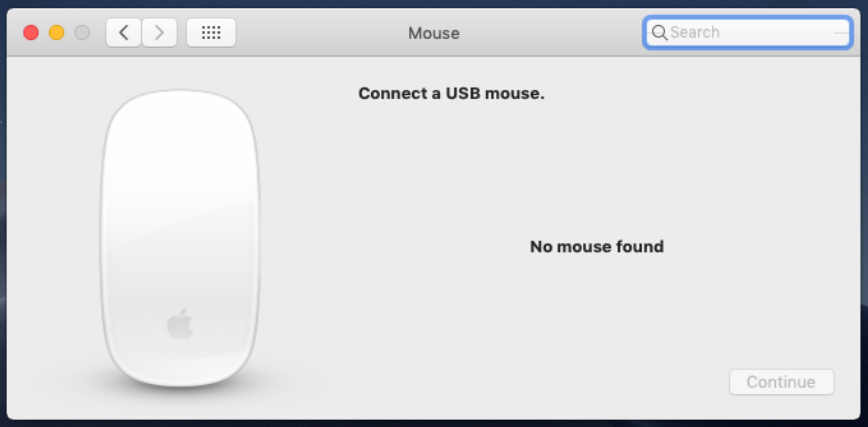

Mojave VM No Mouse Settings.png

Link to comment
9 hours ago, JohnDS said:

Any guidance would be appreciated

Hi, not an issue with the vm but with mojave itself (you can read about similar problems for real macs too).

If you want to set the scroll type try with a terminal command:

Read the current type of scrolling:

defaults read -g com.apple.swipescrolldirection

It returns 1 or 0.

1=Natural scroll direction

0=Not natural scroll direction



Then change the setting with:

defaults write -g com.apple.swipescrolldirection -bool false

true=Natural scroll direction

false=Not natural scroll direction



NB: after changing the setting via terminal you must reboot your vm.

Link to comment
10 hours ago, ghost82 said:

Hi, not an issue with the vm but with mojave itself


defaults read -g com.apple.swipescrolldirection

defaults write -g com.apple.swipescrolldirection -bool false

Thank you so much, I never would have guessed it was a Mojave issue!

Link to comment

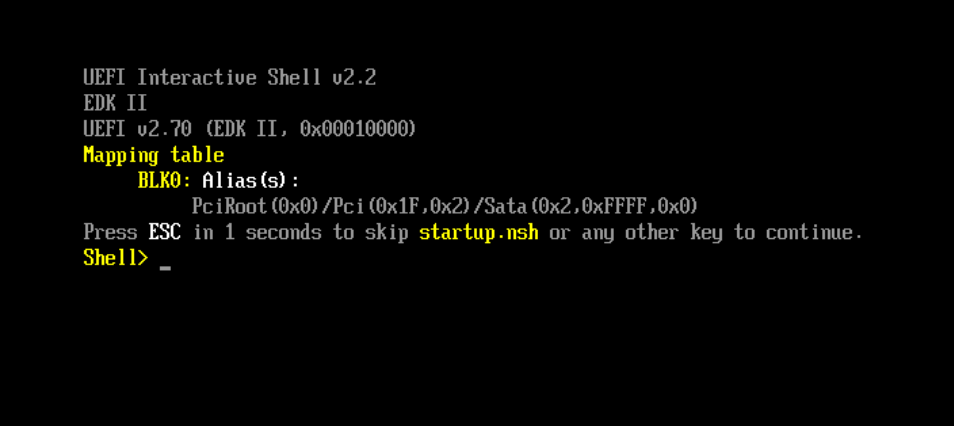

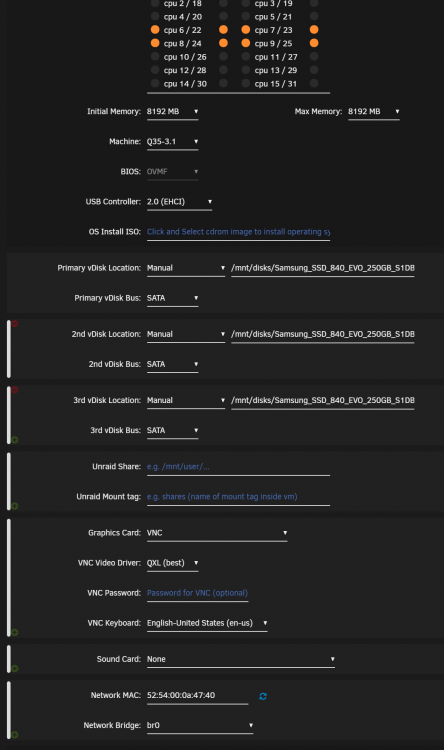

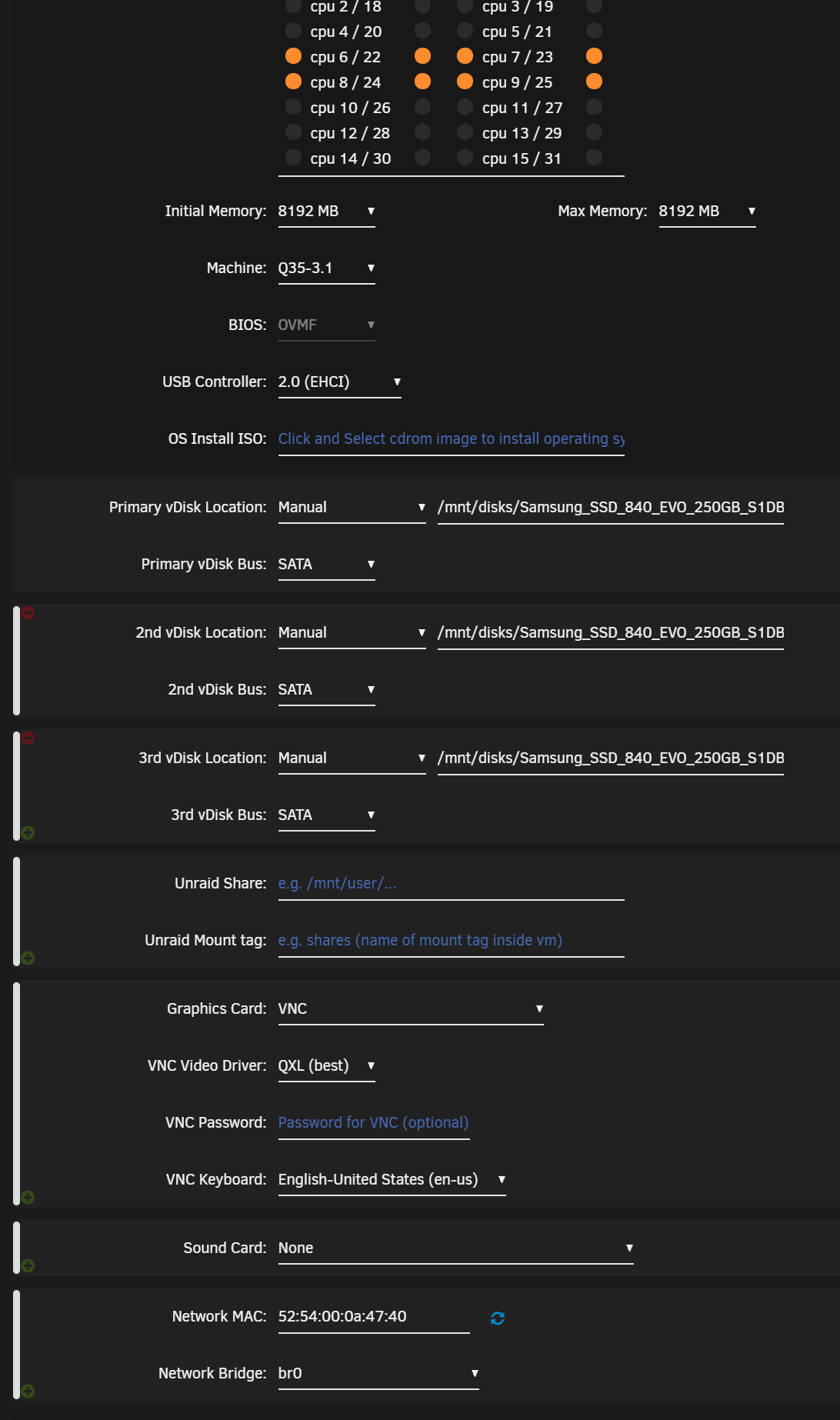

Hi, having an issue with my install. Installed everything and when loading VNC it doesn't connect (has the 3 dots moving across trying to connect)

I am using a separate SSD to install the MacOS on, I think Ive done that correctly.

Any help would be appreciated.



Log file



-mon chardev=charmonitor,id=monitor,mode=control \
-rtc base=utc,driftfix=slew \
-global kvm-pit.lost_tick_policy=delay \
-no-hpet \
-no-shutdown \
-boot strict=on \
-device pcie-root-port,port=0x10,chassis=1,id=pci.1,bus=pcie.0,multifunction=on,addr=0x2 \
-device pcie-root-port,port=0x11,chassis=2,id=pci.2,bus=pcie.0,addr=0x2.0x1 \
-device pcie-root-port,port=0x12,chassis=3,id=pci.3,bus=pcie.0,addr=0x2.0x2 \
-device pcie-root-port,port=0x13,chassis=4,id=pci.4,bus=pcie.0,addr=0x2.0x3 \
-device ich9-usb-ehci1,id=usb,bus=pcie.0,addr=0x7.0x7 \
-device ich9-usb-uhci1,masterbus=usb.0,firstport=0,bus=pcie.0,multifunction=on,addr=0x7 \
-device ich9-usb-uhci2,masterbus=usb.0,firstport=2,bus=pcie.0,addr=0x7.0x1 \
-device ich9-usb-uhci3,masterbus=usb.0,firstport=4,bus=pcie.0,addr=0x7.0x2 \
-device virtio-serial-pci,id=virtio-serial0,bus=pci.2,addr=0x0 \
-blockdev '{"driver":"file","filename":"/mnt/disks/Samsung_SSD_840_EVO_250GB_S1DBNSBDC39645R/MacinaboxCatalina/Clover.qcow2","node-name":"libvirt-3-storage","cache":{"direct":false,"no-flush":false},"auto-read-only":true,"discard":"unmap"}' \
-blockdev '{"node-name":"libvirt-3-format","read-only":false,"cache":{"direct":false,"no-flush":false},"driver":"qcow2","file":"libvirt-3-storage","backing":null}' \
-device ide-hd,bus=ide.2,drive=libvirt-3-format,id=sata0-0-2,bootindex=1,write-cache=on \
-blockdev '{"driver":"file","filename":"/mnt/disks/Samsung_SSD_840_EVO_250GB_S1DBNSBDC39645R/MacinaboxCatalina/Catalina-install.img","node-name":"libvirt-2-storage","cache":{"direct":false,"no-flush":false},"auto-read-only":true,"discard":"unmap"}' \
-blockdev '{"node-name":"libvirt-2-format","read-only":false,"cache":{"direct":false,"no-flush":false},"driver":"raw","file":"libvirt-2-storage"}' \
-device ide-hd,bus=ide.3,drive=libvirt-2-format,id=sata0-0-3,write-cache=on \
-blockdev '{"driver":"file","filename":"/mnt/disks/Samsung_SSD_840_EVO_250GB_S1DBNSBDC39645R/MacinaboxCatalina/macos_disk.img","node-name":"libvirt-1-storage","cache":{"direct":false,"no-flush":false},"auto-read-only":true,"discard":"unmap"}' \
-blockdev '{"node-name":"libvirt-1-format","read-only":false,"cache":{"direct":false,"no-flush":false},"driver":"raw","file":"libvirt-1-storage"}' \
-device ide-hd,bus=ide.4,drive=libvirt-1-format,id=sata0-0-4,write-cache=on \
-netdev tap,fd=35,id=hostnet0,vhost=on,vhostfd=36 \
-device virtio-net-pci,netdev=hostnet0,id=net0,mac=52:54:00:2c:f3:f3,bus=pci.1,addr=0x0 \
-chardev pty,id=charserial0 \
-device isa-serial,chardev=charserial0,id=serial0 \
-chardev socket,id=charchannel0,fd=37,server,nowait \
-device virtserialport,bus=virtio-serial0.0,nr=1,chardev=charchannel0,id=channel0,name=org.qemu.guest_agent.0 \
-device usb-tablet,id=input0,bus=usb.0,port=1 \
-vnc 0.0.0.0:0,websocket=5700 \
-k en-us \
-device qxl-vga,id=video0,ram_size=67108864,vram_size=67108864,vram64_size_mb=0,vgamem_mb=16,max_outputs=1,bus=pcie.0,addr=0x1 \
-device virtio-balloon-pci,id=balloon0,bus=pci.3,addr=0x0 \
-sandbox on,obsolete=deny,elevateprivileges=deny,spawn=deny,resourcecontrol=deny \
-msg timestamp=on
2020-05-18 12:29:08.679+0000: Domain id=7 is tainted: high-privileges
2020-05-18 12:29:08.679+0000: Domain id=7 is tainted: host-cpu
char device redirected to /dev/pts/0 (label charserial0)





XML file



<?xml version='1.0' encoding='UTF-8'?>

<domain type='kvm'>

  <name>MacinaboxCatalina</name>

  <uuid>b7774197-44f2-4b05-a01f-15b6844323ab</uuid>

  <description>MacOS Catalina</description>

  <metadata>

    <vmtemplate xmlns="unraid" name="Windows 10" icon="default.png" os="Catalina"/>

  </metadata>

  <memory unit='KiB'>12582912</memory>

  <currentMemory unit='KiB'>12582912</currentMemory>

  <memoryBacking>

    <nosharepages/>

  </memoryBacking>

  <vcpu placement='static'>12</vcpu>

  <cputune>

    <vcpupin vcpu='0' cpuset='10'/>

    <vcpupin vcpu='1' cpuset='26'/>

    <vcpupin vcpu='2' cpuset='11'/>

    <vcpupin vcpu='3' cpuset='27'/>

    <vcpupin vcpu='4' cpuset='12'/>

    <vcpupin vcpu='5' cpuset='28'/>

    <vcpupin vcpu='6' cpuset='13'/>

    <vcpupin vcpu='7' cpuset='29'/>

    <vcpupin vcpu='8' cpuset='14'/>

    <vcpupin vcpu='9' cpuset='30'/>

    <vcpupin vcpu='10' cpuset='15'/>

    <vcpupin vcpu='11' cpuset='31'/>

  </cputune>

  <os>

    <type arch='x86_64' machine='pc-q35-3.1'>hvm</type>

    <loader readonly='yes' type='pflash'>/mnt/disks/Samsung_SSD_840_EVO_250GB_S1DBNSBDC39645R/MacinaboxCatalina/ovmf/OVMF_CODE.fd</loader>

    <nvram>/mnt/disks/Samsung_SSD_840_EVO_250GB_S1DBNSBDC39645R/MacinaboxCatalina/ovmf/OVMF_VARS.fd</nvram>

  </os>

  <features>

    <acpi/>

    <apic/>

  </features>

  <cpu mode='host-passthrough' check='none'>

    <topology sockets='1' cores='6' threads='2'/>

    <cache mode='passthrough'/>

    <feature policy='require' name='topoext'/>

  </cpu>

  <clock offset='utc'>

    <timer name='rtc' tickpolicy='catchup'/>

    <timer name='pit' tickpolicy='delay'/>

    <timer name='hpet' present='no'/>

  </clock>

  <on_poweroff>destroy</on_poweroff>

  <on_reboot>restart</on_reboot>

  <on_crash>restart</on_crash>

  <devices>

    <emulator>/usr/local/sbin/qemu</emulator>

    <disk type='file' device='disk'>

      <driver name='qemu' type='qcow2' cache='writeback'/>

      <source file='/mnt/disks/Samsung_SSD_840_EVO_250GB_S1DBNSBDC39645R/MacinaboxCatalina/Clover.qcow2'/>

      <target dev='hdc' bus='sata'/>

      <boot order='1'/>

      <address type='drive' controller='0' bus='0' target='0' unit='2'/>

    </disk>

    <disk type='file' device='disk'>

      <driver name='qemu' type='raw' cache='writeback'/>

      <source file='/mnt/disks/Samsung_SSD_840_EVO_250GB_S1DBNSBDC39645R/MacinaboxCatalina/Catalina-install.img'/>

      <target dev='hdd' bus='sata'/>

      <address type='drive' controller='0' bus='0' target='0' unit='3'/>

    </disk>

    <disk type='file' device='disk'>

      <driver name='qemu' type='raw' cache='writeback'/>

      <source file='/mnt/disks/Samsung_SSD_840_EVO_250GB_S1DBNSBDC39645R/MacinaboxCatalina/macos_disk.img'/>

      <target dev='hde' bus='sata'/>

      <address type='drive' controller='0' bus='0' target='0' unit='4'/>

    </disk>

    <controller type='pci' index='0' model='pcie-root'/>

    <controller type='pci' index='1' model='pcie-root-port'>

      <model name='pcie-root-port'/>

      <target chassis='1' port='0x10'/>

      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0' multifunction='on'/>

    </controller>

    <controller type='pci' index='2' model='pcie-root-port'>

      <model name='pcie-root-port'/>

      <target chassis='2' port='0x11'/>

      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x1'/>

    </controller>

    <controller type='pci' index='3' model='pcie-root-port'>

      <model name='pcie-root-port'/>

      <target chassis='3' port='0x12'/>

      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x2'/>

    </controller>

    <controller type='pci' index='4' model='pcie-root-port'>

      <model name='pcie-root-port'/>

      <target chassis='4' port='0x13'/>

      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x3'/>

    </controller>

    <controller type='virtio-serial' index='0'>

      <address type='pci' domain='0x0000' bus='0x02' slot='0x00' function='0x0'/>

    </controller>

    <controller type='sata' index='0'>

      <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/>

    </controller>

    <controller type='usb' index='0' model='ich9-ehci1'>

      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/>

    </controller>

    <controller type='usb' index='0' model='ich9-uhci1'>

      <master startport='0'/>

      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/>

    </controller>

    <controller type='usb' index='0' model='ich9-uhci2'>

      <master startport='2'/>

      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/>

    </controller>

    <controller type='usb' index='0' model='ich9-uhci3'>

      <master startport='4'/>

      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/>

    </controller>

    <interface type='bridge'>

      <mac address='52:54:00:2c:f3:f3'/>

      <source bridge='br0'/>

      <model type='virtio'/>

      <address type='pci' domain='0x0000' bus='0x01' slot='0x00' function='0x0'/>

    </interface>

    <serial type='pty'>

      <target type='isa-serial' port='0'>

        <model name='isa-serial'/>

      </target>

    </serial>

    <console type='pty'>

      <target type='serial' port='0'/>

    </console>

    <channel type='unix'>

      <target type='virtio' name='org.qemu.guest_agent.0'/>

      <address type='virtio-serial' controller='0' bus='0' port='1'/>

    </channel>

    <input type='tablet' bus='usb'>

      <address type='usb' bus='0' port='1'/>

    </input>

    <input type='mouse' bus='ps2'/>

    <input type='keyboard' bus='ps2'/>

    <graphics type='vnc' port='-1' autoport='yes' websocket='-1' listen='0.0.0.0' keymap='en-us'>

      <listen type='address' address='0.0.0.0'/>

    </graphics>

    <video>

      <model type='qxl' ram='65536' vram='65536' vgamem='16384' heads='1' primary='yes'/>

      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0'/>

    </video>

    <memballoon model='virtio'>

      <address type='pci' domain='0x0000' bus='0x03' slot='0x00' function='0x0'/>

    </memballoon>

  </devices>

</domain>



Link to comment
7 minutes ago, Abz said:

Any help would be appreciated.

Check your xml, you don't have any custom qemu:args required to boot mac os.

I also suggest to delete the cpu topology from the xml for the first boot and to switch network to vmxnet3 or better e1000-82545em.

Edited by ghost82
  • Thanks 1
Link to comment
1 hour ago, ghost82 said:

Check your xml, you don't have any custom qemu:args required to boot mac os.

I also suggest to delete the cpu topology from the xml for the first boot and to switch network to vmxnet3 or better e1000-82545em.

Thanks, done that now and still not getting any further on vnc.



Log file



2020-05-18 14:03:58.951+0000: starting up libvirt version: 5.10.0, qemu version: 4.2.0, kernel: 4.19.107-Unraid, hostname: Loki
LC_ALL=C \
PATH=/bin:/sbin:/usr/bin:/usr/sbin \
HOME=/var/lib/libvirt/qemu/domain-5-MacinaboxCatalina \
XDG_DATA_HOME=/var/lib/libvirt/qemu/domain-5-MacinaboxCatalina/.local/share \
XDG_CACHE_HOME=/var/lib/libvirt/qemu/domain-5-MacinaboxCatalina/.cache \
XDG_CONFIG_HOME=/var/lib/libvirt/qemu/domain-5-MacinaboxCatalina/.config \
QEMU_AUDIO_DRV=none \
/usr/local/sbin/qemu \
-name guest=MacinaboxCatalina,debug-threads=on \
-S \
-object secret,id=masterKey0,format=raw,file=/var/lib/libvirt/qemu/domain-5-MacinaboxCatalina/master-key.aes \
-blockdev '{"driver":"file","filename":"/mnt/disks/Samsung_SSD_840_EVO_250GB_S1DBNSBDC39645R/MacinaboxCatalina/ovmf/OVMF_CODE.fd","node-name":"libvirt-pflash0-storage","auto-read-only":true,"discard":"unmap"}' \
-blockdev '{"node-name":"libvirt-pflash0-format","read-only":true,"driver":"raw","file":"libvirt-pflash0-storage"}' \
-blockdev '{"driver":"file","filename":"/mnt/disks/Samsung_SSD_840_EVO_250GB_S1DBNSBDC39645R/MacinaboxCatalina/ovmf/OVMF_VARS.fd","node-name":"libvirt-pflash1-storage","auto-read-only":true,"discard":"unmap"}' \
-blockdev '{"node-name":"libvirt-pflash1-format","read-only":false,"driver":"raw","file":"libvirt-pflash1-storage"}' \
-machine pc-q35-3.1,accel=kvm,usb=off,dump-guest-core=off,mem-merge=off,pflash0=libvirt-pflash0-format,pflash1=libvirt-pflash1-format \
-cpu qemu64 \
-m 12288 \
-overcommit mem-lock=off \
-smp 8,sockets=8,cores=1,threads=1 \
-uuid f93a9cba-5352-4949-9c47-4a2f98489614 \
-no-user-config \
-nodefaults \
-chardev socket,id=charmonitor,fd=33,server,nowait \
-mon chardev=charmonitor,id=monitor,mode=control \
-rtc base=utc,driftfix=slew \
-global kvm-pit.lost_tick_policy=delay \
-no-hpet \
-no-shutdown \
-boot strict=on \
-device pcie-root-port,port=0x10,chassis=1,id=pci.1,bus=pcie.0,multifunction=on,addr=0x2 \
-device pcie-root-port,port=0x11,chassis=2,id=pci.2,bus=pcie.0,addr=0x2.0x1 \
-device pcie-root-port,port=0x12,chassis=3,id=pci.3,bus=pcie.0,addr=0x2.0x2 \
-device pcie-root-port,port=0x13,chassis=4,id=pci.4,bus=pcie.0,addr=0x2.0x3 \
-device ich9-usb-ehci1,id=usb,bus=pcie.0,addr=0x7.0x7 \
-device ich9-usb-uhci1,masterbus=usb.0,firstport=0,bus=pcie.0,multifunction=on,addr=0x7 \
-device ich9-usb-uhci2,masterbus=usb.0,firstport=2,bus=pcie.0,addr=0x7.0x1 \
-device ich9-usb-uhci3,masterbus=usb.0,firstport=4,bus=pcie.0,addr=0x7.0x2 \
-device virtio-serial-pci,id=virtio-serial0,bus=pci.2,addr=0x0 \
-blockdev '{"driver":"file","filename":"/mnt/disks/Samsung_SSD_840_EVO_250GB_S1DBNSBDC39645R/MacinaboxCatalina/Clover.qcow2","node-name":"libvirt-3-storage","cache":{"direct":false,"no-flush":false},"auto-read-only":true,"discard":"unmap"}' \
-blockdev '{"node-name":"libvirt-3-format","read-only":false,"cache":{"direct":false,"no-flush":false},"driver":"raw","file":"libvirt-3-storage"}' \
-device ide-hd,bus=ide.2,drive=libvirt-3-format,id=sata0-0-2,bootindex=1,write-cache=on \
-blockdev '{"driver":"file","filename":"/mnt/disks/Samsung_SSD_840_EVO_250GB_S1DBNSBDC39645R/MacinaboxCatalina/Catalina-install.img","node-name":"libvirt-2-storage","cache":{"direct":false,"no-flush":false},"auto-read-only":true,"discard":"unmap"}' \
-blockdev '{"node-name":"libvirt-2-format","read-only":false,"cache":{"direct":false,"no-flush":false},"driver":"raw","file":"libvirt-2-storage"}' \
-device ide-hd,bus=ide.3,drive=libvirt-2-format,id=sata0-0-3,write-cache=on \
-blockdev '{"driver":"file","filename":"/mnt/disks/Samsung_SSD_840_EVO_250GB_S1DBNSBDC39645R/MacinaboxCatalina/macos_disk.img","node-name":"libvirt-1-storage","cache":{"direct":false,"no-flush":false},"auto-read-only":true,"discard":"unmap"}' \
-blockdev '{"node-name":"libvirt-1-format","read-only":false,"cache":{"direct":false,"no-flush":false},"driver":"raw","file":"libvirt-1-storage"}' \
-device ide-hd,bus=ide.4,drive=libvirt-1-format,id=sata0-0-4,write-cache=on \
-netdev tap,fd=35,id=hostnet0 \
-device vmxnet3,netdev=hostnet0,id=net0,mac=52:54:00:bc:86:53,bus=pci.1,addr=0x0 \
-chardev pty,id=charserial0 \
-device isa-serial,chardev=charserial0,id=serial0 \
-chardev socket,id=charchannel0,fd=36,server,nowait \
-device virtserialport,bus=virtio-serial0.0,nr=1,chardev=charchannel0,id=channel0,name=org.qemu.guest_agent.0 \
-device usb-tablet,id=input0,bus=usb.0,port=1 \
-vnc 0.0.0.0:0,websocket=5700 \
-k en-us \
-device qxl-vga,id=video0,ram_size=67108864,vram_size=67108864,vram64_size_mb=0,vgamem_mb=16,max_outputs=1,bus=pcie.0,addr=0x1 \
-device virtio-balloon-pci,id=balloon0,bus=pci.3,addr=0x0 \
-usb \
-device usb-kbd,bus=usb-bus.0 \
-device '************************' \
-smbios type=2 \
-cpu Penryn,kvm=on,vendor=GenuineIntel,+invtsc,vmware-cpuid-freq=on,+pcid,+ssse3,+sse4.2,+popcnt,+avx,+aes,+xsave,+xsaveopt,check \
-sandbox on,obsolete=deny,elevateprivileges=deny,spawn=deny,resourcecontrol=deny \
-msg timestamp=on
2020-05-18 14:03:58.951+0000: Domain id=5 is tainted: high-privileges
2020-05-18 14:03:58.951+0000: Domain id=5 is tainted: custom-argv
char device redirected to /dev/pts/0 (label charserial0)
2020-05-18T14:03:58.981498Z qemu-system-x86_64: warning: host doesn't support requested feature: CPUID.01H:ECX.pcid [bit 17]
2020-05-18T14:03:58.982835Z qemu-system-x86_64: warning: host doesn't support requested feature: CPUID.01H:ECX.pcid [bit 17]
2020-05-18T14:03:58.983490Z qemu-system-x86_64: warning: host doesn't support requested feature: CPUID.01H:ECX.pcid [bit 17]
2020-05-18T14:03:58.984201Z qemu-system-x86_64: warning: host doesn't support requested feature: CPUID.01H:ECX.pcid [bit 17]
2020-05-18T14:03:58.985207Z qemu-system-x86_64: warning: host doesn't support requested feature: CPUID.01H:ECX.pcid [bit 17]
2020-05-18T14:03:58.986288Z qemu-system-x86_64: warning: host doesn't support requested feature: CPUID.01H:ECX.pcid [bit 17]
2020-05-18T14:03:58.987422Z qemu-system-x86_64: warning: host doesn't support requested feature: CPUID.01H:ECX.pcid [bit 17]
2020-05-18T14:03:58.988499Z qemu-system-x86_64: warning: host doesn't support requested feature: CPUID.01H:ECX.pcid [bit 17]





XML file



<?xml version='1.0' encoding='UTF-8'?>
<domain type='kvm' xmlns:qemu='http://libvirt.org/schemas/domain/qemu/1.0'>
  <name>MacinaboxCatalina</name>
  <uuid>f93a9cba-5352-4949-9c47-4a2f98489614</uuid>
  <description>MacOS Catalina</description>
  <metadata>
    <vmtemplate xmlns="unraid" name="Windows 10" icon="default.png" os="Catalina"/>
  </metadata>
  <memory unit='KiB'>12582912</memory>
  <currentMemory unit='KiB'>12582912</currentMemory>
  <memoryBacking>
    <nosharepages/>
  </memoryBacking>
  <vcpu placement='static'>8</vcpu>
  <cputune>
    <vcpupin vcpu='0' cpuset='12'/>
    <vcpupin vcpu='1' cpuset='28'/>
    <vcpupin vcpu='2' cpuset='13'/>
    <vcpupin vcpu='3' cpuset='29'/>
    <vcpupin vcpu='4' cpuset='14'/>
    <vcpupin vcpu='5' cpuset='30'/>
    <vcpupin vcpu='6' cpuset='15'/>
    <vcpupin vcpu='7' cpuset='31'/>
  </cputune>
  <os>
    <type arch='x86_64' machine='pc-q35-3.1'>hvm</type>
    <loader readonly='yes' type='pflash'>/mnt/disks/Samsung_SSD_840_EVO_250GB_S1DBNSBDC39645R/MacinaboxCatalina/ovmf/OVMF_CODE.fd</loader>
    <nvram>/mnt/disks/Samsung_SSD_840_EVO_250GB_S1DBNSBDC39645R/MacinaboxCatalina/ovmf/OVMF_VARS.fd</nvram>
  </os>
  <features>
    <acpi/>
    <apic/>
  </features>
  <clock offset='utc'>
    <timer name='rtc' tickpolicy='catchup'/>
    <timer name='pit' tickpolicy='delay'/>
    <timer name='hpet' present='no'/>
  </clock>
  <on_poweroff>destroy</on_poweroff>
  <on_reboot>restart</on_reboot>
  <on_crash>restart</on_crash>
  <devices>
    <emulator>/usr/local/sbin/qemu</emulator>
    <disk type='file' device='disk'>
      <driver name='qemu' type='raw' cache='writeback'/>
      <source file='/mnt/disks/Samsung_SSD_840_EVO_250GB_S1DBNSBDC39645R/MacinaboxCatalina/Clover.qcow2'/>
      <target dev='hdc' bus='sata'/>
      <boot order='1'/>
      <address type='drive' controller='0' bus='0' target='0' unit='2'/>
    </disk>
    <disk type='file' device='disk'>
      <driver name='qemu' type='raw' cache='writeback'/>
      <source file='/mnt/disks/Samsung_SSD_840_EVO_250GB_S1DBNSBDC39645R/MacinaboxCatalina/Catalina-install.img'/>
      <target dev='hdd' bus='sata'/>
      <address type='drive' controller='0' bus='0' target='0' unit='3'/>
    </disk>
    <disk type='file' device='disk'>
      <driver name='qemu' type='raw' cache='writeback'/>
      <source file='/mnt/disks/Samsung_SSD_840_EVO_250GB_S1DBNSBDC39645R/MacinaboxCatalina/macos_disk.img'/>
      <target dev='hde' bus='sata'/>
      <address type='drive' controller='0' bus='0' target='0' unit='4'/>
    </disk>
    <controller type='sata' index='0'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/>
    </controller>
    <controller type='pci' index='0' model='pcie-root'/>
    <controller type='pci' index='1' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='1' port='0x10'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0' multifunction='on'/>
    </controller>
    <controller type='pci' index='2' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='2' port='0x11'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x1'/>
    </controller>
    <controller type='pci' index='3' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='3' port='0x12'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x2'/>
    </controller>
    <controller type='pci' index='4' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='4' port='0x13'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x3'/>
    </controller>
    <controller type='virtio-serial' index='0'>
      <address type='pci' domain='0x0000' bus='0x02' slot='0x00' function='0x0'/>
    </controller>
    <controller type='usb' index='0' model='ich9-ehci1'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci1'>
      <master startport='0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci2'>
      <master startport='2'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci3'>
      <master startport='4'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/>
    </controller>
    <interface type='bridge'>
      <mac address='52:54:00:bc:86:53'/>
      <source bridge='br0'/>
      <model type='vmxnet3'/>
      <address type='pci' domain='0x0000' bus='0x01' slot='0x00' function='0x0'/>
    </interface>
    <serial type='pty'>
      <target type='isa-serial' port='0'>
        <model name='isa-serial'/>
      </target>
    </serial>
    <console type='pty'>
      <target type='serial' port='0'/>
    </console>
    <channel type='unix'>
      <target type='virtio' name='org.qemu.guest_agent.0'/>
      <address type='virtio-serial' controller='0' bus='0' port='1'/>
    </channel>
    <input type='tablet' bus='usb'>
      <address type='usb' bus='0' port='1'/>
    </input>
    <input type='mouse' bus='ps2'/>
    <input type='keyboard' bus='ps2'/>
    <graphics type='vnc' port='-1' autoport='yes' websocket='-1' listen='0.0.0.0' keymap='en-us'>
      <listen type='address' address='0.0.0.0'/>
    </graphics>
    <video>
      <model type='qxl' ram='65536' vram='65536' vgamem='16384' heads='1' primary='yes'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0'/>
    </video>
    <memballoon model='virtio'>
      <address type='pci' domain='0x0000' bus='0x03' slot='0x00' function='0x0'/>
    </memballoon>
  </devices>
  <qemu:commandline>
    <qemu:arg value='-usb'/>
    <qemu:arg value='-device'/>
    <qemu:arg value='usb-kbd,bus=usb-bus.0'/>
    <qemu:arg value='-device'/>
    <qemu:arg value='isa-applesmc,osk=XXXXXXXXXXXXXXX'/>
    <qemu:arg value='-smbios'/>
    <qemu:arg value='type=2'/>
    <qemu:arg value='-cpu'/>
    <qemu:arg value='Penryn,kvm=on,vendor=GenuineIntel,+invtsc,vmware-cpuid-freq=on,+pcid,+ssse3,+sse4.2,+popcnt,+avx,+aes,+xsave,+xsaveopt,check'/>
  </qemu:commandline>
</domain>

Link to comment
1 hour ago, ghost82 said:

I can't see nothing wrong in that logs and in the xml, you should provide the bootloader log to understand what is stopping the machine to start.

Thanks for your help, got past the first problem by deleting the VM and starting from scratch and changing the cores down to 8.

Now got an issue where it stays on the boot screen with the following








Edited by Abz
Link to comment
3 minutes ago, ghost82 said:

That is the uefi shell, check again all, because it's still not able to boot into mac os.

Not sure what I'm exactly looking for.

I am using an unassigned SSD for the install, not sure if its anything to do with that?






Link to comment
28 minutes ago, Abz said:

Not sure what I'm exactly looking for.

The only thing I can see is that most probably you had not set the clover image as type qcow2?

Yes, that was the issue also in the first xml you posted.

Edited by ghost82
Link to comment
3 minutes ago, ghost82 said:

The only thing I can see is that most probably you had not set the clover image as type qcow2?

This is what I've set up



Primary vDisk Location: /mnt/disks/Samsung_SSD_840_EVO_250GB_S1DBNSBDC39645R/MacinaboxCatalina/Clover.qcow2

2nd vDisk Location: /mnt/disks/Samsung_SSD_840_EVO_250GB_S1DBNSBDC39645R/MacinaboxCatalina/Catalina-install.img



3rd vDisk Location: /mnt/disks/Samsung_SSD_840_EVO_250GB_S1DBNSBDC39645R/MacinaboxCatalina/macos_disk.img



Is that what you meant by clover image set to qcow2?

Link to comment
3 hours ago, Abz said:

  <disk type='file' device='disk'>
      <driver name='qemu' type='raw' cache='writeback'/>
      <source file='/mnt/disks/Samsung_SSD_840_EVO_250GB_S1DBNSBDC39645R/MacinaboxCatalina/Clover.qcow2'/>
      <target dev='hdc' bus='sata'/>
      <boot order='1'/>
      <address type='drive' controller='0' bus='0' target='0' unit='2'/>
    </disk>

Here, change type from raw to qcow2.

Then remeber to check custom args at the end of the xml.

Edited by ghost82
Link to comment
8 minutes ago, ghost82 said:

Here, change type from raw to qcow2.

Then remeber to check custom args at the end of the xml.

Thanks, got to the next screen which said press enter to boot. Pressed enter and now on the following screen. Been a few minutes and 1 core of the cpu is pegged at 100% but nothings happened so far. How long should it normally take this part or is it frozen?



Thanks again, quite new to unraid (just built the server last week) :D






Link to comment

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.
Note: Your post will require moderator approval before it will be visible.

Guest
Reply to this topic...

×   Pasted as rich text.   Restore formatting

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.
