[PLUGIN] GPU Statistics

January 11, 20215 yr

@b3rs3rk I have just tried your new intel version on my i9 9900k with UHD 630 graphics and everything is working just fine. Thanks a lot for this update.

Edited January 11, 20215 yr by greenflash24

Quote

1

January 11, 20215 yr

Author

1 minute ago, greenflash24 said:

@b3rs3rk I have just tried your new intel version on my i9 9900k with UHD 630 graphics and everything is working just fine. Thanks a lot for this update.

You have a very modern iGPU, could you send me the results of:

timeout -k .500 .400 intel_gpu_top -J -s 250

I'd like to see what metrics your iGPU supports as most of my investigation includes older iGPUs. Thanks.

Quote

January 11, 20215 yr

3 minutes ago, b3rs3rk said:
You have a very modern iGPU, could you send me the results of:
timeout -k .500 .400 intel_gpu_top -J -s 250
I'd like to see what metrics your iGPU supports as most of my investigation includes older iGPUs. Thanks.

Of course, here you go:

{
        "period": {
                "duration": 0.030292,
                "unit": "ms"
        },
        "frequency": {
                "requested": 0.000000,
                "actual": 0.000000,
                "unit": "MHz"
        },
        "interrupts": {
                "count": 0.000000,
                "unit": "irq/s"
        },
        "rc6": {
                "value": 95.507065,
                "unit": "%"
        },
        "power": {
                "value": 0.000000,
                "unit": "W"
        },
        "imc-bandwidth": {
                "reads": 34.253191,
                "writes": 12.089361,
                "unit": "MiB/s"
        },
        "engines": {
                "Render/3D/0": {
                        "busy": 0.000000,
                        "sema": 0.000000,
                        "wait": 0.000000,
                        "unit": "%"
                },
                "Blitter/0": {
                        "busy": 0.000000,
                        "sema": 0.000000,
                        "wait": 0.000000,
                        "unit": "%"
                },
                "Video/0": {
                        "busy": 0.000000,
                        "sema": 0.000000,
                        "wait": 0.000000,
                        "unit": "%"
                },
                "VideoEnhance/0": {
                        "busy": 0.000000,
                        "sema": 0.000000,
                        "wait": 0.000000,
                        "unit": "%"
                }
        }
},
{
        "period": {
                "duration": 250.577540,
                "unit": "ms"
        },
        "frequency": {
                "requested": 0.000000,
                "actual": 0.000000,
                "unit": "MHz"
        },
        "interrupts": {
                "count": 0.000000,
                "unit": "irq/s"
        },
        "rc6": {
                "value": 100.000000,
                "unit": "%"
        },
        "power": {
                "value": 0.000000,
                "unit": "W"
        },
        "imc-bandwidth": {
                "reads": 183.204454,
                "writes": 33.909700,
                "unit": "MiB/s"
        },
        "engines": {
                "Render/3D/0": {
                        "busy": 0.000000,
                        "sema": 0.000000,
                        "wait": 0.000000,
                        "unit": "%"
                },
                "Blitter/0": {
                        "busy": 0.000000,
                        "sema": 0.000000,
                        "wait": 0.000000,
                        "unit": "%"
                },
                "Video/0": {
                        "busy": 0.000000,
                        "sema": 0.000000,
                        "wait": 0.000000,
                        "unit": "%"
                },
                "VideoEnhance/0": {
                        "busy": 0.000000,
                        "sema": 0.000000,
                        "wait": 0.000000,
                        "unit": "%"
                }
        }
}

Quote

1

January 11, 20215 yr

here from another one, i5 10600

~# timeout -k .500 .400 intel_gpu_top -J -s 250

{
        "period": {
                "duration": 0.002041,
                "unit": "ms"
        },
        "frequency": {
                "requested": 0.000000,
                "actual": 0.000000,
                "unit": "MHz"
        },
        "interrupts": {
                "count": 0.000000,
                "unit": "irq/s"
        },
        "rc6": {
                "value": 90.641842,
                "unit": "%"
        },
        "power": {
                "value": 0.000000,
                "unit": "W"
        },
        "imc-bandwidth": {
                "reads": 1943.794785,
                "writes": 0.000000,
                "unit": "MiB/s"
        },
        "engines": {
                "Render/3D/0": {
                        "busy": 0.000000,
                        "sema": 0.000000,
                        "wait": 0.000000,
                        "unit": "%"
                },
                "Blitter/0": {
                        "busy": 0.000000,
                        "sema": 0.000000,
                        "wait": 0.000000,
                        "unit": "%"
                },
                "Video/0": {
                        "busy": 0.000000,
                        "sema": 0.000000,
                        "wait": 0.000000,
                        "unit": "%"
                },
                "VideoEnhance/0": {
                        "busy": 0.000000,
                        "sema": 0.000000,
                        "wait": 0.000000,
                        "unit": "%"
                }
        }
},
{
        "period": {
                "duration": 250.121355,
                "unit": "ms"
        },
        "frequency": {
                "requested": 0.000000,
                "actual": 0.000000,
                "unit": "MHz"
        },
        "interrupts": {
                "count": 0.000000,
                "unit": "irq/s"
        },
        "rc6": {
                "value": 100.000000,
                "unit": "%"
        },
        "power": {
                "value": 0.000000,
                "unit": "W"
        },
        "imc-bandwidth": {
                "reads": 1865.401382,
                "writes": 134.832255,
                "unit": "MiB/s"
        },
        "engines": {
                "Render/3D/0": {
                        "busy": 0.000000,
                        "sema": 0.000000,
                        "wait": 0.000000,
                        "unit": "%"
                },
                "Blitter/0": {
                        "busy": 0.000000,
                        "sema": 0.000000,
                        "wait": 0.000000,
                        "unit": "%"
                },
                "Video/0": {
                        "busy": 0.000000,
                        "sema": 0.000000,
                        "wait": 0.000000,
                        "unit": "%"
                },
                "VideoEnhance/0": {
                        "busy": 0.000000,
                        "sema": 0.000000,
                        "wait": 0.000000,
                        "unit": "%"
                }
        }

the one from a 9900 (my cpu without "k") is in my post from yesterday.

Quote

January 11, 20215 yr

Author

Hmm. I'm thinking rc6 is some kind of reverse power state. Like the higher the percentage, the less power you're using. Might be something I can use for a power-based slider bar only using the inverse of it to plot.

Quote

January 12, 20215 yr

Author

New test plugin version available. Running Check for Updates on the plugin page should show it available for install. This will only show for the people that are currently using the iGPU test branch I posted before.

Let me know how it goes. Thanks!

Edited January 12, 20215 yr by b3rs3rk
clarification

Quote

January 13, 20215 yr

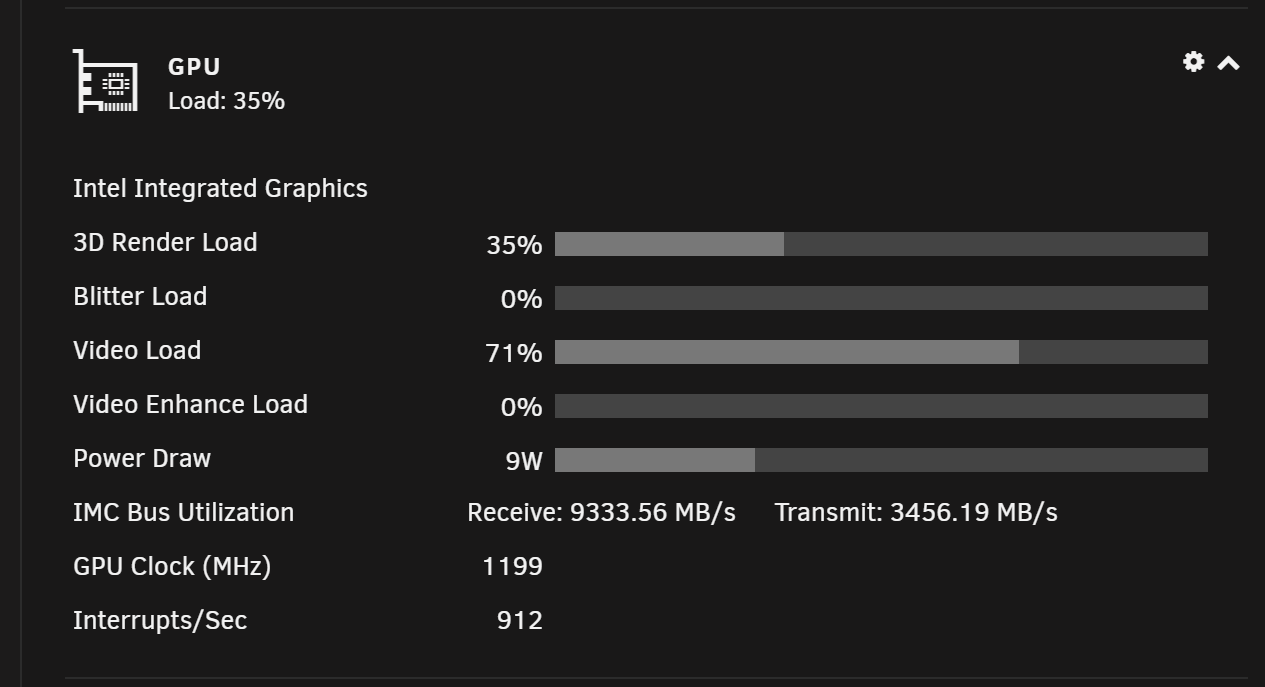

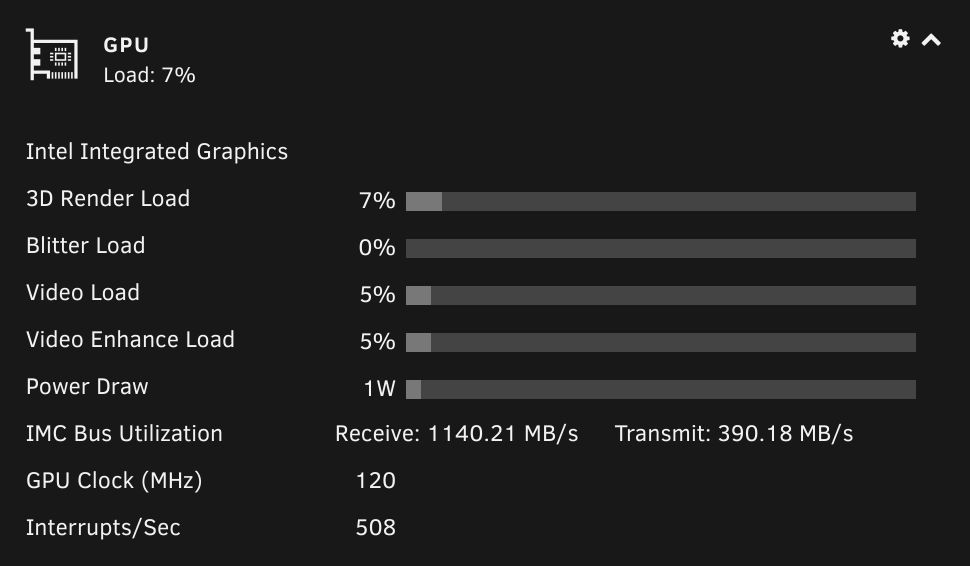

@b3rs3rk looking all good here


the IMC Bus is always active as note, with or without transcodes, but also in igpu top .. so plugin works asexpected and i guess its normal for permanent activity

Quote

1

January 13, 20215 yr

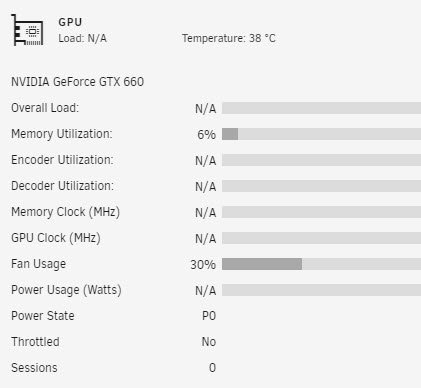

I get now respons from the card, but is working fine in Plex for transcoding.

<?xml version="1.0" ?>
<!DOCTYPE nvidia_smi_log SYSTEM "nvsmi_device_v11.dtd">
<nvidia_smi_log>
<timestamp>Wed Jan 13 10:27:27 2021</timestamp>
<driver_version>455.45.01</driver_version>
<cuda_version>11.1</cuda_version>
<attached_gpus>1</attached_gpus>
<gpu id="00000000:01:00.0">
<product_name>GeForce GTX 660</product_name>
<product_brand>GeForce</product_brand>
<display_mode>N/A</display_mode>
<display_active>N/A</display_active>
<persistence_mode>Disabled</persistence_mode>
<mig_mode>
<current_mig>N/A</current_mig>
<pending_mig>N/A</pending_mig>
</mig_mode>
<accounting_mode>N/A</accounting_mode>
<accounting_mode_buffer_size>N/A</accounting_mode_buffer_size>
<driver_model>
<current_dm>N/A</current_dm>
<pending_dm>N/A</pending_dm>
</driver_model>
<serial>N/A</serial>
<uuid>GPU-11937745-bca2-abe7-0c3b-a71c7f3fe69a</uuid>
<minor_number>0</minor_number>
<vbios_version>80.06.10.00.5E</vbios_version>
<multigpu_board>N/A</multigpu_board>
<board_id>N/A</board_id>
<gpu_part_number>N/A</gpu_part_number>
<inforom_version>
<img_version>N/A</img_version>
<oem_object>N/A</oem_object>
<ecc_object>N/A</ecc_object>
<pwr_object>N/A</pwr_object>
</inforom_version>
<gpu_operation_mode>
<current_gom>N/A</current_gom>
<pending_gom>N/A</pending_gom>
</gpu_operation_mode>
<gpu_virtualization_mode>
<virtualization_mode>N/A</virtualization_mode>
<host_vgpu_mode>N/A</host_vgpu_mode>
</gpu_virtualization_mode>
<ibmnpu>
<relaxed_ordering_mode>N/A</relaxed_ordering_mode>
</ibmnpu>
<pci>
<pci_bus>01</pci_bus>
<pci_device>00</pci_device>
<pci_domain>0000</pci_domain>
<pci_device_id>11C010DE</pci_device_id>
<pci_bus_id>00000000:01:00.0</pci_bus_id>
<pci_sub_system_id>28711462</pci_sub_system_id>
<pci_gpu_link_info>
<pcie_gen>
<max_link_gen>N/A</max_link_gen>
<current_link_gen>N/A</current_link_gen>
</pcie_gen>
<link_widths>
<max_link_width>N/A</max_link_width>
<current_link_width>N/A</current_link_width>
</link_widths>
</pci_gpu_link_info>
<pci_bridge_chip>
<bridge_chip_type>N/A</bridge_chip_type>
<bridge_chip_fw>N/A</bridge_chip_fw>
</pci_bridge_chip>
<replay_counter>0</replay_counter>
<replay_rollover_counter>0</replay_rollover_counter>
<tx_util>N/A</tx_util>
<rx_util>N/A</rx_util>
</pci>
<fan_speed>30 %</fan_speed>
<performance_state>P0</performance_state>
<clocks_throttle_reasons>N/A</clocks_throttle_reasons>
<fb_memory_usage>
<total>1999 MiB</total>
<used>125 MiB</used>
<free>1874 MiB</free>
</fb_memory_usage>
<bar1_memory_usage>
<total>N/A</total>
<used>N/A</used>
<free>N/A</free>
</bar1_memory_usage>
<compute_mode>Default</compute_mode>
<utilization>
<gpu_util>N/A</gpu_util>
<memory_util>N/A</memory_util>
<encoder_util>N/A</encoder_util>
<decoder_util>N/A</decoder_util>
</utilization>
<encoder_stats>
<session_count>N/A</session_count>
<average_fps>N/A</average_fps>
<average_latency>N/A</average_latency>
</encoder_stats>
<fbc_stats>
<session_count>N/A</session_count>
<average_fps>N/A</average_fps>
<average_latency>N/A</average_latency>
</fbc_stats>
<ecc_mode>
<current_ecc>N/A</current_ecc>
<pending_ecc>N/A</pending_ecc>
</ecc_mode>
<ecc_errors>
<volatile>
<single_bit>
<device_memory>N/A</device_memory>
<register_file>N/A</register_file>
<l1_cache>N/A</l1_cache>
<l2_cache>N/A</l2_cache>
<texture_memory>N/A</texture_memory>
<texture_shm>N/A</texture_shm>
<cbu>N/A</cbu>
<total>N/A</total>
</single_bit>
<double_bit>
<device_memory>N/A</device_memory>
<register_file>N/A</register_file>
<l1_cache>N/A</l1_cache>
<l2_cache>N/A</l2_cache>
<texture_memory>N/A</texture_memory>
<texture_shm>N/A</texture_shm>
<cbu>N/A</cbu>
<total>N/A</total>
</double_bit>
</volatile>
<aggregate>
<single_bit>
<device_memory>N/A</device_memory>
<register_file>N/A</register_file>
<l1_cache>N/A</l1_cache>
<l2_cache>N/A</l2_cache>
<texture_memory>N/A</texture_memory>
<texture_shm>N/A</texture_shm>
<cbu>N/A</cbu>
<total>N/A</total>
</single_bit>
<double_bit>
<device_memory>N/A</device_memory>
<register_file>N/A</register_file>
<l1_cache>N/A</l1_cache>
<l2_cache>N/A</l2_cache>
<texture_memory>N/A</texture_memory>
<texture_shm>N/A</texture_shm>
<cbu>N/A</cbu>
<total>N/A</total>
</double_bit>
</aggregate>
</ecc_errors>
<retired_pages>
<multiple_single_bit_retirement>
<retired_count>N/A</retired_count>
<retired_pagelist>N/A</retired_pagelist>
</multiple_single_bit_retirement>
<double_bit_retirement>
<retired_count>N/A</retired_count>
<retired_pagelist>N/A</retired_pagelist>
</double_bit_retirement>
<pending_blacklist>N/A</pending_blacklist>
<pending_retirement>N/A</pending_retirement>
</retired_pages>
<remapped_rows>N/A</remapped_rows>
<temperature>
<gpu_temp>39 C</gpu_temp>
<gpu_temp_max_threshold>N/A</gpu_temp_max_threshold>
<gpu_temp_slow_threshold>N/A</gpu_temp_slow_threshold>
<gpu_temp_max_gpu_threshold>N/A</gpu_temp_max_gpu_threshold>
<memory_temp>N/A</memory_temp>
<gpu_temp_max_mem_threshold>N/A</gpu_temp_max_mem_threshold>
</temperature>
<power_readings>
<power_state>P0</power_state>
<power_management>N/A</power_management>
<power_draw>N/A</power_draw>
<power_limit>N/A</power_limit>
<default_power_limit>N/A</default_power_limit>
<enforced_power_limit>N/A</enforced_power_limit>
<min_power_limit>N/A</min_power_limit>
<max_power_limit>N/A</max_power_limit>
</power_readings>
<clocks>
<graphics_clock>N/A</graphics_clock>
<sm_clock>N/A</sm_clock>
<mem_clock>N/A</mem_clock>
<video_clock>N/A</video_clock>
</clocks>
<applications_clocks>
<graphics_clock>N/A</graphics_clock>
<mem_clock>N/A</mem_clock>
</applications_clocks>
<default_applications_clocks>
<graphics_clock>N/A</graphics_clock>
<mem_clock>N/A</mem_clock>
</default_applications_clocks>
<max_clocks>
<graphics_clock>N/A</graphics_clock>
<sm_clock>N/A</sm_clock>
<mem_clock>N/A</mem_clock>
<video_clock>N/A</video_clock>
</max_clocks>
<max_customer_boost_clocks>
<graphics_clock>N/A</graphics_clock>
</max_customer_boost_clocks>
<clock_policy>
<auto_boost>N/A</auto_boost>
<auto_boost_default>N/A</auto_boost_default>
</clock_policy>
<supported_clocks>N/A</supported_clocks>
<processes>
</processes>
<accounted_processes>N/A</accounted_processes>
</gpu>

<?php

define('ES', ' ');

include 'lib/Main.php';
include 'lib/Nvidia.php';
include 'lib/Error.php';

use \gpustat\lib\Main;
use \gpustat\lib\Nvidia;
use \gpustat\lib\Error;

if (!isset($gpustat_cfg)) {
$gpustat_cfg = Main::getSettings();
}

switch ($gpustat_cfg['VENDOR']) {
case 'nvidia':
// $gpu_inventory should be set if called from settings page code
if (isset($gpustat_inventory) && $gpustat_inventory) {
// Settings page looks for $gpu_data specifically
$gpustat_data = (new Nvidia($gpustat_cfg))->getInventory();
} else {
(new Nvidia($gpustat_cfg))->getStatistics();
}
break;
default:
new Error(

total 24
-rw-rw-rw- 1 root root 3716 Jan 8 16:00 GPUStatSettings.page
-rw-rw-rw- 1 root root 75 Jan 8 16:00 README.md
-rw-rw-rw- 1 root root 218 Jan 8 16:00 default.cfg
-rw-rw-rw- 1 root root 6849 Jan 8 16:00 gpustatus.page
-rw-rw-rw- 1 root root 738 Jan 8 16:00 gpustatus.php
drwxr-xr-x 2 root root 60 Jan 8 16:00 icons/
drwxr-xr-x 2 root root 60 Jan 8 16:00 images/
drwxr-xr-x 2 root root 140 Jan 8 16:00 lib/
drwxr-xr-x 2 root root 60 Jan 8 16:00 license/

Quote

January 13, 20215 yr

Author

@Daniel Tildeman Your GPU is rather old and based on the nvidia-smi output you pasted you're correctly seeing the few metrics your card provides. For that card, you should only be monitoring memory utilization, fan usage, temperature and power state in the plugin. This should limit the amount of N/A's shown on the screen to a bare minimum and clean up the plugin a bit. Again, the plugin doesn't do miracle work so you're going to have to update your card to get better monitoring support. Sorry.

Quote

1

January 13, 20215 yr

Author

iGPU support is now merged to master and plugin is updated. Thanks to everyone who tried it on the test branch. You can now revert to the CA version by removing my plugin altogether and reinstalling from CA for cleanliness.

Quote

1

January 13, 20215 yr

On 1/11/2021 at 4:24 PM, b3rs3rk said:
You have a very modern iGPU, could you send me the results of:
timeout -k .500 .400 intel_gpu_top -J -s 250
I'd like to see what metrics your iGPU supports as most of my investigation includes older iGPUs. Thanks.

I have a 2288g xeon, the plug-in installed, everything works, shows the load. Do I need to introduce this team?

Edited January 13, 20215 yr by muwahhid

Quote

January 13, 20215 yr

Author

1 minute ago, muwahhid said:

I have a 2288g hon, the plug-in installed, everything works, shows the load. Do I need to introduce this team?

I've seen results from a UHD 630 I believe, but since you are the first to say you have a Xeon package instead of a desktop processor it can't hurt to look!

Quote

January 13, 20215 yr

3 minutes ago, b3rs3rk said:

I've seen results from a UHD 630 I believe, but since you are the first to say you have a Xeon package instead of a desktop processor it can't hurt to look!

root@Muwahhid:~# timeout -k .500 .400 intel_gpu_top -J -s 250

{
"period": {
"duration": 0.003470,
"unit": "ms"
},
"frequency": {
"requested": 0.000000,
"actual": 0.000000,
"unit": "MHz"
},
"interrupts": {
"count": 0.000000,
"unit": "irq/s"
},
"rc6": {
"value": 0.000000,
"unit": "%"
},
"power": {
"value": 0.000000,
"unit": "W"
},
"imc-bandwidth": {
"reads": 6771.912149,
"writes": 914.647875,
"unit": "MiB/s"
},
"engines": {
"Render/3D/0": {
"busy": 0.000000,
"sema": 0.000000,
"wait": 0.000000,
"unit": "%"
},
"Blitter/0": {
"busy": 0.000000,
"sema": 0.000000,
"wait": 0.000000,
"unit": "%"
},
"Video/0": {
"busy": 0.000000,
"sema": 0.000000,
"wait": 0.000000,
"unit": "%"
},
"VideoEnhance/0": {
"busy": 0.000000,
"sema": 0.000000,
"wait": 0.000000,
"unit": "%"
}
}
},
{
"period": {
"duration": 250.287765,
"unit": "ms"
},
"frequency": {
"requested": 351.595293,
"actual": 347.599892,
"unit": "MHz"
},
"interrupts": {
"count": 0.000000,
"unit": "irq/s"
},
"rc6": {
"value": 100.000000,
"unit": "%"
},
"power": {
"value": 0.000000,
"unit": "W"
},
"imc-bandwidth": {
"reads": 2198.192893,
"writes": 534.106159,
"unit": "MiB/s"
},
"engines": {
"Render/3D/0": {
"busy": 0.000000,
"sema": 0.000000,
"wait": 0.000000,
"unit": "%"
},
"Blitter/0": {
"busy": 0.000000,
"sema": 0.000000,
"wait": 0.000000,
"unit": "%"
},
"Video/0": {
"busy": 0.000000,
"sema": 0.000000,
"wait": 0.000000,
"unit": "%"
},
"VideoEnhance/0": {
"busy": 0.000000,
"sema": 0.000000,
"wait": 0.000000,
"unit": "%"
}
}

Quote

January 13, 20215 yr

Author

@muwahhid Yeah, looks like I'm capturing everything useful from that so far. I have only seen less metrics than yours, but never more. Maybe Intel will expand this in the future.

Quote

January 13, 20215 yr

9 minutes ago, b3rs3rk said:

@muwahhid Yeah, looks like I'm capturing everything useful from that so far. I have only seen less metrics than yours, but never more. Maybe Intel will expand this in the future.

What does Blitter load mean? I only have it 0, no activity.

Quote

January 13, 20215 yr

Author

1 minute ago, muwahhid said:

What does Blitter load mean? I only have it 0, no activity.

I haven't seen anyone using it during transcoding operations. From Intel:

Quote

The graphics controller provides a hardware-based BLT engine to off load the work of moving blocks of graphics data from the host CPU. Although the BLT engine is often used simply to copy a block of graphics data from the source to the destination, it also has the ability to perform more complex functions.

Quote

1

January 13, 20215 yr

For some reason I can't get intel_gpu_top to display anything. At the command line all I get is file not found.

Quote

January 13, 20215 yr

Hey, just installed this alongside Intel GPU TOP - for some reason nothing displays at all on the dashboard

I am running an Intel 6600K btw

EDIT: Forgot to select Intel in the plugin settings! That resolved my issue

Edited January 13, 20215 yr by thelemon22

Quote

1

January 13, 20215 yr

51 minutes ago, madelectron said:

For some reason I can't get intel_gpu_top to display anything. At the command line all I get is file not found.

Can you open up a terminal of Unraid itself and type in 'intel_gpu_top' and post a screenshot from the output here?

Also have you IOMMU enabled in your BIOS?

Quote

January 13, 20215 yr

1 hour ago, ich777 said:

Can you open up a terminal of Unraid itself and type in 'intel_gpu_top' and post a screenshot from the output here?

Also have you IOMMU enabled in your BIOS?

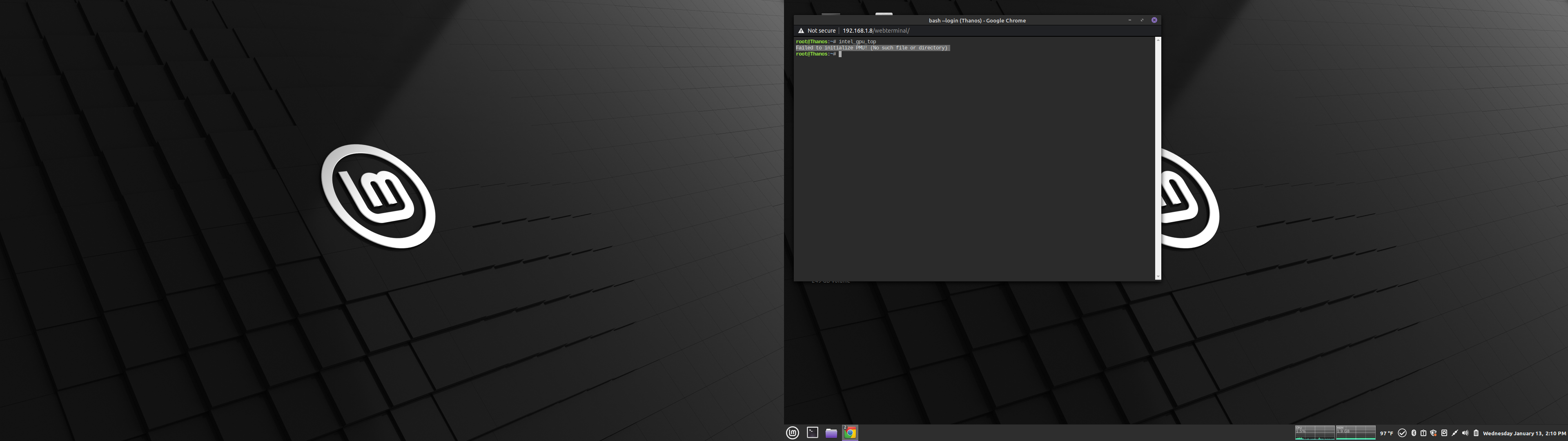

When I run intel_gpu_top this is the result:

Failed to initialize PMU! (No such file or directory)

and yes I have IOMMU enabled.

Quote

January 13, 20215 yr

9 minutes ago, madelectron said:

When I run intel_gpu_top this is the result:

Failed to initialize PMU! (No such file or directory)

and yes I have IOMMU enabled.

What kind of CPU do you have?

Quote

January 13, 20215 yr

1 hour ago, ich777 said:

What kind of CPU do you have?

10700k

Quote

January 14, 20215 yr

My nvidia GTX 1070 is not showing up in the dashboard. Output from the suggested commands:

Output from nvidia-smi -q -x -i 0

Quote

<?xml version="1.0" ?>
<!DOCTYPE nvidia_smi_log SYSTEM "nvsmi_device_v11.dtd">
<nvidia_smi_log>
<timestamp>Wed Jan 13 21:21:22 2021</timestamp>
<driver_version>455.45.01</driver_version>
<cuda_version>11.1</cuda_version>
<attached_gpus>1</attached_gpus>
<gpu id="00000000:29:00.0">
<product_name>GeForce GTX 1070</product_name>
<product_brand>GeForce</product_brand>
<display_mode>Disabled</display_mode>
<display_active>Disabled</display_active>
<persistence_mode>Disabled</persistence_mode>
<mig_mode>
<current_mig>N/A</current_mig>
<pending_mig>N/A</pending_mig>
</mig_mode>
<accounting_mode>Disabled</accounting_mode>
<accounting_mode_buffer_size>4000</accounting_mode_buffer_size>
<driver_model>
<current_dm>N/A</current_dm>
<pending_dm>N/A</pending_dm>
</driver_model>
<serial>N/A</serial>
<uuid>GPU-1cebdfc1-3a20-87e5-12a9-2b3422e6f045</uuid>
<minor_number>0</minor_number>
<vbios_version>86.04.50.00.63</vbios_version>
<multigpu_board>No</multigpu_board>
<board_id>0x2900</board_id>
<gpu_part_number>N/A</gpu_part_number>
<inforom_version>
<img_version>G001.0000.01.04</img_version>
<oem_object>1.1</oem_object>
<ecc_object>N/A</ecc_object>
<pwr_object>N/A</pwr_object>
</inforom_version>
<gpu_operation_mode>
<current_gom>N/A</current_gom>
<pending_gom>N/A</pending_gom>
</gpu_operation_mode>
<gpu_virtualization_mode>
<virtualization_mode>None</virtualization_mode>
<host_vgpu_mode>N/A</host_vgpu_mode>
</gpu_virtualization_mode>
<ibmnpu>
<relaxed_ordering_mode>N/A</relaxed_ordering_mode>
</ibmnpu>
<pci>
<pci_bus>29</pci_bus>
<pci_device>00</pci_device>
<pci_domain>0000</pci_domain>
<pci_device_id>1B8110DE</pci_device_id>
<pci_bus_id>00000000:29:00.0</pci_bus_id>
<pci_sub_system_id>85991043</pci_sub_system_id>
<pci_gpu_link_info>
<pcie_gen>
<max_link_gen>3</max_link_gen>
<current_link_gen>3</current_link_gen>
</pcie_gen>
<link_widths>
<max_link_width>16x</max_link_width>
<current_link_width>16x</current_link_width>
</link_widths>
</pci_gpu_link_info>
<pci_bridge_chip>
<bridge_chip_type>N/A</bridge_chip_type>
<bridge_chip_fw>N/A</bridge_chip_fw>
</pci_bridge_chip>
<replay_counter>0</replay_counter>
<replay_rollover_counter>0</replay_rollover_counter>
<tx_util>0 KB/s</tx_util>
<rx_util>0 KB/s</rx_util>
</pci>
<fan_speed>0 %</fan_speed>
<performance_state>P0</performance_state>
<clocks_throttle_reasons>
<clocks_throttle_reason_gpu_idle>Active</clocks_throttle_reason_gpu_idle>
<clocks_throttle_reason_applications_clocks_setting>Not Active</clocks_throttle_reason_applications_clocks_setting>
<clocks_throttle_reason_sw_power_cap>Not Active</clocks_throttle_reason_sw_power_cap>
<clocks_throttle_reason_hw_slowdown>Not Active</clocks_throttle_reason_hw_slowdown>
<clocks_throttle_reason_hw_thermal_slowdown>Not Active</clocks_throttle_reason_hw_thermal_slowdown>
<clocks_throttle_reason_hw_power_brake_slowdown>Not Active</clocks_throttle_reason_hw_power_brake_slowdown>
<clocks_throttle_reason_sync_boost>Not Active</clocks_throttle_reason_sync_boost>
<clocks_throttle_reason_sw_thermal_slowdown>Not Active</clocks_throttle_reason_sw_thermal_slowdown>
<clocks_throttle_reason_display_clocks_setting>Not Active</clocks_throttle_reason_display_clocks_setting>
</clocks_throttle_reasons>
<fb_memory_usage>
<total>8119 MiB</total>
<used>2 MiB</used>
<free>8117 MiB</free>
</fb_memory_usage>
<bar1_memory_usage>
<total>256 MiB</total>
<used>2 MiB</used>
<free>254 MiB</free>
</bar1_memory_usage>
<compute_mode>Default</compute_mode>
<utilization>
<gpu_util>0 %</gpu_util>
<memory_util>0 %</memory_util>
<encoder_util>0 %</encoder_util>
<decoder_util>0 %</decoder_util>
</utilization>
<encoder_stats>
<session_count>0</session_count>
<average_fps>0</average_fps>
<average_latency>0</average_latency>
</encoder_stats>
<fbc_stats>
<session_count>0</session_count>
<average_fps>0</average_fps>
<average_latency>0</average_latency>
</fbc_stats>
<ecc_mode>
<current_ecc>N/A</current_ecc>
<pending_ecc>N/A</pending_ecc>
</ecc_mode>
<ecc_errors>
<volatile>
<single_bit>
<device_memory>N/A</device_memory>
<register_file>N/A</register_file>
<l1_cache>N/A</l1_cache>
<l2_cache>N/A</l2_cache>
<texture_memory>N/A</texture_memory>
<texture_shm>N/A</texture_shm>
<cbu>N/A</cbu>
<total>N/A</total>
</single_bit>
<double_bit>
<device_memory>N/A</device_memory>
<register_file>N/A</register_file>
<l1_cache>N/A</l1_cache>
<l2_cache>N/A</l2_cache>
<texture_memory>N/A</texture_memory>
<texture_shm>N/A</texture_shm>
<cbu>N/A</cbu>
<total>N/A</total>
</double_bit>
</volatile>
<aggregate>
<single_bit>
<device_memory>N/A</device_memory>
<register_file>N/A</register_file>
<l1_cache>N/A</l1_cache>
<l2_cache>N/A</l2_cache>
<texture_memory>N/A</texture_memory>
<texture_shm>N/A</texture_shm>
<cbu>N/A</cbu>
<total>N/A</total>
</single_bit>
<double_bit>
<device_memory>N/A</device_memory>
<register_file>N/A</register_file>
<l1_cache>N/A</l1_cache>
<l2_cache>N/A</l2_cache>
<texture_memory>N/A</texture_memory>
<texture_shm>N/A</texture_shm>
<cbu>N/A</cbu>
<total>N/A</total>
</double_bit>
</aggregate>
</ecc_errors>
<retired_pages>
<multiple_single_bit_retirement>
<retired_count>N/A</retired_count>
<retired_pagelist>N/A</retired_pagelist>
</multiple_single_bit_retirement>
<double_bit_retirement>
<retired_count>N/A</retired_count>
<retired_pagelist>N/A</retired_pagelist>
</double_bit_retirement>
<pending_blacklist>N/A</pending_blacklist>
<pending_retirement>N/A</pending_retirement>
</retired_pages>
<remapped_rows>N/A</remapped_rows>
<temperature>
<gpu_temp>55 C</gpu_temp>
<gpu_temp_max_threshold>99 C</gpu_temp_max_threshold>
<gpu_temp_slow_threshold>96 C</gpu_temp_slow_threshold>
<gpu_temp_max_gpu_threshold>N/A</gpu_temp_max_gpu_threshold>
<memory_temp>N/A</memory_temp>
<gpu_temp_max_mem_threshold>N/A</gpu_temp_max_mem_threshold>
</temperature>
<power_readings>
<power_state>P0</power_state>
<power_management>Supported</power_management>
<power_draw>34.43 W</power_draw>
<power_limit>166.10 W</power_limit>
<default_power_limit>166.10 W</default_power_limit>
<enforced_power_limit>166.10 W</enforced_power_limit>
<min_power_limit>75.00 W</min_power_limit>
<max_power_limit>200.00 W</max_power_limit>
</power_readings>
<clocks>
<graphics_clock>1480 MHz</graphics_clock>
<sm_clock>1480 MHz</sm_clock>
<mem_clock>4006 MHz</mem_clock>
<video_clock>1341 MHz</video_clock>
</clocks>
<applications_clocks>
<graphics_clock>N/A</graphics_clock>
<mem_clock>N/A</mem_clock>
</applications_clocks>
<default_applications_clocks>
<graphics_clock>N/A</graphics_clock>
<mem_clock>N/A</mem_clock>
</default_applications_clocks>
<max_clocks>
<graphics_clock>2037 MHz</graphics_clock>
<sm_clock>2037 MHz</sm_clock>
<mem_clock>4004 MHz</mem_clock>
<video_clock>1708 MHz</video_clock>
</max_clocks>
<max_customer_boost_clocks>
<graphics_clock>N/A</graphics_clock>
</max_customer_boost_clocks>
<clock_policy>
<auto_boost>N/A</auto_boost>
<auto_boost_default>N/A</auto_boost_default>
</clock_policy>
<supported_clocks>N/A</supported_clocks>
<processes>
</processes>
<accounted_processes>
</accounted_processes>
</gpu>

</nvidia_smi_log>

Output from cd /usr/local/emhttp/plugins/gpustat/ && php ./gpustatus.php

Quote

Error 200: Configuration file contains invalid settings

There's obviously something wrong here. I have tried uninstalling and reinstalling the plugin. I'm able to transcode plex with my GPU so I know it's working.

gpustatus.php looks like this:

Quote

define('ES', ' ');

include 'lib/Main.php';
include 'lib/Nvidia.php';
include 'lib/Intel.php';
include 'lib/Error.php';

use \gpustat\lib\Main;
use \gpustat\lib\Nvidia;
use \gpustat\lib\Intel;
use \gpustat\lib\Error;

if (!isset($gpustat_cfg)) {
$gpustat_cfg = Main::getSettings();
}

// $gpu_inventory should be set if called from settings page code
if (isset($gpustat_inventory) && $gpustat_inventory) {
$gpustat_cfg['inventory'] = true;
// Settings page looks for $gpu_data specifically -- inventory all supported GPU types
$gpustat_data = (new Nvidia($gpustat_cfg))->getInventory();
$gpustat_data += (new Intel($gpustat_cfg))->getInventory();

} else {

switch ($gpustat_cfg['VENDOR']) {
case 'nvidia':
(new Nvidia($gpustat_cfg))->getStatistics();
break;

case 'intel':
(new Intel($gpustat_cfg))->getStatistics();
break;
default:
new Error(Error::CONFIG_SETTINGS_NOT_VALID, '', false);
}
}

Quote

January 14, 20215 yr

Hey there,

I'm on unRAID 6.9 rc2, with the new update, whenever I restart the server, the plugin does not load and it gets listed in Plugin File Install Errors.

when I delete and reinstall the plugin, it works. However, if I restart the server it won't load again.

GPU: Nvidia P2200

Regards,

Quote

January 14, 20215 yr

First of all great work on this Plugin, I really like it and been using it for ages

I have just updated to the latest version and now don't get any output on the dashboard


I am using a Quadro P2000 GPU and unRAID 6.9 rc2

Vendor is set to NVIDIA and all other options are "Yes"

nvidia-smi in terminal is outputting correctly

thanks!

Edited January 14, 20215 yr by bigup

Quote

[PLUGIN] GPU Statistics

Featured Replies

Top Posters In This Topic

Popular Days

Most Popular Posts

juan11perez

mlapaglia

SimonF

Posted Images

Join the conversation

Top Posters In This Topic

Popular Days

Most Popular Posts

juan11perez

mlapaglia

SimonF

Posted Images

Account

Navigation

Search

Configure browser push notifications

Chrome (Android)

Chrome (Desktop)

Safari (iOS 16.4+)

Safari (macOS)

Edge (Android)

Edge (Desktop)

Firefox (Android)

Firefox (Desktop)
