[PLUGIN] GPU Statistics

b3rs3rk · March 13, 2020

I'm getting the same scrunching. Default UI, 1920x1080

What version of UNRAID are you running? Are you using default theme or theme engine?

paulrbeers · March 13, 2020

Just wanted to say this plugin is great! Although makes me realize how I need to use a better GPU than a P400 (just transcoding 1 4K to 720P is taking 70% of my GPU Memory). The update to do multiple GPU's is awesome. When I first installed it picked up my currently un-used GPU (just an extra I have in the box for testing VM's), but being able to switch to the one I use for Plex is great!

Thank you!!

mattekure · March 14, 2020

I am using the White theme. I found that decreasing the font size resolved it, but it makes it harder to read. I had originally set it to Very Large (bad eyes), and by changing it to Normal, its no longer scrunched together.

mattekure · March 14, 2020

If there is anything you can do to support using the larger font sizes, it would be greatly appreciated.

Turge · March 14, 2020

18 hours ago, mattekure said:

I'm getting the numbers scrunched up for Encoder and Decoder Utilization

You can easily fix it yourself. Install Theme Engine, go to the Theme settings, enable Advanced View and add the following to the Custom Styling section:

span.gpu {
   width: 150px!important;
}

You can adjust the width to your liking.

PTRFRLL · March 14, 2020


Anyone experiencing empty stats? Unraid 6.8.3

Was working fine until I updated the plugin to 2020-03-14

Here's the output from

nvidia-smi -x -q

<?xml version="1.0" ?>
<!DOCTYPE nvidia_smi_log SYSTEM "nvsmi_device_v10.dtd">
<nvidia_smi_log>
	<timestamp>Sat Mar 14 14:55:23 2020</timestamp>
	<driver_version>440.59</driver_version>
	<cuda_version>10.2</cuda_version>
	<attached_gpus>1</attached_gpus>
	<gpu id="00000000:01:00.0">
		<product_name>GeForce GTX 1660 Ti</product_name>
		<product_brand>GeForce</product_brand>
		<display_mode>Disabled</display_mode>
		<display_active>Disabled</display_active>
		<persistence_mode>Enabled</persistence_mode>
		<accounting_mode>Disabled</accounting_mode>
		<accounting_mode_buffer_size>4000</accounting_mode_buffer_size>
		<driver_model>
			<current_dm>N/A</current_dm>
			<pending_dm>N/A</pending_dm>
		</driver_model>
		<serial>N/A</serial>
		<uuid>GPU-4686c842-7851-9b12-c973-0ea9df59f775</uuid>
		<minor_number>0</minor_number>
		<vbios_version>90.16.20.00.89</vbios_version>
		<multigpu_board>No</multigpu_board>
		<board_id>0x100</board_id>
		<gpu_part_number>N/A</gpu_part_number>
		<inforom_version>
			<img_version>G001.0000.02.04</img_version>
			<oem_object>1.1</oem_object>
			<ecc_object>N/A</ecc_object>
			<pwr_object>N/A</pwr_object>
		</inforom_version>
		<gpu_operation_mode>
			<current_gom>N/A</current_gom>
			<pending_gom>N/A</pending_gom>
		</gpu_operation_mode>
		<gpu_virtualization_mode>
			<virtualization_mode>None</virtualization_mode>
			<host_vgpu_mode>N/A</host_vgpu_mode>
		</gpu_virtualization_mode>
		<ibmnpu>
			<relaxed_ordering_mode>N/A</relaxed_ordering_mode>
		</ibmnpu>
		<pci>
			<pci_bus>01</pci_bus>
			<pci_device>00</pci_device>
			<pci_domain>0000</pci_domain>
			<pci_device_id>218210DE</pci_device_id>
			<pci_bus_id>00000000:01:00.0</pci_bus_id>
			<pci_sub_system_id>3FBE1458</pci_sub_system_id>
			<pci_gpu_link_info>
				<pcie_gen>
					<max_link_gen>3</max_link_gen>
					<current_link_gen>1</current_link_gen>
				</pcie_gen>
				<link_widths>
					<max_link_width>16x</max_link_width>
					<current_link_width>8x</current_link_width>
				</link_widths>
			</pci_gpu_link_info>
			<pci_bridge_chip>
				<bridge_chip_type>N/A</bridge_chip_type>
				<bridge_chip_fw>N/A</bridge_chip_fw>
			</pci_bridge_chip>
			<replay_counter>0</replay_counter>
			<replay_rollover_counter>0</replay_rollover_counter>
			<tx_util>0 KB/s</tx_util>
			<rx_util>0 KB/s</rx_util>
		</pci>
		<fan_speed>0 %</fan_speed>
		<performance_state>P8</performance_state>
		<clocks_throttle_reasons>
			<clocks_throttle_reason_gpu_idle>Active</clocks_throttle_reason_gpu_idle>
			<clocks_throttle_reason_applications_clocks_setting>Not Active</clocks_throttle_reason_applications_clocks_setting>
			<clocks_throttle_reason_sw_power_cap>Not Active</clocks_throttle_reason_sw_power_cap>
			<clocks_throttle_reason_hw_slowdown>Not Active</clocks_throttle_reason_hw_slowdown>
			<clocks_throttle_reason_hw_thermal_slowdown>Not Active</clocks_throttle_reason_hw_thermal_slowdown>
			<clocks_throttle_reason_hw_power_brake_slowdown>Not Active</clocks_throttle_reason_hw_power_brake_slowdown>
			<clocks_throttle_reason_sync_boost>Not Active</clocks_throttle_reason_sync_boost>
			<clocks_throttle_reason_sw_thermal_slowdown>Not Active</clocks_throttle_reason_sw_thermal_slowdown>
			<clocks_throttle_reason_display_clocks_setting>Not Active</clocks_throttle_reason_display_clocks_setting>
		</clocks_throttle_reasons>
		<fb_memory_usage>
			<total>5944 MiB</total>
			<used>0 MiB</used>
			<free>5944 MiB</free>
		</fb_memory_usage>
		<bar1_memory_usage>
			<total>256 MiB</total>
			<used>2 MiB</used>
			<free>254 MiB</free>
		</bar1_memory_usage>
		<compute_mode>Default</compute_mode>
		<utilization>
			<gpu_util>0 %</gpu_util>
			<memory_util>0 %</memory_util>
			<encoder_util>0 %</encoder_util>
			<decoder_util>0 %</decoder_util>
		</utilization>
		<encoder_stats>
			<session_count>0</session_count>
			<average_fps>0</average_fps>
			<average_latency>0</average_latency>
		</encoder_stats>
		<fbc_stats>
			<session_count>0</session_count>
			<average_fps>0</average_fps>
			<average_latency>0</average_latency>
		</fbc_stats>
		<ecc_mode>
			<current_ecc>N/A</current_ecc>
			<pending_ecc>N/A</pending_ecc>
		</ecc_mode>
		<ecc_errors>
			<volatile>
				<sram_correctable>N/A</sram_correctable>
				<sram_uncorrectable>N/A</sram_uncorrectable>
				<dram_correctable>N/A</dram_correctable>
				<dram_uncorrectable>N/A</dram_uncorrectable>
			</volatile>
			<aggregate>
				<sram_correctable>N/A</sram_correctable>
				<sram_uncorrectable>N/A</sram_uncorrectable>
				<dram_correctable>N/A</dram_correctable>
				<dram_uncorrectable>N/A</dram_uncorrectable>
			</aggregate>
		</ecc_errors>
		<retired_pages>
			<multiple_single_bit_retirement>
				<retired_count>N/A</retired_count>
				<retired_pagelist>N/A</retired_pagelist>
			</multiple_single_bit_retirement>
			<double_bit_retirement>
				<retired_count>N/A</retired_count>
				<retired_pagelist>N/A</retired_pagelist>
			</double_bit_retirement>
			<pending_blacklist>N/A</pending_blacklist>
			<pending_retirement>N/A</pending_retirement>
		</retired_pages>
		<temperature>
			<gpu_temp>39 C</gpu_temp>
			<gpu_temp_max_threshold>95 C</gpu_temp_max_threshold>
			<gpu_temp_slow_threshold>92 C</gpu_temp_slow_threshold>
			<gpu_temp_max_gpu_threshold>90 C</gpu_temp_max_gpu_threshold>
			<memory_temp>N/A</memory_temp>
			<gpu_temp_max_mem_threshold>N/A</gpu_temp_max_mem_threshold>
		</temperature>
		<power_readings>
			<power_state>P8</power_state>
			<power_management>Supported</power_management>
			<power_draw>7.40 W</power_draw>
			<power_limit>120.00 W</power_limit>
			<default_power_limit>120.00 W</default_power_limit>
			<enforced_power_limit>120.00 W</enforced_power_limit>
			<min_power_limit>70.00 W</min_power_limit>
			<max_power_limit>150.00 W</max_power_limit>
		</power_readings>
		<clocks>
			<graphics_clock>300 MHz</graphics_clock>
			<sm_clock>300 MHz</sm_clock>
			<mem_clock>405 MHz</mem_clock>
			<video_clock>540 MHz</video_clock>
		</clocks>
		<applications_clocks>
			<graphics_clock>N/A</graphics_clock>
			<mem_clock>N/A</mem_clock>
		</applications_clocks>
		<default_applications_clocks>
			<graphics_clock>N/A</graphics_clock>
			<mem_clock>N/A</mem_clock>
		</default_applications_clocks>
		<max_clocks>
			<graphics_clock>2130 MHz</graphics_clock>
			<sm_clock>2130 MHz</sm_clock>
			<mem_clock>6001 MHz</mem_clock>
			<video_clock>1950 MHz</video_clock>
		</max_clocks>
		<max_customer_boost_clocks>
			<graphics_clock>N/A</graphics_clock>
		</max_customer_boost_clocks>
		<clock_policy>
			<auto_boost>N/A</auto_boost>
			<auto_boost_default>N/A</auto_boost_default>
		</clock_policy>
		<supported_clocks>N/A</supported_clocks>
		<processes>
		</processes>
		<accounted_processes>
		</accounted_processes>
	</gpu>

</nvidia_smi_log>

but the output from gpustatus.php appears to be empty:

[]

Edited March 14, 2020 by PTRFRLL

b3rs3rk · March 14, 2020

1 hour ago, PTRFRLL said:
Anyone experiencing empty stats? Unraid 6.8.3

Was working fine until I updated the plugin to 2020-03-14

Here's the output from
nvidia-smi -x -q
but the output from gpustatus.php appears to be empty:
[]

Did you go back to the settings and make sure you set which GPU to monitor? By default it should choose GPU 0 but it might not be selecting one for some reason.

Introduced in this version is the inventory process which involves running 'nvidia-smi -L' to populate the settings page. If this isn't working for you it might cause the array to be empty.

Edited March 14, 2020 by b3rs3rk

b3rs3rk · March 14, 2020

9 hours ago, mattekure said:

If there is anything you can do to support using the larger font sizes, it would be greatly appreciated.

I will look into it but CSS isn't really my strongpoint. Especailly when I'm cutting my own code inline with everyone else's. Could be a nightmare for me when the next plugin is authored. That's partly the reason I'm namespacing my code so that I don't have to worry about jacking up people's variables (or having my own get jacked).

JaseNZ · March 15, 2020

Yup mine is empty after upgrade as well, Seems to be seeing everything though. 439558183_ScreenShot2020-03-15at4_09_46PM.png.bd460ca918753d65622e9ed66c6e8302.png

rjlan · March 15, 2020

same

sittingmongoose · March 15, 2020

Mines empty too

SuberSeb · March 15, 2020

Quadro P400, empty after latest update

isvein · March 15, 2020

Same here.

b3rs3rk · March 15, 2020

24 minutes ago, isvein said:

Same here.

Can you tell me what it is in your /boot/config/plugins/gpustat/gpustat.cfg? @isvein @SuberSeb @sittingmongoose @rjlan @JaseNZ

Edited March 15, 2020 by b3rs3rk
Add mentions

SuberSeb · March 15, 2020

53 minutes ago, b3rs3rk said:

Can you tell me what it is in your /boot/config/plugins/gpustat/gpustat.cfg? @isvein @SuberSeb @sittingmongoose @rjlan @JaseNZ

Only this:

VENDOR=nvidia

I fixed that. For some reason plugin don't detect my GPU. I just pressed "Default" button and all works.
Config after that:

VENDOR="nvidia"
GPUID="0"
TEMPFORMAT="C"

Edited March 15, 2020 by SuberSeb

b3rs3rk · March 15, 2020

4 minutes ago, SuberSeb said:
Only this:
VENDOR=nvidia

I'm guessing when you update the plugin it doesn't push down the new settings in the plg file. You can do one of the following:

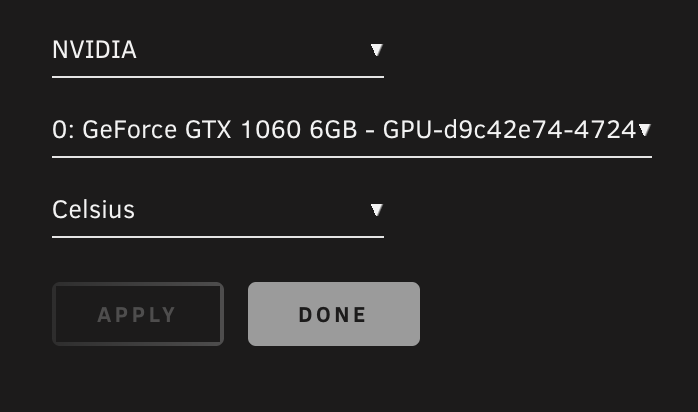

Go to the Settings page. Change the temperature setting and then change it back and Select your GPU. You should be able to Apply after this. Click Apply. Check that file again to see if it has TEMPFORMAT and GPUID set. If it is set, check to make sure you have data. The problem is the settings page expects all of those settings to be default so it doesn't let the user Apply.

OR

Simply remove the plugin and re-install. This should re-write your cfg file with the defaults.

In my next update, my defaults will be merged with runtime settings each run so this shouldn't happen.

@isvein@SuberSeb @sittingmongoose @rjlan @JaseNZ

Edited March 15, 2020 by b3rs3rk
mentions

sjaak · March 15, 2020

V2020-03-14 here, still on 6.8.2 and its working fine, Thanks for this plugin!

isvein · March 15, 2020

3 hours ago, b3rs3rk said:

Can you tell me what it is in your /boot/config/plugins/gpustat/gpustat.cfg? @isvein @SuberSeb @sittingmongoose @rjlan @JaseNZ

VENDOR="nvidia"
GPUID="0"
TEMPFORMAT="C"

b3rs3rk · March 15, 2020

16 minutes ago, isvein said:

VENDOR="nvidia"
GPUID="0"
TEMPFORMAT="C"

And it still isn't working?

What is the result of

nvidia-smi -q -x -i 0

PTRFRLL · March 15, 2020

4 hours ago, SuberSeb said:

I just pressed "Default" button and all works.

This worked for me as well!

Edited March 15, 2020 by PTRFRLL

ThomasEg · March 15, 2020

Am i'm the only one not getting anything on the dashboard at all? As in no "GPU"-section whatsoever?

I'm brand new to Unraid. So it is most likely something simple...do i need to do something for things to be added to the dashboard? Everything else works as expected(can do HW transcoding in Plex etc). nvidia-smi returns correct data(GTX1070 etc) and gpustat.cfg also looks good. I'm running 6.6.7...

Ideas?

/Thomas

b3rs3rk · March 15, 2020

41 minutes ago, ThomasEg said:

Am i'm the only one not getting anything on the dashboard at all? As in no "GPU"-section whatsoever?

I'm brand new to Unraid. So it is most likely something simple...do i need to do something for things to be added to the dashboard? Everything else works as expected(can do HW transcoding in Plex etc). nvidia-smi returns correct data(GTX1070 etc) and gpustat.cfg also looks good. I'm running 6.6.7...

Ideas?

/Thomas

Minimum version is 6.7.1. This app shouldn't even show up for you in Community Applications.

trurl · March 15, 2020

41 minutes ago, ThomasEg said:

I'm running 6.6.7...

This plugin is much newer than that. Don't know if it's compatible or not.

isvein · March 15, 2020

2 hours ago, b3rs3rk said:
And it still isn't working?

What is the result of
nvidia-smi -q -x -i 0

Works fine after latest update

ThomasEg · March 15, 2020

35 minutes ago, b3rs3rk said:

Minimum version is 6.7.1. This app shouldn't even show up for you in Community Applications.

🤦‍♂️ I can't belive i missed that... I just grapped it from unraid.net today...i dont get how i managed to get such an old version 🤔

...at least it was a easy fix! Thanks for the response!

35 minutes ago, trurl said:

This plugin is much newer than that. Don't know if it's compatible or not.

...its not

[PLUGIN] GPU Statistics

Recommended Posts

b3rs3rk

Top Posters In This Topic

Popular Days

Top Posters In This Topic

Popular Days

Popular Posts

b3rs3rk

juan11perez

mlapaglia

Posted Images

paulrbeers

mattekure

mattekure

Turge

PTRFRLL

b3rs3rk

b3rs3rk

JaseNZ

rjlan

sittingmongoose

SuberSeb

isvein

b3rs3rk

SuberSeb

b3rs3rk

sjaak

isvein

b3rs3rk

PTRFRLL

ThomasEg

b3rs3rk

trurl

isvein

ThomasEg

Join the conversation

b3rs3rk

juan11perez

mlapaglia
