November 19, 20214 yr ich777 thanks for the confirmation . I had read in various post that you could only use 1 lane , however i took a chance as the other unit were out of stock at the time and some thing is better than nothing but still struggling to get it right. I will get there in the end. At one point i had it working in Proxmox for a while unRaid is a friendlier system for a newbie. So the edgetpu will work with 1 lane in a m2 slot as it is found by the software? thanks again
November 19, 20214 yr Speaking of the above. Can someone recommend me a Coral for PCIe or and adapter? Which works well with what adapter? I unfortunately dont have any m.2 slots on my mobo, but would really like to use a Coral. Was thinking of some M.2 adapter but I got really lost as to what would actually work.

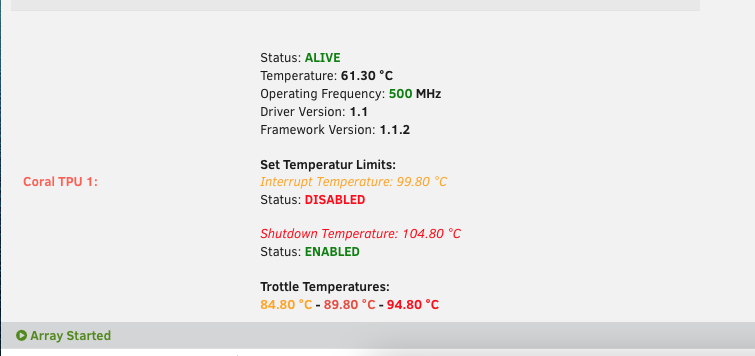

November 19, 20214 yr 4 minutes ago, mikey6283 said: So the edgetpu will work with 1 lane in a m2 slot as it is found by the software? Exactly. Only one Edge TPU will work because only one lane is available, if you got two lanes both TPUs will work. Please keep in mind you have to come up with a way to cool the TPU(s) since they are really hot in your case if they are currently idling.
November 19, 20214 yr 5 minutes ago, SavellM said: Can someone recommend me a Coral for PCIe or and adapter? Are you own the real M.2 (only one TPU) or the Dual Edge TPU (two TPUs) or better speaking how is it keyed?
November 19, 20214 yr Just now, ich777 said: Are you owning the real M.2 (only one TPU) or the Dual Edge TPU (two TPUs) or better speaking how is it keyed? Currently I dont have any of them. I was looking the last couple of days but got lost in the woods. I was thinking maybe getting a dual m.2 to pcie adapter with 2x coral m.2's but honestly no idea. I have 5 cams maybe more in the future if this helps, and i'd love to get into face detection.
November 19, 20214 yr SaveIIm hi if you go to PI Hut https://thepihut.com/products/google-coral-m-2-accelerator-a-e-key they have some in stock they may be able to help.
November 19, 20214 yr Just now, mikey6283 said: SaveIIm hi if you go to PI Hut https://thepihut.com/products/google-coral-m-2-accelerator-a-e-key they have some in stock they may be able to help. Awesome yea I saw that, its perfect but I need a way to plug it in
November 19, 20214 yr 7 minutes ago, SavellM said: I was thinking maybe getting a dual m.2 to pcie adapter with 2x coral m.2's but honestly no idea. I bought this Adapter for my Dual Edge TPU, this is basically a WiFi key (you don't need to plug in the USB cable). But keep in mind if you buy this adapter you only have a single PCIe lane so only one TPU will work. This adapter should also work with the module that @mikey6283 recommended...
November 19, 20214 yr 1 minute ago, ich777 said: I bought this Adapter for my Dual Edge TPU, this is basically a WiFi key. But keep in mind if you buy this adapter you only have a single PCIe lane so only one TPU will work. This adapter should also work with the module that @mikey6283 recommended... Sorry was just looking up my mobo: With that adapter would I need to plug in the usb and all that? So a wifi adapter should work.
November 19, 20214 yr 9 minutes ago, SavellM said: With that adapter would I need to plug in the usb and all that? Those adapters only have a USB connector because most of the WiFi combo cards have Bluetooth too and Bluetooth is most of the times connected through the USB bus. 10 minutes ago, SavellM said: So a wifi adapter should work. Yes, but only has one lane, so to speak if you buy a Dual Edge TPU only one will work, all others should work fine.
November 19, 20214 yr Trying to get this setup while waiting for my tpu (have a dual m.2 already, but no adapter yet) Im having some trouble with it consuming massive CPU (50+ % of all the cores on a i5-6500) with only 1 camera, no detect, and using a substream at 5fps. Heres my config.yml: mqtt: host: 192.168.1.11 user: mqtt password: password cameras: back: ffmpeg: inputs: - path: rtsp://username:[email protected]/cam/realmonitor?channel=1&subtype=2 roles: # - detect - rtmp # detect: # width: 1920 # height: 1080 Here's my logs [s6-init] making user provided files available at /var/run/s6/etc...exited 0. [s6-init] ensuring user provided files have correct perms...exited 0. [fix-attrs.d] applying ownership & permissions fixes... [fix-attrs.d] done. [cont-init.d] executing container initialization scripts... [cont-init.d] done. [services.d] starting services [services.d] done. [2021-11-19 09:57:33] frigate.app INFO : Starting Frigate (0.9.4-26ae608) Starting migrations [2021-11-19 09:57:33] peewee_migrate INFO : Starting migrations There is nothing to migrate [2021-11-19 09:57:33] peewee_migrate INFO : There is nothing to migrate [2021-11-19 09:57:33] detector.cpu INFO : Starting detection process: 217 [2021-11-19 09:57:33] frigate.mqtt INFO : MQTT connected [2021-11-19 09:57:33] frigate.edgetpu WARNING : CPU detectors are not recommended and should only be used for testing or for trial purposes. [2021-11-19 09:57:33] frigate.app INFO : Output process started: 219 [2021-11-19 09:57:33] ws4py INFO : Using epoll [2021-11-19 09:57:33] frigate.app INFO : Camera processor started for back: 224 [2021-11-19 09:57:33] frigate.app INFO : Capture process started for back: 226 [2021-11-19 09:57:33] ws4py INFO : Using epoll Standard frigate app right off the store, standard settings.
November 19, 20214 yr 13 hours ago, ich777 said: Exactly. Only one Edge TPU will work because only one lane is available, if you got two lanes both TPUs will work. Please keep in mind you have to come up with a way to cool the TPU(s) since they are really hot in your case if they are currently idling. How do you know whether you got two lanes or just one? If your motherboard shows (1x M.2/M-Key (PCIe 3.0) ), does it indicate i have even three lanes available and it would work with the dual edge?
November 20, 20214 yr 5 hours ago, sylus said: How do you know whether you got two lanes or just one? You'll never know, you can just try it and you have to research it. I don't have a board on hand with a M key but I have to buy a Asrock J4205-ITX in a few weeks and I can report back if this board has a slot with one or two lanes. The main problem is that if the slot is labled with M.2-WiFi the slot will be mostly limited to one PCIe lane and one USB connection because as said above most combo cards only need one PCIe lane and a USB connection. 5 hours ago, sylus said: PCIe 3.0 If it say PCIe 3.0 x2 it would be fine...
November 20, 20214 yr I keep on getting these RTMP errors [2021-11-20 16:48:56] watchdog.garage_driveway ERROR : You may have invalid args defined for this camera. [2021-11-20 16:48:56] ffmpeg.garage_driveway.detect ERROR : [rtsp @ 0x55eb04b9aa80] method DESCRIBE failed: 401 Unauthorized [2021-11-20 16:48:56] ffmpeg.garage_driveway.detect ERROR : rtsp://192.168.0.51/flv?port=1935&app=bcs&stream=channel0_ext.bcs&user=admin&password=Garage1: Server returned 401 Unauthorized (authorization failed) [2021-11-20 16:48:56] ffmpeg.front_driveway.record_rtmp ERROR : [rtsp @ 0x561e264f8e80] method DESCRIBE failed: 401 Unauthorized [2021-11-20 16:48:56] ffmpeg.front_driveway.record_rtmp ERROR : rtsp://192.168.0.48/flv?port=1935&app=bcs&stream=channel0_main.bcs&user=admin&password=Front1: Server returned 401 Unauthorized (authorization failed) [2021-11-20 16:48:56] watchdog.front_driveway INFO : Terminating the existing ffmpeg process... [2021-11-20 16:48:56] watchdog.front_driveway INFO : Waiting for ffmpeg to exit gracefully... [2021-11-20 16:48:56] ffmpeg.garage_driveway.record_rtmp ERROR : [rtsp @ 0x55c266776e80] method DESCRIBE failed: 401 Unauthorized [2021-11-20 16:48:56] ffmpeg.garage_driveway.record_rtmp ERROR : rtsp://192.168.0.51/flv?port=1935&app=bcs&stream=channel0_main.bcs&user=admin&password=Garage1: Server returned 401 Unauthorized (authorization failed) [2021-11-20 16:48:56] watchdog.garage_driveway INFO : Terminating the existing ffmpeg process... [2021-11-20 16:48:56] watchdog.garage_driveway INFO : Waiting for ffmpeg to exit gracefully... [2021-11-20 16:48:56] frigate.video INFO : front_driveway: ffmpeg sent a broken frame. memoryview assignment: lvalue and rvalue have different structures [2021-11-20 16:48:56] frigate.video INFO : front_driveway: ffmpeg process is not running. exiting capture thread... [2021-11-20 16:48:56] frigate.video INFO : garage_driveway: ffmpeg sent a broken frame. memoryview assignment: lvalue and rvalue have different structures [2021-11-20 16:48:56] frigate.video INFO : garage_driveway: ffmpeg process is not running. exiting capture thread... Config is as follows : I initially had the path as http://reolink_ 192.168 XXXX but i was getting the same errors. Running TPU.
November 21, 20214 yr I see the 2 post labeled as answered to this question, but i cannot find a solution to my problem so im asking anyways. My coral pci device is detected by my unraid server, but the drivers will not load as seen by ls /dev/apex_0 and of course my coral device does not show up in the settings -> coral driver tab in unraid. Inside the system devices tab on unraid i get this, when hovering over the "System peripheral: Global Unichip Corp. Coral Edge TPU" kernel driver in use: vfio-pci kernel modules:apex
November 21, 20214 yr On 11/19/2021 at 9:52 AM, ich777 said: I bought this Adapter for my Dual Edge TPU, this is basically a WiFi key (you don't need to plug in the USB cable). But keep in mind if you buy this adapter you only have a single PCIe lane so only one TPU will work. This adapter should also work with the module that @mikey6283 recommended... I ordered one of these which arrived yesterday, which should allow both TPU to be seen via a single PCIe lane. When I can find time to remove the server from the rack and test I'll reply back Dave
November 21, 20214 yr 17 minutes ago, Flubster said: I ordered one of these which arrived yesterday, which should allow both TPU to be seen via a single PCIe lane. Wow, cool thing. Yes, since it has a PLX chip on it this will work. But everyone that buys a Dual Edge TPU don't forget to set up proper cooling, otherwise the Dual Edge TPU can be a fire hazard, even memtioned in the documentation.
November 21, 20214 yr 1 hour ago, jonahgcarpenter said: kernel driver in use: vfio-pci Because you've bound it to VFIO, unbind it and reboot the server (Tools -> System Devices). Have you installed the Coral Driver plugin?
November 21, 20214 yr Author On 11/19/2021 at 7:01 PM, jbrukardt said: Trying to get this setup while waiting for my tpu (have a dual m.2 already, but no adapter yet) Im having some trouble with it consuming massive CPU (50+ % of all the cores on a i5-6500) with only 1 camera, no detect, and using a substream at 5fps. Heres my config.yml: mqtt: host: 192.168.1.11 user: mqtt password: password cameras: back: ffmpeg: inputs: - path: rtsp://username:[email protected]/cam/realmonitor?channel=1&subtype=2 roles: # - detect - rtmp # detect: # width: 1920 # height: 1080 Here's my logs [s6-init] making user provided files available at /var/run/s6/etc...exited 0. [s6-init] ensuring user provided files have correct perms...exited 0. [fix-attrs.d] applying ownership & permissions fixes... [fix-attrs.d] done. [cont-init.d] executing container initialization scripts... [cont-init.d] done. [services.d] starting services [services.d] done. [2021-11-19 09:57:33] frigate.app INFO : Starting Frigate (0.9.4-26ae608) Starting migrations [2021-11-19 09:57:33] peewee_migrate INFO : Starting migrations There is nothing to migrate [2021-11-19 09:57:33] peewee_migrate INFO : There is nothing to migrate [2021-11-19 09:57:33] detector.cpu INFO : Starting detection process: 217 [2021-11-19 09:57:33] frigate.mqtt INFO : MQTT connected [2021-11-19 09:57:33] frigate.edgetpu WARNING : CPU detectors are not recommended and should only be used for testing or for trial purposes. [2021-11-19 09:57:33] frigate.app INFO : Output process started: 219 [2021-11-19 09:57:33] ws4py INFO : Using epoll [2021-11-19 09:57:33] frigate.app INFO : Camera processor started for back: 224 [2021-11-19 09:57:33] frigate.app INFO : Capture process started for back: 226 [2021-11-19 09:57:33] ws4py INFO : Using epoll Standard frigate app right off the store, standard settings. FFMPEG with no hardware acc can cause this consume of CPU. This is not a config/urnaid error, so open a issue on github maybe someone can help you with your specific hardware.
November 21, 20214 yr Author On 11/20/2021 at 6:00 PM, mikey6283 said: I keep on getting these RTMP errors [2021-11-20 16:48:56] watchdog.garage_driveway ERROR : You may have invalid args defined for this camera. [2021-11-20 16:48:56] ffmpeg.garage_driveway.detect ERROR : [rtsp @ 0x55eb04b9aa80] method DESCRIBE failed: 401 Unauthorized [2021-11-20 16:48:56] ffmpeg.garage_driveway.detect ERROR : rtsp://192.168.0.51/flv?port=1935&app=bcs&stream=channel0_ext.bcs&user=admin&password=Garage1: Server returned 401 Unauthorized (authorization failed) [2021-11-20 16:48:56] ffmpeg.front_driveway.record_rtmp ERROR : [rtsp @ 0x561e264f8e80] method DESCRIBE failed: 401 Unauthorized [2021-11-20 16:48:56] ffmpeg.front_driveway.record_rtmp ERROR : rtsp://192.168.0.48/flv?port=1935&app=bcs&stream=channel0_main.bcs&user=admin&password=Front1: Server returned 401 Unauthorized (authorization failed) [2021-11-20 16:48:56] watchdog.front_driveway INFO : Terminating the existing ffmpeg process... [2021-11-20 16:48:56] watchdog.front_driveway INFO : Waiting for ffmpeg to exit gracefully... [2021-11-20 16:48:56] ffmpeg.garage_driveway.record_rtmp ERROR : [rtsp @ 0x55c266776e80] method DESCRIBE failed: 401 Unauthorized [2021-11-20 16:48:56] ffmpeg.garage_driveway.record_rtmp ERROR : rtsp://192.168.0.51/flv?port=1935&app=bcs&stream=channel0_main.bcs&user=admin&password=Garage1: Server returned 401 Unauthorized (authorization failed) [2021-11-20 16:48:56] watchdog.garage_driveway INFO : Terminating the existing ffmpeg process... [2021-11-20 16:48:56] watchdog.garage_driveway INFO : Waiting for ffmpeg to exit gracefully... [2021-11-20 16:48:56] frigate.video INFO : front_driveway: ffmpeg sent a broken frame. memoryview assignment: lvalue and rvalue have different structures [2021-11-20 16:48:56] frigate.video INFO : front_driveway: ffmpeg process is not running. exiting capture thread... [2021-11-20 16:48:56] frigate.video INFO : garage_driveway: ffmpeg sent a broken frame. memoryview assignment: lvalue and rvalue have different structures [2021-11-20 16:48:56] frigate.video INFO : garage_driveway: ffmpeg process is not running. exiting capture thread... Config is as follows : I initially had the path as http://reolink_ 192.168 XXXX but i was getting the same errors. Running TPU. Are you sure you can access to these stream for example through VLC? Anyway, I don't know reolink cameras, you can ask for help on the github as this doesn't look it is related to Unraid config.
November 21, 20214 yr 22 minutes ago, yayitazale said: Are you sure you can access to these stream for example through VLC? Anyway, I don't know reolink cameras, you can ask for help on the github as this doesn't look it is related to Unraid config. Hi I have checked VLC and i can see the image however only with rtsp:// admin: xxxx. I will try on blakeblackshear github thanks for replay

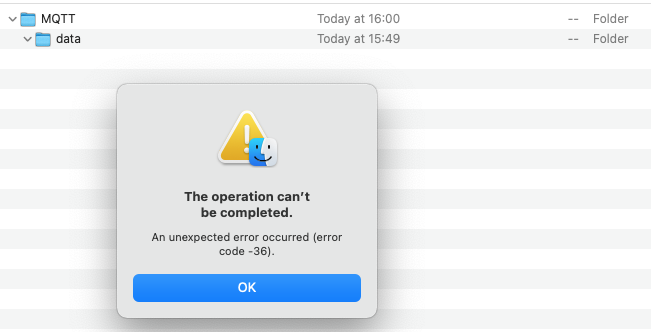

November 21, 20214 yr I have had to install Frigate/ Mgtt plugin again as they both stopped working. Now I am unable to get Spants Mgtt to statr and Frigate seems not to be configure correctly. when I try to insert my config thru smb I am unable to insert it due to the diretory for Frigate is not there. Instead MQTT is there . If i try thru the terminal I have the same error Input/Output as MQTT. Any advise would be appreciated.
November 22, 20214 yr Author 8 hours ago, mikey6283 said: I have had to install Frigate/ Mgtt plugin again as they both stopped working. Now I am unable to get Spants Mgtt to statr and Frigate seems not to be configure correctly. when I try to insert my config thru smb I am unable to insert it due to the diretory for Frigate is not there. Instead MQTT is there . If i try thru the terminal I have the same error Input/Output as MQTT. Any advise would be appreciated. Do you have the array started an working on unraid? It looks like you have some failure on disk2. Did you change the bind point to the array share or you are writting still directly to the disk?

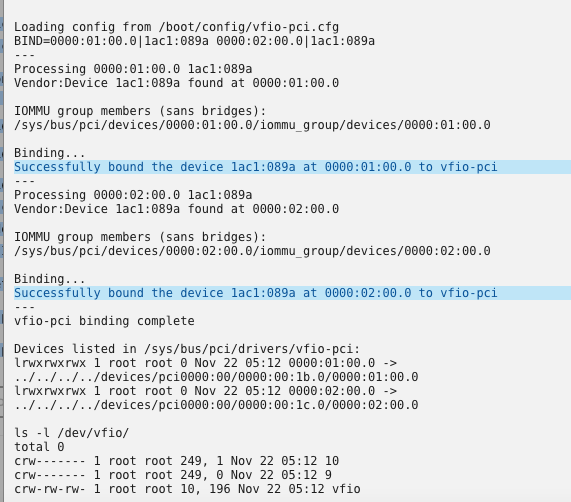

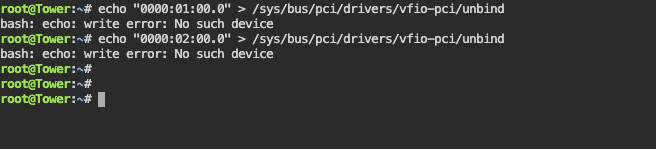

November 22, 20214 yr yayitazale Do you have the array started an working on unraid? It looks like you have some failure on disk2. Did you change the bind point to the array share or you are writting still directly to the disk? Thanks you are correct i have a faulty disk in my array so i have removed it and had to set up my unraid. Now the coral drivers are not loaded. there seem to be a problem as i cannot click on the logo to see if they are running just. I understand that my TPU are binded to Vfio-pci . I have tried to unbind them without success, any points how to unbind them. I have laso rebooted but nothing is happening. I await your comments thanks
November 22, 20214 yr Author On 11/21/2021 at 6:55 AM, ich777 said: Because you've bound it to VFIO, unbind it and reboot the server (Tools -> System Devices). Have you installed the Coral Driver plugin? The answer is there
