VirtualBox Plugin for unRAID v5 and v6


theone

Recommended Posts

Q: What other plugins do you have running? Please check that there is none that installs the older openssl package version 0.9.x. You need openssl-solibs-1.0.1c-i486-3.txz.

A: unMenu, plex, screen, apcupsd, openSSH, bpmon (or whatever it is called), and maybe one or two other unMenu packages, but the important one I'm sure then is openSSH because it does in fact install openSSL.  I will check to see what version I have.  It has an update feature I haven't checked in a while so it might even be ready to install 1.0.1c if it hasn't already.

Just chipping in on an old message... Re: OpenSSH installing openssl-solibs.  I can assure you openssh_overbyrn.plg does NOT install solibs or any SSL package. Just OpenSSH.  Can't speak for alternative methods (unmenu?) of installing SSH.

Link to comment



So VBoxSVC.log says



VirtualBox XPCOM Server 4.3.4 r91027 linux.x86 (Nov 29 2013 16:39:43) release log
00:00:00.001372 main     Log opened 2013-12-23T11:54:01.912949000Z
00:00:00.001377 main     Build Type: release
00:00:00.001386 main     OS Product: Linux
00:00:00.001391 main     OS Release: 3.9.11p-unRAID
00:00:00.001396 main     OS Version: #3 SMP Wed Oct 30 13:17:02 PDT 2013
00:00:00.001579 main     Host RAM: 2024MB total, 1564MB available
00:00:00.001592 main     Executable: /opt/VirtualBox/VBoxSVC
00:00:00.001595 main     Process ID: 8304
00:00:00.001598 main     Package type: LINUX_32BITS_GENERIC
00:00:00.119862 nspr-2   Loading settings file "/root/.VirtualBox/VirtualBox.xml" with version "1.12-linux"
00:00:00.129278 nspr-2   VDInit finished
00:00:08.077543 Watcher  ERROR [COM]: aRC=E_ACCESSDENIED (0x80070005) aIID={fafa4e17-1ee2-4905-a10e-fe7c18bf5554} aComponent={VirtualBox} aText={The object is not ready}, preserve=false



While in the syslog I only see two lines



Dec 23 12:53:46 Server rc.virtualbox[8220]: /opt/VirtualBox/VBoxManage setproperty websrvauthlibrary null
Dec 23 12:53:46 Server rc.virtualbox[8222]: vboxwebsrv service started



Nobody? I can't use virtualbox :(





Sent from my iPhone using Tapatalk

Link to comment

Q: What other plugins do you have running? Please check that there is none that installs the older openssl package version 0.9.x. You need openssl-solibs-1.0.1c-i486-3.txz.

A: unMenu, plex, screen, apcupsd, openSSH, bpmon (or whatever it is called), and maybe one or two other unMenu packages, but the important one I'm sure then is openSSH because it does in fact install openSSL.  I will check to see what version I have.  It has an update feature I haven't checked in a while so it might even be ready to install 1.0.1c if it hasn't already.

Just chipping in on an old message... Re: OpenSSH installing openssl-solibs.  I can assure you openssh_overbyrn.plg does NOT install solibs or any SSL package. Just OpenSSH.  Can't speak for alternative methods (unmenu?) of installing SSH.



overbyrn, thanks for checking in on this.  I also see that you sent me a PM on the same topic re: the github post I made.



So I do see now that you are right especially after reading your change log for all the versions of openSSH.  I saw a specific mention of removing dependency on openSSL and playing well with the likes of SF. The problem I think I had was that I did indeed have an old version of openSSL 0.9.x on my flash and loading as well as openSSL 1.x.  I can't back this up, but I think it was a remnant of an older version of openSSH.  I'm basing that on your mention of removing the dependency in the change log ;-)



In any case, to close it out with you, and clue anyone else in, once I removed the openSSL 0.9.x package the webserver started working and openSSH continued to work as expected.  The only thing left on my system was indeed openSSL 1.x which was installed by the webserver.



Thanks,

Alex

Link to comment
  • 2 weeks later...

I have manage to get SF web server install and on port 8090, got phpvirtualbox extracted to my root /www and configure the config.php and i thought i hit jack pot when the phpvirtualbox login pop up ( i left the login as admin admin) but i get the error "looks like there is no xml document" i;ve read the manuals but can seem to figure out why i get this. I will attach screen shots

Can anyone help a noob here I'm sure I got all the config correctly what I'm I missing?



Sent from my SGH-I747 using Tapatalk





Link to comment
Quote from: ijuarez on December 26, 2013, 10:27:31 AM

    I have manage to get SF web server install and on port 8090, got phpvirtualbox extracted to my root /www and configure the config.php and i thought i hit jack pot when the phpvirtualbox login pop up ( i left the login as admin admin) but i get the error "looks like there is no xml document" i;ve read the manuals but can seem to figure out why i get this. I will attach screen shots



Can anyone help a noob here I'm sure I got all the config correctly what I'm I missing?

what do you have configured in your phpvirtualbox Config.php file?



should be:

var $location = 'http://127.0.0.1:18083

or

var $location = 'http://127.0.0.1:XXXX - XXXX being what port you have configured in the VirtualBox Plugin.

Link to comment



So VBoxSVC.log says



VirtualBox XPCOM Server 4.3.4 r91027 linux.x86 (Nov 29 2013 16:39:43) release log
00:00:00.001372 main     Log opened 2013-12-23T11:54:01.912949000Z
00:00:00.001377 main     Build Type: release
00:00:00.001386 main     OS Product: Linux
00:00:00.001391 main     OS Release: 3.9.11p-unRAID
00:00:00.001396 main     OS Version: #3 SMP Wed Oct 30 13:17:02 PDT 2013
00:00:00.001579 main     Host RAM: 2024MB total, 1564MB available
00:00:00.001592 main     Executable: /opt/VirtualBox/VBoxSVC
00:00:00.001595 main     Process ID: 8304
00:00:00.001598 main     Package type: LINUX_32BITS_GENERIC
00:00:00.119862 nspr-2   Loading settings file "/root/.VirtualBox/VirtualBox.xml" with version "1.12-linux"
00:00:00.129278 nspr-2   VDInit finished
00:00:08.077543 Watcher  ERROR [COM]: aRC=E_ACCESSDENIED (0x80070005) aIID={fafa4e17-1ee2-4905-a10e-fe7c18bf5554} aComponent={VirtualBox} aText={The object is not ready}, preserve=false



While in the syslog I only see two lines



Dec 23 12:53:46 Server rc.virtualbox[8220]: /opt/VirtualBox/VBoxManage setproperty websrvauthlibrary null
Dec 23 12:53:46 Server rc.virtualbox[8222]: vboxwebsrv service started



Nobody? I can't use virtualbox :(





Sent from my iPhone using Tapatalk



hmmm also having same issue.

Link to comment

Quote from: ijuarez on December 26, 2013, 10:27:31 AM

    I have manage to get SF web server install and on port 8090, got phpvirtualbox extracted to my root /www and configure the config.php and i thought i hit jack pot when the phpvirtualbox login pop up ( i left the login as admin admin) but i get the error "looks like there is no xml document" i;ve read the manuals but can seem to figure out why i get this. I will attach screen shots



Can anyone help a noob here I'm sure I got all the config correctly what I'm I missing?

what do you have configured in your phpvirtualbox Config.php file?



should be:

var $location = 'http://127.0.0.1:18083

or

var $location = 'http://127.0.0.1:XXXX - XXXX being what port you have configured in the VirtualBox Plugin.

if you go back a page or two you can see my config. I've tried both with the tower IP and 127  and port 8090 and 8090 in virtualbox



Sent from my SGH-I747 using Tapatalk





Link to comment

I dont think the webserver and virtualbox are suppose to use the same port... keep webserver with 8090 and virtualbox with 18083. then to access phpvirtualbox goto server ip:8090



checkout the pics that i posted on page 22 http://lime-technology.com/forum/index.php?topic=25715.msg277669#msg277669



and make sure that you have 127.0.01 in both the virtualbox page and config.php file... this part kicked my butt and was racking my head to get it going...

Link to comment

I went back and looked at the rest of your virtualbox plugin settings, will you try something for me, change the "VirtualBox symbolic link (part of install package) - Change from default /boot/custom/vbox:" /boot/custom/vbox  to something else, i have mine set to /mnt/cache/vbox or something thats not on the flash drive, then restart vbox and webserver - retry login.

Link to comment

[shadow=red,left][glow=red,2,300]And now we get to my problem. [/glow][/shadow]



<snip>

But when I go to tower:8084 and click on the folder I put phpVirtualBox in, "phpvirtualbox-4.3-0" all I see is an empty page (attached).



I had the same problem. Extra changes for your lighttpd config:



- Uncomment the fastcgi.server section, and change lighttpd/php-fastcgi.socket to lighttpd-php-fastcgi.socket. Also change bin-path to /usr/bin/php-cgi

- Uncomment the mod_fastcgi line



AFAICT "lighttpd stop" doesn't actually work. So I did "ps aux | grep lighttpd" to find the PID and kill it, then launched it again. I now get a login prompt.



Your instructions were very good. Thanks for that!

Link to comment

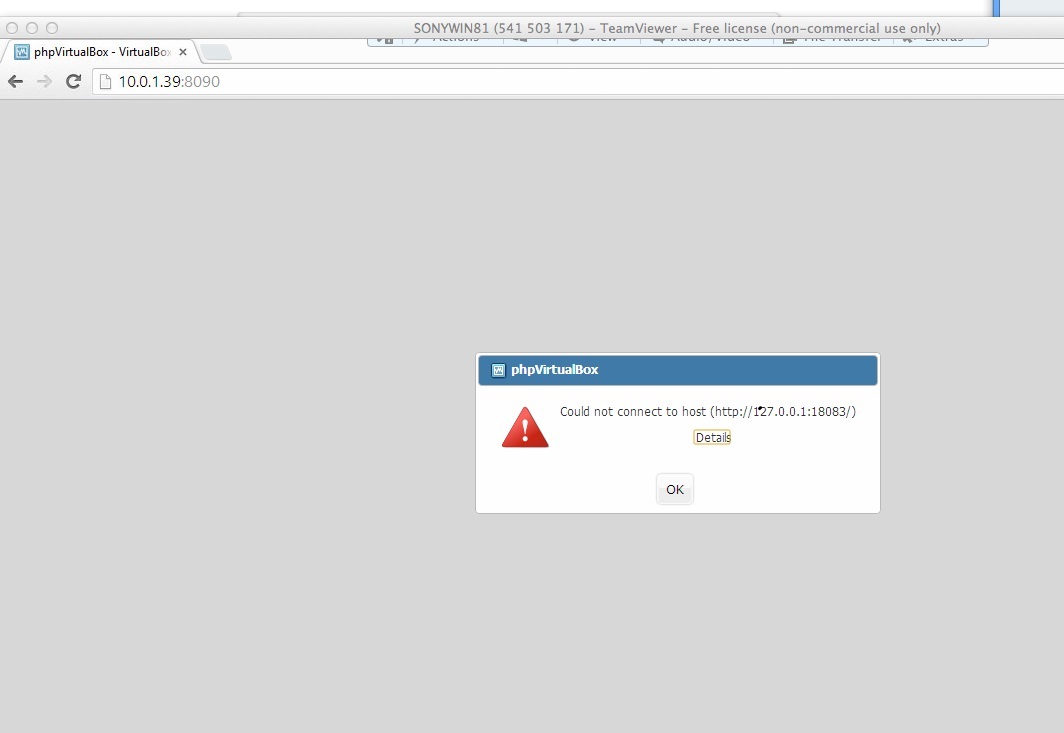

I think I got everything loaded and installed properly but getting an error in phpvirtualbox



I get the login screen then get this error



could not connect to host



You said you fixed it by setting the log file properly. Can you elaborate? Do you mean that vboxwebsrv wasn't running because of the incorrect log file?



For me, it's running according to the log file, but I still get the error above. From my log:



00:00:00.016569 SQPmp    Socket connection successful: host = 127.0.0.1, port = 18083, master socket = 12

Link to comment

I reboot as I was telling nacat78, except for me, i had trouble downloading all the files that SF webserver requires. What i had to do was install a different version of open ssl and then it was able to download the dependencies and webserver worked. However all that went down the drain when I rebooted. So I'm back at square one. Im going to try Dynamix webGUI and see that goes.



anyhow i'm keeping an eye on this thread i really want to get vbox working so i can have a few vm running and get rid of computers that i dont need.

Link to comment

@ijuarez



Lets double check everything again in virtualbox and webserver config files



/boot/config/plugins/virtualbox/virtualbox.cfg

# VirtualBox plugin configuration
INSTALL_ON_BOOT="true"
UPGRADE_ON_BOOT="false"
UPGRADE_PLG_ON_BOOT="false"
START_ON_ARRAY_MOUNT="false"
START_VMS_ON_START="false"
VBOX_SYMLINK_LOCATION="/mnt/cache/vbox"
VBOXWEBSRV_HOST_IP="127.0.0.1"
VBOXWEBSRV_HOST_PORT="18083"
VBOXWEBSRV_LOGFILE="/boot/config/plugins/virtualbox/vboxwebsrv.log"
VBOXWEBSRV_VERBOSE="true"
VBOXWEBSRV_LOGROTATE="0"
VBOXWEBSRV_LOGSIZE="50000"
VBOXWEBSRV_LOGINTERVAL="604800"



/boot/config/plugins/dynamix/dynamix.web.server.cfg

service="1"
path="/mnt/cache/www"
port="8089"
phpError="On"
error="0"
access="0"



phpvirtualbox contents dumped/extracted to the root directory of the web server - in my case /mnt/cache/www



/mnt/cache/www/config.php

/* SOAP URL of vboxwebsrv (not phpVirtualBox's URL) */
var $location = 'http://127.0.0.1:18083/';



after everything is verified correct or changes made if needed enable webserver and restart virtualbox



for my setup I would access phpVirtualbox Web Console @ 192.168.0.145:8089





Link to comment

All most everything was good except for this



VBOXWEBSRV_LOGFILE="/boot/config/plugins/virtualbox/vboxwebsrv.log"



for some reason i had put that on the cache drive, i don't know why. Fixed that and boom

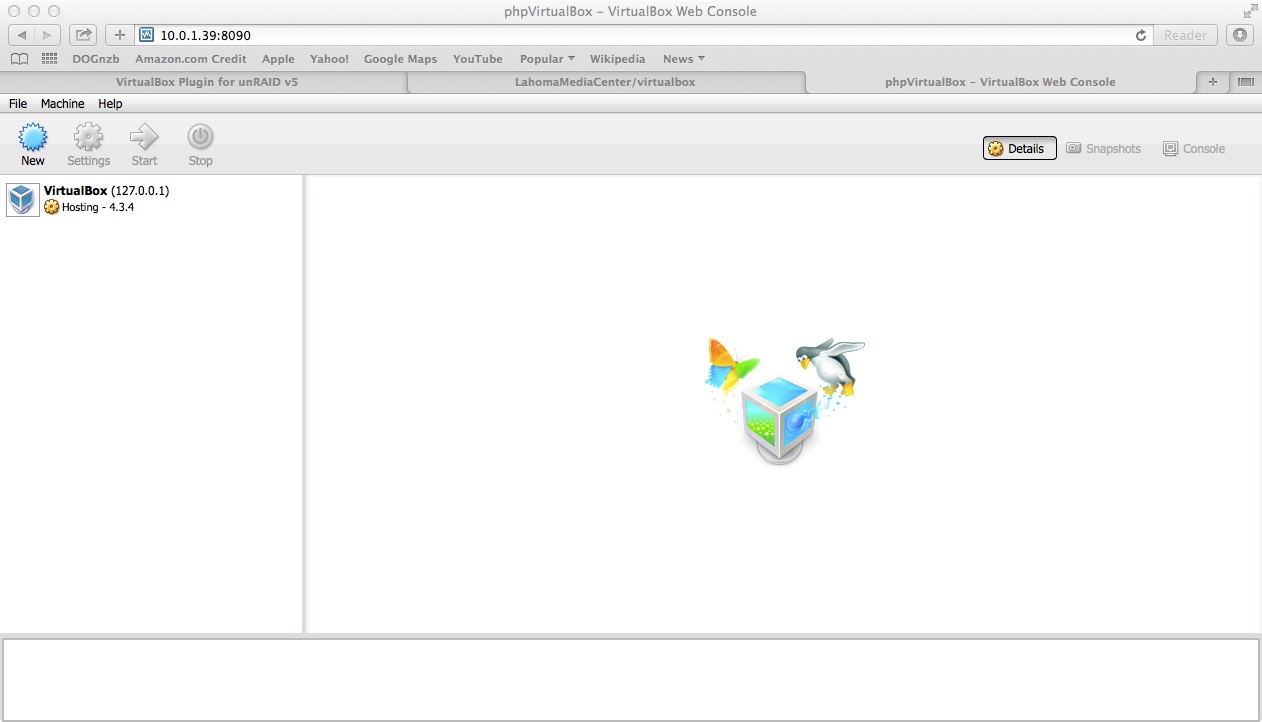

see below. know i just need to get my windows 7 vm and i am set.



nacat78 thank you very much for taking the time to put it in a simple way.
