Cessquill Posted January 14, 2018 Share Posted January 14, 2018 3 minutes ago, CHBMB said: Ok, I found the issue. Your card requires this firmware I was pulling the firmware direct from TBS not from either of the above links, but when I compared the md5 on the version I was using, it was the "Windows" version, now I've replaced it with the "Linux" version. Strangely enough I was getting the firmware from a TBS download that was for Linux firmware and all the other firmware in the pack works fine. I've altered my script now to use the "Linux" version of the firmware. See here. Fantastic! Well done, and thank you. Link to comment
fireplex Posted January 15, 2018 Share Posted January 15, 2018 (edited) Hi, I was running 6.3.5 with the official TBS DVB drivers with no issues (TBS 6285 tuner). I upgraded to 6.4.0 and then only had 2 options for TBS drivers, open source or crazycat. So I tried opensource but that driver does not work with any DVB-T2 (high definition) channels, it fails to find them or tune to them (I am using SageTV). So, I tried crazycat and the same issue :-( I backed out back to 6.3.5 and all working OK again. Can we get the official TBS DVB drivers that were in 6.3.5 as an option with unraid 6.4.0 ? Thanks! Edited January 15, 2018 by fireplex Link to comment
CHBMB Posted January 15, 2018 Share Posted January 15, 2018 Hi, I was running 6.3.5 with the official TBS DVB drivers with no issues (TBS 6285 tuner). I upgraded to 6.4.0 and then only had 2 options for TBS drivers, open source or crazycat. So I tried opensource but that driver does not work with any DVB-T2 (high definition) channels, it fails to find them or tune to them (I am using SageTV). So, I tried crazycat and the same issue :-( I backed out back to 6.3.5 and all working OK again. Can we get the official TBS DVB drivers that were in 6.3.5 as an option with unraid 6.4.0 ? Thanks!No as I explained a while back, TBS have stopped developing the old drivers, and they won't compile on the more recent kernels.When you switch to the open source drivers, I had to re-install TVH to get everything working correctly.Sent from my LG-H815 using Tapatalk Link to comment
fireplex Posted January 15, 2018 Share Posted January 15, 2018 OK, any idea why DVB-T channels work OK and it's just the DVB-T2 (HD) channels that won't work ? Seems a bit strange. Where should I log an issue ? Link to comment
Rick Gillyon Posted January 15, 2018 Share Posted January 15, 2018 What cards do you have? Are you tuning directly in Sage or using a backend? Link to comment
CHBMB Posted January 15, 2018 Share Posted January 15, 2018 OK, any idea why DVB-T channels work OK and it's just the DVB-T2 (HD) channels that won't work ? Seems a bit strange. Where should I log an issue ?Difficult to log an issue without a bit more info. Might be helpful to get some tvh logs when trying to tune/play and a screenshot of the DVB plugin screen would be useful.Sent from my LG-H815 using Tapatalk Link to comment
fireplex Posted January 15, 2018 Share Posted January 15, 2018 What cards do you have? Are you tuning directly in Sage or using a backend?Tbs6285 tune in sage directlySent from my Nexus 5X using Tapatalk Link to comment
fireplex Posted January 15, 2018 Share Posted January 15, 2018 Difficult to log an issue without a bit more info. Might be helpful to get some tvh logs when trying to tune/play and a screenshot of the DVB plugin screen would be useful.Sent from my LG-H815 using TapatalkYou mean TV headend? Guess I could look at that but no experience as use sagetv, dvb plugin screen a bit broke now after downgrading so driver not reported but it reports the card tuners fine. Will investigate Linux commands to run a channel scan.Guess otherwise will have to switch back to PCI passthrough and Windows Sent from my Nexus 5X using Tapatalk Link to comment
Rick Gillyon Posted January 15, 2018 Share Posted January 15, 2018 Don't do that, set up tvhe and opendct Dockers to use with the sagetv docker. Works perfectly. Link to comment

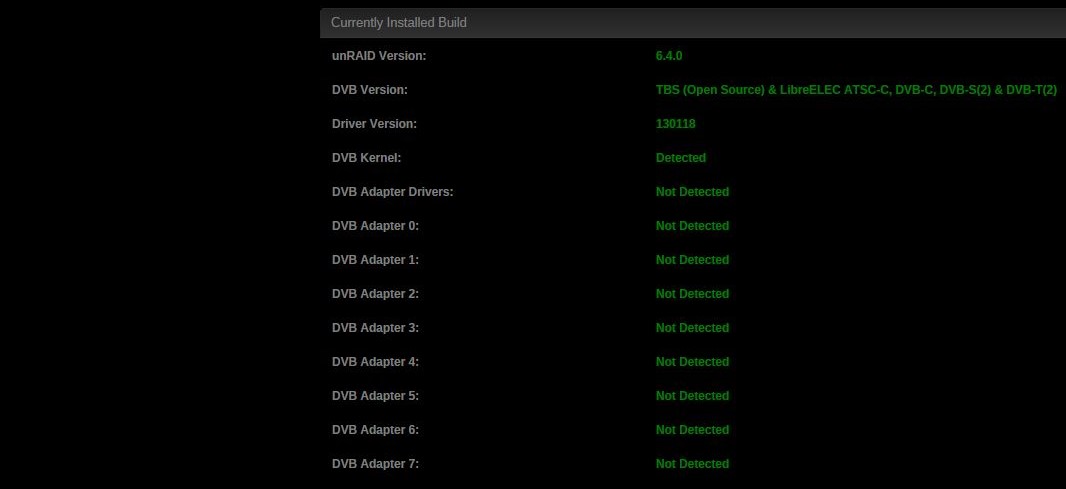

w^w Posted January 16, 2018 Share Posted January 16, 2018 On 14.01.2018 at 1:07 PM, CHBMB said: @w^w @Cessquill The v6.4.0 release has some changes regarding your cards, be grateful if either of you tested the TBS Opensource release please..... Already tested but without any luck. See screen: Link to comment
CHBMB Posted January 16, 2018 Share Posted January 16, 2018 7 hours ago, w^w said: Already tested but without any luck. See screen: OK, had another look at this, turns out the fix I implemented didn't work as the instructions aren't quite right on the TBS site. I've filed an issue with them and implemented a different way of achieving the same goal. Once that's finished compiling, I'll upload a new TBS build and post back here. Link to comment
CHBMB Posted January 16, 2018 Share Posted January 16, 2018 OK @w^w Updated v6.4.0 build uploaded. Can you try again please? Link to comment
w^w Posted January 17, 2018 Share Posted January 17, 2018 (edited) Downloaded from DVB plugin and tested. Unfortunatelly, problem still exist - this happened on my new unRAID build. BUT I tested it on my an old unRAID build and everything is OK. All 4 DVB adapters are listed on DVB plugin with 6.4.0 unRAID DVB version. Edited January 17, 2018 by w^w update Link to comment
CHBMB Posted January 17, 2018 Share Posted January 17, 2018 Downloaded from DVB plugin and tested. Unfortunatelly, problem still exist - this happened on my new unRAID build. BUT I tested it on my an old unRAID build and everything is OK. All 4 DVB adapters are listed on DVB plugin with 6.4.0 unRAID DVB version.Oh, wasn't expecting that.....Now I'm really confused. Got one idea, lemme chat to a mate I know about it and get back to you.Sent from my LG-H815 using Tapatalk Link to comment
CHBMB Posted January 17, 2018 Share Posted January 17, 2018 @w^w Can you post your hardware specs please (mobo) of old and new server. Also, might be worth a look here. Link to comment
saarg Posted January 17, 2018 Share Posted January 17, 2018 (edited) 2 hours ago, CHBMB said: @w^w Can you post your hardware specs please (mobo) of old and new server. Also, might be worth a look here. By reading my post again, I could fix the spelling error. Thanks Edited January 17, 2018 by saarg Link to comment
w^w Posted January 18, 2018 Share Posted January 18, 2018 17 hours ago, CHBMB said: @w^w Can you post your hardware specs please (mobo) of old and new server. Also, might be worth a look here. CHBMB thanks. Everything is clear now. In my new unRAID build I have ASUS P10S-M WS mobo which have PCI-E Gen3 and doesn't have Gen1 support so there is no way to detect my old TBS6984 PCI-E Gen1 card Link to comment
saarg Posted January 18, 2018 Share Posted January 18, 2018 12 minutes ago, w^w said: CHBMB thanks. Everything is clear now. In my new unRAID build I have ASUS P10S-M WS mobo which have PCI-E Gen3 and doesn't have Gen1 support so there is no way to detect my old TBS6984 PCI-E Gen1 card Are you sure? There should be a setting to force it to older gen. Link to comment
w^w Posted January 18, 2018 Share Posted January 18, 2018 2 minutes ago, saarg said: Are you sure? There should be a setting to force it to older gen. It is. There is something like "asus dmi max link speed" which have default value setted to AUTO. But when I change it to Gen1 my card is still not detected. Link to comment
saarg Posted January 18, 2018 Share Posted January 18, 2018 1 minute ago, w^w said: It is. There is something like "asus dmi max link speed" which have default value setted to AUTO. But when I change it to Gen1 my card is still not detected. Have you tried to force the L0's to what i specified in the post @CHBMB linked? If you have that option that is. Link to comment
w^w Posted January 18, 2018 Share Posted January 18, 2018 1 minute ago, saarg said: Have you tried to force the L0's to what i specified in the post @CHBMB linked? If you have that option that is. There is no such option in my BIOS. Link to comment
saarg Posted January 18, 2018 Share Posted January 18, 2018 It's the ASPM option. It looks like it's in PEG port configuration and also one called DMI Link ASPM control in DMI/OPI configuration Link to comment
w^w Posted January 18, 2018 Share Posted January 18, 2018 4 minutes ago, saarg said: It's the ASPM option. It looks like it's in PEG port configuration and also one called DMI Link ASPM control in DMI/OPI configuration Ooo. Need to investigate it when I back to home. Thanks! Link to comment
saarg Posted January 18, 2018 Share Posted January 18, 2018 7 minutes ago, w^w said: Ooo. Need to investigate it when I back to home. Thanks! No problemo. I hope it fixes the issue. Link to comment
w^w Posted January 22, 2018 Share Posted January 22, 2018 Tested almost everything but still without any luck Link to comment
