February 20, 20197 yr OK, Thanks... An then i Just have to locate my devices and Pass IT to the Container... Mfg Chris
February 20, 20197 yr 1 hour ago, cmeyer86 said: Hello maybe a noob question,but i'm new to unraid. Have i to reconfigure my unraidserver and all of my dockers after i click the Install Button in the Plugins webui!? Mfg Chris Sorry, what has this got to do with the Unraid DVB plugin? @trurl am I missing something? EDIT: OK read it again, I get what you mean now. @cmeyer86 Nope, this doesn't affect anything on the docker side of things. Edited February 20, 20197 yr by CHBMB
February 21, 20197 yr 1 hour ago, MarkGlover said: Is there a way of retaining DVB whilst also installing the new unraid Nvidia? Answered in the first posts (and several other times) in the NVidia thread.
February 21, 20197 yr Greetings, and thanks for putting together this great plugin! I'm new to Unraid, and am in the process of implementing SageTV in Docker. I'm on 6.6.6, and have the plugin installed. Based upon searches, I can see that firewire support was added in 6.3.1, and everything is working great -- with one minor exception. Firewire tuning is fully configured and communicating nicely, but there seems to be a minor issue with the Motorola DCX3200 STBs I'm using. Those with SA STBs find no issue at all, but with the Motorolla/Arris units, the channel changing command sent is not quite right, and this always results in the guide being displayed after the channel is successfully changed. Naturally, this completely obscures the recording, rendering it useless. My question: Apologies for bringing this up here, as I realize that my question might not relate to the plugin itself, but I'm hoping that someone might be able to direct me to the best place to dig deeper. In the Windows world, there are variables that can be adjusted to accommodate different models of STB, and I have successfully done this in the past. What I'm hoping to find out is if there are similar capabilities in this environment, and I'm not sure where to start as I am new to Linux/Unraid/LibreELEC/DVB. Any info, advice or redirection would be very much appreciated, as extensive searching has not yet produced results. Thanks, Shaun
February 27, 20197 yr Greetings, and thanks for putting together this great plugin! I'm new to Unraid, and am in the process of implementing SageTV in Docker. I'm on 6.6.6, and have the plugin installed. Based upon searches, I can see that firewire support was added in 6.3.1, and everything is working great -- with one minor exception. Firewire tuning is fully configured and communicating nicely, but there seems to be a minor issue with the Motorola DCX3200 STBs I'm using. Those with SA STBs find no issue at all, but with the Motorolla/Arris units, the channel changing command sent is not quite right, and this always results in the guide being displayed after the channel is successfully changed. Naturally, this completely obscures the recording, rendering it useless. My question: Apologies for bringing this up here, as I realize that my question might not relate to the plugin itself, but I'm hoping that someone might be able to direct me to the best place to dig deeper. In the Windows world, there are variables that can be adjusted to accommodate different models of STB, and I have successfully done this in the past. What I'm hoping to find out is if there are similar capabilities in this environment, and I'm not sure where to start as I am new to Linux/Unraid/LibreELEC/DVB. Any info, advice or redirection would be very much appreciated, as extensive searching has not yet produced results. Thanks, Shaun Sorry matey, got absolutely no idea, I'd be surprised if nobody on the SageTV forums had come across this. Have you asked there? Sent from my Mi A1 using Tapatalk
February 27, 20197 yr hi CHBMB, tried to install the 6.6.7 LibreELEC build and it failed. the output reads: Now installing LibreELEC version 6.6.7 Base URL: https://lsio.ams3.digitaloceanspaces.com/unraid-dvb/6-6-7/libreelec Downloading: /tmp/mediabuild/bzimage ... done Downloading: /tmp/mediabuild/bzroot ... failed (Invalid URL / Server error response) Downloading: /tmp/mediabuild/bzroot-gui ... failed (Invalid URL / Server error response) Downloading: /tmp/mediabuild/bzmodules ... done Downloading: /tmp/mediabuild/bzfirmware ... done Downloading: /tmp/mediabuild/bzimage.md5 ... done Downloading: /tmp/mediabuild/bzroot.md5 ... done Downloading: /tmp/mediabuild/bzroot-gui.md5 ... done Downloading: /tmp/mediabuild/bzmodules.md5 ... done Downloading: /tmp/mediabuild/bzfirmware.md5 ... done Checking MD5's: failed!
February 27, 20197 yr hi CHBMB, tried to install the 6.6.7 LibreELEC build and it failed. the output reads: Now installing LibreELEC version 6.6.7 Base URL: https://lsio.ams3.digitaloceanspaces.com/unraid-dvb/6-6-7/libreelec Downloading: /tmp/mediabuild/bzimage ... done Downloading: /tmp/mediabuild/bzroot ... failed (Invalid URL / Server error response) Downloading: /tmp/mediabuild/bzroot-gui ... failed (Invalid URL / Server error response) Downloading: /tmp/mediabuild/bzmodules ... done Downloading: /tmp/mediabuild/bzfirmware ... done Downloading: /tmp/mediabuild/bzimage.md5 ... done Downloading: /tmp/mediabuild/bzroot.md5 ... done Downloading: /tmp/mediabuild/bzroot-gui.md5 ... done Downloading: /tmp/mediabuild/bzmodules.md5 ... done Downloading: /tmp/mediabuild/bzfirmware.md5 ... done Checking MD5's: failed! Try now. Sorry, doing these whilst I'm on holiday, so not really concentrating.Sent from my Mi A1 using Tapatalk
February 27, 20197 yr 1 hour ago, CHBMB said: Try now. Sorry, doing these whilst I'm on holiday, so not really concentrating. Sent from my Mi A1 using Tapatalk this excuse is good enough for me worked now, like it should – thx.
February 27, 20197 yr this excuse is good enough for me worked now, like it should – thx. Yeah, I'm abroad and did these over VPN/SSH after a few beers and whilst socialising with the family. It's a wonder any of them worked.....Sent from my Mi A1 using Tapatalk
February 27, 20197 yr 8 hours ago, CHBMB said: Sorry matey, got absolutely no idea, I'd be surprised if nobody on the SageTV forums had come across this. Have you asked there? Sent from my Mi A1 using Tapatalk Thanks for the reply, CHBMB. Yes, indeed, others on the SageTV forums are experiencing the same issue, but no one really seems to know what's happening with FireWire under the hood. Stuckless, the gentleman that put together the docker image for SageTV, doesn't use FireWire at all, so has no insight. He only activated FireWire in the image at the request of Wayner, the user who first successfully implemented FireWire in Sage/Unraid. However, Wayner, who then wrote the How-To thread on SageTV Unraid FireWire, uses SA boxes, and these work just fine as built. No help there yet, but I will keep seeking answers in that community. It's probably worth mentioning again that this issue apparently isn't a SageTV thing, as Sage is just leveraging FireWire functionality in LibreELEC or DVB (not sure which). Whoever put those together likely knows how to configure FireWire more directly, and I was hoping to follow the trail of breadcrumbs back to find the right folks. It's probably not very difficult, but I'm new to this world, and still trying to find my way. I'll keep looking, and I'm sure I'll get there eventually. In my continuing research, I can see that MythTV can accommodate the Motorola STBs, and there is even a standalone program called 6200ch intended to test tuning on them. So, the Linux world has clearly dealt with this, and I just need to get to the right folks who can educate my uneducated brain on the subject. Anyway, thanks for being patient with my questions. I won't darken your doorstep any longer with this issue. 😉 Cheers, Shaun
February 27, 20197 yr Thanks for the reply, CHBMB. Yes, indeed, others on the SageTV forums are experiencing the same issue, but no one really seems to know what's happening with FireWire under the hood. Stuckless, the gentleman that put together the docker image for SageTV, doesn't use FireWire at all, so has no insight. He only activated FireWire in the image at the request of Wayner, the user who first successfully implemented FireWire in Sage/Unraid. However, Wayner, who then wrote the How-To thread on SageTV Unraid FireWire, uses SA boxes, and these work just fine as built. No help there yet, but I will keep seeking answers in that community. It's probably worth mentioning again that this issue apparently isn't a SageTV thing, as Sage is just leveraging FireWire functionality in LibreELEC or DVB (not sure which). Whoever put those together likely knows how to configure FireWire more directly, and I was hoping to follow the trail of breadcrumbs back to find the right folks. It's probably not very difficult, but I'm new to this world, and still trying to find my way. I'll keep looking, and I'm sure I'll get there eventually. In my continuing research, I can see that MythTV can accommodate the Motorola STBs, and there is even a standalone program called 6200ch intended to test tuning on them. So, the Linux world has clearly dealt with this, and I just need to get to the right folks who can educate my uneducated brain on the subject. Anyway, thanks for being patient with my questions. I won't darken your doorstep any longer with this issue. [emoji6] Cheers, Shaun Hey Shaun,It was Wayner who first asked me to activate the FireWire modules in the kernel. It's really not dependent on LibreELEC or any other DVB build, they're just bog standard Linux kernel modules that I included at his request, so that narrows it down to a basic way that the Linux kernel FireWire implementation interacts with the STB you're using.Sorry I can't be any more help, but I've never used SageTV and don't actually own any DVB hardware myself any longer, despite the fact I maintain these builds.FWIW if I were a betting man, my guess is the issue sounds like a flakey implementation of the FireWire stuff in the STB and that would be where I'd personally be looking initially rather than a bug in the Linux kernel, especially as it works fine with other STBs.Sent from my Mi A1 using Tapatalk
February 27, 20197 yr 2 hours ago, CHBMB said: Hey Shaun, It was Wayner who first asked me to activate the FireWire modules in the kernel. It's really not dependent on LibreELEC or any other DVB build, they're just bog standard Linux kernel modules that I included at his request, so that narrows it down to a basic way that the Linux kernel FireWire implementation interacts with the STB you're using. Sorry I can't be any more help, but I've never used SageTV and don't actually own any DVB hardware myself any longer, despite the fact I maintain these builds. FWIW if I were a betting man, my guess is the issue sounds like a flakey implementation of the FireWire stuff in the STB and that would be where I'd personally be looking initially rather than a bug in the Linux kernel, especially as it works fine with other STBs. Sent from my Mi A1 using Tapatalk Sincere thanks for the additional information. At the very least, this really helps me to better understand how things work. Cheers, Shaun
March 25, 20197 yr Hello again, ich have TechnoTrend S2-4200 and non of the Unraid DVB-Versions are working. On Ubuntu i had it run whit kernelversion above 4.7... What can do to get this to work with Unraid?! mfg Chris
March 26, 20197 yr On 3/25/2019 at 8:05 PM, cmeyer86 said: Hello again, ich have TechnoTrend S2-4200 and non of the Unraid DVB-Versions are working. On Ubuntu i had it run whit kernelversion above 4.7... What can do to get this to work with Unraid?! mfg Chris Can you get the output of lspci -vvvnn and dmesg With a fresh boot on the LibreELEC version on either v6.6.7 or v6.7.0rc5 Output of dmesg may be quite long so pastebin would be good.
March 26, 20197 yr Hello, Iv'e changed to LibreELEC 6.7.0rc5 and the Output of: lspci -vvvnn https://pastebin.com/8Vg7sEfC dmesg https://pastebin.com/0Grj3RvG dmesg | grep pci https://pastebin.com/RY2SiwVX i hope it helps... mfg Chris Edited March 26, 20197 yr by cmeyer86
March 27, 20197 yr 17 hours ago, cmeyer86 said: Hello, Iv'e changed to LibreELEC 6.7.0rc5 and the Output of: lspci -vvvnn https://pastebin.com/8Vg7sEfC dmesg https://pastebin.com/0Grj3RvG dmesg | grep pci https://pastebin.com/RY2SiwVX i hope it helps... mfg Chris OK, you're going to have to elaborate more on what you mean by not working. dmesg looks good [ 18.064745] m88rs6000t 2-0021: Montage M88RS6000 internal tuner successfully identified [ 18.065142] SMI PCIe driver 0000:07:00.0: DVB: registering adapter 0 frontend 0 (Montage Technology M88RS6000)... [ 18.071870] SMI PCIe driver 0000:07:00.0: TechnoTrend TT-budget S2-4200 Twin port 0 MAC: bc:ea:2b:42:05:a1 [ 18.072573] dvbdev: DVB: registering new adapter (SMI_DVB) [ 18.081921] i2c i2c-1: Added multiplexed i2c bus 3 [ 18.179286] m88rs6000t 3-0021: chip_id=64 [ 18.288267] m88rs6000t 3-0021: Montage M88RS6000 internal tuner successfully identified [ 18.288653] SMI PCIe driver 0000:07:00.0: DVB: registering adapter 1 frontend 0 (Montage Technology M88RS6000)... [ 18.295445] SMI PCIe driver 0000:07:00.0: TechnoTrend TT-budget S2-4200 Twin port 1 MAC: bc:ea:2b:42:05:a2 [ 18.296158] Registered IR keymap rc-tt-1500 [ 18.296539] rc rc0: IR (TechnoTrend TT-budget S2-4200 Twin) as /devices/pci0000:00/0000:00:01.0/0000:07:00.0/rc/rc0 [ 18.297478] input: IR (TechnoTrend TT-budget S2-4200 Twin) as /devices/pci0000:00/0000:00:01.0/0000:07:00.0/rc/rc0/input5 As does lspci 07:00.0 Multimedia video controller [0400]: Spin Master Ltd. PCIe Video Bridge [1ade:3038] (rev 01) Subsystem: Technotrend Systemtechnik GmbH TT-budget S2-4200 Twin [13c2:3016] Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr+ Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin A routed to IRQ 34 NUMA node: 0 Region 0: Memory at fbff0000 (32-bit, non-prefetchable) [size=4K] Capabilities: [40] Power Management version 3 Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0-,D1-,D2-,D3hot-,D3cold-) Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME- Capabilities: [50] MSI: Enable+ Count=1/16 Maskable- 64bit+ Address: 00000000fee003d8 Data: 0000 Capabilities: [70] Express (v1) Endpoint, MSI 00 DevCap: MaxPayload 256 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us ExtTag- AttnBtn- AttnInd- PwrInd- RBE+ FLReset- SlotPowerLimit 0.000W DevCtl: CorrErr- NonFatalErr+ FatalErr+ UnsupReq- RlxdOrd+ ExtTag- PhantFunc- AuxPwr- NoSnoop- MaxPayload 128 bytes, MaxReadReq 4096 bytes DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr- TransPend- LnkCap: Port #0, Speed 2.5GT/s, Width x1, ASPM L0s, Exit Latency L0s unlimited ClockPM- Surprise- LLActRep- BwNot- ASPMOptComp- LnkCtl: ASPM Disabled; RCB 128 bytes Disabled- CommClk+ ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt- LnkSta: Speed 2.5GT/s (ok), Width x1 (ok) TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt- Kernel driver in use: SMI PCIe driver Kernel modules: smipcie Can you screenshot the DVB plugin page for me please? And try and tell me what steps you've taken so far that has shown it's not working.

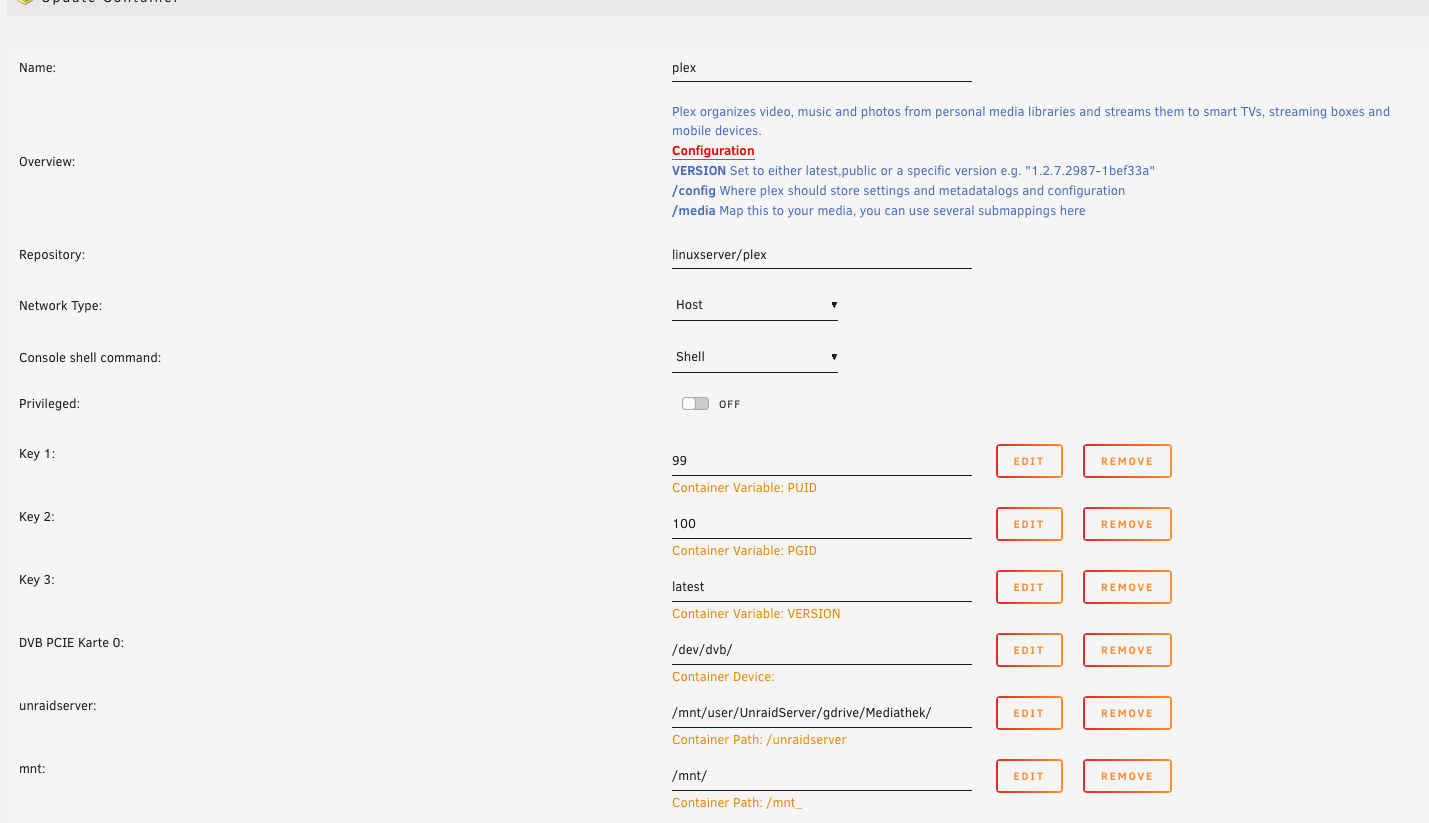

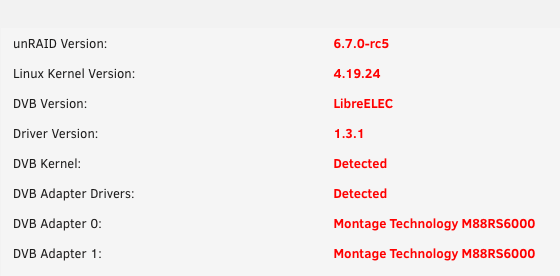

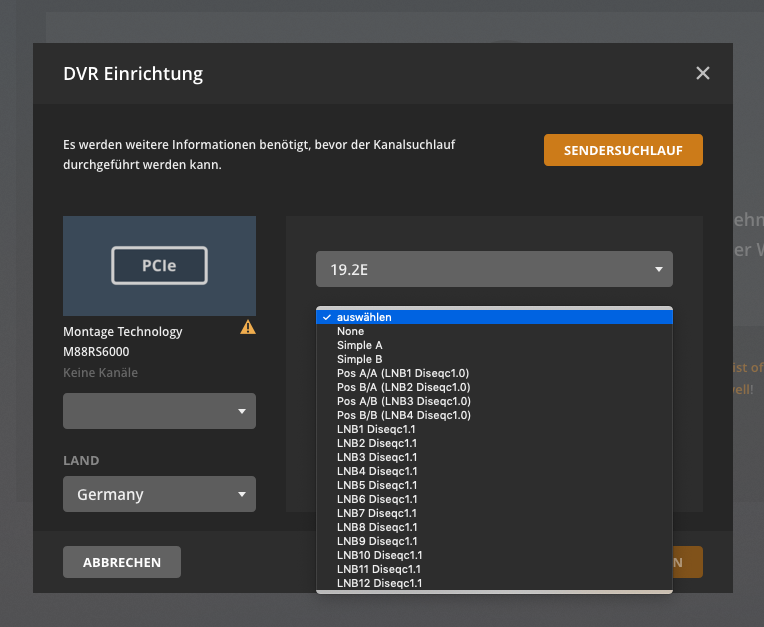

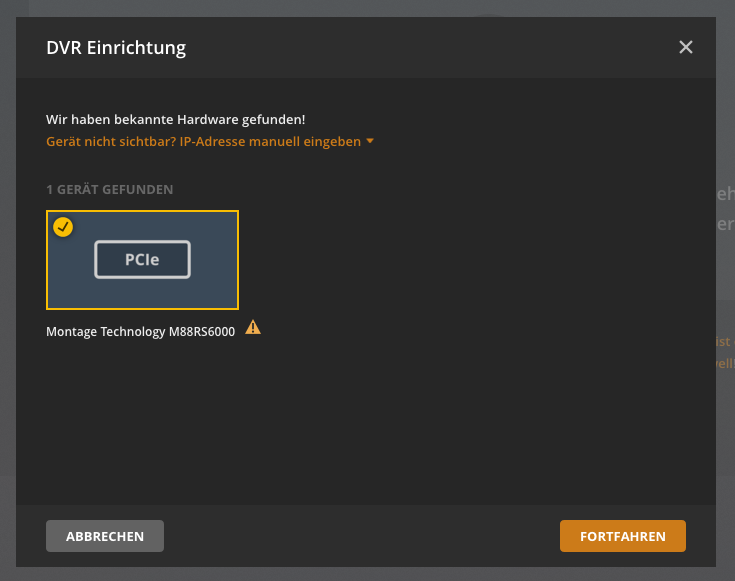

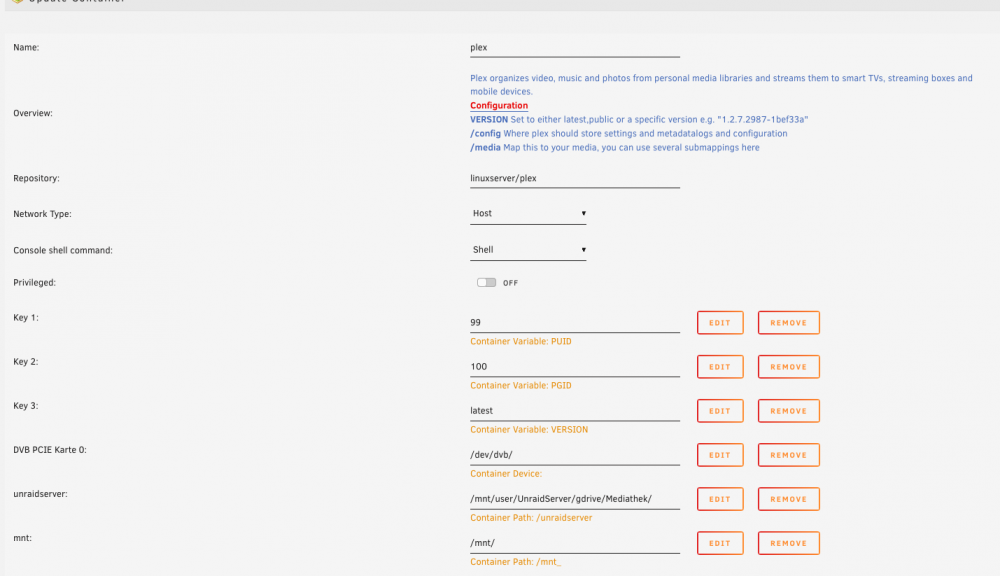

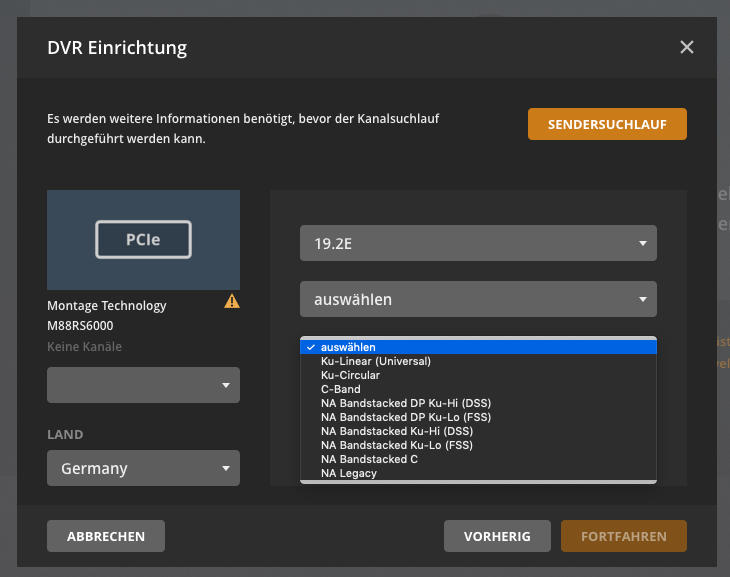

March 27, 20197 yr Hello and thanks for the reply. Pic of the Pluginpage attached. And what iv'e done: Install the Plugin switched to DVB-Unraid give the container access to the device (also attached) then went into Plex and stated to configure i have to say i'm not sure what i have to configure here the first is my region especially the direction of my Satellite bowl but the other two i don't know i tried a lot of constellations but no one worked... so i thought it was a software problem... but may someone could point me in the right direction... Mit freundlichen Grüßen Chris
March 27, 20197 yr The plugin is working as it should. If you connect directly to the LNB, choose none in the first part and ku-linear universal in the second.
March 27, 20197 yr Hmm, i have multi switch between the server and the LNB. This one...https://www.amazon.de/DUR-line-MS-G-HQ-Multischalter-Multiswitch-Grey-HQ/dp/B07P4CG394/ref=sr_1_7?__mk_de_DE=ÅMÅŽÕÑ&keywords=multischalter+5%2F6&qid=1553725672&s=gateway&sr=8-7 mfg Chris
March 27, 20197 yr 2 minutes ago, cmeyer86 said: Hmm, i have multi switch between the server and the LNB. This one...https://www.amazon.de/DUR-line-MS-G-HQ-Multischalter-Multiswitch-Grey-HQ/dp/B07P4CG394/ref=sr_1_7?__mk_de_DE=ÅMÅŽÕÑ&keywords=multischalter+5%2F6&qid=1553725672&s=gateway&sr=8-7 mfg Chris As @saarg says the plugin is working as intended, configuring Plex is beyond the scope of this plugin. Would have been helpful if you'd stated that the card was detected in your initial post as I've been holding up v6.7.0rc6 waiting to see if I needed to change something to get your card working.... 🤨
March 27, 20197 yr Ok, I'm sorry because the font of the page is red, and not green as in the other pictures, I thought there are problems here as well.
March 27, 20197 yr 58 minutes ago, cmeyer86 said: Ok, I'm sorry because the font of the page is red, and not green as in the other pictures, I thought there are problems here as well. No worries, I changed the colour scheme with the new revamp of the Unraid webui. Never mind!
March 28, 20197 yr 15 hours ago, cmeyer86 said: Hmm, i have multi switch between the server and the LNB. This one...https://www.amazon.de/DUR-line-MS-G-HQ-Multischalter-Multiswitch-Grey-HQ/dp/B07P4CG394/ref=sr_1_7?__mk_de_DE=ÅMÅŽÕÑ&keywords=multischalter+5%2F6&qid=1553725672&s=gateway&sr=8-7 mfg Chris Since it's only one input, you should set it to none, or follow what the manual says. Since it's in German it's kind of hard for others to help.
