[Plugin] Network Stats

[dorgan]

** Currently not displaying images on unraid version 6.10. For details, and a work, around please see this post **



Introduction

Network Stats  is a plugin to visualize bandwidth within unRAID.



Support Fund

If you wish to do so, you can lear more here.



Installation

Community Applications - Network Stats is available via Community Applications plugin.



- Plugins Tab (manual)

Go to the Plugins tab

Click on Install Plugin

Paste the following address in the input field: https://raw.githubusercontent.com/dorgan/Unraid-networkstats/master/networkstats.plg

Click Install



Running the plugin

After installing the plugin, you can modify the settings in the web UI, via the following method:



Go to Settings > Network Services

Click on Network Stats

You can now choose which interfaces to display



Once configured you can view the graphs by going to Stats and there will be a new tab called "Network Stats" on that page



Changelog

2022.08.25 - Update to remove the need for extra packages, this release removes images, but they will be added back in a future release.

2020.04.21a - Update to make sure interfaces get added

2020.04.21 - Updating to FA icon

2020.04.15a - Removing Stray function

2020.04.15 - Cleaning up layout and adding a button for stopping/starting the vnstat daemon

2020.04.14c - Added the ability to set an alias (friendly name) for each interface

2020.04.14b - Correcting PHP Syntax issue

2020.04.14a - Longer interface names were getting truncated, this is now fixed

2020.04.14 - Add ability to track more interfaces

2020.02.16 - Remove external dep of vnstat and make it pull the specific version from the plugin repo

2019.12.24a - Updated to vnstat 2.4 and corrected MD5 hash issue

2019.02.11 - Correct image output

2018.12.11b - Fix vnstat.conf issue and remove dependency on dynamix plugin

2018.10.10 - Fix breaking unRaid

  Remove using DOCKER_CONFIG_APP_PATH

  Revert to  use /var/lib/vnstat for vnstat db

  future release will add functionality for data to persist across reboots and will utilize events on when to move data in/out of memory.



2018.10.07a - Update vnstat.conf and set MaxBandwidth to 0

2018.10.07 - Update plugin to use docker appdata path

2018.10.06c - Updated plugin to work on non cache drive systems.

2018.10.06b - Corrected order of creating folders and copying configs

2018.10.06a - corrected file paths and pid paths

2018.10.03 -   Fixed plugin to properly detect vnstat daemon status

2018.10.03 -   Fix Broken Plugin

  Correct install and plugin to start vnstat daemon



2018.10.02 -   More fixes

  Add ability for user to start/stop vnstat

  Fix detecting of vnstat daemon

  Make data persist across restarts



2018.09.29 - A bunch of fixes and updates

  Changing icons and Correcting sizes

  Update settings to detect interfaces

  Update install script to detect interfaces



2018.09.27d - Correction to start vnstat



2018.09.27c - Quick Tweaks

  Changed author to actual name

  Corrected Status label on settings screen



2018.09.27b - Initial Release

  Initial release, right now using default image output from vnstati, but will be updating to a better library soon

Edited August 25, 2022 by dorgan
2022.08.25 release

[Squid]

5 hours ago, dorgan said:

(I am working on getting added to the community application)



This is one of the apps caught in the weird problems with the appfeed in community applications.  Until the next release of CA and it's replacement application feed (next few days), it is unavailable from within CA.

[Squid]

Available now (if you update CA).  But, It won't start the service for me.  Always shows stopped.

Oct 2 19:19:21 ServerA root: plugin: creating: /boot/config/plugins/networkstats/networkstats.cfg - from INLINE content
Oct 2 19:19:21 ServerA root: plugin: running: anonymous
Oct 2 19:19:23 ServerA vnstatd[32070]: vnStat daemon 1.18 started. (pid:32070 uid:0 gid:0)
Oct 2 19:19:23 ServerA vnstatd[32070]: Monitoring: docker0 (1000 Mbit) as0t5 (10 Mbit) vnet1 (10 Mbit) as0t1 (10 Mbit) as0t10 (10 Mbit) as0t8 (10 Mbit) gretap0 (1000 Mbit) veth4967533 (10000 Mbit) as0t4 (10 Mbit) virbr0-nic (1000 Mbit) vnet0 (10 Mbit) gre0 (1000 Mbit) as0t0 (10 Mbit) veth3a83667 (10000 Mbit) veth78066bc (10000 Mbit) as0t7 (10 Mbit) veth3e4db68 (10000 Mbit) as0t3 (10 Mbit) ip_vti0 (1000 Mbit) veth70a7165 (10000 Mbit) as0t11 (10 Mbit) tunl0 (1000 Mbit) br0 (1000 Mbit) virbr0 (1000 Mbit) veth4b0ff1d (10000 Mbit) ...
Oct 2 19:19:23 ServerA vnstatd[32070]: SIGTERM received, exiting.
Oct 2 19:19:27 ServerA vnstatd[32241]: vnStat daemon 1.18 started. (pid:32241 uid:0 gid:0)
Oct 2 19:19:27 ServerA vnstatd[32241]: Monitoring: docker0 (1000 Mbit) as0t5 (10 Mbit) vnet1 (10 Mbit) as0t1 (10 Mbit) as0t10 (10 Mbit) as0t8 (10 Mbit) gretap0 (1000 Mbit) veth4967533 (10000 Mbit) as0t4 (10 Mbit) virbr0-nic (1000 Mbit) vnet0 (10 Mbit) gre0 (1000 Mbit) as0t0 (10 Mbit) veth3a83667 (10000 Mbit) veth78066bc (10000 Mbit) as0t7 (10 Mbit) veth3e4db68 (10000 Mbit) as0t3 (10 Mbit) ip_vti0 (1000 Mbit) veth70a7165 (10000 Mbit) as0t11 (10 Mbit) tunl0 (1000 Mbit) br0 (1000 Mbit) virbr0 (1000 Mbit) veth4b0ff1d (10000 Mbit) ...
Oct 2 19:19:45 ServerA ool www[31175]: /usr/local/emhttp



[dorgan]

But, It won't start the service for me.  Always shows stopped.



It’s miss detecting, known bug, will be fixed in a release either this week or weekend.



[dorgan]

New update has been released, that corrects this issue.

[Squid]

55 minutes ago, dorgan said:

New update has been released, that corrects this issue.

Still no go.  (Unless a reboot is required)

[dorgan]

Still no go.  (Unless a reboot is required)

Reboot should not be required. Let me dig in a little more tomorrow night.

[dukiethecorgi]

Not starting for me either 😞

[dorgan]

Not starting for me either [emoji20]

I have identified the problem and will release a fix tonight.

[dukiethecorgi]

Thanks!

[gacpac]

I was gonna say. I'll wait for the next release then

[dorgan]

@gacpac @dukiethecorgi @Squid  Update released.  Thanks for sticking with me.

[moraleseder]

So I have updated the plugin but unfortunately, it is still not starting for me :/

[dorgan]

So I have updated the plugin but unfortunately, it is still not starting for me

And what about if you go into the setting and click start?

[moraleseder]

I tried that and no luck. I tried to remove the plug in and reinstall, I tried to reboot. No luck

[dorgan]

I tried that and no luck. I tried to remove the plug in and reinstall, I tried to reboot. No luck

And what happens when you go into settings?

[austinite]



Same issue. Details:

Plugins | Network Stats

Network Stats Settings

Interfaces to capture :  (ALL) eth0 eth1 (ALL)

VNSTAT Daemon: Stopped start (clicking start does nothing)

Stats | Network Stats:

vnstat service must berunning started to view network stats.



[dorgan]



Same issue.



What version of unRaid are you running?



Also if you run

/etc/rc.d/rc.vnstat start

from the terminal what is the output you get?





[FlorinB]

10 hours ago, dorgan said:

/etc/rc.d/rc.vnstat start

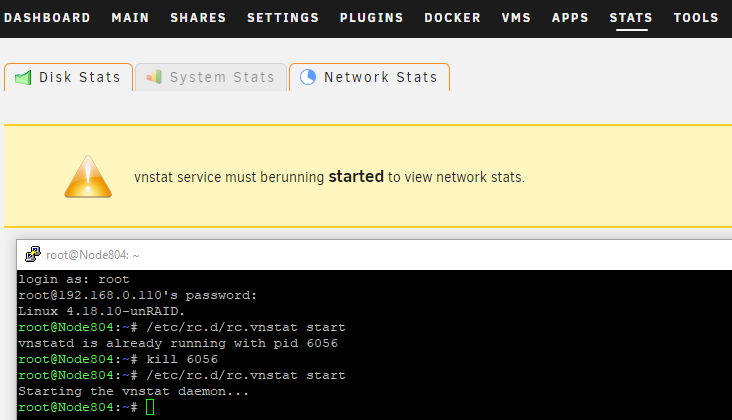

Still not working. See the screenshot for more details.





[gacpac]

51 minutes ago, FlorinB said:

Still not working. See the screenshot for more details.





SAME HERE 😮

[dorgan]

Ok maybe I need to double check how the page is detecting if the daemon is running. I’ll take a look.

[dukiethecorgi]

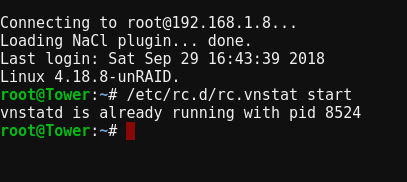

OK installed the update, still not working, but /etc/rc.d/rc.vnstat start says it is running





[dorgan]

@dukiethecorgi @gacpac  @FlorinB can either of you run the following in the terminal?  Also what versions of unRaid are you running?



cd /var/run
find . | grep vnstat.pid



[dukiethecorgi]

Here you go

[dorgan]

Here you go

Ok there in lies the problem. Mine is /var/run/vnstat/vnstat.pid.

I’ll release an update tomorrow night that detects either or.
