***GUIDE*** Plex Hardware Acceleration using Intel Quick Sync

[theFPVgeek]

19 hours ago, ideasman said:

Noticed over the weekend that transcoding 4k content was not utilising hardware acceleration on our i5-11400.



If i disabled tone mapping in the plex options, it would work but who wants transcoded hdr content without tone mapping?



We use the linuxserver release and rolled back from 1.32.5.7349-8f4248874 to 1.32.5.7328-2632c9d3a which fixed it immediately.

  Ok looks like I need to look into moving my binhex plex to official plex docker to using this version as it seems rolling back binhex isn't working for me as expected.

[MooseKat]

hey all, trying to work through the 19 pages of this post, but kind of scratching my head.. I have an intel N5105 CPU with an  igpu which is good for hw transcoding.. I have followed as much as I can but still cannot get HW encoding working.. Is there an up to date guide on how to get it working??

[flex420]

16 hours ago, MooseKat said:

hey all, trying to work through the 19 pages of this post, but kind of scratching my head.. I have an intel N5105 CPU with an  igpu which is good for hw transcoding.. I have followed as much as I can but still cannot get HW encoding working.. Is there an up to date guide on how to get it working??

https://chuckdickey.com/2022/03/plex-hardware-transcoding-with-a-jasper-lake-intel-celeron-n5105-cpu-on-ubuntu-server



Also same command is in here like 2 pages before

Edited September 17 by flex420

[MooseKat]

31 minutes ago, flex420 said:

https://chuckdickey.com/2022/03/plex-hardware-transcoding-with-a-jasper-lake-intel-celeron-n5105-cpu-on-ubuntu-server



Also same command is in here like 2 pages before

thanks for that, but when i try and run the last line, i get.. "sudo: update-initramfs: command not found"





[flex420]

2 hours ago, MooseKat said:

thanks for that, but when i try and run the last line, i get.. "sudo: update-initramfs: command not found"

i think the command referres to ubuntu - make sure you have edited the config file and make it persistant, also chmod 777 /dev/dri







Tried This?

Edited September 17 by flex420

[craigr]

Have you seen this thread:





Also, many things have changed since this thread here was first started.

[EmersonSC]

Intel 1290k MSI Z-690-A board.

Official Plex Media Server. Installed Intel-GPU-Top, but when i go to the terminal and type in cd /dev/dri i get no such file or directory. What am I doing wrong here?

[craigr]

38 minutes ago, honorary-kicking8931 said:

Intel 1290k MSI Z-690-A board.

Official Plex Media Server. Installed Intel-GPU-Top, but when i go to the terminal and type in cd /dev/dri i get no such file or directory. What am I doing wrong here?



Do you have your integrated graphics set as primary in your BIOS?  It usually cannot be set to auto and should not be set to anything other than the integrated graphics.

[EmersonSC]

3 minutes ago, craigr said:



Do you have your integrated graphics set as primary in your BIOS?  It usually cannot be set to auto and should not be set to anything other than the integrated graphics.



So if im understanding you correctly, in my BIOS i need to set my iGPU as my primary?

[craigr]

2 minutes ago, honorary-kicking8931 said:



So if im understanding you correctly, in my BIOS i need to set my iGPU as my primary?



Yes.

[craigr]

If you have a second GPU like Nvidia or AMD the BIOS will likely choose it as primary.  However, even without another GPU, AUTO often does not work and iGPU or internal graphics must be set manually.  This should get you the /dev/dri directory after the step you've already taken.

[EmersonSC]

9 hours ago, craigr said:



Yes.

I did that AND what was suggested below and i'm up and going, thank you very much!



Edited September 20 by honorary-kicking8931

[craigr]

15 hours ago, EmersonSC said:

I did that AND what was suggested below and i'm up and going, thank you very much!





Awesome!

Edited September 20 by craigr

[hanbo]

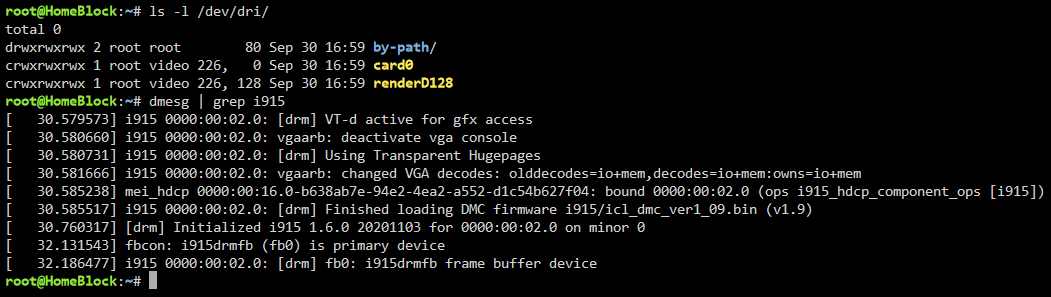

I bought a mainboard off of AliExpress (CW-N5105-NAS, Topton NAS Motherboard N5105) and had trouble getting my internal GPU going. It has an 11th Gen Intel Jasper Lake with these specifications. This post in the libreelec forum provided part of the solution that finally helped me, because

ls -la /dev/dri

did nothing for me before.



I had to edit /syslinux/syslinux.cfg on the USB stick and make the first boot entry look like this (notice the 4th line)


label Unraid OS
  menu default
  kernel /bzimage
  append i915.enable_fbc=1 i915.enable_guc=2
  append initrd=/bzroot



And I also had to create this file with



echo "options i915 enable_fbc=1 enable_guc=2" > /etc/modprobe.d/i915.conf



Now everything works for me.









Hope this prevents a couple of headaches. Cheers

Edited October 1 by hanbo
added more screenshots and updated the text

[bugthumpin]

yo!!!

Just tried this is 2023 and all is working perfect

Thanks

[simo241]

On 1/15/2022 at 8:51 PM, SimonF said:

As you are on rc2.



either add to syslinux



or add to i915.conf in modprobed.

options i915 force_probe=4680



or blacklist i915 and load intel gpu top as per this post.







Is i915 force_probe=4680 still required fro igpu encode i am using 12400

[SimonF]

1 minute ago, simo241 said:



Is i915 force_probe=4680 still required fro igpu encode i am using 12400

Which OS are you using, if 6.12+ then it should detect by default. If force probe is required it will show in logs



dmesg | grep i915.



root@computenode:~# ls /dev/dri
by-path/  card0  card1  card2  renderD128  renderD129  renderD130



This should show entries if working ok.

[simo241]

4 minutes ago, SimonF said:

Which OS are you using, if 6.12+ then it should detect by default. If force probe is required it will show in logs



dmesg | grep i915.



root@computenode:~# ls /dev/dri
by-path/  card0  card1  card2  renderD128  renderD129  renderD130



This should show entries if working ok.

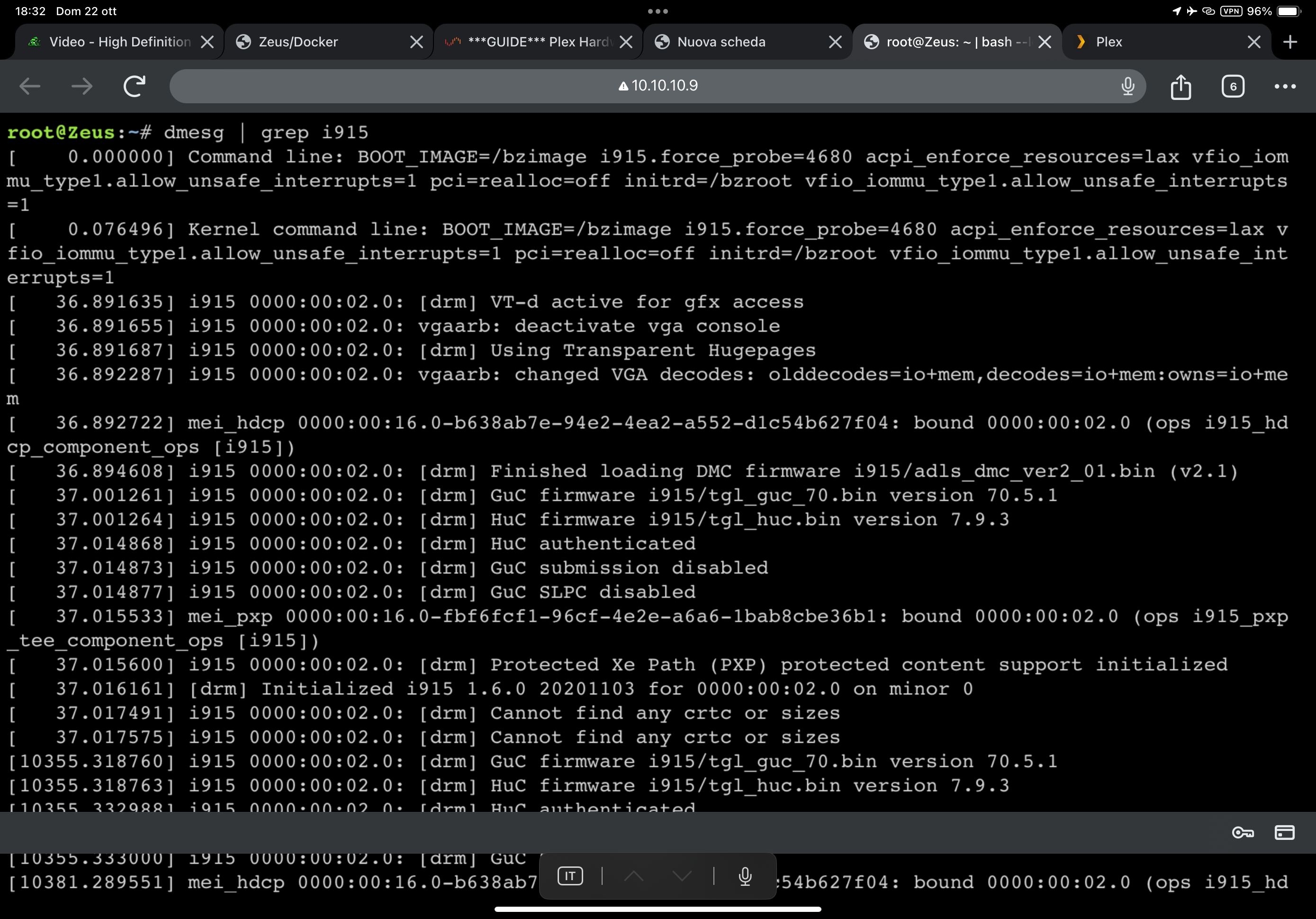

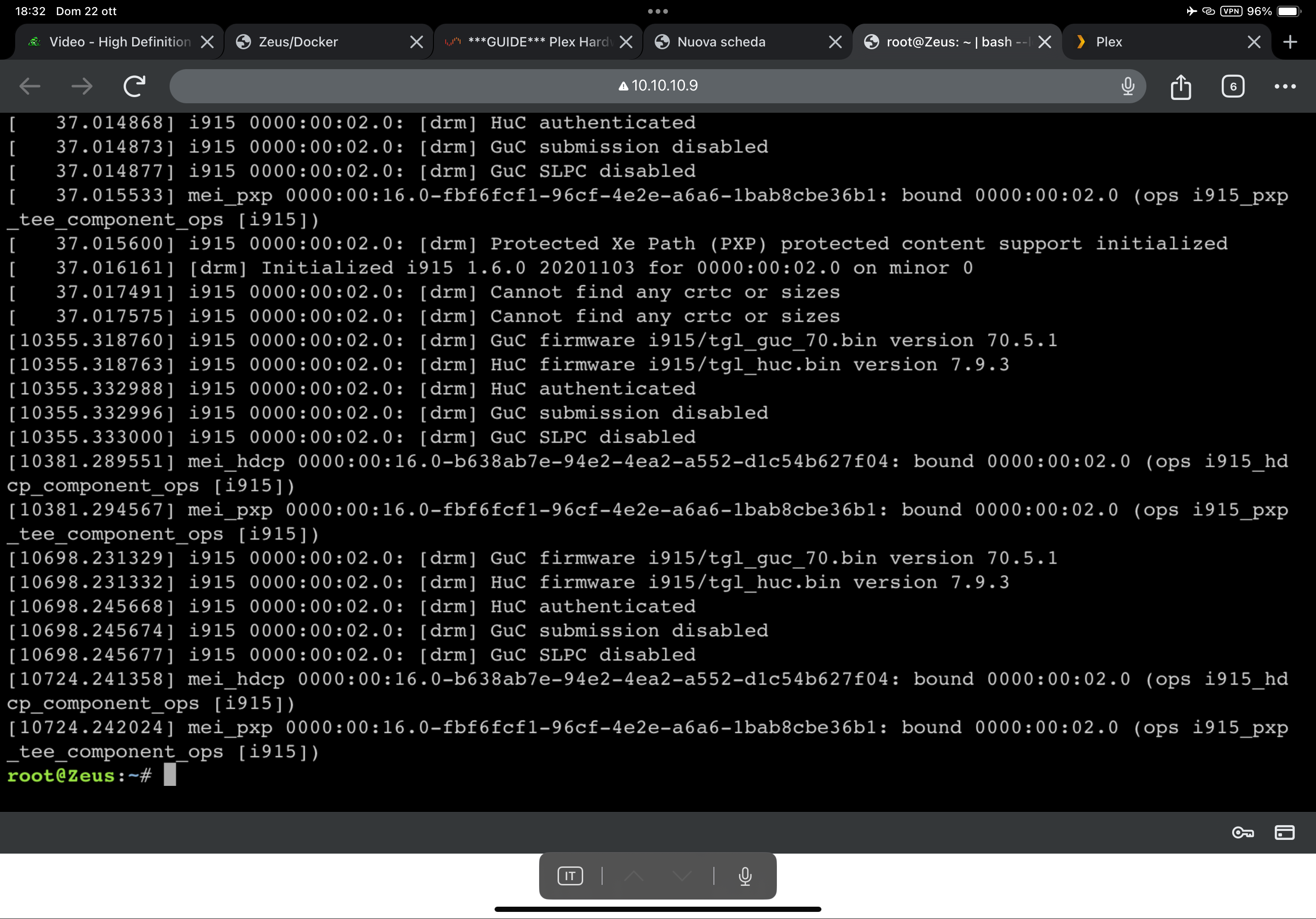

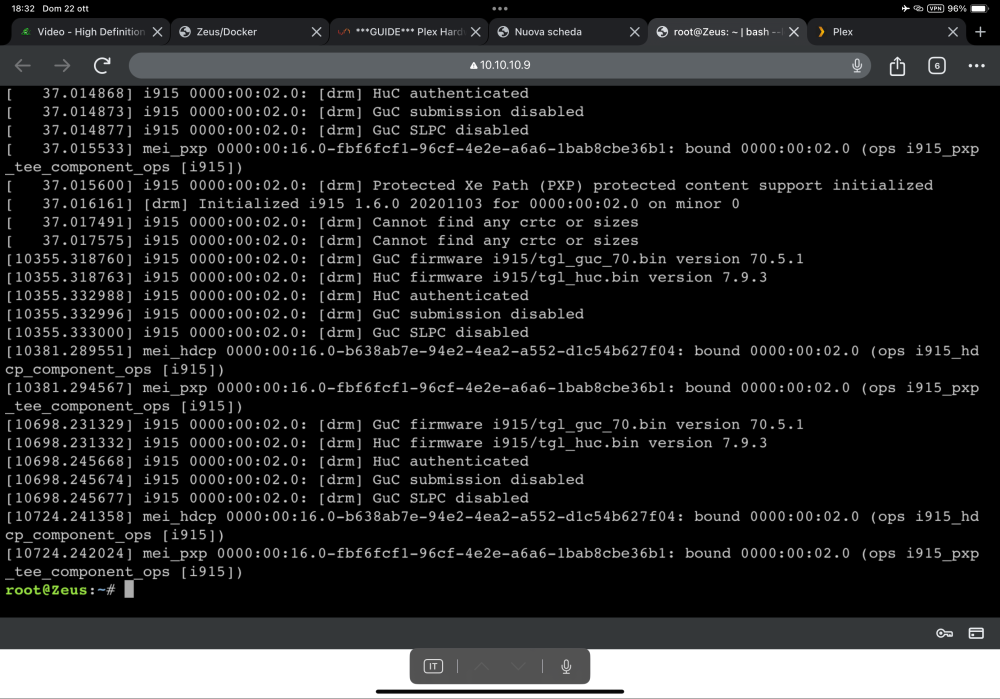

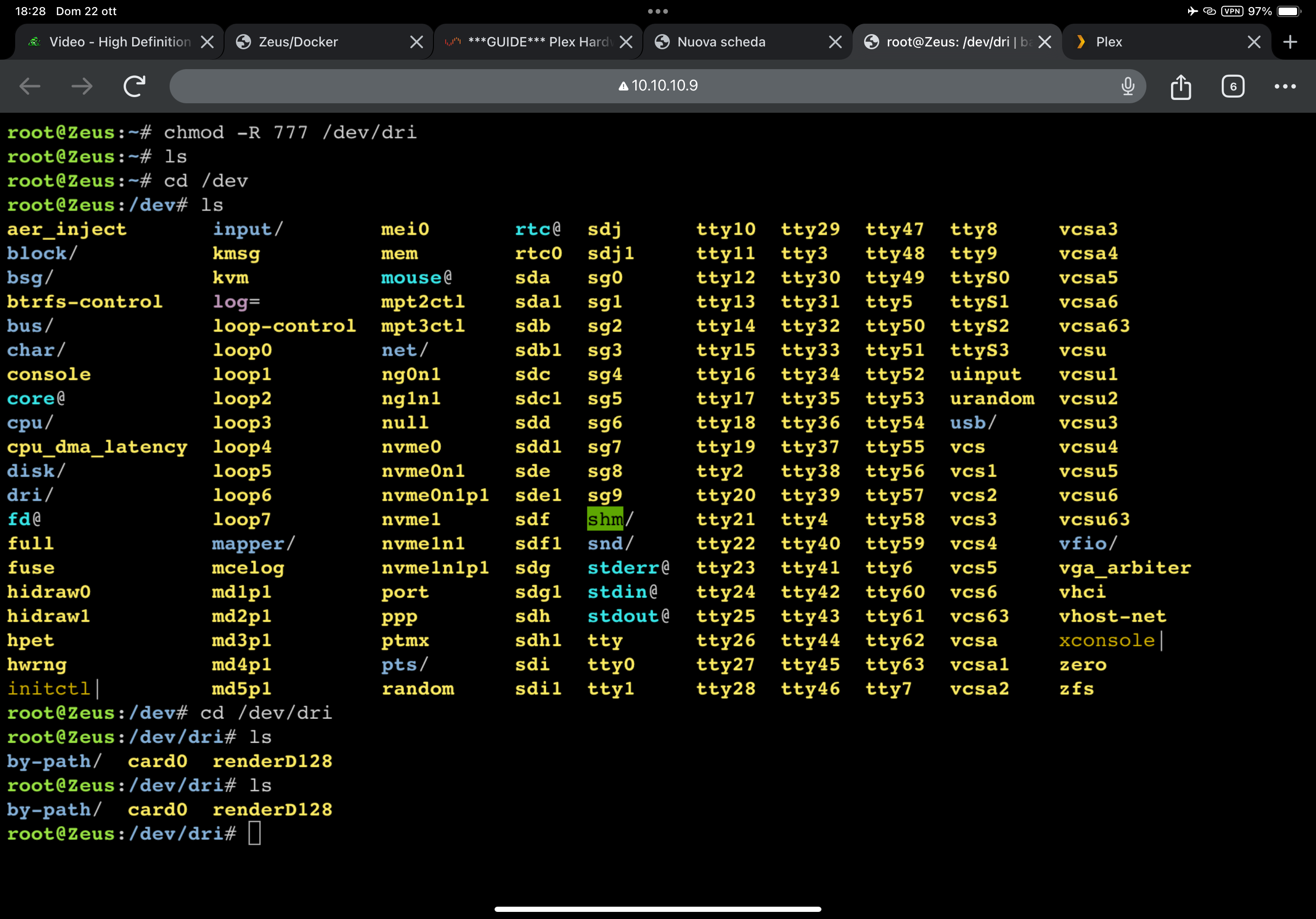

is this what you mean

Edited October 22 by simo241

[SimonF]

8 minutes ago, simo241 said:

is this what you mean

Yes looks correct.

[simo241]

3 minutes ago, SimonF said:

Yes looks correct.

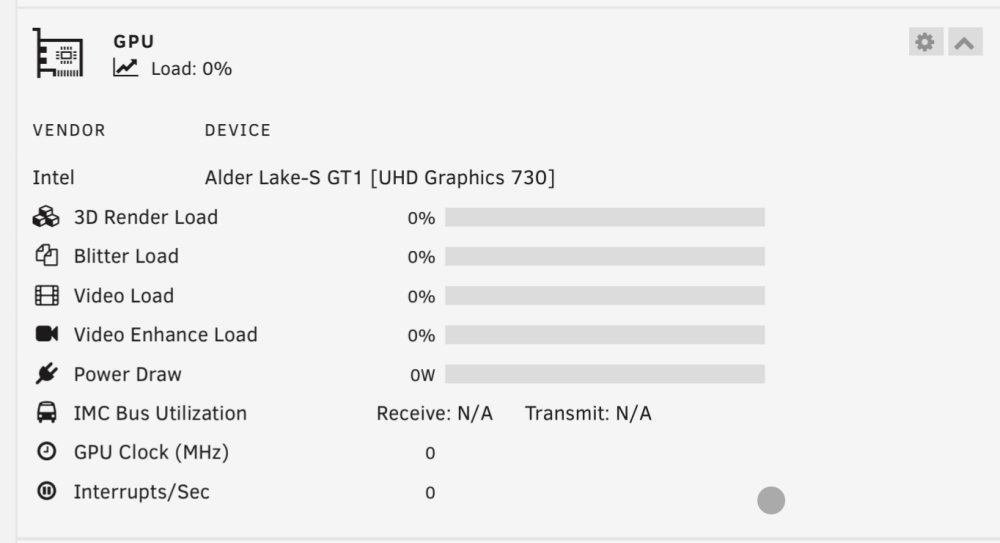

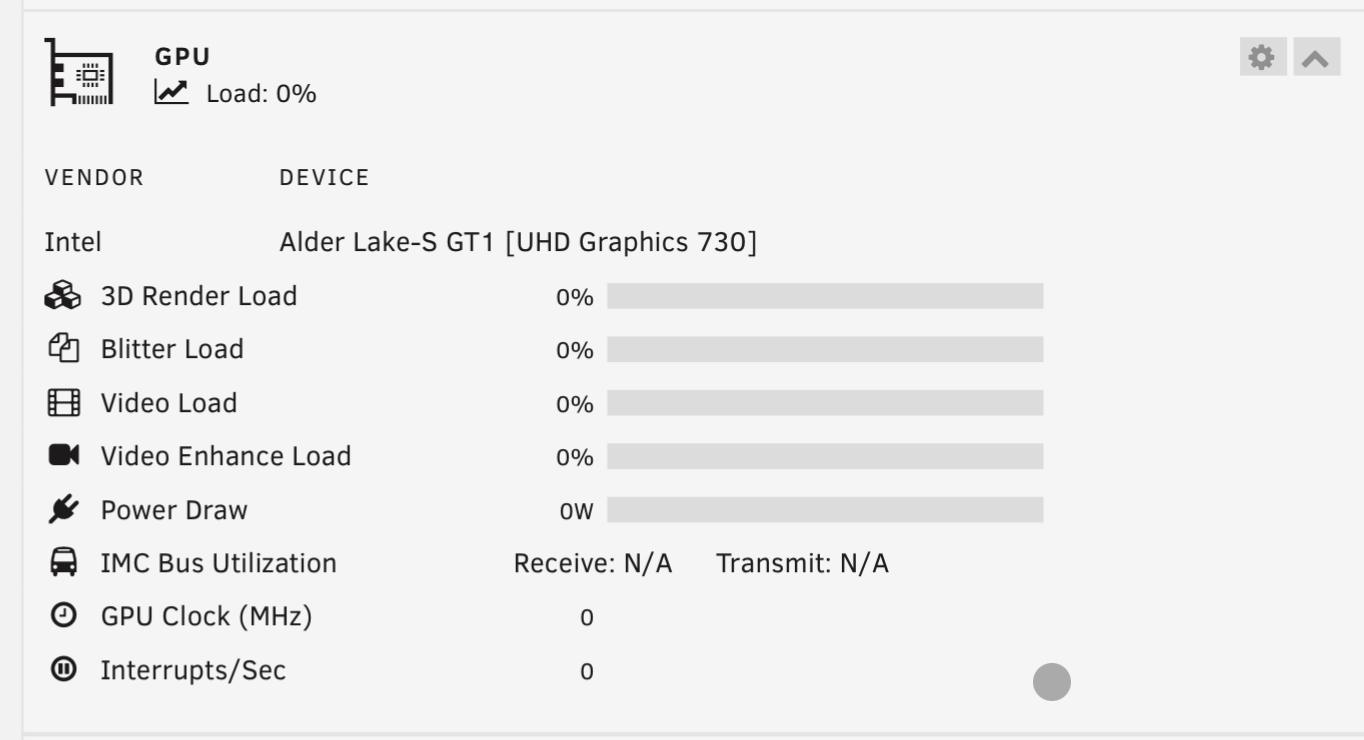

 Thank you , so have same display error  here, same time power draw is at 100 with no utilization





[SimonF]

13 minutes ago, simo241 said:

 Thank you , so have same display error  here, same time power draw is at 100 with no utilization

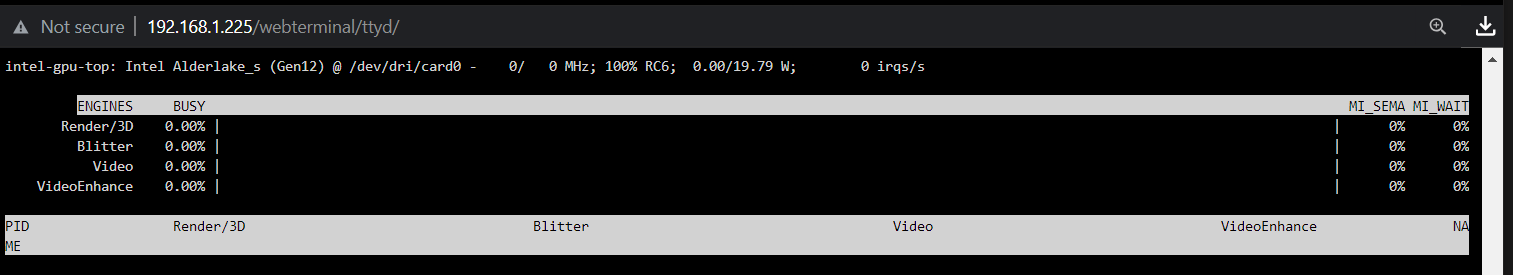

Where are you seeing power draw @ 100 do you mean 100% RC6? That value is reverse of what you thing 100% is no power use



rc6 is a percentage of how little the GPU is requesting power

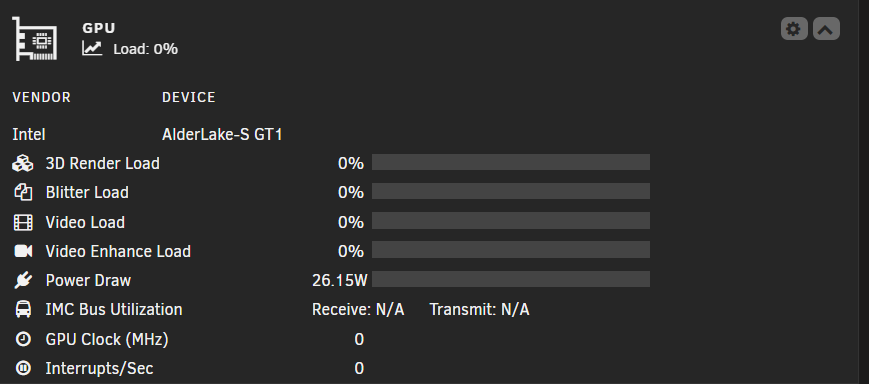

if option of max package or GPU it will show. 19.79W is package GPU is 0 in my intel_gpu_top values.



[Alex1989]

On 8/29/2023 at 5:41 PM, Sildenafil said:



I'm trying to get plex transcoding to work with my asrock j5005 but i can't. I created the i915.conf file with this comand:

mkdir -p /boot/config/modprobe.d

echo "options i915 enable_fbc=1 enable_guc=3" > /boot/config/modprobe.d/i915.conf



I tried to change the guc=2 too, but still not working.





What am I doing wrong? The gpu works fine with unmanic



your problems solved?

[InsaneNutter]

On 9/30/2023 at 4:21 PM, hanbo said:

echo "options i915 enable_fbc=1 enable_guc=2" > /etc/modprobe.d/i915.conf



Thanks for the info, I initially had problems with this as /etc/modprobe.d/i915.conf will not persist when you reboot.



So you want to create an i915.conf in /boot/config/modprobe.d/



echo "options i915 enable_fbc=1 enable_guc=2" > /boot/config/modprobe.d/i915.conf



or nano /boot/config/modprobe.d/i915.conf then type the following options i915 enable_fbc=1 enable_guc=2



That will be copied to /etc/modprobe.d/i915.conf when Unraid boots.

Edited November 20 by InsaneNutter
Issue resolved

[capt.shitface]

My hw-transcode has stopped working, i have tried the things in this post.



11th Gen Intel® Core™ i5-11600K

RocketLake-S GT1 [UHD Graphics 750]

Unraid Version: 6.12.4
Plex Version 1.32.7.7621







EDIT:
Found THIS!

Rolled back to version 1.32.5.7349-8f4248874-ls181 and now its working as it used to.

Still high cpu usage with subtitle(PSG) but thats maybe normal, should i try use SRT or any other subtitle format?

Edited 12 hours ago by capt.shitface
