Hi All,



I'm having the same issue, previously its was working until recently notice there is no info on my GPU Status.



ts-p500-diagnostics-20241020-1544.zip

9 minutes ago, feins said:

Hi All,



I'm having the same issue, previously its was working until recently notice there is no info on my GPU Status.



ts-p500-diagnostics-20241020-1544.zip 211.38 kB · 0 downloads



Hi,



I'm also having the same error as above and changing refresh to 2000 doesn't fix it. I've seen ich777 has updated his intel gpu top plugin but that also hasn't fixed it.

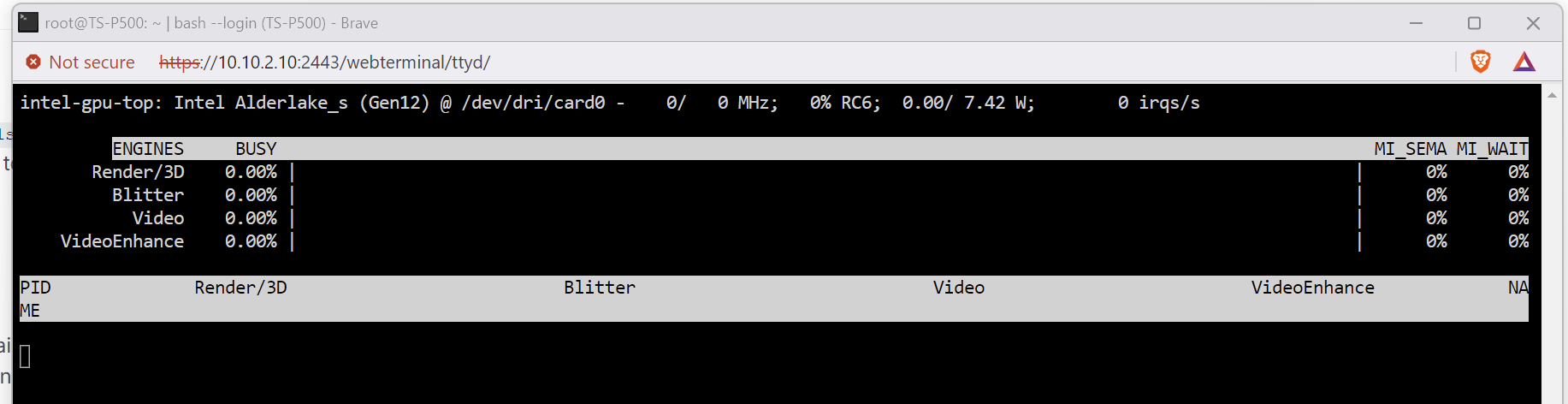

Running the intel_gpu_top command via terminal gives me all the correct information. Do I still need to try updating?



Can intel-gpu-top be updated manually if the plugin is installed? If so does anyone know where to find instructions?

Edited October 20, 20241 yr by xreyuk

Quesation about GPU Statistics Plugin for nvidia graphic card (tesla p4)

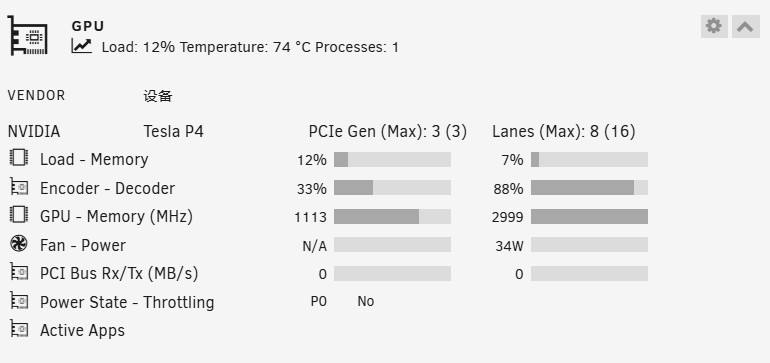

When I am using emby (hardware acceleration), the plugin seems to miss some info such as Active Apps as shown in the graph.



When I use the nvidia-smi command, the terminal shows:

+-----------------------------------------------------------------------------------------+
| NVIDIA-SMI 555.58.02              Driver Version: 555.58.02      CUDA Version: 12.5     |
|-----------------------------------------+------------------------+----------------------+
| GPU  Name                 Persistence-M | Bus-Id          Disp.A | Volatile Uncorr. ECC |
| Fan  Temp   Perf          Pwr:Usage/Cap |           Memory-Usage | GPU-Util  Compute M. |
|                                         |                        |               MIG M. |
|=========================================+========================+======================|
|   0  Tesla P4                       Off |   00000000:06:00.0 Off |                  Off |
| N/A   81C    P0             32W /   75W |     535MiB /   8192MiB |      9%      Default |
|                                         |                        |                  N/A |
+-----------------------------------------+------------------------+----------------------+

+-----------------------------------------------------------------------------------------+
| Processes:                                                                              |
|  GPU   GI   CI        PID   Type   Process name                              GPU Memory |
|        ID   ID                                                               Usage      |
|=========================================================================================|
|    0   N/A  N/A     28524      C   /bin/ffmpeg                                   532MiB |
+-----------------------------------------------------------------------------------------+



Really appreciate for your help!

5 hours ago, xreyuk said:

Can intel-gpu-top be updated manually if the plugin is installed? If so does anyone know where to find instructions?

Can you please explain what do you want to do exactly?

You should always be on the latest version and not install an old version.

Please do keep in mind that my update has nothing to do with that issue.



5 hours ago, xreyuk said:

I'm also having the same error as above and changing refresh to 2000 doesn't fix it. I've seen ich777 has updated his intel gpu top plugin but that also hasn't fixed it.

Do you maybe can share a bit more information what system are you running?

It is really hard to troubleshoot when you don‘t share any details about your system.

A screenshot what the GPU Statistics plugin displays would be also nice.

4 hours ago, tonywang1201 said:

Active Apps

What is the active app that you are runnig?

Is it just ffmpeg or is it really Emby?

Ut is really hard to detect in case of Emby because it uses ffmpeg.

Did you yet try Jellyfin if it also is the same there?

13 hours ago, SimonF said:



the refresh rate is 2000ms already  but it didnt solve the issue. Prob is my Intel GPU Top was the latest on the community apps. do i need to manually update the reposition?

53 minutes ago, feins said:

the refresh rate is 2000ms already  but it didnt solve the issue. Prob is my Intel GPU Top was the latest on the community apps. do i need to manually update the reposition?

Change intel top command timeout to .7 1.3

6 hours ago, xreyuk said:

Hi,



I'm also having the same error as above and changing refresh to 2000 doesn't fix it. I've seen ich777 has updated his intel gpu top plugin but that also hasn't fixed it.



Running the intel_gpu_top command via terminal gives me all the correct information. Do I still need to try updating?



Can intel-gpu-top be updated manually if the plugin is installed? If so does anyone know where to find instructions?

Change intel top command timeout to .7 1.3

5 hours ago, tonywang1201 said:

Quesation about GPU Statistics Plugin for nvidia graphic card (tesla p4)

When I am using emby (hardware acceleration), the plugin seems to miss some info such as Active Apps as shown in the graph.



When I use the nvidia-smi command, the terminal shows:

+-----------------------------------------------------------------------------------------+
| NVIDIA-SMI 555.58.02              Driver Version: 555.58.02      CUDA Version: 12.5     |
|-----------------------------------------+------------------------+----------------------+
| GPU  Name                 Persistence-M | Bus-Id          Disp.A | Volatile Uncorr. ECC |
| Fan  Temp   Perf          Pwr:Usage/Cap |           Memory-Usage | GPU-Util  Compute M. |
|                                         |                        |               MIG M. |
|=========================================+========================+======================|
|   0  Tesla P4                       Off |   00000000:06:00.0 Off |                  Off |
| N/A   81C    P0             32W /   75W |     535MiB /   8192MiB |      9%      Default |
|                                         |                        |                  N/A |
+-----------------------------------------+------------------------+----------------------+

+-----------------------------------------------------------------------------------------+
| Processes:                                                                              |
|  GPU   GI   CI        PID   Type   Process name                              GPU Memory |
|        ID   ID                                                               Usage      |
|=========================================================================================|
|    0   N/A  N/A     28524      C   /bin/ffmpeg                                   532MiB |
+-----------------------------------------------------------------------------------------+



Really appreciate for your help!

Can you provide info from this post.





19 hours ago, SimonF said:

I have not been able to recreate you issue so far

What i can do for help you to investigate my issue? My iGPU is a N5105 Jasperlake maybe that info can help.

On 10/18/2024 at 3:39 PM, Vircos said:



I have exactly the same issue with an alderlake cpu.

same issue with cometlake and 20.10.24 version

9 hours ago, irckenny said:

What i can do for help you to investigate my issue? My iGPU is a N5105 Jasperlake maybe that info can help.

Speaking with ich777 it is a known issue with  intel_top, for some reason rc6 goes to zero after while should be 100 for no utilisation. Calculation is 100 - rc 6. A new top has been update so may be worth setting if the issue still exists, but I cannot fix in the plugin.

3 hours ago, Jammy B said:

same issue with cometlake and 20.10.24 version

Change intel top command timeout to .7 1.3 and refresh to 2000

On 10/18/2024 at 7:23 AM, irckenny said:

Increasing values as your suggestion the plugin started working again, except for Power draw graphic section that is always showing 0 value but with full "white" bar after first use of GPU hardware decoding.

This is a long standing issue (...actually caused by Intel-GPU-Top) and the people at intel-gpu-tools couldn't reproduce this either but I assume they don't have their computers running as long as we have our Unraid servers running.



If you reboot the bar will go back to normal but after a few days show exactly the same behaviour.

13 hours ago, SimonF said:

Change intel top command timeout to .7 1.3

Sorry I missed the 'timeout' bit. This seems to have brought it back to showing stats.



Are there any other symptoms as a result of this?



Thanks

2 minutes ago, xreyuk said:

Sorry I missed the 'timeout' bit. This seems to have brought it back to showing stats.



Are there any other symptoms as a result of this?



Thanks

No, its just the way the command has to be processed an allows long enough for it to create a full json Hence error unable to parse.

@SimonF @ich777 thanks for clarification, so from what you two guys said, if correctly understud cause im not good english spoken person, i need only to wait until a new intel_GPU_top release with issue fix.



Thanks for your efforts.

10 minutes ago, irckenny said:

i need only to wait until a new intel_GPU_top release with issue fix

I don‘t think that this can/will be fixed.

On 10/21/2024 at 1:59 PM, SimonF said:

Change intel top command timeout to .7 1.3

Thanks that's solve the issue. I can see the GPU info again.

When upgrading today (both GPU stats + intel top) I got same error (cannot parse).

Modifying timeouts to 2000 - .7 .3 seems to fix it, but GPU load is always 0

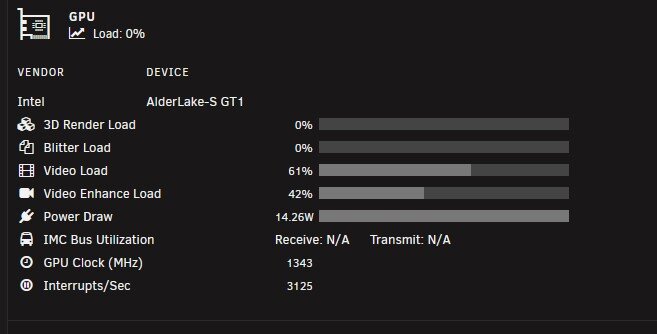

10 minutes ago, Conan the Barbarian said:

GPU load is always 0

I don‘t understand, you see in your screenshot you are indeed using the iGPU (Video & Enhance).



Depending on the tsak that you throw at your iGPU you will see different utilisation levels.

3 minutes ago, ich777 said:

I don‘t understand, you see in your screenshot you are indeed using the iGPU (Video & Enhance).



Depending on the tsak that you throw at your iGPU you will see different utilisation levels.

I mean the header. I'm pretty sure before was not showing all the time 0% GPU load

32 minutes ago, Conan the Barbarian said:

I mean the header. I'm pretty sure before was not showing all the time 0% GPU load

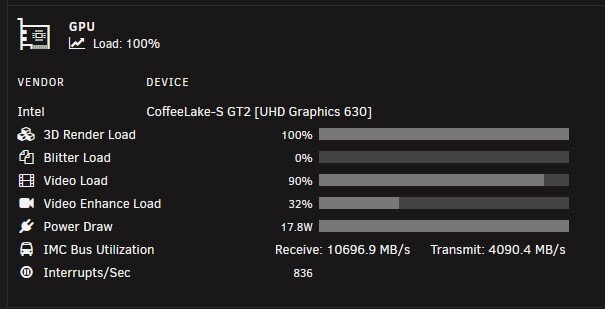

Same reproduction in a tiny pc, with an Intel 8th gen:





31 minutes ago, Conan the Barbarian said:

I mean the header. I'm pretty sure before was not showing all the time 0% GPU load

Load at top is the same as render load.
