13 hours ago, Magix Networks said:

Running unRAID 7.0-beta3 (Beta3 is when the issue started as it was fine with Beta2) with an AMD RX6400 GPU



Dashboard shows 100% load on the GPU when idle



If a docker (Such as Plex) starts using the GPU it will display accurately until it becomes idle again and it will jump back to 100%

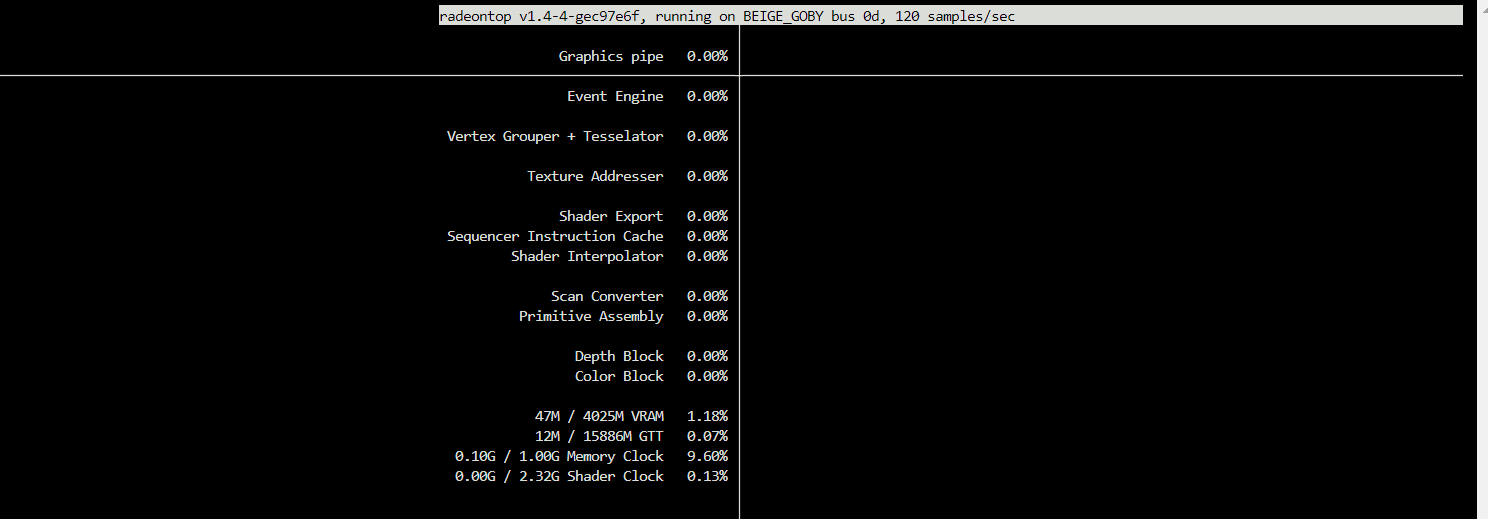

radeontop also shows 100% usage

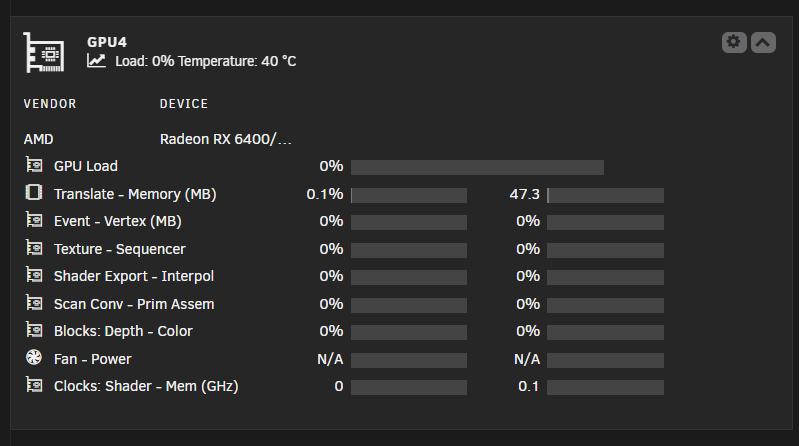

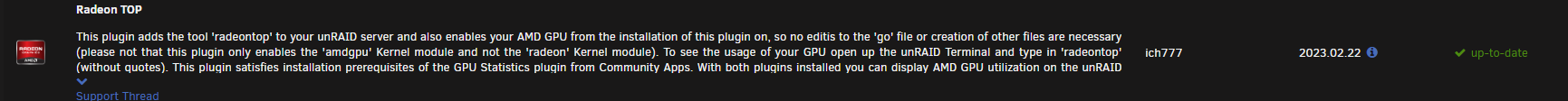

Are you running the latest version of Radeon top plugin? My RX6400 reports ok.

4 hours ago, SimonF said:

Are you running the latest version of Radeon top plugin? My RX6400 reports ok.



Yes, my radeontop is the latest version.

This morning it was showing 0% load on idle until I did something that required the GPU which also displayed correctly and when it came back to idle it jumped back up to 100%. I'm expecting it'll correct itself throughout the day again if the GPU if left idle long enough.



It doesn't seem to be causing any issues it just seems to be cosmetic.

On 9/29/2024 at 12:36 PM, SimonF said:

As per the post above. Can you run intel_gpu_top and provide a screen print and the output from the commands below the pid valie has to be put into the command where it states pid or %0d. 2nd pid is from the ps command. I will look at at creating a file in the furture with this info.



Replace pid in this line with pid from above.

/proc/pid/cmdline



and for the parent.



ps j %0d | awk '{ $1=$1 };NR>1' | cut -d ' ' -f 1 where %0d is pid



With output of 2nd pid from the above line run /proc/2nd pid/cmdline with 2nd pid.



Here is an example

intel-gpu-top: Intel Jasperlake (Gen11) @ /dev/dri/card0 -    8/   8 MHz;  97% RC6;      144 irqs/s

         ENGINES     BUSY                                                                                                           MI_SEMA MI_WAIT
       Render/3D    0.68% |▊                                                                                                      |      0%      0%
         Blitter    0.00% |                                                                                                       |      0%      0%
           Video    1.41% |█▌                                                                                                     |      0%      0%
    VideoEnhance    0.29% |▍                                                                                                      |      0%      0%

    PID             Render/3D                         Blitter                           Video                        VideoEnhance            NAME
2124418 |                               ||                               ||▏                              ||▏                              | ffmpeg
2124421 |▏                              ||                               ||▏                              ||                               | ffmpeg
2206315 |▏                              ||                               ||▏                              ||                               | ffmpeg

^C
root@LincstationN1:~# cat /proc/2124418/cmdline
ffmpeg-hide_banner-loglevelwarning-threads2-hwaccel_flagsallow_profile_mismatch-hwaccelvaapi-hwaccel_device/dev/dri/renderD128-hwaccel_output_formatvaapi-user_agentFFmpeg Frigate/0.14.1-f4f3cfa-avoid_negative_tsmake_zero-fflags+genpts+discardcorrupt-rtsp_transporttcp-timeout5000000-use_wallclock_as_timestamps1-irtsp://admin:[email protected]/h264Preview_01_sub-r5-vffps=5,scale_vaapi=w=640:h=480:format=nv12,hwdownload,format=nv12,format=yuv420p-threads2-frawvideo-pix_fmtyuv420ppipe:root@LincstationN1:~#
root@LincstationN1:~# ps j 2124418 | awk '{ $1=$1 };NR>1' | cut -d ' ' -f 1
2124407
root@LincstationN1:~# cat /proc/2124407/cmdline
frigate.capture:house1root@LincstationN1:~#



Unraid 6.12.13 / Intel 14700 iGPU detected as Raptorlake / GPU-stat 2024.10.16 / intel-gpu-top 2024.06.27

Unfortunately, the apps aren't displayed for me either.

Frigate and Jellyfin should actually be displayed for me.

With intel-gpu-top, I can see a load of the iGPU, but the data regarding the PID isn't displayed. It's completely missing.

I suspect that's also the error why GPU-stat isn't showing me the apps..?

Is there perhaps a solution for this?

15 minutes ago, enect said:



Unraid 6.12.13 / Intel 14700 iGPU detected as Raptorlake / GPU-stat 2024.10.16 / intel-gpu-top 2024.06.27

Unfortunately, the apps aren't displayed for me either.

Frigate and Jellyfin should actually be displayed for me.

With intel-gpu-top, I can see a load of the iGPU, but the data regarding the PID isn't displayed. It's completely missing.

I suspect that's also the error why GPU-stat isn't showing me the apps..?

Is there perhaps a solution for this?

If intel GPU top is not showing Any data in the clients then that will not show in dash board.



Can you provide screen print for intel GPU top?

46 minutes ago, SimonF said:

Can you provide screen print for intel GPU top?

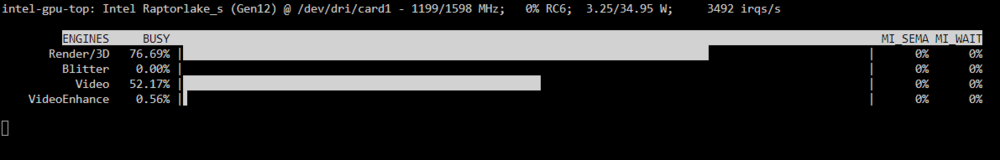

sure, here is the screen

Hi there.

been using gpu stats for quite some time. great plugin.

just wondering, is there no icon when unraid is in GUI Mode?






thanks!


Hi!

Just updated at version dated 2024-10-16 and all data  in dashboard plugin disappeared/stop working: only showing that message

Vendor command returned unparseable data.

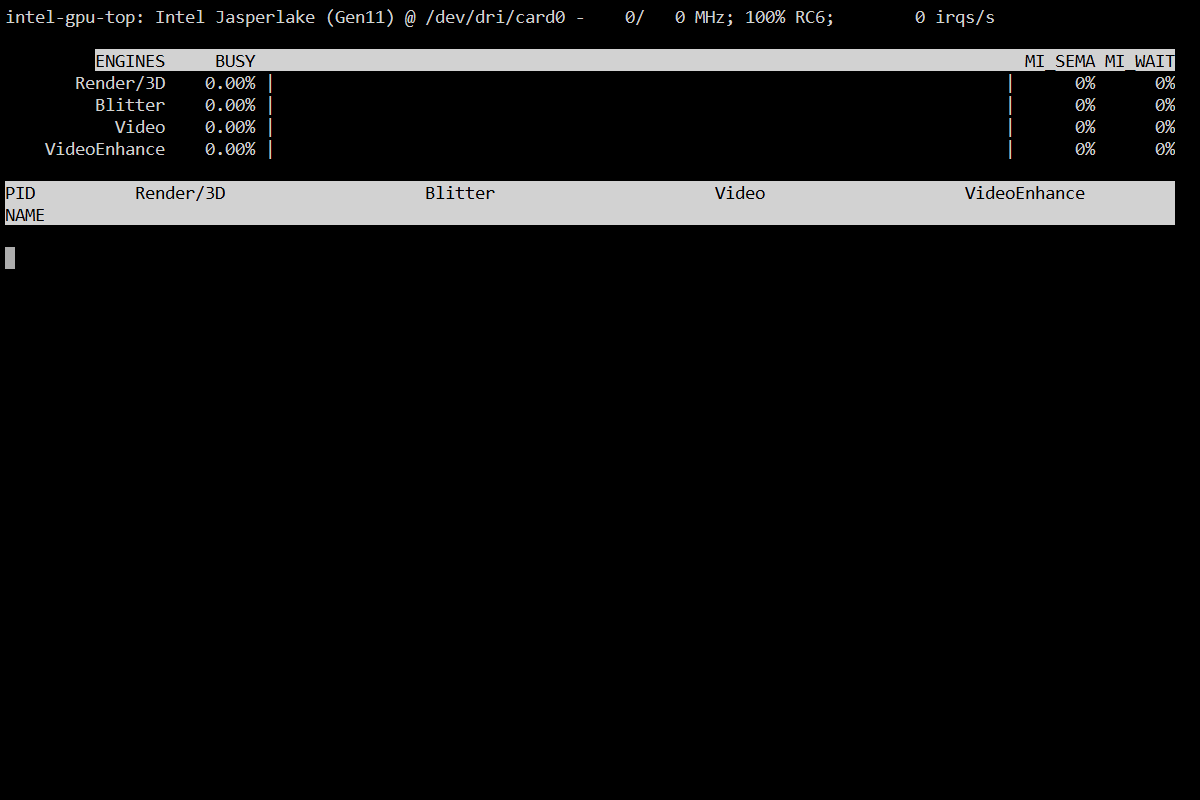

here my Intel_GPU_top screen print:



Before the update all was working like expected.



Any suggestion? A way to rollback to previous version?

Thank you in advance.

3 hours ago, i1mran92 said:

Hi there.

been using gpu stats for quite some time. great plugin.

just wondering, is there no icon when unraid is in GUI Mode?






thanks!


Xorg is not in the application list will look to add.

1 hour ago, irckenny said:

Hi!

Just updated at version dated 2024-10-16 and all data  in dashboard plugin disappeared/stop working: only showing that message

Vendor command returned unparseable data.



here my Intel_GPU_top screen print:



Before the update all was working like expected.



Any suggestion? A way to rollback to previous version?

Thank you in advance.

What are the timer values in the settings?

1 hour ago, SimonF said:

What are the timer values in the settings?

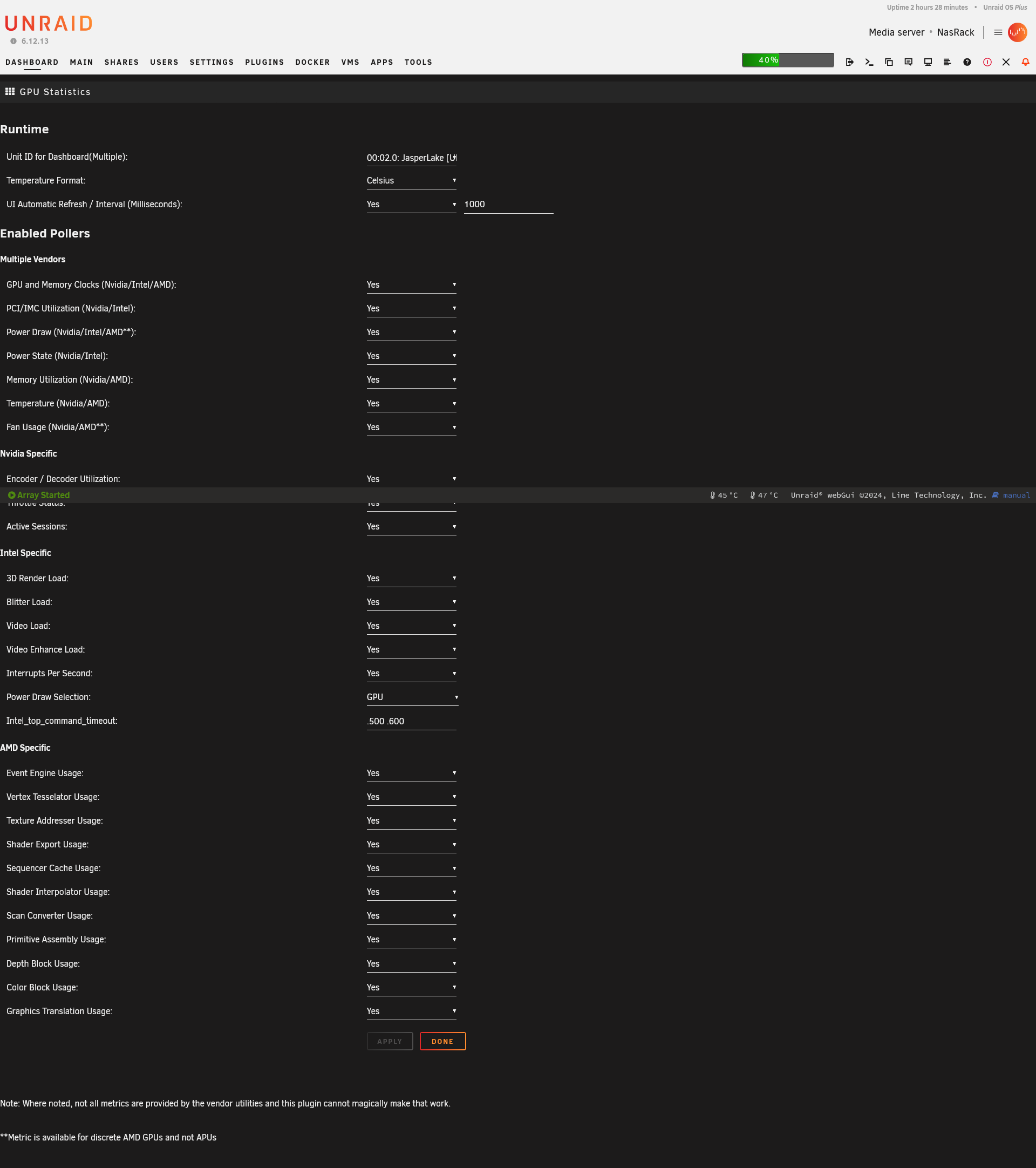

Hi, thanks for reply, here screenshot of my plugin settings. I dont see any "timer" item in my setting.

25 minutes ago, irckenny said:

Hi, thanks for reply, here screenshot of my plugin settings. I dont see any "timer" item in my setting.

Change refresh to 2000 and see if that works, if still see an error increase intel gpu top to .7 1.3

4 hours ago, i1mran92 said:

Hi there.

been using gpu stats for quite some time. great plugin.

just wondering, is there no icon when unraid is in GUI Mode?






thanks!

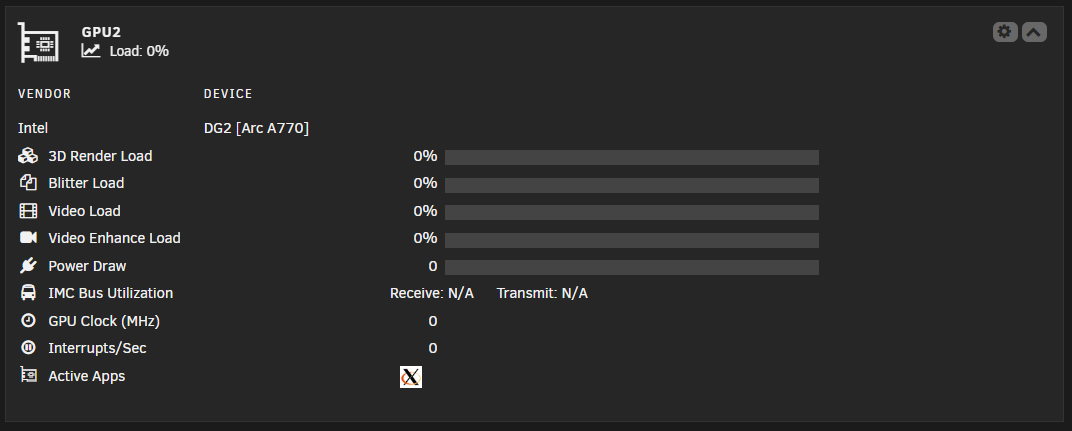

Will add to the next release, just need to look for at the icon, will show as X due to using xorg.



21 hours ago, enect said:

sure, here is the screen

@SimonF probably overlooked... do you have any idea for my problem that no PID/no apps are displayed

2 minutes ago, enect said:

@SimonF probably overlooked... do you have any idea for my problem that no PID/no apps are displayed

Sorry I thought I had replied. I guess intel GPU top does not support Raptorlake correctly.



@ich777Do you know of any issues or a fix?

1 minute ago, SimonF said:

Sorry I thought I had replied. I guess intel GPU top does not support Raptorlake correctly.

I suspected that too. I'll have to ask ich777. Maybe he knows more. Thank you.

2 minutes ago, enect said:

I suspected that too. I'll have to ask ich777. Maybe he knows more. Thank you.

I have tagged him in the post above.

7 minutes ago, SimonF said:

I guess intel GPU top does not support Raptorlake correctly.



5 minutes ago, enect said:

I suspected that too.

That would be also my suspicion, I'll try to create a new intel_gpu_top build over the weekend, see if it doesn't breaks compatibility to the plugin and push an update to Intel-GPU-Top plugin.

Maybe that will fix the issue but I can't tell for sure.

10 hours ago, SimonF said:

Will add to the next release, just need to look for at the icon, will show as X due to using xorg.





oh very nice. looking forward to it. thanks for the reply!

11 hours ago, SimonF said:

Change refresh to 2000 and see if that works, if still see an error increase intel gpu top to .7 1.3

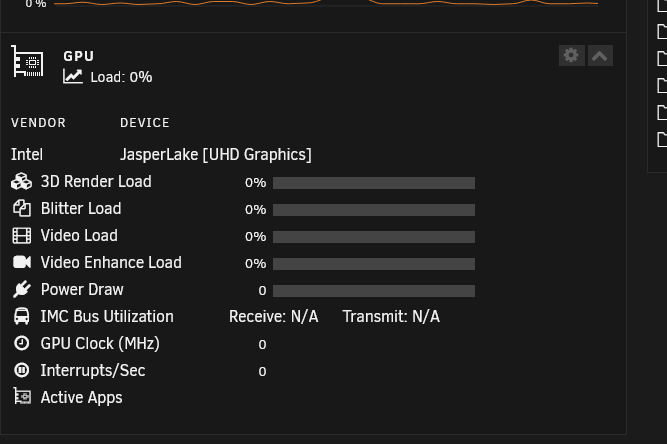

Increasing values as your suggestion the plugin started working again, except for Power draw graphic section that is always showing 0 value but with full "white" bar after first use of GPU hardware decoding.

Any other tip?



After conbfig modification:



After first GPU usage:



And just one more information please: what "intel_top_timeout_command" values .7 1.3 means?

Thank you!

Edited October 18, 20241 yr by irckenny
issue update

18 minutes ago, irckenny said:

Increasing values as your suggestion the plugin started working again, except for Power draw graphic section that is always showing 0 value but with full "white" bar after first use of GPU hardware decoding.

Any other tip?



After conbfig modification:



After first GPU usage:



And just one more information please: what "intel_top_timeout_command" values .7 1.3 means?

Thank you!

It is the internal way the intel_gpu_command has to be run as it does not just output a single JSON with the -j option so to code has to use the timeout function with those values. I will look into the bar issue can you provide the file /tmp/gpujson contents?

On 10/18/2024 at 7:44 AM, SimonF said:

I will look into the bar issue can you provide the file /tmp/gpujson contents?

here my /tmp/gpujson



gpujson

Edited October 19, 20241 yr by irckenny

On 10/17/2024 at 4:36 PM, irckenny said:

Hi!

Just updated at version dated 2024-10-16 and all data  in dashboard plugin disappeared/stop working: only showing that message

Vendor command returned unparseable data.



here my Intel_GPU_top screen print:



Before the update all was working like expected.



Any suggestion? A way to rollback to previous version?

Thank you in advance.



I have exactly the same issue with an alderlake cpu.

14 minutes ago, Vircos said:



I have exactly the same issue with an alderlake cpu.

Have you read the answer to that too:



3 hours ago, ich777 said:

Have you read the answer to that too:



I did miss the increace. After modifying it, it is working again. Thanks for the help.

On 10/18/2024 at 8:08 AM, irckenny said:

here my /tmp/gpujson



gpujson 711 B · 1 download

I have not been able to recreate you issue so far.
