[Plugin] Nvidia-Driver

Featured Replies

  • Author
15 minutes ago, UBS said:

you think maybe Portainer-EE maybe reason ? I changed from CE as they gave free license

I really don't know because I don't use it.

Maybe it messes with Docker or changes some kind of runtime. What is the output of:

cat /etc/docker/daemon.json



  • Replies 5.9k
  • Views 1.2m
  • Created
  • Last Reply

Top Posters In This Topic

Most Popular Posts

  • To utilize your Nvidia graphics card in your Docker container(s) the basic steps are:   Add '--runtime=nvidia' in your Docker template in 'Extra Parameters' (you have to enable 'Advanced

  • Recompiled the drivers and they are now just working fine (to get it working scroll down):   Please do the following (this is only necessary if you upgraded before I recompiled the dri

  • I'm currently spinning up my build VM and compiling the drivers again, currently drivers for 6.11.0 stable are not available...

Posted Images

10 minutes ago, ich777 said:

I really don't know because I don't use it.

Maybe it messes with Docker or changes some kind of runtime. What is the output of:

cat /etc/docker/daemon.json



root@UNRAID:~# cat /etc/docker/daemon.json
{
    "runtimes": {
        "nvidia": {
            "path": "/usr/bin/nvidia-container-runtime",
            "runtimeArgs": []
        }
    }
}

i will continue tomorrow , appriciate tyor kind assistance !! ⭐

Posted my diagnostics. I'm on intel and haven't changed any hardware recently. Same issue though. It worked at one point then randomly worked again before crashing and now i'm stuck. I've tried re-installing the container and downgrading the nvidia driver and updating again with no luck.

diagnostics-20221030-0832.zip



EDIT: Well I just tried again for fun after messing with my idrac setting on my r720xd and now I can start the containers. Not sure if it will last but i'll post my diagnostics after it working incase that helps somehow.

diagnostics-20221103-2023.zip

Edited by Findthelorax

  • Author
3 hours ago, Findthelorax said:

Well I just tried again for fun after messing with my idrac setting on my r720xd and now I can start the containers. Not sure if it will last but i'll post my diagnostics after it working incase that helps somehow.

Do you remember with what you messed in IDRAC?



Did you install anything in the meantime? As said above it could be also a packge that was installed manually.

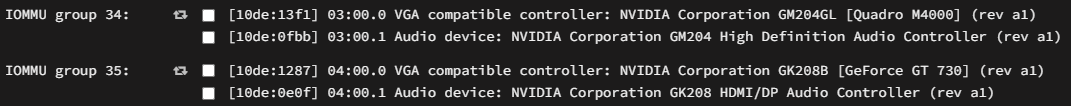

I have installed the Nvidia drivers and have two Nvidia cards installed, a GeForce GT 730 and a Quadro M4000. Both show up under System Devices.

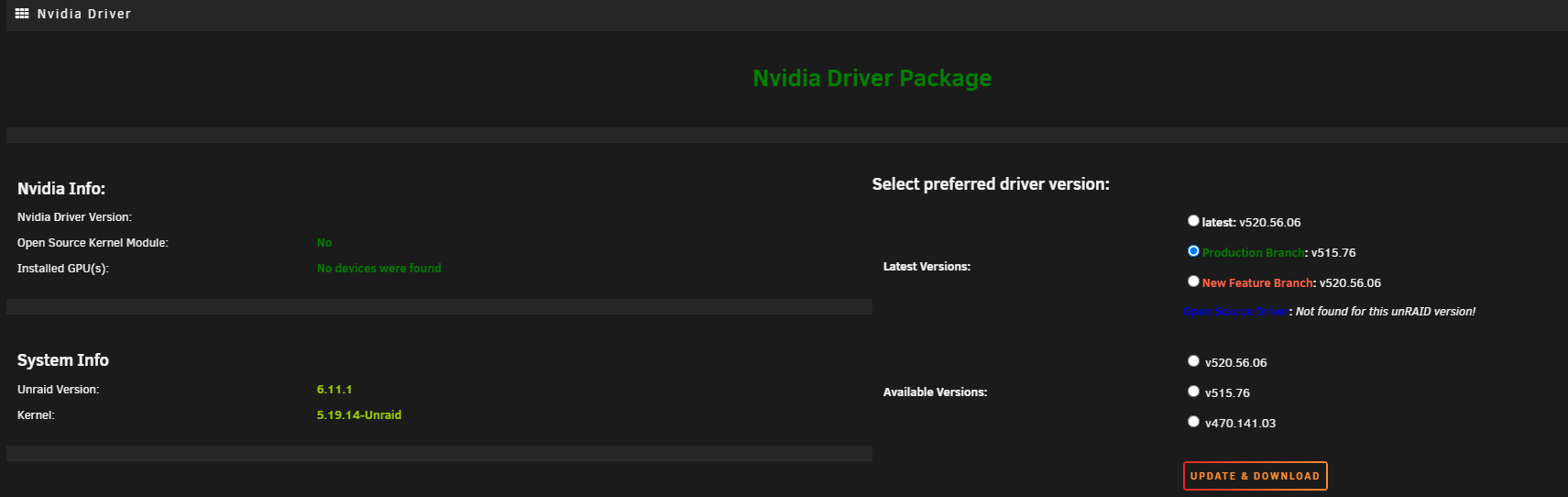

But, the Nvidia Driver Package says no devices found.




SSH command:

root@Media:~# nvidia-smi
No devices were found



I had used the latest driver when installing and changed to Production to see if that would help. I rebooted every time.



The GT 730 is used only for a Windows VM. I had it bound, but un-bound it when trying to get the drivers to show. Diags are attached just in case.



Thanks in advance,

Eddie



EDIT:

I just installed the M4000 today. I just found a note about no power adapter in the logs and just ordered a cable. But, the GT 730 does not install drivers even with the M4000 removed.

Nov  4 15:11:42 Media kernel: NVRM: GPU 0000:03:00.0: GPU does not have the necessary power cables connected.
Nov  4 15:11:42 Media kernel: NVRM: GPU 0000:03:00.0: RmInitAdapter failed! (0x24:0x1c:1377)
Nov  4 15:11:42 Media kernel: NVRM: GPU 0000:03:00.0: rm_init_adapter failed, device minor number 0

media-diagnostics-20221104-1511.zip

Edited by Eddie Seelke
power adapter

  • Author
34 minutes ago, Eddie Seelke said:

the GT 730 does not install drivers even with the M4000 removed.

The GT730 needs the legacy drivers, these are the 470 series drivers as you can see from your screenshot on the bottom.



The GT730 is a pretty bad card for transcoding because it doesn't support h.265 (HEVC).

11 minutes ago, ich777 said:

The GT730 is a pretty bad card for transcoding because it doesn't support h.265 (HEVC).



I was only using it for a Windows VM and didn't really need the drivers for it. I should get the power cable for the M4000 on Sunday. Hopefully, that will resolve my issue.



Thanks

  • Author
9 minutes ago, Eddie Seelke said:

I was only using it for a Windows VM and didn't really need the drivers for it. I should get the power cable for the M4000 on Sunday. Hopefully, that will resolve my issue.

Definitely because the driver recognizes the card. ;)

23 hours ago, ich777 said:

I really don't know because I don't use it.

Maybe it messes with Docker or changes some kind of runtime. What is the output of:

cat /etc/docker/daemon.json



hello again,

now containers starting with nvidia runtime...
but like I'm not sure how it started - I'm also not very sure how it's now fixed

  1. so I removed the GPU statistics add-on

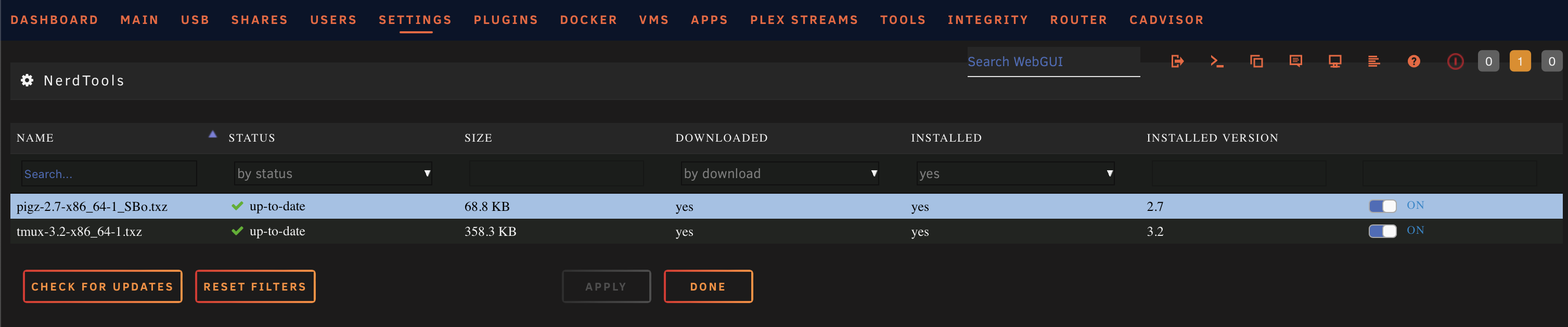

  2. went to nerd tools and these packages were installed (not by me, not sure why) and updated them:

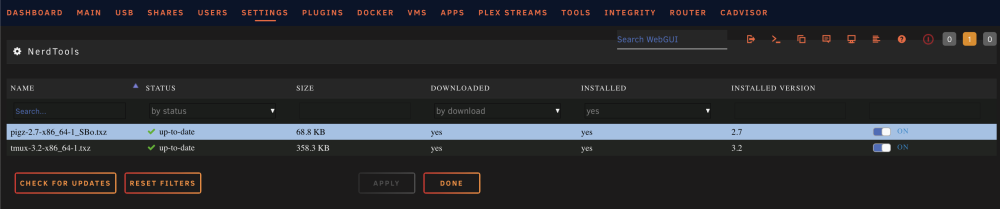

93040470_Screenshot2022-11-04at23_38_30.thumb.png.568a72ace716061eadac28437c597187.png



3. reboot

4. fixed... by maybe one of these actions...
but I have a feeling that I'm not finished with this problem as I don't know how to not make it occur again

i attach a new diagnostic from after i got it working in case this may help



thanks again for your help !



unraid-diagnostics-20221104-2336.zip

  • Author
2 minutes ago, UBS said:

but I have a feeling that I'm not finished with this problem as I don't know how to not make it occur again

I have a few users that reported such an issue, most of them solved it by uninstalling some unnecessary pacakges installed by the Nerd Pack. I really don't know what the issue here.



Simply search this thread for your error (not the whole but the part with OCI... and you will find a few posts.



The first issue like yours IIRC came up on Unraid 6.9.2 but what it caused I really don't know, I also was able to once reproduce the issue but only once.

1 minute ago, ich777 said:

I have a few users that reported such an issue, most of them solved it by uninstalling some unnecessary pacakges installed by the Nerd Pack. I really don't know what the issue here.



Simply search this thread for your error (not the whole but the part with OCI... and you will find a few posts.



The first issue like yours IIRC came up on Unraid 6.9.2 but what it caused I really don't know, I also was able to once reproduce the issue but only once.

I will update if I will find any new information

  • Author

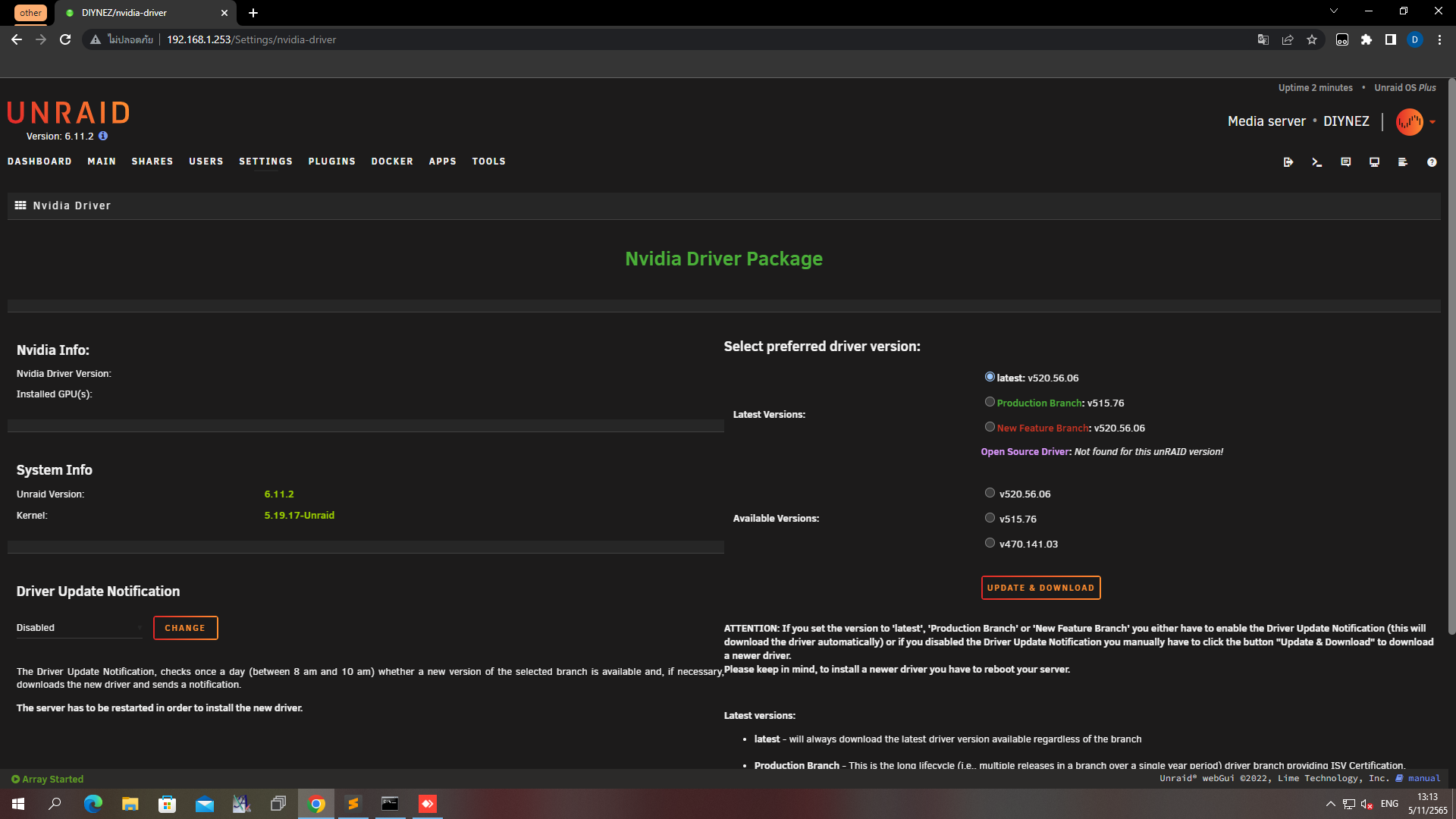

15 minutes ago, neunghaha28 said:

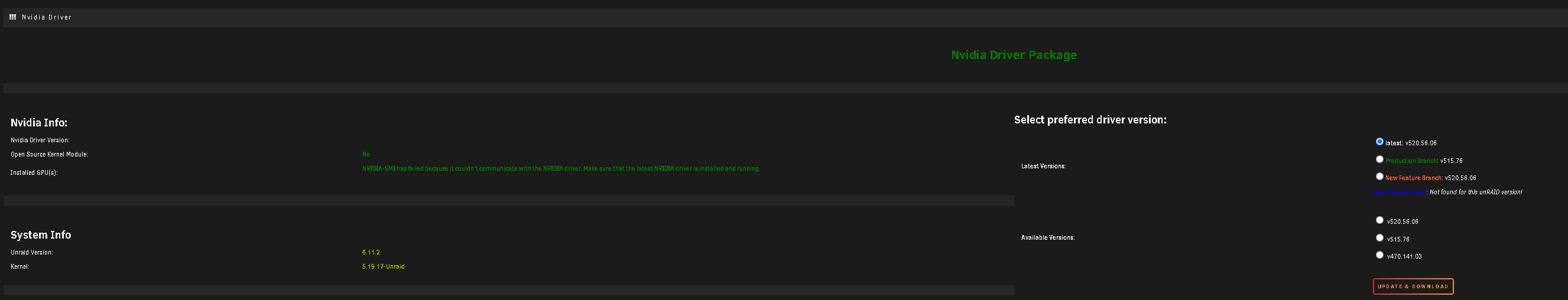

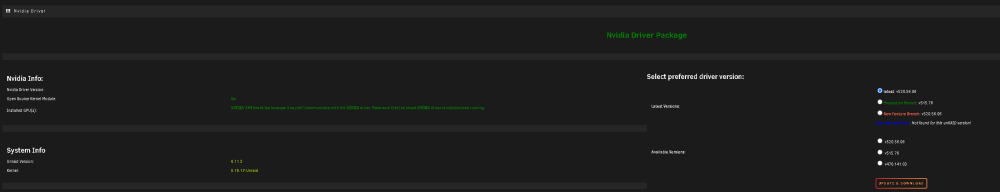

After update 6.11.1 to 6.11.2 please help  me.

The driver download is incomplete, have you waited before upgrading to 6.11.2 where it said to wait until it displays a message that everything is done?



Anyways, please select the driver that you want to install and press the "Update & Download" button on the Nvidia Driver page, this should redownload the driver.

1 hour ago, ich777 said:

The driver download was incomplete, have you waited after upgrading to 6.11.2 where it said to wait until it displays a message that everything is done?



Anyways, please press the "Update & Download" button on the Nvidia Driver page, this should redownload the driver.



Thanks i will try it I feel that the download speed is very slow.



Update: Now it works fine Thanks for the help again.



Edited by neunghaha28

I got an issue downloading th edriver whilst upgrading Unraid 6.11.1 to 6.11.2. The error msg asked to make this post sho here it is.

Please let me know if anyone need any more information. 🙂


  • Author
1 hour ago, mr2web said:

Please let me know if anyone need any more information. 🙂

Seems like something went wrong with the driver download, please reboot, maybe the reboot will take a bit longer since the plugin tries to download the driver on start too (as long as you have a active internet connection on boot) if it failed like in your case.



Please report back if it is working afterwards, if not I would recommend to uninstall the plugin and pull a fresh copy from the CA App.

Just set this up..   Followed instrucitons on the first page, worked great first time.



Thank you

On 10/20/2022 at 1:11 PM, carnivorebrah said:



Hmm, alright.



It is a Supermicro X9DRL-iF, which does have IPMI and a VGA port for displaying video, but I have the BIOS set to the PCI slot the GPU is in for video output because the VGA port wouldn't work before.

I can try switching the BIOS to the VGA port and seeing if it works now instead of the GPU...



So, as a test, I switched out the P2200 for a spare GT 710 I had lying around.



I'm able to get it load all the way to the log in screen with this card, but oddly, it doesn't show up in the Nvidia plug-in:




It does show in my IOMMU groups though:




Why wouldn't it show in the Nvidia plugin?



Diagnostics attached.



It's really odd that everything was working with the P2200, except the login screen, but with the GT 710, it's the complete opposite.

diagnostics-20221106-1324.zip

  • Author
10 minutes ago, carnivorebrah said:

I'm able to get it load all the way to the log in screen with this card, but oddly, it doesn't show up in the Nvidia plug-in:

12 minutes ago, carnivorebrah said:

Why wouldn't it show in the Nvidia plugin?

This is because you need to select the 470 series driver:

Nov  6 13:12:46 AKWSERVER kernel: NVRM: The NVIDIA GeForce GT 710 GPU installed in this system is
Nov  6 13:12:46 AKWSERVER kernel: NVRM:  supported through the NVIDIA 470.xx Legacy drivers. Please
Nov  6 13:12:46 AKWSERVER kernel: NVRM:  visit http://www.nvidia.com/object/unix.html for more
Nov  6 13:12:46 AKWSERVER kernel: NVRM:  information.  The 520.56.06 NVIDIA driver will ignore

The GT710 is a really horrible card IMHO... :D



Please report back what happens if you switch over to the 470 series driver after a reboot.

1 minute ago, ich777 said:

This is because you need to select the 470 series driver:

Nov  6 13:12:46 AKWSERVER kernel: NVRM: The NVIDIA GeForce GT 710 GPU installed in this system is
Nov  6 13:12:46 AKWSERVER kernel: NVRM:  supported through the NVIDIA 470.xx Legacy drivers. Please
Nov  6 13:12:46 AKWSERVER kernel: NVRM:  visit http://www.nvidia.com/object/unix.html for more
Nov  6 13:12:46 AKWSERVER kernel: NVRM:  information.  The 520.56.06 NVIDIA driver will ignore

The GT710 is a really horrible card IMHO... :D



Please report back what happens if you switch over to the 470 series driver after a reboot.



What is the recommended card?


My logic of buying the top of the line card was obviously wrong because the P2200 didn't last 2 years.



I would expect to get 4+ years out of a $400 card at the very least.

  • Author
10 minutes ago, carnivorebrah said:

What is the recommended card?

This always depends on the use case, in my case I've got a Nvidia T400, low power consumption (35W max TDP), really affordable (even back in the GPU crisis about ~120,- brand new), no external power needed, based on Turing <- but take that allwith a grain of salt, I don't need more than 3 simultaneous transcodes and for that the card is perfect...



The GT710 isn't even capable of h.265 (HEVC) and Nvidia already and threw it already last year out of their "Production Branch" drivers.

2 hours ago, ich777 said:

This always depends on the use case, in my case I've got a Nvidia T400, low power consumption (35W max TDP), really affordable (even back in the GPU crisis about ~120,- brand new), no external power needed, based on Turing <- but take that allwith a grain of salt, I don't need more than 3 simultaneous transcodes and for that the card is perfect...



The GT710 isn't even capable of h.265 (HEVC) and Nvidia already and threw it already last year out of their "Production Branch" drivers.



Are you transcoding 1080p or 4K with it?



I'm transcoding 4K, and I could have up to 3 streams at once, but usually just 1 or 2.



I was hoping to have something that could handle that, and have room to grow as I share with more and more people.



From what I can find through searching, it looks like the GTX 1660 may be the most comparable non-Pascal card to the P2000. So, I may just go with it seeing as I'm having bad luck with the Pascal card.



EDIT: Well, never mind. That card requires doing something that I'm not even allowed to talk about on here, and can't find through simple searching. At this point I'm ready to just shut it down and sell it for parts.

Edited by carnivorebrah

On 11/3/2022 at 10:19 AM, ich777 said:

Are you really sure that you have enabled Above 4G Decoding and Resizable BAR Support?

Please double check if you have any other options for BAR or something like 64bit support in the BIOS.



Please also try to disable to onbaord Aspeed AST graphics if possible to see if this makes any difference.



I'm pretty certain that a setting in the BIOS is wrong, please also update your BIOS since you are on version P1.20 where P1.50 is available.


I finally got it to work, and as the dev I thought you should know in case you run across someone else asking at least with my motherboard (asrock rack x570d4u).



No matter what pcie gen 4 card I put it it would do the same thing, no video out and unraid would see it but the nvidia app wouldn’t. With a pcie gen 3 card it worked fine.



I had to completely disable CSM and at least on my board I specifically set the slot the GPU is in to UEFI. I was able to get video out and the driver saw it no problem. I knew it was something simple.


Thank you for your time! And sorry about the thing which shall not be named, part of the reason I went with a Quadro card anyway (a2000) especially now that they’re around $300 on eBay they are the perfect plex card.


Thanks!

Edited by gamertaboo

  • Author
7 hours ago, carnivorebrah said:

From what I can find through searching, it looks like the GTX 1660 may be the most comparable non-Pascal card to the P2000.

The T400 should handle 3x 4k just fine and I already tested this (this depends on the bitrate too but should handle it fone when it‘s nothing too special HFR…)

The T400 is almost the same as a GTX1660 in terms of transcoding.

On 11/5/2022 at 3:08 PM, ich777 said:

Seems like something went wrong with the driver download, please reboot, maybe the reboot will take a bit longer since the plugin tries to download the driver on start too (as long as you have a active internet connection on boot) if it failed like in your case.



Please report back if it is working afterwards, if not I would recommend to uninstall the plugin and pull a fresh copy from the CA App.

Everything worked just fine after the reboot. 🙂 Thanks for your great job ich777! 🙂
