hedrinbc Posted November 20, 2020 Share Posted November 20, 2020 (edited) Support thread for omada-controller on Unraid Community Applications.  Template leverages mbentley's docker https://hub.docker.com/r/mbentley/omada-controller Docker specific, not related to Unraid, issues are logged here https://github.com/mbentley/docker-omada-controller/issues/ Edited November 23, 2020 by hedrinbc Quote Link to comment
hedrinbc Posted November 20, 2020 Author Share Posted November 20, 2020 (edited) SETUP:  PRIOR TO FIRST RUN - If you don't you may need to wipe all files in the 3 paths and start again.  Set all Ports via the variables on the template prior to first run. My default Ports are set non-standard to avoid other used ports. These setting works great on my network, AP adoption, etc. and likely will with yours. Set the 3 paths to your cache or unassigned drive. I have heard permission issues come from using the array paths. In Advanced check the "WebUI" URL is you changed my default ports. Please let me know if you need any assistance. Edited November 23, 2020 by hedrinbc Quote Link to comment
jbquintal Posted November 22, 2020 Share Posted November 22, 2020 (edited) First up, thanks for the docker! I've been waiting for a docker app that supports Omada Controller v4. Right now, I'm running a windows vm just to get the controller. Anyway, I tired installing your docker but I must be doing something wrong. Any thoughts? Edited November 22, 2020 by jbquintal Quote Link to comment
hedrinbc Posted November 23, 2020 Author Share Posted November 23, 2020 (edited) Hi there couple questions. Â Were you able to create paths on your system for the three paths required? Were those paths on your array or in a cache or unassigned drive? Â My 3 paths are on an unassigned drive versus in the array and I have heard there could be permission issues if on the array. Reading those logs it appears to me it can't write into the paths. Â Happy to continue to help, I do have it running over here so we can get there! -Ben Edited November 23, 2020 by hedrinbc Quote Link to comment
_whatever Posted November 30, 2020 Share Posted November 30, 2020 Just out of curiosity, do you know if on first run this will upgrade a 3.2 database if I copy over my config and db from a 3.2 install and use it with this container? I was going to try it later but thought I'd ask first in case it's a waste of time. Quote Link to comment
_whatever Posted December 1, 2020 Share Posted December 1, 2020 3 hours ago, _whatever said: Just out of curiosity, do you know if on first run this will upgrade a 3.2 database if I copy over my config and db from a 3.2 install and use it with this container? I was going to try it later but thought I'd ask first in case it's a waste of time. I just kept the stock default config and ran through the wizard and then imported my config from the old controller. Seems to have worked fine. Thanks for your work on this container so I can use a much newer version! Quote Link to comment
hedrinbc Posted December 1, 2020 Author Share Posted December 1, 2020 Great to hear. I didn't create the Docker but did create the Unraid template and am a user. Â Happy to hear it's working, hoping others find this as it was a gap for me when I moved to Omada just a few weeks ago. Â Please help me support here for 3.2 upgraders if you can! Quote Link to comment
_whatever Posted December 1, 2020 Share Posted December 1, 2020 For others coming from 3.2 you can use the link below to migrate your config. Note, you'll have to reconfigure any ACLs or captive portals you have setup since they won't migrate. You also have to make sure that the paths for your data, work and logs folders all point to a single disk and not a share. In my case I'm using /mnt/cache/.  https://www.tp-link.com/us/omada-sdn/controller-upgrade/#content-5_1_2 Skip to bullet 2 step 1. Quote Link to comment
jbquintal Posted December 3, 2020 Share Posted December 3, 2020 On 11/24/2020 at 1:34 AM, hedrinbc said: Hi there couple questions.  Were you able to create paths on your system for the three paths required? Were those paths on your array or in a cache or unassigned drive?  My 3 paths are on an unassigned drive versus in the array and I have heard there could be permission issues if on the array. Reading those logs it appears to me it can't write into the paths.  Happy to continue to help, I do have it running over here so we can get there! -Ben Hey Ben,  Thanks... I resolved mine by fixing permissions. Works great now. Quote Link to comment
hedrinbc Posted December 5, 2020 Author Share Posted December 5, 2020 @jbquintal Great, you mean you folders are on your array and you simply changed permissions?  If so can you share what you did in case others run into this?  Great o hear it is working well! Quote Link to comment
dodgeman Posted December 22, 2020 Share Posted December 22, 2020 Great container, I set it all up and it works after changing to a fixed drive path. Only issue is I have V2 EAP225 AP's and they are not supported. Is there a way I could modify the container to the version 3 code stream ie 3.2.1? Quote Link to comment
hedrinbc Posted December 26, 2020 Author Share Posted December 26, 2020 On 12/22/2020 at 10:33 AM, dodgeman said: Great container, I set it all up and it works after changing to a fixed drive path. Only issue is I have V2 EAP225 AP's and they are not supported. Is there a way I could modify the container to the version 3 code stream ie 3.2.1? Well, assume this is total guessing as I haven't done this myself.  If you install my omada-controller Unraid docker then go into Docker in your Unraid and edit that Docker.  Likely need to switch to Advanced mode in the upper right.  The Docker we are using support multiple labels for different versions of Omada controller. (see for details: https://hub.docker.com/r/mbentley/omada-controller)  So add ":3.2" after "mbentley/omada-controller" so should be "mbentley/omada-controller:3.2" (without the quotes).  Hopefully you can take it from there and see if it works? Quote Link to comment
kizeren Posted January 19, 2021 Share Posted January 19, 2021 Not quite sure what happened. Had an update for this docker roughly a week ago. Ever since the update, the docker resets. As in the webui has defaulted as if it was a first time setup even though the files where there. Only happens on server reboot. I changed paths to be at /mnt/users/appdata like the rest of the dockers use. Have yet to reboot to test due to kids yelling they want thier wifi :). What permissions or what should the permissions be for the directory? Thanks! Quote Link to comment
TheShadowDuke Posted February 24, 2021 Share Posted February 24, 2021 I have a EAP245 v1. Is there a way to force the rollback to 3.2.x? Quote Link to comment
blueboyscout325 Posted April 22, 2021 Share Posted April 22, 2021 I'm having issues with my R605 becoming disconnected and then cannot be readopted. I'll also noticed that my two EAP245s will become periodically disconnected at the same time and will automatically be readopted. I don't think this is expected behavior and I'm wondering if it's related to the discovery ports. I currently have it set to network host with the ports passed through. Could switching it to the br0 bridge and giving the controller it's own IP potentially solve my issues? Quote Link to comment
lovingHDTV Posted April 25, 2021 Share Posted April 25, 2021 Just wanted to say thanks. Works great.  Backed-up my current config, stopped older version, installed this, imported my backup, and updated the firmware for all my access points.  worked perfectly.  thanks Quote Link to comment

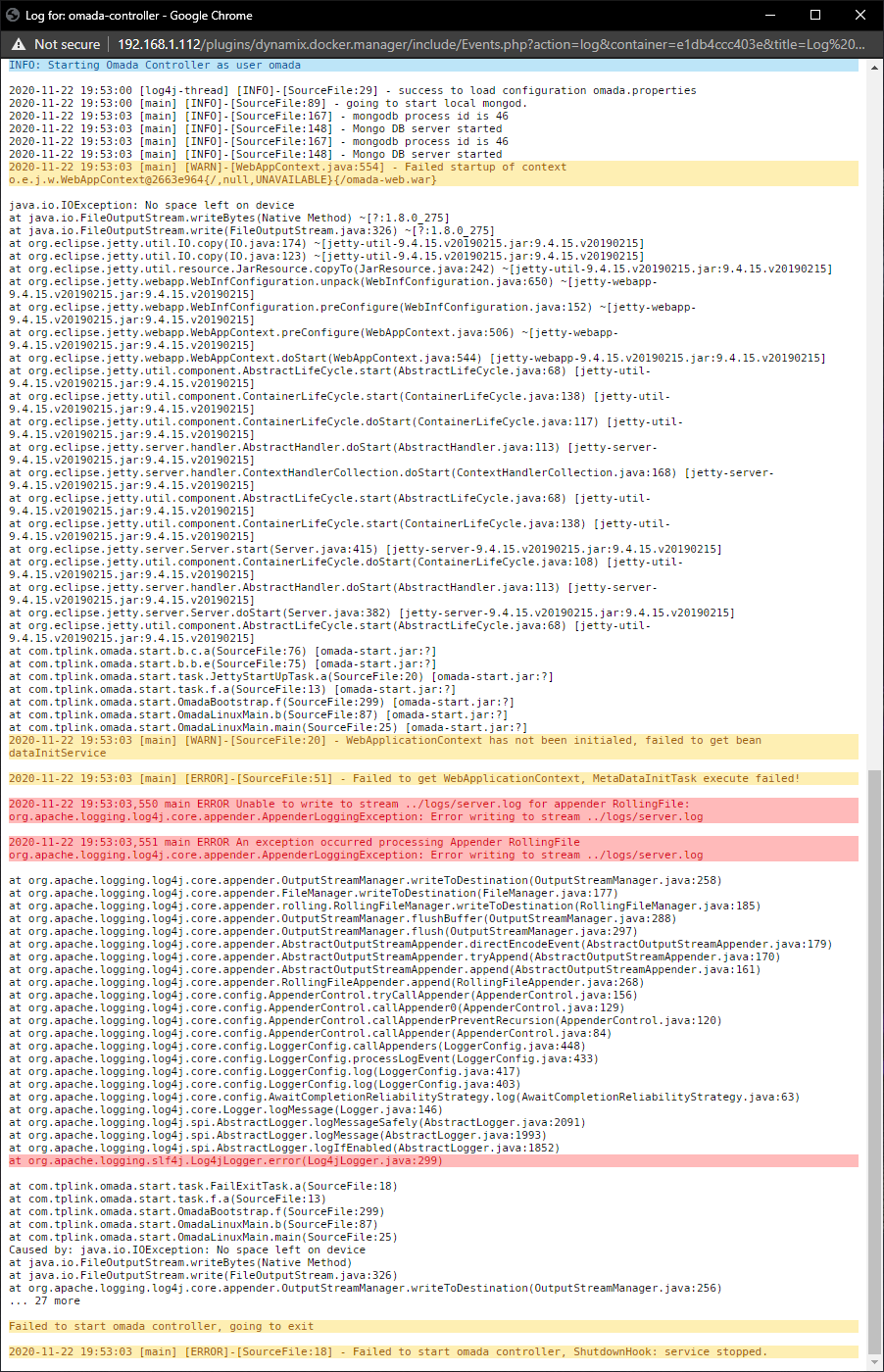

Wicked_Chicken Posted May 8, 2021 Share Posted May 8, 2021 Having an issue with the docker. Log as as such:Â Â at com.tplink.omada.start.task.MetaDataInitTask.a(SourceFile:51) at com.tplink.omada.start.task.f.a(SourceFile:13) at com.tplink.omada.start.OmadaBootstrap.f(SourceFile:321) at com.tplink.omada.start.OmadaLinuxMain.b(SourceFile:87) at com.tplink.omada.start.OmadaLinuxMain.main(SourceFile:25) Caused by: java.io.IOException: No space left on device at java.io.FileOutputStream.writeBytes(Native Method) at java.io.FileOutputStream.write(FileOutputStream.java:326) at org.apache.logging.log4j.core.appender.OutputStreamManager.writeToDestination(OutputStreamManager.java:256) ... 27 more 2021-05-08 11:07:18,740 main ERROR Unable to write to stream ../logs/server.log for appender RollingFile: org.apache.logging.log4j.core.appender.AppenderLoggingException: Error writing to stream ../logs/server.log 2021-05-08 11:07:18,740 main ERROR An exception occurred processing Appender RollingFile org.apache.logging.log4j.core.appender.AppenderLoggingException: Error writing to stream ../logs/server.log at org.apache.logging.log4j.core.appender.OutputStreamManager.writeToDestination(OutputStreamManager.java:258) at org.apache.logging.log4j.core.appender.FileManager.writeToDestination(FileManager.java:177) at org.apache.logging.log4j.core.appender.rolling.RollingFileManager.writeToDestination(RollingFileManager.java:185) at org.apache.logging.log4j.core.appender.OutputStreamManager.flushBuffer(OutputStreamManager.java:288) at org.apache.logging.log4j.core.appender.OutputStreamManager.flush(OutputStreamManager.java:297) at org.apache.logging.log4j.core.appender.AbstractOutputStreamAppender.directEncodeEvent(AbstractOutputStreamAppender.java:179) at org.apache.logging.log4j.core.appender.AbstractOutputStreamAppender.tryAppend(AbstractOutputStreamAppender.java:170) at org.apache.logging.log4j.core.appender.AbstractOutputStreamAppender.append(AbstractOutputStreamAppender.java:161) at org.apache.logging.log4j.core.appender.RollingFileAppender.append(RollingFileAppender.java:268) at org.apache.logging.log4j.core.config.AppenderControl.tryCallAppender(AppenderControl.java:156) at org.apache.logging.log4j.core.config.AppenderControl.callAppender0(AppenderControl.java:129) at org.apache.logging.log4j.core.config.AppenderControl.callAppenderPreventRecursion(AppenderControl.java:120) at org.apache.logging.log4j.core.config.AppenderControl.callAppender(AppenderControl.java:84) at org.apache.logging.log4j.core.config.LoggerConfig.callAppenders(LoggerConfig.java:448) at org.apache.logging.log4j.core.config.LoggerConfig.processLogEvent(LoggerConfig.java:433) at org.apache.logging.log4j.core.config.LoggerConfig.log(LoggerConfig.java:417) at org.apache.logging.log4j.core.config.LoggerConfig.log(LoggerConfig.java:403) at org.apache.logging.log4j.core.config.AwaitCompletionReliabilityStrategy.log(AwaitCompletionReliabilityStrategy.java:63) at org.apache.logging.log4j.core.Logger.logMessage(Logger.java:146) at org.apache.logging.log4j.spi.AbstractLogger.logMessageSafely(AbstractLogger.java:2091) at org.apache.logging.log4j.spi.AbstractLogger.logMessage(AbstractLogger.java:1993) at org.apache.logging.log4j.spi.AbstractLogger.logIfEnabled(AbstractLogger.java:1852) at org.apache.logging.slf4j.Log4jLogger.error(Log4jLogger.java:299) at com.tplink.omada.start.task.FailExitTask.a(SourceFile:18) at com.tplink.omada.start.task.f.a(SourceFile:13) at com.tplink.omada.start.OmadaBootstrap.f(SourceFile:321) at com.tplink.omada.start.OmadaLinuxMain.b(SourceFile:87) at com.tplink.omada.start.OmadaLinuxMain.main(SourceFile:25) Caused by: java.io.IOException: No space left on device at java.io.FileOutputStream.writeBytes(Native Method) at java.io.FileOutputStream.write(FileOutputStream.java:326) at org.apache.logging.log4j.core.appender.OutputStreamManager.writeToDestination(OutputStreamManager.java:256) ... 27 more Failed to start omada controller, going to exit 2021-05-08 11:07:18 [main] [ERROR]-[SourceFile:51] - Failed to get WebApplicationContext, Met2021-05-08 11:07:19 [nioEventLoopGroup-5-1] [INFO]-[SourceFile:50] - Omada Controller isn't prepared to handle event 2021-05-08 11:07:27 [nioEventLoopGroup-5-1] [INFO]-[SourceFile:50] - Omada Controller isn't prepared to handle event ShutdownHook: service stopped. Quote Link to comment
hedrinbc Posted May 8, 2021 Author Share Posted May 8, 2021 Please check your file paths and make sure folders exist in your unraid and that there is write permission. Â I personally use an unassigned device but you can use any other folders that are appropriate for your system. Quote Link to comment
Jamaica1985 Posted August 19, 2021 Share Posted August 19, 2021 This docker works fine. Just a note though.. When using this on a TP-Link ER605 it completely removes all the config from it if you hadn´t configured Omada on it before yet. Mine was a stand alone config through the device web interface but it completely removed and defaulted all WAN/LAN/FIREWALL/VPN settings. I had to set it up all again.  Thanks for the docker though. Quote Link to comment
lovingHDTV Posted September 22, 2021 Share Posted September 22, 2021 Just added a ER605 and TL-SG2008P.  Had an issue where the ER605 defaults to 192.168.0.1 and I use 192.168.1.1. There is a support FAQ at TP-Link that tells you how to get Omada to adopt the router.  Other than that, not a docker issue, it worked great. I also just noticed that this docker supports non Host networking so I can assign a dedicated IP to the docker. Very nice indeed.  Thanks again Quote Link to comment
Phreaknes Posted November 11, 2021 Share Posted November 11, 2021 I'm very new to all of this (Linux, UnRaid, dockers and Omada). I've had several docker 'crashed' recently and I think it's down to permission. How can I check the permissions in the directories where Omada resides and what are the command to make sure I have the corrected permissions for those directories. Quote Link to comment
tvojm100 Posted November 18, 2021 Share Posted November 18, 2021 (edited) Installed this docker. Works well, including with various different VLAN setups, etc. Thanks to all who have contributed towards it. Â I am assuming the version is updated in a reasonable amount of time? Edited November 18, 2021 by tvojm100 Quote Link to comment
Vassilios Posted November 27, 2021 Share Posted November 27, 2021 Hello all, unfortunately it does not work ( Unraid 6.9.2 - Community Apps ) I have to install portainer first and install there by stack, this is how it works Quote Link to comment
foo_fighter Posted December 12, 2021 Share Posted December 12, 2021 (edited) The repos have been updated to patch the log4j exploit. Everyone should pull the update. Edited December 12, 2021 by foo_fighter 1 Quote Link to comment
