interwebtech

continued...

Mine works. Will post my settings so you can review: Docker first then each screen of PlexPy settings

Yes, 2015.09.28 version

Array is running. I even woke up all disks to see if that had an effect. Its only drives on the motherboard.

PS. Thought maybe it was a Areca issue but in fact these are all the drives connected to my motherboard. See screenie. Shaded serial numbers are on the Areca.

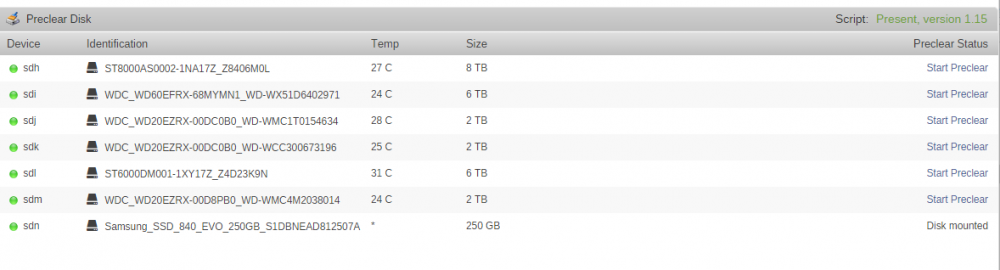

If you're using Joe L. version, you don't. The reason is that the "mail" command used before unRAID 6 could interfere with the built-in Notification system. I've adapted the new system into preclear_disk and submit it here, but there's no response from Joe L. In the mean time, you can use bjp999 version of the script that's stored on my github: I uninstalled Preclear plugin and reinstalled using PLG link from first page, then uploaded the preclear_disk.sh you referenced in quoted text. Now it is offering to Preclear members of my array & cache disk? Something is not right.

gmail with TLS port 587 Use STARTTLS: Yes the rest looks the same as OP.

The ARECA returns different fields than regular disks do - I hope it is fixed. Please try the attached file and report back the results - screenshot of the DATA tab on the serverlayout plugin. I have no way of testing it myself. Rename the file extension to ".txt" and place the file in /usr/local/emhttp/plugins/serverlayout/php/ If it works I will update the plugin. renamed to .php. Looks like it worked? smartctl --all /dev/sdb smartctl 6.2 2013-07-26 r3841 [x86_64-linux-4.1.7-unRAID] (local build) Copyright (C) 2002-13, Bruce Allen, Christian Franke, www.smartmontools.org === START OF INFORMATION SECTION === Vendor: Areca Product: ARC-1231-RAID00 Revision: R001 User Capacity: 8,001,573,355,520 bytes [8.00 TB] Logical block size: 512 bytes Rotation Rate: 10000 rpm Logical Unit id: 0x001b4d2306294800 Serial number: 0000002273521567 Device type: disk Transport protocol: Fibre channel (FCP-2) Local Time is: Tue Sep 22 10:15:52 2015 PDT SMART support is: Available - device has SMART capability. SMART support is: Enabled Temperature Warning: Disabled or Not Supported === START OF READ SMART DATA SECTION === SMART Health Status: OK Current Drive Temperature: 30 C Drive Trip Temperature: 25 C Manufactured in week 30 of year 2002 Specified cycle count over device lifetime: 4278190080 Accumulated start-stop cycles: 256 Elements in grown defect list: 0 Error counter log: Errors Corrected by Total Correction Gigabytes Tot al ECC rereads/ errors algorithm processed unc orrected fast | delayed rewrites corrected invocations [10^9 bytes] err ors read: 0 0 0 0 0 0.000 0 write: 0 0 0 0 0 0.000 0 Non-medium error count: 0 Device does not support Self Test logging

Please also post the output of "smartctl --all /dev/sdf" This is how I get the disk information. I think the ARECA doesn't give back the internal disk information especially the serial number and that is why they are overwriting each other's data and only the last one "disk2"/"sdd" remains - and as you see it does not have a serial number or any disk information. Just so you are on the same page, its a known issue with This card. With the help of other users, I have this in my Go file. Otherwise those drives would be blanks in UnRaid: cp /boot/60-persistent-storage.rules /lib/udev/rules.d udevadm control --reload-rules udevadm trigger Here is the thread we have for this: http://lime-technology.com/forum/index.php?topic=38487.0

smartctl --all /dev/sdf smartctl 6.2 2013-07-26 r3841 [x86_64-linux-4.1.7-unRAID] (local build) Copyright (C) 2002-13, Bruce Allen, Christian Franke, www.smartmontools.org === START OF INFORMATION SECTION === Vendor: Seagate Product: ST2000DM001-1CH1 Revision: R001 User Capacity: 2,000,398,934,016 bytes [2.00 TB] Logical block size: 512 bytes Rotation Rate: 10000 rpm Logical Unit id: 0x001b4d2306294804 Serial number: Z1F5DKBF Device type: disk Transport protocol: Fibre channel (FCP-2) Local Time is: Mon Sep 21 16:16:40 2015 PDT SMART support is: Available - device has SMART capability. SMART support is: Enabled Temperature Warning: Disabled or Not Supported === START OF READ SMART DATA SECTION === SMART Health Status: OK Current Drive Temperature: 30 C Drive Trip Temperature: 25 C Manufactured in week 30 of year 2002 Specified cycle count over device lifetime: 4278190080 Accumulated start-stop cycles: 256 Elements in grown defect list: 0 Error counter log: Errors Corrected by Total Correction Gigabytes Total ECC rereads/ errors algorithm processed uncorrected fast | delayed rewrites corrected invocations [10^9 bytes] errors read: 0 0 0 0 0 0.000 0 write: 0 0 0 0 0 0.000 0 Non-medium error count: 0 Device does not support Self Test logging oh my... its a 10K RPM 2TB Seagate

"ls -las /dev/disk/by-id" root@Tower:~# ls -las /dev/disk/by-id total 0 0 drwxr-xr-x 2 root root 1240 Sep 21 11:08 ./ 0 drwxr-xr-x 6 root root 120 Sep 21 11:08 ../ 0 lrwxrwxrwx 1 root root 9 Sep 21 11:08 ata-ST8000AS0002-1NA17Z_Z8406M0L -> ../../sdg 0 lrwxrwxrwx 1 root root 10 Sep 21 11:08 ata-ST8000AS0002-1NA17Z_Z8406M0L-part1 -> ../../sdg1 0 lrwxrwxrwx 1 root root 9 Sep 21 11:08 ata-Samsung_SSD_840_EVO_250GB_S1DBNEAD812507A -> ../../sdn 0 lrwxrwxrwx 1 root root 10 Sep 21 11:08 ata-Samsung_SSD_840_EVO_250GB_S1DBNEAD812507A-part1 -> ../../sdn1 0 lrwxrwxrwx 1 root root 9 Sep 21 11:08 ata-TOSHIBA_MD04ACA500_24R6K00RFS9A -> ../../sdm 0 lrwxrwxrwx 1 root root 10 Sep 21 11:08 ata-TOSHIBA_MD04ACA500_24R6K00RFS9A-part1 -> ../../sdm1 0 lrwxrwxrwx 1 root root 9 Sep 21 11:08 ata-WDC_WD20EZRX-00D8PB0_WD-WMC4M2038014 -> ../../sdl 0 lrwxrwxrwx 1 root root 10 Sep 21 11:08 ata-WDC_WD20EZRX-00D8PB0_WD-WMC4M2038014-part1 -> ../../sdl1 0 lrwxrwxrwx 1 root root 9 Sep 21 11:08 ata-WDC_WD20EZRX-00DC0B0_WD-WCC300673196 -> ../../sdj 0 lrwxrwxrwx 1 root root 10 Sep 21 11:08 ata-WDC_WD20EZRX-00DC0B0_WD-WCC300673196-part1 -> ../../sdj1 0 lrwxrwxrwx 1 root root 9 Sep 21 11:08 ata-WDC_WD20EZRX-00DC0B0_WD-WMC1T0154634 -> ../../sdi 0 lrwxrwxrwx 1 root root 10 Sep 21 11:08 ata-WDC_WD20EZRX-00DC0B0_WD-WMC1T0154634-part1 -> ../../sdi1 0 lrwxrwxrwx 1 root root 9 Sep 21 11:08 ata-WDC_WD20EZRX-00DC0B0_WD-WMC1T3951491 -> ../../sdk 0 lrwxrwxrwx 1 root root 10 Sep 21 11:08 ata-WDC_WD20EZRX-00DC0B0_WD-WMC1T3951491-part1 -> ../../sdk1 0 lrwxrwxrwx 1 root root 9 Sep 21 11:08 ata-WDC_WD60EFRX-68MYMN1_WD-WX51D6402971 -> ../../sdh 0 lrwxrwxrwx 1 root root 10 Sep 21 11:08 ata-WDC_WD60EFRX-68MYMN1_WD-WX51D6402971-part1 -> ../../sdh1 0 lrwxrwxrwx 1 root root 9 Sep 21 11:08 scsi-ARC-1231-RAID00_0000002273521567 -> ../../sdb 0 lrwxrwxrwx 1 root root 10 Sep 21 11:08 scsi-ARC-1231-RAID00_0000002273521567-part1 -> ../../sdb1 0 lrwxrwxrwx 1 root root 9 Sep 21 11:08 scsi-SATA_ST8000AS0002-1N_Z8406M0L -> ../../sdg 0 lrwxrwxrwx 1 root root 10 Sep 21 11:08 scsi-SATA_ST8000AS0002-1N_Z8406M0L-part1 -> ../../sdg1 0 lrwxrwxrwx 1 root root 9 Sep 21 11:08 scsi-SATA_Samsung_SSD_840S1DBNEAD812507A -> ../../sdn 0 lrwxrwxrwx 1 root root 10 Sep 21 11:08 scsi-SATA_Samsung_SSD_840S1DBNEAD812507A-part1 -> ../../sdn1 0 lrwxrwxrwx 1 root root 9 Sep 21 11:08 scsi-SATA_TOSHIBA_MD04ACA_24R6K00RFS9A -> ../../sdm 0 lrwxrwxrwx 1 root root 10 Sep 21 11:08 scsi-SATA_TOSHIBA_MD04ACA_24R6K00RFS9A-part1 -> ../../sdm1 0 lrwxrwxrwx 1 root root 9 Sep 21 11:08 scsi-SATA_WDC_WD20EZRX-00_WD-WCC300673196 -> ../../sdj 0 lrwxrwxrwx 1 root root 10 Sep 21 11:08 scsi-SATA_WDC_WD20EZRX-00_WD-WCC300673196-part1 -> ../../sdj1 0 lrwxrwxrwx 1 root root 9 Sep 21 11:08 scsi-SATA_WDC_WD20EZRX-00_WD-WMC1T0154634 -> ../../sdi 0 lrwxrwxrwx 1 root root 10 Sep 21 11:08 scsi-SATA_WDC_WD20EZRX-00_WD-WMC1T0154634-part1 -> ../../sdi1 0 lrwxrwxrwx 1 root root 9 Sep 21 11:08 scsi-SATA_WDC_WD20EZRX-00_WD-WMC1T3951491 -> ../../sdk 0 lrwxrwxrwx 1 root root 10 Sep 21 11:08 scsi-SATA_WDC_WD20EZRX-00_WD-WMC1T3951491-part1 -> ../../sdk1 0 lrwxrwxrwx 1 root root 9 Sep 21 11:08 scsi-SATA_WDC_WD20EZRX-00_WD-WMC4M2038014 -> ../../sdl 0 lrwxrwxrwx 1 root root 10 Sep 21 11:08 scsi-SATA_WDC_WD20EZRX-00_WD-WMC4M2038014-part1 -> ../../sdl1 0 lrwxrwxrwx 1 root root 9 Sep 21 11:08 scsi-SATA_WDC_WD60EFRX-68_WD-WX51D6402971 -> ../../sdh 0 lrwxrwxrwx 1 root root 10 Sep 21 11:08 scsi-SATA_WDC_WD60EFRX-68_WD-WX51D6402971-part1 -> ../../sdh1 0 lrwxrwxrwx 1 root root 9 Sep 21 11:08 scsi-ST2000DM001-1CH1_Z1F5DKBF -> ../../sdf 0 lrwxrwxrwx 1 root root 10 Sep 21 11:08 scsi-ST2000DM001-1CH1_Z1F5DKBF-part1 -> ../../sdf1 0 lrwxrwxrwx 1 root root 9 Sep 21 11:08 scsi-ST4000DM000-1F21_Z3024WMZ -> ../../sde 0 lrwxrwxrwx 1 root root 10 Sep 21 11:08 scsi-ST4000DM000-1F21_Z3024WMZ-part1 -> ../../sde1 0 lrwxrwxrwx 1 root root 9 Sep 21 11:08 scsi-ST4000DM000-1F21_Z3024WY8 -> ../../sdc 0 lrwxrwxrwx 1 root root 10 Sep 21 11:08 scsi-ST4000DM000-1F21_Z3024WY8-part1 -> ../../sdc1 0 lrwxrwxrwx 1 root root 9 Sep 21 11:08 scsi-ST6000DX000-1H21_Z4D04L2A -> ../../sdd 0 lrwxrwxrwx 1 root root 10 Sep 21 11:08 scsi-ST6000DX000-1H21_Z4D04L2A-part1 -> ../../sdd1 0 lrwxrwxrwx 1 root root 9 Sep 21 15:16 usb-SanDisk_U3_Cruzer_Micro_1031811B45D2F146-0:0 -> ../../sda 0 lrwxrwxrwx 1 root root 10 Sep 21 11:08 usb-SanDisk_U3_Cruzer_Micro_1031811B45D2F146-0:0-part1 -> ../../sda1 0 lrwxrwxrwx 1 root root 9 Sep 21 11:08 wwn-0x500003955b9820b6 -> ../../sdm 0 lrwxrwxrwx 1 root root 10 Sep 21 11:08 wwn-0x500003955b9820b6-part1 -> ../../sdm1 0 lrwxrwxrwx 1 root root 9 Sep 21 11:08 wwn-0x5000c5007b7f0b19 -> ../../sdg 0 lrwxrwxrwx 1 root root 10 Sep 21 11:08 wwn-0x5000c5007b7f0b19-part1 -> ../../sdg1 0 lrwxrwxrwx 1 root root 9 Sep 21 11:08 wwn-0x50014ee0ae14226e -> ../../sdi 0 lrwxrwxrwx 1 root root 10 Sep 21 11:08 wwn-0x50014ee0ae14226e-part1 -> ../../sdi1 0 lrwxrwxrwx 1 root root 9 Sep 21 11:08 wwn-0x50014ee25e0a024b -> ../../sdj 0 lrwxrwxrwx 1 root root 10 Sep 21 11:08 wwn-0x50014ee25e0a024b-part1 -> ../../sdj1 0 lrwxrwxrwx 1 root root 9 Sep 21 11:08 wwn-0x50014ee2b58ef3a9 -> ../../sdh 0 lrwxrwxrwx 1 root root 10 Sep 21 11:08 wwn-0x50014ee2b58ef3a9-part1 -> ../../sdh1 0 lrwxrwxrwx 1 root root 9 Sep 21 11:08 wwn-0x50014ee658c7d2c3 -> ../../sdk 0 lrwxrwxrwx 1 root root 10 Sep 21 11:08 wwn-0x50014ee658c7d2c3-part1 -> ../../sdk1 0 lrwxrwxrwx 1 root root 9 Sep 21 11:08 wwn-0x50014ee6aeb46f0e -> ../../sdl 0 lrwxrwxrwx 1 root root 10 Sep 21 11:08 wwn-0x50014ee6aeb46f0e-part1 -> ../../sdl1 0 lrwxrwxrwx 1 root root 9 Sep 21 11:08 wwn-0x500253885002541d -> ../../sdn 0 lrwxrwxrwx 1 root root 10 Sep 21 11:08 wwn-0x500253885002541d-part1 -> ../../sdn1 "lsscsi" [0:0:0:0] disk SanDisk U3 Cruzer Micro 8.02 /dev/sda [1:0:0:0] disk Areca ARC-1231-RAID00 R001 /dev/sdb [1:0:0:1] disk Seagate ST4000DM000-1F21 R001 /dev/sdc [1:0:0:2] disk Seagate ST6000DX000-1H21 R001 /dev/sdd [1:0:0:3] disk Seagate ST4000DM000-1F21 R001 /dev/sde [1:0:0:4] disk Seagate ST2000DM001-1CH1 R001 /dev/sdf [1:0:16:0] process Areca RAID controller R001 - [2:0:0:0] disk ATA ST8000AS0002-1NA AR13 /dev/sdg [3:0:0:0] disk ATA WDC WD60EFRX-68M 0A82 /dev/sdh [4:0:0:0] disk ATA WDC WD20EZRX-00D 0A80 /dev/sdi [5:0:0:0] disk ATA WDC WD20EZRX-00D 0A80 /dev/sdj [6:0:0:0] disk ATA WDC WD20EZRX-00D 0A80 /dev/sdk [7:0:0:0] disk ATA WDC WD20EZRX-00D 0A80 /dev/sdl [8:0:0:0] disk ATA TOSHIBA MD04ACA5 FP1A /dev/sdm [11:0:0:0] disk ATA Samsung SSD 840 CB6Q /dev/sdn "lsscsi -t" [0:0:0:0] disk usb: 3-2:1.0 /dev/sda [1:0:0:0] disk /dev/sdb [1:0:0:1] disk /dev/sdc [1:0:0:2] disk /dev/sdd [1:0:0:3] disk /dev/sde [1:0:0:4] disk /dev/sdf [1:0:16:0] process - [2:0:0:0] disk sata: /dev/sdg [3:0:0:0] disk sata: /dev/sdh [4:0:0:0] disk sata: /dev/sdi [5:0:0:0] disk sata: /dev/sdj [6:0:0:0] disk sata: /dev/sdk [7:0:0:0] disk sata: /dev/sdl [8:0:0:0] disk sata: /dev/sdm [11:0:0:0] disk sata: /dev/sdn

One other... my cache drive is not in a slot. I mounted it at the back of the case through the fan grill. Any ideas on how to show that?

All drives connected to my Areca ARC-1231ML do not show up as available for setup. Once you have them, another issue will arise... my parity volume occupies 2 slots Its a RAID0 of 2x4TB HGST.

my bad. you're right... scurrying to fix them lol

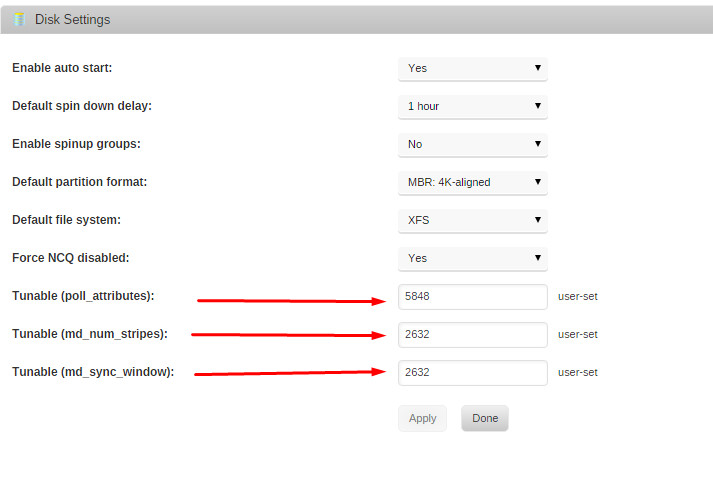

you can restore defaults in the webgui Not all the settings in the disk.cfg are exposed and restorable in the webgui. Including some that are changed with this script, IIRC. script changes 3 settings. All 3 are exposed in webgui if you want to manually restore them.

you can restore defaults in the webgui

Plex Media Server. Used to use MyMovies which integrated with Windows Media Center. Now that MC is relegated to the pages of history, Plex & Kodi are the future.

You haven't seen my special version feature requests: fetch the paper, rub my feet

this is AWESOME! Now how about some tips on getting a "trusted" SSL connection?

Not 6.1 compliant at least the webgui still can read its progress Pre-Read. 0% @ 133 MB/s (0:01:34)

Not working at all for me on RC6. Going to reboot and invoke from command line

Nice. Have it installed along side plexWatch. One advantage is plexPy has notifications

Turn on Help and relevant links are shown and clickable on the Notification Agents page. I had not know of this Help feature. Very cool

I'm using the globe variant

several variations on a theme of data center Adjustable opacity on the status box top left might be beneficial for darker images.
