CHBMB Posted June 6, 2017 Share Posted June 6, 2017 OK, I've uploaded the builds for RC1 and RC2 now. Please test and report back. Link to comment

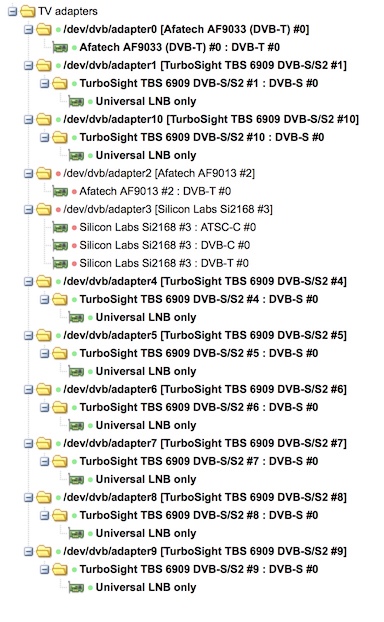

Tuftuf Posted June 6, 2017 Share Posted June 6, 2017 (edited) Please note this is for testing purposes and not an issue that is blocking for myself using the system. TBS OpenSource drivers results. TBS 6909 Detected. 3 out 3 USB tuners are detected. WinTV QuadHD tuner is not detected (This was detected on 6.3.4) unRAID Version: 6.4.0-rc2 DVB Version: TBS (Open Source) & LibreELEC ATSC-C, DVB-C, DVB-S(2) & DVB-T(2) Driver Version: 060617 DVB Kernel: Detected DVB Adapter Drivers: Detected DVB Adapter 0: DVB-T DVB Adapter 1: TurboSight TBS 6909 DVB-S/S2 DVB Adapter 2: Afatech AF9013 DVB Adapter 3: Silicon Labs Si2168 DVB Adapter 4: TurboSight TBS 6909 DVB-S/S2 DVB Adapter 5: TurboSight TBS 6909 DVB-S/S2 DVB Adapter 6: TurboSight TBS 6909 DVB-S/S2 DVB Adapter 7: TurboSight TBS 6909 DVB-S/S2 LibreELEC driver results 3 out of 3 USB tuners are detected. WinTV QuadHD tuner is not detected. (Did not test LibreELEC in 6.3.4 but I did test with TSB OS and CrazyCat and both worked.) TBS 6909 not detected (result OK due to no drivers present for it) unRAID Version: 6.4.0-rc2 DVB Version: LibreELEC Driver Version: 1.2.1 DVB Kernel: Detected DVB Adapter Drivers: Detected DVB Adapter 0: DVB-T DVB Adapter 1: Silicon Labs Si2168 DVB Adapter 2: Afatech AF9013 DVB Adapter0 is detected as Afatech AF9033 in TVHeadend. Edited June 6, 2017 by Tuftuf Link to comment
CHBMB Posted June 6, 2017 Share Posted June 6, 2017 22 minutes ago, Tuftuf said: Please note this is for testing purposes and not an issue that is blocking for myself using the system. TBS OpenSource drivers results. TBS 6909 Detected. 3 out 3 USB tuners are detected. WinTV QuadHD tuner is not detected (This was detected on 6.3.4) unRAID Version: 6.4.0-rc2 DVB Version: TBS (Open Source) & LibreELEC ATSC-C, DVB-C, DVB-S(2) & DVB-T(2) Driver Version: 060617 DVB Kernel: Detected DVB Adapter Drivers: Detected DVB Adapter 0: DVB-T DVB Adapter 1: TurboSight TBS 6909 DVB-S/S2 DVB Adapter 2: Afatech AF9013 DVB Adapter 3: Silicon Labs Si2168 DVB Adapter 4: TurboSight TBS 6909 DVB-S/S2 DVB Adapter 5: TurboSight TBS 6909 DVB-S/S2 DVB Adapter 6: TurboSight TBS 6909 DVB-S/S2 DVB Adapter 7: TurboSight TBS 6909 DVB-S/S2 LibreELEC driver results 3 out of 3 USB tuners are detected. WinTV QuadHD tuner is not detected. (Did not test LibreELEC in 6.3.4 but I did test with TSB OS and CrazyCat and both worked.) TBS 6909 not detected (result OK due to no drivers present for it) unRAID Version: 6.4.0-rc2 DVB Version: LibreELEC Driver Version: 1.2.1 DVB Kernel: Detected DVB Adapter Drivers: Detected DVB Adapter 0: DVB-T DVB Adapter 1: Silicon Labs Si2168 DVB Adapter 2: Afatech AF9013 DVB Adapter0 is detected as Afatech AF9033 in TVHeadend. Can you post me some shots trying 6.3.5? That Hauppage card seems to be the issue. Link to comment

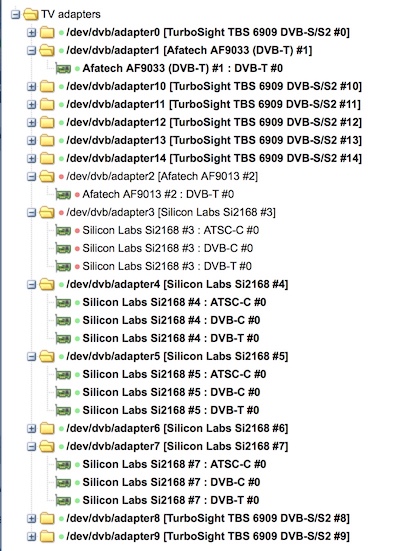

Tuftuf Posted June 6, 2017 Share Posted June 6, 2017 (edited) I'm glad you asked because I was starting to think the card had actually died. It is a little strange not seeing them all listed on the plugin. One of the Adapters 3-7 will be a USB one the other is 4 tuners coming from the WinTV Quad. unRAID Version: 6.3.5 DVB Version: Driver Version: DVB Kernel: Detected DVB Adapter Drivers: Detected DVB Adapter 0: TurboSight TBS 6909 DVB-S/S2 DVB Adapter 1: DVB-T DVB Adapter 2: Afatech AF9013 DVB Adapter 3: Silicon Labs Si2168 DVB Adapter 4: Silicon Labs Si2168 DVB Adapter 5: Silicon Labs Si2168 DVB Adapter 6: Silicon Labs Si2168 DVB Adapter 7: Silicon Labs Si2168 In this picture I can say that #3 is the USB tuner. 4-5-6-7 the WinTV Quad. Edited June 6, 2017 by Tuftuf Link to comment
CHBMB Posted June 6, 2017 Share Posted June 6, 2017 3 minutes ago, Tuftuf said: I'm glad you asked because I was starting to think the card had actually died. It is a little strange not seeing them all listed on the plugin. One of the Adapters 3-7 will be a USB one the other is 4 tuners coming from the WinTV Quad. unRAID Version: 6.3.5 DVB Version: Driver Version: DVB Kernel: Detected DVB Adapter Drivers: Detected DVB Adapter 0: TurboSight TBS 6909 DVB-S/S2 DVB Adapter 1: DVB-T DVB Adapter 2: Afatech AF9013 DVB Adapter 3: Silicon Labs Si2168 DVB Adapter 4: Silicon Labs Si2168 DVB Adapter 5: Silicon Labs Si2168 DVB Adapter 6: Silicon Labs Si2168 DVB Adapter 7: Silicon Labs Si2168 Can you post me the output of lspic -vnn on both 6.3.5 and 6.4.0rc2 please? Link to comment
Tuftuf Posted June 6, 2017 Share Posted June 6, 2017 This is from 6.3.5. root@Tower:~# lspci -vnn 00:00.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1450] Subsystem: Advanced Micro Devices, Inc. [AMD] Device [1022:1450] Flags: fast devsel 00:00.2 IOMMU [0806]: Advanced Micro Devices, Inc. [AMD] Device [1022:1451] Subsystem: Advanced Micro Devices, Inc. [AMD] Device [1022:1451] Flags: bus master, fast devsel, latency 0, IRQ 27 Capabilities: [40] Secure device <?> Capabilities: [64] MSI: Enable+ Count=1/4 Maskable- 64bit+ Capabilities: [74] HyperTransport: MSI Mapping Enable+ Fixed+ 00:01.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1452] Flags: fast devsel 00:01.3 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:1453] (prog-if 00 [Normal decode]) Flags: bus master, fast devsel, latency 0, IRQ 28 Bus: primary=00, secondary=03, subordinate=0e, sec-latency=0 I/O behind bridge: 0000d000-0000efff Memory behind bridge: f7200000-f7afffff Prefetchable memory behind bridge: 00000000e0000000-00000000e03fffff Capabilities: [50] Power Management version 3 Capabilities: [58] Express Root Port (Slot+), MSI 00 Capabilities: [a0] MSI: Enable+ Count=1/1 Maskable- 64bit+ Capabilities: [c0] Subsystem: Advanced Micro Devices, Inc. [AMD] Device [1022:1453] Capabilities: [c8] HyperTransport: MSI Mapping Enable+ Fixed+ Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?> Capabilities: [270] #19 Capabilities: [370] L1 PM Substates Capabilities: [3c4] #23 Kernel driver in use: pcieport 00:02.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1452] Flags: fast devsel 00:03.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1452] Flags: fast devsel 00:03.1 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:1453] (prog-if 00 [Normal decode]) Flags: bus master, fast devsel, latency 0, IRQ 29 Bus: primary=00, secondary=0f, subordinate=0f, sec-latency=0 I/O behind bridge: 0000f000-0000ffff Memory behind bridge: f6000000-f70fffff Prefetchable memory behind bridge: 00000000e8000000-00000000f1ffffff Capabilities: [50] Power Management version 3 Capabilities: [58] Express Root Port (Slot+), MSI 00 Capabilities: [a0] MSI: Enable+ Count=1/1 Maskable- 64bit+ Capabilities: [c0] Subsystem: Advanced Micro Devices, Inc. [AMD] Device [1022:1453] Capabilities: [c8] HyperTransport: MSI Mapping Enable+ Fixed+ Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?> Capabilities: [270] #19 Capabilities: [370] L1 PM Substates Capabilities: [3c4] #23 Kernel driver in use: pcieport 00:04.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1452] Flags: fast devsel 00:07.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1452] Flags: fast devsel 00:07.1 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:1454] (prog-if 00 [Normal decode]) Flags: bus master, fast devsel, latency 0, IRQ 30 Bus: primary=00, secondary=11, subordinate=11, sec-latency=0 Memory behind bridge: f7c00000-f7efffff Capabilities: [50] Power Management version 3 Capabilities: [58] Express Root Port (Slot-), MSI 00 Capabilities: [a0] MSI: Enable+ Count=1/1 Maskable- 64bit+ Capabilities: [c0] Subsystem: Advanced Micro Devices, Inc. [AMD] Device [1022:1454] Capabilities: [c8] HyperTransport: MSI Mapping Enable+ Fixed+ Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?> Capabilities: [270] #19 Kernel driver in use: pcieport 00:08.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1452] Flags: fast devsel 00:08.1 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:1454] (prog-if 00 [Normal decode]) Flags: bus master, fast devsel, latency 0, IRQ 32 Bus: primary=00, secondary=12, subordinate=12, sec-latency=0 Memory behind bridge: f7f00000-f7ffffff Capabilities: [50] Power Management version 3 Capabilities: [58] Express Root Port (Slot-), MSI 00 Capabilities: [a0] MSI: Enable+ Count=1/1 Maskable- 64bit+ Capabilities: [c0] Subsystem: Advanced Micro Devices, Inc. [AMD] Device [1022:1454] Capabilities: [c8] HyperTransport: MSI Mapping Enable+ Fixed+ Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?> Capabilities: [270] #19 Kernel driver in use: pcieport 00:14.0 SMBus [0c05]: Advanced Micro Devices, Inc. [AMD] FCH SMBus Controller [1022:790b] (rev 59) Subsystem: Gigabyte Technology Co., Ltd FCH SMBus Controller [1458:5001] Flags: 66MHz, medium devsel Kernel driver in use: piix4_smbus Kernel modules: i2c_piix4 00:14.3 ISA bridge [0601]: Advanced Micro Devices, Inc. [AMD] FCH LPC Bridge [1022:790e] (rev 51) Subsystem: Gigabyte Technology Co., Ltd FCH LPC Bridge [1458:5001] Flags: bus master, 66MHz, medium devsel, latency 0 00:18.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1460] Flags: fast devsel 00:18.1 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1461] Flags: fast devsel 00:18.2 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1462] Flags: fast devsel 00:18.3 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1463] Flags: fast devsel 00:18.4 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1464] Flags: fast devsel 00:18.5 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1465] Flags: fast devsel 00:18.6 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1466] Flags: fast devsel 00:18.7 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1467] Flags: fast devsel 03:00.0 USB controller [0c03]: Advanced Micro Devices, Inc. [AMD] Device [1022:43b9] (rev 02) (prog-if 30 [XHCI]) Subsystem: ASMedia Technology Inc. Device [1b21:1142] Flags: bus master, fast devsel, latency 0, IRQ 45 Memory at f7aa0000 (64-bit, non-prefetchable) [size=32K] Capabilities: [50] MSI: Enable+ Count=1/8 Maskable- 64bit+ Capabilities: [78] Power Management version 3 Capabilities: [80] Express Legacy Endpoint, MSI 00 Capabilities: [100] Advanced Error Reporting Capabilities: [200] #19 Capabilities: [300] Latency Tolerance Reporting Capabilities: [400] L1 PM Substates Kernel driver in use: xhci_hcd 03:00.1 SATA controller [0106]: Advanced Micro Devices, Inc. [AMD] Device [1022:43b5] (rev 02) (prog-if 01 [AHCI 1.0]) Subsystem: ASMedia Technology Inc. Device [1b21:1062] Flags: bus master, fast devsel, latency 0, IRQ 49 Memory at f7a80000 (32-bit, non-prefetchable) [size=128K] Expansion ROM at f7a00000 [disabled] [size=512K] Capabilities: [50] MSI: Enable+ Count=1/1 Maskable- 64bit+ Capabilities: [78] Power Management version 3 Capabilities: [80] Express Legacy Endpoint, MSI 00 Capabilities: [100] Advanced Error Reporting Kernel driver in use: ahci Kernel modules: ahci 03:00.2 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43b0] (rev 02) (prog-if 00 [Normal decode]) Flags: bus master, fast devsel, latency 0, IRQ 33 Bus: primary=03, secondary=04, subordinate=0e, sec-latency=0 I/O behind bridge: 0000d000-0000efff Memory behind bridge: f7200000-f79fffff Prefetchable memory behind bridge: 00000000e0000000-00000000e03fffff Capabilities: [50] MSI: Enable+ Count=1/1 Maskable- 64bit+ Capabilities: [78] Power Management version 3 Capabilities: [80] Express Upstream Port, MSI 00 Capabilities: [c0] Subsystem: ASMedia Technology Inc. Device [1b21:0201] Capabilities: [100] Advanced Error Reporting Kernel driver in use: pcieport 04:00.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43b4] (rev 02) (prog-if 00 [Normal decode]) Flags: bus master, fast devsel, latency 0, IRQ 34 Bus: primary=04, secondary=05, subordinate=05, sec-latency=0 Memory behind bridge: f7900000-f79fffff Capabilities: [50] MSI: Enable+ Count=1/1 Maskable- 64bit+ Capabilities: [78] Power Management version 3 Capabilities: [80] Express Downstream Port (Slot+), MSI 00 Capabilities: [c0] Subsystem: ASMedia Technology Inc. Device [1b21:3306] Capabilities: [100] Advanced Error Reporting Capabilities: [200] #19 Capabilities: [400] L1 PM Substates Kernel driver in use: pcieport 04:02.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43b4] (rev 02) (prog-if 00 [Normal decode]) Flags: bus master, fast devsel, latency 0, IRQ 35 Bus: primary=04, secondary=06, subordinate=06, sec-latency=0 I/O behind bridge: 0000e000-0000efff Memory behind bridge: f7800000-f78fffff Prefetchable memory behind bridge: 00000000e0000000-00000000e01fffff Capabilities: [50] MSI: Enable+ Count=1/1 Maskable- 64bit+ Capabilities: [78] Power Management version 3 Capabilities: [80] Express Downstream Port (Slot+), MSI 00 Capabilities: [c0] Subsystem: ASMedia Technology Inc. Device [1b21:3306] Capabilities: [100] Advanced Error Reporting Capabilities: [200] #19 Capabilities: [400] L1 PM Substates Kernel driver in use: pcieport 04:03.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43b4] (rev 02) (prog-if 00 [Normal decode]) Flags: bus master, fast devsel, latency 0, IRQ 37 Bus: primary=04, secondary=07, subordinate=07, sec-latency=0 I/O behind bridge: 0000d000-0000dfff Memory behind bridge: f7700000-f77fffff Capabilities: [50] MSI: Enable+ Count=1/1 Maskable- 64bit+ Capabilities: [78] Power Management version 3 Capabilities: [80] Express Downstream Port (Slot+), MSI 00 Capabilities: [c0] Subsystem: ASMedia Technology Inc. Device [1b21:3306] Capabilities: [100] Advanced Error Reporting Capabilities: [200] #19 Capabilities: [400] L1 PM Substates Kernel driver in use: pcieport 04:04.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43b4] (rev 02) (prog-if 00 [Normal decode]) Flags: bus master, fast devsel, latency 0, IRQ 38 Bus: primary=04, secondary=08, subordinate=08, sec-latency=0 Capabilities: [50] MSI: Enable+ Count=1/1 Maskable- 64bit+ Capabilities: [78] Power Management version 3 Capabilities: [80] Express Downstream Port (Slot+), MSI 00 Capabilities: [c0] Subsystem: ASMedia Technology Inc. Device [1b21:3306] Capabilities: [100] Advanced Error Reporting Capabilities: [200] #19 Capabilities: [400] L1 PM Substates Kernel driver in use: pcieport 04:05.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43b4] (rev 02) (prog-if 00 [Normal decode]) Flags: bus master, fast devsel, latency 0, IRQ 40 Bus: primary=04, secondary=09, subordinate=0c, sec-latency=0 Memory behind bridge: f7200000-f75fffff Capabilities: [50] MSI: Enable+ Count=1/1 Maskable- 64bit+ Capabilities: [78] Power Management version 3 Capabilities: [80] Express Downstream Port (Slot+), MSI 00 Capabilities: [c0] Subsystem: ASMedia Technology Inc. Device [1b21:3306] Capabilities: [100] Advanced Error Reporting Capabilities: [200] #19 Capabilities: [400] L1 PM Substates Kernel driver in use: pcieport 04:06.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43b4] (rev 02) (prog-if 00 [Normal decode]) Flags: bus master, fast devsel, latency 0, IRQ 41 Bus: primary=04, secondary=0d, subordinate=0d, sec-latency=0 Prefetchable memory behind bridge: 00000000e0200000-00000000e03fffff Capabilities: [50] MSI: Enable+ Count=1/1 Maskable- 64bit+ Capabilities: [78] Power Management version 3 Capabilities: [80] Express Downstream Port (Slot+), MSI 00 Capabilities: [c0] Subsystem: ASMedia Technology Inc. Device [1b21:3306] Capabilities: [100] Advanced Error Reporting Capabilities: [200] #19 Capabilities: [400] L1 PM Substates Kernel driver in use: pcieport 04:07.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43b4] (rev 02) (prog-if 00 [Normal decode]) Flags: bus master, fast devsel, latency 0, IRQ 42 Bus: primary=04, secondary=0e, subordinate=0e, sec-latency=0 Memory behind bridge: f7600000-f76fffff Capabilities: [50] MSI: Enable+ Count=1/1 Maskable- 64bit+ Capabilities: [78] Power Management version 3 Capabilities: [80] Express Downstream Port (Slot+), MSI 00 Capabilities: [c0] Subsystem: ASMedia Technology Inc. Device [1b21:3306] Capabilities: [100] Advanced Error Reporting Capabilities: [200] #19 Capabilities: [400] L1 PM Substates Kernel driver in use: pcieport 05:00.0 USB controller [0c03]: ASMedia Technology Inc. Device [1b21:1343] (prog-if 30 [XHCI]) Subsystem: Gigabyte Technology Co., Ltd Device [1458:5007] Flags: bus master, fast devsel, latency 0, IRQ 46 Memory at f7900000 (64-bit, non-prefetchable) [size=32K] Capabilities: [50] MSI: Enable+ Count=1/8 Maskable- 64bit+ Capabilities: [78] Power Management version 3 Capabilities: [80] Express Endpoint, MSI 00 Capabilities: [100] Virtual Channel Capabilities: [200] Advanced Error Reporting Capabilities: [280] #19 Capabilities: [300] Latency Tolerance Reporting Kernel driver in use: xhci_hcd 06:00.0 Ethernet controller [0200]: Intel Corporation I211 Gigabit Network Connection [8086:1539] (rev 03) Subsystem: Gigabyte Technology Co., Ltd I211 Gigabit Network Connection [1458:e000] Flags: bus master, fast devsel, latency 0, IRQ 24 Memory at f7800000 (32-bit, non-prefetchable) [size=128K] I/O ports at e000 [size=32] Memory at f7820000 (32-bit, non-prefetchable) [size=16K] Capabilities: [40] Power Management version 3 Capabilities: [50] MSI: Enable- Count=1/1 Maskable+ 64bit+ Capabilities: [70] MSI-X: Enable+ Count=5 Masked- Capabilities: [a0] Express Endpoint, MSI 00 Capabilities: [100] Advanced Error Reporting Capabilities: [140] Device Serial Number 1c-1b-0d-ff-ff-e1-fc-8b Capabilities: [1a0] Transaction Processing Hints Kernel driver in use: igb Kernel modules: igb 07:00.0 Ethernet controller [0200]: Qualcomm Atheros Device [1969:e0b1] (rev 10) Subsystem: Gigabyte Technology Co., Ltd Device [1458:e000] Flags: bus master, fast devsel, latency 0, IRQ 73 Memory at f7700000 (64-bit, non-prefetchable) [size=256K] I/O ports at d000 [size=128] Capabilities: [40] Power Management version 3 Capabilities: [58] Express Endpoint, MSI 00 Capabilities: [c0] MSI: Enable+ Count=1/16 Maskable+ 64bit+ Capabilities: [d8] MSI-X: Enable- Count=16 Masked- Capabilities: [100] Advanced Error Reporting Capabilities: [180] Device Serial Number ff-e1-fc-8d-1c-1b-0d-ff Kernel driver in use: alx Kernel modules: alx 09:00.0 PCI bridge [0604]: Pericom Semiconductor Device [12d8:2304] (rev 05) (prog-if 00 [Normal decode]) Flags: bus master, fast devsel, latency 0 Bus: primary=09, secondary=0a, subordinate=0c, sec-latency=0 Memory behind bridge: f7200000-f75fffff Capabilities: [40] Power Management version 3 Capabilities: [5c] Vital Product Data Capabilities: [64] Vendor Specific Information: Len=34 <?> Capabilities: [b0] Subsystem: Device [0000:0000] Capabilities: [c0] Express Upstream Port, MSI 00 Capabilities: [100] Advanced Error Reporting Capabilities: [140] Virtual Channel Capabilities: [20c] Power Budgeting <?> Capabilities: [230] Latency Tolerance Reporting Kernel driver in use: pcieport 0a:01.0 PCI bridge [0604]: Pericom Semiconductor Device [12d8:2304] (rev 05) (prog-if 00 [Normal decode]) Flags: bus master, fast devsel, latency 0, IRQ 43 Bus: primary=0a, secondary=0b, subordinate=0b, sec-latency=0 Memory behind bridge: f7400000-f75fffff Capabilities: [40] Power Management version 3 Capabilities: [4c] MSI: Enable+ Count=1/1 Maskable- 64bit+ Capabilities: [64] Vendor Specific Information: Len=34 <?> Capabilities: [b0] Subsystem: Device [0000:0000] Capabilities: [c0] Express Downstream Port (Slot+), MSI 00 Capabilities: [100] Advanced Error Reporting Capabilities: [140] Virtual Channel Capabilities: [20c] Power Budgeting <?> Capabilities: [220] Access Control Services Kernel driver in use: pcieport 0a:02.0 PCI bridge [0604]: Pericom Semiconductor Device [12d8:2304] (rev 05) (prog-if 00 [Normal decode]) Flags: bus master, fast devsel, latency 0, IRQ 44 Bus: primary=0a, secondary=0c, subordinate=0c, sec-latency=0 Memory behind bridge: f7200000-f73fffff Capabilities: [40] Power Management version 3 Capabilities: [4c] MSI: Enable+ Count=1/1 Maskable- 64bit+ Capabilities: [64] Vendor Specific Information: Len=34 <?> Capabilities: [b0] Subsystem: Device [0000:0000] Capabilities: [c0] Express Downstream Port (Slot+), MSI 00 Capabilities: [100] Advanced Error Reporting Capabilities: [140] Virtual Channel Capabilities: [20c] Power Budgeting <?> Capabilities: [220] Access Control Services Kernel driver in use: pcieport 0b:00.0 Multimedia video controller [0400]: Conexant Systems, Inc. CX23885 PCI Video and Audio Decoder [14f1:8852] (rev 04) Subsystem: Hauppauge computer works Inc. CX23885 PCI Video and Audio Decoder [0070:6a28] Flags: bus master, fast devsel, latency 0, IRQ 24 Memory at f7400000 (64-bit, non-prefetchable) [size=2M] Capabilities: [40] Express Endpoint, MSI 00 Capabilities: [80] Power Management version 2 Capabilities: [90] Vital Product Data Capabilities: [a0] MSI: Enable- Count=1/1 Maskable- 64bit+ Capabilities: [100] Advanced Error Reporting Capabilities: [200] Virtual Channel Kernel driver in use: cx23885 Kernel modules: cx23885 0c:00.0 Multimedia video controller [0400]: Conexant Systems, Inc. CX23885 PCI Video and Audio Decoder [14f1:8852] (rev 04) Subsystem: Hauppauge computer works Inc. CX23885 PCI Video and Audio Decoder [0070:6b28] Flags: bus master, fast devsel, latency 0, IRQ 36 Memory at f7200000 (64-bit, non-prefetchable) [size=2M] Capabilities: [40] Express Endpoint, MSI 00 Capabilities: [80] Power Management version 2 Capabilities: [90] Vital Product Data Capabilities: [a0] MSI: Enable- Count=1/1 Maskable- 64bit+ Capabilities: [100] Advanced Error Reporting Capabilities: [200] Virtual Channel Kernel driver in use: cx23885 Kernel modules: cx23885 0e:00.0 Multimedia controller [0480]: TBS Technologies DVB-S2 4 Tuner PCIe Card [544d:6178] Subsystem: Device [6909:0001] Flags: bus master, fast devsel, latency 0, IRQ 67 Memory at f7600000 (32-bit, non-prefetchable) [size=256K] Capabilities: [50] Power Management version 3 Capabilities: [70] MSI: Enable+ Count=1/1 Maskable- 64bit+ Capabilities: [90] Express Endpoint, MSI 00 Capabilities: [100] Device Serial Number 00-00-00-00-00-00-00-00 Kernel driver in use: TBSECP3 driver Kernel modules: tbsecp3 0f:00.0 VGA compatible controller [0300]: NVIDIA Corporation GK104 [GeForce GTX 670] [10de:1189] (rev a1) (prog-if 00 [VGA controller]) Subsystem: Gigabyte Technology Co., Ltd GK104 [GeForce GTX 670] [1458:3542] Flags: bus master, fast devsel, latency 0, IRQ 11 Memory at f6000000 (32-bit, non-prefetchable) [size=16M] Memory at e8000000 (64-bit, prefetchable) [size=128M] Memory at f0000000 (64-bit, prefetchable) [size=32M] I/O ports at f000 [size=128] Expansion ROM at 000c0000 [disabled] [size=128K] Capabilities: [60] Power Management version 3 Capabilities: [68] MSI: Enable- Count=1/1 Maskable- 64bit+ Capabilities: [78] Express Endpoint, MSI 00 Capabilities: [b4] Vendor Specific Information: Len=14 <?> Capabilities: [100] Virtual Channel Capabilities: [128] Power Budgeting <?> Capabilities: [600] Vendor Specific Information: ID=0001 Rev=1 Len=024 <?> Capabilities: [900] #19 0f:00.1 Audio device [0403]: NVIDIA Corporation GK104 HDMI Audio Controller [10de:0e0a] (rev a1) Subsystem: Gigabyte Technology Co., Ltd GK104 HDMI Audio Controller [1458:3542] Flags: bus master, fast devsel, latency 0, IRQ 10 Memory at f7080000 (32-bit, non-prefetchable) [size=16K] Capabilities: [60] Power Management version 3 Capabilities: [68] MSI: Enable- Count=1/1 Maskable- 64bit+ Capabilities: [78] Express Endpoint, MSI 00 11:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Device [1022:145a] Subsystem: Advanced Micro Devices, Inc. [AMD] Device [1022:145a] Flags: bus master, fast devsel, latency 0 Capabilities: [48] Vendor Specific Information: Len=08 <?> Capabilities: [50] Power Management version 3 Capabilities: [64] Express Endpoint, MSI 00 Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?> Capabilities: [270] #19 11:00.2 Encryption controller [1080]: Advanced Micro Devices, Inc. [AMD] Device [1022:1456] Subsystem: Advanced Micro Devices, Inc. [AMD] Device [1022:1456] Flags: bus master, fast devsel, latency 0, IRQ 5 Memory at f7d00000 (32-bit, non-prefetchable) [size=1M] Memory at f7e00000 (32-bit, non-prefetchable) [size=8K] Capabilities: [48] Vendor Specific Information: Len=08 <?> Capabilities: [50] Power Management version 3 Capabilities: [64] Express Endpoint, MSI 00 Capabilities: [a0] MSI: Enable- Count=1/2 Maskable- 64bit+ Capabilities: [c0] MSI-X: Enable- Count=2 Masked- Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?> 11:00.3 USB controller [0c03]: Advanced Micro Devices, Inc. [AMD] Device [1022:145c] (prog-if 30 [XHCI]) Subsystem: Gigabyte Technology Co., Ltd Device [1458:5007] Flags: bus master, fast devsel, latency 0, IRQ 48 Memory at f7c00000 (64-bit, non-prefetchable) [size=1M] Capabilities: [48] Vendor Specific Information: Len=08 <?> Capabilities: [50] Power Management version 3 Capabilities: [64] Express Endpoint, MSI 00 Capabilities: [a0] MSI: Enable+ Count=1/8 Maskable- 64bit+ Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?> Kernel driver in use: xhci_hcd 12:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Device [1022:1455] Subsystem: Advanced Micro Devices, Inc. [AMD] Device [1022:1455] Flags: bus master, fast devsel, latency 0 Capabilities: [48] Vendor Specific Information: Len=08 <?> Capabilities: [50] Power Management version 3 Capabilities: [64] Express Endpoint, MSI 00 Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?> Capabilities: [270] #19 12:00.2 SATA controller [0106]: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] [1022:7901] (rev 51) (prog-if 01 [AHCI 1.0]) Subsystem: Gigabyte Technology Co., Ltd FCH SATA Controller [AHCI mode] [1458:b002] Flags: bus master, fast devsel, latency 0, IRQ 51 Memory at f7f08000 (32-bit, non-prefetchable) [size=4K] Capabilities: [48] Vendor Specific Information: Len=08 <?> Capabilities: [50] Power Management version 3 Capabilities: [64] Express Endpoint, MSI 00 Capabilities: [a0] MSI: Enable+ Count=16/16 Maskable- 64bit+ Capabilities: [d0] SATA HBA v1.0 Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?> Kernel driver in use: ahci Kernel modules: ahci 12:00.3 Audio device [0403]: Advanced Micro Devices, Inc. [AMD] Device [1022:1457] Subsystem: Gigabyte Technology Co., Ltd Device [1458:a0b8] Flags: bus master, fast devsel, latency 0, IRQ 4 Memory at f7f00000 (32-bit, non-prefetchable) [size=32K] Capabilities: [48] Vendor Specific Information: Len=08 <?> Capabilities: [50] Power Management version 3 Capabilities: [64] Express Endpoint, MSI 00 Capabilities: [a0] MSI: Enable- Count=1/1 Maskable- 64bit+ Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?> root@Tower:~# And I had the 6.4 ones.. but have rebooted the laptop. I'll get them soon. 1 Link to comment
Tuftuf Posted June 6, 2017 Share Posted June 6, 2017 (edited) Taken from 6.4 RC2 running TBS OS root@Tower:~# lspci -vnn 00:00.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1450] Subsystem: Advanced Micro Devices, Inc. [AMD] Device [1022:1450] Flags: fast devsel 00:00.2 IOMMU [0806]: Advanced Micro Devices, Inc. [AMD] Device [1022:1451] Subsystem: Advanced Micro Devices, Inc. [AMD] Device [1022:1451] Flags: bus master, fast devsel, latency 0, IRQ 27 Capabilities: [40] Secure device <?> Capabilities: [64] MSI: Enable+ Count=1/4 Maskable- 64bit+ Capabilities: [74] HyperTransport: MSI Mapping Enable+ Fixed+ 00:01.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1452] Flags: fast devsel 00:01.3 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:1453] (prog-if 00 [Normal decode]) Flags: bus master, fast devsel, latency 0, IRQ 28 Bus: primary=00, secondary=03, subordinate=0e, sec-latency=0 I/O behind bridge: 0000d000-0000efff [size=8K] Memory behind bridge: f7200000-f7afffff [size=9M] Prefetchable memory behind bridge: 00000000e0000000-00000000e03fffff [size=4M] Capabilities: [50] Power Management version 3 Capabilities: [58] Express Root Port (Slot+), MSI 00 Capabilities: [a0] MSI: Enable+ Count=1/1 Maskable- 64bit+ Capabilities: [c0] Subsystem: Advanced Micro Devices, Inc. [AMD] Device [1022:1453] Capabilities: [c8] HyperTransport: MSI Mapping Enable+ Fixed+ Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?> Capabilities: [270] #19 Capabilities: [370] L1 PM Substates Capabilities: [3c4] #23 Kernel driver in use: pcieport 00:02.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1452] Flags: fast devsel 00:03.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1452] Flags: fast devsel 00:03.1 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:1453] (prog-if 00 [Normal decode]) Flags: bus master, fast devsel, latency 0, IRQ 29 Bus: primary=00, secondary=0f, subordinate=0f, sec-latency=0 I/O behind bridge: 0000f000-0000ffff [size=4K] Memory behind bridge: f6000000-f70fffff [size=17M] Prefetchable memory behind bridge: 00000000e8000000-00000000f1ffffff [size=160M] Capabilities: [50] Power Management version 3 Capabilities: [58] Express Root Port (Slot+), MSI 00 Capabilities: [a0] MSI: Enable+ Count=1/1 Maskable- 64bit+ Capabilities: [c0] Subsystem: Advanced Micro Devices, Inc. [AMD] Device [1022:1453] Capabilities: [c8] HyperTransport: MSI Mapping Enable+ Fixed+ Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?> Capabilities: [270] #19 Capabilities: [370] L1 PM Substates Capabilities: [3c4] #23 Kernel driver in use: pcieport 00:04.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1452] Flags: fast devsel 00:07.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1452] Flags: fast devsel 00:07.1 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:1454] (prog-if 00 [Normal decode]) Flags: bus master, fast devsel, latency 0, IRQ 30 Bus: primary=00, secondary=11, subordinate=11, sec-latency=0 I/O behind bridge: None Memory behind bridge: f7c00000-f7efffff [size=3M] Prefetchable memory behind bridge: None Capabilities: [50] Power Management version 3 Capabilities: [58] Express Root Port (Slot-), MSI 00 Capabilities: [a0] MSI: Enable+ Count=1/1 Maskable- 64bit+ Capabilities: [c0] Subsystem: Advanced Micro Devices, Inc. [AMD] Device [1022:1454] Capabilities: [c8] HyperTransport: MSI Mapping Enable+ Fixed+ Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?> Capabilities: [270] #19 Kernel driver in use: pcieport 00:08.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1452] Flags: fast devsel 00:08.1 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:1454] (prog-if 00 [Normal decode]) Flags: bus master, fast devsel, latency 0, IRQ 32 Bus: primary=00, secondary=12, subordinate=12, sec-latency=0 I/O behind bridge: None Memory behind bridge: f7f00000-f7ffffff [size=1M] Prefetchable memory behind bridge: None Capabilities: [50] Power Management version 3 Capabilities: [58] Express Root Port (Slot-), MSI 00 Capabilities: [a0] MSI: Enable+ Count=1/1 Maskable- 64bit+ Capabilities: [c0] Subsystem: Advanced Micro Devices, Inc. [AMD] Device [1022:1454] Capabilities: [c8] HyperTransport: MSI Mapping Enable+ Fixed+ Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?> Capabilities: [270] #19 Kernel driver in use: pcieport 00:14.0 SMBus [0c05]: Advanced Micro Devices, Inc. [AMD] FCH SMBus Controller [1022:790b] (rev 59) Subsystem: Gigabyte Technology Co., Ltd FCH SMBus Controller [1458:5001] Flags: 66MHz, medium devsel Kernel driver in use: piix4_smbus Kernel modules: i2c_piix4 00:14.3 ISA bridge [0601]: Advanced Micro Devices, Inc. [AMD] FCH LPC Bridge [1022:790e] (rev 51) Subsystem: Gigabyte Technology Co., Ltd FCH LPC Bridge [1458:5001] Flags: bus master, 66MHz, medium devsel, latency 0 00:18.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1460] Flags: fast devsel 00:18.1 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1461] Flags: fast devsel 00:18.2 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1462] Flags: fast devsel 00:18.3 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1463] Flags: fast devsel 00:18.4 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1464] Flags: fast devsel 00:18.5 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1465] Flags: fast devsel 00:18.6 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1466] Flags: fast devsel 00:18.7 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1467] Flags: fast devsel 03:00.0 USB controller [0c03]: Advanced Micro Devices, Inc. [AMD] Device [1022:43b9] (rev 02) (prog-if 30 [XHCI]) Subsystem: ASMedia Technology Inc. Device [1b21:1142] Flags: bus master, fast devsel, latency 0, IRQ 45 Memory at f7aa0000 (64-bit, non-prefetchable) [size=32K] Capabilities: [50] MSI: Enable+ Count=1/8 Maskable- 64bit+ Capabilities: [78] Power Management version 3 Capabilities: [80] Express Legacy Endpoint, MSI 00 Capabilities: [100] Advanced Error Reporting Capabilities: [200] #19 Capabilities: [300] Latency Tolerance Reporting Capabilities: [400] L1 PM Substates Kernel driver in use: xhci_hcd 03:00.1 SATA controller [0106]: Advanced Micro Devices, Inc. [AMD] Device [1022:43b5] (rev 02) (prog-if 01 [AHCI 1.0]) Subsystem: ASMedia Technology Inc. Device [1b21:1062] Flags: bus master, fast devsel, latency 0, IRQ 49 Memory at f7a80000 (32-bit, non-prefetchable) [size=128K] Expansion ROM at f7a00000 [disabled] [size=512K] Capabilities: [50] MSI: Enable+ Count=1/1 Maskable- 64bit+ Capabilities: [78] Power Management version 3 Capabilities: [80] Express Legacy Endpoint, MSI 00 Capabilities: [100] Advanced Error Reporting Kernel driver in use: ahci Kernel modules: ahci 03:00.2 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43b0] (rev 02) (prog-if 00 [Normal decode]) Flags: bus master, fast devsel, latency 0, IRQ 33 Bus: primary=03, secondary=04, subordinate=0e, sec-latency=0 I/O behind bridge: 0000d000-0000efff [size=8K] Memory behind bridge: f7200000-f79fffff [size=8M] Prefetchable memory behind bridge: 00000000e0000000-00000000e03fffff [size=4M] Capabilities: [50] MSI: Enable+ Count=1/1 Maskable- 64bit+ Capabilities: [78] Power Management version 3 Capabilities: [80] Express Upstream Port, MSI 00 Capabilities: [c0] Subsystem: ASMedia Technology Inc. Device [1b21:0201] Capabilities: [100] Advanced Error Reporting Kernel driver in use: pcieport 04:00.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43b4] (rev 02) (prog-if 00 [Normal decode]) Flags: bus master, fast devsel, latency 0, IRQ 34 Bus: primary=04, secondary=05, subordinate=05, sec-latency=0 I/O behind bridge: None Memory behind bridge: f7900000-f79fffff [size=1M] Prefetchable memory behind bridge: None Capabilities: [50] MSI: Enable+ Count=1/1 Maskable- 64bit+ Capabilities: [78] Power Management version 3 Capabilities: [80] Express Downstream Port (Slot+), MSI 00 Capabilities: [c0] Subsystem: ASMedia Technology Inc. Device [1b21:3306] Capabilities: [100] Advanced Error Reporting Capabilities: [200] #19 Capabilities: [400] L1 PM Substates Kernel driver in use: pcieport 04:02.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43b4] (rev 02) (prog-if 00 [Normal decode]) Flags: bus master, fast devsel, latency 0, IRQ 35 Bus: primary=04, secondary=06, subordinate=06, sec-latency=0 I/O behind bridge: 0000e000-0000efff [size=4K] Memory behind bridge: f7800000-f78fffff [size=1M] Prefetchable memory behind bridge: 00000000e0000000-00000000e01fffff [size=2M] Capabilities: [50] MSI: Enable+ Count=1/1 Maskable- 64bit+ Capabilities: [78] Power Management version 3 Capabilities: [80] Express Downstream Port (Slot+), MSI 00 Capabilities: [c0] Subsystem: ASMedia Technology Inc. Device [1b21:3306] Capabilities: [100] Advanced Error Reporting Capabilities: [200] #19 Capabilities: [400] L1 PM Substates Kernel driver in use: pcieport 04:03.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43b4] (rev 02) (prog-if 00 [Normal decode]) Flags: bus master, fast devsel, latency 0, IRQ 37 Bus: primary=04, secondary=07, subordinate=07, sec-latency=0 I/O behind bridge: 0000d000-0000dfff [size=4K] Memory behind bridge: f7700000-f77fffff [size=1M] Prefetchable memory behind bridge: None Capabilities: [50] MSI: Enable+ Count=1/1 Maskable- 64bit+ Capabilities: [78] Power Management version 3 Capabilities: [80] Express Downstream Port (Slot+), MSI 00 Capabilities: [c0] Subsystem: ASMedia Technology Inc. Device [1b21:3306] Capabilities: [100] Advanced Error Reporting Capabilities: [200] #19 Capabilities: [400] L1 PM Substates Kernel driver in use: pcieport 04:04.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43b4] (rev 02) (prog-if 00 [Normal decode]) Flags: bus master, fast devsel, latency 0, IRQ 38 Bus: primary=04, secondary=08, subordinate=08, sec-latency=0 I/O behind bridge: None Memory behind bridge: None Prefetchable memory behind bridge: None Capabilities: [50] MSI: Enable+ Count=1/1 Maskable- 64bit+ Capabilities: [78] Power Management version 3 Capabilities: [80] Express Downstream Port (Slot+), MSI 00 Capabilities: [c0] Subsystem: ASMedia Technology Inc. Device [1b21:3306] Capabilities: [100] Advanced Error Reporting Capabilities: [200] #19 Capabilities: [400] L1 PM Substates Kernel driver in use: pcieport 04:05.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43b4] (rev 02) (prog-if 00 [Normal decode]) Flags: bus master, fast devsel, latency 0, IRQ 40 Bus: primary=04, secondary=09, subordinate=0c, sec-latency=0 I/O behind bridge: None Memory behind bridge: f7200000-f75fffff [size=4M] Prefetchable memory behind bridge: None Capabilities: [50] MSI: Enable+ Count=1/1 Maskable- 64bit+ Capabilities: [78] Power Management version 3 Capabilities: [80] Express Downstream Port (Slot+), MSI 00 Capabilities: [c0] Subsystem: ASMedia Technology Inc. Device [1b21:3306] Capabilities: [100] Advanced Error Reporting Capabilities: [200] #19 Capabilities: [400] L1 PM Substates Kernel driver in use: pcieport 04:06.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43b4] (rev 02) (prog-if 00 [Normal decode]) Flags: bus master, fast devsel, latency 0, IRQ 41 Bus: primary=04, secondary=0d, subordinate=0d, sec-latency=0 I/O behind bridge: None Memory behind bridge: None Prefetchable memory behind bridge: 00000000e0200000-00000000e03fffff [size=2M] Capabilities: [50] MSI: Enable+ Count=1/1 Maskable- 64bit+ Capabilities: [78] Power Management version 3 Capabilities: [80] Express Downstream Port (Slot+), MSI 00 Capabilities: [c0] Subsystem: ASMedia Technology Inc. Device [1b21:3306] Capabilities: [100] Advanced Error Reporting Capabilities: [200] #19 Capabilities: [400] L1 PM Substates Kernel driver in use: pcieport 04:07.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43b4] (rev 02) (prog-if 00 [Normal decode]) Flags: bus master, fast devsel, latency 0, IRQ 42 Bus: primary=04, secondary=0e, subordinate=0e, sec-latency=0 I/O behind bridge: None Memory behind bridge: f7600000-f76fffff [size=1M] Prefetchable memory behind bridge: None Capabilities: [50] MSI: Enable+ Count=1/1 Maskable- 64bit+ Capabilities: [78] Power Management version 3 Capabilities: [80] Express Downstream Port (Slot+), MSI 00 Capabilities: [c0] Subsystem: ASMedia Technology Inc. Device [1b21:3306] Capabilities: [100] Advanced Error Reporting Capabilities: [200] #19 Capabilities: [400] L1 PM Substates Kernel driver in use: pcieport 05:00.0 USB controller [0c03]: ASMedia Technology Inc. Device [1b21:1343] (prog-if 30 [XHCI]) Subsystem: Gigabyte Technology Co., Ltd Device [1458:5007] Flags: bus master, fast devsel, latency 0, IRQ 46 Memory at f7900000 (64-bit, non-prefetchable) [size=32K] Capabilities: [50] MSI: Enable+ Count=1/8 Maskable- 64bit+ Capabilities: [78] Power Management version 3 Capabilities: [80] Express Endpoint, MSI 00 Capabilities: [100] Virtual Channel Capabilities: [200] Advanced Error Reporting Capabilities: [280] #19 Capabilities: [300] Latency Tolerance Reporting Kernel driver in use: xhci_hcd 06:00.0 Ethernet controller [0200]: Intel Corporation I211 Gigabit Network Connection [8086:1539] (rev 03) Subsystem: Gigabyte Technology Co., Ltd I211 Gigabit Network Connection [1458:e000] Flags: bus master, fast devsel, latency 0, IRQ 24 Memory at f7800000 (32-bit, non-prefetchable) [size=128K] I/O ports at e000 [size=32] Memory at f7820000 (32-bit, non-prefetchable) [size=16K] Capabilities: [40] Power Management version 3 Capabilities: [50] MSI: Enable- Count=1/1 Maskable+ 64bit+ Capabilities: [70] MSI-X: Enable+ Count=5 Masked- Capabilities: [a0] Express Endpoint, MSI 00 Capabilities: [100] Advanced Error Reporting Capabilities: [140] Device Serial Number 1c-1b-0d-ff-ff-e1-fc-8b Capabilities: [1a0] Transaction Processing Hints Kernel driver in use: igb Kernel modules: igb 07:00.0 Ethernet controller [0200]: Qualcomm Atheros Device [1969:e0b1] (rev 10) Subsystem: Gigabyte Technology Co., Ltd Device [1458:e000] Flags: bus master, fast devsel, latency 0, IRQ 36 Memory at f7700000 (64-bit, non-prefetchable) [size=256K] I/O ports at d000 [size=128] Capabilities: [40] Power Management version 3 Capabilities: [58] Express Endpoint, MSI 00 Capabilities: [c0] MSI: Enable- Count=1/16 Maskable+ 64bit+ Capabilities: [d8] MSI-X: Enable+ Count=16 Masked- Capabilities: [100] Advanced Error Reporting Capabilities: [180] Device Serial Number ff-e1-fc-8d-1c-1b-0d-ff Kernel driver in use: alx Kernel modules: alx 09:00.0 PCI bridge [0604]: Pericom Semiconductor Device [12d8:2304] (rev 05) (prog-if 00 [Normal decode]) Flags: bus master, fast devsel, latency 0 Bus: primary=09, secondary=0a, subordinate=0c, sec-latency=0 I/O behind bridge: None Memory behind bridge: f7200000-f75fffff [size=4M] Prefetchable memory behind bridge: None Capabilities: [40] Power Management version 3 Capabilities: [5c] Vital Product Data Capabilities: [64] Vendor Specific Information: Len=34 <?> Capabilities: [b0] Subsystem: Device [0000:0000] Capabilities: [c0] Express Upstream Port, MSI 00 Capabilities: [100] Advanced Error Reporting Capabilities: [140] Virtual Channel Capabilities: [20c] Power Budgeting <?> Capabilities: [230] Latency Tolerance Reporting Kernel driver in use: pcieport 0a:01.0 PCI bridge [0604]: Pericom Semiconductor Device [12d8:2304] (rev 05) (prog-if 00 [Normal decode]) Flags: bus master, fast devsel, latency 0, IRQ 43 Bus: primary=0a, secondary=0b, subordinate=0b, sec-latency=0 I/O behind bridge: None Memory behind bridge: f7400000-f75fffff [size=2M] Prefetchable memory behind bridge: None Capabilities: [40] Power Management version 3 Capabilities: [4c] MSI: Enable+ Count=1/1 Maskable- 64bit+ Capabilities: [64] Vendor Specific Information: Len=34 <?> Capabilities: [b0] Subsystem: Device [0000:0000] Capabilities: [c0] Express Downstream Port (Slot+), MSI 00 Capabilities: [100] Advanced Error Reporting Capabilities: [140] Virtual Channel Capabilities: [20c] Power Budgeting <?> Capabilities: [220] Access Control Services Kernel driver in use: pcieport 0a:02.0 PCI bridge [0604]: Pericom Semiconductor Device [12d8:2304] (rev 05) (prog-if 00 [Normal decode]) Flags: bus master, fast devsel, latency 0, IRQ 44 Bus: primary=0a, secondary=0c, subordinate=0c, sec-latency=0 I/O behind bridge: None Memory behind bridge: f7200000-f73fffff [size=2M] Prefetchable memory behind bridge: None Capabilities: [40] Power Management version 3 Capabilities: [4c] MSI: Enable+ Count=1/1 Maskable- 64bit+ Capabilities: [64] Vendor Specific Information: Len=34 <?> Capabilities: [b0] Subsystem: Device [0000:0000] Capabilities: [c0] Express Downstream Port (Slot+), MSI 00 Capabilities: [100] Advanced Error Reporting Capabilities: [140] Virtual Channel Capabilities: [20c] Power Budgeting <?> Capabilities: [220] Access Control Services Kernel driver in use: pcieport 0b:00.0 Multimedia video controller [0400]: Conexant Systems, Inc. CX23885 PCI Video and Audio Decoder [14f1:8852] (rev 04) Subsystem: Hauppauge computer works Inc. CX23885 PCI Video and Audio Decoder [0070:6a28] Flags: bus master, fast devsel, latency 0, IRQ 5 Memory at f7400000 (64-bit, non-prefetchable) [size=2M] Capabilities: [40] Express Endpoint, MSI 00 Capabilities: [80] Power Management version 2 Capabilities: [90] Vital Product Data Capabilities: [a0] MSI: Enable- Count=1/1 Maskable- 64bit+ Capabilities: [100] Advanced Error Reporting Capabilities: [200] Virtual Channel Kernel modules: cx23885 0c:00.0 Multimedia video controller [0400]: Conexant Systems, Inc. CX23885 PCI Video and Audio Decoder [14f1:8852] (rev 04) Subsystem: Hauppauge computer works Inc. CX23885 PCI Video and Audio Decoder [0070:6b28] Flags: bus master, fast devsel, latency 0, IRQ 4 Memory at f7200000 (64-bit, non-prefetchable) [size=2M] Capabilities: [40] Express Endpoint, MSI 00 Capabilities: [80] Power Management version 2 Capabilities: [90] Vital Product Data Capabilities: [a0] MSI: Enable- Count=1/1 Maskable- 64bit+ Capabilities: [100] Advanced Error Reporting Capabilities: [200] Virtual Channel Kernel modules: cx23885 0e:00.0 Multimedia controller [0480]: TBS Technologies DVB-S2 4 Tuner PCIe Card [544d:6178] Subsystem: Device [6909:0001] Flags: bus master, fast devsel, latency 0, IRQ 67 Memory at f7600000 (32-bit, non-prefetchable) [size=256K] Capabilities: [50] Power Management version 3 Capabilities: [70] MSI: Enable+ Count=1/1 Maskable- 64bit+ Capabilities: [90] Express Endpoint, MSI 00 Capabilities: [100] Device Serial Number 00-00-00-00-00-00-00-00 Kernel driver in use: TBSECP3 driver Kernel modules: tbsecp3 0f:00.0 VGA compatible controller [0300]: NVIDIA Corporation GK104 [GeForce GTX 670] [10de:1189] (rev a1) (prog-if 00 [VGA controller]) Subsystem: Gigabyte Technology Co., Ltd GK104 [GeForce GTX 670] [1458:3542] Flags: bus master, fast devsel, latency 0, IRQ 11 Memory at f6000000 (32-bit, non-prefetchable) [size=16M] Memory at e8000000 (64-bit, prefetchable) [size=128M] Memory at f0000000 (64-bit, prefetchable) [size=32M] I/O ports at f000 [size=128] Expansion ROM at 000c0000 [disabled] [size=128K] Capabilities: [60] Power Management version 3 Capabilities: [68] MSI: Enable- Count=1/1 Maskable- 64bit+ Capabilities: [78] Express Endpoint, MSI 00 Capabilities: [b4] Vendor Specific Information: Len=14 <?> Capabilities: [100] Virtual Channel Capabilities: [128] Power Budgeting <?> Capabilities: [600] Vendor Specific Information: ID=0001 Rev=1 Len=024 <?> Capabilities: [900] #19 0f:00.1 Audio device [0403]: NVIDIA Corporation GK104 HDMI Audio Controller [10de:0e0a] (rev a1) Subsystem: Gigabyte Technology Co., Ltd GK104 HDMI Audio Controller [1458:3542] Flags: bus master, fast devsel, latency 0, IRQ 10 Memory at f7080000 (32-bit, non-prefetchable) [size=16K] Capabilities: [60] Power Management version 3 Capabilities: [68] MSI: Enable- Count=1/1 Maskable- 64bit+ Capabilities: [78] Express Endpoint, MSI 00 11:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Device [1022:145a] Subsystem: Advanced Micro Devices, Inc. [AMD] Device [1022:145a] Flags: bus master, fast devsel, latency 0 Capabilities: [48] Vendor Specific Information: Len=08 <?> Capabilities: [50] Power Management version 3 Capabilities: [64] Express Endpoint, MSI 00 Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?> Capabilities: [270] #19 11:00.2 Encryption controller [1080]: Advanced Micro Devices, Inc. [AMD] Device [1022:1456] Subsystem: Advanced Micro Devices, Inc. [AMD] Device [1022:1456] Flags: bus master, fast devsel, latency 0, IRQ 5 Memory at f7d00000 (32-bit, non-prefetchable) [size=1M] Memory at f7e00000 (32-bit, non-prefetchable) [size=8K] Capabilities: [48] Vendor Specific Information: Len=08 <?> Capabilities: [50] Power Management version 3 Capabilities: [64] Express Endpoint, MSI 00 Capabilities: [a0] MSI: Enable- Count=1/2 Maskable- 64bit+ Capabilities: [c0] MSI-X: Enable- Count=2 Masked- Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?> 11:00.3 USB controller [0c03]: Advanced Micro Devices, Inc. [AMD] USB3 Host Controller [1022:145c] (prog-if 30 [XHCI]) Subsystem: Gigabyte Technology Co., Ltd Device [1458:5007] Flags: bus master, fast devsel, latency 0, IRQ 48 Memory at f7c00000 (64-bit, non-prefetchable) [size=1M] Capabilities: [48] Vendor Specific Information: Len=08 <?> Capabilities: [50] Power Management version 3 Capabilities: [64] Express Endpoint, MSI 00 Capabilities: [a0] MSI: Enable+ Count=1/8 Maskable- 64bit+ Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?> Kernel driver in use: xhci_hcd 12:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Device [1022:1455] Subsystem: Advanced Micro Devices, Inc. [AMD] Device [1022:1455] Flags: bus master, fast devsel, latency 0 Capabilities: [48] Vendor Specific Information: Len=08 <?> Capabilities: [50] Power Management version 3 Capabilities: [64] Express Endpoint, MSI 00 Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?> Capabilities: [270] #19 12:00.2 SATA controller [0106]: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] [1022:7901] (rev 51) (prog-if 01 [AHCI 1.0]) Subsystem: Gigabyte Technology Co., Ltd FCH SATA Controller [AHCI mode] [1458:b002] Flags: bus master, fast devsel, latency 0, IRQ 51 Memory at f7f08000 (32-bit, non-prefetchable) [size=4K] Capabilities: [48] Vendor Specific Information: Len=08 <?> Capabilities: [50] Power Management version 3 Capabilities: [64] Express Endpoint, MSI 00 Capabilities: [a0] MSI: Enable+ Count=16/16 Maskable- 64bit+ Capabilities: [d0] SATA HBA v1.0 Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?> Kernel driver in use: ahci Kernel modules: ahci 12:00.3 Audio device [0403]: Advanced Micro Devices, Inc. [AMD] Device [1022:1457] Subsystem: Gigabyte Technology Co., Ltd Device [1458:a0b8] Flags: bus master, fast devsel, latency 0, IRQ 4 Memory at f7f00000 (32-bit, non-prefetchable) [size=32K] Capabilities: [48] Vendor Specific Information: Len=08 <?> Capabilities: [50] Power Management version 3 Capabilities: [64] Express Endpoint, MSI 00 Capabilities: [a0] MSI: Enable- Count=1/1 Maskable- 64bit+ Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?> root@Tower:~# Edited June 6, 2017 by Tuftuf 1 Link to comment
CHBMB Posted June 7, 2017 Share Posted June 7, 2017 Heard back from TBS, they're not pursuing development of the closed source drivers further. So time for you all to switch to open source. Don't say I didn't warn you! Here's the email conversation I've had with TBS. Quote A quick message to say that the current drivers aren't compiling on kernel version 4.11.3 Quote Please have a try with open source driver : Quote Open source driver compiles fine, as I've mentioned before I actually produce builds for Unraid for others to use, and currently do both opensource and closed cource TBS buillds. Personally I use the opensource but others still use the closed source drivers, does this mean that there is going to be no further development on the closed source drivers? Quote Thanks for your update , yea for the closed driver will no update now ,we are focus on the open source driver now 1 Link to comment
knex666 Posted June 7, 2017 Share Posted June 7, 2017 Just a quick question, is this still needed to run TV Headed Server. I´m running on 6.3.3 unraid. Is this plugin supported in this version? What will happen if there is an unraid update? I would really like to use the binhex-tvheaded docker. Thanks! Link to comment
CHBMB Posted June 7, 2017 Share Posted June 7, 2017 Just now, knex666 said: Just a quick question, is this still needed to run TV Headed Server. I´m running on 6.3.3 unraid. Is this plugin supported in this version? What will happen if there is an unraid update? I would really like to use the binhex-tvheaded docker. Thanks! It's needed to run a DVB card with TVHeadend. Why binhex's version? What's wrong with ours?! lol If you read the first post and the posts above yours you'll see I make new builds for each Unraid version. Link to comment
Tuftuf Posted June 7, 2017 Share Posted June 7, 2017 1 minute ago, knex666 said: Just a quick question, is this still needed to run TV Headed Server. I´m running on 6.3.3 unraid. Is this plugin supported in this version? What will happen if there is an unraid update? I would really like to use the binhex-tvheaded docker. Thanks! You will need this plugin or another method of installing the DVB drivers for TVHeadend. The simple answer is yes you need this plugin for TVHeadend to work correctly with DVB tuners plugged into your unraid server. Upgrade unraid and this plugin from the plugins menu on your system. After you have rebooted unraid you can download and apply the latest set of drivers for your system. The process is straightforward. You do not need this plugin if you are using network tuners or IPTV. Link to comment
knex666 Posted June 7, 2017 Share Posted June 7, 2017 Thanks guys, and thank you CHBMB for your work!!!! I´ll try your version. I just started up Thanks! Link to comment
Tuftuf Posted June 8, 2017 Share Posted June 8, 2017 FYI I'm taking the QuadHD card out of my pc later and boxing it up! Link to comment
guyturner797 Posted June 10, 2017 Share Posted June 10, 2017 I just got a QuadHD in the post today to pass through to a windows VM for Plex DVR. I figured I could just pass it through to a VM but i guess not? Is this card still supported at all? How can I get my windows vm to see the tuner? Link to comment
CHBMB Posted June 10, 2017 Share Posted June 10, 2017 18 minutes ago, guyturner797 said: I just got a QuadHD in the post today to pass through to a windows VM for Plex DVR. I figured I could just pass it through to a VM but i guess not? Is this card still supported at all? How can I get my windows vm to see the tuner? If you're passing through to a VM, then this plugin is nothing to do with it. This plugin installs Linux drivers on Unraid so the cards can be passed through to a docker container. 2 Link to comment
guyturner797 Posted June 10, 2017 Share Posted June 10, 2017 Ok great thanks, wasn't too sure Link to comment
tunip Posted June 11, 2017 Share Posted June 11, 2017 Many thanks for your work CHBMB! Digital Devices Max S8 works fine with 6.4rc2. Link to comment
guyturner797 Posted June 12, 2017 Share Posted June 12, 2017 Any idea if this will become compatible soon with the Plex docker for the new DVR and live TV support? Link to comment
CHBMB Posted June 12, 2017 Share Posted June 12, 2017 Well this is just drivers in essence, so it rather depends on what cards Plex ends up supporting.Sent from my LG-H815 using Tapatalk 1 Link to comment
CHBMB Posted June 13, 2017 Share Posted June 13, 2017 On 11/06/2017 at 8:11 PM, tunip said: Many thanks for your work CHBMB! Digital Devices Max S8 works fine with 6.4rc2. Thanks for letting me know. Can't test these myself, so rely on others to tell me they're working. Link to comment
Tuftuf Posted June 16, 2017 Share Posted June 16, 2017 (edited) Will you have time for the TBS OS 6.4 RC3 today? I'm just planning how many reboots will be needed. EDIT ..-- And there is it! Thanks, Edited June 16, 2017 by Tuftuf Link to comment
CHBMB Posted June 16, 2017 Share Posted June 16, 2017 All the RC3 builds are uploaded. 1 Link to comment
DMcK Posted June 20, 2017 Share Posted June 20, 2017 Just tried the 6.4-rc3 LE build. It didn't recognize my USB tuner. I could see it with lsusb. Put 6.3.5 back on and all is good again. My tuner is a Hauppauge 950q, recognized by unraid as Auvitek AU8522 QAM/8VSB Frontend. Link to comment
CHBMB Posted June 21, 2017 Share Posted June 21, 2017 On 20/06/2017 at 1:50 AM, DMcK said: Just tried the 6.4-rc3 LE build. It didn't recognize my USB tuner. I could see it with lsusb. Put 6.3.5 back on and all is good again. My tuner is a Hauppauge 950q, recognized by unraid as Auvitek AU8522 QAM/8VSB Frontend. Can you try the RC4 build? Link to comment
