July 3, 20197 yr On 6/13/2019 at 7:36 PM, RawrSpace said: Went through the process outlined three times for Nvidia/DVB with the same results. Doesn't seem to be detecting the card here but does show it in system devices. If I install 6.7.1rc2 without adding DVB then it does detect my card and I can see the UUID. R5 1600 GTX 970 LibreElec and DD variant tested I have been out of the loop for a bit, and I see some work on this project... but has there been resolution? I would be more than happy to donate a tuner, or be a guinea pig for you if you need one. I will be picking up a low profile gtx1050 in a week or two... so I am at your disposal. I would love to have hardware decoding AND TVTuner all in one box. Heck, I may even find a way to mount a p2000 in my 2U server if this is working.
July 7, 20197 yr Hello everybody. I have read something and have an important question for you. I would like to buy a tbs6909 and need the mode 3 for unicable. is this currently supported or do I have to manually adjust something? i know the supplement for digitaldevices devices but what do i have to do at tbs? Thank you
July 8, 20197 yr Installed this in 6.7. I upgraded to 6.7.2. I was unable to update plugin. It was stuck on splashscreen. I used the script to update files on flash. It's working in version 6.7.2 but when i go to the plugin page i only show the splashscreen.
July 12, 20197 yr On 6/12/2019 at 9:41 AM, CHBMB said: TEST BUILDS FOR NVIDIA/DVB COMBINED People have asked if I'll produce a combined Nvidia/DVB build. Here's the thing, I have no intention of producing separate and combined builds, the workload is just too much for something I have no need of. It would need 8 builds on top of the Nvidia build to do so. I will however produce a combined build, depending on two conditions. 1. People don't mind an increased download size. 2. It works reliably. However I no longer have any DVB hardware so I can't test. So I've produced some combination builds for people to try out. I am only doing this for v6.7.1rc2, so if nobody tests each build then it's not going to happen. So if you want it, YOU need to test it. HOW TO USE 1. Download the Nvidia build of v6.7.1rc2 (Important - Do not use any other version) 2. Once the build has downloaded and the window indicating the copying to flash has happened and before you reboot, download one of the attached zip files depending on which DVB build you use, unpack it and copy across the bzmodules and bzfirmware files to your flash disk. 3. Reboot I know that the Nvidia Plugin will not report the correct version number, that's an easy fix in the future if this works. Once you've rebooted I need to know two things for each build. 1. Does the Nvidia hardware encoding work with Plex/Emby/Jellyfin? 2. Does the DVB hardware work? libreelec-nvidia-v6.7.1rc2.zip 22.81 MB · 8 downloads tbs-os-nvidia-v6.7.1rc2.zip 18.35 MB · 0 downloads tbs-crazycat-nvidia-v6.7.1rc2.zip 18.51 MB · 0 downloads dd-nvidia-v6.7.1rc2.zip 17.47 MB · 3 downloads Hi CHBMB, I'm very interested in having both nVidia and DVB drivers in the same build, but with 6.7.2 released I'm hesitant to revert back to an older version of Unraid. What I do have though is a spare WinTV-HVR-2200-DVB-T, MULTI-PAL 89619 LF (rev. D3F2) that I would be happy to ship to you and for you to keep. They are PAL, so if you're in a NTSC region they will be usless, but I'm happy to send them to anyone for testing this project.
July 13, 20197 yr Hi CHBMB i could test the DD / nVIDIA combo. One question though- do I need to disable / uninstall / otherwise configure my existing DVB plugin before doing so? im guessing ‘no’ but just in case.....
July 16, 20197 yr I have a question, is it possible to add avermedia td310 support? i realy like unraid, but the stick dont work with libreelec driver. Used linux now as temp inhome share server, and the stick works when install linuxtv media build, but this is not working on unraid(dhu) Hmm ok just tested some more "kernels and versions" and it seems that the crazysat version works because of the si2186 chipset i think. so all works now. Hmm ok now is not working anymore, without changes is aks for the firmware : Quote [ 31.536057] usb 1-3: dvb_usb_v2: found a 'AVerMedia TD310 DVB-T2' in cold state [ 31.536406] usb 1-3: Direct firmware load for dvb-usb-it9303-01.fw failed with error -2 [ 31.536413] usb 1-3: dvb_usb_v2: Did not find the firmware file 'dvb-usb-it9303-01.fw' Edited July 21, 20197 yr by deviltje
July 21, 20197 yr Very much so interested in a DVB / Nvidia build. I've got a GTX 1070 and a Hauppauge i can test with. I've gotten both to work independently using DVB Unraid and Nvidia Unraid respectively. I'm still some what new to Docker but I attempted to piece together info from the last 4 pages of posts on how to try it and test and the best I got was Unraid 6.7.2 with my Hauppauge showing up but the Nvidia card showing the "Nvidia-SMI has failed error" that @RawrSpace shared.
July 21, 20197 yr On 7/16/2019 at 10:54 AM, deviltje said: I have a question, is it possible to add avermedia td310 support? i realy like unraid, but the stick dont work with libreelec driver. Used linux now as temp inhome share server, and the stick works when install linuxtv media build, but this is not working on unraid(dhu) Hmm ok just tested some more "kernels and versions" and it seems that the crazysat version works because of the si2186 chipset i think. so all works now. Hmm ok now is not working anymore, without changes is aks for the firmware : Ok found a workaround if you mis a firmware(error 2 ish), in my case install TBS (CrazyCat) DVB-S(2) & DVB-T(2) kernel and driver, reboot, now login to ssh and unmount bzfirmware: umount /lib/firmware check if lib/firmware dir is empty, now start winscp go to lib/firmware dir and upload the fw file, now reboot, and now firmware should load and all crazysat drivers are back incl. working fw.
July 21, 20197 yr 5 hours ago, deviltje said: Ok found a workaround if you mis a firmware(error 2 ish), in my case install TBS (CrazyCat) DVB-S(2) & DVB-T(2) kernel and driver, reboot, now login to ssh and unmount bzfirmware: umount /lib/firmware check if lib/firmware dir is empty, now start winscp go to lib/firmware dir and upload the fw file, now reboot, and now firmware should load and all crazysat drivers are back incl. working fw. That doesn't make sense as any change you make to /lib/firmware will not be persistent across reboots as /lib/firmware is mounted at boot from bzfirmware.
July 22, 20197 yr 11 hours ago, CHBMB said: That doesn't make sense as any change you make to /lib/firmware will not be persistent across reboots as /lib/firmware is mounted at boot from bzfirmware. I know, but somehow it find the firmware even after reboot or shutdown, and yes indeed bzfirmware is mounted after reboot. Strange indeed because dvb-usb-it9303-01.fw is missing in the latest TBS (CrazyCat) DVB-S(2) & DVB-T(2) 6.7.2 builds. Edited July 22, 20197 yr by deviltje
July 22, 20197 yr 12 hours ago, deviltje said: I know, but somehow it find the firmware even after reboot or shutdown, and yes indeed bzfirmware is mounted after reboot. Strange indeed because dvb-usb-it9303-01.fw is missing in the latest TBS (CrazyCat) DVB-S(2) & DVB-T(2) 6.7.2 builds. Just can't be possible. /lib/firmware is RAM. Reboot and whatever is there is gone.
July 23, 20197 yr 9 hours ago, CHBMB said: Just can't be possible. /lib/firmware is RAM. Reboot and whatever is there is gone. Hmm ok, but how en why is it still working after reboot? it wont complain about missing firmware and is just works fine for dvb-t(t2) and dvb-c. But ok, meaby you can add dvb-usb-it9303-01.fw to the bz file for next time? Ok just tested clean install on other old pc, and is does the same. After install it complains about missing firmware so it wont show up in gui of dvb plugin, so i do the steps above, unmount etc upload firmware in lib/firmare and it works. I reboot and complete shutdown(even pulled powercord) and after boot it works just fine even without dvb-usb-it9303-01.fw in lib/firmware. Edited July 23, 20197 yr by deviltje
July 23, 20197 yr 11 hours ago, CHBMB said: Just can't be possible. /lib/firmware is RAM. Reboot and whatever is there is gone. Actually by default it is not! The /lib/firmware location is an exception to the norm as it is mounted via the 'loop' device from the image held on the USB stick so in theory in can be updated and survive a reboot. However there is no free space in the image so updating it may easily fail. Even if you did successfully make such an update it would be lost when Unraid is updated and the bzfirmware file on the USB stick is replaced with an updated version. It was also stated that a umount should be run on /lib/firmware which would then preclude the image on the USB stick from being updated
July 23, 20197 yr But where in unraid store the fw file after reboot it must be somewere i think? because stick still works after a reboot without the fw in lib/firmware. Edited July 23, 20197 yr by deviltje
July 23, 20197 yr 10 hours ago, itimpi said: Actually by default it is not! The /lib/firmware location is an exception to the norm as it is mounted via the 'loop' device from the image held on the USB stick so in theory in can be updated and survive a reboot. However there is no free space in the image so updating it may easily fail. Even if you did successfully make such an update it would be lost when Unraid is updated and the bzfirmware file on the USB stick is replaced with an updated version. It was also stated that a umount should be run on /lib/firmware which would then preclude the image on the USB stick from being updated Well, yeah, I know, but @deviltje did say he did a umount before copying the file, so that will be in RAM. 2 hours ago, deviltje said: But where in unraid store the fw file after reboot it must be somewere i think? because stick still works after a reboot without the fw in lib/firmware. At boot Unraid mounts bzfirmware as a read only squashfs file system.
July 24, 20197 yr @CHBMB, i know it mounted on lib/firmware after reboot, but i mean where is dvb-usb-it9303-01.fw located after reboot? because usb dvb stick still works after reboot remove and shutdown etc, and like you say after reboot is remount the bzfirmware to lib/firmware, but dvb-usb-it9303-01.fw is nowhere found still it find the firmware and stick works.
July 24, 20197 yr Did you do a hard power cycle, like actually turn power off for a minute and then back on when testing? Maybe device got working once and will continue to work across presets until power is hard cycled?
July 24, 20197 yr Just set this up with a Wintv-QuadHD using the LibreELEC image, and worked a treat with my Plex docker. Thank you for this image.
July 24, 20197 yr TEST BUILDS FOR NVIDIA/DVB COMBINED People have asked if I'll produce a combined Nvidia/DVB build. Here's the thing, I have no intention of producing separate and combined builds, the workload is just too much for something I have no need of. It would need 8 builds on top of the Nvidia build to do so. I will however produce a combined build, depending on two conditions. 1. People don't mind an increased download size. 2. It works reliably. However I no longer have any DVB hardware so I can't test. So I've produced some combination builds for people to try out. I am only doing this for v6.7.1rc2, so if nobody tests each build then it's not going to happen. So if you want it, YOU need to test it. HOW TO USE 1. Install the Nvidia Plugin 2. Download the Nvidia build of v6.7.2 (Important - Do not use any other version and NOT the DVB version) 3. Once the build has downloaded and the window indicating the copying to flash has happened and before you reboot, download one of the attached zip files depending on which DVB build you use, unpack it and copy across the bzmodules and bzfirmware files to your flash disk. 3. Reboot I know that the Nvidia Plugin will not report the correct version number, that's an easy fix in the future if this works. Once you've rebooted I need to know two things for each build. 1. Does the Nvidia hardware encoding work with Plex/Emby/Jellyfin? 2. Does the DVB hardware work? Note: TBS-OS currently won't compile. Nothing I can do about that. https://github.com/linuxserver/Unraid-DVB/tree/master/DVB-Nvidia-Test Edited July 24, 20197 yr by CHBMB

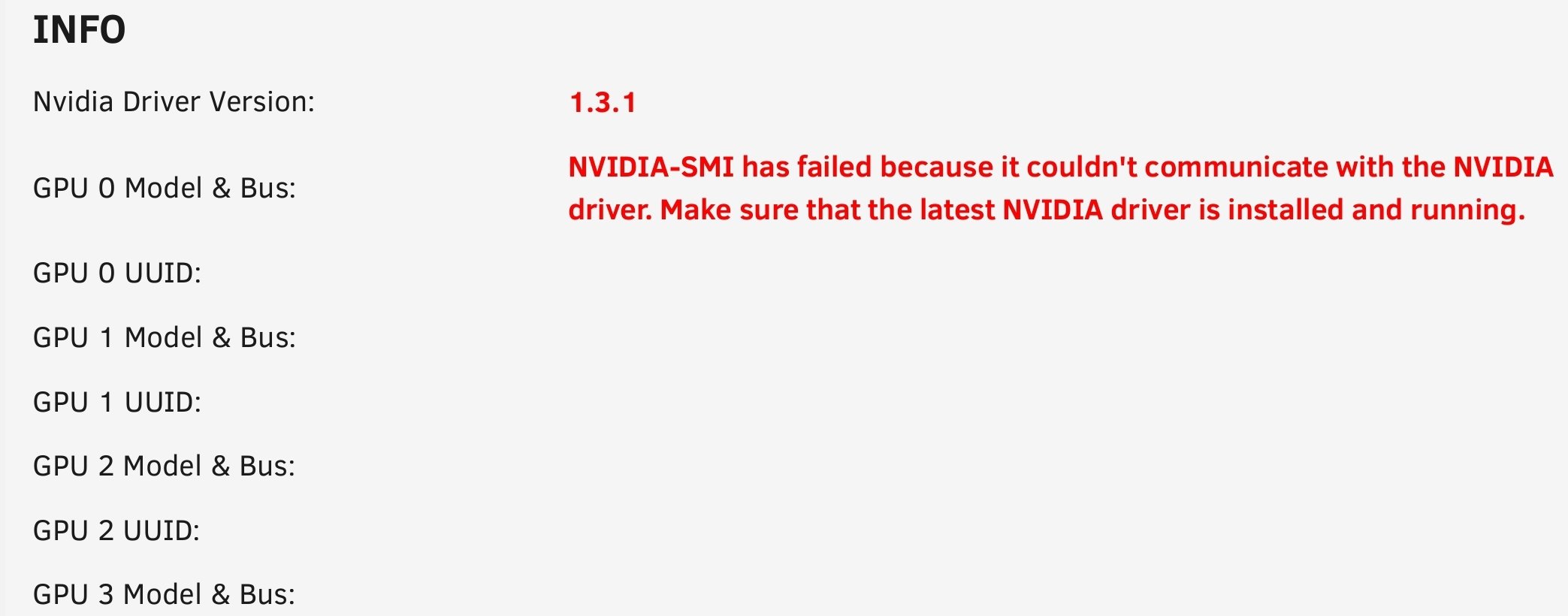

July 24, 20197 yr @CHBMB Thanks for keeping with this (do you have a Patron we can throw support your way?) I followed your instructions above. DVB shows in Unraid ✓ Tuners work in Plex ✓ Nvidia GTX 1070 shows in Unraid ✗ https://imgur.com/a/JB7NdTv The Nvidia Unraid plugin still reports the following error Quote NVIDIA-SMI has failed because it couldn't communicate with the NVIDIA driver. Make sure that the latest NVIDIA driver is installed and running. And no cards show up. I don't know of any other way to get the UUID for the card other than to go to the plugin so I can't brute force test it with the docker. And I've verified that the GTX 1070 shows up in the "Tools > System Devices" page. Let me know what else I can check or test for you. (I'm a application software engineer but not a lot of experience in system software development but I'm comfortable in a terminal so i don't mind digging)
July 25, 20197 yr [mention=6219]CHBMB[/mention] Thanks for keeping with this (do you have a Patron we can throw support your way?) I followed your instructions above. DVB shows in Unraid ✓ Tuners work in Plex ✓ Nvidia GTX 1070 shows in Unraid ✗ https://imgur.com/a/JB7NdTv The Nvidia Unraid plugin still reports the following error NVIDIA-SMI has failed because it couldn't communicate with the NVIDIA driver. Make sure that the latest NVIDIA driver is installed and running. And no cards show up. I don't know of any other way to get the UUID for the card other than to go to the plugin so I can't brute force test it with the docker. And I've verified that the GTX 1070 shows up in the "Tools > System Devices" page. Let me know what else I can check or test for you. (I'm a application software engineer but not a lot of experience in system software development but I'm comfortable in a terminal so i don't mind digging) Thanks for that. I'll have a think about whay to do next.....Sent from my Mi A1 using Tapatalk
July 27, 20197 yr @CHBMB Thank you for working this. I've got a hauppauge quad tuner and GTX1060 in my case and am willing to help test. I ran the libre elec - nvidia hybrid install and got the same results as @JDubDev. I switch back and forth between the Libre Elec DVB and Nvidia installs as necessary depending on what is more important to me at the time so a few more switches for testing is well worth it to me. Is there any more information or logs that I can grab to help? Disclaimer: Linux illiterate but moderately good at following instructions and googling my way through minor issues. Disclaimer 2: May be a bit slow on responses but will check in regularly.
August 1, 20197 yr I have had this docker running perfectly running Libreelec with a Skystar HD2 - until this week. I noticed my recordings had been failing since the weekend and when I tried to play a channel (via browser into a media player) that failed 'file doesn't exist'. Scanning a mux fails with no data found. The only thing I could think was the docker got updated at the weekend and so I thought maybe if I rolled back to a previous version it would work again - no luck, so reverted to latest Libreelec 4.3..something. To check there was no problem with the cable, on my main windows 7 PC I put in my spare (TBS pcie) card, installed the drivers and dvbviewer and that scanned all muxes and played channels fine. So there is not a problem with cable or LNB. So that leaves either the Skystar HD2 pci card as failed somewhere, somehow or something on the software side. When trying to scan a mux it tunes to the frequency but fails to receive any data. I decided to shut down unraid and cold boot to see if that would solve anything This is what I get on the latest scan (the main channel 4 mux): 2019-08-01 17:11:07.172 mpegts: 10714.25H in 28.2E - tuning on STB0899 Multistandard #0 : DVB-S #0 2019-08-01 17:11:07.330 subscription: 0001: "scan" subscribing to mux "10714.25H", weight: 6, adapter: "STB0899 Multistandard #0 : DVB-S #0", network: "28.2E", service: "Raw PID Subscription" 2019-08-01 17:11:17.266 mpegts: 10714.25H in 28.2E - scan no data, failed 2019-08-01 17:11:17.266 subscription: 0001: "scan" unsubscribing Before the fresh boot that I was also getting a 'linuxDVB unable to provide UNC value' when doing the scans. I'm not sure how to debug this (settings to make, where to save log file) so see if that could shed any light. Strange to me this has just suddenly stopped working after being perfect since I first set it up. The only next step I can do (tomorrow) would be to take this card out and put it in another old PC (running windows 10 though) and do the same dvbviewer test to rule out hardware failure (as long as there is no compatibility problems with W10). Any thoughts anyone please? Spent all day trying to research and figure it out but I am very limited in Linux knowledge. Maybe I could add an alternative docker to try and see if that fails. Any suggestion what to try?
August 1, 20197 yr 15 minutes ago, boragthung said: I have had this docker running perfectly running Libreelec with a Skystar HD2 - until this week. I noticed my recordings had been failing since the weekend and when I tried to play a channel (via browser into a media player) that failed 'file doesn't exist'. Scanning a mux fails with no data found. The only thing I could think was the docker got updated at the weekend and so I thought maybe if I rolled back to a previous version it would work again - no luck, so reverted to latest Libreelec 4.3..something. To check there was no problem with the cable, on my main windows 7 PC I put in my spare (TBS pcie) card, installed the drivers and dvbviewer and that scanned all muxes and played channels fine. So there is not a problem with cable or LNB. So that leaves either the Skystar HD2 pci card as failed somewhere, somehow or something on the software side. When trying to scan a mux it tunes to the frequency but fails to receive any data. I decided to shut down unraid and cold boot to see if that would solve anything This is what I get on the latest scan (the main channel 4 mux): 2019-08-01 17:11:07.172 mpegts: 10714.25H in 28.2E - tuning on STB0899 Multistandard #0 : DVB-S #0 2019-08-01 17:11:07.330 subscription: 0001: "scan" subscribing to mux "10714.25H", weight: 6, adapter: "STB0899 Multistandard #0 : DVB-S #0", network: "28.2E", service: "Raw PID Subscription" 2019-08-01 17:11:17.266 mpegts: 10714.25H in 28.2E - scan no data, failed 2019-08-01 17:11:17.266 subscription: 0001: "scan" unsubscribing Before the fresh boot that I was also getting a 'linuxDVB unable to provide UNC value' when doing the scans. I'm not sure how to debug this (settings to make, where to save log file) so see if that could shed any light. Strange to me this has just suddenly stopped working after being perfect since I first set it up. The only next step I can do (tomorrow) would be to take this card out and put it in another old PC (running windows 10 though) and do the same dvbviewer test to rule out hardware failure (as long as there is no compatibility problems with W10). Any thoughts anyone please? Spent all day trying to research and figure it out but I am very limited in Linux knowledge. Maybe I could add an alternative docker to try and see if that fails. Any suggestion what to try? Which docker are you speaking about? This is the dvb plugin support thread. OS there anything you have updated lately?
