eProDarkAngel Posted January 23, 2017 Share Posted January 23, 2017 Hi guys having a bit of trouble setting up the EPG I have run the command docker exec -it -u abc tvheadend /usr/bin/tv_grab_uk_tvguide --configure and followed the on screen directions in a telnet shell. However when I run the re-run internal grabbers command from within the Web ui I get this error and no EPG data. 2017-01-23 21:58:23.000 xmltv: /usr/bin/tv_grab_uk_tvguide: grab /usr/bin/tv_grab_uk_tvguide 2017-01-23 21:58:23.001 spawn: Executing "/usr/bin/tv_grab_uk_tvguide" 2017-01-23 21:58:23.209 spawn: XMLTV::Supplement: Failed to read from /config/.xmltv/supplement/tv_grab_uk_tvguide/tv_grab_uk_tvguide.map.conf. 2017-01-23 21:58:23.213 xmltv: /usr/bin/tv_grab_uk_tvguide: no output detected 2017-01-23 21:58:23.213 xmltv: /usr/bin/tv_grab_uk_tvguide: grab returned no data I can't test this as I'm not at home until next week. Sounds like tvheadend doesn't get any data. Are you sure you configured it correctly? What is the output of ls - la in the folder of the map file? The map file as in where my config is stored? root@Kallax:/mnt/user/appdata/tvheadend/.xmltv# ls - la /bin/ls: cannot access '-': No such file or directory /bin/ls: cannot access 'la': No such file or directory root@Kallax:/mnt/user/appdata/tvheadend/.xmltv# ls cache/ supplement/ tv_grab_uk_tvguide.conf root@Kallax:/mnt/user/appdata/tvheadend/.xmltv# la -bash: la: command not found root@Kallax:/mnt/user/appdata/tvheadend/.xmltv# ls-la -bash: ls-la: command not found root@Kallax:/mnt/user/appdata/tvheadend/.xmltv# Quote Link to comment
alturismo Posted January 24, 2017 Share Posted January 24, 2017 Hello guys. Im trying to set the http_url argument for this docker, i have tried and edit /var/run/s6/services/tvheadend/run and adding the following argument --http_root /tv But everytime i restart the container the run file is reset back to default. Is there any way that i can modify this without it resetting That's because you edit the wrong file. The one to edit is /etc/services.d/tvheadend/run. That should stick until you update. There might come an option to set this as an variable some time in the future. Hi, just would like to ask if thats correct what i did before i broke something bigger ... SSH login docker cp tvheadend:/etc/services.d/tvheadend/run /root edit the file by adding this entry to the end --http_root /tvheadend docker cp run tvheadend:/etc/services.d/tvheadend/run Restart seems the /tvheadend behind the proxy is working now, but also the direct connection ... wich is ok to me just would like to know if thats correct ? thanks ahead Quote Link to comment
saarg Posted January 24, 2017 Share Posted January 24, 2017 Hi guys having a bit of trouble setting up the EPG I have run the command docker exec -it -u abc tvheadend /usr/bin/tv_grab_uk_tvguide --configure and followed the on screen directions in a telnet shell. However when I run the re-run internal grabbers command from within the Web ui I get this error and no EPG data. 2017-01-23 21:58:23.000 xmltv: /usr/bin/tv_grab_uk_tvguide: grab /usr/bin/tv_grab_uk_tvguide 2017-01-23 21:58:23.001 spawn: Executing "/usr/bin/tv_grab_uk_tvguide" 2017-01-23 21:58:23.209 spawn: XMLTV::Supplement: Failed to read from /config/.xmltv/supplement/tv_grab_uk_tvguide/tv_grab_uk_tvguide.map.conf. 2017-01-23 21:58:23.213 xmltv: /usr/bin/tv_grab_uk_tvguide: no output detected 2017-01-23 21:58:23.213 xmltv: /usr/bin/tv_grab_uk_tvguide: grab returned no data I can't test this as I'm not at home until next week. Sounds like tvheadend doesn't get any data. Are you sure you configured it correctly? What is the output of ls - la in the folder of the map file? The map file as in where my config is stored? root@Kallax:/mnt/user/appdata/tvheadend/.xmltv# ls - la /bin/ls: cannot access '-': No such file or directory /bin/ls: cannot access 'la': No such file or directory root@Kallax:/mnt/user/appdata/tvheadend/.xmltv# ls cache/ supplement/ tv_grab_uk_tvguide.conf root@Kallax:/mnt/user/appdata/tvheadend/.xmltv# la -bash: la: command not found root@Kallax:/mnt/user/appdata/tvheadend/.xmltv# ls-la -bash: ls-la: command not found root@Kallax:/mnt/user/appdata/tvheadend/.xmltv# The map.conf file tvheadend complains about not finding. My phone auto corrected the command, so the correct one should be: ls -la /mnt/user/appdata/tvheadend/.xmltv/supplement/tv_grab_uk_tvguide/ Quote Link to comment
saarg Posted January 24, 2017 Share Posted January 24, 2017 Hello guys. Im trying to set the http_url argument for this docker, i have tried and edit /var/run/s6/services/tvheadend/run and adding the following argument --http_root /tv But everytime i restart the container the run file is reset back to default. Is there any way that i can modify this without it resetting That's because you edit the wrong file. The one to edit is /etc/services.d/tvheadend/run. That should stick until you update. There might come an option to set this as an variable some time in the future. Hi, just would like to ask if thats correct what i did before i broke something bigger ... SSH login docker cp tvheadend:/etc/services.d/tvheadend/run /root edit the file by adding this entry to the end --http_root /tvheadend docker cp run tvheadend:/etc/services.d/tvheadend/run Restart seems the /tvheadend behind the proxy is working now, but also the direct connection ... wich is ok to me just would like to know if thats correct ? thanks ahead That sounds correct. Quote Link to comment
saarg Posted January 24, 2017 Share Posted January 24, 2017 Please wrap output of commands in the code tags. The # symbol button when you write posts. It is very hard to read on mobile. Did you follow the instructions on github.com linked in the first post on how to configure xmltv? Also posting the questions and answers when you configure the grabber will help. Quote Link to comment
eProDarkAngel Posted January 24, 2017 Share Posted January 24, 2017 Hi guys having a bit of trouble setting up the EPG I have run the command docker exec -it -u abc tvheadend /usr/bin/tv_grab_uk_tvguide --configure and followed the on screen directions in a telnet shell. However when I run the re-run internal grabbers command from within the Web ui I get this error and no EPG data. 2017-01-23 21:58:23.000 xmltv: /usr/bin/tv_grab_uk_tvguide: grab /usr/bin/tv_grab_uk_tvguide 2017-01-23 21:58:23.001 spawn: Executing "/usr/bin/tv_grab_uk_tvguide" 2017-01-23 21:58:23.209 spawn: XMLTV::Supplement: Failed to read from /config/.xmltv/supplement/tv_grab_uk_tvguide/tv_grab_uk_tvguide.map.conf. 2017-01-23 21:58:23.213 xmltv: /usr/bin/tv_grab_uk_tvguide: no output detected 2017-01-23 21:58:23.213 xmltv: /usr/bin/tv_grab_uk_tvguide: grab returned no data I can't test this as I'm not at home until next week. Sounds like tvheadend doesn't get any data. Are you sure you configured it correctly? What is the output of ls - la in the folder of the map file? The map file as in where my config is stored? root@Kallax:/mnt/user/appdata/tvheadend/.xmltv# ls - la /bin/ls: cannot access '-': No such file or directory /bin/ls: cannot access 'la': No such file or directory root@Kallax:/mnt/user/appdata/tvheadend/.xmltv# ls cache/ supplement/ tv_grab_uk_tvguide.conf root@Kallax:/mnt/user/appdata/tvheadend/.xmltv# la -bash: la: command not found root@Kallax:/mnt/user/appdata/tvheadend/.xmltv# ls-la -bash: ls-la: command not found root@Kallax:/mnt/user/appdata/tvheadend/.xmltv# The map.conf file tvheadend complains about not finding. My phone auto corrected the command, so the correct one should be: ls -la /mnt/user/appdata/tvheadend/.xmltv/supplement/tv_grab_uk_tvguide/ root@Kallax:/mnt/user/appdata/tvheadend/.xmltv# ls -la /mnt/user/appdata/tvheadend/.xmltv/supplement/tv_grab_uk_tvguide/ total 8 drwxrwxrwx 1 root root 46 Jan 24 15:48 ./ drwxr-xr-x 1 nobody users 36 Jan 24 15:47 ../ -rw-r--r-- 1 nobody users 6654 Jan 23 21:33 tv_grab_uk_tvguide.conf root@Kallax:/mnt/user/appdata/tvheadend/.xmltv# Is the output of ls -la I did have to create the folder tv_grab_uk_tvguide and move tv_grab_uk_tvguide.conf to it now when I try to run it from the webui I get this error 2017-01-24 15:54:47.922 xmltv: /usr/bin/tv_grab_uk_tvguide: grab /usr/bin/tv_grab_uk_tvguide 2017-01-24 15:54:47.924 spawn: Executing "/usr/bin/tv_grab_uk_tvguide" 2017-01-24 15:54:48.127 spawn: You need to configure the grabber by running it with --configure 2017-01-24 15:54:48.130 xmltv: /usr/bin/tv_grab_uk_tvguide: no output detected 2017-01-24 15:54:48.130 xmltv: /usr/bin/tv_grab_uk_tvguide: grab returned no data Even though I have run the configuration. Quote Link to comment
saarg Posted January 24, 2017 Share Posted January 24, 2017 Looks like you deleted your post just before I posted an answer, so look at the post before your last post. Quote Link to comment
eProDarkAngel Posted January 24, 2017 Share Posted January 24, 2017 Please wrap output of commands in the code tags. The # symbol button when you write posts. It is very hard to read on mobile. Did you follow the instructions on github.com linked in the first post on how to configure xmltv? Also posting the questions and answers when you configure the grabber will help. I just ran the configuration again here are my results thanks for trying to help. root@Kallax:/mnt/user/appdata/tvheadend/.xmltv# docker exec -it -u abc tvheadend /usr/bin/tv_grab_uk_tvguide --configure tv_grab_uk_tvguide uses a cache with files that it has already downloaded. Please specify where the cache shall be stored. Directory to store the cache in: [/config/.xmltv/cache] Reformatting: 100% [=========================================================================================================================================================]Select the channels that you want to receive data for. Fox News [yes,no,all,none (default=no)] all TVC News yes BBC Red Button 1 HD yes ARY Digital yes BBC Olympics03HD yes Freeview yes Sky Sports Mix yes BBC2 Scotland yes Sky Sports Mix HD yes Sony MAX yes Viceland yes Blaze yes BBC2 S East yes BBC2 S West yes BBC2 South yes BBC2 West Midlands yes BBC2 Wales yes BBC2 West yes BBC4 yes BET yes bid tv yes Bloomberg TV yes Boomerang yes Cartoon Network yes CBBC yes CBeebies yes Challenge yes Channel 4 yes Chart Show TV yes CNN yes Discovery yes Discovery History yes Discovery Science yes E! yes E4 yes EuroNews yes Eurosport yes Extreme Sports yes Film4 yes Film4 +1 yes Channel 5 yes FOX yes GBC yes Universal Channel yes HISTORY yes HISTORY +1 yes STV North yes ITV Anglia yes STV North+1 yes STV North+1 yes ITV Central yes ITV Westcountry yes ITV Channel yes ITV Granada yes ITV London yes ITV Meridian yes ITV Tyne Tees yes ITV Wales yes ITV West yes ITV Yorkshire yes STV Central yes UTV yes ITV2 yes Kerrang! TV yes Kiss TV yes Sky Living yes Sky Living +1 yes Magic TV yes MTV yes MTV Base yes MTV Dance yes MTV Hits yes MTV Rocks yes MUTV yes National Geographic yes Nickelodeon yes Nick Jr yes Nicktoons yes Comedy Central yes Comedy Central Extra yes price-drop.tv yes QVC yes S4C yes Syfy yes Scuzz yes Sky Box Office Digital yes Sky Cinema Crime & Thriller HD yes Sky Cinema Premiere yes Sky Cinema Premiere +1 yes Sky Cinema Comedy yes Sky Cinema Action & Adventure yes Sky Cinema Family yes Sky Cinema Drama & Romance yes Sky Cinema Sci-fi/Horror HD yes Sky News yes Sky 1 yes Sky 2 yes Sky Sports 1 yes Sky Sports 2 yes Sky Sports 3 yes Sky Sports News yes Sky Sports 4 yes Box Hits yes The Box yes Community Channel yes Disney Channel yes Disney Channel +1 yes Viva yes Travel Channel yes Good Food yes YESTERDAY yes Home yes VH1 yes MTV Christmas yes B4U Movies yes Playboy TV yes Red Hot Amateur yes RTÃ One yes Sony SAB yes Star Plus yes Television X yes TG4 yes The Adult Channel yes TV3 yes TV5 yes TVE Internacional yes Eden +1 yes Good Food (+1) yes Home +1 yes Zee TV yes ITV3 yes More4 yes RTÃ Two yes eir Sport 1 yes ITV4 yes Pick yes E4 +1 yes 5STAR yes 5USA yes ITV2 +1 yes Sky Cinema Select yes Discovery Home & Health yes CITV yes Sky Arts yes CBS Reality yes Discovery Turbo yes BBC2 HD yes Bliss yes Boomerang +1 yes Cartoonito yes Challenge +1 yes Chelsea TV yes CI yes Discovery HD yes Discovery Home & Health +1 yes Discovery Shed yes Disney Cinemagic yes Disney Cinemagic +1 yes Eurosport 2 yes FOX+1 yes Real Lives yes Motors TV yes Nat Geo Wild yes National Geographic HD yes Comedy Central +1 yes Syfy +1 yes Sky Box Office HD1 yes Sky Box Office HD2 yes Sky Sports 1 HD yes Sky Sports 2 HD yes Really yes YESTERDAY +1 yes CBS Reality +1 yes Horror Channel yes eir Sport 2 yes Channel 4 + 1 yes More4 +1 yes Dave yes Ideal World yes Star Gold yes ITV Thames Valley North yes Al Jazeera English yes Racing UK yes TCM +1 yes Channel S yes Community Channel Freeview (Community Channel Free yes True Christmas yes DMAX yes Dave ja vu yes Cartoon Network +1 yes Best Direct yes 5* (Freeview) yes Pop yes M95 TV Marbella yes TV3 (Spanish) yes ITV Thames Valley South yes E! Entertainment Europe yes ITV3+1 yes Channel 4 HD yes Tiny Pop yes Sky1 HD yes Sky Sports 3 HD yes Channel 7 yes MTV + 1 yes Sky Arts HD yes FOX HD yes Sky Cinema Premiere HD yes National Geographic HD +1 yes CBS Drama yes CBS Action yes True Movies+1 yes Movies4Men yes Eurosport 1 HD yes Deutsche Welle yes Horror Channel +1 yes H2 yes 4Music yes BBC Alba yes W yes Sky Movies Superheroes HD yes Sky Cinema Drama & Romance HD yes Sky Cinema Action & Adventure HD yes W (+1) yes GOLD yes GOLD +1 yes Alibi yes Alibi+1 yes Sky Cinema Comedy HD yes Sky Cinema Family HD yes Sky Cinema Sci-fi/Horror yes Sky Arts 2 yes HISTORY HD yes Gems TV yes ITV4 + 1 yes MTV Live HD yes 3e yes Investigation Discovery yes AIT International yes Eden yes Syfy HD yes Real Lives +1 yes Sky Arts 2 HD yes Disney Cinemagic HD yes CI HD yes Nat Geo Wild HD yes Propeller TV yes QUEST yes Travel Channel +1 yes Phoenix CNE yes Flava yes My5 yes 5USA +1 yes CI +1 yes BT Sport//ESPN yes BT Sport//ESPN HD yes Animal Planet yes Create and Craft yes Disney yes Disney +1 yes Animal Planet +1 yes CNBC UK yes MGM Channel yes Sky Living HD yes Sky Cinema Select HD yes QUEST +1 yes Food Network +1 yes Food Network yes Universal Channel +1 yes Movies 24 yes Kix yes Sky Cinema Superheroes yes Movies 24+ (Movies 24+) yes E4 HD yes NHK World yes Nick Jr Too yes Sky Cinema Crime & Thriller yes DMAX+1 yes Comedy Central Extra +1 yes Discovery History +1 yes Tiny Pop +1 yes BET +1 yes Movies4Men +1 yes Horse & Country yes Nickelodeon +1 yes at the races yes FAB TV yes TrueEntertainment yes Discovery Science +1 yes BBC Red Button 1 yes Sky Cinema Hits yes Sky Cinema Hits HD yes The Active Channel yes ITV HD yes BBC Sport Interactive BBC1 yes BBC Sport Interactive BBC2 yes Sky Sports 4 HD yes Sky 3D yes Showcase yes Sky News HD yes BBC Sport Interactive BBC3 yes Zee Cinema yes STV HD yes Universal Channel HD yes Channel 5 HD yes BBC News yes Film4 HD yes TCM yes Comedy Central HD yes GOD Channel yes Sky Sports News HD yes Pick+1 yes Good Food (HD) yes BBC Parliament yes Eden HD yes ITV2 HD yes UTV HD yes BBC Entertainment yes Nickelodeon HD yes Disney HD yes BBC1 HD yes PopGirl yes Showcase +1 yes BBC World News yes ITV3 HD yes ITV4 HD yes Sky Box Office HD3 yes ITV South East +1 yes ITV Yorkshire +1 yes ITV Granada +1 yes ITV London +1 yes UTV +1 yes ITV West +1 yes BBC1 Digital yes ITV Central +1 yes STV +1 yes MTV Music yes Sky Atlantic HD yes Sky Atlantic yes Vintage TV yes Liverpool FC TV yes RT yes Plus 1 yes BBC1 Scotland Digital yes Sony Entertainment TV Asia yes Sony Channel +1 yes Sony Channel yes Disney Junior yes Disney Junior +1 yes Premier Sports yes RTÃ Jr yes RTÃ News Now yes RTÃ Two HD yes RTÃ One +1 yes BBC1 East Midlands yes NHK World HD yes ITV HD Meridian yes ITV HD Granada yes ITV HD Central yes Cartoon Network HD yes Disney Channel HD yes W HD yes Dave HD yes Channel 5 +1 yes BBC1 East yes BBC1 Oxfordshire yes BBC1 Yorkshire and Lincolnshire yes BBC1 Cambridgeshire yes BBC1 Channel Islands yes Animal Planet HD yes Sky Sports F1 yes Sky Sports F1 HD yes Red Hot 18s yes MTV HD yes BBC1 London yes Sony Movie Channel yes Sony Movie Channel +1 yes Sky Sports 1 Interactive yes Sky Sports 2 Interactive yes Sky Sports 3 Interactive yes BBC1 Midlands yes Vijay yes PBS America yes 4seven yes Alibi HD yes Box Upfront yes Ideal World yes Eurosport 2 HD yes BBC1 N East yes BBC Red Button HD yes BBC Red Button 3 yes BBC1 N West yes BBC1 North yes BBC1 N Ireland yes BBC1 Wales Digital yes ITV Border yes BBC1 Scotland yes TCM HD yes Star Plus HD yes Virgin Movies yes MTV Live yes Sky Atlantic +1 yes Nick Jr +1 yes ITV Westcountry +1 yes ITV Anglia +1 yes ITV Tynes Tees +1 yes BBC1 S East yes ITV Wales +1 yes E! Entertainment HD yes ITV Meridian +1 yes BBC1 HD N Ireland yes FRANCE 24 English yes TG4 HD yes Baby TV yes Sky1 +1 yes BBC1 S West yes BBC Red Button 2 yes National Geographic +1 yes Discovery +1 yes Sky Cinema Superheroes HD yes BBC4 yes BBC1 South yes Sky Cinema Disney yes Sky Cinema Disney HD yes Chart Show HIts yes RT HD yes BBC1 HD Scotland yes BBC 1 HD Wales yes More4 HD yes BBC1 yes Sky Sports 4 Interactive yes True Entertainment+1 yes TLC +1 yes TLC yes TLC HD yes Rishtey yes Disney Junior HD yes BBC1 Wales yes Investigation Discovery +1 yes Drama yes Star Utsav yes ARY News yes Star Life OK yes BT Sport 1 yes BT Sport 1 HD yes BT Sport 2 yes BBC1 West yes BT Sport 2 HD yes Colors yes OSN Ya Hala! yes JSTV1 yes JSTV2 yes TLC+2 yes Zing yes Lifetime yes Lifetime HD yes BBC2 yes Estuary TV yes Lifetime +1 yes BBC4 HD yes BBC News HD yes CBBC HD yes CBeebies HD yes E! +1 yes Al Jazeera English HD yes BBC2 Digital yes RTÃ One HD yes 5* +1 yes ITV3+1 (Freeview) yes My5 (Freeview) yes London Live yes Pop (+1) yes True Entertainment +1 yes Community Channel HD yes Revelation TV yes BBC2 East Midlands yes ITV Encore yes ITV Encore HD yes Forces TV yes BBC Red Button 4 yes BBC Red Button 5 yes Channel 4 HD +1 yes 4seven HD yes Sky Sports 5 yes Sky Sports 5 HD yes BBC2 East yes MUTV HD yes truTV yes ITVBe yes truTV +1 yes The Vault yes News18 India yes BBC2 London yes NOW Christmas yes The Africa Channel yes Holiday & Cruise Channel yes OHTV yes ABN TV yes BEN yes Planet Pop yes Information TV yes BBC2 Midlands yes Information TV +1 yes Capital TV yes Vox Africa yes Starz TV yes Channel AKA yes Heart TV yes FilmOn.TV yes PTV yes BBC2 N East yes Clubland TV yes STV Glasgow yes BON TV yes ?TV yes LFCTV HD yes BBC Oxford DAB yes ITVBe+1 yes ITVBe HD yes Eurosport 2 HD yes BBC2 N West yes be3 yes be3 HD yes Spike yes &TV yes The Jewellery Channel yes BT Sport 3 yes BT Sport 3 HD yes Chelsea TV HD yes BBC2 North yes Sky Sports Box Office yes Sky Sports Box Office HD yes ITV Border Scotland yes Made in Bristol yes Made in Leeds yes Made in Cardiff yes Made in Tyne & Wear yes Talking Pictures yes Boomerang HD yes AMC yes BT Sport Extra 1 yes BT Sport Extra 2 yes BT Sport Extra 3 yes BT Sport Extra 4 yes BT Sport Extra 5 yes BBC2 N Ireland yes BT Sport Extra 6 yes YourTV yes YourTV +1 yes True Movies yes Irish TV +1 yes Xtreme Filth yes Notts TV yes Viewers' Wives yes True Crime yes root@Kallax:/mnt/user/appdata/tvheadend/.xmltv# Quote Link to comment
saarg Posted January 24, 2017 Share Posted January 24, 2017 Please wrap output of commands in the code tags. The # symbol button when you write posts. It is very hard to read on mobile. Did you follow the instructions on github.com linked in the first post on how to configure xmltv? Also posting the questions and answers when you configure the grabber will help. I just ran the configuration again here are my results thanks for trying to help. root@Kallax:/mnt/user/appdata/tvheadend/.xmltv# docker exec -it -u abc tvheadend /usr/bin/tv_grab_uk_tvguide --configure tv_grab_uk_tvguide uses a cache with files that it has already downloaded. Please specify where the cache shall be stored. Directory to store the cache in: [/config/.xmltv/cache] Reformatting: 100% [=========================================================================================================================================================]Select the channels that you want to receive data for. Fox News [yes,no,all,none (default=no)] all TVC News yes BBC Red Button 1 HD yes ARY Digital yes BBC Olympics03HD yes Freeview yes Sky Sports Mix yes BBC2 Scotland yes Sky Sports Mix HD yes Sony MAX yes Viceland yes Blaze yes BBC2 S East yes BBC2 S West yes BBC2 South yes BBC2 West Midlands yes BBC2 Wales yes BBC2 West yes BBC4 yes BET yes bid tv yes Bloomberg TV yes Boomerang yes Cartoon Network yes CBBC yes CBeebies yes Challenge yes Channel 4 yes Chart Show TV yes CNN yes Discovery yes Discovery History yes Discovery Science yes E! yes E4 yes EuroNews yes Eurosport yes Extreme Sports yes Film4 yes Film4 +1 yes Channel 5 yes FOX yes GBC yes Universal Channel yes HISTORY yes HISTORY +1 yes STV North yes ITV Anglia yes STV North+1 yes STV North+1 yes ITV Central yes ITV Westcountry yes ITV Channel yes ITV Granada yes ITV London yes ITV Meridian yes ITV Tyne Tees yes ITV Wales yes ITV West yes ITV Yorkshire yes STV Central yes UTV yes ITV2 yes Kerrang! TV yes Kiss TV yes Sky Living yes Sky Living +1 yes Magic TV yes MTV yes MTV Base yes MTV Dance yes MTV Hits yes MTV Rocks yes MUTV yes National Geographic yes Nickelodeon yes Nick Jr yes Nicktoons yes Comedy Central yes Comedy Central Extra yes price-drop.tv yes QVC yes S4C yes Syfy yes Scuzz yes Sky Box Office Digital yes Sky Cinema Crime & Thriller HD yes Sky Cinema Premiere yes Sky Cinema Premiere +1 yes Sky Cinema Comedy yes Sky Cinema Action & Adventure yes Sky Cinema Family yes Sky Cinema Drama & Romance yes Sky Cinema Sci-fi/Horror HD yes Sky News yes Sky 1 yes Sky 2 yes Sky Sports 1 yes Sky Sports 2 yes Sky Sports 3 yes Sky Sports News yes Sky Sports 4 yes Box Hits yes The Box yes Community Channel yes Disney Channel yes Disney Channel +1 yes Viva yes Travel Channel yes Good Food yes YESTERDAY yes Home yes VH1 yes MTV Christmas yes B4U Movies yes Playboy TV yes Red Hot Amateur yes RTÃ One yes Sony SAB yes Star Plus yes Television X yes TG4 yes The Adult Channel yes TV3 yes TV5 yes TVE Internacional yes Eden +1 yes Good Food (+1) yes Home +1 yes Zee TV yes ITV3 yes More4 yes RTÃ Two yes eir Sport 1 yes ITV4 yes Pick yes E4 +1 yes 5STAR yes 5USA yes ITV2 +1 yes Sky Cinema Select yes Discovery Home & Health yes CITV yes Sky Arts yes CBS Reality yes Discovery Turbo yes BBC2 HD yes Bliss yes Boomerang +1 yes Cartoonito yes Challenge +1 yes Chelsea TV yes CI yes Discovery HD yes Discovery Home & Health +1 yes Discovery Shed yes Disney Cinemagic yes Disney Cinemagic +1 yes Eurosport 2 yes FOX+1 yes Real Lives yes Motors TV yes Nat Geo Wild yes National Geographic HD yes Comedy Central +1 yes Syfy +1 yes Sky Box Office HD1 yes Sky Box Office HD2 yes Sky Sports 1 HD yes Sky Sports 2 HD yes Really yes YESTERDAY +1 yes CBS Reality +1 yes Horror Channel yes eir Sport 2 yes Channel 4 + 1 yes More4 +1 yes Dave yes Ideal World yes Star Gold yes ITV Thames Valley North yes Al Jazeera English yes Racing UK yes TCM +1 yes Channel S yes Community Channel Freeview (Community Channel Free yes True Christmas yes DMAX yes Dave ja vu yes Cartoon Network +1 yes Best Direct yes 5* (Freeview) yes Pop yes M95 TV Marbella yes TV3 (Spanish) yes ITV Thames Valley South yes E! Entertainment Europe yes ITV3+1 yes Channel 4 HD yes Tiny Pop yes Sky1 HD yes Sky Sports 3 HD yes Channel 7 yes MTV + 1 yes Sky Arts HD yes FOX HD yes Sky Cinema Premiere HD yes National Geographic HD +1 yes CBS Drama yes CBS Action yes True Movies+1 yes Movies4Men yes Eurosport 1 HD yes Deutsche Welle yes Horror Channel +1 yes H2 yes 4Music yes BBC Alba yes W yes Sky Movies Superheroes HD yes Sky Cinema Drama & Romance HD yes Sky Cinema Action & Adventure HD yes W (+1) yes GOLD yes GOLD +1 yes Alibi yes Alibi+1 yes Sky Cinema Comedy HD yes Sky Cinema Family HD yes Sky Cinema Sci-fi/Horror yes Sky Arts 2 yes HISTORY HD yes Gems TV yes ITV4 + 1 yes MTV Live HD yes 3e yes Investigation Discovery yes AIT International yes Eden yes Syfy HD yes Real Lives +1 yes Sky Arts 2 HD yes Disney Cinemagic HD yes CI HD yes Nat Geo Wild HD yes Propeller TV yes QUEST yes Travel Channel +1 yes Phoenix CNE yes Flava yes My5 yes 5USA +1 yes CI +1 yes BT Sport//ESPN yes BT Sport//ESPN HD yes Animal Planet yes Create and Craft yes Disney yes Disney +1 yes Animal Planet +1 yes CNBC UK yes MGM Channel yes Sky Living HD yes Sky Cinema Select HD yes QUEST +1 yes Food Network +1 yes Food Network yes Universal Channel +1 yes Movies 24 yes Kix yes Sky Cinema Superheroes yes Movies 24+ (Movies 24+) yes E4 HD yes NHK World yes Nick Jr Too yes Sky Cinema Crime & Thriller yes DMAX+1 yes Comedy Central Extra +1 yes Discovery History +1 yes Tiny Pop +1 yes BET +1 yes Movies4Men +1 yes Horse & Country yes Nickelodeon +1 yes at the races yes FAB TV yes TrueEntertainment yes Discovery Science +1 yes BBC Red Button 1 yes Sky Cinema Hits yes Sky Cinema Hits HD yes The Active Channel yes ITV HD yes BBC Sport Interactive BBC1 yes BBC Sport Interactive BBC2 yes Sky Sports 4 HD yes Sky 3D yes Showcase yes Sky News HD yes BBC Sport Interactive BBC3 yes Zee Cinema yes STV HD yes Universal Channel HD yes Channel 5 HD yes BBC News yes Film4 HD yes TCM yes Comedy Central HD yes GOD Channel yes Sky Sports News HD yes Pick+1 yes Good Food (HD) yes BBC Parliament yes Eden HD yes ITV2 HD yes UTV HD yes BBC Entertainment yes Nickelodeon HD yes Disney HD yes BBC1 HD yes PopGirl yes Showcase +1 yes BBC World News yes ITV3 HD yes ITV4 HD yes Sky Box Office HD3 yes ITV South East +1 yes ITV Yorkshire +1 yes ITV Granada +1 yes ITV London +1 yes UTV +1 yes ITV West +1 yes BBC1 Digital yes ITV Central +1 yes STV +1 yes MTV Music yes Sky Atlantic HD yes Sky Atlantic yes Vintage TV yes Liverpool FC TV yes RT yes Plus 1 yes BBC1 Scotland Digital yes Sony Entertainment TV Asia yes Sony Channel +1 yes Sony Channel yes Disney Junior yes Disney Junior +1 yes Premier Sports yes RTÃ Jr yes RTÃ News Now yes RTÃ Two HD yes RTÃ One +1 yes BBC1 East Midlands yes NHK World HD yes ITV HD Meridian yes ITV HD Granada yes ITV HD Central yes Cartoon Network HD yes Disney Channel HD yes W HD yes Dave HD yes Channel 5 +1 yes BBC1 East yes BBC1 Oxfordshire yes BBC1 Yorkshire and Lincolnshire yes BBC1 Cambridgeshire yes BBC1 Channel Islands yes Animal Planet HD yes Sky Sports F1 yes Sky Sports F1 HD yes Red Hot 18s yes MTV HD yes BBC1 London yes Sony Movie Channel yes Sony Movie Channel +1 yes Sky Sports 1 Interactive yes Sky Sports 2 Interactive yes Sky Sports 3 Interactive yes BBC1 Midlands yes Vijay yes PBS America yes 4seven yes Alibi HD yes Box Upfront yes Ideal World yes Eurosport 2 HD yes BBC1 N East yes BBC Red Button HD yes BBC Red Button 3 yes BBC1 N West yes BBC1 North yes BBC1 N Ireland yes BBC1 Wales Digital yes ITV Border yes BBC1 Scotland yes TCM HD yes Star Plus HD yes Virgin Movies yes MTV Live yes Sky Atlantic +1 yes Nick Jr +1 yes ITV Westcountry +1 yes ITV Anglia +1 yes ITV Tynes Tees +1 yes BBC1 S East yes ITV Wales +1 yes E! Entertainment HD yes ITV Meridian +1 yes BBC1 HD N Ireland yes FRANCE 24 English yes TG4 HD yes Baby TV yes Sky1 +1 yes BBC1 S West yes BBC Red Button 2 yes National Geographic +1 yes Discovery +1 yes Sky Cinema Superheroes HD yes BBC4 yes BBC1 South yes Sky Cinema Disney yes Sky Cinema Disney HD yes Chart Show HIts yes RT HD yes BBC1 HD Scotland yes BBC 1 HD Wales yes More4 HD yes BBC1 yes Sky Sports 4 Interactive yes True Entertainment+1 yes TLC +1 yes TLC yes TLC HD yes Rishtey yes Disney Junior HD yes BBC1 Wales yes Investigation Discovery +1 yes Drama yes Star Utsav yes ARY News yes Star Life OK yes BT Sport 1 yes BT Sport 1 HD yes BT Sport 2 yes BBC1 West yes BT Sport 2 HD yes Colors yes OSN Ya Hala! yes JSTV1 yes JSTV2 yes TLC+2 yes Zing yes Lifetime yes Lifetime HD yes BBC2 yes Estuary TV yes Lifetime +1 yes BBC4 HD yes BBC News HD yes CBBC HD yes CBeebies HD yes E! +1 yes Al Jazeera English HD yes BBC2 Digital yes RTÃ One HD yes 5* +1 yes ITV3+1 (Freeview) yes My5 (Freeview) yes London Live yes Pop (+1) yes True Entertainment +1 yes Community Channel HD yes Revelation TV yes BBC2 East Midlands yes ITV Encore yes ITV Encore HD yes Forces TV yes BBC Red Button 4 yes BBC Red Button 5 yes Channel 4 HD +1 yes 4seven HD yes Sky Sports 5 yes Sky Sports 5 HD yes BBC2 East yes MUTV HD yes truTV yes ITVBe yes truTV +1 yes The Vault yes News18 India yes BBC2 London yes NOW Christmas yes The Africa Channel yes Holiday & Cruise Channel yes OHTV yes ABN TV yes BEN yes Planet Pop yes Information TV yes BBC2 Midlands yes Information TV +1 yes Capital TV yes Vox Africa yes Starz TV yes Channel AKA yes Heart TV yes FilmOn.TV yes PTV yes BBC2 N East yes Clubland TV yes STV Glasgow yes BON TV yes ?TV yes LFCTV HD yes BBC Oxford DAB yes ITVBe+1 yes ITVBe HD yes Eurosport 2 HD yes BBC2 N West yes be3 yes be3 HD yes Spike yes &TV yes The Jewellery Channel yes BT Sport 3 yes BT Sport 3 HD yes Chelsea TV HD yes BBC2 North yes Sky Sports Box Office yes Sky Sports Box Office HD yes ITV Border Scotland yes Made in Bristol yes Made in Leeds yes Made in Cardiff yes Made in Tyne & Wear yes Talking Pictures yes Boomerang HD yes AMC yes BT Sport Extra 1 yes BT Sport Extra 2 yes BT Sport Extra 3 yes BT Sport Extra 4 yes BT Sport Extra 5 yes BBC2 N Ireland yes BT Sport Extra 6 yes YourTV yes YourTV +1 yes True Movies yes Irish TV +1 yes Xtreme Filth yes Notts TV yes Viewers' Wives yes True Crime yes root@Kallax:/mnt/user/appdata/tvheadend/.xmltv# Thanks for wrapping the output. Much easier to read know It does say the same if you enable the grabber in tvheadend and run it? Quote Link to comment
eProDarkAngel Posted January 24, 2017 Share Posted January 24, 2017 Please wrap output of commands in the code tags. The # symbol button when you write posts. It is very hard to read on mobile. Did you follow the instructions on github.com linked in the first post on how to configure xmltv? Also posting the questions and answers when you configure the grabber will help. I just ran the configuration again here are my results thanks for trying to help. root@Kallax:/mnt/user/appdata/tvheadend/.xmltv# docker exec -it -u abc tvheadend /usr/bin/tv_grab_uk_tvguide --configure tv_grab_uk_tvguide uses a cache with files that it has already downloaded. Please specify where the cache shall be stored. Directory to store the cache in: [/config/.xmltv/cache] Reformatting: 100% [=========================================================================================================================================================]Select the channels that you want to receive data for. Fox News [yes,no,all,none (default=no)] all TVC News yes BBC Red Button 1 HD yes ARY Digital yes BBC Olympics03HD yes Freeview yes Sky Sports Mix yes BBC2 Scotland yes Sky Sports Mix HD yes Sony MAX yes Viceland yes Blaze yes BBC2 S East yes BBC2 S West yes BBC2 South yes BBC2 West Midlands yes BBC2 Wales yes BBC2 West yes BBC4 yes BET yes bid tv yes Bloomberg TV yes Boomerang yes Cartoon Network yes CBBC yes CBeebies yes Challenge yes Channel 4 yes Chart Show TV yes CNN yes Discovery yes Discovery History yes Discovery Science yes E! yes E4 yes EuroNews yes Eurosport yes Extreme Sports yes Film4 yes Film4 +1 yes Channel 5 yes FOX yes GBC yes Universal Channel yes HISTORY yes HISTORY +1 yes STV North yes ITV Anglia yes STV North+1 yes STV North+1 yes ITV Central yes ITV Westcountry yes ITV Channel yes ITV Granada yes ITV London yes ITV Meridian yes ITV Tyne Tees yes ITV Wales yes ITV West yes ITV Yorkshire yes STV Central yes UTV yes ITV2 yes Kerrang! TV yes Kiss TV yes Sky Living yes Sky Living +1 yes Magic TV yes MTV yes MTV Base yes MTV Dance yes MTV Hits yes MTV Rocks yes MUTV yes National Geographic yes Nickelodeon yes Nick Jr yes Nicktoons yes Comedy Central yes Comedy Central Extra yes price-drop.tv yes QVC yes S4C yes Syfy yes Scuzz yes Sky Box Office Digital yes Sky Cinema Crime & Thriller HD yes Sky Cinema Premiere yes Sky Cinema Premiere +1 yes Sky Cinema Comedy yes Sky Cinema Action & Adventure yes Sky Cinema Family yes Sky Cinema Drama & Romance yes Sky Cinema Sci-fi/Horror HD yes Sky News yes Sky 1 yes Sky 2 yes Sky Sports 1 yes Sky Sports 2 yes Sky Sports 3 yes Sky Sports News yes Sky Sports 4 yes Box Hits yes The Box yes Community Channel yes Disney Channel yes Disney Channel +1 yes Viva yes Travel Channel yes Good Food yes YESTERDAY yes Home yes VH1 yes MTV Christmas yes B4U Movies yes Playboy TV yes Red Hot Amateur yes RTÃ One yes Sony SAB yes Star Plus yes Television X yes TG4 yes The Adult Channel yes TV3 yes TV5 yes TVE Internacional yes Eden +1 yes Good Food (+1) yes Home +1 yes Zee TV yes ITV3 yes More4 yes RTÃ Two yes eir Sport 1 yes ITV4 yes Pick yes E4 +1 yes 5STAR yes 5USA yes ITV2 +1 yes Sky Cinema Select yes Discovery Home & Health yes CITV yes Sky Arts yes CBS Reality yes Discovery Turbo yes BBC2 HD yes Bliss yes Boomerang +1 yes Cartoonito yes Challenge +1 yes Chelsea TV yes CI yes Discovery HD yes Discovery Home & Health +1 yes Discovery Shed yes Disney Cinemagic yes Disney Cinemagic +1 yes Eurosport 2 yes FOX+1 yes Real Lives yes Motors TV yes Nat Geo Wild yes National Geographic HD yes Comedy Central +1 yes Syfy +1 yes Sky Box Office HD1 yes Sky Box Office HD2 yes Sky Sports 1 HD yes Sky Sports 2 HD yes Really yes YESTERDAY +1 yes CBS Reality +1 yes Horror Channel yes eir Sport 2 yes Channel 4 + 1 yes More4 +1 yes Dave yes Ideal World yes Star Gold yes ITV Thames Valley North yes Al Jazeera English yes Racing UK yes TCM +1 yes Channel S yes Community Channel Freeview (Community Channel Free yes True Christmas yes DMAX yes Dave ja vu yes Cartoon Network +1 yes Best Direct yes 5* (Freeview) yes Pop yes M95 TV Marbella yes TV3 (Spanish) yes ITV Thames Valley South yes E! Entertainment Europe yes ITV3+1 yes Channel 4 HD yes Tiny Pop yes Sky1 HD yes Sky Sports 3 HD yes Channel 7 yes MTV + 1 yes Sky Arts HD yes FOX HD yes Sky Cinema Premiere HD yes National Geographic HD +1 yes CBS Drama yes CBS Action yes True Movies+1 yes Movies4Men yes Eurosport 1 HD yes Deutsche Welle yes Horror Channel +1 yes H2 yes 4Music yes BBC Alba yes W yes Sky Movies Superheroes HD yes Sky Cinema Drama & Romance HD yes Sky Cinema Action & Adventure HD yes W (+1) yes GOLD yes GOLD +1 yes Alibi yes Alibi+1 yes Sky Cinema Comedy HD yes Sky Cinema Family HD yes Sky Cinema Sci-fi/Horror yes Sky Arts 2 yes HISTORY HD yes Gems TV yes ITV4 + 1 yes MTV Live HD yes 3e yes Investigation Discovery yes AIT International yes Eden yes Syfy HD yes Real Lives +1 yes Sky Arts 2 HD yes Disney Cinemagic HD yes CI HD yes Nat Geo Wild HD yes Propeller TV yes QUEST yes Travel Channel +1 yes Phoenix CNE yes Flava yes My5 yes 5USA +1 yes CI +1 yes BT Sport//ESPN yes BT Sport//ESPN HD yes Animal Planet yes Create and Craft yes Disney yes Disney +1 yes Animal Planet +1 yes CNBC UK yes MGM Channel yes Sky Living HD yes Sky Cinema Select HD yes QUEST +1 yes Food Network +1 yes Food Network yes Universal Channel +1 yes Movies 24 yes Kix yes Sky Cinema Superheroes yes Movies 24+ (Movies 24+) yes E4 HD yes NHK World yes Nick Jr Too yes Sky Cinema Crime & Thriller yes DMAX+1 yes Comedy Central Extra +1 yes Discovery History +1 yes Tiny Pop +1 yes BET +1 yes Movies4Men +1 yes Horse & Country yes Nickelodeon +1 yes at the races yes FAB TV yes TrueEntertainment yes Discovery Science +1 yes BBC Red Button 1 yes Sky Cinema Hits yes Sky Cinema Hits HD yes The Active Channel yes ITV HD yes BBC Sport Interactive BBC1 yes BBC Sport Interactive BBC2 yes Sky Sports 4 HD yes Sky 3D yes Showcase yes Sky News HD yes BBC Sport Interactive BBC3 yes Zee Cinema yes STV HD yes Universal Channel HD yes Channel 5 HD yes BBC News yes Film4 HD yes TCM yes Comedy Central HD yes GOD Channel yes Sky Sports News HD yes Pick+1 yes Good Food (HD) yes BBC Parliament yes Eden HD yes ITV2 HD yes UTV HD yes BBC Entertainment yes Nickelodeon HD yes Disney HD yes BBC1 HD yes PopGirl yes Showcase +1 yes BBC World News yes ITV3 HD yes ITV4 HD yes Sky Box Office HD3 yes ITV South East +1 yes ITV Yorkshire +1 yes ITV Granada +1 yes ITV London +1 yes UTV +1 yes ITV West +1 yes BBC1 Digital yes ITV Central +1 yes STV +1 yes MTV Music yes Sky Atlantic HD yes Sky Atlantic yes Vintage TV yes Liverpool FC TV yes RT yes Plus 1 yes BBC1 Scotland Digital yes Sony Entertainment TV Asia yes Sony Channel +1 yes Sony Channel yes Disney Junior yes Disney Junior +1 yes Premier Sports yes RTÃ Jr yes RTÃ News Now yes RTÃ Two HD yes RTÃ One +1 yes BBC1 East Midlands yes NHK World HD yes ITV HD Meridian yes ITV HD Granada yes ITV HD Central yes Cartoon Network HD yes Disney Channel HD yes W HD yes Dave HD yes Channel 5 +1 yes BBC1 East yes BBC1 Oxfordshire yes BBC1 Yorkshire and Lincolnshire yes BBC1 Cambridgeshire yes BBC1 Channel Islands yes Animal Planet HD yes Sky Sports F1 yes Sky Sports F1 HD yes Red Hot 18s yes MTV HD yes BBC1 London yes Sony Movie Channel yes Sony Movie Channel +1 yes Sky Sports 1 Interactive yes Sky Sports 2 Interactive yes Sky Sports 3 Interactive yes BBC1 Midlands yes Vijay yes PBS America yes 4seven yes Alibi HD yes Box Upfront yes Ideal World yes Eurosport 2 HD yes BBC1 N East yes BBC Red Button HD yes BBC Red Button 3 yes BBC1 N West yes BBC1 North yes BBC1 N Ireland yes BBC1 Wales Digital yes ITV Border yes BBC1 Scotland yes TCM HD yes Star Plus HD yes Virgin Movies yes MTV Live yes Sky Atlantic +1 yes Nick Jr +1 yes ITV Westcountry +1 yes ITV Anglia +1 yes ITV Tynes Tees +1 yes BBC1 S East yes ITV Wales +1 yes E! Entertainment HD yes ITV Meridian +1 yes BBC1 HD N Ireland yes FRANCE 24 English yes TG4 HD yes Baby TV yes Sky1 +1 yes BBC1 S West yes BBC Red Button 2 yes National Geographic +1 yes Discovery +1 yes Sky Cinema Superheroes HD yes BBC4 yes BBC1 South yes Sky Cinema Disney yes Sky Cinema Disney HD yes Chart Show HIts yes RT HD yes BBC1 HD Scotland yes BBC 1 HD Wales yes More4 HD yes BBC1 yes Sky Sports 4 Interactive yes True Entertainment+1 yes TLC +1 yes TLC yes TLC HD yes Rishtey yes Disney Junior HD yes BBC1 Wales yes Investigation Discovery +1 yes Drama yes Star Utsav yes ARY News yes Star Life OK yes BT Sport 1 yes BT Sport 1 HD yes BT Sport 2 yes BBC1 West yes BT Sport 2 HD yes Colors yes OSN Ya Hala! yes JSTV1 yes JSTV2 yes TLC+2 yes Zing yes Lifetime yes Lifetime HD yes BBC2 yes Estuary TV yes Lifetime +1 yes BBC4 HD yes BBC News HD yes CBBC HD yes CBeebies HD yes E! +1 yes Al Jazeera English HD yes BBC2 Digital yes RTÃ One HD yes 5* +1 yes ITV3+1 (Freeview) yes My5 (Freeview) yes London Live yes Pop (+1) yes True Entertainment +1 yes Community Channel HD yes Revelation TV yes BBC2 East Midlands yes ITV Encore yes ITV Encore HD yes Forces TV yes BBC Red Button 4 yes BBC Red Button 5 yes Channel 4 HD +1 yes 4seven HD yes Sky Sports 5 yes Sky Sports 5 HD yes BBC2 East yes MUTV HD yes truTV yes ITVBe yes truTV +1 yes The Vault yes News18 India yes BBC2 London yes NOW Christmas yes The Africa Channel yes Holiday & Cruise Channel yes OHTV yes ABN TV yes BEN yes Planet Pop yes Information TV yes BBC2 Midlands yes Information TV +1 yes Capital TV yes Vox Africa yes Starz TV yes Channel AKA yes Heart TV yes FilmOn.TV yes PTV yes BBC2 N East yes Clubland TV yes STV Glasgow yes BON TV yes ?TV yes LFCTV HD yes BBC Oxford DAB yes ITVBe+1 yes ITVBe HD yes Eurosport 2 HD yes BBC2 N West yes be3 yes be3 HD yes Spike yes &TV yes The Jewellery Channel yes BT Sport 3 yes BT Sport 3 HD yes Chelsea TV HD yes BBC2 North yes Sky Sports Box Office yes Sky Sports Box Office HD yes ITV Border Scotland yes Made in Bristol yes Made in Leeds yes Made in Cardiff yes Made in Tyne & Wear yes Talking Pictures yes Boomerang HD yes AMC yes BT Sport Extra 1 yes BT Sport Extra 2 yes BT Sport Extra 3 yes BT Sport Extra 4 yes BT Sport Extra 5 yes BBC2 N Ireland yes BT Sport Extra 6 yes YourTV yes YourTV +1 yes True Movies yes Irish TV +1 yes Xtreme Filth yes Notts TV yes Viewers' Wives yes True Crime yes root@Kallax:/mnt/user/appdata/tvheadend/.xmltv# Thanks for wrapping the output. Much easier to read know It does say the same if you enable the grabber in tvheadend and run it? Yes like I said it puts the map file in the .xmltv rather than in the tv_grab_uk_tvguide I had to manually create that folder and move the map file there which I don't think should happen I tried to configure webgrab+plus and got this output root@Kallax:/mnt/user/appdata/tvheadend/.xmltv# docker exec -it -u abc tvheadend /usr/bin/tv_grab_wg --configure /usr/bin/tv_grab_wg: illegal option -- - unknown option: - Usage: tv_grab_wg: [--description] [--version] [--capabilities] root@Kallax:/mnt/user/appdata/tvheadend/.xmltv# So I definitely think there is an issue with my grabbers. Quote Link to comment
saarg Posted January 24, 2017 Share Posted January 24, 2017 Please wrap output of commands in the code tags. The # symbol button when you write posts. It is very hard to read on mobile. Did you follow the instructions on github.com linked in the first post on how to configure xmltv? Also posting the questions and answers when you configure the grabber will help. I just ran the configuration again here are my results thanks for trying to help. root@Kallax:/mnt/user/appdata/tvheadend/.xmltv# docker exec -it -u abc tvheadend /usr/bin/tv_grab_uk_tvguide --configure tv_grab_uk_tvguide uses a cache with files that it has already downloaded. Please specify where the cache shall be stored. Directory to store the cache in: [/config/.xmltv/cache] Reformatting: 100% [=========================================================================================================================================================]Select the channels that you want to receive data for. Fox News [yes,no,all,none (default=no)] all TVC News yes BBC Red Button 1 HD yes ARY Digital yes BBC Olympics03HD yes Freeview yes Sky Sports Mix yes BBC2 Scotland yes Sky Sports Mix HD yes Sony MAX yes Viceland yes Blaze yes BBC2 S East yes BBC2 S West yes BBC2 South yes BBC2 West Midlands yes BBC2 Wales yes BBC2 West yes BBC4 yes BET yes bid tv yes Bloomberg TV yes Boomerang yes Cartoon Network yes CBBC yes CBeebies yes Challenge yes Channel 4 yes Chart Show TV yes CNN yes Discovery yes Discovery History yes Discovery Science yes E! yes E4 yes EuroNews yes Eurosport yes Extreme Sports yes Film4 yes Film4 +1 yes Channel 5 yes FOX yes GBC yes Universal Channel yes HISTORY yes HISTORY +1 yes STV North yes ITV Anglia yes STV North+1 yes STV North+1 yes ITV Central yes ITV Westcountry yes ITV Channel yes ITV Granada yes ITV London yes ITV Meridian yes ITV Tyne Tees yes ITV Wales yes ITV West yes ITV Yorkshire yes STV Central yes UTV yes ITV2 yes Kerrang! TV yes Kiss TV yes Sky Living yes Sky Living +1 yes Magic TV yes MTV yes MTV Base yes MTV Dance yes MTV Hits yes MTV Rocks yes MUTV yes National Geographic yes Nickelodeon yes Nick Jr yes Nicktoons yes Comedy Central yes Comedy Central Extra yes price-drop.tv yes QVC yes S4C yes Syfy yes Scuzz yes Sky Box Office Digital yes Sky Cinema Crime & Thriller HD yes Sky Cinema Premiere yes Sky Cinema Premiere +1 yes Sky Cinema Comedy yes Sky Cinema Action & Adventure yes Sky Cinema Family yes Sky Cinema Drama & Romance yes Sky Cinema Sci-fi/Horror HD yes Sky News yes Sky 1 yes Sky 2 yes Sky Sports 1 yes Sky Sports 2 yes Sky Sports 3 yes Sky Sports News yes Sky Sports 4 yes Box Hits yes The Box yes Community Channel yes Disney Channel yes Disney Channel +1 yes Viva yes Travel Channel yes Good Food yes YESTERDAY yes Home yes VH1 yes MTV Christmas yes B4U Movies yes Playboy TV yes Red Hot Amateur yes RTÃ One yes Sony SAB yes Star Plus yes Television X yes TG4 yes The Adult Channel yes TV3 yes TV5 yes TVE Internacional yes Eden +1 yes Good Food (+1) yes Home +1 yes Zee TV yes ITV3 yes More4 yes RTÃ Two yes eir Sport 1 yes ITV4 yes Pick yes E4 +1 yes 5STAR yes 5USA yes ITV2 +1 yes Sky Cinema Select yes Discovery Home & Health yes CITV yes Sky Arts yes CBS Reality yes Discovery Turbo yes BBC2 HD yes Bliss yes Boomerang +1 yes Cartoonito yes Challenge +1 yes Chelsea TV yes CI yes Discovery HD yes Discovery Home & Health +1 yes Discovery Shed yes Disney Cinemagic yes Disney Cinemagic +1 yes Eurosport 2 yes FOX+1 yes Real Lives yes Motors TV yes Nat Geo Wild yes National Geographic HD yes Comedy Central +1 yes Syfy +1 yes Sky Box Office HD1 yes Sky Box Office HD2 yes Sky Sports 1 HD yes Sky Sports 2 HD yes Really yes YESTERDAY +1 yes CBS Reality +1 yes Horror Channel yes eir Sport 2 yes Channel 4 + 1 yes More4 +1 yes Dave yes Ideal World yes Star Gold yes ITV Thames Valley North yes Al Jazeera English yes Racing UK yes TCM +1 yes Channel S yes Community Channel Freeview (Community Channel Free yes True Christmas yes DMAX yes Dave ja vu yes Cartoon Network +1 yes Best Direct yes 5* (Freeview) yes Pop yes M95 TV Marbella yes TV3 (Spanish) yes ITV Thames Valley South yes E! Entertainment Europe yes ITV3+1 yes Channel 4 HD yes Tiny Pop yes Sky1 HD yes Sky Sports 3 HD yes Channel 7 yes MTV + 1 yes Sky Arts HD yes FOX HD yes Sky Cinema Premiere HD yes National Geographic HD +1 yes CBS Drama yes CBS Action yes True Movies+1 yes Movies4Men yes Eurosport 1 HD yes Deutsche Welle yes Horror Channel +1 yes H2 yes 4Music yes BBC Alba yes W yes Sky Movies Superheroes HD yes Sky Cinema Drama & Romance HD yes Sky Cinema Action & Adventure HD yes W (+1) yes GOLD yes GOLD +1 yes Alibi yes Alibi+1 yes Sky Cinema Comedy HD yes Sky Cinema Family HD yes Sky Cinema Sci-fi/Horror yes Sky Arts 2 yes HISTORY HD yes Gems TV yes ITV4 + 1 yes MTV Live HD yes 3e yes Investigation Discovery yes AIT International yes Eden yes Syfy HD yes Real Lives +1 yes Sky Arts 2 HD yes Disney Cinemagic HD yes CI HD yes Nat Geo Wild HD yes Propeller TV yes QUEST yes Travel Channel +1 yes Phoenix CNE yes Flava yes My5 yes 5USA +1 yes CI +1 yes BT Sport//ESPN yes BT Sport//ESPN HD yes Animal Planet yes Create and Craft yes Disney yes Disney +1 yes Animal Planet +1 yes CNBC UK yes MGM Channel yes Sky Living HD yes Sky Cinema Select HD yes QUEST +1 yes Food Network +1 yes Food Network yes Universal Channel +1 yes Movies 24 yes Kix yes Sky Cinema Superheroes yes Movies 24+ (Movies 24+) yes E4 HD yes NHK World yes Nick Jr Too yes Sky Cinema Crime & Thriller yes DMAX+1 yes Comedy Central Extra +1 yes Discovery History +1 yes Tiny Pop +1 yes BET +1 yes Movies4Men +1 yes Horse & Country yes Nickelodeon +1 yes at the races yes FAB TV yes TrueEntertainment yes Discovery Science +1 yes BBC Red Button 1 yes Sky Cinema Hits yes Sky Cinema Hits HD yes The Active Channel yes ITV HD yes BBC Sport Interactive BBC1 yes BBC Sport Interactive BBC2 yes Sky Sports 4 HD yes Sky 3D yes Showcase yes Sky News HD yes BBC Sport Interactive BBC3 yes Zee Cinema yes STV HD yes Universal Channel HD yes Channel 5 HD yes BBC News yes Film4 HD yes TCM yes Comedy Central HD yes GOD Channel yes Sky Sports News HD yes Pick+1 yes Good Food (HD) yes BBC Parliament yes Eden HD yes ITV2 HD yes UTV HD yes BBC Entertainment yes Nickelodeon HD yes Disney HD yes BBC1 HD yes PopGirl yes Showcase +1 yes BBC World News yes ITV3 HD yes ITV4 HD yes Sky Box Office HD3 yes ITV South East +1 yes ITV Yorkshire +1 yes ITV Granada +1 yes ITV London +1 yes UTV +1 yes ITV West +1 yes BBC1 Digital yes ITV Central +1 yes STV +1 yes MTV Music yes Sky Atlantic HD yes Sky Atlantic yes Vintage TV yes Liverpool FC TV yes RT yes Plus 1 yes BBC1 Scotland Digital yes Sony Entertainment TV Asia yes Sony Channel +1 yes Sony Channel yes Disney Junior yes Disney Junior +1 yes Premier Sports yes RTÃ Jr yes RTÃ News Now yes RTÃ Two HD yes RTÃ One +1 yes BBC1 East Midlands yes NHK World HD yes ITV HD Meridian yes ITV HD Granada yes ITV HD Central yes Cartoon Network HD yes Disney Channel HD yes W HD yes Dave HD yes Channel 5 +1 yes BBC1 East yes BBC1 Oxfordshire yes BBC1 Yorkshire and Lincolnshire yes BBC1 Cambridgeshire yes BBC1 Channel Islands yes Animal Planet HD yes Sky Sports F1 yes Sky Sports F1 HD yes Red Hot 18s yes MTV HD yes BBC1 London yes Sony Movie Channel yes Sony Movie Channel +1 yes Sky Sports 1 Interactive yes Sky Sports 2 Interactive yes Sky Sports 3 Interactive yes BBC1 Midlands yes Vijay yes PBS America yes 4seven yes Alibi HD yes Box Upfront yes Ideal World yes Eurosport 2 HD yes BBC1 N East yes BBC Red Button HD yes BBC Red Button 3 yes BBC1 N West yes BBC1 North yes BBC1 N Ireland yes BBC1 Wales Digital yes ITV Border yes BBC1 Scotland yes TCM HD yes Star Plus HD yes Virgin Movies yes MTV Live yes Sky Atlantic +1 yes Nick Jr +1 yes ITV Westcountry +1 yes ITV Anglia +1 yes ITV Tynes Tees +1 yes BBC1 S East yes ITV Wales +1 yes E! Entertainment HD yes ITV Meridian +1 yes BBC1 HD N Ireland yes FRANCE 24 English yes TG4 HD yes Baby TV yes Sky1 +1 yes BBC1 S West yes BBC Red Button 2 yes National Geographic +1 yes Discovery +1 yes Sky Cinema Superheroes HD yes BBC4 yes BBC1 South yes Sky Cinema Disney yes Sky Cinema Disney HD yes Chart Show HIts yes RT HD yes BBC1 HD Scotland yes BBC 1 HD Wales yes More4 HD yes BBC1 yes Sky Sports 4 Interactive yes True Entertainment+1 yes TLC +1 yes TLC yes TLC HD yes Rishtey yes Disney Junior HD yes BBC1 Wales yes Investigation Discovery +1 yes Drama yes Star Utsav yes ARY News yes Star Life OK yes BT Sport 1 yes BT Sport 1 HD yes BT Sport 2 yes BBC1 West yes BT Sport 2 HD yes Colors yes OSN Ya Hala! yes JSTV1 yes JSTV2 yes TLC+2 yes Zing yes Lifetime yes Lifetime HD yes BBC2 yes Estuary TV yes Lifetime +1 yes BBC4 HD yes BBC News HD yes CBBC HD yes CBeebies HD yes E! +1 yes Al Jazeera English HD yes BBC2 Digital yes RTÃ One HD yes 5* +1 yes ITV3+1 (Freeview) yes My5 (Freeview) yes London Live yes Pop (+1) yes True Entertainment +1 yes Community Channel HD yes Revelation TV yes BBC2 East Midlands yes ITV Encore yes ITV Encore HD yes Forces TV yes BBC Red Button 4 yes BBC Red Button 5 yes Channel 4 HD +1 yes 4seven HD yes Sky Sports 5 yes Sky Sports 5 HD yes BBC2 East yes MUTV HD yes truTV yes ITVBe yes truTV +1 yes The Vault yes News18 India yes BBC2 London yes NOW Christmas yes The Africa Channel yes Holiday & Cruise Channel yes OHTV yes ABN TV yes BEN yes Planet Pop yes Information TV yes BBC2 Midlands yes Information TV +1 yes Capital TV yes Vox Africa yes Starz TV yes Channel AKA yes Heart TV yes FilmOn.TV yes PTV yes BBC2 N East yes Clubland TV yes STV Glasgow yes BON TV yes ?TV yes LFCTV HD yes BBC Oxford DAB yes ITVBe+1 yes ITVBe HD yes Eurosport 2 HD yes BBC2 N West yes be3 yes be3 HD yes Spike yes &TV yes The Jewellery Channel yes BT Sport 3 yes BT Sport 3 HD yes Chelsea TV HD yes BBC2 North yes Sky Sports Box Office yes Sky Sports Box Office HD yes ITV Border Scotland yes Made in Bristol yes Made in Leeds yes Made in Cardiff yes Made in Tyne & Wear yes Talking Pictures yes Boomerang HD yes AMC yes BT Sport Extra 1 yes BT Sport Extra 2 yes BT Sport Extra 3 yes BT Sport Extra 4 yes BT Sport Extra 5 yes BBC2 N Ireland yes BT Sport Extra 6 yes YourTV yes YourTV +1 yes True Movies yes Irish TV +1 yes Xtreme Filth yes Notts TV yes Viewers' Wives yes True Crime yes root@Kallax:/mnt/user/appdata/tvheadend/.xmltv# Thanks for wrapping the output. Much easier to read know It does say the same if you enable the grabber in tvheadend and run it? Yes like I said it puts the map file in the .xmltv rather than in the tv_grab_uk_tvguide I had to manually create that folder and move the map file there which I don't think should happen I tried to configure webgrab+plus and got this output root@Kallax:/mnt/user/appdata/tvheadend/.xmltv# docker exec -it -u abc tvheadend /usr/bin/tv_grab_wg --configure /usr/bin/tv_grab_wg: illegal option -- - unknown option: - Usage: tv_grab_wg: [--description] [--version] [--capabilities] root@Kallax:/mnt/user/appdata/tvheadend/.xmltv# So I definitely think there is an issue with my grabbers. A quick google search will show you that the map.conf file must be downloaded and edited by yourself. Read here about it: https://www.mankier.com/1/tv_grab_uk_tvguide I get the same result here. You can just create an empty file and the grabber will run. Its most likely a bug in the grabber. You can't configure WG++ grabber as that is a stand alone grabber. Quote Link to comment
eProDarkAngel Posted January 24, 2017 Share Posted January 24, 2017 Please wrap output of commands in the code tags. The # symbol button when you write posts. It is very hard to read on mobile. Did you follow the instructions on github.com linked in the first post on how to configure xmltv? Also posting the questions and answers when you configure the grabber will help. I just ran the configuration again here are my results thanks for trying to help. root@Kallax:/mnt/user/appdata/tvheadend/.xmltv# docker exec -it -u abc tvheadend /usr/bin/tv_grab_uk_tvguide --configure tv_grab_uk_tvguide uses a cache with files that it has already downloaded. Please specify where the cache shall be stored. Directory to store the cache in: [/config/.xmltv/cache] Reformatting: 100% [=========================================================================================================================================================]Select the channels that you want to receive data for. Fox News [yes,no,all,none (default=no)] all TVC News yes BBC Red Button 1 HD yes ARY Digital yes BBC Olympics03HD yes Freeview yes Sky Sports Mix yes BBC2 Scotland yes Sky Sports Mix HD yes Sony MAX yes Viceland yes Blaze yes BBC2 S East yes BBC2 S West yes BBC2 South yes BBC2 West Midlands yes BBC2 Wales yes BBC2 West yes BBC4 yes BET yes bid tv yes Bloomberg TV yes Boomerang yes Cartoon Network yes CBBC yes CBeebies yes Challenge yes Channel 4 yes Chart Show TV yes CNN yes Discovery yes Discovery History yes Discovery Science yes E! yes E4 yes EuroNews yes Eurosport yes Extreme Sports yes Film4 yes Film4 +1 yes Channel 5 yes FOX yes GBC yes Universal Channel yes HISTORY yes HISTORY +1 yes STV North yes ITV Anglia yes STV North+1 yes STV North+1 yes ITV Central yes ITV Westcountry yes ITV Channel yes ITV Granada yes ITV London yes ITV Meridian yes ITV Tyne Tees yes ITV Wales yes ITV West yes ITV Yorkshire yes STV Central yes UTV yes ITV2 yes Kerrang! TV yes Kiss TV yes Sky Living yes Sky Living +1 yes Magic TV yes MTV yes MTV Base yes MTV Dance yes MTV Hits yes MTV Rocks yes MUTV yes National Geographic yes Nickelodeon yes Nick Jr yes Nicktoons yes Comedy Central yes Comedy Central Extra yes price-drop.tv yes QVC yes S4C yes Syfy yes Scuzz yes Sky Box Office Digital yes Sky Cinema Crime & Thriller HD yes Sky Cinema Premiere yes Sky Cinema Premiere +1 yes Sky Cinema Comedy yes Sky Cinema Action & Adventure yes Sky Cinema Family yes Sky Cinema Drama & Romance yes Sky Cinema Sci-fi/Horror HD yes Sky News yes Sky 1 yes Sky 2 yes Sky Sports 1 yes Sky Sports 2 yes Sky Sports 3 yes Sky Sports News yes Sky Sports 4 yes Box Hits yes The Box yes Community Channel yes Disney Channel yes Disney Channel +1 yes Viva yes Travel Channel yes Good Food yes YESTERDAY yes Home yes VH1 yes MTV Christmas yes B4U Movies yes Playboy TV yes Red Hot Amateur yes RTÃ One yes Sony SAB yes Star Plus yes Television X yes TG4 yes The Adult Channel yes TV3 yes TV5 yes TVE Internacional yes Eden +1 yes Good Food (+1) yes Home +1 yes Zee TV yes ITV3 yes More4 yes RTÃ Two yes eir Sport 1 yes ITV4 yes Pick yes E4 +1 yes 5STAR yes 5USA yes ITV2 +1 yes Sky Cinema Select yes Discovery Home & Health yes CITV yes Sky Arts yes CBS Reality yes Discovery Turbo yes BBC2 HD yes Bliss yes Boomerang +1 yes Cartoonito yes Challenge +1 yes Chelsea TV yes CI yes Discovery HD yes Discovery Home & Health +1 yes Discovery Shed yes Disney Cinemagic yes Disney Cinemagic +1 yes Eurosport 2 yes FOX+1 yes Real Lives yes Motors TV yes Nat Geo Wild yes National Geographic HD yes Comedy Central +1 yes Syfy +1 yes Sky Box Office HD1 yes Sky Box Office HD2 yes Sky Sports 1 HD yes Sky Sports 2 HD yes Really yes YESTERDAY +1 yes CBS Reality +1 yes Horror Channel yes eir Sport 2 yes Channel 4 + 1 yes More4 +1 yes Dave yes Ideal World yes Star Gold yes ITV Thames Valley North yes Al Jazeera English yes Racing UK yes TCM +1 yes Channel S yes Community Channel Freeview (Community Channel Free yes True Christmas yes DMAX yes Dave ja vu yes Cartoon Network +1 yes Best Direct yes 5* (Freeview) yes Pop yes M95 TV Marbella yes TV3 (Spanish) yes ITV Thames Valley South yes E! Entertainment Europe yes ITV3+1 yes Channel 4 HD yes Tiny Pop yes Sky1 HD yes Sky Sports 3 HD yes Channel 7 yes MTV + 1 yes Sky Arts HD yes FOX HD yes Sky Cinema Premiere HD yes National Geographic HD +1 yes CBS Drama yes CBS Action yes True Movies+1 yes Movies4Men yes Eurosport 1 HD yes Deutsche Welle yes Horror Channel +1 yes H2 yes 4Music yes BBC Alba yes W yes Sky Movies Superheroes HD yes Sky Cinema Drama & Romance HD yes Sky Cinema Action & Adventure HD yes W (+1) yes GOLD yes GOLD +1 yes Alibi yes Alibi+1 yes Sky Cinema Comedy HD yes Sky Cinema Family HD yes Sky Cinema Sci-fi/Horror yes Sky Arts 2 yes HISTORY HD yes Gems TV yes ITV4 + 1 yes MTV Live HD yes 3e yes Investigation Discovery yes AIT International yes Eden yes Syfy HD yes Real Lives +1 yes Sky Arts 2 HD yes Disney Cinemagic HD yes CI HD yes Nat Geo Wild HD yes Propeller TV yes QUEST yes Travel Channel +1 yes Phoenix CNE yes Flava yes My5 yes 5USA +1 yes CI +1 yes BT Sport//ESPN yes BT Sport//ESPN HD yes Animal Planet yes Create and Craft yes Disney yes Disney +1 yes Animal Planet +1 yes CNBC UK yes MGM Channel yes Sky Living HD yes Sky Cinema Select HD yes QUEST +1 yes Food Network +1 yes Food Network yes Universal Channel +1 yes Movies 24 yes Kix yes Sky Cinema Superheroes yes Movies 24+ (Movies 24+) yes E4 HD yes NHK World yes Nick Jr Too yes Sky Cinema Crime & Thriller yes DMAX+1 yes Comedy Central Extra +1 yes Discovery History +1 yes Tiny Pop +1 yes BET +1 yes Movies4Men +1 yes Horse & Country yes Nickelodeon +1 yes at the races yes FAB TV yes TrueEntertainment yes Discovery Science +1 yes BBC Red Button 1 yes Sky Cinema Hits yes Sky Cinema Hits HD yes The Active Channel yes ITV HD yes BBC Sport Interactive BBC1 yes BBC Sport Interactive BBC2 yes Sky Sports 4 HD yes Sky 3D yes Showcase yes Sky News HD yes BBC Sport Interactive BBC3 yes Zee Cinema yes STV HD yes Universal Channel HD yes Channel 5 HD yes BBC News yes Film4 HD yes TCM yes Comedy Central HD yes GOD Channel yes Sky Sports News HD yes Pick+1 yes Good Food (HD) yes BBC Parliament yes Eden HD yes ITV2 HD yes UTV HD yes BBC Entertainment yes Nickelodeon HD yes Disney HD yes BBC1 HD yes PopGirl yes Showcase +1 yes BBC World News yes ITV3 HD yes ITV4 HD yes Sky Box Office HD3 yes ITV South East +1 yes ITV Yorkshire +1 yes ITV Granada +1 yes ITV London +1 yes UTV +1 yes ITV West +1 yes BBC1 Digital yes ITV Central +1 yes STV +1 yes MTV Music yes Sky Atlantic HD yes Sky Atlantic yes Vintage TV yes Liverpool FC TV yes RT yes Plus 1 yes BBC1 Scotland Digital yes Sony Entertainment TV Asia yes Sony Channel +1 yes Sony Channel yes Disney Junior yes Disney Junior +1 yes Premier Sports yes RTÃ Jr yes RTÃ News Now yes RTÃ Two HD yes RTÃ One +1 yes BBC1 East Midlands yes NHK World HD yes ITV HD Meridian yes ITV HD Granada yes ITV HD Central yes Cartoon Network HD yes Disney Channel HD yes W HD yes Dave HD yes Channel 5 +1 yes BBC1 East yes BBC1 Oxfordshire yes BBC1 Yorkshire and Lincolnshire yes BBC1 Cambridgeshire yes BBC1 Channel Islands yes Animal Planet HD yes Sky Sports F1 yes Sky Sports F1 HD yes Red Hot 18s yes MTV HD yes BBC1 London yes Sony Movie Channel yes Sony Movie Channel +1 yes Sky Sports 1 Interactive yes Sky Sports 2 Interactive yes Sky Sports 3 Interactive yes BBC1 Midlands yes Vijay yes PBS America yes 4seven yes Alibi HD yes Box Upfront yes Ideal World yes Eurosport 2 HD yes BBC1 N East yes BBC Red Button HD yes BBC Red Button 3 yes BBC1 N West yes BBC1 North yes BBC1 N Ireland yes BBC1 Wales Digital yes ITV Border yes BBC1 Scotland yes TCM HD yes Star Plus HD yes Virgin Movies yes MTV Live yes Sky Atlantic +1 yes Nick Jr +1 yes ITV Westcountry +1 yes ITV Anglia +1 yes ITV Tynes Tees +1 yes BBC1 S East yes ITV Wales +1 yes E! Entertainment HD yes ITV Meridian +1 yes BBC1 HD N Ireland yes FRANCE 24 English yes TG4 HD yes Baby TV yes Sky1 +1 yes BBC1 S West yes BBC Red Button 2 yes National Geographic +1 yes Discovery +1 yes Sky Cinema Superheroes HD yes BBC4 yes BBC1 South yes Sky Cinema Disney yes Sky Cinema Disney HD yes Chart Show HIts yes RT HD yes BBC1 HD Scotland yes BBC 1 HD Wales yes More4 HD yes BBC1 yes Sky Sports 4 Interactive yes True Entertainment+1 yes TLC +1 yes TLC yes TLC HD yes Rishtey yes Disney Junior HD yes BBC1 Wales yes Investigation Discovery +1 yes Drama yes Star Utsav yes ARY News yes Star Life OK yes BT Sport 1 yes BT Sport 1 HD yes BT Sport 2 yes BBC1 West yes BT Sport 2 HD yes Colors yes OSN Ya Hala! yes JSTV1 yes JSTV2 yes TLC+2 yes Zing yes Lifetime yes Lifetime HD yes BBC2 yes Estuary TV yes Lifetime +1 yes BBC4 HD yes BBC News HD yes CBBC HD yes CBeebies HD yes E! +1 yes Al Jazeera English HD yes BBC2 Digital yes RTÃ One HD yes 5* +1 yes ITV3+1 (Freeview) yes My5 (Freeview) yes London Live yes Pop (+1) yes True Entertainment +1 yes Community Channel HD yes Revelation TV yes BBC2 East Midlands yes ITV Encore yes ITV Encore HD yes Forces TV yes BBC Red Button 4 yes BBC Red Button 5 yes Channel 4 HD +1 yes 4seven HD yes Sky Sports 5 yes Sky Sports 5 HD yes BBC2 East yes MUTV HD yes truTV yes ITVBe yes truTV +1 yes The Vault yes News18 India yes BBC2 London yes NOW Christmas yes The Africa Channel yes Holiday & Cruise Channel yes OHTV yes ABN TV yes BEN yes Planet Pop yes Information TV yes BBC2 Midlands yes Information TV +1 yes Capital TV yes Vox Africa yes Starz TV yes Channel AKA yes Heart TV yes FilmOn.TV yes PTV yes BBC2 N East yes Clubland TV yes STV Glasgow yes BON TV yes ?TV yes LFCTV HD yes BBC Oxford DAB yes ITVBe+1 yes ITVBe HD yes Eurosport 2 HD yes BBC2 N West yes be3 yes be3 HD yes Spike yes &TV yes The Jewellery Channel yes BT Sport 3 yes BT Sport 3 HD yes Chelsea TV HD yes BBC2 North yes Sky Sports Box Office yes Sky Sports Box Office HD yes ITV Border Scotland yes Made in Bristol yes Made in Leeds yes Made in Cardiff yes Made in Tyne & Wear yes Talking Pictures yes Boomerang HD yes AMC yes BT Sport Extra 1 yes BT Sport Extra 2 yes BT Sport Extra 3 yes BT Sport Extra 4 yes BT Sport Extra 5 yes BBC2 N Ireland yes BT Sport Extra 6 yes YourTV yes YourTV +1 yes True Movies yes Irish TV +1 yes Xtreme Filth yes Notts TV yes Viewers' Wives yes True Crime yes root@Kallax:/mnt/user/appdata/tvheadend/.xmltv# Thanks for wrapping the output. Much easier to read know It does say the same if you enable the grabber in tvheadend and run it? Yes like I said it puts the map file in the .xmltv rather than in the tv_grab_uk_tvguide I had to manually create that folder and move the map file there which I don't think should happen I tried to configure webgrab+plus and got this output root@Kallax:/mnt/user/appdata/tvheadend/.xmltv# docker exec -it -u abc tvheadend /usr/bin/tv_grab_wg --configure /usr/bin/tv_grab_wg: illegal option -- - unknown option: - Usage: tv_grab_wg: [--description] [--version] [--capabilities] root@Kallax:/mnt/user/appdata/tvheadend/.xmltv# So I definitely think there is an issue with my grabbers. A quick google search will show you that the map.conf file must be downloaded and edited by yourself. Read here about it: https://www.mankier.com/1/tv_grab_uk_tvguide I get the same result here. You can just create an empty file and the grabber will run. Its most likely a bug in the grabber. You can't configure WG++ grabber as that is a stand alone grabber. What is the easiest way for me to get UK TV guide data at the moment I just get now and next and everything seems quite difficult to setup for anything more than this? How would I setup WG++? Quote Link to comment
saarg Posted January 24, 2017 Share Posted January 24, 2017 Please wrap output of commands in the code tags. The # symbol button when you write posts. It is very hard to read on mobile. Did you follow the instructions on github.com linked in the first post on how to configure xmltv? Also posting the questions and answers when you configure the grabber will help. I just ran the configuration again here are my results thanks for trying to help. root@Kallax:/mnt/user/appdata/tvheadend/.xmltv# docker exec -it -u abc tvheadend /usr/bin/tv_grab_uk_tvguide --configure tv_grab_uk_tvguide uses a cache with files that it has already downloaded. Please specify where the cache shall be stored. Directory to store the cache in: [/config/.xmltv/cache] Reformatting: 100% [=========================================================================================================================================================]Select the channels that you want to receive data for. Fox News [yes,no,all,none (default=no)] all TVC News yes BBC Red Button 1 HD yes ARY Digital yes BBC Olympics03HD yes Freeview yes Sky Sports Mix yes BBC2 Scotland yes Sky Sports Mix HD yes Sony MAX yes Viceland yes Blaze yes BBC2 S East yes BBC2 S West yes BBC2 South yes BBC2 West Midlands yes BBC2 Wales yes BBC2 West yes BBC4 yes BET yes bid tv yes Bloomberg TV yes Boomerang yes Cartoon Network yes CBBC yes CBeebies yes Challenge yes Channel 4 yes Chart Show TV yes CNN yes Discovery yes Discovery History yes Discovery Science yes E! yes E4 yes EuroNews yes Eurosport yes Extreme Sports yes Film4 yes Film4 +1 yes Channel 5 yes FOX yes GBC yes Universal Channel yes HISTORY yes HISTORY +1 yes STV North yes ITV Anglia yes STV North+1 yes STV North+1 yes ITV Central yes ITV Westcountry yes ITV Channel yes ITV Granada yes ITV London yes ITV Meridian yes ITV Tyne Tees yes ITV Wales yes ITV West yes ITV Yorkshire yes STV Central yes UTV yes ITV2 yes Kerrang! TV yes Kiss TV yes Sky Living yes Sky Living +1 yes Magic TV yes MTV yes MTV Base yes MTV Dance yes MTV Hits yes MTV Rocks yes MUTV yes National Geographic yes Nickelodeon yes Nick Jr yes Nicktoons yes Comedy Central yes Comedy Central Extra yes price-drop.tv yes QVC yes S4C yes Syfy yes Scuzz yes Sky Box Office Digital yes Sky Cinema Crime & Thriller HD yes Sky Cinema Premiere yes Sky Cinema Premiere +1 yes Sky Cinema Comedy yes Sky Cinema Action & Adventure yes Sky Cinema Family yes Sky Cinema Drama & Romance yes Sky Cinema Sci-fi/Horror HD yes Sky News yes Sky 1 yes Sky 2 yes Sky Sports 1 yes Sky Sports 2 yes Sky Sports 3 yes Sky Sports News yes Sky Sports 4 yes Box Hits yes The Box yes Community Channel yes Disney Channel yes Disney Channel +1 yes Viva yes Travel Channel yes Good Food yes YESTERDAY yes Home yes VH1 yes MTV Christmas yes B4U Movies yes Playboy TV yes Red Hot Amateur yes RTÃ One yes Sony SAB yes Star Plus yes Television X yes TG4 yes The Adult Channel yes TV3 yes TV5 yes TVE Internacional yes Eden +1 yes Good Food (+1) yes Home +1 yes Zee TV yes ITV3 yes More4 yes RTÃ Two yes eir Sport 1 yes ITV4 yes Pick yes E4 +1 yes 5STAR yes 5USA yes ITV2 +1 yes Sky Cinema Select yes Discovery Home & Health yes CITV yes Sky Arts yes CBS Reality yes Discovery Turbo yes BBC2 HD yes Bliss yes Boomerang +1 yes Cartoonito yes Challenge +1 yes Chelsea TV yes CI yes Discovery HD yes Discovery Home & Health +1 yes Discovery Shed yes Disney Cinemagic yes Disney Cinemagic +1 yes Eurosport 2 yes FOX+1 yes Real Lives yes Motors TV yes Nat Geo Wild yes National Geographic HD yes Comedy Central +1 yes Syfy +1 yes Sky Box Office HD1 yes Sky Box Office HD2 yes Sky Sports 1 HD yes Sky Sports 2 HD yes Really yes YESTERDAY +1 yes CBS Reality +1 yes Horror Channel yes eir Sport 2 yes Channel 4 + 1 yes More4 +1 yes Dave yes Ideal World yes Star Gold yes ITV Thames Valley North yes Al Jazeera English yes Racing UK yes TCM +1 yes Channel S yes Community Channel Freeview (Community Channel Free yes True Christmas yes DMAX yes Dave ja vu yes Cartoon Network +1 yes Best Direct yes 5* (Freeview) yes Pop yes M95 TV Marbella yes TV3 (Spanish) yes ITV Thames Valley South yes E! Entertainment Europe yes ITV3+1 yes Channel 4 HD yes Tiny Pop yes Sky1 HD yes Sky Sports 3 HD yes Channel 7 yes MTV + 1 yes Sky Arts HD yes FOX HD yes Sky Cinema Premiere HD yes National Geographic HD +1 yes CBS Drama yes CBS Action yes True Movies+1 yes Movies4Men yes Eurosport 1 HD yes Deutsche Welle yes Horror Channel +1 yes H2 yes 4Music yes BBC Alba yes W yes Sky Movies Superheroes HD yes Sky Cinema Drama & Romance HD yes Sky Cinema Action & Adventure HD yes W (+1) yes GOLD yes GOLD +1 yes Alibi yes Alibi+1 yes Sky Cinema Comedy HD yes Sky Cinema Family HD yes Sky Cinema Sci-fi/Horror yes Sky Arts 2 yes HISTORY HD yes Gems TV yes ITV4 + 1 yes MTV Live HD yes 3e yes Investigation Discovery yes AIT International yes Eden yes Syfy HD yes Real Lives +1 yes Sky Arts 2 HD yes Disney Cinemagic HD yes CI HD yes Nat Geo Wild HD yes Propeller TV yes QUEST yes Travel Channel +1 yes Phoenix CNE yes Flava yes My5 yes 5USA +1 yes CI +1 yes BT Sport//ESPN yes BT Sport//ESPN HD yes Animal Planet yes Create and Craft yes Disney yes Disney +1 yes Animal Planet +1 yes CNBC UK yes MGM Channel yes Sky Living HD yes Sky Cinema Select HD yes QUEST +1 yes Food Network +1 yes Food Network yes Universal Channel +1 yes Movies 24 yes Kix yes Sky Cinema Superheroes yes Movies 24+ (Movies 24+) yes E4 HD yes NHK World yes Nick Jr Too yes Sky Cinema Crime & Thriller yes DMAX+1 yes Comedy Central Extra +1 yes Discovery History +1 yes Tiny Pop +1 yes BET +1 yes Movies4Men +1 yes Horse & Country yes Nickelodeon +1 yes at the races yes FAB TV yes TrueEntertainment yes Discovery Science +1 yes BBC Red Button 1 yes Sky Cinema Hits yes Sky Cinema Hits HD yes The Active Channel yes ITV HD yes BBC Sport Interactive BBC1 yes BBC Sport Interactive BBC2 yes Sky Sports 4 HD yes Sky 3D yes Showcase yes Sky News HD yes BBC Sport Interactive BBC3 yes Zee Cinema yes STV HD yes Universal Channel HD yes Channel 5 HD yes BBC News yes Film4 HD yes TCM yes Comedy Central HD yes GOD Channel yes Sky Sports News HD yes Pick+1 yes Good Food (HD) yes BBC Parliament yes Eden HD yes ITV2 HD yes UTV HD yes BBC Entertainment yes Nickelodeon HD yes Disney HD yes BBC1 HD yes PopGirl yes Showcase +1 yes BBC World News yes ITV3 HD yes ITV4 HD yes Sky Box Office HD3 yes ITV South East +1 yes ITV Yorkshire +1 yes ITV Granada +1 yes ITV London +1 yes UTV +1 yes ITV West +1 yes BBC1 Digital yes ITV Central +1 yes STV +1 yes MTV Music yes Sky Atlantic HD yes Sky Atlantic yes Vintage TV yes Liverpool FC TV yes RT yes Plus 1 yes BBC1 Scotland Digital yes Sony Entertainment TV Asia yes Sony Channel +1 yes Sony Channel yes Disney Junior yes Disney Junior +1 yes Premier Sports yes RTÃ Jr yes RTÃ News Now yes RTÃ Two HD yes RTÃ One +1 yes BBC1 East Midlands yes NHK World HD yes ITV HD Meridian yes ITV HD Granada yes ITV HD Central yes Cartoon Network HD yes Disney Channel HD yes W HD yes Dave HD yes Channel 5 +1 yes BBC1 East yes BBC1 Oxfordshire yes BBC1 Yorkshire and Lincolnshire yes BBC1 Cambridgeshire yes BBC1 Channel Islands yes Animal Planet HD yes Sky Sports F1 yes Sky Sports F1 HD yes Red Hot 18s yes MTV HD yes BBC1 London yes Sony Movie Channel yes Sony Movie Channel +1 yes Sky Sports 1 Interactive yes Sky Sports 2 Interactive yes Sky Sports 3 Interactive yes BBC1 Midlands yes Vijay yes PBS America yes 4seven yes Alibi HD yes Box Upfront yes Ideal World yes Eurosport 2 HD yes BBC1 N East yes BBC Red Button HD yes BBC Red Button 3 yes BBC1 N West yes BBC1 North yes BBC1 N Ireland yes BBC1 Wales Digital yes ITV Border yes BBC1 Scotland yes TCM HD yes Star Plus HD yes Virgin Movies yes MTV Live yes Sky Atlantic +1 yes Nick Jr +1 yes ITV Westcountry +1 yes ITV Anglia +1 yes ITV Tynes Tees +1 yes BBC1 S East yes ITV Wales +1 yes E! Entertainment HD yes ITV Meridian +1 yes BBC1 HD N Ireland yes FRANCE 24 English yes TG4 HD yes Baby TV yes Sky1 +1 yes BBC1 S West yes BBC Red Button 2 yes National Geographic +1 yes Discovery +1 yes Sky Cinema Superheroes HD yes BBC4 yes BBC1 South yes Sky Cinema Disney yes Sky Cinema Disney HD yes Chart Show HIts yes RT HD yes BBC1 HD Scotland yes BBC 1 HD Wales yes More4 HD yes BBC1 yes Sky Sports 4 Interactive yes True Entertainment+1 yes TLC +1 yes TLC yes TLC HD yes Rishtey yes Disney Junior HD yes BBC1 Wales yes Investigation Discovery +1 yes Drama yes Star Utsav yes ARY News yes Star Life OK yes BT Sport 1 yes BT Sport 1 HD yes BT Sport 2 yes BBC1 West yes BT Sport 2 HD yes Colors yes OSN Ya Hala! yes JSTV1 yes JSTV2 yes TLC+2 yes Zing yes Lifetime yes Lifetime HD yes BBC2 yes Estuary TV yes Lifetime +1 yes BBC4 HD yes BBC News HD yes CBBC HD yes CBeebies HD yes E! +1 yes Al Jazeera English HD yes BBC2 Digital yes RTÃ One HD yes 5* +1 yes ITV3+1 (Freeview) yes My5 (Freeview) yes London Live yes Pop (+1) yes True Entertainment +1 yes Community Channel HD yes Revelation TV yes BBC2 East Midlands yes ITV Encore yes ITV Encore HD yes Forces TV yes BBC Red Button 4 yes BBC Red Button 5 yes Channel 4 HD +1 yes 4seven HD yes Sky Sports 5 yes Sky Sports 5 HD yes BBC2 East yes MUTV HD yes truTV yes ITVBe yes truTV +1 yes The Vault yes News18 India yes BBC2 London yes NOW Christmas yes The Africa Channel yes Holiday & Cruise Channel yes OHTV yes ABN TV yes BEN yes Planet Pop yes Information TV yes BBC2 Midlands yes Information TV +1 yes Capital TV yes Vox Africa yes Starz TV yes Channel AKA yes Heart TV yes FilmOn.TV yes PTV yes BBC2 N East yes Clubland TV yes STV Glasgow yes BON TV yes ?TV yes LFCTV HD yes BBC Oxford DAB yes ITVBe+1 yes ITVBe HD yes Eurosport 2 HD yes BBC2 N West yes be3 yes be3 HD yes Spike yes &TV yes The Jewellery Channel yes BT Sport 3 yes BT Sport 3 HD yes Chelsea TV HD yes BBC2 North yes Sky Sports Box Office yes Sky Sports Box Office HD yes ITV Border Scotland yes Made in Bristol yes Made in Leeds yes Made in Cardiff yes Made in Tyne & Wear yes Talking Pictures yes Boomerang HD yes AMC yes BT Sport Extra 1 yes BT Sport Extra 2 yes BT Sport Extra 3 yes BT Sport Extra 4 yes BT Sport Extra 5 yes BBC2 N Ireland yes BT Sport Extra 6 yes YourTV yes YourTV +1 yes True Movies yes Irish TV +1 yes Xtreme Filth yes Notts TV yes Viewers' Wives yes True Crime yes root@Kallax:/mnt/user/appdata/tvheadend/.xmltv# Thanks for wrapping the output. Much easier to read know It does say the same if you enable the grabber in tvheadend and run it? Yes like I said it puts the map file in the .xmltv rather than in the tv_grab_uk_tvguide I had to manually create that folder and move the map file there which I don't think should happen I tried to configure webgrab+plus and got this output root@Kallax:/mnt/user/appdata/tvheadend/.xmltv# docker exec -it -u abc tvheadend /usr/bin/tv_grab_wg --configure /usr/bin/tv_grab_wg: illegal option -- - unknown option: - Usage: tv_grab_wg: [--description] [--version] [--capabilities] root@Kallax:/mnt/user/appdata/tvheadend/.xmltv# So I definitely think there is an issue with my grabbers. A quick google search will show you that the map.conf file must be downloaded and edited by yourself. Read here about it: https://www.mankier.com/1/tv_grab_uk_tvguide I get the same result here. You can just create an empty file and the grabber will run. Its most likely a bug in the grabber. You can't configure WG++ grabber as that is a stand alone grabber. What is the easiest way for me to get UK TV guide data at the moment I just get now and next and everything seems quite difficult to setup for anything more than this? How would I setup WG++? I would say Google is your friend. Sorry, but I'm not going to figure this one out for you. Quote Link to comment
alturismo Posted January 25, 2017 Share Posted January 25, 2017 Hello guys. Im trying to set the http_url argument for this docker, i have tried and edit /var/run/s6/services/tvheadend/run and adding the following argument --http_root /tv But everytime i restart the container the run file is reset back to default. Is there any way that i can modify this without it resetting That's because you edit the wrong file. The one to edit is /etc/services.d/tvheadend/run. That should stick until you update. There might come an option to set this as an variable some time in the future. Hi, just would like to ask if thats correct what i did before i broke something bigger ... SSH login docker cp tvheadend:/etc/services.d/tvheadend/run /root edit the file by adding this entry to the end --http_root /tvheadend docker cp run tvheadend:/etc/services.d/tvheadend/run Restart seems the /tvheadend behind the proxy is working now, but also the direct connection ... wich is ok to me just would like to know if thats correct ? thanks ahead That sounds correct. great, after TVH docker update today its gone, but easy to add now Quote Link to comment
Johnny G Posted January 25, 2017 Share Posted January 25, 2017 Please wrap output of commands in the code tags. The # symbol button when you write posts. It is very hard to read on mobile. Did you follow the instructions on github.com linked in the first post on how to configure xmltv? Also posting the questions and answers when you configure the grabber will help. I just ran the configuration again here are my results thanks for trying to help. root@Kallax:/mnt/user/appdata/tvheadend/.xmltv# docker exec -it -u abc tvheadend /usr/bin/tv_grab_uk_tvguide --configure tv_grab_uk_tvguide uses a cache with files that it has already downloaded. Please specify where the cache shall be stored. Directory to store the cache in: [/config/.xmltv/cache] Reformatting: 100% [=========================================================================================================================================================]Select the channels that you want to receive data for. Fox News [yes,no,all,none (default=no)] all TVC News yes BBC Red Button 1 HD yes ARY Digital yes BBC Olympics03HD yes Freeview yes Sky Sports Mix yes BBC2 Scotland yes Sky Sports Mix HD yes Sony MAX yes Viceland yes Blaze yes BBC2 S East yes BBC2 S West yes BBC2 South yes BBC2 West Midlands yes BBC2 Wales yes BBC2 West yes BBC4 yes BET yes bid tv yes Bloomberg TV yes Boomerang yes Cartoon Network yes CBBC yes CBeebies yes Challenge yes Channel 4 yes Chart Show TV yes CNN yes Discovery yes Discovery History yes Discovery Science yes E! yes E4 yes EuroNews yes Eurosport yes Extreme Sports yes Film4 yes Film4 +1 yes Channel 5 yes FOX yes GBC yes Universal Channel yes HISTORY yes HISTORY +1 yes STV North yes ITV Anglia yes STV North+1 yes STV North+1 yes ITV Central yes ITV Westcountry yes ITV Channel yes ITV Granada yes ITV London yes ITV Meridian yes ITV Tyne Tees yes ITV Wales yes ITV West yes ITV Yorkshire yes STV Central yes UTV yes ITV2 yes Kerrang! TV yes Kiss TV yes Sky Living yes Sky Living +1 yes Magic TV yes MTV yes MTV Base yes MTV Dance yes MTV Hits yes MTV Rocks yes MUTV yes National Geographic yes Nickelodeon yes Nick Jr yes Nicktoons yes Comedy Central yes Comedy Central Extra yes price-drop.tv yes QVC yes S4C yes Syfy yes Scuzz yes Sky Box Office Digital yes Sky Cinema Crime & Thriller HD yes Sky Cinema Premiere yes Sky Cinema Premiere +1 yes Sky Cinema Comedy yes Sky Cinema Action & Adventure yes Sky Cinema Family yes Sky Cinema Drama & Romance yes Sky Cinema Sci-fi/Horror HD yes Sky News yes Sky 1 yes Sky 2 yes Sky Sports 1 yes Sky Sports 2 yes Sky Sports 3 yes Sky Sports News yes Sky Sports 4 yes Box Hits yes The Box yes Community Channel yes Disney Channel yes Disney Channel +1 yes Viva yes Travel Channel yes Good Food yes YESTERDAY yes Home yes VH1 yes MTV Christmas yes B4U Movies yes Playboy TV yes Red Hot Amateur yes RTÃ One yes Sony SAB yes Star Plus yes Television X yes TG4 yes The Adult Channel yes TV3 yes TV5 yes TVE Internacional yes Eden +1 yes Good Food (+1) yes Home +1 yes Zee TV yes ITV3 yes More4 yes RTÃ Two yes eir Sport 1 yes ITV4 yes Pick yes E4 +1 yes 5STAR yes 5USA yes ITV2 +1 yes Sky Cinema Select yes Discovery Home & Health yes CITV yes Sky Arts yes CBS Reality yes Discovery Turbo yes BBC2 HD yes Bliss yes Boomerang +1 yes Cartoonito yes Challenge +1 yes Chelsea TV yes CI yes Discovery HD yes Discovery Home & Health +1 yes Discovery Shed yes Disney Cinemagic yes Disney Cinemagic +1 yes Eurosport 2 yes FOX+1 yes Real Lives yes Motors TV yes Nat Geo Wild yes National Geographic HD yes Comedy Central +1 yes Syfy +1 yes Sky Box Office HD1 yes Sky Box Office HD2 yes Sky Sports 1 HD yes Sky Sports 2 HD yes Really yes YESTERDAY +1 yes CBS Reality +1 yes Horror Channel yes eir Sport 2 yes Channel 4 + 1 yes More4 +1 yes Dave yes Ideal World yes Star Gold yes ITV Thames Valley North yes Al Jazeera English yes Racing UK yes TCM +1 yes Channel S yes Community Channel Freeview (Community Channel Free yes True Christmas yes DMAX yes Dave ja vu yes Cartoon Network +1 yes Best Direct yes 5* (Freeview) yes Pop yes M95 TV Marbella yes TV3 (Spanish) yes ITV Thames Valley South yes E! Entertainment Europe yes ITV3+1 yes Channel 4 HD yes Tiny Pop yes Sky1 HD yes Sky Sports 3 HD yes Channel 7 yes MTV + 1 yes Sky Arts HD yes FOX HD yes Sky Cinema Premiere HD yes National Geographic HD +1 yes CBS Drama yes CBS Action yes True Movies+1 yes Movies4Men yes Eurosport 1 HD yes Deutsche Welle yes Horror Channel +1 yes H2 yes 4Music yes BBC Alba yes W yes Sky Movies Superheroes HD yes Sky Cinema Drama & Romance HD yes Sky Cinema Action & Adventure HD yes W (+1) yes GOLD yes GOLD +1 yes Alibi yes Alibi+1 yes Sky Cinema Comedy HD yes Sky Cinema Family HD yes Sky Cinema Sci-fi/Horror yes Sky Arts 2 yes HISTORY HD yes Gems TV yes ITV4 + 1 yes MTV Live HD yes 3e yes Investigation Discovery yes AIT International yes Eden yes Syfy HD yes Real Lives +1 yes Sky Arts 2 HD yes Disney Cinemagic HD yes CI HD yes Nat Geo Wild HD yes Propeller TV yes QUEST yes Travel Channel +1 yes Phoenix CNE yes Flava yes My5 yes 5USA +1 yes CI +1 yes BT Sport//ESPN yes BT Sport//ESPN HD yes Animal Planet yes Create and Craft yes Disney yes Disney +1 yes Animal Planet +1 yes CNBC UK yes MGM Channel yes Sky Living HD yes Sky Cinema Select HD yes QUEST +1 yes Food Network +1 yes Food Network yes Universal Channel +1 yes Movies 24 yes Kix yes Sky Cinema Superheroes yes Movies 24+ (Movies 24+) yes E4 HD yes NHK World yes Nick Jr Too yes Sky Cinema Crime & Thriller yes DMAX+1 yes Comedy Central Extra +1 yes Discovery History +1 yes Tiny Pop +1 yes BET +1 yes Movies4Men +1 yes Horse & Country yes Nickelodeon +1 yes at the races yes FAB TV yes TrueEntertainment yes Discovery Science +1 yes BBC Red Button 1 yes Sky Cinema Hits yes Sky Cinema Hits HD yes The Active Channel yes ITV HD yes BBC Sport Interactive BBC1 yes BBC Sport Interactive BBC2 yes Sky Sports 4 HD yes Sky 3D yes Showcase yes Sky News HD yes BBC Sport Interactive BBC3 yes Zee Cinema yes STV HD yes Universal Channel HD yes Channel 5 HD yes BBC News yes Film4 HD yes TCM yes Comedy Central HD yes GOD Channel yes Sky Sports News HD yes Pick+1 yes Good Food (HD) yes BBC Parliament yes Eden HD yes ITV2 HD yes UTV HD yes BBC Entertainment yes Nickelodeon HD yes Disney HD yes BBC1 HD yes PopGirl yes Showcase +1 yes BBC World News yes ITV3 HD yes ITV4 HD yes Sky Box Office HD3 yes ITV South East +1 yes ITV Yorkshire +1 yes ITV Granada +1 yes ITV London +1 yes UTV +1 yes ITV West +1 yes BBC1 Digital yes ITV Central +1 yes STV +1 yes MTV Music yes Sky Atlantic HD yes Sky Atlantic yes Vintage TV yes Liverpool FC TV yes RT yes Plus 1 yes BBC1 Scotland Digital yes Sony Entertainment TV Asia yes Sony Channel +1 yes Sony Channel yes Disney Junior yes Disney Junior +1 yes Premier Sports yes RTÃ Jr yes RTÃ News Now yes RTÃ Two HD yes RTÃ One +1 yes BBC1 East Midlands yes NHK World HD yes ITV HD Meridian yes ITV HD Granada yes ITV HD Central yes Cartoon Network HD yes Disney Channel HD yes W HD yes Dave HD yes Channel 5 +1 yes BBC1 East yes BBC1 Oxfordshire yes BBC1 Yorkshire and Lincolnshire yes BBC1 Cambridgeshire yes BBC1 Channel Islands yes Animal Planet HD yes Sky Sports F1 yes Sky Sports F1 HD yes Red Hot 18s yes MTV HD yes BBC1 London yes Sony Movie Channel yes Sony Movie Channel +1 yes Sky Sports 1 Interactive yes Sky Sports 2 Interactive yes Sky Sports 3 Interactive yes BBC1 Midlands yes Vijay yes PBS America yes 4seven yes Alibi HD yes Box Upfront yes Ideal World yes Eurosport 2 HD yes BBC1 N East yes BBC Red Button HD yes BBC Red Button 3 yes BBC1 N West yes BBC1 North yes BBC1 N Ireland yes BBC1 Wales Digital yes ITV Border yes BBC1 Scotland yes TCM HD yes Star Plus HD yes Virgin Movies yes MTV Live yes Sky Atlantic +1 yes Nick Jr +1 yes ITV Westcountry +1 yes ITV Anglia +1 yes ITV Tynes Tees +1 yes BBC1 S East yes ITV Wales +1 yes E! Entertainment HD yes ITV Meridian +1 yes BBC1 HD N Ireland yes FRANCE 24 English yes TG4 HD yes Baby TV yes Sky1 +1 yes BBC1 S West yes BBC Red Button 2 yes National Geographic +1 yes Discovery +1 yes Sky Cinema Superheroes HD yes BBC4 yes BBC1 South yes Sky Cinema Disney yes Sky Cinema Disney HD yes Chart Show HIts yes RT HD yes BBC1 HD Scotland yes BBC 1 HD Wales yes More4 HD yes BBC1 yes Sky Sports 4 Interactive yes True Entertainment+1 yes TLC +1 yes TLC yes TLC HD yes Rishtey yes Disney Junior HD yes BBC1 Wales yes Investigation Discovery +1 yes Drama yes Star Utsav yes ARY News yes Star Life OK yes BT Sport 1 yes BT Sport 1 HD yes BT Sport 2 yes BBC1 West yes BT Sport 2 HD yes Colors yes OSN Ya Hala! yes JSTV1 yes JSTV2 yes TLC+2 yes Zing yes Lifetime yes Lifetime HD yes BBC2 yes Estuary TV yes Lifetime +1 yes BBC4 HD yes BBC News HD yes CBBC HD yes CBeebies HD yes E! +1 yes Al Jazeera English HD yes BBC2 Digital yes RTÃ One HD yes 5* +1 yes ITV3+1 (Freeview) yes My5 (Freeview) yes London Live yes Pop (+1) yes True Entertainment +1 yes Community Channel HD yes Revelation TV yes BBC2 East Midlands yes ITV Encore yes ITV Encore HD yes Forces TV yes BBC Red Button 4 yes BBC Red Button 5 yes Channel 4 HD +1 yes 4seven HD yes Sky Sports 5 yes Sky Sports 5 HD yes BBC2 East yes MUTV HD yes truTV yes ITVBe yes truTV +1 yes The Vault yes News18 India yes BBC2 London yes NOW Christmas yes The Africa Channel yes Holiday & Cruise Channel yes OHTV yes ABN TV yes BEN yes Planet Pop yes Information TV yes BBC2 Midlands yes Information TV +1 yes Capital TV yes Vox Africa yes Starz TV yes Channel AKA yes Heart TV yes FilmOn.TV yes PTV yes BBC2 N East yes Clubland TV yes STV Glasgow yes BON TV yes ?TV yes LFCTV HD yes BBC Oxford DAB yes ITVBe+1 yes ITVBe HD yes Eurosport 2 HD yes BBC2 N West yes be3 yes be3 HD yes Spike yes &TV yes The Jewellery Channel yes BT Sport 3 yes BT Sport 3 HD yes Chelsea TV HD yes BBC2 North yes Sky Sports Box Office yes Sky Sports Box Office HD yes ITV Border Scotland yes Made in Bristol yes Made in Leeds yes Made in Cardiff yes Made in Tyne & Wear yes Talking Pictures yes Boomerang HD yes AMC yes BT Sport Extra 1 yes BT Sport Extra 2 yes BT Sport Extra 3 yes BT Sport Extra 4 yes BT Sport Extra 5 yes BBC2 N Ireland yes BT Sport Extra 6 yes YourTV yes YourTV +1 yes True Movies yes Irish TV +1 yes Xtreme Filth yes Notts TV yes Viewers' Wives yes True Crime yes root@Kallax:/mnt/user/appdata/tvheadend/.xmltv# Thanks for wrapping the output. Much easier to read know It does say the same if you enable the grabber in tvheadend and run it? Yes like I said it puts the map file in the .xmltv rather than in the tv_grab_uk_tvguide I had to manually create that folder and move the map file there which I don't think should happen I tried to configure webgrab+plus and got this output root@Kallax:/mnt/user/appdata/tvheadend/.xmltv# docker exec -it -u abc tvheadend /usr/bin/tv_grab_wg --configure /usr/bin/tv_grab_wg: illegal option -- - unknown option: - Usage: tv_grab_wg: [--description] [--version] [--capabilities] root@Kallax:/mnt/user/appdata/tvheadend/.xmltv# So I definitely think there is an issue with my grabbers. A quick google search will show you that the map.conf file must be downloaded and edited by yourself. Read here about it: https://www.mankier.com/1/tv_grab_uk_tvguide I get the same result here. You can just create an empty file and the grabber will run. Its most likely a bug in the grabber. You can't configure WG++ grabber as that is a stand alone grabber. What is the easiest way for me to get UK TV guide data at the moment I just get now and next and everything seems quite difficult to setup for anything more than this? How would I setup WG++? I tried WG+ but in the end I gave up, purely because it's too complicated and too cumbersome. I got it working, but it wasn't reliable and you have to rebuild the first search index relatively frequently. I've moved to Schedules Direct instead. It's much, much easier and robust. You'll need to SSH in to your unRAID box, then user docker exec to open a bash instance in tvheadend - docker exec -it tvheadend bash - then go to the script location for tv_grab_sd_json (I think it's /usr/bin) and run it with --configure at the end. Go through the prompts and away you go. Make sure you do it with the correct user so that TVH can read the input file. 1 Quote Link to comment

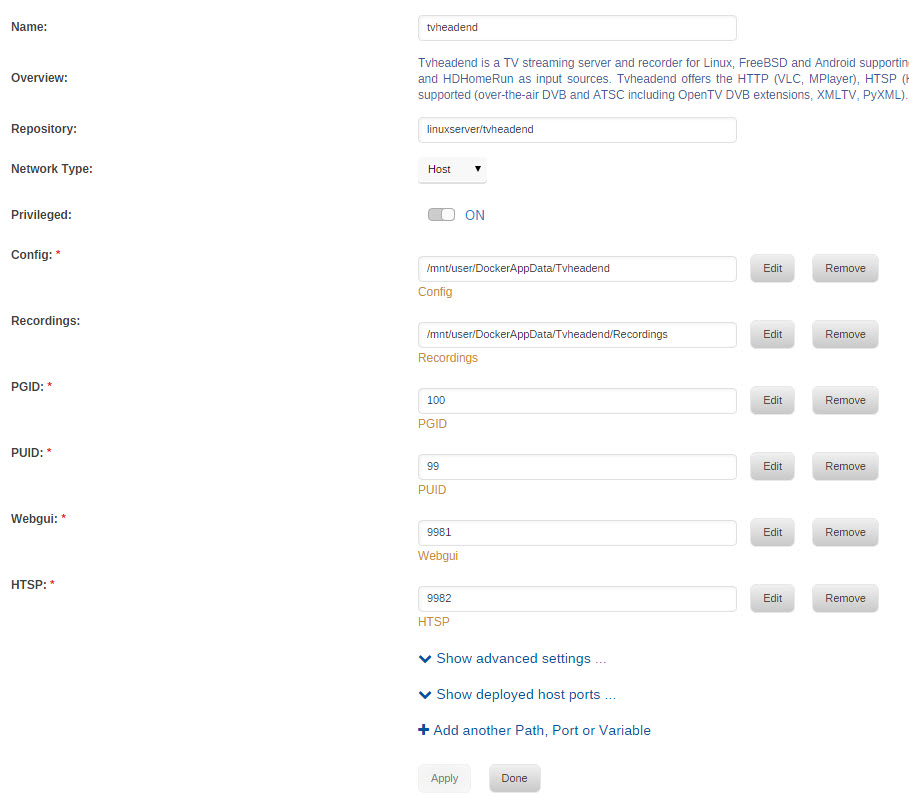

alig26 Posted February 5, 2017 Share Posted February 5, 2017 Hi All, Just installed this docker, I followed the read me, but I'm having issues. I'm using HDHomerun, I ran through the wizard, I believe I got my EPG setup correctly, but when I try to watch a show via the Web interface, it constantly asks me to login, and then gives me a 401 unauthorized. I'm also trying to get this working with Kodi PVR. Is there a direct way to access the log file or enable debugging besides accessing it through the unraid web interface? Thanks tvheadend.txt Quote Link to comment
saarg Posted February 5, 2017 Share Posted February 5, 2017 Hi All, Just installed this docker, I followed the read me, but I'm having issues. I'm using HDHomerun, I ran through the wizard, I believe I got my EPG setup correctly, but when I try to watch a show via the Web interface, it constantly asks me to login, and then gives me a 401 unauthorized. I'm also trying to get this working with Kodi PVR. Is there a direct way to access the log file or enable debugging besides accessing it through the unraid web interface? Thanks A little confused what you mean here. You can log in successfully to the webgui? How are you trying to watch a channel? By clicking the play button or the watch TV button in the EPG view? The only log there is, you have provided. Quote Link to comment

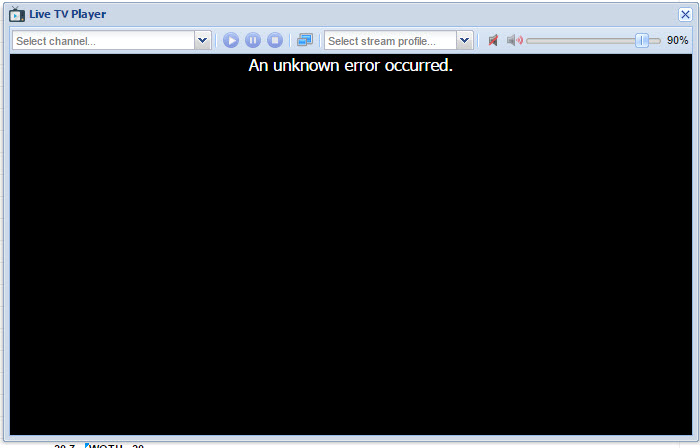

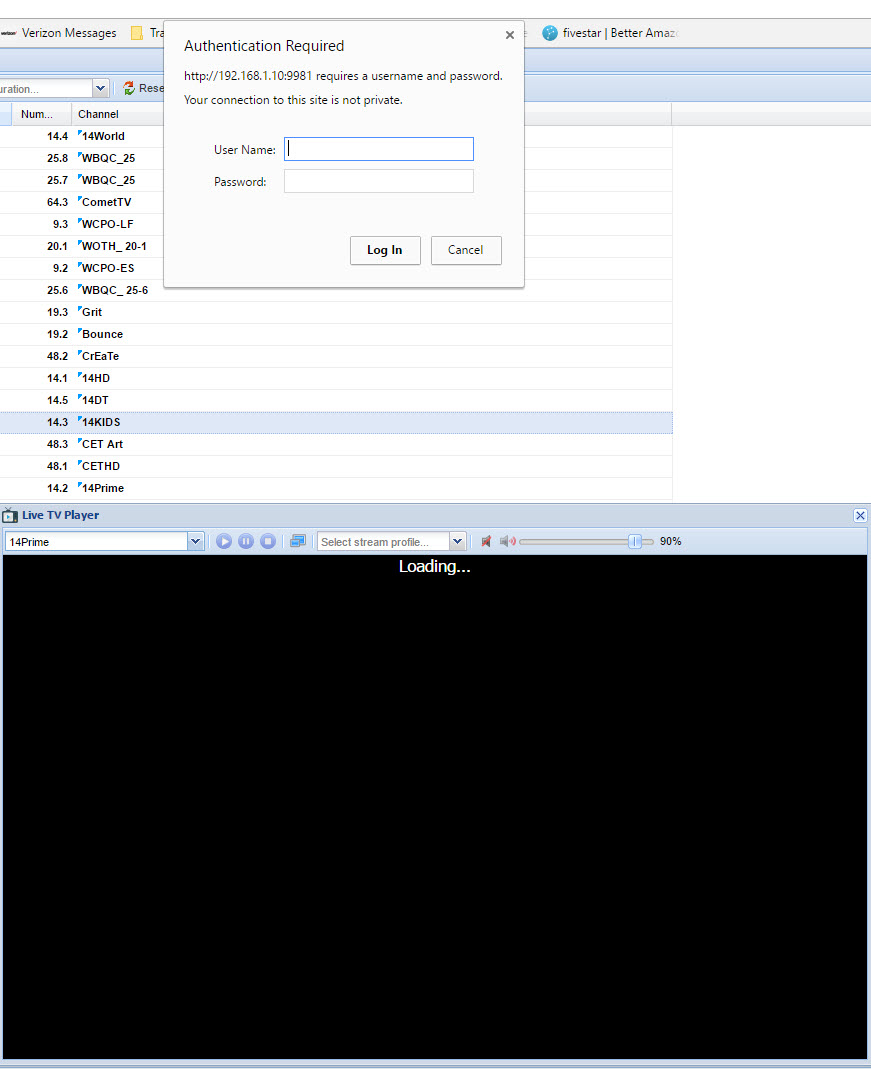

alig26 Posted February 5, 2017 Share Posted February 5, 2017 Sorry let me elaborate, If I try to access it via Port 9982 it says Site can't be reached. I can login and authenticate via port 9981, then if I click Watch TV, it opens a new windows and it gives the screenshot attached. If I select a channel, I get the Authentication Required (screenshot attached) I try to login using admin credentials, and it just keeps asking to login. Not sure what you mean by play button, unless you're referring to recording. I haven't bothered to test that yet till I'm able to stream. I've attached updated log file Edit: I wanted to add, I just added the Kodi Plugin, and used the admin credentials and it's streaming, so I did something write. But can't stream via the web. TVheadendLog.txt Quote Link to comment
saarg Posted February 5, 2017 Share Posted February 5, 2017 Sorry let me elaborate, If I try to access it via Port 9982 it says Site can't be reached. I can login and authenticate via port 9981, then if I click Watch TV, it opens a new windows and it gives the screenshot attached. If I select a channel, I get the Authentication Required (screenshot attached) I try to login using admin credentials, and it just keeps asking to login. Not sure what you mean by play button, unless you're referring to recording. I haven't bothered to test that yet till I'm able to stream. I've attached updated log file Port 9982 is only for htsp clients, like kodi, to connect. Which users have you created and what rights do they have? Which user do you log in with when you try to watch a channel? Quote Link to comment

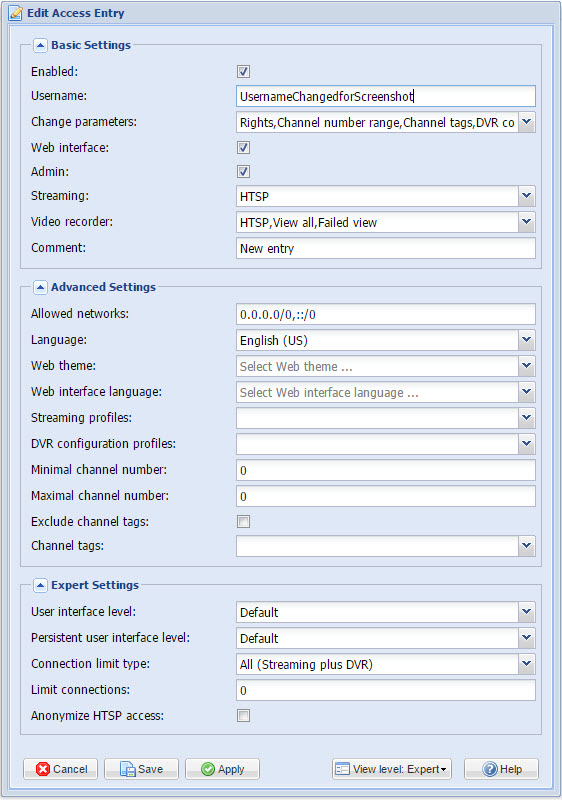

alig26 Posted February 5, 2017 Share Posted February 5, 2017 I created an Admin account, and I'm using that account to login I wanted to add, I just added the Kodi Plugin, and used the admin credentials and it's streaming, so I did something right. But can't stream via the web. Quote Link to comment
saarg Posted February 5, 2017 Share Posted February 5, 2017 I created an Admin account, and I'm using that account to login I wanted to add, I just added the Kodi Plugin, and used the admin credentials and it's streaming, so I did something right. But can't stream via the web. Kodi plugin? I guess you mean the tvheadend client plugin in kodi. Did you give the admin user the rights to stream in the webgui? Quote Link to comment
alig26 Posted February 6, 2017 Share Posted February 6, 2017 Yes, sorry for using the wrong working, the Tvheadend Client Plugin in Kodi works fine, watched TV last night without issue. Oddly though I can't watch on the Web Interface Quote Link to comment
saarg Posted February 6, 2017 Share Posted February 6, 2017 Yes, sorry for using the wrong working, the Tvheadend Client Plugin in Kodi works fine, watched TV last night without issue. Oddly though I can't watch on the Web Interface You only configured the user to stream through HTSP, so no wonder it doesn't work in the webgui. Select basic or advanced also and it should work. Quote Link to comment
alig26 Posted February 6, 2017 Share Posted February 6, 2017 Ahh, Duh, sorry! Thank you for the help! Works now obviously Quote Link to comment
blontic Posted February 7, 2017 Share Posted February 7, 2017 Hi just wondering if there is an unraid docker template that I use to install? or if it's done via cli? thanks Quote Link to comment
