WexfordStyle Posted January 31, 2020 Share Posted January 31, 2020 (edited) Wow...just stumbled upon this thread trying to get my intel 660p nvme drive working. I was optimistic with all of the back and forth support from limetech on this but see that it has basically been abandoned. I guess I am returning my intel and forking over the cash for a Samsung... Edited January 31, 2020 by WexfordStyle Quote Link to comment
testdasi Posted January 31, 2020 Share Posted January 31, 2020 2 hours ago, WexfordStyle said: Wow...just stumbled upon this thread trying to get my intel 660p nvme drive working. I was optimistic with all of the back and forth support from limetech on this but see that it has basically been abandoned. I guess I am returning my intel and forking over the cash for a Samsung... It is a kernel problem which is outside of LT control. Kernel-related issues will never be fixed until it's fixed by the power-that-be (the elite few who control the Linux kernel codes) or someone creates a patch (that doesn't end up breaking other stuff) or Intel fixes it on their end (e.g. firmware update). The 660p is dirt cheap for a reason. QLC NVMe is like running a Ferrari with bicycle tires. Quote Link to comment
Emptyless Posted March 2, 2020 Share Posted March 2, 2020 Given that I already have an Intel 660p, what would be the best course of action? I want to dual-boot an existing Windows installation (installed on said device), should I buy a new SSD (TLC or MLC?) and migrate my existing Windows installation to that new disk? I get the following error, which I assume is caused by the Intel 660p: table & pba overlap, or they don't fit in BARs, or don't align Thanks in advance! Quote Link to comment
trurl Posted March 2, 2020 Share Posted March 2, 2020 52 minutes ago, Emptyless said: Given that I already have an Intel 660p, what would be the best course of action? I want to dual-boot an existing Windows installation (installed on said device), should I buy a new SSD (TLC or MLC?) and migrate my existing Windows installation to that new disk? I get the following error, which I assume is caused by the Intel 660p: table & pba overlap, or they don't fit in BARs, or don't align Thanks in advance! So are you wanting to run a Windows VM and pass the NVME through (the subject of this thread), or just use it to boot Windows instead of Unraid? Quote Link to comment
Emptyless Posted March 2, 2020 Share Posted March 2, 2020 1 minute ago, trurl said: So are you wanting to run a Windows VM and pass the NVME through (the subject of this thread), or just use it to boot Windows instead of Unraid? Both actually. I have a bare metal windows install which I want to still be able to boot when shutting down Unraid. But whenever I have started Unraid I want to be able to spin up a VM with Windows 10 by using passthrough for the NVME drive as per guide: I don't foresee shutting down Unraid often (maybe once / twice a month) but nevertheless I still want to retain the possibility of booting bare metal Windows. Quote Link to comment
[email protected] Posted May 12, 2020 Share Posted May 12, 2020 On 12/28/2018 at 9:45 PM, aw_ said: Everyone experiencing this issue who has an NVMe drive making use of the SM2262 controller, please: - Report the device model - Report the PCI vendor and device IDs (lspci -nn) - Step through comments 1 and 10 in https://bugzilla.kernel.org/show_bug.cgi?id=202055 to verify the device behaves the same, particularly the MSI-X Count is initially 16, after reset it's reported as 22, but the value remains 16 if a secondary bus reset is triggered via setpci. There's also a patch there for testing, but it only includes the Intel 760p device ID, we'll need to compile a list of all affected device IDs or figure out if there's a way to interrogate the NVMe controller interface to find the these chips since it seems to be in use by Intel, Mushkin, ADATA, and WD. Thanks Hi, im getting this error with a Crucial CT500P1SSD8 P1 500 GB, I need to buy a larger nvme anyway but how do I know what controller each NVME uses before I buy? For example, do all Samsung use the same controller or do I have to go by specific model? thanks Quote Link to comment
Outcasst Posted May 23, 2020 Share Posted May 23, 2020 Also trying to passthrough a 660p bare metal to a VM with no success. Same error as those in this thread. Quote Link to comment
raujaku Posted July 25, 2020 Share Posted July 25, 2020 You cant pass through the NVME through stubbing but you can use it by changing your vdisk path to your /dev/disk/by-id/(your-nvme) location. 1 Quote Link to comment
TurkeyPerson Posted July 28, 2020 Share Posted July 28, 2020 Getting this same error on a sound card: [13f6:5011] 04:00.0 Audio device: C-Media Electronics Inc CM8888 [Oxygen Express] Quote Link to comment
urhellishntemre Posted August 7, 2020 Share Posted August 7, 2020 Does anyone know if an Intel 660p would be okay with being run in the cache pool? I know hardware passthrough doesn't work, I am curious, if I can buy a few of these on the cheap, and replace them with my exist 500GB sata ssds for my cache pool. I never tested that when I had the 660p originally, before I returned it and got a samsung drive. Quote Link to comment
ghan1 Posted October 6, 2020 Share Posted October 6, 2020 On 7/25/2020 at 12:40 AM, raujaku said: You cant pass through the NVME through stubbing but you can use it by changing your vdisk path to your /dev/disk/by-id/(your-nvme) location. it worked for me. But I want to know what's the difference between stubbing and the 'by-id' method? Quote Link to comment
Maker Posted October 10, 2020 Share Posted October 10, 2020 But can you boot from device? I think that is why people passthrough their drives Quote Link to comment
Shadz Posted October 26, 2020 Share Posted October 26, 2020 On 7/24/2020 at 10:40 PM, raujaku said: You cant pass through the NVME through stubbing but you can use it by changing your vdisk path to your /dev/disk/by-id/(your-nvme) location. I tried this but it didn't work. Just making sure I did the correct thing: completely new install. I had stubbed the NVMe, then unstubbed it, and referred to the NVMe by it's id (the whole drive). Did I do that correctly? Should I refer to one of the partitions in particular? Quote Link to comment
PLANTROON Posted December 29, 2020 Share Posted December 29, 2020 (edited) For Intel SSD 660p series, all you need to do is perform a firmware update (the latest firmware is from mid 2020). Not even a workaround is needed after it, just a simple pass-through like with any other PCIe hardware. Edited December 29, 2020 by PLANTROON Quote Link to comment
steve1977 Posted December 29, 2020 Share Posted December 29, 2020 How to update FW of an nvme? Quote Link to comment
BugCat Posted December 30, 2020 Share Posted December 30, 2020 On 12/28/2020 at 6:50 PM, steve1977 said: How to update FW of an nvme? First get a copy of intelmas Then follow the instructions detailed here Quote Link to comment
Maker Posted December 31, 2020 Share Posted December 31, 2020 Confirmed with 760p as well. Quote Link to comment

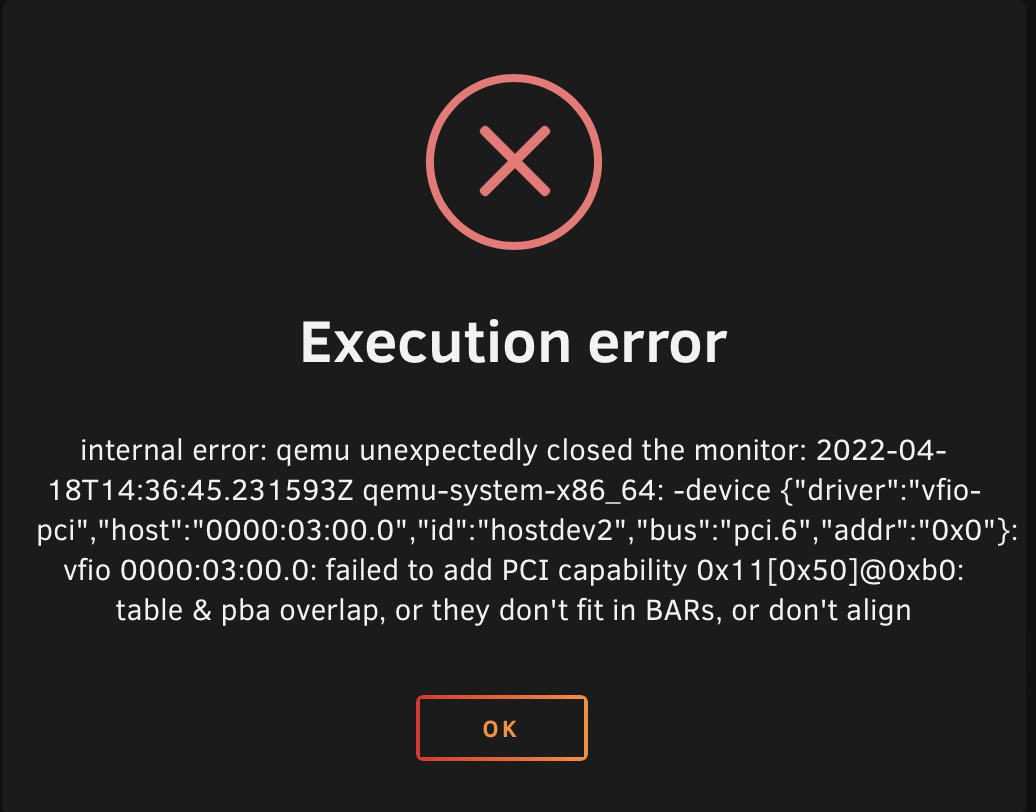

spl147 Posted April 18, 2022 Share Posted April 18, 2022 (edited) im still getting this error on 6.10.0 rc4 nvme is a Transend TS128GMTE110S [126f:2263] 03:00.0 Non-Volatile memory controller: Silicon Motion, Inc. SM2263EN/SM2263XT SSD Controller (rev 03) Edited April 18, 2022 by spl147 Quote Link to comment
ghost82 Posted April 19, 2022 Share Posted April 19, 2022 (edited) 22 hours ago, spl147 said: im still getting this error Firmware crap (often seen in nvme controllers, but also other devices), not unraid fault, you need to relocate the bar in the xml. Depending on the libvirt/qemu versions, one of the following 3 solutions apply; assign an alias to the nvme controller, then add the custom arg I think for unraid <= 6.10RC2: ... <hostdev mode='subsystem' type='pci' managed='yes'> <source> <address domain='0x0000' bus='0x01' slot='0x00' function='0x0'/> </source> <alias name='YOURNVMEALIAS'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x00' function='0x0'/> </hostdev> ... ... <qemu:commandline> <qemu:arg value='-set'/> <qemu:arg value='device.YOURNVMEALIAS.x-msix-relocation=bar2'/> </qemu:commandline> </domain> Obviously replace the bus/slot/function addresses (source and target) with that of your controller. ------------------------------------------ For Unraid >= 6.10RC3 and libvirt <8.2.0: ... <hostdev mode='subsystem' type='pci' managed='yes'> <source> <address domain='0x0000' bus='0x01' slot='0x00' function='0x0'/> </source> <alias name='YOURNVMEALIAS'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x00' function='0x0'/> </hostdev> ... ... <qemu:commandline> <qemu:arg value='-set'/> <qemu:arg value='device.YOURNVMEALIAS.x-msix-relocation=bar2'/> </qemu:commandline> <qemu:capabilities> <qemu:del capability='device.json'/> </qemu:capabilities> </domain> Obviously replace the bus/slot/function addresses (source and target) with that of your controller. ------------------------------------------ For libvirt>=8.2.0 (a version of unraid with libvirt 8.2.0 is still not released): ... <hostdev mode='subsystem' type='pci' managed='yes'> <source> <address domain='0x0000' bus='0x01' slot='0x00' function='0x0'/> </source> <alias name='YOURNVMEALIAS'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x00' function='0x0'/> </hostdev> ... ... <qemu:override> <qemu:device alias='YOURNVMEALIAS'> <qemu:frontend> <qemu:property name='x-msix-relocation' type='string' value='bar2'/> </qemu:frontend> </qemu:device> </qemu:override> </domain> Obviously replace the bus/slot/function addresses (source and target) with that of your controller. Edited April 19, 2022 by ghost82 Quote Link to comment
spl147 Posted April 19, 2022 Share Posted April 19, 2022 22 minutes ago, ghost82 said: Firmware crap (often seen in nvme controllers, but also other devices), not unraid fault, you need to relocate the bar in the xml. Depending on the libvirt/qemu versions, one of the following 3 solutions apply; assign an alias to the nvme controller, then add the custom arg I think for unraid <= 6.10RC2: ... <hostdev mode='subsystem' type='pci' managed='yes'> <source> <address domain='0x0000' bus='0x01' slot='0x00' function='0x0'/> </source> <alias name='YOURNVMEALIAS'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x00' function='0x0'/> </hostdev> ... ... <qemu:commandline> <qemu:arg value='-set'/> <qemu:arg value='device.YOURNVMEALIAS.x-msix-relocation=bar2'/> </qemu:commandline> </domain> Obviously replace the bus/slot/function addresses (source and target) with that of your controller. ------------------------------------------ For Unraid >= 6.10RC3 and libvirt <8.2.0: ... <hostdev mode='subsystem' type='pci' managed='yes'> <source> <address domain='0x0000' bus='0x01' slot='0x00' function='0x0'/> </source> <alias name='YOURNVMEALIAS'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x00' function='0x0'/> </hostdev> ... ... <qemu:commandline> <qemu:arg value='-set'/> <qemu:arg value='device.YOURNVMEALIAS.x-msix-relocation=bar2'/> </qemu:commandline> <qemu:capabilities> <qemu:del capability='device.json'/> </qemu:capabilities> </domain> Obviously replace the bus/slot/function addresses (source and target) with that of your controller. ------------------------------------------ For libvirt>=8.2.0: ... <hostdev mode='subsystem' type='pci' managed='yes'> <source> <address domain='0x0000' bus='0x01' slot='0x00' function='0x0'/> </source> <alias name='YOURNVMEALIAS'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x00' function='0x0'/> </hostdev> ... ... <qemu:override> <qemu:device alias='YOURNVMEALIAS'> <qemu:frontend> <qemu:property name='x-msix-relocation' type='string' value='bar2'/> </qemu:frontend> </qemu:device> </qemu:override> </domain> Obviously replace the bus/slot/function addresses (source and target) with that of your controller. thank you for the reply, however i do not understand. here is my xml: <?xml version='1.0' encoding='UTF-8'?> <domain type='kvm'> <name>Windows 11</name> <uuid>e42cd44a-88be-9deb-e2a1-57e99d0b3a4a</uuid> <metadata> <vmtemplate xmlns="unraid" name="Windows 11" icon="windows11.png" os="windowstpm"/> </metadata> <memory unit='KiB'>16777216</memory> <currentMemory unit='KiB'>16777216</currentMemory> <memoryBacking> <nosharepages/> </memoryBacking> <vcpu placement='static'>8</vcpu> <cputune> <vcpupin vcpu='0' cpuset='10'/> <vcpupin vcpu='1' cpuset='24'/> <vcpupin vcpu='2' cpuset='11'/> <vcpupin vcpu='3' cpuset='25'/> <vcpupin vcpu='4' cpuset='12'/> <vcpupin vcpu='5' cpuset='26'/> <vcpupin vcpu='6' cpuset='13'/> <vcpupin vcpu='7' cpuset='27'/> </cputune> <os> <type arch='x86_64' machine='pc-q35-6.2'>hvm</type> <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi-tpm.fd</loader> <nvram>/etc/libvirt/qemu/nvram/e42cd44a-88be-9deb-e2a1-57e99d0b3a4a_VARS-pure-efi-tpm.fd</nvram> </os> <features> <acpi/> <apic/> <hyperv> <relaxed state='on'/> <vapic state='on'/> <spinlocks state='on' retries='8191'/> <vendor_id state='on' value='none'/> </hyperv> </features> <cpu mode='host-passthrough' check='none' migratable='on'> <topology sockets='1' dies='1' cores='4' threads='2'/> <cache mode='passthrough'/> </cpu> <clock offset='localtime'> <timer name='hypervclock' present='yes'/> <timer name='hpet' present='no'/> </clock> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>restart</on_crash> <devices> <emulator>/usr/local/sbin/qemu</emulator> <disk type='file' device='disk'> <driver name='qemu' type='raw' cache='writeback'/> <source file='/mnt/disks/Windows_VM/Domain/Windows 11/vdisk1.img'/> <target dev='hdc' bus='virtio'/> <boot order='1'/> <address type='pci' domain='0x0000' bus='0x03' slot='0x00' function='0x0'/> </disk> <controller type='pci' index='0' model='pcie-root'/> <controller type='pci' index='1' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='1' port='0x10'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0' multifunction='on'/> </controller> <controller type='pci' index='2' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='2' port='0x11'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x1'/> </controller> <controller type='pci' index='3' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='3' port='0x12'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x2'/> </controller> <controller type='pci' index='4' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='4' port='0x13'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x3'/> </controller> <controller type='pci' index='5' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='5' port='0x14'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x4'/> </controller> <controller type='pci' index='6' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='6' port='0x8'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0' multifunction='on'/> </controller> <controller type='pci' index='7' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='7' port='0x9'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/> </controller> <controller type='pci' index='8' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='8' port='0xa'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x2'/> </controller> <controller type='pci' index='9' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='9' port='0xb'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x3'/> </controller> <controller type='pci' index='10' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='10' port='0xc'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x4'/> </controller> <controller type='pci' index='11' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='11' port='0xd'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x5'/> </controller> <controller type='pci' index='12' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='12' port='0xe'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x6'/> </controller> <controller type='virtio-serial' index='0'> <address type='pci' domain='0x0000' bus='0x02' slot='0x00' function='0x0'/> </controller> <controller type='sata' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/> </controller> <controller type='usb' index='0' model='qemu-xhci' ports='15'> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0'/> </controller> <interface type='bridge'> <mac address='52:54:00:f1:89:b7'/> <source bridge='virbr0'/> <model type='virtio-net'/> <address type='pci' domain='0x0000' bus='0x01' slot='0x00' function='0x0'/> </interface> <serial type='pty'> <target type='isa-serial' port='0'> <model name='isa-serial'/> </target> </serial> <console type='pty'> <target type='serial' port='0'/> </console> <channel type='unix'> <target type='virtio' name='org.qemu.guest_agent.0'/> <address type='virtio-serial' controller='0' bus='0' port='1'/> </channel> <input type='tablet' bus='usb'> <address type='usb' bus='0' port='1'/> </input> <input type='mouse' bus='ps2'/> <input type='keyboard' bus='ps2'/> <tpm model='tpm-tis'> <backend type='emulator' version='2.0' persistent_state='yes'/> </tpm> <audio id='1' type='none'/> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x05' slot='0x00' function='0x0'/> </source> <rom file='/mnt/user/VM/Domain/vBios/RTX2080.rom'/> <address type='pci' domain='0x0000' bus='0x04' slot='0x00' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x05' slot='0x00' function='0x1'/> </source> <address type='pci' domain='0x0000' bus='0x05' slot='0x00' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <source> <address domain='0x0000' bus='0x03' slot='0x00' function='0x0'/> </source> <address type='pci' domain='0x0000' bus='0x06' slot='0x00' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x05' slot='0x00' function='0x2'/> </source> <address type='pci' domain='0x0000' bus='0x07' slot='0x00' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x05' slot='0x00' function='0x3'/> </source> <address type='pci' domain='0x0000' bus='0x08' slot='0x00' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x07' slot='0x00' function='0x0'/> </source> <address type='pci' domain='0x0000' bus='0x09' slot='0x00' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x08' slot='0x00' function='0x0'/> </source> <address type='pci' domain='0x0000' bus='0x0a' slot='0x00' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x09' slot='0x00' function='0x0'/> </source> <address type='pci' domain='0x0000' bus='0x0b' slot='0x00' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x0a' slot='0x00' function='0x0'/> </source> <address type='pci' domain='0x0000' bus='0x0c' slot='0x00' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x8087'/> <product id='0x0025'/> </source> <address type='usb' bus='0' port='2'/> </hostdev> <memballoon model='none'/> </devices> </domain> here is the device: IOMMU group 52:[126f:2263] 03:00.0 Non-Volatile memory controller: Silicon Motion, Inc. SM2263EN/SM2263XT SSD Controller (rev 03) This controller is bound to vfio, connected drives are not visible. i tried what you said but got the error: no alias "TEST" defined Libvert: 7.10.0 Qemu: 6.20.0 Quote Link to comment
ghost82 Posted April 19, 2022 Share Posted April 19, 2022 (edited) 5 minutes ago, spl147 said: i tried what you said but got the error: no alias "TEST" defined Replace the whole xml with this and save, then try to start the vm: <?xml version='1.0' encoding='UTF-8'?> <domain type='kvm'> <name>Windows 11</name> <uuid>e42cd44a-88be-9deb-e2a1-57e99d0b3a4a</uuid> <metadata> <vmtemplate xmlns="unraid" name="Windows 11" icon="windows11.png" os="windowstpm"/> </metadata> <memory unit='KiB'>16777216</memory> <currentMemory unit='KiB'>16777216</currentMemory> <memoryBacking> <nosharepages/> </memoryBacking> <vcpu placement='static'>8</vcpu> <cputune> <vcpupin vcpu='0' cpuset='10'/> <vcpupin vcpu='1' cpuset='24'/> <vcpupin vcpu='2' cpuset='11'/> <vcpupin vcpu='3' cpuset='25'/> <vcpupin vcpu='4' cpuset='12'/> <vcpupin vcpu='5' cpuset='26'/> <vcpupin vcpu='6' cpuset='13'/> <vcpupin vcpu='7' cpuset='27'/> </cputune> <os> <type arch='x86_64' machine='pc-q35-6.2'>hvm</type> <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi-tpm.fd</loader> <nvram>/etc/libvirt/qemu/nvram/e42cd44a-88be-9deb-e2a1-57e99d0b3a4a_VARS-pure-efi-tpm.fd</nvram> </os> <features> <acpi/> <apic/> <hyperv> <relaxed state='on'/> <vapic state='on'/> <spinlocks state='on' retries='8191'/> <vendor_id state='on' value='none'/> </hyperv> </features> <cpu mode='host-passthrough' check='none' migratable='on'> <topology sockets='1' dies='1' cores='4' threads='2'/> <cache mode='passthrough'/> </cpu> <clock offset='localtime'> <timer name='hypervclock' present='yes'/> <timer name='hpet' present='no'/> </clock> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>restart</on_crash> <devices> <emulator>/usr/local/sbin/qemu</emulator> <disk type='file' device='disk'> <driver name='qemu' type='raw' cache='writeback'/> <source file='/mnt/disks/Windows_VM/Domain/Windows 11/vdisk1.img'/> <target dev='hdc' bus='virtio'/> <boot order='1'/> <address type='pci' domain='0x0000' bus='0x03' slot='0x00' function='0x0'/> </disk> <controller type='pci' index='0' model='pcie-root'/> <controller type='pci' index='1' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='1' port='0x10'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0' multifunction='on'/> </controller> <controller type='pci' index='2' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='2' port='0x11'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x1'/> </controller> <controller type='pci' index='3' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='3' port='0x12'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x2'/> </controller> <controller type='pci' index='4' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='4' port='0x13'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x3'/> </controller> <controller type='pci' index='5' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='5' port='0x14'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x4'/> </controller> <controller type='pci' index='6' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='6' port='0x8'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0' multifunction='on'/> </controller> <controller type='pci' index='7' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='7' port='0x9'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/> </controller> <controller type='pci' index='8' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='8' port='0xa'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x2'/> </controller> <controller type='pci' index='9' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='9' port='0xb'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x3'/> </controller> <controller type='pci' index='10' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='10' port='0xc'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x4'/> </controller> <controller type='pci' index='11' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='11' port='0xd'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x5'/> </controller> <controller type='pci' index='12' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='12' port='0xe'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x6'/> </controller> <controller type='virtio-serial' index='0'> <address type='pci' domain='0x0000' bus='0x02' slot='0x00' function='0x0'/> </controller> <controller type='sata' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/> </controller> <controller type='usb' index='0' model='qemu-xhci' ports='15'> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0'/> </controller> <interface type='bridge'> <mac address='52:54:00:f1:89:b7'/> <source bridge='virbr0'/> <model type='virtio-net'/> <address type='pci' domain='0x0000' bus='0x01' slot='0x00' function='0x0'/> </interface> <serial type='pty'> <target type='isa-serial' port='0'> <model name='isa-serial'/> </target> </serial> <console type='pty'> <target type='serial' port='0'/> </console> <channel type='unix'> <target type='virtio' name='org.qemu.guest_agent.0'/> <address type='virtio-serial' controller='0' bus='0' port='1'/> </channel> <input type='tablet' bus='usb'> <address type='usb' bus='0' port='1'/> </input> <input type='mouse' bus='ps2'/> <input type='keyboard' bus='ps2'/> <tpm model='tpm-tis'> <backend type='emulator' version='2.0' persistent_state='yes'/> </tpm> <audio id='1' type='none'/> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x05' slot='0x00' function='0x0'/> </source> <rom file='/mnt/user/VM/Domain/vBios/RTX2080.rom'/> <address type='pci' domain='0x0000' bus='0x04' slot='0x00' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x05' slot='0x00' function='0x1'/> </source> <address type='pci' domain='0x0000' bus='0x05' slot='0x00' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <source> <address domain='0x0000' bus='0x03' slot='0x00' function='0x0'/> </source> <alias name='ua-sm2263'/> <address type='pci' domain='0x0000' bus='0x06' slot='0x00' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x05' slot='0x00' function='0x2'/> </source> <address type='pci' domain='0x0000' bus='0x07' slot='0x00' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x05' slot='0x00' function='0x3'/> </source> <address type='pci' domain='0x0000' bus='0x08' slot='0x00' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x07' slot='0x00' function='0x0'/> </source> <address type='pci' domain='0x0000' bus='0x09' slot='0x00' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x08' slot='0x00' function='0x0'/> </source> <address type='pci' domain='0x0000' bus='0x0a' slot='0x00' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x09' slot='0x00' function='0x0'/> </source> <address type='pci' domain='0x0000' bus='0x0b' slot='0x00' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x0a' slot='0x00' function='0x0'/> </source> <address type='pci' domain='0x0000' bus='0x0c' slot='0x00' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x8087'/> <product id='0x0025'/> </source> <address type='usb' bus='0' port='2'/> </hostdev> <memballoon model='none'/> </devices> <qemu:commandline> <qemu:arg value='-set'/> <qemu:arg value='device.ua-sm2263.x-msix-relocation=bar2'/> </qemu:commandline> <qemu:capabilities> <qemu:del capability='device.json'/> </qemu:capabilities> </domain> Edited April 19, 2022 by ghost82 Quote Link to comment
spl147 Posted April 19, 2022 Share Posted April 19, 2022 5 minutes ago, ghost82 said: Replace the whole xml with this and save, then try to start the vm: <?xml version='1.0' encoding='UTF-8'?> <domain type='kvm'> <name>Windows 11</name> <uuid>e42cd44a-88be-9deb-e2a1-57e99d0b3a4a</uuid> <metadata> <vmtemplate xmlns="unraid" name="Windows 11" icon="windows11.png" os="windowstpm"/> </metadata> <memory unit='KiB'>16777216</memory> <currentMemory unit='KiB'>16777216</currentMemory> <memoryBacking> <nosharepages/> </memoryBacking> <vcpu placement='static'>8</vcpu> <cputune> <vcpupin vcpu='0' cpuset='10'/> <vcpupin vcpu='1' cpuset='24'/> <vcpupin vcpu='2' cpuset='11'/> <vcpupin vcpu='3' cpuset='25'/> <vcpupin vcpu='4' cpuset='12'/> <vcpupin vcpu='5' cpuset='26'/> <vcpupin vcpu='6' cpuset='13'/> <vcpupin vcpu='7' cpuset='27'/> </cputune> <os> <type arch='x86_64' machine='pc-q35-6.2'>hvm</type> <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi-tpm.fd</loader> <nvram>/etc/libvirt/qemu/nvram/e42cd44a-88be-9deb-e2a1-57e99d0b3a4a_VARS-pure-efi-tpm.fd</nvram> </os> <features> <acpi/> <apic/> <hyperv> <relaxed state='on'/> <vapic state='on'/> <spinlocks state='on' retries='8191'/> <vendor_id state='on' value='none'/> </hyperv> </features> <cpu mode='host-passthrough' check='none' migratable='on'> <topology sockets='1' dies='1' cores='4' threads='2'/> <cache mode='passthrough'/> </cpu> <clock offset='localtime'> <timer name='hypervclock' present='yes'/> <timer name='hpet' present='no'/> </clock> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>restart</on_crash> <devices> <emulator>/usr/local/sbin/qemu</emulator> <disk type='file' device='disk'> <driver name='qemu' type='raw' cache='writeback'/> <source file='/mnt/disks/Windows_VM/Domain/Windows 11/vdisk1.img'/> <target dev='hdc' bus='virtio'/> <boot order='1'/> <address type='pci' domain='0x0000' bus='0x03' slot='0x00' function='0x0'/> </disk> <controller type='pci' index='0' model='pcie-root'/> <controller type='pci' index='1' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='1' port='0x10'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0' multifunction='on'/> </controller> <controller type='pci' index='2' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='2' port='0x11'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x1'/> </controller> <controller type='pci' index='3' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='3' port='0x12'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x2'/> </controller> <controller type='pci' index='4' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='4' port='0x13'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x3'/> </controller> <controller type='pci' index='5' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='5' port='0x14'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x4'/> </controller> <controller type='pci' index='6' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='6' port='0x8'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0' multifunction='on'/> </controller> <controller type='pci' index='7' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='7' port='0x9'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/> </controller> <controller type='pci' index='8' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='8' port='0xa'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x2'/> </controller> <controller type='pci' index='9' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='9' port='0xb'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x3'/> </controller> <controller type='pci' index='10' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='10' port='0xc'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x4'/> </controller> <controller type='pci' index='11' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='11' port='0xd'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x5'/> </controller> <controller type='pci' index='12' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='12' port='0xe'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x6'/> </controller> <controller type='virtio-serial' index='0'> <address type='pci' domain='0x0000' bus='0x02' slot='0x00' function='0x0'/> </controller> <controller type='sata' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/> </controller> <controller type='usb' index='0' model='qemu-xhci' ports='15'> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0'/> </controller> <interface type='bridge'> <mac address='52:54:00:f1:89:b7'/> <source bridge='virbr0'/> <model type='virtio-net'/> <address type='pci' domain='0x0000' bus='0x01' slot='0x00' function='0x0'/> </interface> <serial type='pty'> <target type='isa-serial' port='0'> <model name='isa-serial'/> </target> </serial> <console type='pty'> <target type='serial' port='0'/> </console> <channel type='unix'> <target type='virtio' name='org.qemu.guest_agent.0'/> <address type='virtio-serial' controller='0' bus='0' port='1'/> </channel> <input type='tablet' bus='usb'> <address type='usb' bus='0' port='1'/> </input> <input type='mouse' bus='ps2'/> <input type='keyboard' bus='ps2'/> <tpm model='tpm-tis'> <backend type='emulator' version='2.0' persistent_state='yes'/> </tpm> <audio id='1' type='none'/> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x05' slot='0x00' function='0x0'/> </source> <rom file='/mnt/user/VM/Domain/vBios/RTX2080.rom'/> <address type='pci' domain='0x0000' bus='0x04' slot='0x00' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x05' slot='0x00' function='0x1'/> </source> <address type='pci' domain='0x0000' bus='0x05' slot='0x00' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <source> <address domain='0x0000' bus='0x03' slot='0x00' function='0x0'/> </source> <alias name='ua-sm2263'/> <address type='pci' domain='0x0000' bus='0x06' slot='0x00' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x05' slot='0x00' function='0x2'/> </source> <address type='pci' domain='0x0000' bus='0x07' slot='0x00' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x05' slot='0x00' function='0x3'/> </source> <address type='pci' domain='0x0000' bus='0x08' slot='0x00' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x07' slot='0x00' function='0x0'/> </source> <address type='pci' domain='0x0000' bus='0x09' slot='0x00' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x08' slot='0x00' function='0x0'/> </source> <address type='pci' domain='0x0000' bus='0x0a' slot='0x00' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x09' slot='0x00' function='0x0'/> </source> <address type='pci' domain='0x0000' bus='0x0b' slot='0x00' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x0a' slot='0x00' function='0x0'/> </source> <address type='pci' domain='0x0000' bus='0x0c' slot='0x00' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x8087'/> <product id='0x0025'/> </source> <address type='usb' bus='0' port='2'/> </hostdev> <memballoon model='none'/> </devices> <qemu:commandline> <qemu:arg value='-set'/> <qemu:arg value='device.ua-sm2263.x-msix-relocation=bar2'/> </qemu:commandline> <qemu:capabilities> <qemu:del capability='device.json'/> </qemu:capabilities> </domain> Started right up!!! thank you so much! 1 Quote Link to comment
ghost82 Posted April 19, 2022 Share Posted April 19, 2022 1 minute ago, spl147 said: Started right up!!! thank you so much! Please take into account that above xml will need to be changed once 6.10RC5 or stable will be released, since this will include the newer libvirt 8.2.0. More into details it's not recommended the workaround I proposed, i.e. delete the capability of device.json, but a workaround was only fixed with libvirt 8.2.0. Anyway, if you won't be able to fix it by yourself, come again here and ask. Quote Link to comment
spl147 Posted April 19, 2022 Share Posted April 19, 2022 1 minute ago, ghost82 said: Please take into account that above xml will need to be changed once 6.10RC5 or stable will be released, since this will include the newer libvirt 8.2.0. More into details it's not recommended the workaround I proposed, i.e. delete the capability of device.json, but a workaround was only fixed with libvirt 8.2.0. Anyway, if you won't be able to fix it by yourself, come again here and ask. i only needed to pass it through to update it's firmware, this is my only windows box. but no new firmware is available. so i will be removing it now. Quote Link to comment
JackieWu Posted April 21, 2022 Share Posted April 21, 2022 On 4/19/2022 at 9:01 PM, ghost82 said: Firmware crap (often seen in nvme controllers, but also other devices), not unraid fault, you need to relocate the bar in the xml. Depending on the libvirt/qemu versions, one of the following 3 solutions apply; assign an alias to the nvme controller, then add the custom arg I think for unraid <= 6.10RC2: ... <hostdev mode='subsystem' type='pci' managed='yes'> <source> <address domain='0x0000' bus='0x01' slot='0x00' function='0x0'/> </source> <alias name='YOURNVMEALIAS'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x00' function='0x0'/> </hostdev> ... ... <qemu:commandline> <qemu:arg value='-set'/> <qemu:arg value='device.YOURNVMEALIAS.x-msix-relocation=bar2'/> </qemu:commandline> </domain> Obviously replace the bus/slot/function addresses (source and target) with that of your controller. ------------------------------------------ For Unraid >= 6.10RC3 and libvirt <8.2.0: ... <hostdev mode='subsystem' type='pci' managed='yes'> <source> <address domain='0x0000' bus='0x01' slot='0x00' function='0x0'/> </source> <alias name='YOURNVMEALIAS'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x00' function='0x0'/> </hostdev> ... ... <qemu:commandline> <qemu:arg value='-set'/> <qemu:arg value='device.YOURNVMEALIAS.x-msix-relocation=bar2'/> </qemu:commandline> <qemu:capabilities> <qemu:del capability='device.json'/> </qemu:capabilities> </domain> Obviously replace the bus/slot/function addresses (source and target) with that of your controller. ------------------------------------------ For libvirt>=8.2.0 (a version of unraid with libvirt 8.2.0 is still not released): ... <hostdev mode='subsystem' type='pci' managed='yes'> <source> <address domain='0x0000' bus='0x01' slot='0x00' function='0x0'/> </source> <alias name='YOURNVMEALIAS'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x00' function='0x0'/> </hostdev> ... ... <qemu:override> <qemu:device alias='YOURNVMEALIAS'> <qemu:frontend> <qemu:property name='x-msix-relocation' type='string' value='bar2'/> </qemu:frontend> </qemu:device> </qemu:override> </domain> Obviously replace the bus/slot/function addresses (source and target) with that of your controller. Thanks man ! You are great ! 1 Quote Link to comment
