[PLUGIN] GPU Statistics


Recommended Posts

50 minutes ago, Juani said:

Thanks SimonF for your quickly response.



Something very strange is happening. In your plugin, when I change "Change me" to "Intel" and click on "Apply", it does not save the changes.
I have tried several browsers, and nothing.
To make sure, I have reinstalled the ""official"" Plugin and it does let me save the changes.

OK thanks will look into it. The standard plugin will just run



intel_gpu_top -J -s 250 so if that is producing output it should show in the gui.

Link to comment
6 minutes ago, SimonF said:

OK thanks will look into it. The standard plugin will just run



intel_gpu_top -J -s 250 so if that is producing output it should show in the gui.

Thanks mate.

intel_gpu_top -J -s 250 is producing output but in the GUI not work.... Nor by modifying the gpustat.cfg to 0000:00:02.0..

I will also wait to see if your plugin is fixed.



Thanks for all



Link to comment
13 minutes ago, Juani said:

Thanks mate.

intel_gpu_top -J -s 250 is producing output but in the GUI not work.... Nor by modifying the gpustat.cfg to 0000:00:02.0..

I will also wait to see if your plugin is fixed.



Thanks for all



If you install my plugin you will just need to manually change to the following in the .cfg



VENDOR = "intel"
GPUID = "0000:00:02.1"





Link to comment
45 minutes ago, SimonF said:

If you install my plugin you will just need to manually change to the following in the .cfg



VENDOR = "intel"
GPUID = "0000:00:02.1"





Nothing....

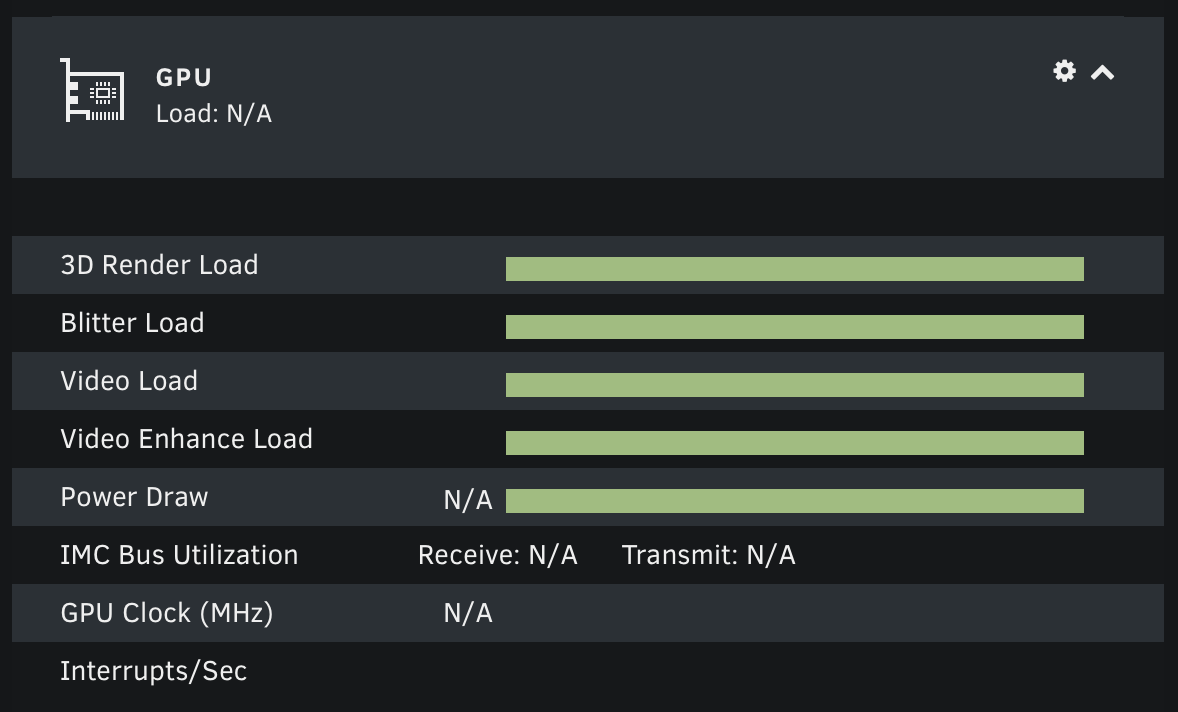

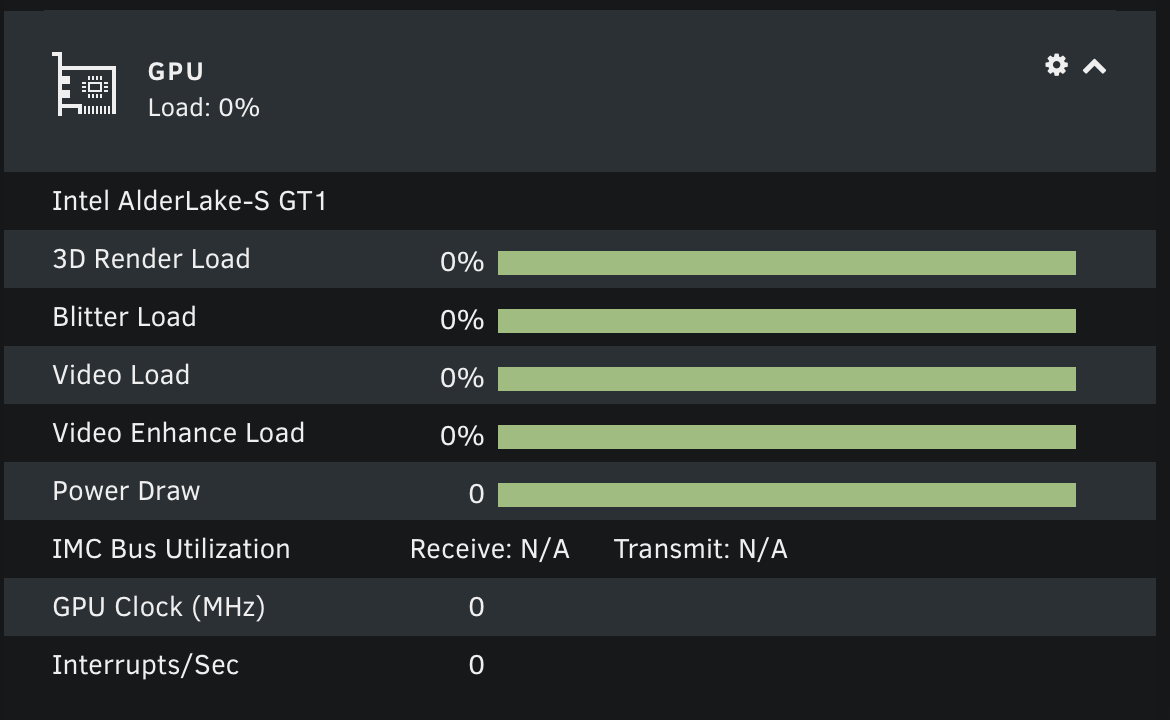

with your plugin and 0000:00:02.1, the GUI displays N/A. And with 0000:00:02.0, the GUI display 0% load. I just playing one movie in Plex with HW Transcoding..

Captura de pantalla 2023-03-19 a las 22.21.52.png

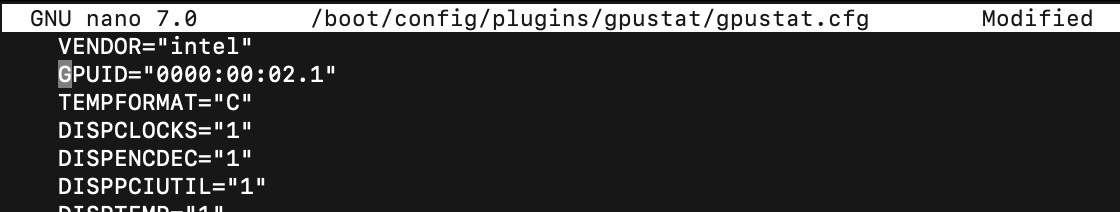

Captura de pantalla 2023-03-19 a las 22.21.27.png113876738_Capturadepantalla2023-03-19alas22_26_52.thumb.png.dfd63070dffd4bdaec023e5398a5df47.png

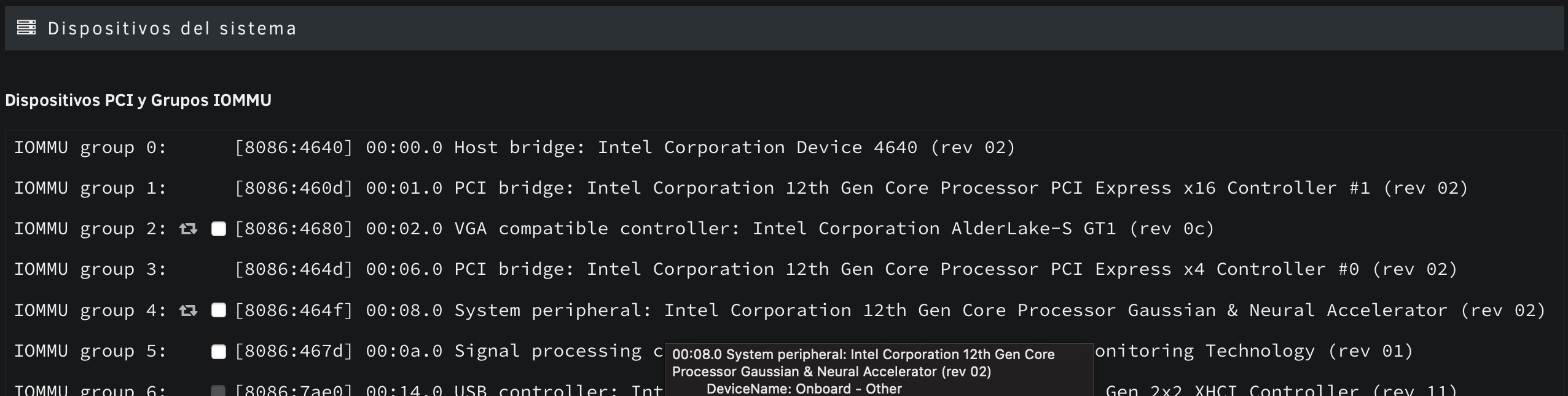

Captura de pantalla 2023-03-19 a las 22.24.51.png

Edited by Juani
Link to comment
2 minutes ago, Juani said:

Nothing....

with your plugin and 0000:00:02.1, the GUI displays N/A. And with 0000:00:02.0, the GUI display 0% load. I just playing one movie in Plex with HW Transcoding..

Captura de pantalla 2023-03-19 a las 22.21.52.png

Captura de pantalla 2023-03-19 a las 22.21.27.png

Captura de pantalla 2023-03-19 a las 22.25.29.png

Captura de pantalla 2023-03-19 a las 22.24.51.png

yes sorry should have been 02.0



do you see /tmp/gpujson2 now?

Link to comment
24 minutes ago, SimonF said:

yes sorry should have been 02.0



do you see /tmp/gpujson2 now?

Yes,



Time = Sun, 19 Mar 2023 22:51:58 +0100

{"clock":0,"fan":"N\/A","memclock":"N\/A","memutil":"N\/A","memused":"N\/A","power":"0","powermax":"N\/A","rxutil":"N\/A","txutil":"N\/A","temp":"N\/A","tempmax":"N\/A","util":"0%","vendor":"Intel","name":"AlderLake-S GT1","3drender":"0%","blitter":"0%","interrupts":0,"powerutil":"0%","video":"0%","videnh":"0%"}

Edited by Juani
Link to comment
2 minutes ago, Juani said:

It seems so, with the recent update. But the error of not saving the settings when hitting "Apply" persists. At least in my case.

Not sure why that is as was working fine on both 6.11.5 and 6.12 I have not changed the dashboard for 6.11 so that is strange.

Link to comment

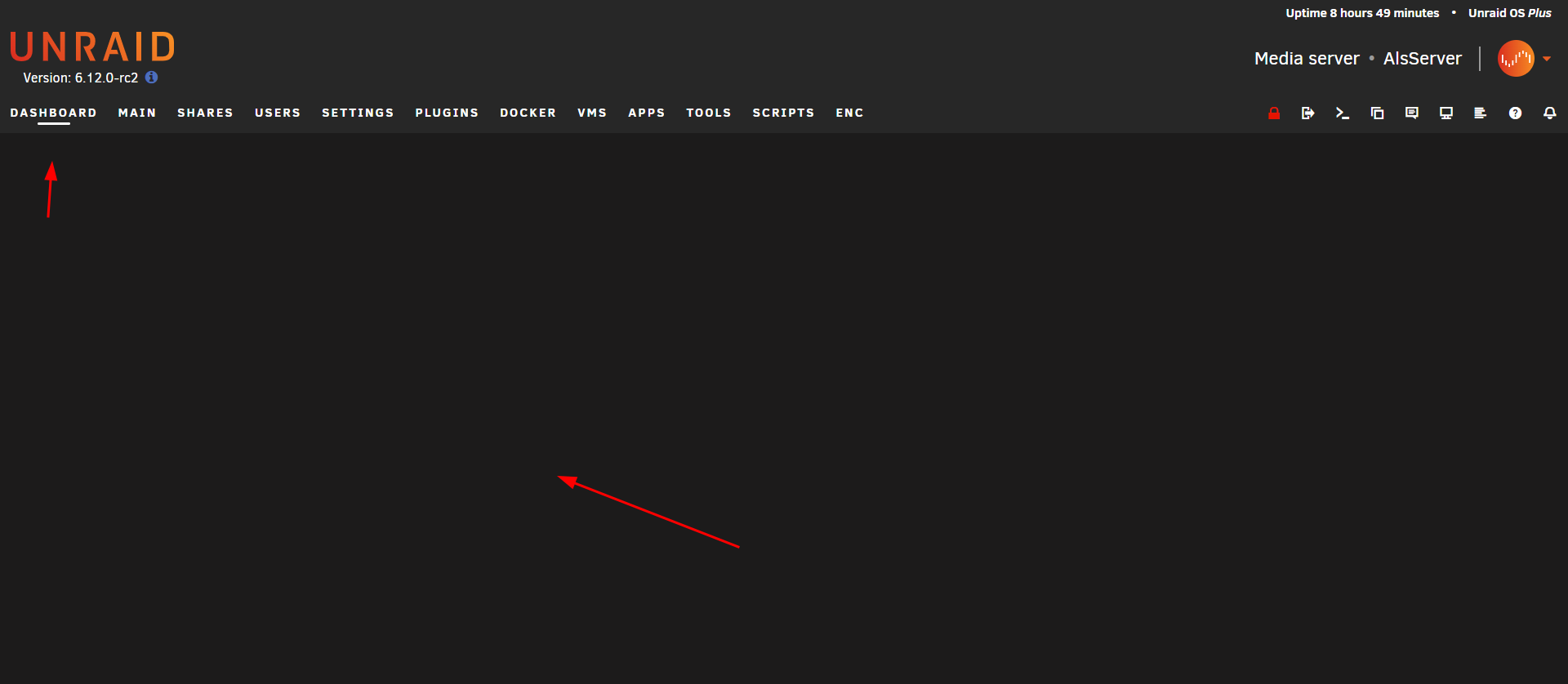

may as small feedback, fresh install of the plugin ends here in a empty dash ... worked before besides saving disabling any card.



Mar 21 22:31:22 AlsServer root: plugin: creating: /boot/config/plugins/gpustat/gpustat-2023.03.21a-x86_64.txz - downloading from URL https://raw.githubusercontent.com/SimonFair/gpustat-unraid/master/pkg/gpustat-2023.03.21a-x86_64.txz
Mar 21 22:31:23 AlsServer root: plugin: running: upgradepkg --install-new /boot/config/plugins/gpustat/gpustat-2023.03.21a-x86_64.txz
Mar 21 22:31:23 AlsServer root: plugin: creating: /boot/config/plugins/gpustat/gpustat.cfg - from INLINE content
Mar 21 22:31:23 AlsServer root: plugin: gpustat.plg installed
Mar 21 22:32:42 AlsServer root: plugin: running: anonymous






i have multi GPU setup



intel igpu and 2 x Nvidia's as note

Link to comment
6 minutes ago, alturismo said:

may as small feedback, fresh install of the plugin ends here in a empty dash ... worked before besides saving disabling any card.



Mar 21 22:31:22 AlsServer root: plugin: creating: /boot/config/plugins/gpustat/gpustat-2023.03.21a-x86_64.txz - downloading from URL https://raw.githubusercontent.com/SimonFair/gpustat-unraid/master/pkg/gpustat-2023.03.21a-x86_64.txz
Mar 21 22:31:23 AlsServer root: plugin: running: upgradepkg --install-new /boot/config/plugins/gpustat/gpustat-2023.03.21a-x86_64.txz
Mar 21 22:31:23 AlsServer root: plugin: creating: /boot/config/plugins/gpustat/gpustat.cfg - from INLINE content
Mar 21 22:31:23 AlsServer root: plugin: gpustat.plg installed
Mar 21 22:32:42 AlsServer root: plugin: running: anonymous






i have multi GPU setup



intel igpu and 2 x Nvidia's as note

Which version. are you running?

Edited by SimonF
Link to comment
5 minutes ago, alturismo said:

ok, this happens without setup, so after i setup a card dash is back up again






and then its working as expected, so its just the 1st setup without config which causes this issue, just as note

Thanks will look into it.

Link to comment

Hello.



I just looked up some of the earlier postings, but I did not find this.

Maybe I did just not recognise it, because my english is not the best?



Since I was tempted to change my BTRFS Pool Raid0 to ZFS (and a warning for the plugin update 'disclocation' not beeing compatible to unraid 6.11.5 stable any more) I updated all my plugins and then unraid from 6.11.5 stable to 6.12.0-rc2.

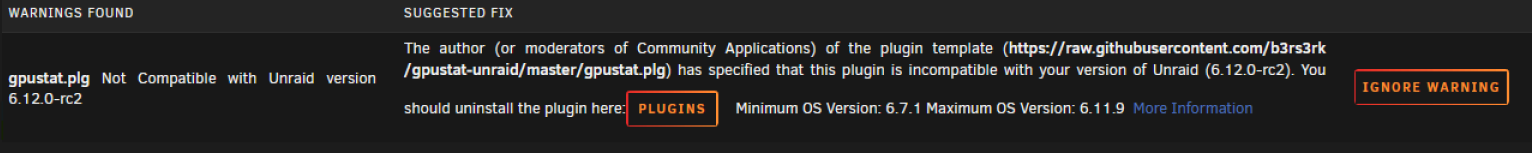

After a reboot and some testing  'fix common problems' greeted me with a warning for this plugin.

After I uninstalled it, the warning was gone.

Will there be an updated/6.12 compatible version of this Plugin?



GPU-STST-612-0-rc2-2023-03-23 17_02_38-102 Tessa Main (TESSA-MAIN1064) – VNC Viewer.png

Edited by DataCollector
Link to comment
37 minutes ago, DataCollector said:

Will there be an updated/6.12 compatible version of this Plugin?

Please install the updated plugin from @SimonF until @b3rs3rk merges his Pull Request with this link (simply go to Plugins -> Install Plugin -> paste the link -> click Install):

https://raw.githubusercontent.com/SimonFair/gpustat-unraid/master/gpustat.plg



It has also some cool improvements like multi GPU support. :)

  • Thanks 2
Link to comment
Quote



intel_gpu_top -J pci:slot=0000:00:02.0

{
        "period": {
                "duration": 30.432867,
                "unit": "ms"
        },
        "frequency": {
                "requested": 0.000000,
                "actual": 0.000000,
                "unit": "MHz"
        },
        "interrupts": {
                "count": 32.859211,
                "unit": "irq/s"
        },
        "rc6": {
                "value": 100.000000,
                "unit": "%"
        },
        "power": {
                "GPU": 0.000000,
                "Package": 11.437749,
                "unit": "W"
        },
        "imc-bandwidth": {
                "reads": 3472.916170,
                "writes": 292.405664,
                "unit": "MiB/s"
        },
        "engines": {
                "Render/3D/0": {
                        "busy": 0.000000,
                        "sema": 0.000000,
                        "wait": 0.000000,
                        "unit": "%"
                },
                "Blitter/0": {
                        "busy": 0.000000,
                        "sema": 0.000000,
                        "wait": 0.000000,
                        "unit": "%"
                },
                "Video/0": {
                        "busy": 0.000000,
                        "sema": 0.000000,
                        "wait": 0.000000,
                        "unit": "%"
                },
                "VideoEnhance/0": {
                        "busy": 0.000000,
                        "sema": 0.000000,
                        "wait": 0.000000,
                        "unit": "%"
                }
        },
        "clients": {

        }
}



Quote

root@Unraid:~# cat /tmp/gpujson2
cat: /tmp/gpujson2: No such file or directory
root@Unraid:~# cat /tmp/gpujson
Time = Sun, 26 Mar 2023 16:44:04 +0800

Quote

gpustat.cfg:

VENDOR="intel"

    GPUID="0000:00:02.0"

    TEMPFORMAT="C"

    DISPCLOCKS="1"

    DISPENCDEC="1"

    DISPPCIUTIL="1"

    DISPTEMP="1"

    DISPFAN="1"

    DISPPWRDRAW="1"

    DISPPWRSTATE="1"

    DISPTHROTTLE="1"

    DISPSESSIONS="1"

    UIREFRESH="1"

    UIREFRESHINT="1000"

    DISPMEMUTIL="1"

    DISP3DRENDER="1"

    DISPBLITTER="1"

    DISPVIDEO="1"

    DISPVIDENH="1"

    DISPINTERRUPT="1"

    DISPEVENT="1"

    DISPVERTEX="1"

    DISPTEXTURE="1"

    DISPSHADEREXP="1"

    DISPSEQUENCER="1"

    DISPSHADERINTER="1"

    DISPSCANCON="1"

    DISPPRIMASSEM="1"

    DISPDEPTHBLK="1"

    DISPCOLORBLK="1"

    DISPGFXTRANS="1"

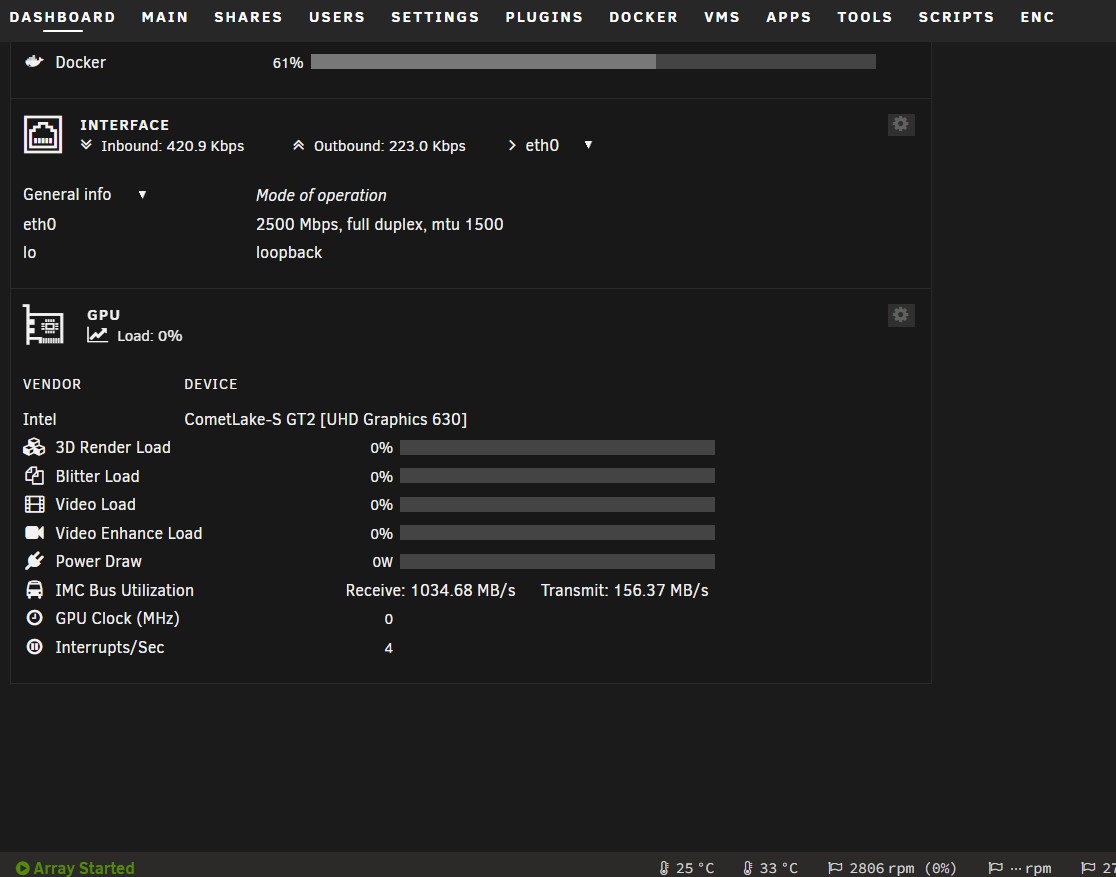

ALL is changed, but dashboard still not work ,please help ,thank you

my CPU is W-1290P (P630 , 9BC6)

Edited by insomnia417
Link to comment
24 minutes ago, insomnia417 said:

ALL is changed, but dashboard still not work ,please help ,thank you

my CPU is W-1290P (P630 , 9BC6)

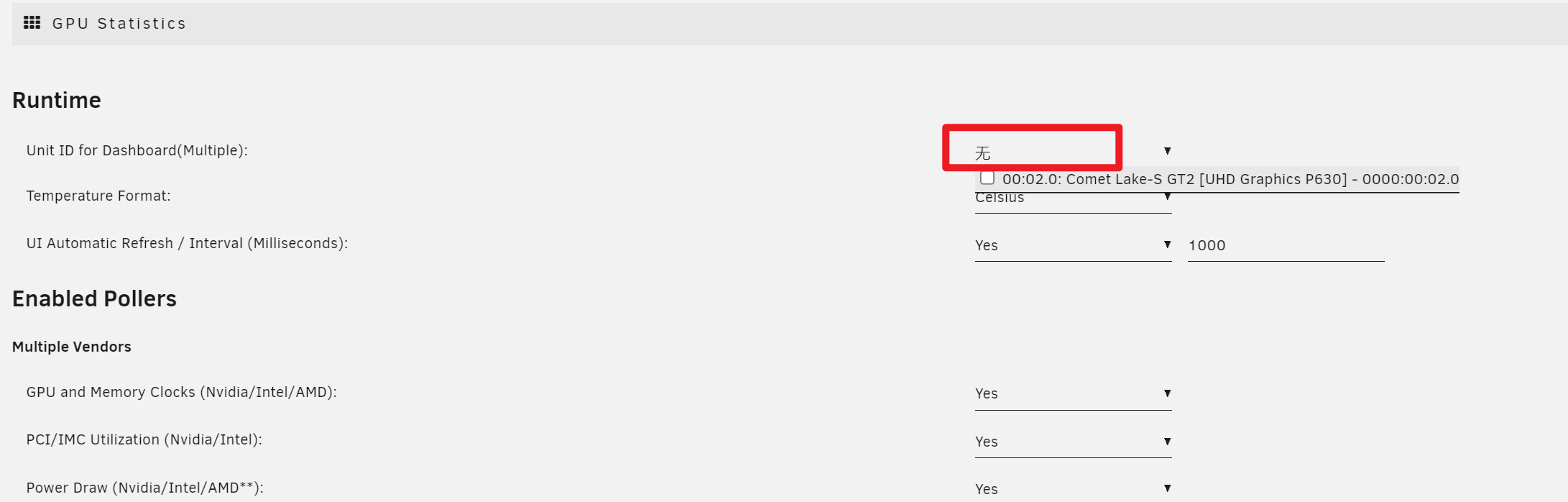

Which version are you running and are you running 6.12rc? Have you been into the settings and selected GPU? Can you do a screen print.
