[Plugin] DVB-Driver


ich777

Recommended Posts



6 hours ago, Ramiii said:

there is no error , the container starts fine , but the web interface doesn't open , no error message

What does the log say from the container?

Have you also tried to empty your browser cache?

If nothing works I would recommend to:

  1. Delete the Container
  2. Delete the tvheadend folder from you appdata directory
  3. Pull a fresh copy from the CA App
Link to comment
14 hours ago, ich777 said:



What does the log say from the container?

Have you also tried to empty your browser cache?

If nothing works I would recommend to:

  1. Delete the Container
  2. Delete the tvheadend folder from you appdata directory
  3. Pull a fresh copy from the CA App

Thank you , no luck with Linuxserver docker container , but I got it working with binhex version , not sure what's the issue is but everything is working now

  • Like 1
Link to comment
  • 2 weeks later...

Hi together,

I started working with unraid last year and I'm very happy with it. Recently I found my (a bit too) old DVB-S card (DigitalDevices Cine S2) and installed it in my unraid server.

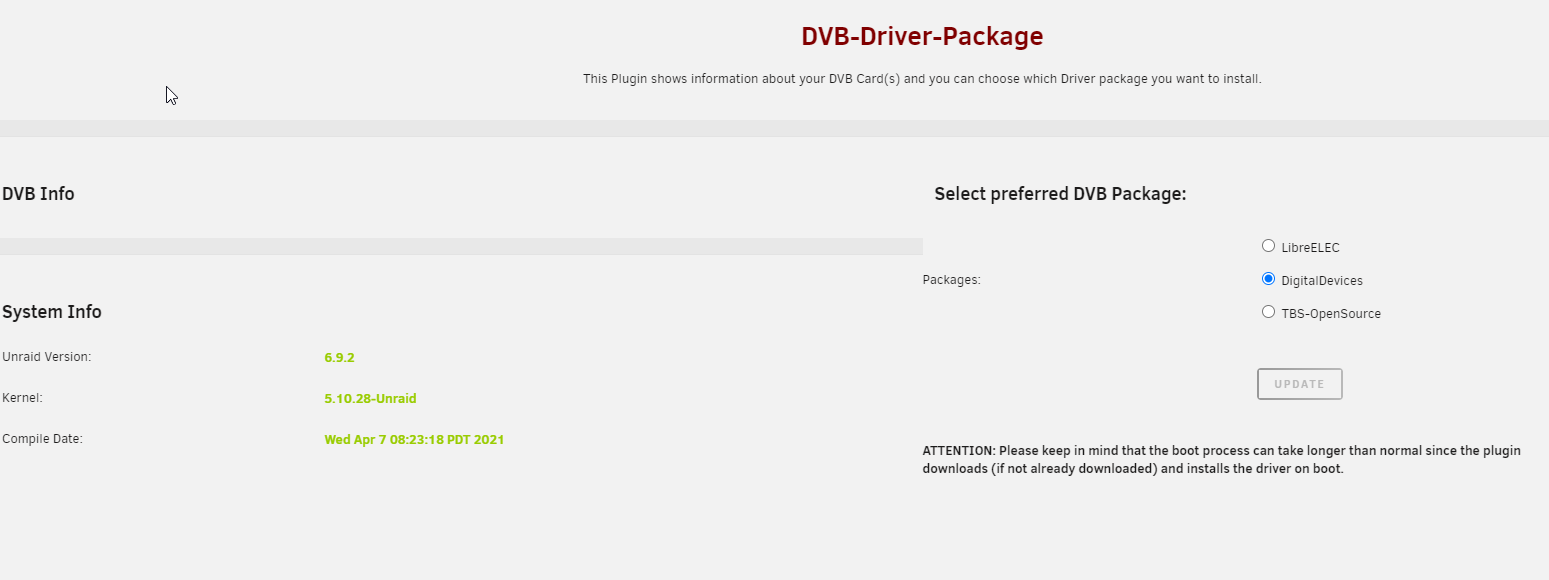

After installing the dvb drivers plugin I switched to digital devices driver since it is a DD card, but I can't see anything in dvb info section.

Do you have any idea which could be the problem?



Thank you in advance.


lspci.txt dmesg.txt

Link to comment
3 minutes ago, ich777 said:

This is a V5.5 card, this plugin supports only V6.0+ cards.



You can try however the LibreELEC package but I'm not too sure if that works because V5.5 cards are pretty old now...

Thanks for very fast reply.

I will try libreELEC package and will give a feedback afterwards.

Link to comment
1 hour ago, zinnchen said:

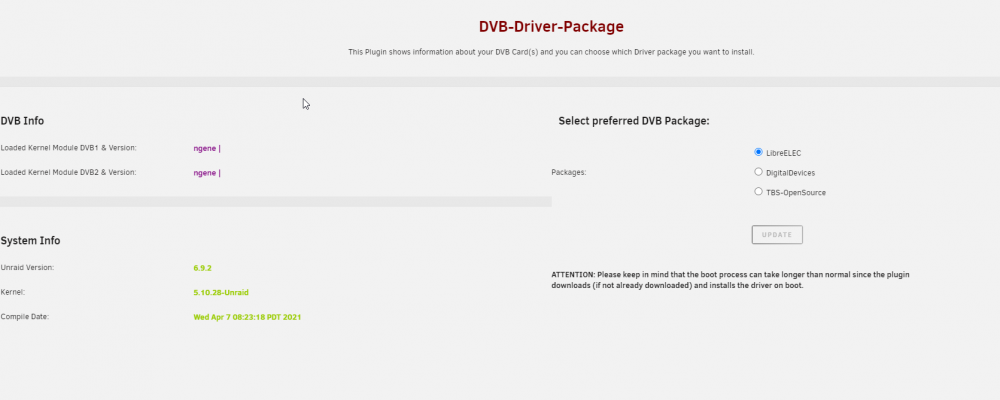

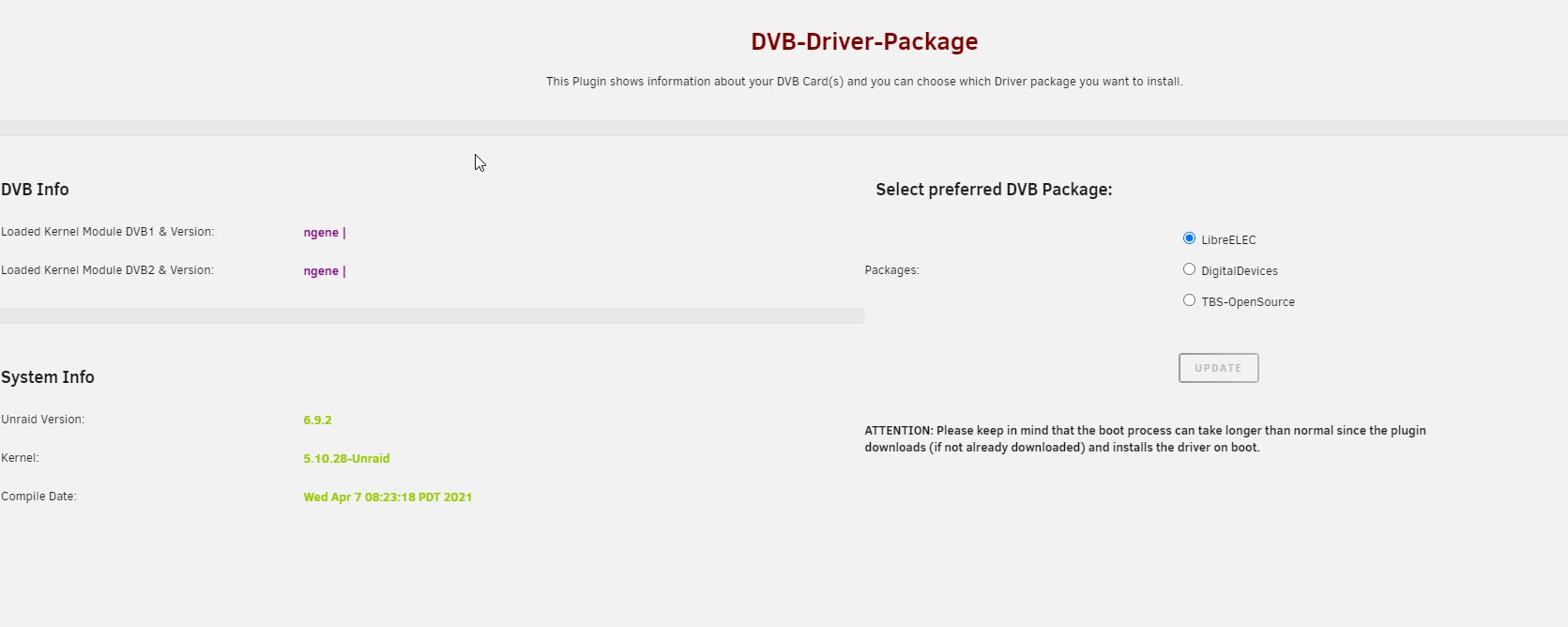

Now I can see two modules in dvbinfo, but without version.

This should not be a problem (can't parse every version correctly since some modules have very weird naming schemes for the version if they are existent at all).



Can you open up a terminal from unRAID and do:

ls /dev/dvb



If you get a output with in your case "adapter0" and "adapter1" your card should work fine. :)

Link to comment
4 minutes ago, ich777 said:

This should not be a problem (can't parse every version correctly since some modules have very weird naming schemes for the version if they are existent at all).



Can you open up a terminal from unRAID and do:

ls /dev/dvb



If you get a output with in your case "adapter0" and "adapter1" your card should work fine. :)

Yes, this works! I see adapter0 and adapter1. Installed tvheadend docker container and can see these two modules two.

Thank you!!



Will plug two cables this evening and hope that the rest will work also.

  • Like 1
Link to comment
  • 4 weeks later...

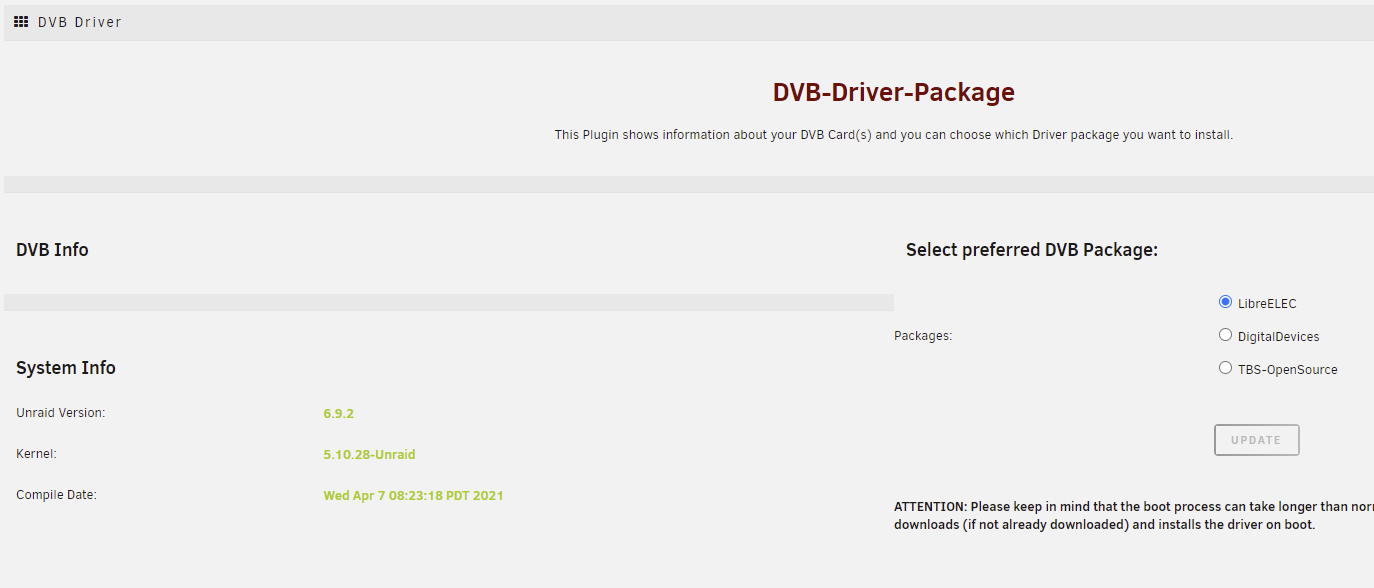

I can not for the life of me get my HVR2250/SAA7164 working. I finally got the DVB driver to install and modprobe, and it shows in the systemlog, but it doesn't show in the DBV Plugin, nor does /dev/dvb exist. Rebooted multiple times with no change. Trying to use it with Plex Live TV feature.



System Info

Unraid Version:6.9.2

Kernel:5.10.28-Unraid

Compile Date:Wed Apr 7 08:23:18 PDT 2021



Logs.txt

Edited by MatthewH12
Link to comment
34 minutes ago, MatthewH12 said:

Thanks for getting back so quickly! I was surprised it wasn't just install and go...

Some cards like Hauppauge need some tweaks and is even discribed in the Linux TV Wiki because these cards are a bit "special"... :D



Please do the following:

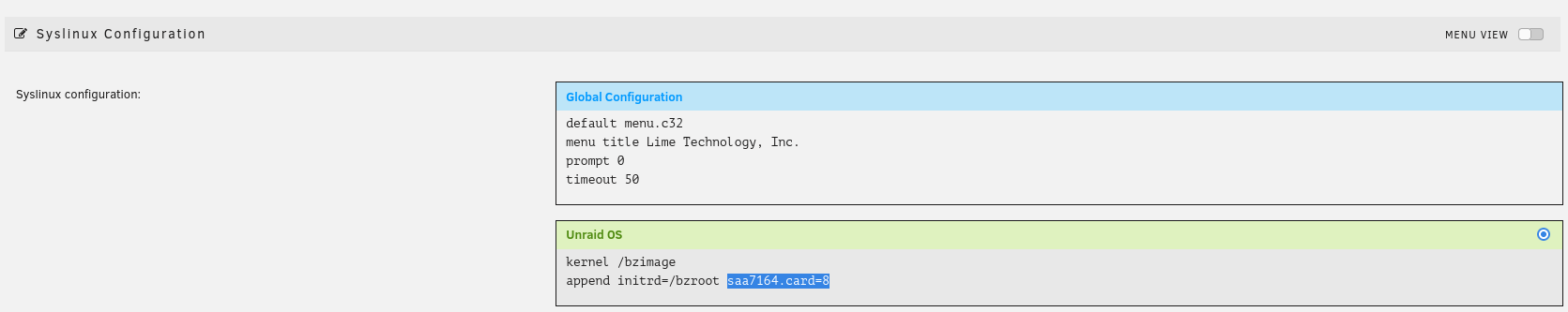

In Unraid go to 'Main' click on 'Flash' (blue text) then append 'saa7164.card=8' to the green box like:


press 'Apply' on the bottom and then reboot.



After that the directory /dev/dvb should be visible and the tuners should show up.



Link to comment
14 minutes ago, ich777 said:

Some cards like Hauppauge need some tweaks and is even discribed in the Linux TV Wiki because these cards are a bit "special"... :D



Please do the following:

In Unraid go to 'Main' click on 'Flash' (blue text) then append 'saa7164.card=8' to the green box like:


press 'Apply' on the bottom and then reboot.



After that the directory /dev/dvb should be visible and the tuners should show up.



No luck. =(
root@HomeSRV:~# ls /dev/dvb
/bin/ls: cannot access '/dev/dvb': No such file or directory





Link to comment
23 minutes ago, Hairball359 said:

sorry see attached.

From what I see you've selected the TBS-OS package to download, please select the LibreELEC package and reboot once more, from your logs everything look alright except that the wrong package gets installed.



Please also don't use the TVHeadedn plugin, I would rather recommend using a container instaed of the plugin.



If it doesn't show up after the reboot please pull the Diagnostics again and post them here.

Link to comment
16 minutes ago, ich777 said:

From what I see you've selected the TBS-OS package to download, please select the LibreELEC package and reboot once more, from your logs everything look alright except that the wrong package gets installed.



Please also don't use the TVHeadedn plugin, I would rather recommend using a container instaed of the plugin.



If it doesn't show up after the reboot please pull the Diagnostics again and post them here.

thank you this worked.



im not sure how because i tried this setting before and it didnt but im happy it is now.

  • Like 1
Link to comment
7 hours ago, ich777 said:

Can you send me the Diagnostics again please?

Oh yeah, sorry! homesrv-diagnostics-20220216-1212.zip



If I had to guess, these lines from the syslog, look problematic.

Feb 16 15:17:31 HomeSRV kernel: mc: Linux media interface: v0.10
Feb 16 15:17:31 HomeSRV kernel: videodev: Linux video capture interface: v2.00
Feb 16 15:17:31 HomeSRV kernel: CORE saa7164[0]: subsystem: 0070:8851, board: Hauppauge WinTV-HVR2250 [card=7,insmod option]
Feb 16 15:17:31 HomeSRV kernel: saa7164[0]/0: found at 0000:01:00.0, rev: 129, irq: 16, latency: 0, mmio: 0xdf000000
Feb 16 15:17:31 HomeSRV kernel: saa7164_downloadfirmware() no first image
Feb 16 15:17:31 HomeSRV kernel: saa7164_downloadfirmware() Waiting for firmware upload (NXP7164-2010-03-10.1.fw)
Feb 16 15:17:31 HomeSRV kernel: saa7164_downloadfirmware() firmware read 4019072 bytes.
Feb 16 15:17:31 HomeSRV kernel: saa7164_downloadfirmware() firmware loaded.
Feb 16 15:17:31 HomeSRV kernel: Firmware file header part 1:
Feb 16 15:17:31 HomeSRV kernel: .FirmwareSize = 0x0
Feb 16 15:17:31 HomeSRV kernel: .BSLSize = 0x0
Feb 16 15:17:31 HomeSRV kernel: .Reserved = 0x3d538
Feb 16 15:17:31 HomeSRV kernel: .Version = 0x3
Feb 16 15:17:31 HomeSRV kernel: saa7164_downloadfirmware() SecBootLoader.FileSize = 4019072
Feb 16 15:17:31 HomeSRV kernel: saa7164_downloadfirmware() FirmwareSize = 0x1fd6
Feb 16 15:17:31 HomeSRV kernel: saa7164_downloadfirmware() BSLSize = 0x0
Feb 16 15:17:31 HomeSRV kernel: saa7164_downloadfirmware() Reserved = 0x0
Feb 16 15:17:31 HomeSRV kernel: saa7164_downloadfirmware() Version = 0x1661c00
Feb 16 15:17:31 HomeSRV root:
Feb 16 15:17:31 HomeSRV root: ---------------Installation of DVB-Driver-Package successful----------------
Feb 16 15:17:31 HomeSRV root:
Feb 16 15:17:31 HomeSRV root: plugin: dvb-driver.plg installed

Feb 16 15:17:39 HomeSRV kernel: saa7164_downloadimage() Image downloaded, booting...

Feb 16 15:18:05 HomeSRV kernel: md: unRAID driver 2.9.17 installed
Feb 16 15:18:05 HomeSRV emhttpd: Pro key detected, GUID: 1..4 FILE: /boot/config/Pro.key
Feb 16 15:18:31 HomeSRV kernel: saa7164_dl_wait_clr() timeout (no d/l clr)
Feb 16 15:18:31 HomeSRV kernel: bootloader d/l has failed
Feb 16 15:18:31 HomeSRV kernel: Failed to boot firmware, no features registered
Feb 16 15:18:31 HomeSRV kernel: saa7164 driver loaded

Edited by MatthewH12
Link to comment
