Dynamix - V6 Plugins

[bonienl]

8 hours ago, John_M said:

I actually have 16 GB of RAM. It looks as though the Used value needs to have the Cached value subtracted from it. If I switch off the Cached plot the graph shows the total as constant at 16 GB that I expect:



Newer versions of sysstat have data a little rearranged. I made another update. Hopefully all okay now!

[bonienl]

1 hour ago, joshuaavalon said:

I get bad file MD5 when I tried to update.



Sometimes happen when downloading from github. Retry.

[SavellM]

On 9/30/2017 at 8:37 PM, SavellM said:

Hey guys, so just installed system temp, along with nerdtools for perl.

Followed the wiki, and it detected my sensor, and cpu/mobo and everything.



Selected cpu, and mobo, and then clicked Apply and poof, now no sensors are gone, and I cant select anything, and I also dont see the temp being displayed.



Here are the logs:

Sep 30 20:25:14 Odin emhttpd: req (4): cmd=/plugins/NerdPack/scripts/packagemanager&arg1=--download&csrf_token=****************
Sep 30 20:25:14 Odin emhttpd: cmd: /usr/local/emhttp/plugins/NerdPack/scripts/packagemanager --download
Sep 30 20:25:14 Odin nerdpack: Processing Packages...
Sep 30 20:25:14 Odin nerdpack: Installing perl-5.24.0 package...
Sep 30 20:25:17 Odin nerdpack: tmux-2.5 used by plugin: preclear.disk
Sep 30 20:25:17 Odin nerdpack: utempter-1.1.6 used by plugin: preclear.disk
Sep 30 20:25:18 Odin nerdpack: Cleaning up packages...
Sep 30 20:25:18 Odin nerdpack: All packages processed...
Sep 30 20:27:10 Odin emhttpd: req (5): cmd=/plugins/dynamix.plugin.manager/scripts/plugin&arg1=install&arg2=https://raw.githubusercontent.com/bergware/dynamix/master/unRAIDv6/dynamix.system.temp.plg&csrf_token=****************
Sep 30 20:27:10 Odin emhttpd: cmd: /usr/local/emhttp/plugins/dynamix.plugin.manager/scripts/plugin install https://raw.githubusercontent.com/bergware/dynamix/master/unRAIDv6/dynamix.system.temp.plg
Sep 30 20:27:10 Odin root: plugin: running: anonymous
Sep 30 20:27:10 Odin root: plugin: creating: /boot/config/plugins/dynamix.system.temp/dynamix.system.temp.txz - downloading from URL https://raw.githubusercontent.com/bergware/dynamix/master/archive/dynamix.system.temp.txz
Sep 30 20:27:10 Odin root: plugin: checking: /boot/config/plugins/dynamix.system.temp/dynamix.system.temp.txz - MD5
Sep 30 20:27:10 Odin root: plugin: running: /boot/config/plugins/dynamix.system.temp/dynamix.system.temp.txz
Sep 30 20:27:10 Odin root: plugin: creating: /usr/sbin/sensors-detect - downloading from URL https://raw.githubusercontent.com/bergware/dynamix/master/archive/sensors-detect
Sep 30 20:27:11 Odin root: plugin: setting: /usr/sbin/sensors-detect - mode to 0755
Sep 30 20:27:11 Odin root: plugin: running: anonymous
Sep 30 20:28:04 Odin kernel: i2c /dev entries driver
Sep 30 20:28:14 Odin kernel: i2c /dev entries driver
Sep 30 20:31:21 Odin kernel: i2c /dev entries driver
Sep 30 20:31:21 Odin kernel: i2c /dev entries driver
Sep 30 20:35:37 Odin emhttpd: req (6): csrf_token=****************&title=System+Log&cmd=%2FwebGui%2Fscripts%2Ftail_log&arg1=syslog
Sep 30 20:35:37 Odin emhttpd: cmd: /usr/local/emhttp/plugins/dynamix/scripts/tail_log syslog



Diagnostics attached too.

odin-diagnostics-20170930-2037.zip



Can anyone help with this?

I want to make sure my CPU cooling is adequate when doing 4k transcodes from Plex.

[John_M]

5 hours ago, bonienl said:



Newer versions of sysstat have data a little rearranged. I made another update. Hopefully all okay now!



That fixed it. Thanks.

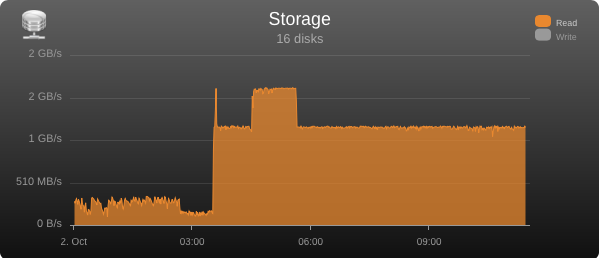

I've spotted something odd about the Storage graph now. It's just a slight problem with the way the y-axis is labelled. See here:





I switched off the Write graph to remove the big spike caused by trim. Notice that there are two 2 GB/s labels on the y-axis. My thought is that the lower one ought to read 1.5 GB/s but it's actually being rounded up to 2.

[bonienl]

Yet another update

[SavellM]

@bonienl Can you help with my issue above with Temps?

[bonienl]

3 minutes ago, SavellM said:

@bonienl Can you help with my issue above with Temps?



What is the content of these two files?

drivers.conf

sensors.conf



These files are located on your flash device in the folder /config/plugins/dynamix.system.temp.

[SavellM]

There is no sensors.conf

That folder only has:

drivers.conf

dynamix.system.temp.txz

But this is drivers.conf

coretemp
jc42



I did uninstall the plugin and tried to re-install it. Same deal no sensors.

[bonienl]

8 minutes ago, SavellM said:

I did uninstall the plugin and tried to re-install it. Same deal no sensors.



Did you do?

1. Detect

2. Save

3. Load drivers

4. Select processor sensor

5. Select motherboard sensor

6. Apply



When you say "no sensors" do you mean the dropdown list for processor and motherboard sensor is empty?



[SavellM]

5 minutes ago, bonienl said:



Did you do?

1. Detect

2. Save

3. Load drivers

4. Select processor sensor

5. Select motherboard sensor

6. Apply



When you say "no sensors" do you mean the dropdown list for processor and motherboard sensor is empty?

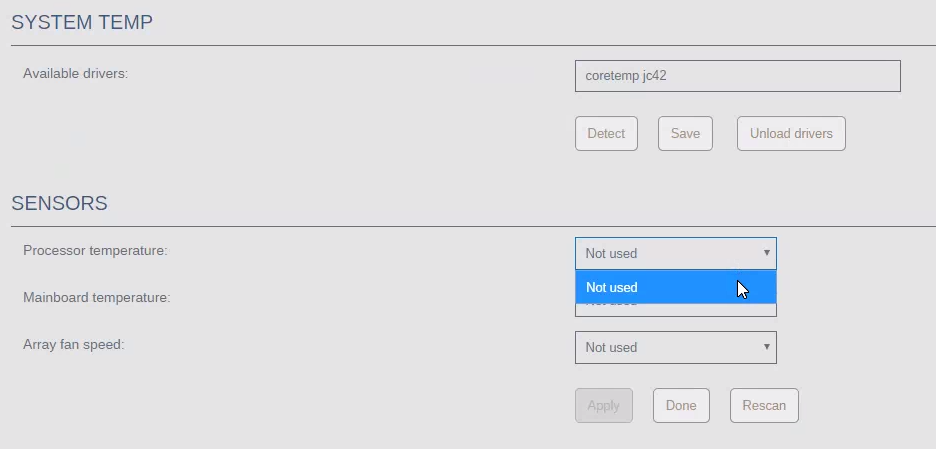

Yup, check this.





They all populated correctly the first time.

And I selected CPU, Mobo, and clicked apply, then poof they vanished and now nothing.

[bonienl]

Looks like the driver "jc42" is not compatible with your motherboard. You should uninstall it.



Do a search on "jc42" and "lm-sensors". For some reason the site www.lm-sensors.org isn't reachable anymore, but it used to show a table with alternative drivers.



[SavellM]

14 minutes ago, bonienl said:

Looks like the driver "jc42" is not compatible with your motherboard. You should uninstall it.



Do a search on "jc42" and "lm-sensors". For some reason the site www.lm-sensors.org isn't reachable anymore, but it used to show a table with alternative drivers.





Err how do I uninstall it? (I edited the drivers.conf file and deleted everything).



Also how can I find which sensors I should use?

My mobo is Asus P10S WS.



When I remove and click detect it keeps coming up with the same ones.



Edited October 2, 2017 by SavellM

[bonienl]

3 minutes ago, SavellM said:



Err how do I uninstall it?

And how did it install in the first place?



Also how can I find which sensors I should use?

My mobo is Asus P10S WS.



When I remove and click detect it keeps coming up with the same ones.





- Just click "Unload drivers" on the temperature settings page.

- Clicking "Detect" it searches for the appropriate driver(s) and after saving and loading, these becomes active (steps 1-3).

- Alternatively you can manually enter the names of the drivers - if you know them and then do steps 2 & 3.



I don't know what happened to the site, but it offered the possiblity to lookup a specific driver (jc42) and would indicate if there are alternative drivers which can be installed, in case the original driver isn't working or available.





[SavellM]

Just now, bonienl said:



- Just click "Unload drivers" on the temperature settings page.

- Clicking "Detect" it searches for the appropriate driver(s) and after saving and loading, these becomes active (steps 1-3).

- Alternatively you can manually enter the names of the drivers - if you know them and then do steps 2 & 3.



I don't know what happened to the site, but it offered the possiblity to lookup a specific driver (jc42) and would indicate if there are alternative drivers which can be installed, in case the original driver isn't working or available.





It keeps loading the exact same jc42.

And nothing in CPU/Mobo/Fan

[bonienl]

2 minutes ago, SavellM said:

It keeps loading the exact same jc42.



Yeah, the script will keep on detecting "jc42", but you need to change that manually to a different driver.

[SavellM]

Just now, bonienl said:



Yeah, the script will keep on detecting "jc42", but you need to change that manually to a different driver.

I see.



Any chance you know which driver I should be loading?

Or where I can find that info?

[bonienl]

5 minutes ago, SavellM said:

Any chance you know which driver I should be loading?

Or where I can find that info?



 I don't know. I used to consult the site www.lm-sensors.org to find a different driver,  but this site isn't reachable anymore.



Google maybe your friend here!

Edited October 2, 2017 by bonienl

[SavellM]

19 minutes ago, bonienl said:



 I don't know. I used to consult the site www.lm-sensors.org to find a different driver,  but this site isn't reachable anymore.



Google maybe your friend here!

Ye I tried, but nothing for that board.

TBF I dont know much about sensors.

[bonienl]

1 minute ago, SavellM said:

Ye I tried, but nothing for that board.



Perhaps somebody else using the same board as you can help?



[SavellM]

1 minute ago, bonienl said:



Perhaps somebody else using the same board as you can help?



Thanks for your help bud.



Hopefully someone else pipes up

[SavellM]

@bonienl https://hwmon.wiki.kernel.org/device_support_status

or https://git.kernel.org/pub/scm/linux/kernel/git/torvalds/linux.git/tree/Documentation/hwmon/

Would this site have the drivers I need?

Edited October 2, 2017 by SavellM

[John_M]

9 hours ago, bonienl said:

Yet another update



Sorry, mate. But thank you.

[bonienl]

12 hours ago, SavellM said:

@bonienl https://hwmon.wiki.kernel.org/device_support_status

or https://git.kernel.org/pub/scm/linux/kernel/git/torvalds/linux.git/tree/Documentation/hwmon/

Would this site have the drivers I need?



Perhaps one thing you can try first before searching for a replacement driver.



Remove the jc42 driver and only use the coretemp driver.

[SavellM]

2 hours ago, bonienl said:



Perhaps one thing you can try first before searching for a replacement driver.



Remove the jc42 driver and only use the coretemp driver.

Doesnt seem to give me any results for components

[LSL1337]

On 2017. 10. 01. at 1:23 AM, 1812 said:



I stopped using it for that reason.



so any other plug-in for the functionality?

Do most people don't use cache_dir?

i like to keep my disks spun down, i VERY rarely use most of them.



cheers
