@sonic6

Yes

2 hours ago, sonic6 said:

hm... i dont know why, but i can't get the unmount work inside a backup script.



You need to sync before you unmount:

sync -f /mnt/disks/mountpoint



This will commit all writes to the disk.

@sonic6 You don't need the sleeps.

I have successfully mounted a drive using "Unassigned Devices", which I can see and read from, but when trying to copy files to that drive I now get errors from windows telling me the drive is "write protected". I have ensured "read only" is not checked and have tried both authenticated SMB mode as well as public settings, both of which still result in the same error. Any assistance is greatly appreciated!

On 5/6/2021 at 6:53 PM, monarc said:

Hi all,



I hope someone can help me with my problem. I just replaced my 1TB external HDD with an 4TB one for my backups.



First I have formatted it with XFS and mounting was no problem, but I wanted to have this disk being encrypted so I formatted the disk again, now with XFS_encrypted aka LUKS. I chose a password and also put it in the UAD settings. But for some reason mounting this encrypted partition is not possible.



May 7 09:55:36 Unraid unassigned.devices: Format disk '/dev/sda' with 'xfs-encrypted' filesystem: meta-data=/dev/mapper/format_sda isize=512 agcount=4, agsize=244187635 blks = sectsz=4096 attr=2, projid32bit=1 = crc=1 finobt=1, sparse=1, rmapbt=0 = reflink=1 data = bsize=4096 blocks=976750537, imaxpct=5 = sunit=0 swidth=0 blks naming =version 2 bsize=4096 ascii-ci=0, ftype=1 log =internal log bsize=4096 blocks=476928, version=2 = sectsz=4096 sunit=1 blks, lazy-count=1 realtime =none extsz=4096 blocks=0, rtextents=0
May 7 09:55:39 Unraid unassigned.devices: Reloading disk '/dev/sda' partition table.
May 7 09:55:39 Unraid kernel: sda: sda1
May 7 09:55:39 Unraid unassigned.devices: Reload partition table result: /dev/sda: re-reading partition table
May 7 09:55:39 Unraid unassigned.devices: Adding disk '/dev/mapper/Intenso_External_USB_3.0'...
May 7 09:55:41 Unraid unassigned.devices: Mount drive command: /sbin/mount -o rw,noatime,nodiratime '/dev/mapper/Intenso_External_USB_3.0' '/mnt/disks/Intenso_External_USB_3.0'
May 7 09:55:41 Unraid kernel: /dev/mapper/Intenso_External_USB_3.0: Can't open blockdev
May 7 09:55:41 Unraid unassigned.devices: Mount of '/dev/mapper/Intenso_External_USB_3.0' failed: 'mount: /mnt/disks/Intenso_External_USB_3.0: special device /dev/mapper/Intenso_External_USB_3.0 does not exist. '
May 7 09:55:41 Unraid unassigned.devices: Partition 'Intenso External_USB_3.0' cannot be mounted.
May 7 09:55:41 Unraid unassigned.devices: Running device script: 'Intenso_External_USB_3.0.sh' with action 'ERROR_MOUNT'.



May 7 10:14:12 Unraid unassigned.devices: Adding disk '/dev/mapper/Intenso_External_USB_3.0'...
May 7 10:14:14 Unraid unassigned.devices: Mount drive command: /sbin/mount -o rw,noatime,nodiratime '/dev/mapper/Intenso_External_USB_3.0' '/mnt/disks/Intenso_External_USB_3.0'
May 7 10:14:14 Unraid kernel: /dev/mapper/Intenso_External_USB_3.0: Can't open blockdev
May 7 10:14:14 Unraid unassigned.devices: Mount of '/dev/mapper/Intenso_External_USB_3.0' failed: 'mount: /mnt/disks/Intenso_External_USB_3.0: special device /dev/mapper/Intenso_External_USB_3.0 does not exist. '
May 7 10:14:14 Unraid unassigned.devices: Partition 'Intenso External_USB_3.0' cannot be mounted.
May 7 10:14:14 Unraid unassigned.devices: Running device script: 'Intenso_External_USB_3.0.sh' with action 'ERROR_MOUNT'.



Formatting it back to simple XFS mounting is just working fine again.



Any idea what is causing this issue? Any help would be much appreciated. Thanks in advance.



Is anyone experiencing the same issue with encrypted UAD drives or maybe does someone has an idea what is causing this issue?

Edited May 10, 20215 yr by monarc

5 hours ago, Wicked_Chicken said:

I have successfully mounted a drive using "Unassigned Devices", which I can see and read from, but when trying to copy files to that drive I now get errors from windows telling me the drive is "write protected". I have ensured "read only" is not checked and have tried both authenticated SMB mode as well as public settings, both of which still result in the same error. Any assistance is greatly appreciated!

Post diagnostics.

11 minutes ago, monarc said:



Is anyone experiencing the same issue with encrypted UAD drives or maybe does someone has an idea what is causing this issue?

Working fine for me.  Post diagnostics.

On 5/5/2021 at 3:22 AM, hawihoney said:

UD does not leave "Format" State for a passed through disk after the rebuilt of this disk finishes in the VM.



Let me explain:



Several disks are passed through to an Unraid VM. These disks are marked as passed through within UD. One of the passed through disks had to be replaced within the VM. During the rebuild within the VM, UD did show the "Format" button for this passed through disk. Everythings fine until here.



Now the disk is successfully rebuilt within the VM and the VM is working as usual.



UD still shows the "Format" button and no plus sign (for the partition).



Please have a look at the attached screenshot. The disk is formatted (rebuild), working and is written to. But UD still shows no + sign (for the partition) and still shows the Format text.



Thanks for listening.







In the latest update to UD, disks that are passed through will show as "Passed".  If you format a disk in a VM, you can refresh the UD status by clicking on the double arrow icon in the upper right of the UD page and a udev update for all disks will be initiated.  This will bring UD up to date on all disks and UD will then show any changes made outside UD.

12 hours ago, dlandon said:

Working fine for me.  Post diagnostics.



@dlandon Many thanks for your reply. Any specific file in mind from the diag pack or do you want the whole thing?

Just now, monarc said:



@dlandon Many thanks for your reply. Any specific file in mind from the diag pack or do you want the whole thing?

All of it.

1 minute ago, dlandon said:

All of it.



Here you go...

unraid-diagnostics-20210511-1137.zip

23 minutes ago, monarc said:



Here you go...

unraid-diagnostics-20210511-1137.zip 189.78 kB · 1 download

This is the problem I think:

May  6 18:16:57 Unraid unassigned.devices: Adding disk '/dev/mapper/Intenso_External_USB_3.0'...
May  6 18:16:59 Unraid unassigned.devices: Mount drive command: /sbin/mount -o rw,noatime,nodiratime '/dev/mapper/Intenso_External_USB_3.0' '/mnt/disks/Intenso_External_USB_3.0'
May  6 18:16:59 Unraid kernel: /dev/mapper/Intenso_External_USB_3.0: Can't open blockdev
May  6 18:16:59 Unraid unassigned.devices: Mount of '/dev/mapper/Intenso_External_USB_3.0' failed: 'mount: /mnt/disks/Intenso_External_USB_3.0: special device /dev/mapper/Intenso_External_USB_3.0 does not exist. '
May  6 18:16:59 Unraid unassigned.devices: Partition 'Intenso External_USB_3.0' cannot be mounted.

I'm not sure what is causing the issue with the blockdev.  Maybe @JorgeB can offer some assistance as this appears to be a disk issue.

1 hour ago, dlandon said:

Maybe @JorgeB can offer some assistance as this appears to be a disk issue.

Doesn't look like a disk problem to me, it was mounting before with unencrypted xfs:



May  6 18:35:28 Unraid unassigned.devices: Adding disk '/dev/sda1'...
May  6 18:35:28 Unraid unassigned.devices: Mount drive command: /sbin/mount -t xfs -o rw,noatime,nodiratime '/dev/sda1' '/mnt/disks/Intenso_External_USB_3.0'
May  6 18:35:28 Unraid kernel: XFS (sda1): Mounting V5 Filesystem
May  6 18:35:29 Unraid kernel: XFS (sda1): Ending clean mount



Then it didn't mount with encrypted xfs, does it still work if you reformat without encryption?





15 minutes ago, JorgeB said:

Then it didn't mount with encrypted xfs, does it still work if you reformat without encryption?



Mounting it without encryption works flawless. This is my workaround for now, but I really would like to have the disk encrypted.

1 hour ago, monarc said:

Mounting it without encryption works flawless. This is my workaround for now, but I really would like to have the disk encrypted.

Then looks like some issue with UD and/or encryption, can't help with that.

4 hours ago, monarc said:



Mounting it without encryption works flawless. This is my workaround for now, but I really would like to have the disk encrypted.

Try a reboot.

2 minutes ago, dlandon said:

Try a reboot.



Had the same idea and already rebooted. Later I will try to format the external with encrypted XFS again. I'll keep you all posted.

I have a DAS device Terra-master (D5-300) connected by a usb-c  to my unraid through unassigned devices

its an raid 5 with two btrfs-luks partitions and can be accessed just fine.

the problem is that when I start a file transfer to the DAS and after some times ( ~ 1 hour) all the DAS's HDs LED and FANS goes OFF ( as it goes to sleep mode) while the files transfer continues normally, which leads to temperature rise of the HDs due to FANS are off.

I already contacted manufacturer and after some emails back and forth they confirm that the device is absolutely fine !

so I start to think it may be some settings not right within  unassigned devices that trigger this issue.

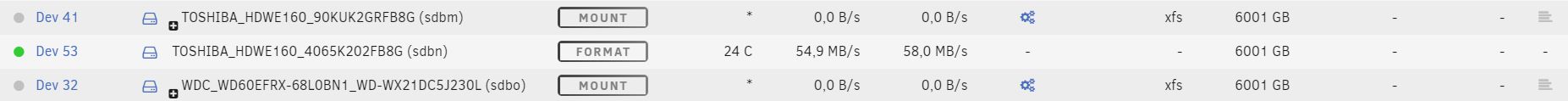

I have also noticed an icon next to the first partition which I am not sure what it is (see screenshot)

any help is appreciated

2 hours ago, monarc said:



Had the same idea and already rebooted. Later I will try to format the external with encrypted XFS again. I'll keep you all posted.



Same issue even after the reboot 😒



May 11 21:34:35 Unraid unassigned.devices: Adding disk '/dev/mapper/Test'...
May 11 21:34:37 Unraid unassigned.devices: Mount drive command: /sbin/mount -o rw,noatime,nodiratime '/dev/mapper/Test' '/mnt/disks/Test'
May 11 21:34:37 Unraid kernel: /dev/mapper/Test: Can't open blockdev
May 11 21:34:37 Unraid unassigned.devices: Mount of '/dev/mapper/Test' failed: 'mount: /mnt/disks/Test: special device /dev/mapper/Test does not exist. '
May 11 21:34:37 Unraid unassigned.devices: Partition 'Test' cannot be mounted.



4 hours ago, hamad said:

so I start to think it may be some settings not right within  unassigned devices that trigger this issue.

The disk ball indicates that UD thinks the drive is spinning (not sleeping).  It looks like your device is setting the sleep mode on its own.



5 hours ago, hamad said:

I have also noticed an icon next to the first partition which I am not sure what it is (see screenshot)

Hover you mouse over the icon and a tool tip will tell you what it does.

3 hours ago, monarc said:



Same issue even after the reboot 😒



May 11 21:34:35 Unraid unassigned.devices: Adding disk '/dev/mapper/Test'...
May 11 21:34:37 Unraid unassigned.devices: Mount drive command: /sbin/mount -o rw,noatime,nodiratime '/dev/mapper/Test' '/mnt/disks/Test'
May 11 21:34:37 Unraid kernel: /dev/mapper/Test: Can't open blockdev
May 11 21:34:37 Unraid unassigned.devices: Mount of '/dev/mapper/Test' failed: 'mount: /mnt/disks/Test: special device /dev/mapper/Test does not exist. '
May 11 21:34:37 Unraid unassigned.devices: Partition 'Test' cannot be mounted.



Post diagnostics again.

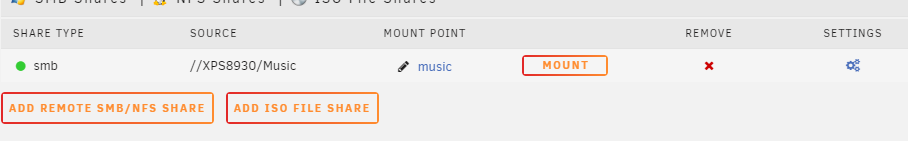

N00b question here.  I've got a Plex Server Docker running smoothly, and I thought I'd share some music on my Windows desktop with Plex.  I've set up a local Windows account called "plex" that has read permissions.  Via the UD web UI, I can click through the Add Remote SMB share dialogs and pick and select the share.  When I click on the orange "mount" button, it blinks grey, then goes back to orange.  I never see the mount  name under /mnt/remotes/.  Ideas appreciated.  I'm sure I'm missing something basic.

17 minutes ago, Graber said:

N00b question here.  I've got a Plex Server Docker running smoothly, and I thought I'd share some music on my Windows desktop with Plex.  I've set up a local Windows account called "plex" that has read permissions.  Via the UD web UI, I can click through the Add Remote SMB share dialogs and pick and select the share.  When I click on the orange "mount" button, it blinks grey, then goes back to orange.  I never see the mount  name under /mnt/remotes/.  Ideas appreciated.  I'm sure I'm missing something basic.

Your diagnostics will say why in the log

4 minutes ago, Squid said:

Your diagnostics will say why in the log

Thanks.  The error was ""Mount of '//XPS8930/Music' failed: 'mount error: could not resolve address for XPS8930: Unknown error '.""  I changed the server name to the IP address and it worked.  Might it be because the machine has multiple NICs and IP addresses?

2 hours ago, dlandon said:

Hover you mouse over the icon and a tool tip will tell you what it does.

When I hover the mouse over the icon it says "Excute Script as udev simulating a device being installed"
and when I click on it I got a message window with "/tmp/unassigned.devices/scripts/TDAS_RAID5-part1.sh 2>&1"
I do not understand what are these, and why I got this icon on this partition only.. all other devices and partitions have a "check mark" icon on them
do I did something wrong in here..

Edited May 12, 20215 yr by hamad
