Unassigned Devices - Managing Disk Drives and Remote Shares Outside of The Unraid Array

dlandon · January 31, 2022

I saw those, but I'm not sure that has anything to do with the script execution. That used to happen when you rebooted and left some browser sessions running. We made a change to prevent that, but you may have an unusual case.

comet424 · January 31, 2022

i checked the files too.. so it transfered part of the files too so its like the script or inter-device crashed while it was moving the files

half is on the SSD and half still in the documents folder i have

i do normally leave the browswer open to the 192.168.1.8 to my sisters unraid sometimes i have 2 windows open and i use pfsense and openvpn to connect over there so i can do remote maintance her server.. but i usually leave it open for days teh browser.. but i also do close it and re load it to help with my chrome or Edge the amount of ram it uses i try to close things then re load too

so not sure.. but ya i get on my own server a ton of those wrong error but i never seen the 2 last errors above before figure maybe thats what caused things well the last 4 lines of that error above

dlandon · January 31, 2022

4 minutes ago, comet424 said:

half is on the SSD and half still in the documents folder i have

Is your disk full?

3 minutes ago, comet424 said:

i get on my own server a ton of those wrong error

Those should not be happening.

comet424 · January 31, 2022

no i only have 129gb used with 871gb free of a 1TB ssd

i currently doing a complete New permissions of all drives and all appdata and i stopped all dockers

and see what happens if it starts to work again

JonathanM · January 31, 2022

1 minute ago, comet424 said:

currently doing a complete New permissions of all drives and all appdata

Running new perms on appdata will probably break some containers.

dlandon · January 31, 2022

Run a file system check also.

comet424 · January 31, 2022

how do i run a file system check? is that the fix common issues plugin?

oh i thought when you turn off dockers it was safe to run appdata as part of new permission?

dlandon · January 31, 2022

8 minutes ago, comet424 said:

how do i run a file system check?

Unmount the disk, and then click on the check mark next to the mount point on the UD web page.

9 minutes ago, comet424 said:

oh i thought when you turn off dockers it was safe to run appdata as part of new permission?

You should never do that.

comet424 · January 31, 2022

so what does it do that its not safe to the appdata?

and i guessing its running.. i did get a unraid unmount error

and checked the system log i got these errors on bottom

Jan 31 13:56:08 mitchsserver unassigned.devices: Unmount of 'sdb1' failed: 'umount: /mnt/disks/transport data: target is busy. '
Jan 31 13:58:52 mitchsserver nginx: 2022/01/31 13:58:52 [error] 26446#26446: *2034844 upstream timed out (110: Connection timed out) while reading upstream, client: 192.168.0.47, server: , request: "GET /plugins/unassigned.devices/include/fsck.php?device=/dev/sdb1&fs=btrfs&luks=&serial=WDC_WDS100T2B0A-00SM50_200802A003DE&check_type=ro&type=Done HTTP/1.1", upstream: "fastcgi://unix:/var/run/php5-fpm.sock:", host: "192.168.1.8", referrer: "http://192.168.1.8/Main"

currently i guess its running it hasnt done anything after

FS: btrfs

Executing file system scrub: /sbin/btrfs scrub start -B -R -d -r /dev/sdb1 2>&1

dont know how long it take?

comet424 · January 31, 2022

i guess i cant unmount the drive it wont let me

last error logs say

an 20 12:35:26 mitchsserver root: error: /plugins/unassigned.devices/UnassignedDevices.php: wrong csrf_token
Jan 20 12:35:29 mitchsserver root: error: /plugins/unassigned.devices/UnassignedDevices.php: wrong csrf_token
Jan 20 13:08:02 mitchsserver kernel: sd 1:0:0:0: [sdb] Synchronize Cache(10) failed: Result: hostbyte=0x04 driverbyte=0x00
Jan 20 13:08:02 mitchsserver kernel: sd 1:0:0:0: [sdb] Start/Stop Unit failed: Result: hostbyte=0x04 driverbyte=0x00
Jan 25 00:00:52 mitchsserver nginx: 2022/01/25 00:00:52 [error] 26446#26446: *680474 FastCGI sent in stderr: "Primary script unknown" while reading response header from upstream, client: 192.168.0.47, server: , request: "POST /plugins/unassigned.devices/UnassignedDevices.php HTTP/1.1", upstream: "fastcgi://unix:/var/run/php5-fpm.sock:", host: "192.168.1.8", referrer: "http://192.168.1.8/Main"
Jan 25 00:00:52 mitchsserver nginx: 2022/01/25 00:00:52 [error] 26446#26446: *680474 FastCGI sent in stderr: "Primary script unknown" while reading response header from upstream, client: 192.168.0.47, server: , request: "POST /plugins/unassigned.devices/UnassignedDevices.php HTTP/1.1", upstream: "fastcgi://unix:/var/run/php5-fpm.sock:", host: "192.168.1.8", referrer: "http://192.168.1.8/Main"
Jan 31 13:56:08 mitchsserver unassigned.devices: Unmount of 'sdb1' failed: 'umount: /mnt/disks/transport data: target is busy. '
Jan 31 13:58:52 mitchsserver nginx: 2022/01/31 13:58:52 [error] 26446#26446: *2034844 upstream timed out (110: Connection timed out) while reading upstream, client: 192.168.0.47, server: , request: "GET /plugins/unassigned.devices/include/fsck.php?device=/dev/sdb1&fs=btrfs&luks=&serial=WDC_WDS100T2B0A-00SM50_200802A003DE&check_type=ro&type=Done HTTP/1.1", upstream: "fastcgi://unix:/var/run/php5-fpm.sock:", host: "192.168.1.8", referrer: "http://192.168.1.8/Main"
Jan 31 14:35:15 mitchsserver nginx: 2022/01/31 14:35:15 [error] 26446#26446: *2045770 upstream timed out (110: Connection timed out) while reading response header from upstream, client: 192.168.0.47, server: , request: "POST /plugins/community.applications/include/exec.php HTTP/1.1", upstream: "fastcgi://unix:/var/run/php5-fpm.sock", host: "192.168.1.8", referrer: "http://192.168.1.8/Apps"
Jan 31 14:52:01 mitchsserver unassigned.devices: Unmount of 'sdb1' failed: 'umount: /mnt/disks/transport data: target is busy. '
Jan 31 14:52:06 mitchsserver unassigned.devices: Unmount of 'sdb1' failed: 'umount: /mnt/disks/transport data: target is busy. '
Jan 31 14:52:09 mitchsserver unassigned.devices: Unmount of 'sdb1' failed: 'umount: /mnt/disks/transport data: target is busy. '

is there a way to force it to unmount or only a reboot will fix it? as i cant physically unplug and plug back in

comet424 · January 31, 2022

so i read what ya said above

and i also did a reboot

i still get the same error for running the script

but you said unmount the drive.. once its unmounted you cant use the Lightning bolt it goes White and is unclickable

even when you goto plugins and then to unassigned devices

you cant run that scrub on an unmounted drive... once i mount it its clickable and blue but once you unmount its white and unclickable

and i still get that error "mv: inter-device move failed"

and the sys log is

Jan 31 15:40:23 mitchsserver kernel: tsc: Fast TSC calibration failed
Jan 31 15:40:23 mitchsserver kernel: ACPI: Early table checksum verification disabled
Jan 31 15:40:23 mitchsserver kernel: floppy0: no floppy controllers found
Jan 31 15:40:23 mitchsserver kernel: random: 7 urandom warning(s) missed due to ratelimiting
Jan 31 15:40:32 mitchsserver rpc.statd[1751]: Failed to read /var/lib/nfs/state: Success
Jan 31 15:41:10 mitchsserver kernel: BTRFS warning (device <unknown>): duplicate device /dev/sdc1 devid 1 generation 771 scanned by udevd (10067)
Jan 31 15:41:15 mitchsserver root: error: /webGui/include/ProcessStatus.php: wrong csrf_token
Jan 31 15:46:14 mitchsserver ntpd[1780]: frequency error 741 PPM exceeds tolerance 500 PPM

Edited January 31, 2022 by comet424

dlandon · January 31, 2022

21 minutes ago, comet424 said:

but you said unmount the drive.. once its unmounted you cant use the Lightning bolt it goes White and is unclickable

even when you goto plugins and then to unassigned device

The lightning bolt is active only when the disk is mounted.

22 minutes ago, comet424 said:

you cant run that scrub on an unmounted drive... once i mount it its clickable and blue but once you unmount its white and unclickable

Correct. If the disk is btrfs you can only scrub it when it is mounted. All other file systems are checked when they are unmounted.

25 minutes ago, comet424 said:

and i still get that error "mv: inter-device move failed"

That siunds like a device script issue.

You need to stop putting data on the disk and run the scrub. Then run the script and troubleshoot.

comet424 · January 31, 2022

ah ok as i followed what you said

unmount the disk.. then click the lightning bolt to run the system check

thats why i said it wasnt working..

ah ok

so what i found was even if i do "mv command line or a script " it will run

but say if i have

Folder

test and all the files are in the folder test

when it moves over i get the error but it moving all the files that are in the test folder into the root of the folder so a .. of test

and i can use Krusader fine its moving the files when i highlight and move..

but ill run that scrub test now then... the lightning bolt does nothing it just sits there as i let it sit there for 30 min and on a SSD i dont think its working ?

but ill run the test again

running test again.. how long should it take a 1TB ssd?

update:

i think test is done.. there is no drive activity.. the Window stopped spinning top left beside the 192.168.x.x

but it hasnt said its completed i dont see a log file to see any info?

Edited January 31, 2022 by comet424

comet424 · January 31, 2022

question... as a removable drive my sister gives me to back up her files.. reason i have 2 ssds i swap with her and both labled transport data

is it better to use NTFS? or stick with the btrfs or go xfs when moving files off the array or cache drive the transport ssd i have setup.. what is the better less problem way

itimpi · January 31, 2022

2 minutes ago, comet424 said:

is it better to use NTFS? or stick with the btrfs or go xfs when moving files off the array or cache drive the transport ssd i have setup.. what is the better less problem w

For a portable drive I would go with whatever format is most convenient for the systems involved. If one of them is s Windows system then NTFS is likely to be the most convenient.

comet424 · January 31, 2022

i been using btrfs she plugs the ssd in her unraid.. and when i get the drive i plug it into my unraid...

so i just been using that

and still nothing to say complete yet

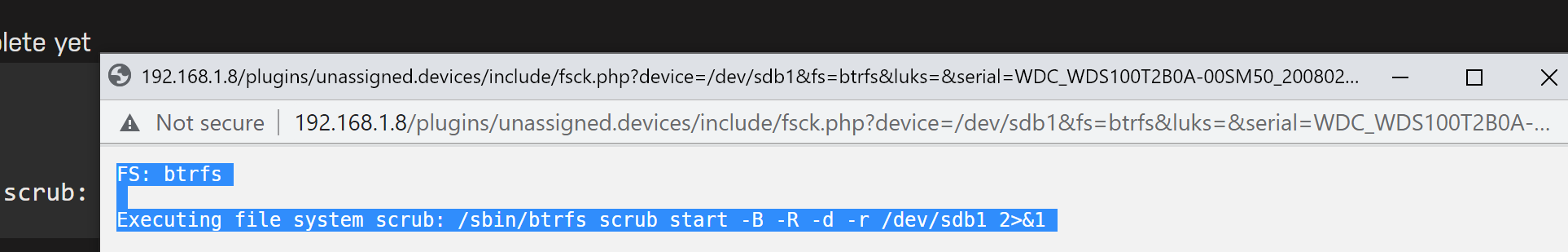

FS: btrfs

Executing file system scrub: /sbin/btrfs scrub start -B -R -d -r /dev/sdb1 2>&1

still only says that

doesnt say its complete.. doesnt say it crashed no log file nothing.. all i can see is there is no file activity looking at the drive under read and write section

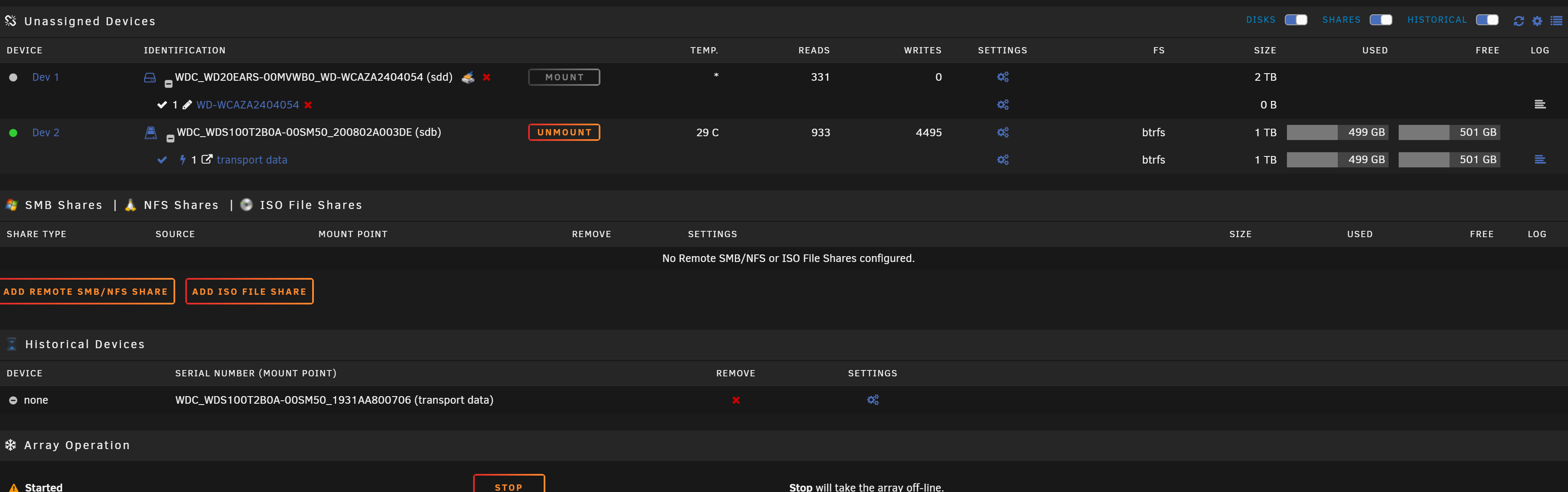

here is pic all i can tell is the globe is now a globe wehre it was doing a spinning

Edited January 31, 2022 by comet424

Zonediver · February 3, 2022

Since the last update of UD (maybe - i dont exactly know), i have a problem with the second UD-SSD - a Samsung 870 Evo 500GB.

This SATA-SSD didnt go to sleep and prevents the server from going to sleep.

It's either a problem with UD or the SSD itself - I'll probably have to remove the SSD again...

EDIT: Tried an old SSD 850 from Samsung... same behavior... no sleep anymore

Feb  3 11:25:37 Horus s3_sleep: Disk activity on going: sdc
Feb  3 11:25:38 Horus s3_sleep: Disk activity detected. Reset timers.

So this second UD is also not going to sleep... strange...

How can i send the second UD to sleep?

It says "SSD CANNNOT BE SPUN DOWN" - What is this?

Edited February 3, 2022 by Zonediver

dlandon · February 3, 2022

2 hours ago, Zonediver said:

Since the last update of UD (maybe - i dont exactly know), i have a problem with the second UD-SSD - a Samsung 870 Evo 500GB.

This SATA-SSD didnt go to sleep and prevents the server from going to sleep.

It's either a problem with UD or the SSD itself - I'll probably have to remove the SSD again...

There have been no changes to UD recently that could cause this issue.

2 hours ago, Zonediver said:

How can i send the second UD to sleep?

It says "SSD CANNNOT BE SPUN DOWN" - What is this?

This has been the case since 6.9. Unraid does not support spinning down SSD devices.

Could there really be disk activity on that disk?

Zonediver · February 3, 2022

3 minutes ago, dlandon said:

Could there really be disk activity on that disk?

No because its just a Backup-Drive. I do a backup of the plex-database twice a week - thats all...

Edited February 3, 2022 by Zonediver

comet424 · February 3, 2022

getting duplicate device error.. general chat had me post in here as Safe mode cleared it but rebooted back and its back

Feb  3 07:20:27 mitchsserver kernel: BTRFS warning (device <unknown>): duplicate device /dev/sdc1 devid 1 generation 780 scanned by udevd (10061)

here is what i posted.. multiple lines and the diagnostic.. as i dont have the diagnostic now on me

Zonediver · February 3, 2022

Here is the Disk Log Information...

This UD is active for no reason...

Feb 3 11:28:38 Horus s3_sleep: Disk activity on going: sdc
Feb 3 11:29:38 Horus s3_sleep: Disk activity on going: sdc
Feb 3 11:30:38 Horus s3_sleep: Disk activity on going: sdc
Feb 3 11:31:05 Horus unassigned.devices: Changed Disk Name on 'Samsung_SSD_850_EVO_250GB_S2R6NB0HA47730M (sdc)' to 'UD-3'
Feb 3 11:31:38 Horus s3_sleep: Disk activity on going: sdc
Feb 3 11:31:45 Horus unassigned.devices: Changed Disk Name on 'Samsung_SSD_850_EVO_250GB_S2R6NB0HA47730M (sdc)' to 'UD-3'
Feb 3 11:32:38 Horus s3_sleep: Disk activity on going: sdc
Feb 3 11:33:38 Horus s3_sleep: Disk activity on going: sdc
Feb 3 11:34:38 Horus s3_sleep: Disk activity on going: sdc
Feb 3 11:35:38 Horus s3_sleep: Disk activity on going: sdc
Feb 3 11:36:38 Horus s3_sleep: Disk activity on going: sdc
Feb 3 15:57:29 Horus kernel: sd 3:0:0:0: [sdc] Synchronizing SCSI cache
Feb 3 15:57:29 Horus kernel: sd 3:0:0:0: [sdc] Stopping disk
Feb 3 15:57:29 Horus kernel: sd 3:0:0:0: [sdc] Starting disk
Feb 3 15:57:29 Horus kernel: ata2: SATA link up 6.0 Gbps (SStatus 133 SControl 300)
Feb 3 15:57:29 Horus kernel: ata2.00: ACPI cmd ef/10:06:00:00:00:00 (SET FEATURES) succeeded
Feb 3 15:57:29 Horus kernel: ata2.00: ACPI cmd f5/00:00:00:00:00:00 (SECURITY FREEZE LOCK) filtered out
Feb 3 15:57:29 Horus kernel: ata2.00: ACPI cmd b1/c1:00:00:00:00:00 (DEVICE CONFIGURATION OVERLAY) filtered out
Feb 3 15:57:29 Horus kernel: ata2.00: supports DRM functions and may not be fully accessible
Feb 3 15:57:29 Horus kernel: ata2.00: disabling queued TRIM support
Feb 3 15:57:29 Horus kernel: ata2.00: ACPI cmd ef/10:06:00:00:00:00 (SET FEATURES) succeeded
Feb 3 15:57:29 Horus kernel: ata2.00: ACPI cmd f5/00:00:00:00:00:00 (SECURITY FREEZE LOCK) filtered out
Feb 3 15:57:29 Horus kernel: ata2.00: ACPI cmd b1/c1:00:00:00:00:00 (DEVICE CONFIGURATION OVERLAY) filtered out
Feb 3 15:57:29 Horus kernel: ata2.00: supports DRM functions and may not be fully accessible
Feb 3 15:57:29 Horus kernel: ata2.00: disabling queued TRIM support
Feb 3 15:57:29 Horus kernel: ata2.00: configured for UDMA/133
Feb 3 15:58:05 Horus s3_sleep: Disk activity on going: sdc

...and this is the log of the first UD...

completely different...

Feb 3 16:03:23 Horus kernel: nvme1n1: p1
Feb 3 16:03:38 Horus root: [160338] system.php:1101 @ loop: Scanning: N:1:4:1 Node: /dev/nvme1n1
Feb 3 16:03:45 Horus emhttpd: Samsung_SSD_970_EVO_Plus_500GB_S4EVNX0NB30735A (nvme1n1) 512 976773168
Feb 3 16:03:45 Horus emhttpd: read SMART /dev/nvme1n1
Feb 3 16:03:56 Horus unassigned.devices: Adding partition 'nvme1n1p1'...
Feb 3 16:03:56 Horus unassigned.devices: Mounting partition 'nvme1n1p1' at mountpoint '/mnt/disks/SSD970EVO'...
Feb 3 16:03:56 Horus unassigned.devices: Mount drive command: /sbin/mount -t 'xfs' -o rw,noatime,nodiratime,discard '/dev/nvme1n1p1' '/mnt/disks/SSD970EVO'
Feb 3 16:03:56 Horus kernel: XFS (nvme1n1p1): Mounting V5 Filesystem
Feb 3 16:03:56 Horus kernel: XFS (nvme1n1p1): Ending clean mount
Feb 3 16:03:56 Horus unassigned.devices: Successfully mounted 'nvme1n1p1' on '/mnt/disks/SSD970EVO'.

It seems, this plugin is broken 👎

Edited February 3, 2022 by Zonediver

dlandon · February 3, 2022

2 hours ago, comet424 said:

getting duplicate device error.. general chat had me post in here as Safe mode cleared it but rebooted back and its back

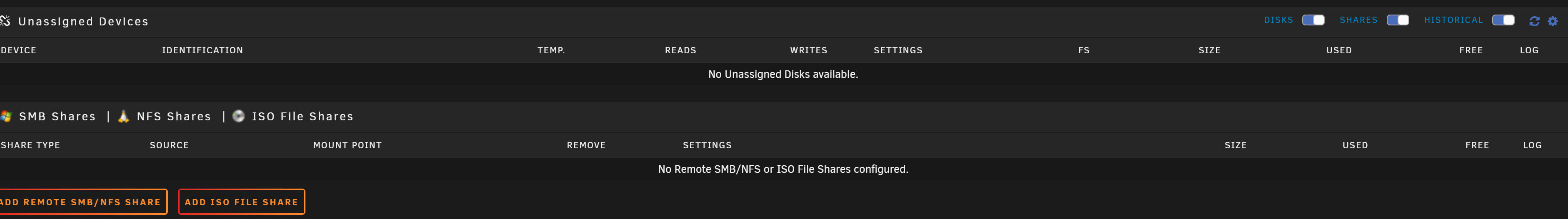

Can you post a screen shot of the UD page. It appears you only have one UD device and it's an nvme disk. All the BTRFS errors you are seeing are on array disks. These errors are generated by udev. The messages are generated when UD does the auto mount of disks.

After you post a screen shot of UD, uninstall the UD plugin and see if that makes a difference.

dlandon · February 3, 2022

18 minutes ago, Zonediver said:

Here is the Disk Log Information...

This UD is active for no reason...

Is the UD disk mounted when a sleep is initiated?

Can you post a screen shot of the UD webpage and your diagnostics zip file?

Zonediver · February 3, 2022

12 minutes ago, dlandon said:

Is the UD disk mounted when a sleep is initiated?

Sure (?) Why should it be unmounted???

I removed the UD SATA-SSD and all is fine again - sleep-timer is working again and Server goes to sleep like normal... this is really weird...

It seems this plugin is confused as soon as a second UD is installed...

Edited February 3, 2022 by Zonediver

comet424 · February 3, 2022

ok i was able to get the old diagnostic with all those duplicates you see.. and a new one where it has just 1

you will see the history one also stay transport data

i use 2 SSDs labeled transport data

so when i see my sister we swap SSDs and i give her a blank she gives me her stuff wants backed up and when she shoves in it just works.. but i been finding issues lately with MV too that i asked help for so hope that fixes it..

but ya i found that duplicate..

so mitch server gets 1 error but has a couple UD drives

mitchflix server gets those multiple duplicates but has 0 UD drives

mitchsserver-diagnostics-20220203-1123.zip mitchflix-diagnostics-20220203-1132.zip

Edited February 3, 2022 by comet424

Unassigned Devices - Managing Disk Drives and Remote Shares Outside of The Unraid Array

Recommended Posts

Link to comment

Top Posters In This Topic

Popular Days

Top Posters In This Topic

Popular Days

Popular Posts

dlandon

dlandon

dlandon

Posted Images

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Join the conversation
