[Plugin] Nvidia-Driver

Featured Replies

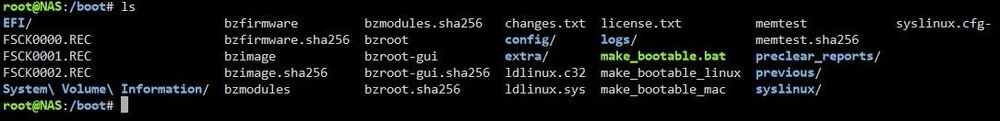

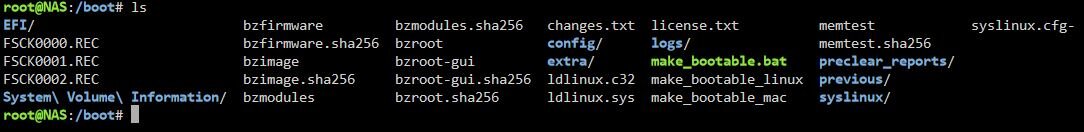

Aha, a light went just up. My USB stick is only 1Gb in size and it complained that the stick was more than 90% full. I did not realise the driver was over 300mb. This is probably why it doesn't download. I have managed to install other plugins over the net with no issues, so I think this must be the problem. Let me change the USB to a larger one and try again. Thank you so much!

  • Replies 5.9k
  • Views 1.2m
  • Created
  • Last Reply

Top Posters In This Topic

Most Popular Posts

  • To utilize your Nvidia graphics card in your Docker container(s) the basic steps are:   Add '--runtime=nvidia' in your Docker template in 'Extra Parameters' (you have to enable 'Advanced

  • Recompiled the drivers and they are now just working fine (to get it working scroll down):   Please do the following (this is only necessary if you upgraded before I recompiled the dri

  • I'm currently spinning up my build VM and compiling the drivers again, currently drivers for 6.11.0 stable are not available...

Posted Images

I'm getting NVIDIA-SMI has failed because it couldn't communicate with the NVIDIA driver. Make sure that the latest NVIDIA driver is installed and running.



how do I fix it?

tower-diagnostics-20240816-0129.zip

Edited by crocker5731

22 minutes ago, alturismo said:

may start with posting your diagnostics <<click<<

I got add the diagnostics file!!!

  • Author
2 minutes ago, crocker5731 said:

I got add the diagnostics file!!!

I don't see a Nvidia GPU in your system, at least not from the output from lspci.



In addition to that, may I ask why you have the AMD-Vendor-Reset plugin installed, I don't see a AMD GPU in your system either...

7 minutes ago, ich777 said:

I don't see a Nvidia GPU in your system, at least not from the output from lspci.



In addition to that, may I ask why you have the AMD-Vendor-Reset plugin installed, I don't see a AMD GPU in your system either...

I had automatic-ripping-machine working at one time. But now I get win reinstalling it.

docker run
  -d
  --name='automatic-ripping-machine'
  --net='bridge'
  --privileged=true
  -e TZ="America/Los_Angeles"
  -e HOST_OS="Unraid"
  -e HOST_HOSTNAME="Tower"
  -e HOST_CONTAINERNAME="automatic-ripping-machine"
  -e 'NVIDIA_DRIVER_CAPABILITIES'='all'
  -e 'NVIDIA_VISIBLE_DEVICES'='GPU-9152780a-a0e6-3877-b6fd-01ec4b6c22be'
  -e 'ARM_UID'='1001'
  -e 'ARM_GID'='1001'
  -l net.unraid.docker.managed=dockerman
  -l net.unraid.docker.webui='http://[IP]:[PORT:8080]/'
  -l net.unraid.docker.icon='https://raw.githubusercontent.com/automatic-ripping-machine/automatic-ripping-machine/main/favicon.ico'
  -p '8088:8080/tcp'
  -v '/mnt/user/appdata/ARM/':'/home/arm':'rw'
  -v '/mnt/user/appdata/ARM/Music':'/home/arm/Music':'rw'
  -v '/mnt/user/appdata/ARM/config':'/etc/arm/config':'rw'
  -v '/mnt/user/appdata/ARM/logs':'/home/arm/logs':'rw'
  -v '/mnt/user/appdata/ARM/media':'/home/arm/media':'rw'
  --runtime=nvidia
  --gpus all
  --device /dev/sr0
  --device /dev/sg1 '1337server/automatic-ripping-machine:latest'

bcfc6a1d3e1c4ec2c84b57da2e9f8b0503e6b4d1fb62378ff4ac4a27019cbf4d
docker: Error response from daemon: failed to create task for container: failed to create shim task: OCI runtime create failed: runc create failed: unable to start container process: error during container init: error running hook #0: error running hook: exit status 1, stdout: , stderr: Auto-detected mode as 'legacy'
nvidia-container-cli: initialization error: nvml error: driver not loaded: unknown.

The command failed.



how do I fix it???



What I'm trying to do automatic rip dvd to Plex-Media-Server.

Edited by crocker5731

  • Author
Just now, crocker5731 said:

I had automatic-ripping-machine working at one time. But now I get win reinstalling it.

Are you sure you read my comment?

It seems you don't have a Nvidia GPU installed in your system.



If you want to get the container to work without the GPU you have to remove:

1 minute ago, crocker5731 said:

  --runtime=nvidia



5 minutes ago, ich777 said:

Are you sure you read my comment?

It seems you don't have a Nvidia GPU installed in your system.



If you want to get the container to work without the GPU you have to remove:

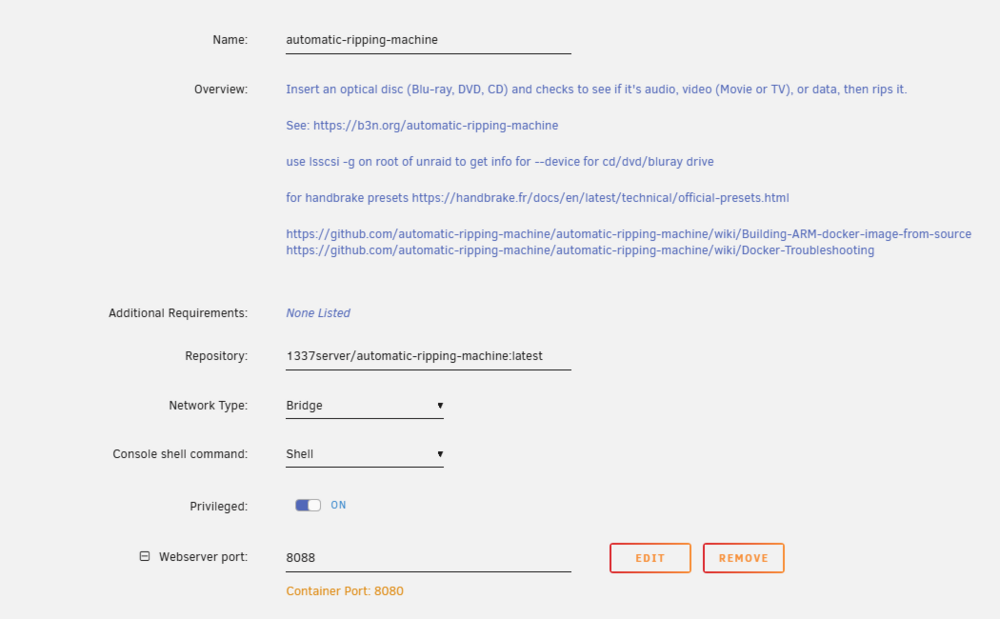

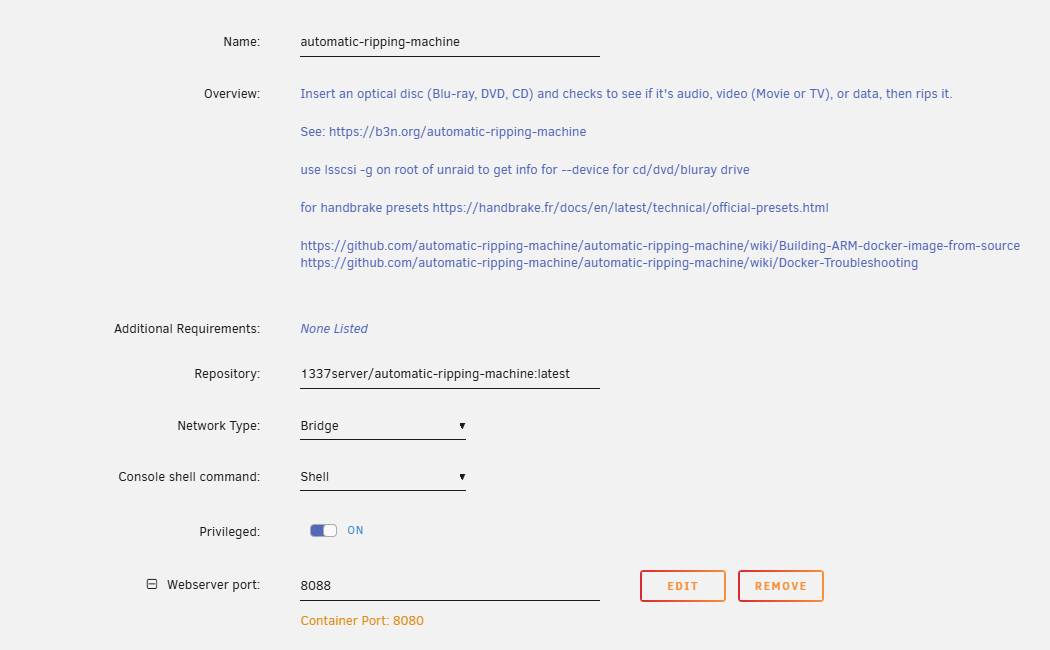

Screenshot 2024-08-16 015139.png

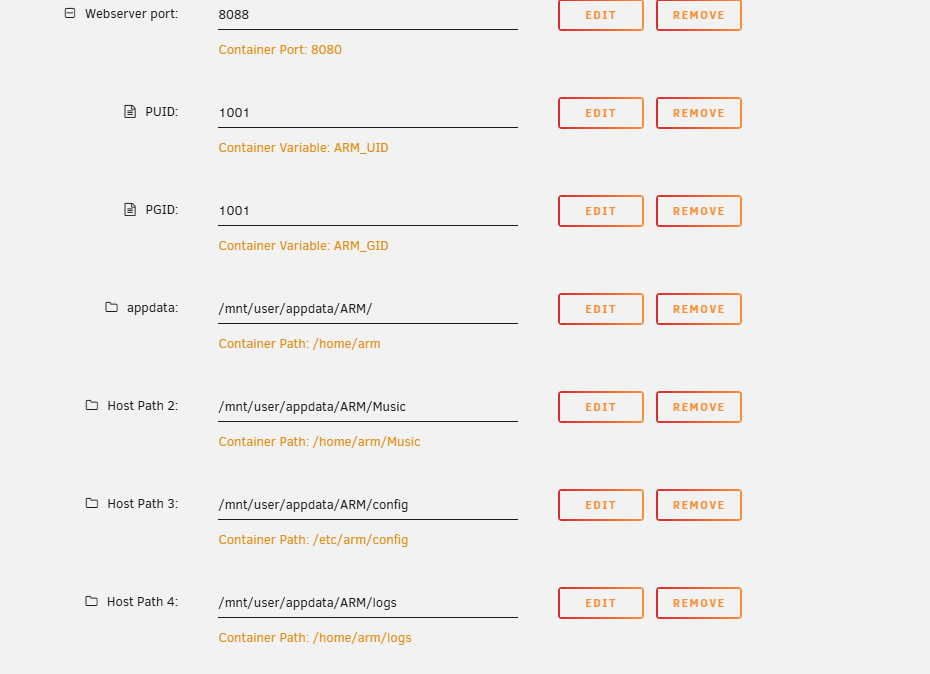

Screenshot 2024-08-16 015214.png

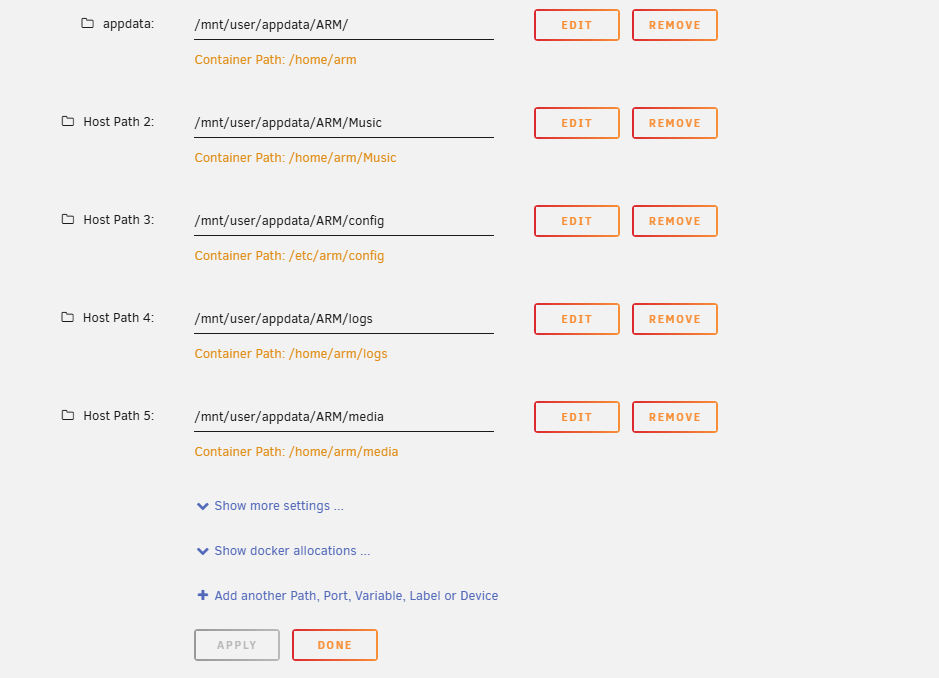

Screenshot 2024-08-16 015227.png

  • Author
2 minutes ago, crocker5731 said:



Screenshot 2024-08-16 015139.png

Sorry but you came here that the GPU is not working and now you post a screenshot from the template.



You have to give me more information what you want, do you want to get the template going with the GPU or without the GPU?

Do you have a GPU in your system?

7 minutes ago, ich777 said:

Sorry but you came here that the GPU is not working and now you post a screenshot from the template.



You have to give me more information what you want, do you want to get the template going with the GPU or without the GPU?

Do you have a GPU in your system?

No I do not have a GPU in my pc. I'm using on bored video. So I do need get it to work with a GPU.

  • Author
9 minutes ago, crocker5731 said:

No I do not have a GPU in my pc.

Then why do you install the Nvidia driver?



9 minutes ago, crocker5731 said:

I'm using on bored video. So I do need get it to work with a GPU.

Then pass through the integrated GPU.

Please don't ask how to do that here since this is the Nvidia Driver support thread not the container support thread or how to get a Intel iGPU working with a Docker container.



I don't even know this container so I can't help.



As said above you have to remove --runtime=nvidia from the Extra Parameters (with enabled Advanced View in the Docker template).

3 minutes ago, ich777 said:

Then why do you install the Nvidia driver?



Then pass through the integrated GPU.

Please don't ask how to do that here since this is the Nvidia Driver support thread not the container support thread or how to get a Intel iGPU working with a Docker container.



I don't even know this container so I can't help.



As said above you have to remove --runtime=nvidia from the Extra Parameters (with enabled Advanced View in the Docker template).

I got it working for now. Thank you for all your help!!!

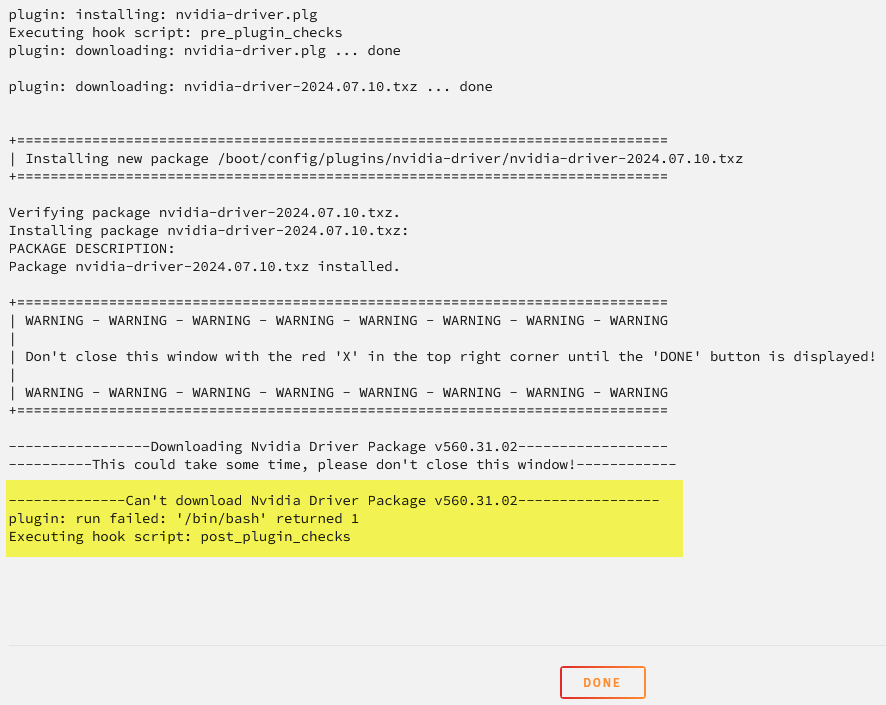

I'm having trouble updating the driver. Even though I have version 560.31.02 installed, it seems to want to update to the version in the screenshot. And it's not downloading either, just gives the error message. What is happening here?




  • Author
31 minutes ago, tuxflux1 said:

What is happening here?

Please post a screenshot from the entire Nvidia Driver plugin page.


Nevermind. It must have updated itself on its own. It wasn't on the most recent version last time I checked, but it seems to have updated itself in the meantime without me noticing. Sorry for the inconvenience.

  • Author
1 hour ago, tuxflux1 said:

Nevermind. It must have updated itself on its own. It wasn't on the most recent version last time I checked, but it seems to have updated itself in the meantime without me noticing. Sorry for the inconvenience.

I have unhidden your post again since your plugin is broken, this happens for some users and this is the indication for it:




Please uninstall the plugin, reboot, reinstall the plugin and reboot again.



EDIT: It should be also possible to just uninstall, install and reboot after thinking again about it.

Got a strange issue and I'm at my wits end.  Bought a Supermicro X11SPI-TF motherboard to upgrade my current rig. (256GB ECC DDR4 / 6132 Xeon Gold CPU / Nvidia RTX2060). I had originally bought a Supermicro X11 dual-proc board but returned it because I was having similar issues, but now I think it's related to hardware compatability, but I want to see if I'm missing something.  Right now, I'm bench testing the motherboard with similar components to my current rig and using Unraid trial USB to test.



Issue is this: I can get UnRAID to boot fine with 2060 installed in any slot (typically Slot 6).  When I install the Nvidia plugin, the machine hangs, then crashes and reboots.  I've tried a number of different Nvidia driver versions including the open source version (with correct modprobe settings).  Everything results in the same behavior.  I have 4G Encoding enabled.  I've toyed with all sorts of PCIe settings in the BIOS and still this is the behavior every time - hang and then reboot.  I get nothing on the terminal or syslogs relating to an error.  It just shows the plugin being installed and then hang/crash.



I've also tried testing with a GTX 1080 and GTX 650 and both exhibit the same issue.   Just seems like there's some anger with Supermicro and GPUs.  Disabling the onboard video of the motherboard has no effect either.  no change in behavior.



If I install the plugin without the GPU installed, it will install fine.  I can re-install the GPU and boot to Unraid fine.  Although, when you navigate to the Unraid plugin settings or even run diagnostics, it will hang and then crash.  When I tried to run diag, it crashes here:



ls -lA /sys/class/drm/*/device/driver 2>/dev/null|todos >>'/tower-diagnostics-20240817-1519/system/drm.txt'
/usr/bin/nvidia-smi --query 2>/dev/null|todos >>'/tower-diagnostics-20240817-1519/system/nvidia-smi.txt'



I'll attach my diags with and without the GPU and plugin installed.  Just wondering if anyone has any experience with Supermicro boards and perhaps there's a setting for the Nvidia driver that I can set that may help.  I may just end up moving on to a different mobo that isn't so tempermental.



I've run memtest+ on the memory - no issues.



Grasping at straws.  Thanks!





tower-diagnostics-20240817-1537 with gpu no plugin.zip tower-diagnostics-20240817-1511 sans GPU with plugin.zip

Edited by clincher

5 hours ago, clincher said:

Grasping at straws.  Thanks!



tower-diagnostics-20240817-1537 with gpu no plugin

>> GPU is visible, no plugin, no errors



64:0d.3 System peripheral [0880]: Intel Corporation Sky Lake-E LMDP Channel 2 [8086:204b] (rev 04)
	Subsystem: Intel Corporation Sky Lake-E LMDP Channel 2 [8086:0000]
65:00.0 VGA compatible controller [0300]: NVIDIA Corporation TU106 [GeForce RTX 2060 Rev. A] [10de:1f08] (rev a1)
	Subsystem: Micro-Star International Co., Ltd. [MSI] TU106 [GeForce RTX 2060 Rev. A] [1462:3755]
65:00.1 Audio device [0403]: NVIDIA Corporation TU106 High Definition Audio Controller [10de:10f9] (rev a1)
	Subsystem: Micro-Star International Co., Ltd. [MSI] TU106 High Definition Audio Controller [1462:3755]
65:00.2 USB controller [0c03]: NVIDIA Corporation TU106 USB 3.1 Host Controller [10de:1ada] (rev a1)
	Subsystem: Micro-Star International Co., Ltd. [MSI] TU106 USB 3.1 Host Controller [1462:3755]
	Kernel driver in use: xhci_hcd
65:00.3 Serial bus controller [0c80]: NVIDIA Corporation TU106 USB Type-C UCSI Controller [10de:1adb] (rev a1)
	Subsystem: Micro-Star International Co., Ltd. [MSI] TU106 USB Type-C UCSI Controller [1462:3755]
b2:05.0 System peripheral [0880]: Intel Corporation Sky Lake-E VT-d [8086:2034] (rev 04)
	Subsystem: Intel Corporation Sky Lake-E VT-d [8086:0000]



tower-diagnostics-20240817-1511 sans GPU with plugin

>> no card mounted / visible ? plugin installed successfully ... error, yes as there is no card ...

>> device's 65:00.N >> missing ...



64:0d.3 System peripheral [0880]: Intel Corporation Sky Lake-E LMDP Channel 2 [8086:204b] (rev 04)
	Subsystem: Intel Corporation Sky Lake-E LMDP Channel 2 [8086:0000]
b2:05.0 System peripheral [0880]: Intel Corporation Sky Lake-E VT-d [8086:2034] (rev 04)
	Subsystem: Intel Corporation Sky Lake-E VT-d [8086:0000]



may look if the card sits properly

may also NOT use the open source one, just regular latest driver, also remove the modprobe






so, to really see a error there is a boot required with GPU installed and visible (lspci), then install the driver.



may activate for debugging now syslog to flash when you say your system crashes while the nvidia-smi is triggered

(deactivate it when debug is done)



general spoken

check seat of the card

check PSU is good enough and connected properly

try another slot on the Board

BIOS - latest update done

BIOS - UEFI boot, rBAR and above 4g is activated

On 8/11/2024 at 10:08 PM, ich777 said:





No, why?

As you can see here your GPU is still supported and my GPU (Nvidia T400) is still working just fine with Jellyfin and Unraid 7.0



What container are you using? From which maintainer?



I just checked and I see that there are about 750 downloads on the latest Nvidia Driver so I assume the driver is working for other users too.

It looks like 550.107.02 isn't an option in the plugin. What should I choose?



I'm using LSIO Plex

Edited by shabash

  • Author
52 minutes ago, shabash said:

What should I choose?

I don't know since you still didn't provided Diagnostics.

Troubleshooting without more information is really hard, sorry but I can't help until you provide your Diagnostics.

  • Author
43 minutes ago, shabash said:

Sorry about that

Just for next time, you can upload that directly here by just dropping the zip into the text field here.



Please upgrade to Unraid 6.12.11



However, I think this issue is related to the container not to the driver since everything seems to be working fine from the driver side.

11 hours ago, alturismo said:



tower-diagnostics-20240817-1511 sans GPU with plugin

>> no card mounted / visible ? plugin installed successfully ... error, yes as there is no card ...

>> device's 65:00.N >> missing ...

Yes, there were two diagnostics.  One with the GPU installed and no plugin and one diagnostic without (sans) the GPU installed and plugin installed.  The card is seated fine when installed.



If I try and boot the system WITH the GPU installed and plugin installed, the system will hang during initialization and crash.



may also NOT use the open source one, just regular latest driver, also remove the modprobe

 - Yes, I've tried the standard driver and the open source. Both exhibit the same behavior.  Hang and then crash reboot.

11 hours ago, alturismo said:

so, to really see a error there is a boot required with GPU installed and visible (lspci), then install the driver.



may activate for debugging now syslog to flash when you say your system crashes while the nvidia-smi is triggered

(deactivate it when debug is done)



general spoken

check seat of the card

check PSU is good enough and connected properly

try another slot on the Board

BIOS - latest update done

BIOS - UEFI boot, rBAR and above 4g is activated



I've tried all of the above.  My BIOS doesn't have an RBAR setting anywhere that I can find.  4G is enabled.  Newest BIOS for Supermicro is installed.



 I'm guessing this is just a Supermicro incompatability.  Unfortunately, I can't get any useful logs or diagnostics because the system freezes up and doesn't not record anything to syslog or console.



When the GPU is installed and plugin is installed, the system hangs at the following console statement during bootup:



Starting atd: /usr/sbin/atd -b 15 -l 1
Starting Samba: /usr/sbin/smbd -D
				/usr/sbin/wsdd2 -d -4
				/usr/sbin/winbindd -D
Starting mcelog daemon: /usr/sbin/mcelog --daemon

Then the system hangs and reboots.  I can ping the system IP and see that network begins to come up for about 3-4 pings, but stops when the system hangs.   This is essentially how I am testing if the system hangs.



Think I'm going to start searching for an alternative motherboard.







1 hour ago, clincher said:

Think I'm going to start searching for an alternative motherboard.





13 hours ago, alturismo said:

try another slot on the Board



also tested ?
