[Plugin] Nvidia-Driver

Featured Replies

10 hours ago, ich777 said:

Nvidia T400, it you should be able to get it for under $ 100,- , it is really power efficient (only a max. of 35W) and is enough for 3 to 4 simultaneous 4K transcodes (depending on bitrate and so on).

Thanks for the suggestion. It's for transcoding cctv streams for Frigate.

I'll look for a T400... a genuine one.

  • Replies 5.9k
  • Views 1.2m
  • Created
  • Last Reply

Top Posters In This Topic

Most Popular Posts

  • To utilize your Nvidia graphics card in your Docker container(s) the basic steps are:   Add '--runtime=nvidia' in your Docker template in 'Extra Parameters' (you have to enable 'Advanced

  • Recompiled the drivers and they are now just working fine (to get it working scroll down):   Please do the following (this is only necessary if you upgraded before I recompiled the dri

  • I'm currently spinning up my build VM and compiling the drivers again, currently drivers for 6.11.0 stable are not available...

Posted Images

  • Author
5 minutes ago, Tom Sealey said:

I'll look for a T400... a genuine one.

You can even look for a higher tier like T600 or T1000 depending on how many simultaneous streams you have.

If you have many streams something like a Quadro should be considered.

6 hours ago, ich777 said:

You can even look for a higher tier like T600 or T1000 depending on how many simultaneous streams you have.

If you have many streams something like a Quadro should be considered.

Thanks.

T400 should be good, it's 2 4k CCTV cameras.
Should be perfect and power efficient.



21 hours ago, ich777 said:

EDIT: I found and fixed a bug in the update check for Production and New Feature Branch, please update the plugin, it should work next time if Latest Production or New Feature Branch is selected.

Thanks. I'll see how it goes.

Hello,

I get an "Error" that I can't download the Nvidia Driver.

How can I troubleshoot this problem?



My P400 shows up in System Devices.

Can not install the Plugin with and without the GPU installed.

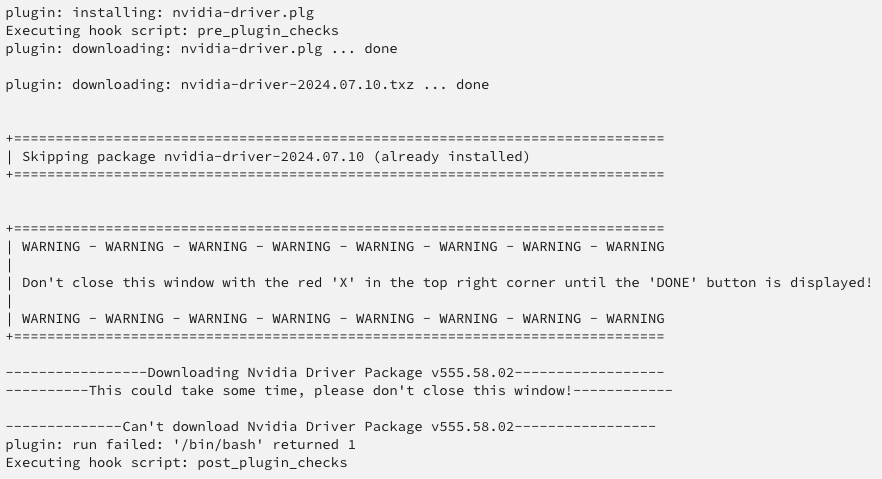

Bildschirmfoto 2024-07-11 um 18.36.43.png

  • Author
31 minutes ago, Lennart_02 said:

How can I troubleshoot this problem?

Please post your Diagnostics and a screenshot from you plugin page.

Thanks for the fast reply and sorry for the Unnecessary post.

I just noticed that the Plugins and Drivers are Stored on the USB Stick.

And I had an 1GB USB Stick which was almost full.

Replaced it and now it works.

Hello! New unraid user here.



I have constructed a NAS including a 3050 6gb low profile card. I am running in to the issue with 'NVIDIA-SMI has failed because it couldn't communicate with the NVIDIA driver. Make sure that the latest NVIDIA driver is installed and running.' I am also having some issues where display cuts out on the card after a short time. I believe that my card is at least getting sufficient power from the pcie slot on my aorus b550i pro ax board, mostly due to the following:



1. running `lspci` reveals:

07:00.0 VGA compatible controller: NVIDIA Corporation GA107 [GeForce RTX 3050 6GB] (rev a1)



2. and running `modinfo nvidia` reveals:

lename:       /lib/modules/6.8.12-Unraid/kernel/drivers/video/nvidia.ko
alias:          char-major-195-*
version:        555.58.02
supported:      external
license:        NVIDIA
firmware:       nvidia/555.58.02/gsp_tu10x.bin
firmware:       nvidia/555.58.02/gsp_ga10x.bin
srcversion:     7CC59AD55E0DD69F0C28592

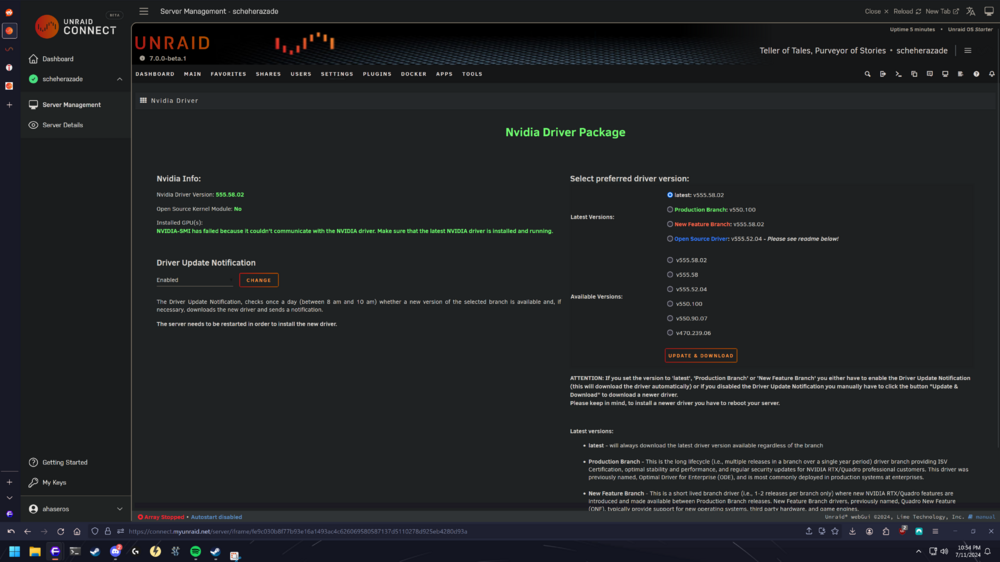

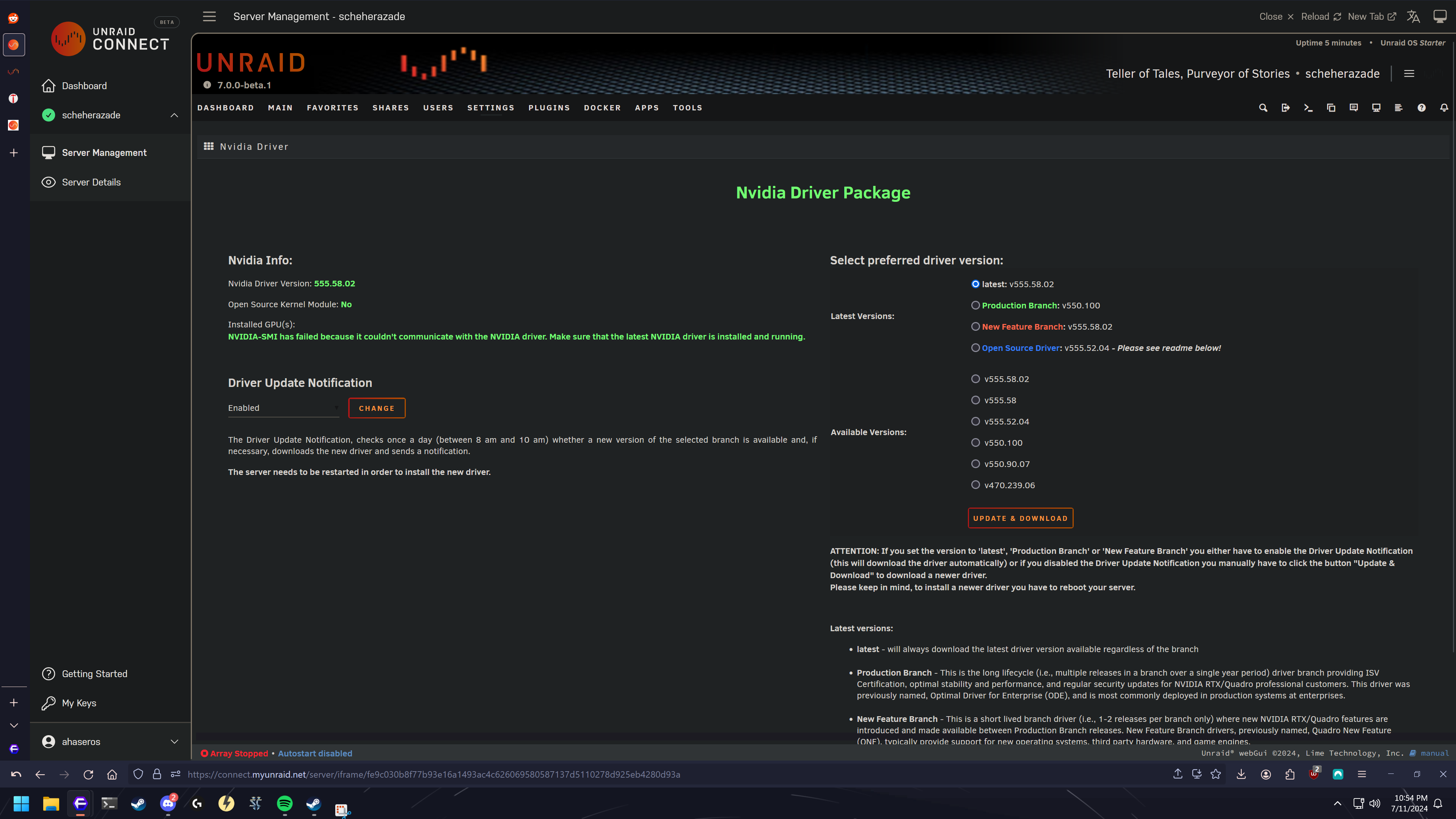

I am attaching my page and my diagnostics as well. Any help would be appreciated.


scheherazade-diagnostics-20240711-2254.zip

Edited by ahaseros

  • Author
1 hour ago, ahaseros said:

I have constructed a NAS including a 3050 6gb low profile card.

Here is your issue:

Jul 11 22:48:55 scheherazade kernel: nvidia 0000:07:00.0: Unable to change power state from D3cold to D0, device inaccessible
Jul 11 22:48:55 scheherazade kernel: nvidia 0000:07:00.0: vgaarb: VGA decodes changed: olddecodes=none,decodes=none:owns=none
Jul 11 22:48:55 scheherazade kernel: NVRM: The NVIDIA GPU 0000:07:00.0
Jul 11 22:48:55 scheherazade kernel: NVRM: (PCI ID: 10de:2584) installed in this system has
Jul 11 22:48:55 scheherazade kernel: NVRM: fallen off the bus and is not responding to commands.



From what I see you are using a outdated BIOS too, make sure to upgrade your BIOS first after that continue with the steps here in this post.



It seems that you are using a Ryzen CPU, please make sure to disable C-States in the BIOS entirely, check if Support for large Address Space in the BIOS or Above 4G Decoding and Resizable BAR Support is enabled in the BIOS.



When it is still not working after you did all of the above try to boot into legacy mode instead of UEFI and see if that helps.

It could also be the case that this is caused by a Firmware bug (BIOS issue) however I would first recommend to try the steps from above and see if you can get it working, in it's current state it seems the card is not answering and the driver can't initialize the card.

Are you sure that your power supply is also up to the task and is capable of delivering enough power?

Thank you so much for your response!



I have a 750 watt power supply, which I believe should be able to handle a 5600x and a 3050. I have enabled both above 4G decoding and resizable BAR support in the BIOS.



I will attempt to update my BIOS and try booting into legacy mode.

  • Author
1 minute ago, ahaseros said:

I will attempt to update my BIOS and try booting into legacy mode.

If the issue still persists please don't forget to include Diagnostics.

Hi!



Unfortunately, even after successfully updating to the newest BIOS and attempting to boot in legacy mode, the error persists. The plugin screen remains the same, as well as the lspci and modinfo nvidia output. I am attaching my diagnostics below. Thank you for your help!





scheherazade-diagnostics-20240712-1719.zip

5 hours ago, ahaseros said:

the error persists

if you checked the seat, power plugs, ... i would look for if the card is may broken.



did you try to look for the card if it works on another OS ?



sample, some live linux stick, boot and see what happens there ? if there comes a screen etc ... and running properly.

  • 2 weeks later...

Hey. I just installed a gtx 1070 into my PowerEdge T310 (a little bit dated lol) and Nvidia Driver says "No device found" on Latest and: "NVIDIA-SMI has failed because it couldn't communicate with the NVIDIA driver. Make sure that the latest NVIDIA driver is installed and running" on Open Source Driver. The graphics card itself works and shows in the server devices, i even have a monitor plugged into it, but I can't get it to pass through to Plex. I tried adding "options nvidia NVreg_OpenRmEnableUnsupportedGpus=1" to the specified file but no bueno. Any help would be appreciated, I am ready to hurl my computer out a window.



lcl-server-syslog-20240727-0353.zip

1 hour ago, LIONGENZ9629 said:

I just installed a gtx 1070 into my PowerEdge



1 hour ago, LIONGENZ9629 said:

on Open Source Driver.

may tried the regular drivers instead ?



supported models for open source are



https://github.com/NVIDIA/open-gpu-kernel-modules



also, check your BIOS if above 4g decode && rbar is activated

  • Author
2 hours ago, LIONGENZ9629 said:

Please post your Diagnostics, the syslog doesn't help much.



2 hours ago, LIONGENZ9629 said:

on Latest and: "NVIDIA-SMI has failed because it couldn't communicate with the NVIDIA driver.

Diagnostics would help a lot, pulled after a restart after installing the latest driver version (not the open source one <- the Open Source driver only works for Turing cards, RTX2xxx, and up)



BTW, don't forget to remove that:

2 hours ago, LIONGENZ9629 said:

I tried adding "options nvidia NVreg_OpenRmEnableUnsupportedGpus=1" to the specified file but no bueno.

Removed the above file (which only contained the command) and updated to "latest", didn't fix it. My BIOS doesn't have any options for 4g recode or rbar, its very simplistic. Attached is diag file.

lcl-server-diagnostics-20240727-1601.zip

Any reason the checksum is failing when upgrading to v560.28.03?


Edited by UnBeastRaid

3 hours ago, LIONGENZ9629 said:

Attached is diag file.

as you see here, its a BAR issue



Jul 27 15:59:55 LCL-SERVER kernel: nvidia: loading out-of-tree module taints kernel.
Jul 27 15:59:55 LCL-SERVER kernel: nvidia: module license 'NVIDIA' taints kernel.
Jul 27 15:59:55 LCL-SERVER kernel: Disabling lock debugging due to kernel taint
Jul 27 15:59:55 LCL-SERVER kernel: nvidia-nvlink: Nvlink Core is being initialized, major device number 243
Jul 27 15:59:55 LCL-SERVER kernel:
Jul 27 15:59:55 LCL-SERVER kernel: kvm: VM_EXIT_LOAD_IA32_PERF_GLOBAL_CTRL does not work properly. Using workaround
Jul 27 15:59:55 LCL-SERVER kernel: NVRM: This PCI I/O region assigned to your NVIDIA device is invalid:
Jul 27 15:59:55 LCL-SERVER kernel: NVRM: BAR3 is 0M @ 0x0 (PCI:0000:04:00.0)
Jul 27 15:59:55 LCL-SERVER kernel: NVRM: This PCI I/O region assigned to your NVIDIA device is invalid:
Jul 27 15:59:55 LCL-SERVER kernel: NVRM: BAR4 is 0M @ 0x0 (PCI:0000:04:00.0)
Jul 27 15:59:55 LCL-SERVER kernel: nvidia 0000:04:00.0: vgaarb: changed VGA decodes: olddecodes=io+mem,decodes=none:owns=io+mem
Jul 27 15:59:55 LCL-SERVER kernel: NVRM: loading NVIDIA UNIX x86_64 Kernel Module  560.28.03  Thu Jul 18 19:32:18 UTC 2024
Jul 27 15:59:55 LCL-SERVER kernel: nvidia-modeset: Loading NVIDIA Kernel Mode Setting Driver for UNIX platforms  560.28.03  Thu Jul 18 20:27:27 UTC 2024
Jul 27 15:59:55 LCL-SERVER kernel: [drm] [nvidia-drm] [GPU ID 0x00000400] Loading driver
Jul 27 15:59:55 LCL-SERVER kernel: [drm] Initialized nvidia-drm 0.0.0 20160202 for 0000:04:00.0 on minor 0



sometimes also happens when power supply is not sufficient ...



may some trys



1/ check if the card is properly inserted

2/ check psu wiring (and if its enough)

3/ check if the GPU is actually working, may boot with some Live Linux if you get some display output

4/ may try booting Unraid in EFI / Legacy (vice vers, depneding on boot setup now)

5/ check BIOS for primary GPU / multi monitor settings

...

but in the end, if above 4g / rbar is not working ... you may are ... its a "aged" platform ;)



last try would be, add this to your syslinux



pci=realloc



to force reallocation of PCI ressources ... but always could end in a crashing, instable sys, if so, remove this again.

I'm actually running 2 power supplies, a 600w (with the on switch shorted to on) for the card, and one 300w stock PSU for the rest of the system and the drives. Could there be some mismatch between the two causing this? The PSU powering the card is always on and doesn't turn on or off with the system.



It launches unraid just fine with the monitor being plugged into the gpu, but I will try with another OS.



UEFI causes a hang and a failed launch, a known issue with my system and unraid with seemingly no fix. Legacy is therefore the only option.



I have onboard graphics as well, with the same issue happening with onboard video disabled and while enabled.



The BIOS really only gives options for Date, Time, SATA Controller, and some other little various options but none including 4g or rbar, it is not the most modern system. It sure doesn't quit though!



I already tried the "pci=realloc" command and no luck, but will try again and maybe it will work!



I'll check to see if I got a dead GPU and haven't forgotten to plug something in properly, but I may just have to give up the whole "transcoding with a system that's now 12 years old" idea.

I will update with results.

  • Author
17 hours ago, UnBeastRaid said:

Any reason the checksum is failing when upgrading to v560.28.03?

Maybe a bad download, not quiet sure, could be multiple reasons.



Does it now work?

  • Author
12 hours ago, LIONGENZ9629 said:

It launches unraid just fine with the monitor being plugged into the gpu, but I will try with another OS.

?



12 hours ago, LIONGENZ9629 said:

The BIOS really only gives options for Date, Time, SATA Controller, and some other little various options but none including 4g or rbar, it is not the most modern system. It sure doesn't quit though!

Please double check that if you are on the latest BIOS version.



Since this is a Dell Motherboard everything is named differently, search for something Support Large Address Space in your PCI section form your BIOS and in general search the PCI submenu (if it is even called like that).



12 hours ago, LIONGENZ9629 said:

I'll check to see if I got a dead GPU and haven't forgotten to plug something in properly, but I may just have to give up the whole "transcoding with a system that's now 12 years old" idea.

In general I think this is a firmware (BIOS) issue so you might have a option to enable that would solve this issue, otherwise you are sadly out of luck.

this might be a probjem of age but where can I check what my GPU is capable of transcoding? I have a 2Gb geforce 710 installed but i cant get it to transcode anything on the machine when streaming. I also have a 1080i to the side i could install too (but haven't yet). before i do though i wanted to check what are they capable of transcoding i.e. are they usable for 1080/2160 type quality or what are they actually capable of to make the (hw) appear on plex for me to know its working. at the moment (hw) does not appear for me despite plex being able to see the GPU in the transcoder settings

  • Author
1 hour ago, alcxander said:

this might be a probjem of age but where can I check what my GPU is capable of transcoding?

Here (but you won't find your GPU there).



1 hour ago, alcxander said:

I have a 2Gb geforce 710 installed but i cant get it to transcode anything on the machine when streaming.

Because this GPU is nobody should buy, it is based on Kepler which was released 2010 and is really outdated.

The GT710 is barely able to transcode h264...



Something like a Nvidia T400 (or even T600, T800 or T1000) will do the job just fine.

The T400 is really low power (maximum 30 Watts) and is able to transcode 4 x 4K streams simultaneous (depending on the bitrate and so on).



You could of course also install your GTX1080Ti but that is a bit overkill for transcoding only in my opinion.

1 hour ago, ich777 said:

Here (but you won't find your GPU there).



Because this GPU is nobody should buy, it is based on Kepler which was released 2010 and is really outdated.

The GT710 is barely able to transcode h264...



Something like a Nvidia T400 (or even T600, T800 or T1000) will do the job just fine.

The T400 is really low power (maximum 30 Watts) and is able to transcode 4 x 4K streams simultaneous (depending on the bitrate and so on).



You could of course also install your GTX1080Ti but that is a bit overkill for transcoding only in my opinion.

thanks! thats very helpful. I only got the 710 because it was a hand off. I could get a T series they all look very approachable. I have a 1080Ti because its a spare so i may go with it anyway. but thank you for the above recommendations.
