[Plugin] Nvidia-Driver

Featured Replies

51 minutes ago, ich777 said:

The Diagnostics from your server are still missing, you can upload them by simply draging them into the text window.

I would also prefer that you send me the transcoding log as a file.



I'm also not too sure if the container from linuxserver needs a Docker mod for Nvidia driver support <- but I could be very wrong on that.

Have you yet tried the official container?

which is the original? It is not this one?

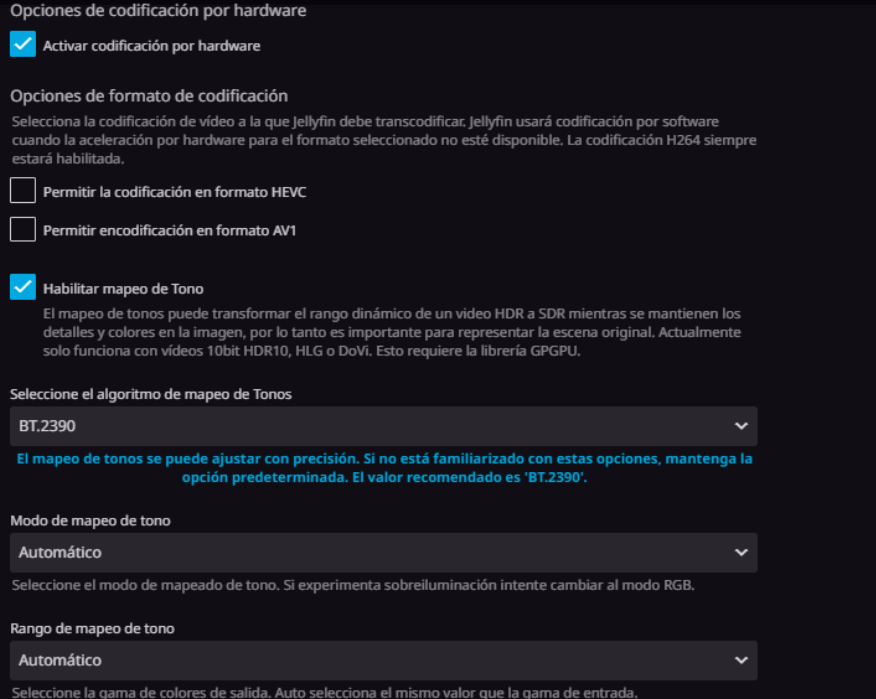

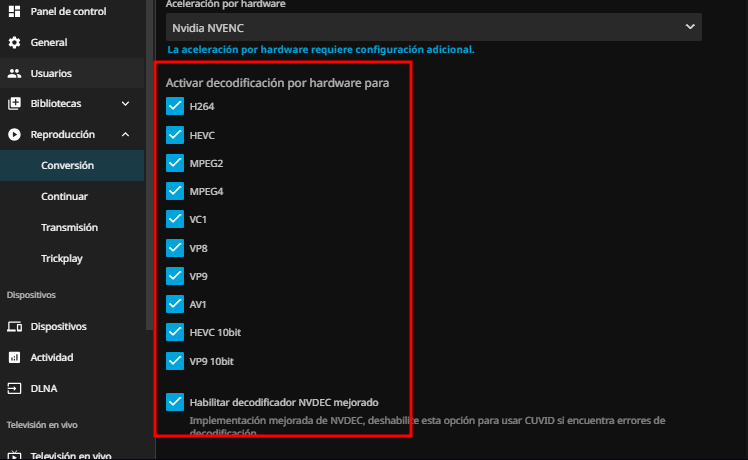

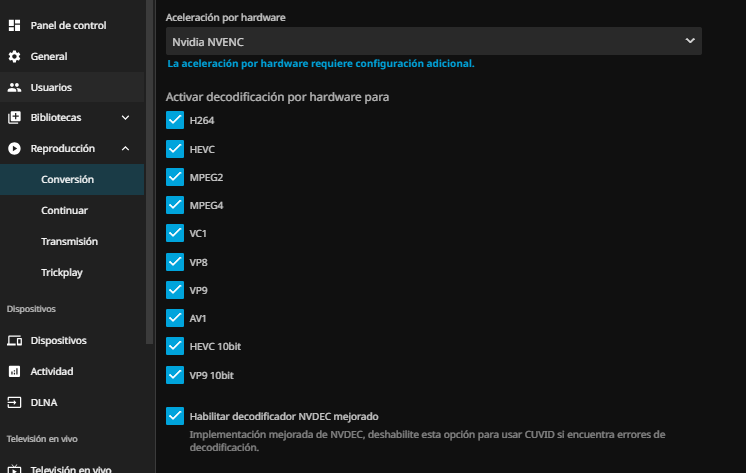

I'm trying to play from my iPhone 1080p h264 SDR, I always get error.
my GPU is always at 0%

Log.txt

  • Replies 5.9k
  • Views 1.2m
  • Created
  • Last Reply

Top Posters In This Topic

Most Popular Posts

  • To utilize your Nvidia graphics card in your Docker container(s) the basic steps are:   Add '--runtime=nvidia' in your Docker template in 'Extra Parameters' (you have to enable 'Advanced

  • Recompiled the drivers and they are now just working fine (to get it working scroll down):   Please do the following (this is only necessary if you upgraded before I recompiled the dri

  • I'm currently spinning up my build VM and compiling the drivers again, currently drivers for 6.11.0 stable are not available...

Posted Images

  • Author
8 hours ago, videofriki said:

which is the original? It is not this one?

The log that you've sent over doesn't have anything in it that points to an error with the Nvidia driver plugin.

... and you still haven't posted your Diagnostics.



However support from my side ends here because I see that you've already posted in the support thread from the Jellyfin container:



I would also recommend that you try another container (the official one) if this issue occurs there too.

  • Author
23 minutes ago, Kardiogramm said:

domain.cfg 235 B · 0 downloads flash.cfg 118 B · 0 downloads cache.cfg 1.04 kB · 0 downloads docker.cfg 364 B · 0 downloads smb-extra.conf 28 B · 0 downloads editor.cfg 40 B · 0 downloads super.dat 4 kB · 0 downloads ident.cfg 712 B · 0 downloads share.cfg 500 B · 0 downloads network.cfg 397 B · 0 downloads go.txt 71 B · 0 downloads disk.cfg 11.38 kB · 0 downloads listen.txt 23 B · 0 downloads APPLE_HDD_ST2000DM001_W1E77STF-2024-02-15 disk4 (sdf).txt 12.96 kB · 0 downloads SanDisk__Cruzer_Fit_4C530000071019120265-0-0-2024-02-15 flash (sda).txt 299 B · 0 downloads CT2000P3PSSD8_2407E89702D9-2024-02-15 cache3 (nvme0).txt 3 kB · 0 downloads ST8000AS0002-1NA17Z_Z840E5Y0-2024-02-15 disk2 (sde).txt 15.23 kB · 0 downloads 35000c500ae2c378f-2024-02-15 parity2 (sdk).txt 4.69 kB · 0 downloads WDC_WD30EZRS-00J99B0_WD-WCAWZ0026370-2024-02-15 disk10 (sdi).txt 10 kB · 0 downloads TOSHIBA_MK7559GSXF_11AHC0V5T-2024-02-15 disk7 (sdn).txt 10.44 kB · 0 downloads ST16000NM001G-2KK103_ZL2AGCF4-2024-02-15 disk1 (sdd).txt 15.68 kB · 0 downloads Samsung_SSD_960_PRO_1TB_S3EVNCAJ104728N-2024-02-15 cache (nvme2).txt 4.49 kB · 0 downloads TOSHIBA_HDWG31G_33U0A00EFX0G-2024-02-15 disk8 (sdj).txt 14.28 kB · 0 downloads nvme.1987-3239364430373939313346323030303531323334-53616272656e74-00000001-2024-02-15 cache2 (nvme1).txt 2.97 kB · 0 downloads CT2000BX500SSD1_2113E5900C03-2024-02-15 (sdm).txt 6.97 kB · 0 downloads TOSHIBA_MG10ACA20TE_93N0A02XF4MJ-2024-02-15 parity (sdb).txt 15.3 kB · 0 downloads WDC_WD30EFRX-68EUZN0_WD-WMC4N0M6E3EN-2024-02-15 disk5 (sdg).txt 14.27 kB · 0 downloads eui.6479a78ba000011f-2024-02-15 cache3 (nvme0).txt 3 kB · 0 downloads Sabrent_296D079913F200051234-2024-02-15 cache2 (nvme1).txt 2.97 kB · 0 downloads eui.0025385171503f7e-2024-02-15 cache (nvme2).txt 4.49 kB · 0 downloads Hitachi_HDS724040ALE640_PK1331PAG3KUZS-2024-02-15 disk6 (sdc).txt 14.42 kB · 0 downloads 35000c500ae2a46ef-2024-02-15 disk9 (sdl).txt 4.76 kB · 0 downloads TOSHIBA_MG06ACA10TE_90N0A3A0FKQE-2024-02-15 disk3 (sdh).txt 17.22 kB · 0 downloads cmdline.txt 36 B · 0 downloads btrfs-usage.txt 1.37 kB · 0 downloads nvidia-smi.txt 9.71 kB · 1 download drm.txt 448 B · 0 downloads unraid-api.txt 334 B · 0 downloads plugins.txt 482 B · 0 downloads motherboard.txt 1.08 kB · 0 downloads iommu_groups.txt 1.55 kB · 0 downloads ntp.txt 2.84 kB · 0 downloads ethtool.txt 2.37 kB · 0 downloads folders.txt 34.13 kB · 0 downloads sshd.txt 3.47 kB · 0 downloads lsmod.txt 5.23 kB · 0 downloads lsscsi.txt 4.84 kB · 0 downloads thirdparty_packages.txt 180 B · 0 downloads loads.txt 1.14 kB · 0 downloads testparm.txt 1.06 kB · 0 downloads memory.txt 256 B · 0 downloads lspci.txt 6.33 kB · 0 downloads meminfo.txt 5.25 kB · 0 downloads lsusb.txt 698 B · 0 downloads urls.txt 742 B · 0 downloads top.txt 44.89 kB · 0 downloads ps.txt 53.84 kB · 0 downloads servers.conf.txt 2.15 kB · 0 downloads vars.txt 63.36 kB · 0 downloads lscpu.txt 3.09 kB · 0 downloads lsof.txt 7.81 kB · 0 downloads df.txt 1.34 kB · 0 downloads ifconfig.txt 314 B · 0 downloads docker.txt 2.7 kB · 0 downloads syslog-previous.txt 549.69 kB · 0 downloads syslog.txt 539.69 kB · 0 downloads unraid-6.12.10.txt 518 B · 0 downloads appdata.cfg 171 B · 0 downloads domains.cfg 169 B · 0 downloads T----------e.cfg 474 B · 0 downloads P--------a.cfg 520 B · 0 downloads C----o.cfg 460 B · 0 downloads isos.cfg 178 B · 0 downloads cache.cfg 474 B · 0 downloads system.cfg 176 B · 0 downloads shareDisks.txt 844 B · 0 downloads D-----x.cfg 474 B · 0 downloads

I assume you have a Mac and use Safari correct? Please disable auto extract from zip files in Safari next time and upload the Diagnostics.zip and not the individual files since this is a mess... :P

So to speak it is really hard to find the necessary files...



25 minutes ago, Kardiogramm said:

Is there no way to get it working natively?

What do you mean with natively?



26 minutes ago, Kardiogramm said:

To save energy I have upgraded my motherboard and CPU (Nvidia GPU is still the same)

Then why use the Nvidia GPU at all?

Your Intel iGPU is more than capable of transcoding multiple 4K media files.

Your Intel iGPU is very power efficient too (more than any Nvidia GPU).

Sorry about that, I was wondering why it did that.



I just find there is less noise with the GPU and I get fewer transcode popup warnings too along with snappier performance. I don't mind energy consumption when it's working on something, but it's not great when idle. My previous CPU struggled with scanning media for intro/credits, so this one is much better. Nativley as in I download something and it just works and recognises the hardware without having to configure it outside the docker app.

kardiogramm-diagnostics-20240529-2144.zip

  • Author
12 minutes ago, Kardiogramm said:

I just find there is less noise with the GPU and I get fewer transcode popup warnings too along with snappier performance.

I really can't imagine that the quality is better since Intel's HW transcoder is praised for it's quality on many forums (but I don't want to argue with anyone about that :D ).

In terms of performance, have you yet tried the new Intel iGPU, the ARC GPUs are blazing fast and nothing compared to a Nvidia 30 series card (at least in my opinion).



14 minutes ago, Kardiogramm said:

Nativley as in I download something and it just works and recognises the hardware without having to configure it outside the docker app.

Read the second post in the thread, there is everything in there what you need to do.



From what I can see in the Diagnostics your Nvidia GPU and your Intel iGPU is working fine and you should be able to utilize them if you follow the directions from the second post in this thread.

For the Intel iGPU you just have to pass through the DEVICE /dev/dri by clicking "Add another Path, Port, Variable, Label or Device", selecting Device from the drop down and enter the above mentioned path.



After that you should be able to see both GPUs in the Plex settings and select one of them for transcoding, everything else will be done automatically.

"I really can't imagine that the quality is better since Intel's HW transcoder is praised for it's quality on many forums (but I don't want to argue with anyone about that)"



Oh by noise I meant from the server fans. Image quality is the same but I think the performance from the GPU was better, especially when multitasking.



I added the path for the iGPU /dev/dri and now both of them pop up as an option in the Plex app transocde settings. Am I going insane? I didn't see: DEVICE /dev/dri in the Plex instructions on the first page.



I will given them both a try and see which one is better :P Thank you for your time and your help, much appreciated :)

  • Author
2 minutes ago, Kardiogramm said:

Oh by noise I meant from the server fans.

Ah sorry... I couldn't imagine that you meant from fans since the iGPU only consumes at most 11 Watts on my server and that shouldn't be a problem in terms of noise... :)



3 minutes ago, Kardiogramm said:

I think the performance from the GPU was better, especially when multitasking.

Maybe but in case for Plex it doesn't matter, only if you have a lot of concurrent Streams my i9-10900 iGPU can handle about 5x 4k streams and even more if the bitrate is not too high.



4 minutes ago, Kardiogramm said:

I didn't see: DEVICE /dev/dri in the Plex instructions on the first page.

This is only for your Intel iGPU... sorry... but now at least you can test.

Hey

I am attempting to run Games on Whales (Wolf) on Unraid and noticed when I run the command below, the mode set is currently set to know but the doco I am ready need



sudo cat /sys/module/nvidia_drm/parameters/modeset
N



But I need this enabled, It does indicate this can be done by adding the following to the grub boot

nvidia-drm.modeset=1



However being new to unraid and all wanted to field the question on best approach to enabling this. Is it possible I can enable this post grub boot, or is there an appropriate way to do this for unraid. For context I am following this guide
Games on Whales Wolf Setup

  • Author
4 hours ago, Salty2011 said:

grub boot

You don‘t need grub to set that.

You can either set that on the drivers page (at the Tools page at the nvidia-drm driver) or in your syslinux config (I would recommend the syslinux way for the beginning).



Just append what you posted above to your syslinux config.



I‘m currently on the go and can‘t give you a exact tutorial but please go to the below linked thread and in the first post at DigitalDevices (blue headline) there is a tutorial how to append such configurations.


Hope that helps.

Hey

I recently upgraded from a R720 to an R730. I have a P40 that was working just fine in the R720 but now the furthest i can get is the Nvidia SMI error message in the Plug in. P40 is present in PCI IOMMU devices. I've tried multiple things including legacy boot and re enabling the PCI slot and re installing the plugin. I've looked at the supported drivers for the P40 thinking it may no longer be supported but it was working just fine in the R720 less than a week ago.

ryan-diagnostics-20240602-1929.zip

  • Author
7 hours ago, PeeweeStew said:

but it was working just fine in the R720 less than a week ago

I hope you can see what the issue seems to be:

Jun  2 19:25:54 Ryan kernel: NVRM: GPU 0000:82:00.0: GPU does not have the necessary power cables connected.
Jun  2 19:25:54 Ryan kernel: NVRM: GPU 0000:82:00.0: RmInitAdapter failed! (0x24:0x1c:1556)
Jun  2 19:25:54 Ryan kernel: NVRM: GPU 0000:82:00.0: rm_init_adapter failed, device minor number 0



I keep getting an error message every time there's a driver update. I've received the same error for the last 4 or 5 updates. Not sure how to troubleshoot this. image.png.40aeb8bdde77e4d94ab911331bf9eb39.png

  • Author
2 minutes ago, shiftylilbastrd said:

I keep getting an error message every time there's a driver update. I've received the same error for the last 4 or 5 updates. Not sure how to troubleshoot this.

Can you please post your Diagnostics?

  • Author
25 minutes ago, shiftylilbastrd said:

This is really strange, it also seems like you have enough space on your USB Boot device.



Have you yet tried to click the download button manually? Can you also share a screenshot from your whole Nvidia driver plugin page please?

Are you also sure that the server has exclusive access to the Internet and is not behind any AdBlocking software or similar?

Is maybe something on your network using GitHub API calls or is the GitHub API maybe blocked?

The plugin makes use of the GitHub API.

3 minutes ago, ich777 said:

Have you yet tried to click the download button manually? Can you also share a screenshot from your whole Nvidia driver plugin page please?

Yeah, I've been manually installing since I've been getting them.



I don't have any adblockers enabled. I'm a networking noob so pretty much everything is just at default settings on my Unifi system and it had been working in the past.

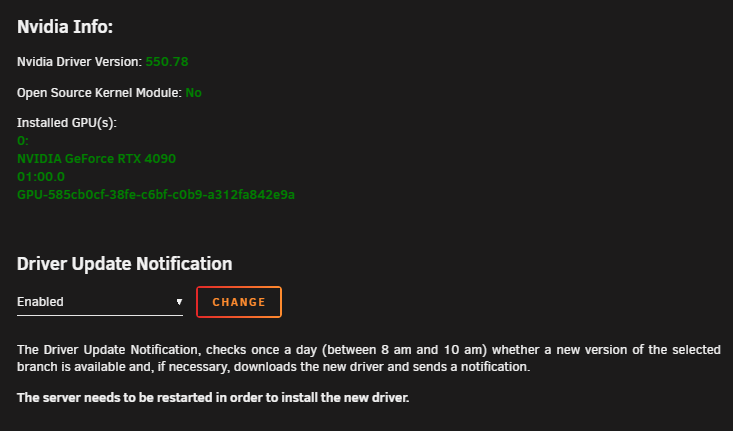

192-168-1-13.c3c90aa05a6e85d4ba03ed04389656a8be5effec.myunraid.net_Settings_nvidia-driver.png

I just did the manual update before you asked for the screenshot

  • Author
1 minute ago, shiftylilbastrd said:

Unifi

Maybe that's the cause of the issue but I don't think so, please keep an eye on it.



It should work if you select the Production Branch, however it won't do much if you just use the card for transcoding to always be on the latest driver.

It is also safe to stay on the latest branch (with this you ensure that if you upgrade to a newer Unraid version that it will the latest version that is available for that version) and disable update checking or simply set a static driver version.

4 hours ago, ich777 said:

It should work if you select the Production Branch

I do have production branch selected.

  • Author
4 hours ago, shiftylilbastrd said:

I do have production branch selected.

I see that but I really don't know why it fails on your machine.

The way the check works is that it checks for updates between 8 and 10 am by getting the latest version for the branch that is selected and if a newer version is found what you are using it is pulled down and message is sent to the user that the new driver is download.



The message that you see is generated when the download from the driver fails.



Please note that the driver needs about 250MB of free space on your USB Boot device.

BTW, you have a lot of FSCK files on your boot device, this indicates an issue with your USB Boot device however this is out of the scope from this thread.

2 minutes ago, ich777 said:

@shiftylilbastrd no, this is something completely different and has nothing to do with the Nvidia Driver plugin.

Thanks. I removed all that from the thread and will ask elsewhere.

Hi to everyone. One question there I have faced issue when ffmpeg (inside fileflow docker) give me an error about outdated drivers for nvec encoding (required 520 minimum). But I have only 515.43 available in Nvidia driver settings, while I can see latest 555.52 linux driver on Nvidia web site available.



Is this my issue? Or it is not available for installation with Nvidia drivers plugin?


  • Author
1 hour ago, ionedji said:

Is this my issue? Or it is not available for installation with Nvidia drivers plugin?

On what Unraid version are you? :D :P



The latest drivers are only available on newer Unraid versions.



Please post your Diagnostics.

20 hours ago, ich777 said:

On what Unraid version are you? :D :P



The latest drivers are only available on newer Unraid versions.



Please post your Diagnostics.

I`m on v6.9.2. I got your point. But why? How unraid version correlates with available nvidia drivers? Sorry if it`s a dumb question :)
