zoggy

Something went wrong. Please try again. Error code: EX1264 is what i get when i try to use the link in the first post if you just click on it. if you copy the link then open up a new tab and paste it in, the page actually comes up

for those that use password managers, one failed login is too many. but anyways fail2ban should be part of unraid and can be configured to meet the users need. just unraid needs to log failures in a sensible way that fail2ban can parse out.

I have the LSI SAS 9207-8i - which if you compare the others it does pcie 3.0 and x8, so no bottle neck for mechanical drives. (most others are pcie 2.0) Depending on what firmware comes with the card, you may have to flash it into IT mode (so it doesnt try to do RAID), but pretty simple to do if you've ever updated a bios/firmware for anything before. reddit post from back in the day that gave a decent overview of what was out there: and about power usage, idling with a few dockers per the UPS module it shows the system is using 69 watts.

Thanks, It's been a really long time since I've had a non mounted drive without the UD plugin installed. Made it a bit confusing because of all the talk in the 6.9 rc1 talk about removing UD and I was fearful that something was still left around.

Also while on 6.9.0-rc1, Hooked the 2.5G motherboard port to my 2.5G switch (just quick test to see what unraid nego the RTL8125 port as) and sure confirm it does 2.5G. Testing on 6.8.3 it looks like it will do 2.5G there as well. So weekend project now to replace switch then iperf *update* to follow up on this, on 6.9.2 and the 2.5G nic as eth0 (moved to using it as eth0 for dns): I noticed that with current driver tso/gso are both off can cant be turned on. but doing iperf test I get full speed just fine. # ethtool -i eth0 driver: r8169 version: 5.10.28-Unraid firmware-version: rtl8125a-3_0.0.1 08/24/19 expansion-rom-version: bus-info: 0000:04:00.0 supports-statistics: yes supports-test: no supports-eeprom-access: no supports-register-dump: yes supports-priv-flags: no tso/gso both off, cant turn on: # ethtool -k eth0 Features for eth0: rx-checksumming: on tx-checksumming: on tx-checksum-ipv4: on tx-checksum-ip-generic: off [fixed] tx-checksum-ipv6: on tx-checksum-fcoe-crc: off [fixed] tx-checksum-sctp: off [fixed] scatter-gather: off tx-scatter-gather: off tx-scatter-gather-fraglist: off [fixed] tcp-segmentation-offload: off tx-tcp-segmentation: off [requested on] tx-tcp-ecn-segmentation: off [fixed] tx-tcp-mangleid-segmentation: off [requested on] tx-tcp6-segmentation: off [requested on] generic-segmentation-offload: off [requested on] generic-receive-offload: on large-receive-offload: off [fixed] rx-vlan-offload: on tx-vlan-offload: on ntuple-filters: off [fixed] receive-hashing: off [fixed] highdma: on [fixed] rx-vlan-filter: off [fixed] vlan-challenged: off [fixed] tx-lockless: off [fixed] netns-local: off [fixed] tx-gso-robust: off [fixed] tx-fcoe-segmentation: off [fixed] tx-gre-segmentation: off [fixed] tx-gre-csum-segmentation: off [fixed] tx-ipxip4-segmentation: off [fixed] tx-ipxip6-segmentation: off [fixed] tx-udp_tnl-segmentation: off [fixed] tx-udp_tnl-csum-segmentation: off [fixed] tx-gso-partial: off [fixed] tx-tunnel-remcsum-segmentation: off [fixed] tx-sctp-segmentation: off [fixed] tx-esp-segmentation: off [fixed] tx-udp-segmentation: off [fixed] tx-gso-list: off [fixed] fcoe-mtu: off [fixed] tx-nocache-copy: off loopback: off [fixed] rx-fcs: off rx-all: off tx-vlan-stag-hw-insert: off [fixed] rx-vlan-stag-hw-parse: off [fixed] rx-vlan-stag-filter: off [fixed] l2-fwd-offload: off [fixed] hw-tc-offload: off [fixed] esp-hw-offload: off [fixed] esp-tx-csum-hw-offload: off [fixed] rx-udp_tunnel-port-offload: off [fixed] tls-hw-tx-offload: off [fixed] tls-hw-rx-offload: off [fixed] rx-gro-hw: off [fixed] tls-hw-record: off [fixed] rx-gro-list: off macsec-hw-offload: off [fixed] and with main computer + nas both on the 2.5G switch: PS D:\_apps\iperf-3.1.3-win64> ./iperf3.exe -c 192.168.0.11 -p 5003 -P4 -t10 -i1 -b 3G Connecting to host 192.168.0.11, port 5003 [ 4] local 192.168.0.2 port 54313 connected to 192.168.0.11 port 5003 [ 6] local 192.168.0.2 port 54314 connected to 192.168.0.11 port 5003 [ 8] local 192.168.0.2 port 54315 connected to 192.168.0.11 port 5003 [ 10] local 192.168.0.2 port 54316 connected to 192.168.0.11 port 5003 [ ID] Interval Transfer Bandwidth [ 4] 0.00-1.00 sec 63.4 MBytes 532 Mbits/sec [ 6] 0.00-1.00 sec 63.4 MBytes 532 Mbits/sec [ 8] 0.00-1.00 sec 63.4 MBytes 532 Mbits/sec [ 10] 0.00-1.00 sec 63.2 MBytes 530 Mbits/sec [SUM] 0.00-1.00 sec 253 MBytes 2.13 Gbits/sec - - - - - - - - - - - - - - - - - - - - - - - - - [ 4] 1.00-2.00 sec 70.5 MBytes 591 Mbits/sec [ 6] 1.00-2.00 sec 70.4 MBytes 590 Mbits/sec [ 8] 1.00-2.00 sec 70.4 MBytes 590 Mbits/sec [ 10] 1.00-2.00 sec 70.5 MBytes 591 Mbits/sec [SUM] 1.00-2.00 sec 282 MBytes 2.36 Gbits/sec - - - - - - - - - - - - - - - - - - - - - - - - - [ 4] 2.00-3.00 sec 70.5 MBytes 591 Mbits/sec [ 6] 2.00-3.00 sec 70.6 MBytes 592 Mbits/sec [ 8] 2.00-3.00 sec 70.6 MBytes 592 Mbits/sec [ 10] 2.00-3.00 sec 70.8 MBytes 593 Mbits/sec [SUM] 2.00-3.00 sec 282 MBytes 2.37 Gbits/sec - - - - - - - - - - - - - - - - - - - - - - - - - [ 4] 3.00-4.00 sec 70.8 MBytes 593 Mbits/sec [ 6] 3.00-4.00 sec 70.6 MBytes 592 Mbits/sec [ 8] 3.00-4.00 sec 70.6 MBytes 592 Mbits/sec [ 10] 3.00-4.00 sec 70.5 MBytes 591 Mbits/sec [SUM] 3.00-4.00 sec 282 MBytes 2.37 Gbits/sec - - - - - - - - - - - - - - - - - - - - - - - - - [ 4] 4.00-5.00 sec 70.5 MBytes 592 Mbits/sec [ 6] 4.00-5.00 sec 70.4 MBytes 591 Mbits/sec [ 8] 4.00-5.00 sec 70.4 MBytes 591 Mbits/sec [ 10] 4.00-5.00 sec 70.5 MBytes 592 Mbits/sec [SUM] 4.00-5.00 sec 282 MBytes 2.36 Gbits/sec - - - - - - - - - - - - - - - - - - - - - - - - - [ 4] 5.00-6.00 sec 70.2 MBytes 589 Mbits/sec [ 6] 5.00-6.00 sec 70.4 MBytes 590 Mbits/sec [ 8] 5.00-6.00 sec 70.4 MBytes 590 Mbits/sec [ 10] 5.00-6.00 sec 70.2 MBytes 589 Mbits/sec [SUM] 5.00-6.00 sec 281 MBytes 2.36 Gbits/sec - - - - - - - - - - - - - - - - - - - - - - - - - [ 4] 6.00-7.00 sec 70.5 MBytes 591 Mbits/sec [ 6] 6.00-7.00 sec 70.6 MBytes 592 Mbits/sec [ 8] 6.00-7.00 sec 70.6 MBytes 592 Mbits/sec [ 10] 6.00-7.00 sec 70.8 MBytes 593 Mbits/sec [SUM] 6.00-7.00 sec 282 MBytes 2.37 Gbits/sec - - - - - - - - - - - - - - - - - - - - - - - - - [ 4] 7.00-8.00 sec 70.8 MBytes 593 Mbits/sec [ 6] 7.00-8.00 sec 70.6 MBytes 592 Mbits/sec [ 8] 7.00-8.00 sec 70.6 MBytes 592 Mbits/sec [ 10] 7.00-8.00 sec 70.5 MBytes 591 Mbits/sec [SUM] 7.00-8.00 sec 282 MBytes 2.37 Gbits/sec - - - - - - - - - - - - - - - - - - - - - - - - - [ 4] 8.00-9.00 sec 70.5 MBytes 591 Mbits/sec [ 6] 8.00-9.00 sec 70.6 MBytes 593 Mbits/sec [ 8] 8.00-9.00 sec 70.6 MBytes 593 Mbits/sec [ 10] 8.00-9.00 sec 70.5 MBytes 591 Mbits/sec [SUM] 8.00-9.00 sec 282 MBytes 2.37 Gbits/sec - - - - - - - - - - - - - - - - - - - - - - - - - [ 4] 9.00-10.00 sec 69.5 MBytes 583 Mbits/sec [ 6] 9.00-10.00 sec 69.5 MBytes 583 Mbits/sec [ 8] 9.00-10.00 sec 69.4 MBytes 582 Mbits/sec [ 10] 9.00-10.00 sec 69.5 MBytes 583 Mbits/sec [SUM] 9.00-10.00 sec 278 MBytes 2.33 Gbits/sec - - - - - - - - - - - - - - - - - - - - - - - - - [ ID] Interval Transfer Bandwidth [ 4] 0.00-10.00 sec 697 MBytes 585 Mbits/sec sender [ 4] 0.00-10.00 sec 697 MBytes 585 Mbits/sec receiver [ 6] 0.00-10.00 sec 697 MBytes 585 Mbits/sec sender [ 6] 0.00-10.00 sec 697 MBytes 585 Mbits/sec receiver [ 8] 0.00-10.00 sec 697 MBytes 585 Mbits/sec sender [ 8] 0.00-10.00 sec 697 MBytes 585 Mbits/sec receiver [ 10] 0.00-10.00 sec 697 MBytes 585 Mbits/sec sender [ 10] 0.00-10.00 sec 697 MBytes 585 Mbits/sec receiver [SUM] 0.00-10.00 sec 2.72 GBytes 2.34 Gbits/sec sender [SUM] 0.00-10.00 sec 2.72 GBytes 2.34 Gbits/sec receiver iperf Done. PS D:\_apps\iperf-3.1.3-win64> ./iperf3.exe -c 192.168.0.11 -p 5003 -P8 -t10 -i1 -b 3G -u Connecting to host 192.168.0.11, port 5003 [ 4] local 192.168.0.2 port 57346 connected to 192.168.0.11 port 5003 [ 6] local 192.168.0.2 port 57347 connected to 192.168.0.11 port 5003 [ 8] local 192.168.0.2 port 57348 connected to 192.168.0.11 port 5003 [ 10] local 192.168.0.2 port 57349 connected to 192.168.0.11 port 5003 [ 12] local 192.168.0.2 port 57350 connected to 192.168.0.11 port 5003 [ 14] local 192.168.0.2 port 57351 connected to 192.168.0.11 port 5003 [ 16] local 192.168.0.2 port 57352 connected to 192.168.0.11 port 5003 [ 18] local 192.168.0.2 port 57353 connected to 192.168.0.11 port 5003 [ ID] Interval Transfer Bandwidth Total Datagrams [ 4] 0.00-1.00 sec 35.0 MBytes 294 Mbits/sec 4481 [ 6] 0.00-1.00 sec 35.0 MBytes 294 Mbits/sec 4481 [ 8] 0.00-1.00 sec 35.0 MBytes 294 Mbits/sec 4481 [ 10] 0.00-1.00 sec 35.0 MBytes 294 Mbits/sec 4481 [ 12] 0.00-1.00 sec 35.0 MBytes 294 Mbits/sec 4481 [ 14] 0.00-1.00 sec 35.0 MBytes 294 Mbits/sec 4481 [ 16] 0.00-1.00 sec 35.0 MBytes 294 Mbits/sec 4481 [ 18] 0.00-1.00 sec 35.0 MBytes 294 Mbits/sec 4481 [SUM] 0.00-1.00 sec 280 MBytes 2.35 Gbits/sec 35848 - - - - - - - - - - - - - - - - - - - - - - - - - [ 4] 1.00-2.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 6] 1.00-2.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 8] 1.00-2.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 10] 1.00-2.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 12] 1.00-2.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 14] 1.00-2.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 16] 1.00-2.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 18] 1.00-2.00 sec 35.7 MBytes 299 Mbits/sec 4570 [SUM] 1.00-2.00 sec 286 MBytes 2.40 Gbits/sec 36560 - - - - - - - - - - - - - - - - - - - - - - - - - [ 4] 2.00-3.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 6] 2.00-3.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 8] 2.00-3.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 10] 2.00-3.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 12] 2.00-3.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 14] 2.00-3.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 16] 2.00-3.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 18] 2.00-3.00 sec 35.7 MBytes 299 Mbits/sec 4570 [SUM] 2.00-3.00 sec 286 MBytes 2.40 Gbits/sec 36560 - - - - - - - - - - - - - - - - - - - - - - - - - [ 4] 3.00-4.00 sec 35.7 MBytes 299 Mbits/sec 4569 [ 6] 3.00-4.00 sec 35.7 MBytes 299 Mbits/sec 4569 [ 8] 3.00-4.00 sec 35.7 MBytes 299 Mbits/sec 4569 [ 10] 3.00-4.00 sec 35.7 MBytes 299 Mbits/sec 4569 [ 12] 3.00-4.00 sec 35.7 MBytes 299 Mbits/sec 4569 [ 14] 3.00-4.00 sec 35.7 MBytes 299 Mbits/sec 4569 [ 16] 3.00-4.00 sec 35.7 MBytes 299 Mbits/sec 4569 [ 18] 3.00-4.00 sec 35.7 MBytes 299 Mbits/sec 4569 [SUM] 3.00-4.00 sec 286 MBytes 2.40 Gbits/sec 36552 - - - - - - - - - - - - - - - - - - - - - - - - - [ 4] 4.00-5.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 6] 4.00-5.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 8] 4.00-5.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 10] 4.00-5.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 12] 4.00-5.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 14] 4.00-5.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 16] 4.00-5.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 18] 4.00-5.00 sec 35.7 MBytes 299 Mbits/sec 4570 [SUM] 4.00-5.00 sec 286 MBytes 2.40 Gbits/sec 36560 - - - - - - - - - - - - - - - - - - - - - - - - - [ 4] 5.00-6.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 6] 5.00-6.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 8] 5.00-6.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 10] 5.00-6.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 12] 5.00-6.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 14] 5.00-6.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 16] 5.00-6.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 18] 5.00-6.00 sec 35.7 MBytes 299 Mbits/sec 4570 [SUM] 5.00-6.00 sec 286 MBytes 2.40 Gbits/sec 36560 - - - - - - - - - - - - - - - - - - - - - - - - - [ 4] 6.00-7.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 6] 6.00-7.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 8] 6.00-7.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 10] 6.00-7.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 12] 6.00-7.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 14] 6.00-7.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 16] 6.00-7.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 18] 6.00-7.00 sec 35.7 MBytes 299 Mbits/sec 4570 [SUM] 6.00-7.00 sec 286 MBytes 2.40 Gbits/sec 36560 - - - - - - - - - - - - - - - - - - - - - - - - - [ 4] 7.00-8.00 sec 35.7 MBytes 299 Mbits/sec 4569 [ 6] 7.00-8.00 sec 35.7 MBytes 299 Mbits/sec 4569 [ 8] 7.00-8.00 sec 35.7 MBytes 299 Mbits/sec 4569 [ 10] 7.00-8.00 sec 35.7 MBytes 299 Mbits/sec 4569 [ 12] 7.00-8.00 sec 35.7 MBytes 299 Mbits/sec 4569 [ 14] 7.00-8.00 sec 35.7 MBytes 299 Mbits/sec 4569 [ 16] 7.00-8.00 sec 35.7 MBytes 299 Mbits/sec 4569 [ 18] 7.00-8.00 sec 35.7 MBytes 299 Mbits/sec 4569 [SUM] 7.00-8.00 sec 286 MBytes 2.40 Gbits/sec 36552 - - - - - - - - - - - - - - - - - - - - - - - - - [ 4] 8.00-9.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 6] 8.00-9.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 8] 8.00-9.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 10] 8.00-9.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 12] 8.00-9.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 14] 8.00-9.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 16] 8.00-9.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 18] 8.00-9.00 sec 35.7 MBytes 299 Mbits/sec 4570 [SUM] 8.00-9.00 sec 286 MBytes 2.40 Gbits/sec 36560 - - - - - - - - - - - - - - - - - - - - - - - - - [ 4] 9.00-10.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 6] 9.00-10.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 8] 9.00-10.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 10] 9.00-10.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 12] 9.00-10.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 14] 9.00-10.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 16] 9.00-10.00 sec 35.7 MBytes 299 Mbits/sec 4570 [ 18] 9.00-10.00 sec 35.7 MBytes 299 Mbits/sec 4570 [SUM] 9.00-10.00 sec 286 MBytes 2.40 Gbits/sec 36560 - - - - - - - - - - - - - - - - - - - - - - - - - [ ID] Interval Transfer Bandwidth Jitter Lost/Total Datagrams [ 4] 0.00-10.00 sec 356 MBytes 299 Mbits/sec 0.016 ms 0/45609 (0%) [ 4] Sent 45609 datagrams [ 6] 0.00-10.00 sec 356 MBytes 299 Mbits/sec 0.017 ms 0/45609 (0%) [ 6] Sent 45609 datagrams [ 8] 0.00-10.00 sec 356 MBytes 299 Mbits/sec 0.018 ms 0/45609 (0%) [ 8] Sent 45609 datagrams [ 10] 0.00-10.00 sec 356 MBytes 299 Mbits/sec 0.017 ms 0/45609 (0%) [ 10] Sent 45609 datagrams [ 12] 0.00-10.00 sec 356 MBytes 299 Mbits/sec 0.016 ms 0/45609 (0%) [ 12] Sent 45609 datagrams [ 14] 0.00-10.00 sec 356 MBytes 299 Mbits/sec 0.015 ms 0/45609 (0%) [ 14] Sent 45609 datagrams [ 16] 0.00-10.00 sec 356 MBytes 299 Mbits/sec 0.014 ms 0/45609 (0%) [ 16] Sent 45609 datagrams [ 18] 0.00-10.00 sec 356 MBytes 299 Mbits/sec 0.012 ms 0/45608 (0%) [ 18] Sent 45608 datagrams [SUM] 0.00-10.00 sec 2.78 GBytes 2.39 Gbits/sec 0.016 ms 0/364871 (0%) iperf Done.

loaded up 6.9 rc1, can confirm I get temps now, no fans though doing sensors-detect then loading what it suggest, I can see: # sensors k10temp-pci-00c3 Adapter: PCI adapter Vcore: 913.00 mV Vsoc: 1.09 V Tctl: +39.8°C CPU Temp: +39.8°C MB Temp: +32.8°C Icore: 0.00 A Isoc: 7.50 A nvme-pci-0300 Adapter: PCI adapter Composite: +31.9°C (low = -273.1°C, high = +84.8°C) (crit = +84.8°C) Sensor 1: +31.9°C (low = -273.1°C, high = +65261.8°C) Sensor 2: +35.9°C (low = -273.1°C, high = +65261.8°C) *update* - now on 6.9.2 I can say things are more or less the same, I suspect that 6.10.x should improve things however: about asus and the buggy issues with reading fan/temps: https://bugzilla.kernel.org/show_bug.cgi?id=204807 oct 2021 - lot of asus wmi boards got supported via NCT677x: https://git.kernel.org/pub/scm/linux/kernel/git/groeck/linux-staging.git/commit/?id=cd0b8e410937

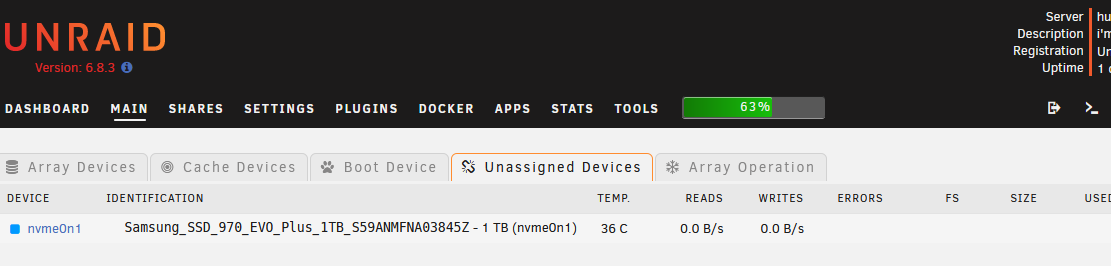

I'm wanting to remove UD so I can test out 6.9 RC1. I'm on 6.8.3, I removed UD + UD Extra. Restarted unraid. I confirmed no install on the startup but I still have the "Unassigned Disk" tab on the main unraid page. Can see below, it shows the tab and a drive but cant really do much with it.. I wold have expected the tab to not be there anymore?

ASUS X570 ROG Crosshair VIII Hero with a Ryzen 3700X running unraid 6.8.3 installed perl (perl-5.32.0-x86_64-1.txz) with nerdpack then installed dynamix system temps. detect returns "k10temp nct6775" and clicked load drivers. there are no fan or temp options for any of the drop downs. Logs show: Dec 6 21:25:43 husky kernel: nct6775: Found NCT6796D or compatible chip at 0x2e:0x290 Dec 6 21:25:43 husky kernel: ACPI Warning: SystemIO range 0x0000000000000295-0x0000000000000296 conflicts with OpRegion 0x0000000000000290-0x0000000000000299 (\AMW0.SHWM) (20180810/utaddress-204) Dec 6 21:25:43 husky kernel: ACPI: If an ACPI driver is available for this device, you should use it instead of the native driver Dec 6 21:25:48 husky kernel: i2c /dev entries driver sshing into the box, sensors shows: # sensors No sensors found! Make sure you loaded all the kernel drivers you need. Try sensors-detect to find out which these are. looking around online, it looks like ryzen 3000 needs newer kernel than what 6.8.3 has.. might want to add verbiage to the user so they know the plugin itself isnt at fault and they need to use newer unraid/wait.

loaded up perl and Dynamix System Temp, it detected "k10temp nct6775" but not showing any temp probes. Looking around it looks like ryzen 3000 requires newer kernel than what comes with 6.8.3 to get stuff to detect properly. I do not want to run 6.9.x betas.. so I'll come back to this once I can test with my backup unraid flash and no drives connected.

Went ahead and picked up the ASUS X570 ROG Crosshair VIII Hero Updated to latest bios 11/24/2020 (version 2702). Enabled SVM. Installed nvme m.2 drive in bottom slot (group 21), LSI card in bottom x16 (group 25) and video in x1 slot (group 23). Moved drives over to new mobo and all came up without any effort with 6.8.3. IOMMU Groups: IOMMU group 0: [1022:1482] 00:01.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge IOMMU group 1: [1022:1483] 00:01.2 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse GPP Bridge IOMMU group 2: [1022:1482] 00:02.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge IOMMU group 3: [1022:1482] 00:03.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge IOMMU group 4: [1022:1483] 00:03.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse GPP Bridge IOMMU group 5: [1022:1482] 00:04.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge IOMMU group 6: [1022:1482] 00:05.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge IOMMU group 7: [1022:1482] 00:07.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge IOMMU group 8: [1022:1484] 00:07.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B] IOMMU group 9: [1022:1482] 00:08.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge IOMMU group 10: [1022:1484] 00:08.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B] IOMMU group 11: [1022:790b] 00:14.0 SMBus: Advanced Micro Devices, Inc. [AMD] FCH SMBus Controller (rev 61) [1022:790e] 00:14.3 ISA bridge: Advanced Micro Devices, Inc. [AMD] FCH LPC Bridge (rev 51) IOMMU group 12: [1022:1440] 00:18.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 0 [1022:1441] 00:18.1 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 1 [1022:1442] 00:18.2 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 2 [1022:1443] 00:18.3 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 3 [1022:1444] 00:18.4 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 4 [1022:1445] 00:18.5 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 5 [1022:1446] 00:18.6 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 6 [1022:1447] 00:18.7 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 7 IOMMU group 13: [1022:57ad] 01:00.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse Switch Upstream IOMMU group 14: [1022:57a3] 02:01.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge IOMMU group 15: [1022:57a3] 02:03.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge IOMMU group 16: [1022:57a3] 02:04.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge IOMMU group 17: [1022:57a3] 02:05.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge IOMMU group 18: [1022:57a4] 02:08.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge [1022:1485] 07:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Reserved SPP [1022:149c] 07:00.1 USB controller: Advanced Micro Devices, Inc. [AMD] Matisse USB 3.0 Host Controller [1022:149c] 07:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Matisse USB 3.0 Host Controller IOMMU group 19: [1022:57a4] 02:09.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge [1022:7901] 08:00.0 SATA controller: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] (rev 51) IOMMU group 20: [1022:57a4] 02:0a.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge [1022:7901] 09:00.0 SATA controller: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] (rev 51) IOMMU group 21: [144d:a808] 03:00.0 Non-Volatile memory controller: Samsung Electronics Co Ltd NVMe SSD Controller SM981/PM981/PM983 IOMMU group 22: [10ec:8125] 04:00.0 Ethernet controller: Realtek Semiconductor Co., Ltd. RTL8125 2.5GbE Controller IOMMU group 23: [10de:128b] 05:00.0 VGA compatible controller: NVIDIA Corporation GK208B [GeForce GT 710] (rev a1) [10de:0e0f] 05:00.1 Audio device: NVIDIA Corporation GK208 HDMI/DP Audio Controller (rev a1) IOMMU group 24: [8086:1539] 06:00.0 Ethernet controller: Intel Corporation I211 Gigabit Network Connection (rev 03) IOMMU group 25: [1000:0087] 0a:00.0 Serial Attached SCSI controller: Broadcom / LSI SAS2308 PCI-Express Fusion-MPT SAS-2 (rev 05) IOMMU group 26: [1022:148a] 0b:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Function IOMMU group 27: [1022:1485] 0c:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Reserved SPP IOMMU group 28: [1022:1486] 0c:00.1 Encryption controller: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Cryptographic Coprocessor PSPCPP IOMMU group 29: [1022:149c] 0c:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Matisse USB 3.0 Host Controller IOMMU group 30: [1022:1487] 0c:00.4 Audio device: Advanced Micro Devices, Inc. [AMD] Starship/Matisse HD Audio Controller

The mellanox solution does not work for me (the server and nas are not in the same room) but it is something I've thought about. Cat7 is already pre-wired in the house which is why I stubbornly wanted to utilize that route instead. ~$100 - ASUS XG-C100C 10G Network Adapter PCI-E x4 Card with Single RJ-45 Port -- x4 card, so would eat up PCIe larger slot but deff works with unraid ~$60 - ASUS PCE-C2500 2.5G Base-T PCIe x1 Card (2.5G/1G/100Mbps) with Single RJ45 Port -- x1 card, so much more flexibility but not sure of unraid support due to how new it is $20 - Rosewill RC-20001 2.5GBASE-T PCIe x1 Card (supposedly they use Realtek 8125) -- per this thread, looks like realtek 8125 only does 1G with unraid driver:

I had a whole blurp about buying the addon card rather than trying to get everything natively since it makes the motherboard options limited and at a higher price (especially for 10GbE). Right now there has been a run on X570 boards so its even harder to find decently priced options with 1G+ nics. I had eyed Aquantia stuff for awhile but never bit due to lack of consumer switches that were decently priced. Then as some stuff came out then they got bought out by Marvell and the stand alone cards pretty much dried up (asus still has their one, ~$100). Then you saw the blip of 10GbE included on motherboards for a season then everyone stopped due to lack of adoption and higher price. Now you only see the 10GbE included on the content creator/ultra prem gaming boards that are $$$.

Tl;DR; Mental notes for my quest to figure out what I wanted to build and why. Figured others may benefit from my thought vomit. Thoughts only valid upto Nov 2020. As I'm sure things will change with newer chipsets/cpus. Quick history: I started using unraid 7+ years ago back before vm/docker/dual nic/etc were a thing. I've been wanting to upgrade my aging setup for a bit now as its resources are a limiting factor to doing vm or certain plugins. My setup: Nexus Prominent 9 w/ 3x Norco SS-500 (5in3 bays) with Intel i3-3220, 4G ram, and two sas expanders. A SuperMicro AOC-SASLP-MV8 (PCIe x4) that only does 3.0Gbps and LSI SAS 9207-8i (PCIe 3.0 x8). Right now I have 12 drives (10 data, 1 parity, 1 cache ssd). I had hope to be at 10G by now but with the current state of things it is still too pricey/ , 2.5G is the growing trend where lots of things are going after Aquantia got bought. 10GbE is still too pricey/loud to justify being an early adopter at this moment. I just picked up QNAP's fanless+unmanaged 5x 2.5 GbE switch (~100$) // https://www.qnap.com/en-us/product/qsw-1105-5t The plan is to drop the MV8 and only use the LSI expander (so 8 drives there) but the rest need to be handled by the mobo (~6). I picked up a 1TB nvme drive (970 Evo Plus) that was on sale for BF. So will need to do at least one M.2. Cost vs Heat, I figure a 65W TDP 8 core, 16 thread cpus like Ryzen 3700X (3.6GHz) or Intel i7-10700 (2.9GHz) would be perfect. https://www.cpubenchmark.net/compare/AMD-Ryzen-7-3700X-vs-Intel-Core-i7-10700/3485vs3747 This would give me enough cores for flexibility, future growth. Either case would be a big jump from my aging Intel i3 2C4T cpu. * Ryzen 5 5600X (6C12T) at 65W would be fine too.. but $ and out of stock. So I drop that idea plus there should* be some decent deals for the holidays as everyone wants to clear out the older cpus. --------------------------------------------------------------------------------------------------------- Intel vs AMD Trying to decide which is better means a lot of variables have to be considered. Even with so many variants of motherboards this generation they are pricery than ever (there is motherboards over $1,000!). Looking at the $250-350 range is 'mid range' which is a bit crazy but is the norm and something that comes with trying to use the latest and greatest chipsets with features that are aimed towards content creators/gamers. BTW, you can put a PCIe x1 card (or x4 or x8) card in a PCIe x16 slot. They work fine. The lane count is automatically negotiated during device initialization, which can take lanes away from other slots if they are shared. igpu / apu: The perk of going with Intel is that you get igpu and save having to waste a PCIe slot. However, you can pick up a silent Zotac GT710 for ~$50 to toss in an PCIe x1 slot and save those x16/x8 slots for things that actually need the bandwidth. https://www.zotac.com/us/product/graphics_card/geforce®-gt-710-1gb-pcie-x-1 sata ports: Having lots of SATA + M.2 is problem with Intel or older AMD because SATA ports get disabled or PCIe slots slowed/disabled due to limited PCIe lanes. If going Intel you have to look at Comet Lake (LGA 1200), q470/z490 or w480 (xenon). If going AMD you want to focus on x570. Avoid B550 due to bad iommu grouping and reduced lanes. nics: 2.5GbE and the drama - https://wccftech.com/intel-400-series-chipsets-z490-i225-v-network-controller-issue-fix-2h-2020/ Intel's i225 "Foxville" family of 2.5 Gbps wired Ethernet controllers have a design flaw that affects performance. There is a variance in the inter-packet gap (IPG), the interval between data packets transmitted on the physical layer. This variance can cause packet loss, resulting in reduced throughput (i.e. a performance loss). The 'fix' is an updated driver/firmware that forces the NIC to use 1G to prevent the problem. Overall Intel z490 and intel own 2.5G nic is to be avoided until the fixed hardware comes in Rocket Lake. This is why you see mobo's switched from Intel to Realtek/Dragon/Marvell (Aquantia) for 2.5G on newer boards. memory: Intel is a bit behind from supporting higher clocks natively but most ram have intel+amd profiles and play nice. Could go the route of doing 2x16GB to start off then add two more later.. but 2x32GB is not that badly priced. - G.SKILL Ripjaws V Series 64GB (2 x 32GB) 288-Pin DDR4 3600 (PC4 28800) - F4-3600C18D-64GVK --------------------------------------------------------------------------------------------------------- Intel: Looking for Z490 boards that do 2.5GbE that is not provided by Intels's own and could do M.2 with minimal SATA being affected was tedious. If the board does 3x M.2 then there is usually you can get away with one NVMe drive without impact. But most have the common order that if you put a M.2 in the 2nd slot then it disables one SATA and if you do the 3rd slot then it takes away two SATA ports. So that 6 onboard SATA could be much less. While I could find many Intel based motherboards for cheaper than AMD equals, the CPU not only costed more but usually came with higher TDP or less core count. ASUS Z490 ROG MAXIMUS XII HERO (WI-FI) PCIe: 2 x PCIe 3.0 x16 (x16 or dual x8) 1 x PCIe 3.0 x16 (x4 mode) * 3 x PCIe 3.0 x1 Networking: Intel I219-V 1Gb Ethernet Marvell AQtion AQC111C 5Gb Ethernet (100M/1G/2.5G/5G) SATA: 6 x SATA 6Gb/s 3x M.2 You lose one sata if m.2_1 is used. * You lose one pcie slot if m2._2 is used at x2 or just reduced speed if m2 is at x1. So if only one nvme drive, you can use m.2_3 and not take a hit anywhere else. --------------------------------------------------------------------------------------------------------- AMD: While looking around it became clear that if I was going to do 2.5GbE with 8 SATA ports that really only leaves Asus and AsRock. For the price, ASUS looks like the better offering and it these two boards are my current picks: ASUS ROG Strix X570-E Gaming > One extra x1 PCIe 4.0 slot (that is shared with PCIe x16_3), cheaper. PCIe: 2 x PCIe 4.0 x16 (x16 or dual x8) 1 x PCIe 4.0 x16 (supports x4) * 2 x PCIe 4.0 x1 * The PCIeX16_3 slot shares bandwidth with PCIeX1_2. Networking: Intel® I211-AT Realtek® RTL8125-CG (2.5G) SATA: 8 x SATA 6Gb/s 2x M.2 or ASUS X570 ROG Crosshair VIII Hero > Better for overclocking and more usb.. not worth the extra money for me. But have seen some deals. PCIe: 2 x PCIe 4.0 x16 (x16 or dual x8) 1 x PCIe 4.0 x16 (supports x4) * 1 x PCIe 4.0 x1 Networking: Intel® I211-AT Realtek® RTL8125-CG (2.5G) SATA: 8 x SATA 6Gb/s 2x M.2 Looking at other motherboards, there are some other ones but cost more money than ASUS's: MSI X570 * - 4 sata or limited expansion slots.. no good options at all. ASRock X570 Aqua - has everything in the world, which explains the price tag. ASRock X570 Creator - has Aquantia 10GbE + Intel Gigabit, 8 sata, 3 PCIe 4.0 x16, 3 PCIe 2.0 x1. Gigabyte X570 AORUS MASTER (rev 1.2) - has Realtek 2.5G, only 6 sata Gigabyte X570 AORUS XTREME (rev 1.1) - has Aquantia 10GbE + Intel Gigabit, only 6 sata, no x1 PCIe, 3x M.2.. but lots more money.

sharing here as I was looking around at possibly doing new intel build with latest chipset and saw reports of packetloss with 2.5G nic: https://thinkcomputers.org/intel-foxville-2-5gb-nic-flaw-advisory-circulated/

I do bridge as i want stuff isolated and there are minimal ports i need to access. BTW you do need to have a mysql/mariadb docker so kodi can store data. For the kodi-headless docker, these are my settings (advanced view):

I'm planning on doing a new amd build and wanted to get some benefit out of my 2.5G switch and was hoping that unraid would support it by now. Can someone confirm if unraid 6.9.x in fact does do 2.5G with one of these nic's: Realtek RTL8125-CG (from ASUS CROSSHAIR VIII HERO) Dragon RTL8125AG (from ASRock X570 Phantom Gaming X)

Looks like I've not been impacted. cache drive is btrfs, with the following dockers: mariadb, kodi-server, duplicati # cat /etc/unraid-version; /usr/sbin/smartctl -A /dev/sdb | awk '$0~/Power_On_Hours/{ printf "Days: %.1f\n", $10 / 24} $0~/LBAs/{ printf "TBW: %.1f\n", $10 * 512 / 1024^4 }' version="6.8.3" Days: 646.9 TBW: 10.3

nope, I only have three dockers as listed above. The one that doesnt start with ca backup is kodi-server. Nothing shows up in logs to let me know why however. Its a kodi headless docker I added from docker hub - https://hub.docker.com/r/celedhrim/kodi-server/

I've noticed that if I do a manual backup it will stop and start my dockers just fine. When it auto does it, all my dockers restart but one. Is there a log I can dig through to see what CA backup v2 is doing? Also I noticed that CA backup v2 does NOT start the dockers in the same order (honor the ordering) that unraid does. It should be starting mariadb before kodi-server: Searching for updates to docker applications Starting duplicati Starting kodi-server Starting mariadb Backup/Restore Complete. tar Return Value: 0 Backup / Restore Completed

few questions, CA backup v1 it would create a dated subfolder with the appdata + usb backed up as a subfolder inside it. CA v2 it creates the "[email protected]" subfolder for the appdata, so thats all the same. But, the usb+vm backups have their own location which are not using a dated subfolder. Is there a setting to have it also use a dated subfolder for the vm/usb backup locations? or make the vm/usb backups be part of the appdata dated subfolder (like v1 did)? also is there any control over how files+folders are named? for example, if i wanted to have it denote what version of unraid was being used when it was created. since a backup x days ago doesnt provide that context really.

new version was pushed out #2020.02.14 - Fix: Write/Erase ops hang if display_pid is reused by the system

currently 4G (2x2G). when I get around to a new build I'll probably do 32 or 64 gigs

Personally I view it like test driving a car. Normally it wont change your mind about the confidence level you have in it.. but the rare event it does... it pays for itself. The time and energy/stress related to having your parity drive or something out of commission while you try to get another drive to replace it is just not worth it. *(which is why you should always keep a pre-cleared drive as a spare to reduce that scenario).

I can note that I pre-cleared a 10TB WD RED Pro drive with preclear.disk-2020.01.11a (version 1.0.6) on 6.7.2 without any problems 2 weeks ago. Jan 11 17:14:46 husky preclear_disk_1EH4Z5MN[8086]: Command: /usr/local/emhttp/plugins/preclear.disk/script/preclear_disk.sh --cycles 1 --no-prompt /dev/sdn Jan 11 17:14:46 husky preclear_disk_1EH4Z5MN[8086]: Preclear Disk Version: 1.0.6 ... Jan 12 21:32:34 husky preclear_disk_1EH4Z5MN[8086]: Zeroing: progress - 100% zeroed ... Jan 13 11:44:11 husky preclear_disk_1EH4Z5MN[8086]: Post-Read: progress - 100% verified Jan 13 11:44:12 husky preclear_disk_1EH4Z5MN[8086]: Post-Read: dd - read 10000831348736 of 10000831348736. Jan 13 11:44:12 husky preclear_disk_1EH4Z5MN[8086]: Post-Read: dd exit code - 0 Jan 13 11:44:14 husky preclear_disk_1EH4Z5MN[8086]: S.M.A.R.T.: 5 Reallocated_Sector_Ct 0 Jan 13 11:44:14 husky preclear_disk_1EH4Z5MN[8086]: S.M.A.R.T.: 9 Power_On_Hours 42 Jan 13 11:44:14 husky preclear_disk_1EH4Z5MN[8086]: S.M.A.R.T.: 194 Temperature_Celsius 35 Jan 13 11:44:14 husky preclear_disk_1EH4Z5MN[8086]: S.M.A.R.T.: 196 Reallocated_Event_Count 0 Jan 13 11:44:14 husky preclear_disk_1EH4Z5MN[8086]: S.M.A.R.T.: 197 Current_Pending_Sector 0 Jan 13 11:44:14 husky preclear_disk_1EH4Z5MN[8086]: S.M.A.R.T.: 198 Offline_Uncorrectable 0 Jan 13 11:44:14 husky preclear_disk_1EH4Z5MN[8086]: S.M.A.R.T.: 199 UDMA_CRC_Error_Count 0

lol signatures have been disabled since the new site for me.. looking, yeah thats pretty outdated. thanks, enabled sigs once again and nuked my stale info
