zhtengw Posted March 20 Share Posted March 20 (edited) **edit** Now iGPU SR-IOV is supplied by a unRAID plugin named i915-sriov(https://github.com/zhtengw/unraid-i915-sriov). The custom kernel image is only for testing. **edit** Hi, all. I have noticed that unRAID 6.11.5 is running with linux-5.19, which can build against the i915-sriov module. So I build this custom kernel image. I have tested with i3-12100 with Windows 10 guest, and the iGPU VF works fine. Link: https://github.com/zhtengw/i915-sriov-dkms/releases/tag/v5.19-unraid Edited April 3 by zhtengw 1 Quote Link to comment
SimonF Posted March 20 Share Posted March 20 11 hours ago, zhtengw said: Hi, all. I have noticed that unRAID 6.11.5 is running with linux-5.19, which can build against the i915-sriov module. So I build this custom kernel image. I have tested with i3-12100 with Windows 10 guest, and the iGPU VF works fine. Link: https://github.com/zhtengw/i915-sriov-dkms/releases/tag/v5.19-unraid Hi You contacted support would you be able to provide diagnostics for host as well as the VM? Quote Link to comment

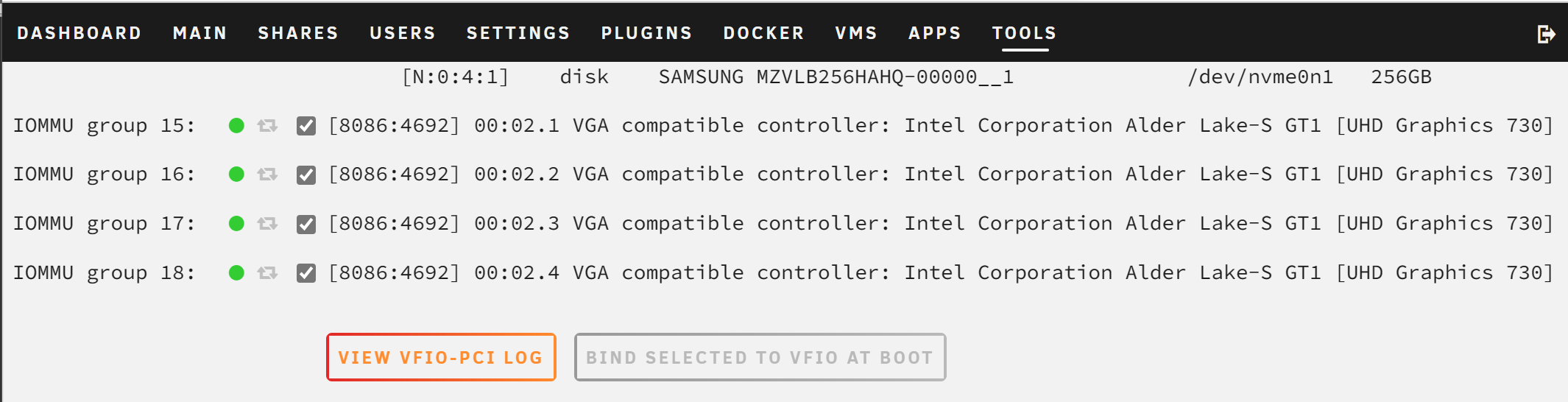

zhtengw Posted March 22 Author Share Posted March 22 Hi, Simon. I created a bug report. I was trying to make iGPU SR-IOV work on unRAID. Then I built the custom kernel image mentioned above and also make a plugin(https://github.com/zhtengw/unraid-i915-sriov). After install the i915-sriov module, we can see several VFs in graphic devices. Then I can passthrough a VF to VM. The issue I met is, when a iGPU VF passthrough to VM, it cannot be recognized in the guest system. I enabled XML VIEW in VM settings, and found out that the PCI address in VM is the same as host. <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x00' slot='0x02' function='0x1'/> </source> <alias name='hostdev0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x1'/> </hostdev> It is not true. Because the VM do not have a PF device, the VF pci address (like 0000:00:02.1) won't make the device work. Then I changed the address to 0000:00:02.0, and the guest system recognized the graphics card and made it work. So, I modify the the file /usr/local/emhttp/plugins/dynamix.vm.manager/include/libvirt.php: line 813 on every boot. sed -i "s/\(strSpecialAddress.*\)\$gpu_function/\1\"0\"/" /usr/local/emhttp/plugins/dynamix.vm.manager/include/libvirt.php Then the VM with iGPU VF works fine. I think it is a bug for passthrough iGPU's PCI address. Quote Link to comment
SimonF Posted March 22 Share Posted March 22 4 hours ago, zhtengw said: Hi, Simon. I created a bug report. I was trying to make iGPU SR-IOV work on unRAID. Then I built the custom kernel image mentioned above and also make a plugin(https://github.com/zhtengw/unraid-i915-sriov). After install the i915-sriov module, we can see several VFs in graphic devices. Then I can passthrough a VF to VM. The issue I met is, when a iGPU VF passthrough to VM, it cannot be recognized in the guest system. I enabled XML VIEW in VM settings, and found out that the PCI address in VM is the same as host. <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x00' slot='0x02' function='0x1'/> </source> <alias name='hostdev0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x1'/> </hostdev> It is not true. Because the VM do not have a PF device, the VF pci address (like 0000:00:02.1) won't make the device work. Then I changed the address to 0000:00:02.0, and the guest system recognized the graphics card and made it work. So, I modify the the file /usr/local/emhttp/plugins/dynamix.vm.manager/include/libvirt.php: line 813 on every boot. sed -i "s/\(strSpecialAddress.*\)\$gpu_function/\1\"0\"/" /usr/local/emhttp/plugins/dynamix.vm.manager/include/libvirt.php Then the VM with iGPU VF works fine. I think it is a bug for passthrough iGPU's PCI address. I guess the guest VM driver assumes that the card is 02.0. is there any think in lspci to indicate a child node. What does lspci -Dnnmm provide as we may be able see that 02.1 is a child of 02.0 and write 02.0 to XML. same would be for 2.2, 2.3 etc. Quote Link to comment
zhtengw Posted March 22 Author Share Posted March 22 5 minutes ago, SimonF said: I guess the guest VM driver assumes that the card is 02.0. is there any think in lspci to indicate a child node. What does lspci -Dnnmm provide as we may be able see that 02.1 is a child of 02.0 and write 02.0 to XML. same would be for 2.2, 2.3 etc. # lspci -Dnnmm 0000:00:00.0 "Host bridge [0600]" "Intel Corporation [8086]" "Device [4630]" -r05 "" "" 0000:00:02.0 "VGA compatible controller [0300]" "Intel Corporation [8086]" "Device [4692]" -r0c "" "" 0000:00:02.1 "VGA compatible controller [0300]" "Intel Corporation [8086]" "Device [4692]" -r0c "" "" 0000:00:02.2 "VGA compatible controller [0300]" "Intel Corporation [8086]" "Device [4692]" -r0c "" "" 0000:00:02.3 "VGA compatible controller [0300]" "Intel Corporation [8086]" "Device [4692]" -r0c "" "" 0000:00:02.4 "VGA compatible controller [0300]" "Intel Corporation [8086]" "Device [4692]" -r0c "" "" 0000:00:08.0 "System peripheral [0880]" "Intel Corporation [8086]" "Device [464f]" -r05 "" "" 0000:00:0a.0 "Signal processing controller [1180]" "Intel Corporation [8086]" "Device [467d]" -r01 "" "" 0000:00:14.0 "USB controller [0c03]" "Intel Corporation [8086]" "Device [7ae0]" -r11 -p30 "" "" 0000:00:14.2 "RAM memory [0500]" "Intel Corporation [8086]" "Device [7aa7]" -r11 "" "" 0000:00:16.0 "Communication controller [0780]" "Intel Corporation [8086]" "Device [7ae8]" -r11 "" "" 0000:00:17.0 "SATA controller [0106]" "Intel Corporation [8086]" "Device [7ae2]" -r11 -p01 "" "" 0000:00:1c.0 "PCI bridge [0604]" "Intel Corporation [8086]" "Device [7ab8]" -r11 "" "" 0000:00:1c.2 "PCI bridge [0604]" "Intel Corporation [8086]" "Device [7aba]" -r11 "" "" 0000:00:1c.4 "PCI bridge [0604]" "Intel Corporation [8086]" "Device [7abc]" -r11 "" "" 0000:00:1e.0 "Communication controller [0780]" "Intel Corporation [8086]" "Device [7aa8]" -r11 "" "" 0000:00:1e.3 "Serial bus controller [0c80]" "Intel Corporation [8086]" "Device [7aab]" -r11 "" "" 0000:00:1f.0 "ISA bridge [0601]" "Intel Corporation [8086]" "Device [7a87]" -r11 "" "" 0000:00:1f.3 "Audio device [0403]" "Intel Corporation [8086]" "Device [7ad0]" -r11 "Realtek Semiconductor Co., Ltd. [10ec]" "Device [0897]" 0000:00:1f.4 "SMBus [0c05]" "Intel Corporation [8086]" "Device [7aa3]" -r11 "" "" 0000:00:1f.5 "Serial bus controller [0c80]" "Intel Corporation [8086]" "Device [7aa4]" -r11 "" "" 0000:01:00.0 "Ethernet controller [0200]" "Realtek Semiconductor Co., Ltd. [10ec]" "RTL8125 2.5GbE Controller [8125]" -r04 "Realtek Semiconductor Co., Ltd. [10ec]" "RTL8125 2.5GbE Controller [0123]" 0000:02:00.0 "Ethernet controller [0200]" "Realtek Semiconductor Co., Ltd. [10ec]" "RTL8125 2.5GbE Controller [8125]" -r05 "Realtek Semiconductor Co., Ltd. [10ec]" "RTL8125 2.5GbE Controller [0123]" 0000:03:00.0 "Non-Volatile memory controller [0108]" "Samsung Electronics Co Ltd [144d]" "NVMe SSD Controller SM981/PM981/PM983 [a808]" -p02 "Samsung Electronics Co Ltd [144d]" "NVMe SSD Controller SM981/PM981/PM983 [a801]" Quote Link to comment
SimonF Posted March 22 Share Posted March 22 14 minutes ago, zhtengw said: # lspci -Dnnmm 0000:00:00.0 "Host bridge [0600]" "Intel Corporation [8086]" "Device [4630]" -r05 "" "" 0000:00:02.0 "VGA compatible controller [0300]" "Intel Corporation [8086]" "Device [4692]" -r0c "" "" 0000:00:02.1 "VGA compatible controller [0300]" "Intel Corporation [8086]" "Device [4692]" -r0c "" "" 0000:00:02.2 "VGA compatible controller [0300]" "Intel Corporation [8086]" "Device [4692]" -r0c "" "" 0000:00:02.3 "VGA compatible controller [0300]" "Intel Corporation [8086]" "Device [4692]" -r0c "" "" 0000:00:02.4 "VGA compatible controller [0300]" "Intel Corporation [8086]" "Device [4692]" -r0c "" "" 0000:00:08.0 "System peripheral [0880]" "Intel Corporation [8086]" "Device [464f]" -r05 "" "" 0000:00:0a.0 "Signal processing controller [1180]" "Intel Corporation [8086]" "Device [467d]" -r01 "" "" 0000:00:14.0 "USB controller [0c03]" "Intel Corporation [8086]" "Device [7ae0]" -r11 -p30 "" "" 0000:00:14.2 "RAM memory [0500]" "Intel Corporation [8086]" "Device [7aa7]" -r11 "" "" 0000:00:16.0 "Communication controller [0780]" "Intel Corporation [8086]" "Device [7ae8]" -r11 "" "" 0000:00:17.0 "SATA controller [0106]" "Intel Corporation [8086]" "Device [7ae2]" -r11 -p01 "" "" 0000:00:1c.0 "PCI bridge [0604]" "Intel Corporation [8086]" "Device [7ab8]" -r11 "" "" 0000:00:1c.2 "PCI bridge [0604]" "Intel Corporation [8086]" "Device [7aba]" -r11 "" "" 0000:00:1c.4 "PCI bridge [0604]" "Intel Corporation [8086]" "Device [7abc]" -r11 "" "" 0000:00:1e.0 "Communication controller [0780]" "Intel Corporation [8086]" "Device [7aa8]" -r11 "" "" 0000:00:1e.3 "Serial bus controller [0c80]" "Intel Corporation [8086]" "Device [7aab]" -r11 "" "" 0000:00:1f.0 "ISA bridge [0601]" "Intel Corporation [8086]" "Device [7a87]" -r11 "" "" 0000:00:1f.3 "Audio device [0403]" "Intel Corporation [8086]" "Device [7ad0]" -r11 "Realtek Semiconductor Co., Ltd. [10ec]" "Device [0897]" 0000:00:1f.4 "SMBus [0c05]" "Intel Corporation [8086]" "Device [7aa3]" -r11 "" "" 0000:00:1f.5 "Serial bus controller [0c80]" "Intel Corporation [8086]" "Device [7aa4]" -r11 "" "" 0000:01:00.0 "Ethernet controller [0200]" "Realtek Semiconductor Co., Ltd. [10ec]" "RTL8125 2.5GbE Controller [8125]" -r04 "Realtek Semiconductor Co., Ltd. [10ec]" "RTL8125 2.5GbE Controller [0123]" 0000:02:00.0 "Ethernet controller [0200]" "Realtek Semiconductor Co., Ltd. [10ec]" "RTL8125 2.5GbE Controller [8125]" -r05 "Realtek Semiconductor Co., Ltd. [10ec]" "RTL8125 2.5GbE Controller [0123]" 0000:03:00.0 "Non-Volatile memory controller [0108]" "Samsung Electronics Co Ltd [144d]" "NVMe SSD Controller SM981/PM981/PM983 [a808]" -p02 "Samsung Electronics Co Ltd [144d]" "NVMe SSD Controller SM981/PM981/PM983 [a801]" lspci -vvs 00:02.0 lspci -vvs 00:02.1 Quote Link to comment
zhtengw Posted March 22 Author Share Posted March 22 6 minutes ago, SimonF said: lspci -vvs 00:02.0 lspci -vvs 00:02.1 # lspci -vvs 00:02.0 00:02.0 VGA compatible controller: Intel Corporation Device 4692 (rev 0c) (prog-if 00 [VGA controller]) DeviceName: Onboard - Video Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin A routed to IRQ 139 IOMMU group: 0 Region 0: Memory at 6000000000 (64-bit, non-prefetchable) [size=16M] Region 2: Memory at 4000000000 (64-bit, prefetchable) [size=256M] Region 4: I/O ports at 5000 [size=64] Expansion ROM at 000c0000 [virtual] [disabled] [size=128K] Capabilities: [40] Vendor Specific Information: Len=0c <?> Capabilities: [70] Express (v2) Root Complex Integrated Endpoint, MSI 00 DevCap: MaxPayload 128 bytes, PhantFunc 0 ExtTag- RBE+ FLReset+ DevCtl: CorrErr- NonFatalErr- FatalErr- UnsupReq- RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop- FLReset- MaxPayload 128 bytes, MaxReadReq 128 bytes DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr- TransPend- DevCap2: Completion Timeout: Not Supported, TimeoutDis- NROPrPrP- LTR- 10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix- EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit- FRS- AtomicOpsCap: 32bit- 64bit- 128bitCAS- DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- LTR- OBFF Disabled, AtomicOpsCtl: ReqEn- Capabilities: [ac] MSI: Enable+ Count=1/1 Maskable+ 64bit- Address: fee00018 Data: 0000 Masking: 00000000 Pending: 00000000 Capabilities: [d0] Power Management version 2 Flags: PMEClk- DSI+ D1- D2- AuxCurrent=0mA PME(D0-,D1-,D2-,D3hot-,D3cold-) Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME- Capabilities: [100 v1] Process Address Space ID (PASID) PASIDCap: Exec- Priv-, Max PASID Width: 14 PASIDCtl: Enable- Exec- Priv- Capabilities: [200 v1] Address Translation Service (ATS) ATSCap: Invalidate Queue Depth: 00 ATSCtl: Enable+, Smallest Translation Unit: 00 Capabilities: [300 v1] Page Request Interface (PRI) PRICtl: Enable- Reset- PRISta: RF- UPRGI- Stopped+ Page Request Capacity: 00008000, Page Request Allocation: 00000000 Capabilities: [320 v1] Single Root I/O Virtualization (SR-IOV) IOVCap: Migration-, Interrupt Message Number: 000 IOVCtl: Enable+ Migration- Interrupt- MSE+ ARIHierarchy- IOVSta: Migration- Initial VFs: 7, Total VFs: 7, Number of VFs: 4, Function Dependency Link: 00 VF offset: 1, stride: 1, Device ID: 4692 Supported Page Size: 00000553, System Page Size: 00000001 Region 0: Memory at 0000004010000000 (64-bit, non-prefetchable) Region 2: Memory at 0000004020000000 (64-bit, prefetchable) VF Migration: offset: 00000000, BIR: 0 Kernel driver in use: i915 Kernel modules: i915 # lspci -vvs 00:02.1 00:02.1 VGA compatible controller: Intel Corporation Device 4692 (rev 0c) (prog-if 00 [VGA controller]) Control: I/O- Mem- BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin ? routed to IRQ 131 IOMMU group: 15 Region 0: Memory at 4010000000 (64-bit, non-prefetchable) [virtual] [size=16M] Region 2: Memory at 4020000000 (64-bit, prefetchable) [virtual] [size=512M] Region 4: I/O ports at <unassigned> [virtual] Capabilities: [70] Express (v2) Root Complex Integrated Endpoint, MSI 00 DevCap: MaxPayload 128 bytes, PhantFunc 0 ExtTag- RBE+ FLReset+ DevCtl: CorrErr- NonFatalErr- FatalErr- UnsupReq- RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop- FLReset- MaxPayload 128 bytes, MaxReadReq 128 bytes DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr- TransPend- DevCap2: Completion Timeout: Not Supported, TimeoutDis- NROPrPrP- LTR- 10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix- EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit- FRS- AtomicOpsCap: 32bit- 64bit- 128bitCAS- DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- LTR- OBFF Disabled, AtomicOpsCtl: ReqEn- Capabilities: [ac] MSI: Enable+ Count=1/1 Maskable+ 64bit- Address: fee00038 Data: 0000 Masking: 00000000 Pending: 00000000 Kernel driver in use: vfio-pci Kernel modules: i915 Quote Link to comment
domrockt Posted March 22 Share Posted March 22 hello, iam thrilled to see progress here two questions 1) what do i need to do, to test this on 6.12 2) if i uncheck one of those VF's can Unraid still use that for Plex and other dockers? Quote Link to comment
zhtengw Posted March 22 Author Share Posted March 22 2 hours ago, domrockt said: hello, iam thrilled to see progress here two questions 1) what do i need to do, to test this on 6.12 2) if i uncheck one of those VF's can Unraid still use that for Plex and other dockers? 1. I make a workaround in my plugin, you can just install the plugin and have a try. The plugin supports unRAID 6.11.0~6.11.5 and 6.12.0-rc1, 6.12.0-rc2 2. The PF (00:02.0) could be used by Unraid host. And the VFs(00:02.x) are only used for passthrough to VMs 1 Quote Link to comment
domrockt Posted March 22 Share Posted March 22 (edited) 18 minutes ago, zhtengw said: 1. I make a workaround in my plugin, you can just install the plugin and have a try. The plugin supports unRAID 6.11.0~6.11.5 and 6.12.0-rc1, 6.12.0-rc2 2. The PF (00:02.0) could be used by Unraid host. And the VFs(00:02.x) are only used for passthrough to VMs ok then i do the checklist, uuuh cant wait for the workaround to happen thank you very much. do i need to stub the igpu at any point before instal the i915-sriov Plugin? 1) in Bios enable sriov 2) Intel GPU TOP, can it be installed or not? 3) install i915-sriov Plugin from the link (for now) you provide 4) reboot? 5) The PF (00:02.0) could be used by Unraid host. And the VFs(00:02.x) are only used for passthrough to VMs Edited March 22 by domrockt Quote Link to comment
Squid Posted March 22 Share Posted March 22 10 hours ago, zhtengw said: I was trying to make iGPU SR-IOV work on unRAID. Then I built the custom kernel image mentioned above and also make a plugin(https://github.com/zhtengw/unraid-i915-sriov). Does the plugin require the custom kernel? Quote Link to comment
zhtengw Posted March 22 Author Share Posted March 22 1 minute ago, Squid said: Does the plugin require the custom kernel? No, this plugin and the custom kernel are two things but provide the same function. Quote Link to comment
domrockt Posted March 22 Share Posted March 22 do i need to add to /boot/syslinux/syslinux.cfg intel_iommu=on ? or vfio-pci.enable_sriov=1? like in other sriov threads? or make changes to /boot/config/go like this: #!/bin/bash # Start the Management Utility /usr/local/sbin/emhttp & echo 3 > /sys/bus/pci/devices/0000:00:02.0/sriov_numvfs # Relaunch vfio-pci script to bind virtual function adapters that didn't exist at boot time /usr/local/sbin/vfio-pci >>/var/log/vfio-pci Quote Link to comment
zhtengw Posted March 22 Author Share Posted March 22 6 minutes ago, domrockt said: do i need to add to /boot/syslinux/syslinux.cfg intel_iommu=on ? or vfio-pci.enable_sriov=1? like in other sriov threads? or make changes to /boot/config/go like this: #!/bin/bash # Start the Management Utility /usr/local/sbin/emhttp & echo 3 > /sys/bus/pci/devices/0000:00:02.0/sriov_numvfs # Relaunch vfio-pci script to bind virtual function adapters that didn't exist at boot time /usr/local/sbin/vfio-pci >>/var/log/vfio-pci There is a CONFIG_INTEL_IOMMU_DEFAULT_ON=y in unRAID kernel config, so intel_iommu=on is not needed. The plugin will create a i915-sriov.conf in /boot/config/modprobe.d/, and add "echo 3 > /sys/bus/pci/devices/0000:00:02.0/sriov_numvfs" to /boot/config/go. And run /usr/local/sbin/vfio-pci in /boot/config/go may be needed. Quote Link to comment
zhtengw Posted March 22 Author Share Posted March 22 52 minutes ago, domrockt said: ok then i do the checklist, uuuh cant wait for the workaround to happen thank you very much. do i need to stub the igpu at any point before instal the i915-sriov Plugin? 1) in Bios enable sriov 2) Intel GPU TOP, can it be installed or not? 3) install i915-sriov Plugin from the link (for now) you provide 4) reboot? 5) The PF (00:02.0) could be used by Unraid host. And the VFs(00:02.x) are only used for passthrough to VMs And one more thing, 6) install intel gpu driver in your guest, both for Windows and Linux Quote Link to comment
domrockt Posted March 22 Share Posted March 22 (edited) 12 minutes ago, zhtengw said: There is a CONFIG_INTEL_IOMMU_DEFAULT_ON=y in unRAID kernel config, so intel_iommu=on is not needed. The plugin will create a i915-sriov.conf in /boot/config/modprobe.d/, and add "echo 3 > /sys/bus/pci/devices/0000:00:02.0/sriov_numvfs" to /boot/config/go. And run /usr/local/sbin/vfio-pci in /boot/config/go may be needed. the plugin adds adds "echo 2 not 3 to > /sys/bus/pci/devices/0000:00:02.0/sriov_numvfs" to /boot/config/go" thats what i found in my go file #!/bin/bash # Start the Management Utility /usr/local/sbin/emhttp & echo 12.884.901.888 >> #p8 state nvidia nvidia-persistenced # ------------------------------------------------- # disable haveged as we trust /dev/random # ------------------------------------------------- /etc/rc.d/rc.haveged stop #Adjusting ARC memory usage (limit 32GB) echo 17179869184 >> /sys/module/zfs/parameters/zfs_arc_max modprobe i915 & echo 2 > /sys/devices/pci0000:00/0000:00:02.0/sriov_numvfs and i just add run /usr/local/sbin/vfio-pci to the last row? fingers crossed, rebooting now Edited March 22 by domrockt Quote Link to comment
zhtengw Posted March 22 Author Share Posted March 22 10 minutes ago, domrockt said: the plugin adds adds "echo 2 not 3 to > /sys/bus/pci/devices/0000:00:02.0/sriov_numvfs" to /boot/config/go" thats what i found in my go file #!/bin/bash # Start the Management Utility /usr/local/sbin/emhttp & echo 12.884.901.888 >> #p8 state nvidia nvidia-persistenced # ------------------------------------------------- # disable haveged as we trust /dev/random # ------------------------------------------------- /etc/rc.d/rc.haveged stop #Adjusting ARC memory usage (limit 32GB) echo 17179869184 >> /sys/module/zfs/parameters/zfs_arc_max modprobe i915 & echo 2 > /sys/devices/pci0000:00/0000:00:02.0/sriov_numvfs and i just add run /usr/local/sbin/vfio-pci to the last row? fingers crossed, rebooting now the number 2 is just an example. You can change to 3 or 4 as you wish. And add /usr/local/sbin/vfio-pci to the last Quote Link to comment

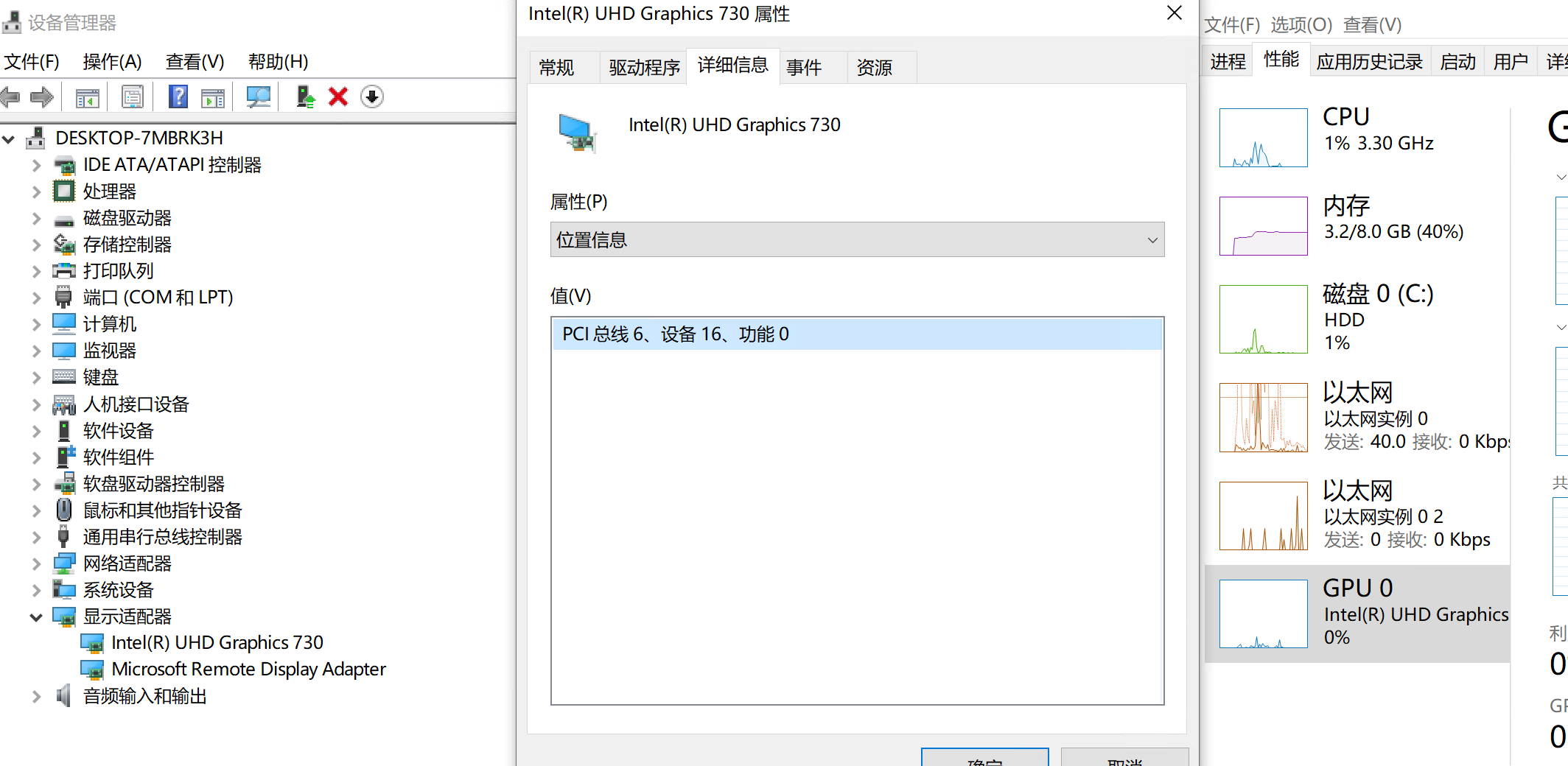

zhtengw Posted March 22 Author Share Posted March 22 6 hours ago, SimonF said: I guess the guest VM driver assumes that the card is 02.0. I test the address with 0000:06:10.0, and the VF also works fine in guest system. <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x00' slot='0x02' function='0x1'/> </source> <address type='pci' domain='0x0000' bus='0x06' slot='0x10' function='0x0'/> </hostdev> Then I shutdown the guest system and change the address to 0000:06:10.1, after reboot, the GPU device disappeared. So for iGPU VFs, the function number of PCI address should be 0. Quote Link to comment
domrockt Posted March 22 Share Posted March 22 do i need to bind that IGPU to VFIO at boot? to make it work? I did 1) in Bios enable sriov 2) Intel GPU TOP, can it be installed or not? 3) install i915-sriov Plugin from the link (for now) you provide 4) add echo 3 > /sys/devices/pci0000:00/0000:00:02.0/sriov_numvfs to go file 4) add /usr/local/sbin/vfio-pci to go file 5) reboot iam here but nothing changed 6) The PF (00:02.0) could be used by Unraid host. And the VFs(00:02.x) are only used for passthrough to VMs 7) instal IGPU Intel driber in guestsystem win/linux Quote Link to comment
zhtengw Posted March 22 Author Share Posted March 22 14 minutes ago, domrockt said: do i need to bind that IGPU to VFIO at boot? to make it work? DO NOT do this. The IGPU 0000:00:02.0 should always use the i915 sriov module to make VFs work. You should only bind VFs to vfio-pci. Quote Link to comment
domrockt Posted March 22 Share Posted March 22 (edited) hm it wont work for me atm. i try next without the Intel GPU TOP plugin i begin fresh from start and take more time Edited March 22 by domrockt Quote Link to comment
zhtengw Posted March 22 Author Share Posted March 22 5 minutes ago, domrockt said: hm it wont work for me atm. i try next without the Intel GPU TOP plugin i begin fresh from start and take more time You can run dmesg | grep i915 to check if the PF mode works and all the VFs are created. Quote Link to comment
zhtengw Posted March 22 Author Share Posted March 22 13 minutes ago, domrockt said: hm it wont work for me atm. i try next without the Intel GPU TOP plugin I update the plugin, add sleep 3 after modprobe i915 to ensure it is fully loaded. And add /usr/local/sbin/vfio-pci. You may reinstall the plugin and have a try. I am very grateful that you can help me to test my first plugin. Quote Link to comment
always67 Posted March 22 Share Posted March 22 首先是位中文大佬？ 我刚刚把系统升级到了6.12 rc2，安装了插件，也显示安装成功并重启了，但是并没有看到vf设备呢？ 铭瑄h610itx+12100 Quote Link to comment
zhtengw Posted March 22 Author Share Posted March 22 6 minutes ago, always67 said: 首先是位中文大佬？ 我刚刚把系统升级到了6.12 rc2，安装了插件，也显示安装成功并重启了，但是并没有看到vf设备呢？ 铭瑄h610itx+12100 你好，我的硬件也是铭瑄h610itx和i3-12100，你把 dmesg | grep i915 的输出贴出来看看 Quote Link to comment
