1 hour ago, Squid said:

Add the command to the "go" file (/config/go on the flash drive)

do I add

echo "options nct6683 force=1" >> /etc/modprobe.d/sensors.conf



or



options nct6683 force=1



??

Link to post
  • Replies 3.1k
  • Created
  • Last Reply

Top Posters In This Topic

Top Posters In This Topic

Popular Posts

It has been some time since I visited the Unraid forums. Due to health issues I had to take a break, and unfortunately this break took way longer than anticipated. But I am back and will sta

Notice: You must be running unRAID version 6.1 or later to use these plugins The easiest way of installing plugins is thru Community Applications. This is an apps installation manager develope

Today has been a productive day   I have updated several Dynamix plugins, mainly bug fixes. Please check your plugins to get the updates.

Posted Images

There is a word on the forum that if your running Dynamic Fan Control, which I do fans will not shut down using 6.9-RC2. My Drives do not shutdown on their own. I reverted back to 6.9-Beta35 and they do. Is there a Plugin Mod we can do or is it a sensor issue that trips it up?

Link to post

is there any way to configure the fan speed plugin to only control my case fans but completely ignore my CPU fan?



right now my case fans are correctly controlled base don HDD temp but the CPU fan is at 100% constantly even when i disabled auto fan for it.

Link to post

I apologize if this is in the wrong thread, just let me know and I'll move it to general support or somewhere, but I am following the official wiki for setting up CPU temperature monitoring with the Dynamix System Temp plugin. I've installed NerdPack GUI, installed PERL, then installed and hit "DETECT" in Dynamix System Temp. It finds my driver as "k10temp nct6775", but the options for "Processor temperature" and "Motherboard temperature" are set to "not used" and do not show any other options. I've hit save, redetected, rescanned, and done all the research I could find. I even tried some alternatives to Dynamix, but I can't seem to get anything working. For more info, my motherboard is the MSI Meg X570 Unify and I have a Ryzen 3950X. Everything else is up and running, so far I'm loving Unraid and it's working great, I just can't get CPU temperature readings.



I'm very new to Unraid (on trial day 3 now), I like it a lot, but am still unexperienced in it. If someone could please help me with the next troubleshooting steps or if anyone knows a solution to this issue, please let me know.



Here is the link to the tutorial I am following:

https://wiki.unraid.net/Setting_up_CPU_and_board_temperature_sensing



Screenshot attached if it helps any.


Link to post
13 hours ago, Squid said:



OK, this is proving to be one pain in the a*s.



my dynamix.system.temp\drivers.conf has the following:

coretemp.nct6683



but for some reason the NCT6683 module is not loading as you can see from my sensors output below.



Sensors-detect:



Found `Nuvoton NCT6683D eSIO'                               Success!
    (address 0xa20, driver `nct6683')



Sensors:



coretemp-isa-0000
Adapter: ISA adapter
CPU Temp:     +26.0°C  (high = +99.0°C, crit = +115.0°C)
Core 0:       +24.0°C  (high = +99.0°C, crit = +115.0°C)
Core 1:       +25.0°C  (high = +99.0°C, crit = +115.0°C)
Core 2:       +26.0°C  (high = +99.0°C, crit = +115.0°C)
Core 3:       +23.0°C  (high = +99.0°C, crit = +115.0°C)
Core 4:       +25.0°C  (high = +99.0°C, crit = +115.0°C)
Core 5:       +23.0°C  (high = +99.0°C, crit = +115.0°C)
Core 6:       +25.0°C  (high = +99.0°C, crit = +115.0°C)
Core 7:       +24.0°C  (high = +99.0°C, crit = +115.0°C)
Core 8:       +24.0°C  (high = +99.0°C, crit = +115.0°C)
Core 9:       +24.0°C  (high = +99.0°C, crit = +115.0°C)

nvme-pci-0200
Adapter: PCI adapter
Composite:    +44.9°C  (low  = -60.1°C, high = +89.8°C)
                       (crit = +94.8°C)

nvme-pci-3e00
Adapter: PCI adapter
Composite:    +45.9°C  (low  = -273.1°C, high = +84.8°C)
                       (crit = +84.8°C)
Sensor 1:     +45.9°C  (low  = -273.1°C, high = +65261.8°C)
Sensor 2:     +46.9°C  (low  = -273.1°C, high = +65261.8°C)



Any idea why the sensor module isn't loading?

Linux peeps have managed to get it working by doing the following but there is no modules-load.d folder in UNRAID that I can see.



echo "options nct6683 force=1" >> /etc/modprobe.d/sensors.conf

modprobe nct6683

echo "nct6683" >> /etc/modules-load.d/modules.conf



Link to post
33 minutes ago, mikeyosm said:

echo "options nct6683 force=1" >> /etc/modprobe.d/sensors.conf

modprobe nct6683

echo "nct6683" >> /etc/modules-load.d/modules.conf



Have tried just putting the modprobe command into your go file?

Link to post
On 1/3/2021 at 9:21 PM, itimpi said:

If you back it up first, it should be easy enough to test by seeing if you can successfully write the expected amount of data to the drive and then also read it back intact.   If it IS a fake one of those steps will fail.

Thanks, @itimpi. But I'm wondering about the logistics of this;



1. Back up the USB drive, having removed it while the array is (presumably) spun down but powered.



2. Leave the server alone while I…



3. Test the USB drive destructively with, say, F3 or some similar test.



4. Restore the original UnRAID data, reinsert the USB drive into the server.



Because of 2. the backup and subsequent restore would have to be outside the UnRAID server. Is this the sequence you had in mind? Have you tried this?



--

Chris

Link to post
On 1/2/2021 at 2:30 AM, Marshalleq said:

I would always install trim on all SSD's.  I think it's highly worth and and have never had an issue.  I followed your link but it didn't make immediate sense to me what you mean.  Just install trim I reckon. :)

The question is: does RAISE replace TRIM? Unnecessarily running TRIM may not raise (ha!) any "issues" but you may be adding random wear to your SSD.



--

Chris

Link to post
1 hour ago, bidmead said:

Thanks, @itimpi. But I'm wondering about the logistics of this;



1. Back up the USB drive, having removed it while the array is (presumably) spun down but powered.



2. Leave the server alone while I…



3. Test the USB drive destructively with, say, F3 or some similar test.



4. Restore the original UnRAID data, reinsert the USB drive into the server.



Because of 2. the backup and subsequent restore would have to be outside the UnRAID server. Is this the sequence you had in mind? Have you tried this?



--

Chris

Yes.



Depending on the test you run you may need to run the appropriate make_bootable command off the flash to make it bootable again if the test you use has destroyed that status.

Link to post
2 hours ago, mikeyosm said:

OK, this is proving to be one pain in the a*s.



my dynamix.system.temp\drivers.conf has the following:

coretemp.nct6683



but for some reason the NCT6683 module is not loading as you can see from my sensors output below.



Sensors-detect:



Found `Nuvoton NCT6683D eSIO'                               Success!
    (address 0xa20, driver `nct6683')



Sensors:



coretemp-isa-0000
Adapter: ISA adapter
CPU Temp:     +26.0°C  (high = +99.0°C, crit = +115.0°C)
Core 0:       +24.0°C  (high = +99.0°C, crit = +115.0°C)
Core 1:       +25.0°C  (high = +99.0°C, crit = +115.0°C)
Core 2:       +26.0°C  (high = +99.0°C, crit = +115.0°C)
Core 3:       +23.0°C  (high = +99.0°C, crit = +115.0°C)
Core 4:       +25.0°C  (high = +99.0°C, crit = +115.0°C)
Core 5:       +23.0°C  (high = +99.0°C, crit = +115.0°C)
Core 6:       +25.0°C  (high = +99.0°C, crit = +115.0°C)
Core 7:       +24.0°C  (high = +99.0°C, crit = +115.0°C)
Core 8:       +24.0°C  (high = +99.0°C, crit = +115.0°C)
Core 9:       +24.0°C  (high = +99.0°C, crit = +115.0°C)

nvme-pci-0200
Adapter: PCI adapter
Composite:    +44.9°C  (low  = -60.1°C, high = +89.8°C)
                       (crit = +94.8°C)

nvme-pci-3e00
Adapter: PCI adapter
Composite:    +45.9°C  (low  = -273.1°C, high = +84.8°C)
                       (crit = +84.8°C)
Sensor 1:     +45.9°C  (low  = -273.1°C, high = +65261.8°C)
Sensor 2:     +46.9°C  (low  = -273.1°C, high = +65261.8°C)



Any idea why the sensor module isn't loading?

Linux peeps have managed to get it working by doing the following but there is no modules-load.d folder in UNRAID that I can see.



echo "options nct6683 force=1" >> /etc/modprobe.d/sensors.conf

modprobe nct6683

echo "nct6683" >> /etc/modules-load.d/modules.conf



I booted an Ubuntu distro and I get all the sensors info. How do I get the same sensors to show up in UNRAID?

I added the nct6683 module to modules.conf in Ubuntu but I can't see where I do this in UNRAID.



/etc/modules-load.d$ cat modules.conf



# /etc/modules: kernel modules to load at boot time.
#
# This file contains the names of kernel modules that should be loaded
# at boot time, one per line. Lines beginning with "#" are ignored.
nct6683



sensors



coretemp-isa-0000
Adapter: ISA adapter
Package id 0:  +28.0°C  (high = +99.0°C, crit = +115.0°C)
Core 0:        +25.0°C  (high = +99.0°C, crit = +115.0°C)
Core 1:        +26.0°C  (high = +99.0°C, crit = +115.0°C)
Core 2:        +27.0°C  (high = +99.0°C, crit = +115.0°C)
Core 3:        +26.0°C  (high = +99.0°C, crit = +115.0°C)
Core 4:        +27.0°C  (high = +99.0°C, crit = +115.0°C)
Core 5:        +24.0°C  (high = +99.0°C, crit = +115.0°C)
Core 6:        +27.0°C  (high = +99.0°C, crit = +115.0°C)
Core 7:        +25.0°C  (high = +99.0°C, crit = +115.0°C)
Core 8:        +26.0°C  (high = +99.0°C, crit = +115.0°C)
Core 9:        +26.0°C  (high = +99.0°C, crit = +115.0°C)

nct6683-isa-0a20
Adapter: ISA adapter
VIN0:          720.00 mV (min =  +0.00 V, max =  +0.00 V)
VIN1:            1.01 V  (min =  +0.00 V, max =  +0.00 V)
VIN2:          992.00 mV (min =  +0.00 V, max =  +0.00 V)
VIN3:            1.10 V  (min =  +0.00 V, max =  +0.00 V)
VIN7:            1.34 V  (min =  +0.00 V, max =  +0.00 V)
VIN14:         464.00 mV (min =  +0.00 V, max =  +0.00 V)
VIN15:           1.04 V  (min =  +0.00 V, max =  +0.00 V)
VIN16:           1.06 V  (min =  +0.00 V, max =  +0.00 V)
VSB:             3.49 V  (min =  +0.00 V, max =  +0.00 V)
fan1:           500 RPM  (min =    0 RPM)
fan2:           739 RPM  (min =    0 RPM)
fan3:          2013 RPM  (min =    0 RPM)
fan4:             0 RPM  (min =    0 RPM)
Thermistor 13:  +38.0°C  (low  =  +0.0°C)
                         (high =  +0.0°C, hyst =  +0.0°C)
                         (crit =  +0.0°C)  sensor = thermistor
PECI 0.0:       +27.5°C  (low  =  +0.0°C)
                         (high =  +0.0°C, hyst =  +0.0°C)
                         (crit =  +0.0°C)  sensor = Intel PECI
Thermistor 12:  +45.5°C  (low  =  +0.0°C)
                         (high =  +0.0°C, hyst =  +0.0°C)
                         (crit =  +0.0°C)  sensor = thermistor
intrusion0:    OK
beep_enable:   disabled

nvme-pci-0200
Adapter: PCI adapter
Composite:    +45.9°C  (low  = -60.1°C, high = +89.8°C)
                       (crit = +94.8°C)

Link to post
37 minutes ago, itimpi said:

Yes.



Depending on the test you run you may need to run the appropriate make_bootable command off the flash to make it bootable again if the test you use has destroyed that status.

Thanks, @itimpi. I've realised subsequently that the official UnRAID USB backup downloads the output to the local machine running the WebGUI, so my remarks about backing up the USB outside the UnRAID NAS don't apply.



But there's a possible scenario that worries me. If this is a fake 2GB drive posing as a 16GB drive (as UnRAID seems to be suggesting) it's a possibility that the destructive test I run will make the drive unusable.



Whether it's 16GB or 2GB, it's working fine for now as a boot drive. My inclination would be to buy a second 16GB Cruzer Fit from the eBay SanDisk store (about £6), test that to guarantee it's a worthy understudy, and then run the destructive test on the working boot USB drive.



Or am I being overcautious here? Advice very welcome.



--

Chris







Link to post
10 minutes ago, bidmead said:

Thanks, @itimpi. I've realised subsequently that the official UnRAID USB backup downloads the output to the local machine running the WebGUI, so my remarks about backing up the USB outside the UnRAID NAS don't apply.



But there's a possible scenario that worries me. If this is a fake 2GB drive posing as a 16GB drive (as UnRAID seems to be suggesting) it's a possibility that the destructive test I run will make the drive unusable.



Whether it's 16GB or 2GB, it's working fine for now as a boot drive. My inclination would be to buy a second 16GB Cruzer Fit from the eBay SanDisk store (about £6), test that to guarantee it's a worthy understudy, and then run the destructive test on the working boot USB drive.



Or am I being overcautious here? Advice very welcome.



--

Chris







I have no idea whether testing can make the drive unusable.



if you have to use a new USB then you will have to go through the process of transferring the licence to it (and blacklist the old one).   You can use the automated process once a year but if you have done a transfer more recently then you need to contact Limetech to do a manual transfer.

Link to post

Thanks, @itimpi. I'm cool with the licence transfer process but think it's probably a good idea to have a physical backup USB drive ready. I've ordered another Cruzer. I'll report back here once that's all done.



--

Chris

Link to post
16 hours ago, bidmead said:

The question is: does RAISE replace TRIM? Unnecessarily running TRIM may not raise (ha!) any "issues" but you may be adding random wear to your SSD.



--

Chris

What part of RAISE would you think replaces trim?  I can't see anything even slightly related in there.

Link to post

I was asking my question about RAISE and TRIM, @Marshalleq, from a position of ignorance. That's to say, I'm looking for an answer from someone who knows more than I do. You're asking me another question that seems to require the information I'm ignorant of.



Is there someone here who can help us both out? I've put this question to the SSD manufacturer and will follow up here if I get a response.



(Here's a useful gloss on how the SandForce controller and TRIM work, separately. There's no mention of RAISE here, but I'm assuming my cache OWC Mercury Extreme Pro, which uses a SandForce controller, also includes this DuraWrite feature. This may be an answer to my question but I don't understand SSD garbage collection well enough to be sure.)



--

Chris

Link to post

may a question about the system fan plugin, after getting the fans to be recognized and adjustable question is



do i see this right that the automatic control is only triggered for hdd temps ?



my usecase is to control my fans due cpu temp but either i miss something ot its a hdd temp control base only ?



for any tipps, thanks ahead

Link to post

With the Dynamix System Buttons plugin does the "Stop the Array" do the following.

Stop VMs properly

Stop Dockers properly



Or is it best to stop each docker and vm running before doing "Stop the array"?



Link to post

All i did was install system temp plugin and fanspeed plugin, ran sensors-detect from command line, it reported coretemp and nct6775

So i ran modprobe coretemp and modprobe nct6775.

Been working ever since. Rebooted numerous times.

Link to post
may a question about the system fan plugin, after getting the fans to be recognized and adjustable question is

do i see this right that the automatic control is only triggered for hdd temps ?

my usecase is to control my fans due cpu temp but either i miss something ot its a hdd temp control base only ?

for any tipps, thanks ahead

It is for fan speed control based on hdd temps only
Link to post
may a question about the system fan plugin, after getting the fans to be recognized and adjustable question is

do i see this right that the automatic control is only triggered for hdd temps ?

my usecase is to control my fans due cpu temp but either i miss something ot its a hdd temp control base only ?

for any tipps, thanks ahead

Just use a fan splitter hub to connect all your fans to the cpu fan header and set you fan curve in the bios
Link to post

@spl147 thanks for the info about hdd temps only, and they are already adjusted in bios, no need for a splitter here due i can adjust them all seperate anyway, would be just nice to take control while running without rebooting to bios etc etc.

Link to post

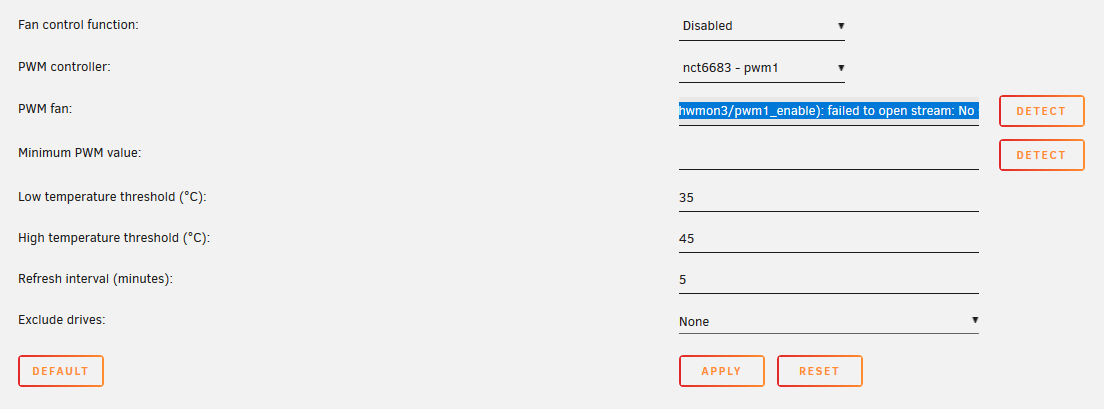

I'm getting permission denied in autofan plugin.... Any ideas why? The plugin is detecting my sensor chip nct6683 OK.



<br /><b>Warning</b>:  file_get_contents(/sys/devices/platform/nct6683.2592/hwmon/hwmon3/pwm1_enable): failed to open stream: No such file or directory in <b>/usr/local/emhttp/plugins/dynamix.system.autofan/include/SystemFan.php</b> on line <b>40</b><br /><br /><b>Warning</b>:  file_put_contents(/sys/devices/platform/nct6683.2592/hwmon/hwmon3/pwm1_enable): failed to open stream: Permission denied in <b>/usr/local/emhttp/plugins/dynamix.system.autofan/include/SystemFan.php</b> on line <b>42</b><br /><br /><b>Warning</b>:  file_put_contents(/sys/devices/platform/nct6683.2592/hwmon/hwmon3/pwm1): failed to open stream: Permission denied in <b>/usr/local/emhttp/plugins/dynamix.system.autofan/include/SystemFan.php</b> on line <b>43</b><br /><br /><b>Warning</b>:  file_put_contents(/sys/devices/platform/nct6683.2592/hwmon/hwmon3/pwm1): failed to open stream: Permission denied in <b>/usr/local/emhttp/plugins/dynamix.system.autofan/include/SystemFan.php</b> on line <b>46</b><br /><br /><b>Warning</b>:  file_put_contents(/sys/devices/platform/nct6683.2592/hwmon/hwmon3/pwm1): failed to open stream: Permission denied in <b>/usr/local/emhttp/plugins/dynamix.system.autofan/include/SystemFan.php</b> on line <b>49</b><br /><br /><b>Warning</b>:  file_put_contents(/sys/devices/platform/nct6683.2592/hwmon/hwmon3/pwm1_enable): failed to open stream: Permission denied in <b>/usr/local/emhttp/plugins/dynamix.system.autofan/include/SystemFan.php</b> on line <b>50</b><br />/sys/devices/platform/nct6683.2592/hwmon/hwmon3/fan2_input




Link to post

Anyone with issues loading their sensor module and/or missing sensors for their motherboard, please read....



I have a Z490 Asrock ITX/TB3 board and have been battling for months trying to get the sensors to display in systemp plugin.

I have finally found a way to do it for the NCT6683 sensor chip.

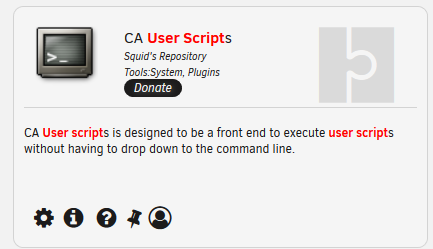

I created a user script using the excellent plugin that contains the following at array startup-



modprobe -r nct6683

modprobe nct6683 force=1



The 1st line unloads the module.

The 2nd line loads the module using the 'force' option.



Now on every reboot of UNRAID i have full sensors from both coretemp and nct6683.

Link to post

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.
Note: Your post will require moderator approval before it will be visible.

Guest
Reply to this topic...

×   Pasted as rich text.   Restore formatting

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.
