Unassigned Devices - Managing Disk Drives and Remote Shares Outside of The Unraid Array

[Revan335]

Jul  4 22:31:30 Lucy unassigned.devices: Mounting partition 'sdn1' at mountpoint '/mnt/disks/WD_My_Passport_0827'...
Jul  4 22:31:30 Lucy unassigned.devices: Mount cmd: /sbin/mount -t 'btrfs' -o rw,noatime,nodiratime,space_cache=v2 '/dev/sdn1' '/mnt/disks/WD_My_Passport_0827'
Jul  4 22:31:36 Lucy kernel: BTRFS warning: duplicate device /dev/sdn1 devid 1 generation 16830 scanned by mount (7531)
Jul  4 22:31:38 Lucy unassigned.devices: Mount of 'sdn1' failed: 'mount: /mnt/disks/WD_My_Passport_0827: mount(2) system call failed: File exists.        dmesg(1) may have more information after failed mount system call. '
Jul  4 22:31:38 Lucy unassigned.devices: Partition 'WD My_Passport_0827' cannot be mounted.
Jul  4 22:33:15 Lucy kernel: usb 1-8: USB disconnect, device number 5
Jul  4 22:33:17 Lucy usb_manager: Info: rc.usb_manager usb_remove  Western_Digital_My_Passport_0827_57583431443635354C554158 /dev/bus/usb/001/005 001 005
Jul  4 22:33:17 Lucy usb_manager: Info: rc.usb_manager Device Match 001/005 vm:   001 005
Jul  4 22:33:17 Lucy usb_manager: Info: rc.usb_manager Removed 001/005 vm:  nostate 001 005

The First Entrys are i tried to mount the Disk by UD. Before that i unplug and plugin it again to Unraid last Night.

The Last Entrys are i unplug the USB Disk from Unraid for the Check on the Linux Client.

[dlandon]

6 minutes ago, Revan335 said:

Jul  4 22:31:30 Lucy unassigned.devices: Mounting partition 'sdn1' at mountpoint '/mnt/disks/WD_My_Passport_0827'...
Jul  4 22:31:30 Lucy unassigned.devices: Mount cmd: /sbin/mount -t 'btrfs' -o rw,noatime,nodiratime,space_cache=v2 '/dev/sdn1' '/mnt/disks/WD_My_Passport_0827'
Jul  4 22:31:36 Lucy kernel: BTRFS warning: duplicate device /dev/sdn1 devid 1 generation 16830 scanned by mount (7531)
Jul  4 22:31:38 Lucy unassigned.devices: Mount of 'sdn1' failed: 'mount: /mnt/disks/WD_My_Passport_0827: mount(2) system call failed: File exists.        dmesg(1) may have more information after failed mount system call. '
Jul  4 22:31:38 Lucy unassigned.devices: Partition 'WD My_Passport_0827' cannot be mounted.
Jul  4 22:33:15 Lucy kernel: usb 1-8: USB disconnect, device number 5
Jul  4 22:33:17 Lucy usb_manager: Info: rc.usb_manager usb_remove  Western_Digital_My_Passport_0827_57583431443635354C554158 /dev/bus/usb/001/005 001 005
Jul  4 22:33:17 Lucy usb_manager: Info: rc.usb_manager Device Match 001/005 vm:   001 005
Jul  4 22:33:17 Lucy usb_manager: Info: rc.usb_manager Removed 001/005 vm:  nostate 001 005

The First Entrys are i tried to mount the Disk by UD. Before that i unplug and plugin it again to Unraid last Night.

The Last Entrys are i unplug the USB Disk from Unraid for the Check on the Linux Client.

If you remove a disk from the array, it will show a duplicate uuid in ud.  Go to ud settings and change the uuid of that disk.  It should mount then.

[Revan335]

25 minutes ago, dlandon said:

If you remove a disk from the array, it will show a duplicate uuid in ud.  Go to ud settings and change the uuid of that disk.  It should mount then.

How i can do this?

Does this have an impact on anything else?

Edited July 4, 2023 by Revan335

[dlandon]

15 minutes ago, Revan335 said:

How i can do this?

Does this have an impact on anything else?

In ud settings.  Unless the btrfs disk is on a pool, there is no problem.

[Revan335]

This from mobile browser,that I sorry, can't posted the log by text.

[dlandon]

28 minutes ago, Revan335 said:

This from mobile browser,that I sorry, can't posted the log by text.

Disk problem.

[jcofer555]

i'm on 2023.07.04 and i can't clear partition or clear disk, when i type yes or 'yes' and click format or remove it highlights like i clicked it but it never goes through. used fdisk from the terminal and it works to do things. any tips to get it to work?

[dlandon]

17 minutes ago, jcofer555 said:

type yes or 'yes' and

Type 'Yes'.  Upper case 'Y'.

[jcofer555]

4 minutes ago, dlandon said:

Type 'Yes'.  Upper case 'Y'.

yikes i can't believe i didn't see it was a capital lol thank you for the quick response

[Revan335]

6 hours ago, dlandon said:

Disk problem.

Strange, only that it ran under 6.11 and earlier without these problems and the filesystem check finds no problems and there also the mount works.

[Revan335]

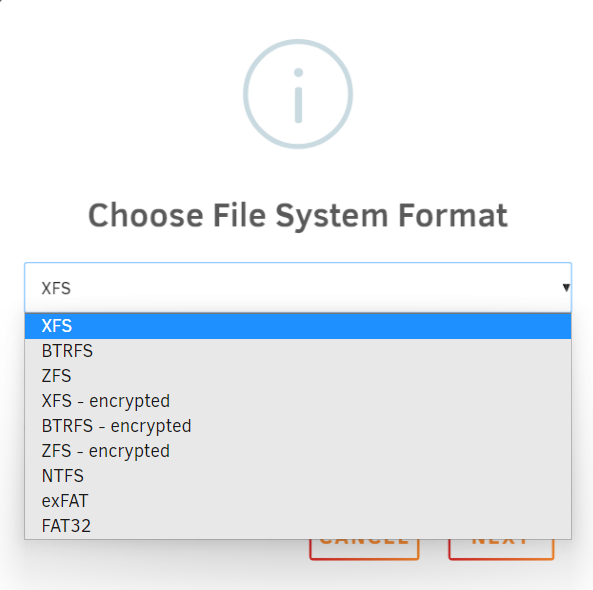

What's filesystem can I used/format with UD?

XFS, EXT4, btrfs, ZFS?



Than i can tried with ZFS again or I used another disk.

[dopeytree]

On 12/12/2022 at 12:18 PM, jinlife said:

This is really a smart setting. Just tried, problem solved! Thanks a lot.



There is no spin down setting for my drive via unassigned.devices am I doing something wrong?



[dlandon]

1 hour ago, dopeytree said:

There is no spin down setting for my drive via unassigned.devices am I doing something wrong?

The UD disk spin down is set by the global disk spin down - Settings->DIsk Settings.  You cannot set individual spin down timers on UD disks.

[dlandon]

6 hours ago, Revan335 said:

What's filesystem can I used/format with UD?

XFS, EXT4, btrfs, ZFS?



Than i can tried with ZFS again or I used another disk.

[dopeytree]

19 minutes ago, dlandon said:

The UD disk spin down is set by the global disk spin down - Settings->DIsk Settings.  You cannot set individual spin down timers on UD disks.



Interesting the global is set to 15minutes.. maybe theres is a general spin down bug in 6.12.2

[dlandon]

34 minutes ago, dopeytree said:



Interesting the global is set to 15minutes.. maybe theres is a general spin down bug in 6.12.2

Can you manually spin it down?  If so, does it stay spun down?

[dopeytree]

Yep can manually spin it down. I'm just trying to pin down why auto spin down isn't working.

[dlandon]

1 hour ago, dopeytree said:

Yep can manually spin it down. I'm just trying to pin down why auto spin down isn't working.

I am also trying to find out why it is not auto spinning down.  What I'm trying to do is determine the following:

• Will it spin down manually?  Your answer 'yes'.
• Will it stay spun down or is something spinning it back up after manually spinning it down?
• Is it mounted or unmounted?

Answering all of these questions will help me determine where to look.  Just saying it is not auto spinning down is not helpful because all my disks spin down as they should.  There's no way I can reproduce your issue without more info.



Post diagnostics on your next post.

[dopeytree]

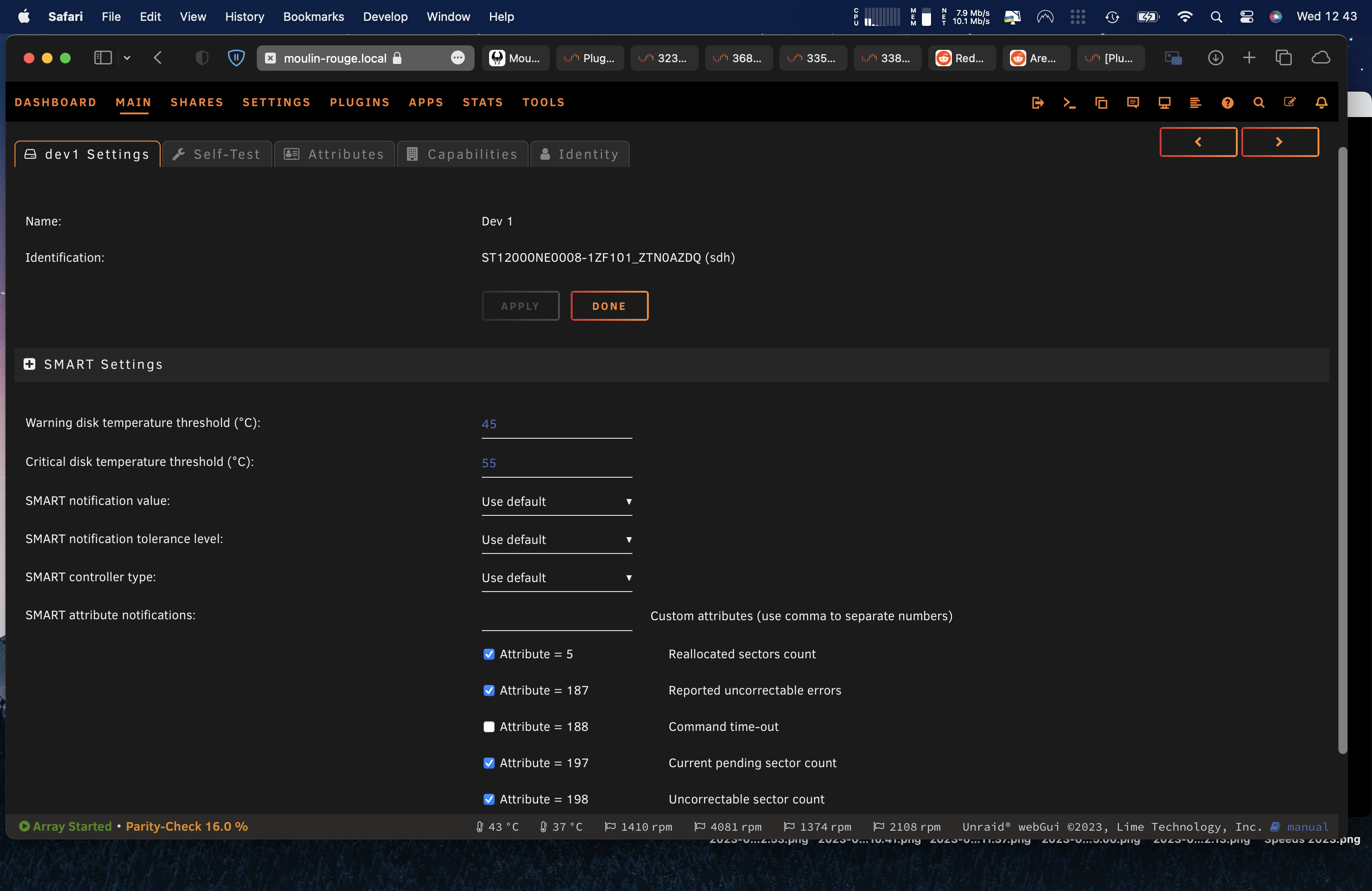

• Will it spin down manually? yes

• Will it stay spun down or is something spinning it back up after manually spinning it down? Seems to be staying spun down now. Last night I swapped the drives around so before it was a single ZFS array drive on the HBA. Now it is the (UA) XFS drive. and have removed ZFS master. Think maybe several causes. There is a theory that HBA's and ZFS Master plugin cause spin ups.

• Is it mounted or unmounted? unmounted. XFS.

• 2x diagnostics attached.

• Thanks your plugins are awesome.

moulin-rouge-diagnostics-20230704-2348.zip moulin-rouge-diagnostics-20230705-1906.zip

Edited July 5, 2023 by dopeytree

[Revan335]

UUID Change was pending for the USB Disk. I changed this on the Linux Client and mounting works. Unraid Reboot inclusive.

[Natrim]

Hi. Probably it has been already addressed but I am unable to find info about my issue.

Currently I am using the plugin to mount an SMB share from another device.

The problem I am having is that when using the automount it defaults to these modes

file_mode=0777,dir_mode=0777



And I want to set this other modes instead for a particular mount

file_mode=0770,dir_mode=0770


How can I do that??

I can't see anywhere a place where I can put parameters or modify the way mounts are done.

Could anyone please point me in the right direction?

Thanks.

[dlandon]

2 hours ago, Natrim said:

Hi. Probably it has been already addressed but I am unable to find info about my issue.

Currently I am using the plugin to mount an SMB share from another device.

The problem I am having is that when using the automount it defaults to these modes

file_mode=0777,dir_mode=0777



And I want to set this other modes instead for a particular mount

file_mode=0770,dir_mode=0770


How can I do that??

I can't see anywhere a place where I can put parameters or modify the way mounts are done.

Could anyone please point me in the right direction?

Thanks.

There is no way for you to control the mount permissions.  Access to SMB shares on Unraid is controlled by user access (Private mode of sharing) unless you are sharing the devices Public.  In that case all users can read and write the shares.  What is your use case?

[Natrim]

11 hours ago, dlandon said:

There is no way for you to control the mount permissions.  Access to SMB shares on Unraid is controlled by user access (Private mode of sharing) unless you are sharing the devices Public.  In that case all users can read and write the shares.  What is your use case?

Hi, thanks for your reply.

I am sorry I don't understand it though. I don't know what you mean by sharing in private or public mode.

When using Unassigned Devices Plugin to mount the share I get this.



drwxrwxrwx 2 nobody users   0 Jul  8 09:16 /mnt/remotes/SERVERDNS_nextcloud/

(because it is using file_mode=0777,dir_mode=0777)



When I SSH to the Unraid and run this command the mount is using the modes correctly (for my scenario)

mount -t cifs //SERVERDNS/nextcloud /mnt/remotes/SERVERDNS_nextcloud -o rw,relatime,vers=3.1.1,cache=strict,username=MYUSERNAME,domain=WORKGROUP,uid=99,noforceuid,gid=100,noforcegid,addr=192.168.2.50,file_mode=0770,dir_mode=0770,iocharset=utf8,soft,nounix,mapposix,rsize=4194304,wsize=4194304,bsize=1048576,echo_interval=60,actimeo=1



drwxrwx--- 2 nobody users   0 Jul  8 09:16 /mnt/remotes/SERVERDNS_nextcloud/



If I can do it manually it surely can be automated, the question is how? Because I don't want to be doing SSH everytime Unraid reboots :D

I don´t see any way to provide mount parameters to Unassigned devices plugin.

Could you please point me to a way to automate this mount with the proper parameters?

Thanks.

Edited July 9, 2023 by Natrim
Clarification

[dlandon]

4 hours ago, Natrim said:

Hi, thanks for your reply.

I am sorry I don't understand it though. I don't know what you mean by sharing in private or public mode.

When using Unassigned Devices Plugin to mount the share I get this.



drwxrwxrwx 2 nobody users   0 Jul  8 09:16 /mnt/remotes/SERVERDNS_nextcloud/

(because it is using file_mode=0777,dir_mode=0777)



When I SSH to the Unraid and run this command the mount is using the modes correctly (for my scenario)

mount -t cifs //SERVERDNS/nextcloud /mnt/remotes/SERVERDNS_nextcloud -o rw,relatime,vers=3.1.1,cache=strict,username=MYUSERNAME,domain=WORKGROUP,uid=99,noforceuid,gid=100,noforcegid,addr=192.168.2.50,file_mode=0770,dir_mode=0770,iocharset=utf8,soft,nounix,mapposix,rsize=4194304,wsize=4194304,bsize=1048576,echo_interval=60,actimeo=1



drwxrwx--- 2 nobody users   0 Jul  8 09:16 /mnt/remotes/SERVERDNS_nextcloud/



If I can do it manually it surely can be automated, the question is how? Because I don't want to be doing SSH everytime Unraid reboots :D

I don´t see any way to provide mount parameters to Unassigned devices plugin.

Could you please point me to a way to automate this mount with the proper parameters?

Thanks.

Are you accessing the remote share through the local mount point?

[comet424]

@dlandonso my preclear finally finished... so i did a re do of the 3 cycles   i  did a reboot.. and came back on  there was no resume

here is the sys log hopefully finds out why   and on my back up server its 6.12.2

syslog-20230709-110917.txt
