51 minutes ago, dlandon said:

Post diagnostics.



OK, after taking a break, I had a moment of clarity. Here is what FINALLY solved it (JIC anyone else runs in to this).



I was wondering if I could possibly go the reverse route and mount the UNRAID share to the Synology file system and do my data migration from there. Lo and behold, when I tried to add it I got an error "you can only enter the ip from another server" because the IP was already reserved in the network settings as itself and not the new device.



💡



I was using multiple network interfaces on the Synology NAS 2 device before and disconnected one so I could attach my new UNRAID device to it and give it that IP address. LAN 3 on the Synology was set to Static at the address 192.168.50.8



I removed the static network mapping for that LAN interface, and now everything works as expected. Pings, SMB connection from UNRAID, everything.



I will be transferring happily now.

Edited January 28, 20251 yr by Gyakusetsu

Unable to Mount Encrypted XFS Disk with Unassigned Devices

I'm encountering an issue with mounting an encrypted XFS disk using Unassigned Devices (UD). After formatting an external drive as encrypted XFS and configuring the password in UD settings, the system fails to mount the disk.
To troubleshoot, I reformatted the same disk with standard (unencrypted) XFS, which mounts without any issues. This suggests the problem might be specifically related to the encryption implementation.
Has anyone successfully set up an encrypted XFS disk with UD? Any insights or suggestions would be greatly appreciated.

1 hour ago, plenty_box said:

Unable to Mount Encrypted XFS Disk with Unassigned Devices

I'm encountering an issue with mounting an encrypted XFS disk using Unassigned Devices (UD). After formatting an external drive as encrypted XFS and configuring the password in UD settings, the system fails to mount the disk.
To troubleshoot, I reformatted the same disk with standard (unencrypted) XFS, which mounts without any issues. This suggests the problem might be specifically related to the encryption implementation.
Has anyone successfully set up an encrypted XFS disk with UD? Any insights or suggestions would be greatly appreciated.

I am able to format and mount an xfs encrpted disk.  Post your diagnostics.

19 hours ago, dlandon said:

I am able to format and mount an xfs encrpted disk.  Post your diagnostics.

Thank you for replying , here is my diagnosticsunraid-diagnostics-20250131-2201.zip

48 minutes ago, plenty_box said:

Thank you for replying , here is my diagnosticsunraid-diagnostics-20250131-2201.zip

You have disk issues:

Jan 29 04:52:59 Unraid kernel: sd 8:0:3:0: Power-on or device reset occurred
Jan 29 04:52:59 Unraid kernel: sd 8:0:3:0: [sdo] physical block alignment offset: 4096
Jan 29 04:52:59 Unraid kernel: sd 8:0:3:0: [sdo] 15628053168 512-byte logical blocks: (8.00 TB/7.28 TiB)
Jan 29 04:52:59 Unraid kernel: sd 8:0:3:0: [sdo] 4096-byte physical blocks
Jan 29 04:52:59 Unraid kernel: sd 8:0:3:0: [sdo] Write Protect is off
Jan 29 04:52:59 Unraid kernel: sd 8:0:3:0: [sdo] Mode Sense: 73 00 00 08
Jan 29 04:52:59 Unraid kernel: sd 8:0:3:0: [sdo] Write cache: enabled, read cache: enabled, doesn't support DPO or FUA
Jan 29 04:52:59 Unraid kernel: scsi 8:0:4:0: Direct-Access     ATA      WDC WD80EAAZ-00B 1A01 PQ: 0 ANSI: 5
Jan 29 04:52:59 Unraid kernel: scsi 8:0:4:0: SATA: handle(0x0015), sas_addr(0x4433221105000000), phy(5), device_name(0x0000000000000000)
Jan 29 04:52:59 Unraid kernel: scsi 8:0:4:0: enclosure logical id (0x500062b20047d280), slot(5)
Jan 29 04:52:59 Unraid kernel: scsi 8:0:4:0: atapi(n), ncq(y), asyn_notify(n), smart(y), fua(y), sw_preserve(y)
Jan 29 04:52:59 Unraid kernel: scsi 8:0:4:0: qdepth(32), tagged(1), scsi_level(6), cmd_que(1)
Jan 29 04:52:59 Unraid kernel: sdo: sdo1

It looks like you are using a USB disk device that is having problems.



I recommend the following:

• Upgrade Unraid.  You are on 6.12.4.
• Update all your plugins.
• Figure out what is going on with your USB disk(s).

17 hours ago, dlandon said:

You have disk issues:

Jan 29 04:52:59 Unraid kernel: sd 8:0:3:0: Power-on or device reset occurred
Jan 29 04:52:59 Unraid kernel: sd 8:0:3:0: [sdo] physical block alignment offset: 4096
Jan 29 04:52:59 Unraid kernel: sd 8:0:3:0: [sdo] 15628053168 512-byte logical blocks: (8.00 TB/7.28 TiB)
Jan 29 04:52:59 Unraid kernel: sd 8:0:3:0: [sdo] 4096-byte physical blocks
Jan 29 04:52:59 Unraid kernel: sd 8:0:3:0: [sdo] Write Protect is off
Jan 29 04:52:59 Unraid kernel: sd 8:0:3:0: [sdo] Mode Sense: 73 00 00 08
Jan 29 04:52:59 Unraid kernel: sd 8:0:3:0: [sdo] Write cache: enabled, read cache: enabled, doesn't support DPO or FUA
Jan 29 04:52:59 Unraid kernel: scsi 8:0:4:0: Direct-Access     ATA      WDC WD80EAAZ-00B 1A01 PQ: 0 ANSI: 5
Jan 29 04:52:59 Unraid kernel: scsi 8:0:4:0: SATA: handle(0x0015), sas_addr(0x4433221105000000), phy(5), device_name(0x0000000000000000)
Jan 29 04:52:59 Unraid kernel: scsi 8:0:4:0: enclosure logical id (0x500062b20047d280), slot(5)
Jan 29 04:52:59 Unraid kernel: scsi 8:0:4:0: atapi(n), ncq(y), asyn_notify(n), smart(y), fua(y), sw_preserve(y)
Jan 29 04:52:59 Unraid kernel: scsi 8:0:4:0: qdepth(32), tagged(1), scsi_level(6), cmd_que(1)
Jan 29 04:52:59 Unraid kernel: sdo: sdo1

It looks like you are using a USB disk device that is having problems.



I recommend the following:

• Upgrade Unraid.  You are on 6.12.4.
• Update all your plugins.
• Figure out what is going on with your USB disk(s).

Thanks!
I updated all my plugins but should I upgrade Unraid? I don't know if 7.0.0 is stable or not. So I'm not sure.
USB disks doesn't have problem if it's not formatted as encrypted XFS so I don't know.



5 hours ago, plenty_box said:

Thanks!
I updated all my plugins but should I upgrade Unraid? I don't know if 7.0.0 is stable or not. So I'm not sure.
USB disks doesn't have problem if it's not formatted as encrypted XFS so I don't know.



Either update to 6.12.14 or 7.0.  Both are stable releases.  Then fix the USB disk issues flooding your log.

TIA for anyone that can help with this, I've been searching and can't find an explanation anywhere.



I have added some older drives in that I have temporarily put in my unraid setup so they are only showing/used in unassigned devices. They are NTFS formatted from a Windows10 machine.

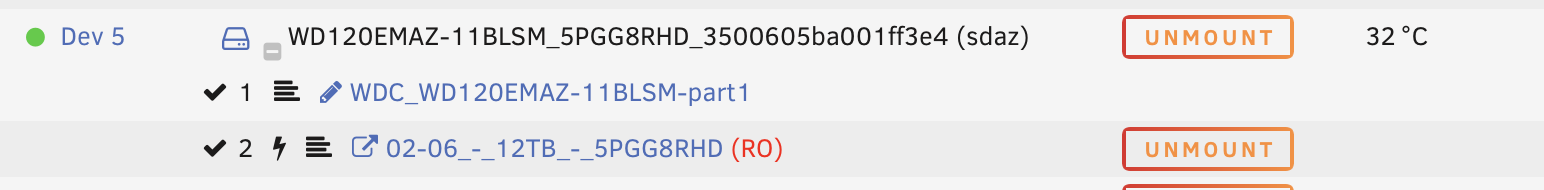

When I mount them in UD, they are tagged (RO).  and thus I am not able to delete files off them when I have moved them to my pool.



Is there a way to tell why they are being tagged (RO).



6 hours ago, shelfactor said:

TIA for anyone that can help with this, I've been searching and can't find an explanation anywhere.



I have added some older drives in that I have temporarily put in my unraid setup so they are only showing/used in unassigned devices. They are NTFS formatted from a Windows10 machine.



When I mount them in UD, they are tagged (RO).  and thus I am not able to delete files off them when I have moved them to my pool.



Is there a way to tell why they are being tagged (RO).



I am no expert at all but i would assume its down to disk permissions maybe? If you wish to add it to the array backup important data and wipe the disk.

7 hours ago, shelfactor said:

Is there a way to tell why they are being tagged (RO).

Usually it's because they haven't been properly unmounted last time they were used, connect to a Windows machine, check disk, eject properly

Edited February 3, 20251 yr by Kilrah

11 hours ago, shelfactor said:

Is there a way to tell why they are being tagged (RO).

If you look at the syslog where the disk was mounted, you will generally see a log message explaining why the disk is mounted RO.  If it's an NTFS disk, it is because it was not shut down properly.

7 hours ago, OldManBeard said:

I am no expert at all but i would assume its down to disk permissions maybe? If you wish to add it to the array backup important data and wipe the disk.

- Thanks @OldManBeard for the suggestion, I checked the permissions and they all looked correct. Issue seemed to be corruption from prior system (as mentioned below)





7 hours ago, Kilrah said:

Usually it's because they haven't been properly unmounted last time they were used, connect to a Windows machine, check disk, eject properly



2 hours ago, dlandon said:

If you look at the syslog where the disk was mounted, you will generally see a log message explaining why the disk is mounted RO.  If it's an NTFS disk, it is because it was not shut down properly.



Thanks @Kilrah & @dlandon Y'all were correct, I removed the drives from the unraid setup, and put them back in the Windows rack.  Partition information had been corrupted, one wouldn't even recognize in windows at all (though was back to normal in unraid when I put it back there. Still (RO).

Data is very replaceable, so no big worry.



@dlandon Which syslog are you referring to?













2 minutes ago, shelfactor said:



@dlandon Which syslog are you referring to?

System log.

3 hours ago, dlandon said:

System log.



 Thanks, I was just making sure there wasn't another specific to unassigned devices.



Confirmed: the drives were marked from the prior system.

Re-inserted into Windows system, and then marked offline. -> Put back into unraid rack, and they are now not marked (RO).



Thanks again!

1 minute ago, shelfactor said:

Thanks, I was just making sure there wasn't another specific to unassigned devices.

UD uses the syslog because a separate log would be confusing.

I'm trying to set up a USB Blu-ray drive with my Unraid server. My main purpose is just reading data discs (like ZIP files containing photos) - not playing movies or doing backups. UD showed me there is an disk but nothing more. "partition" button is grayed out.  Any ideas? Thanks in advance.

Optical drives aren't supported AFAIK

5 hours ago, plenty_box said:

I'm trying to set up a USB Blu-ray drive with my Unraid server. My main purpose is just reading data discs (like ZIP files containing photos) - not playing movies or doing backups. UD showed me there is an disk but nothing more. "partition" button is grayed out.  Any ideas? Thanks in advance.

Your best bet is to use a VM or docker to mount and use an optical drive, depending on how you will use it.

Hello

I have share a SMB Shares | NFS Shares  this is working I can Access when I click on Unraid to this share

But how I can copy Files from Unraid to this Share

I go to Shares and Select a File.. Click Copy but I see only the Unraid Shares and not this SMB Share..

Im sure I forgot something.. thx for a hint

Source: //192.168.1.1/copy

Mount Point: /mnt/remotes/192.168.1.1_copy (mounted)

Try use the Mount Point but dosent work



thx for a hint

12 minutes ago, MrRog said:

Hello

I have share a SMB Shares | NFS Shares  this is working I can Access when I click on Unraid to this share

But how I can copy Files from Unraid to this Share

I go to Shares and Select a File.. Click Copy but I see only the Unraid Shares and not this SMB Share..

Im sure I forgot something.. thx for a hint

Source: //192.168.1.1/copy

Mount Point: /mnt/remotes/192.168.1.1_copy (mounted)

Try use the Mount Point but dosent work



thx for a hint

I think what you are talking about is the built in file manager.  In 7.0 a change was made that changed the file picker so the UD remotes/ ended up missing from the choices in the file picker.  This has been fixed in the next release of Unraid.

@Community Developer
Creating this share and try to copy files to this share
not sure what I need ad to Target...

4 minutes ago, MrRog said:

@Community Developer
Creating this share and try to copy files to this share
not sure what I need ad to Target...

/mnt/remotes/192.168.1.1_copy/

I get a Invalid Target Error, When I click on Mount Point, Im on this share so I guess share is working

Just now, MrRog said:

I get a Invalid Target Error, When I click on Mount Point, Im on this share so I guess share is working

I've never tried entering the destination manually.  The file manager may not like that.

ok how do i have to proceed in order to copy the data? from the share to unraid it simply does not go unraid to share
